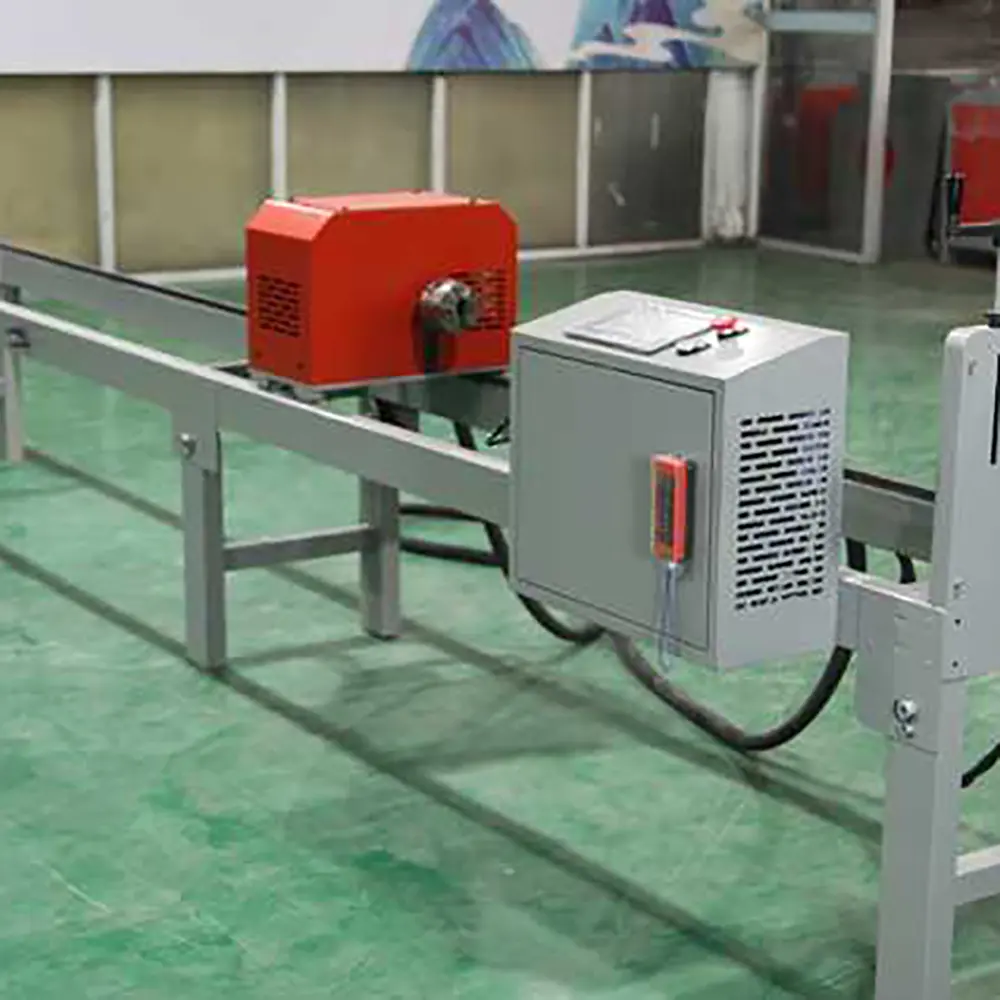

Feeding 6 Meters Simple Plasma Pipe Cutting Machine
The Feeding 6 Meters Simple Plasma Pipe Cutting Machine is an efficient and practical CNC plasma cutting solution specially designed for processing long metal pipes and tubes. Featuring a 6-meter automatic feeding system and reliable plasma cutting technology,this machine provides stable performance,high cutting efficiency,and cost-effective operation for industrial pipe fabrication.
Designed for manufacturers requiring continuous tube processing,the machine can automatically feed long pipes,perform accurate plasma cutting,and improve production efficiency compared with traditional manual cutting methods. It is suitable for round pipes,steel tubes,and various metal profiles used in construction,steel structures,machinery manufacturing,and metal fabrication industries.
With a simple and user-friendly design,the machine combines easy operation with reliable cutting performance. It is an ideal choice for customers who need economical pipe cutting equipment without complex automation systems.
|
Specification |
|
The Suitable pipe to cut |
Pipe material: carbon steel, stainless steel, iron pipe
pipe diameter: round tube φ19-97mm thickness within 3mm
(According to the plasma size)
Effective stroke: ≥6100mm |
|
Model |
SP-97(6100) |
|
Mane |
Round pipe intersecting cutting machine |
|
Measure |
6750*550*1350mm(Subject to the actual object) |
|
Weight |
150KG (Subject to the actual object) |
|
Power |
220V(Control part) |
|
Output voltage |
24V |
|
Accuracy of positioning |
±0.1mm |
|
Rack type |
2M precision straight teeth |
|
Mode of cutting |
plasma |
|
Cutting torch |
Non-contact P80 (plasma) |
|
Air supply |
It should be brought by oneself (≥0.8MPa) |
|
Pipe of frame size |
50x100mm |
|
Main component Settings and parameters |
|
Electric control unit |
chint |
|
Control system |
Digital control system software |
|
Three jaw chuck |
Manual and pneumatic |
|
Auxiliary support system |
Pneumatic takeoff and landing support frame |
|
System of power |
£stepper motor |
|
Speed of movement |
10-6000mm/min(can be adjusted according to processing requirements) |
|
Speed of cutting |
10-3000mm/min(can be adjusted according to processing requirements) |
|
Chuck speed |
1-4 seconds/turn |
|
Bear weight of single pipe |
20KG |
Advanced CNC Plasma Pipe Cutting Technology
The machine adopts CNC plasma cutting technology to achieve fast and accurate metal pipe processing.
Main processing functions:
Long pipe cutting
Round pipe cutting
Pipe hole cutting
Pipe slot cutting
Pipe joint cutting
Customized profile cutting
Plasma cutting advantages:
High cutting speed
Strong metal cutting ability
Suitable for medium and thick pipes
Lower operating cost
Easy maintenance
The plasma arc provides stable cutting performance and excellent productivity for industrial applications.

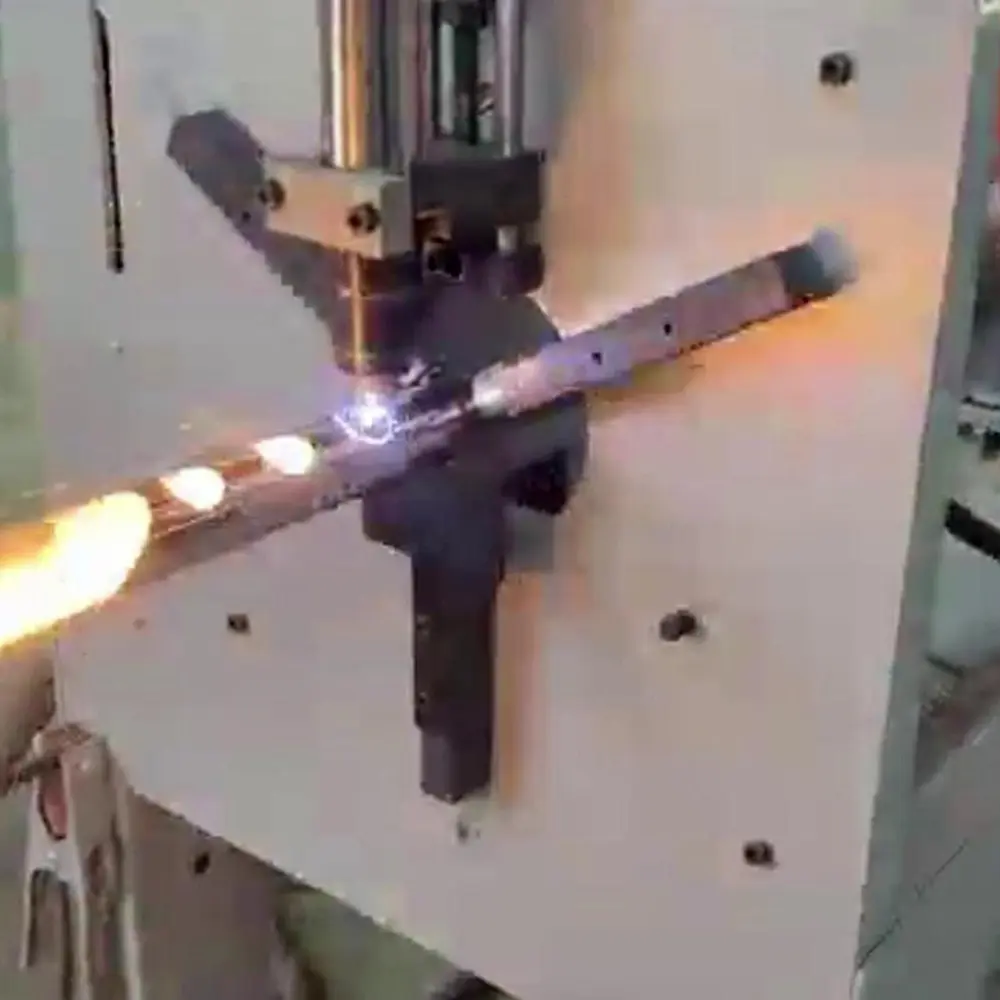

6 Meter Automatic Feeding System
The 6-meter feeding system is designed for continuous processing of long pipes.
Main advantages:
Supports long pipe materials
Reduces manual handling
Improves production efficiency
Ensures stable feeding accuracy
Suitable for batch production
The automatic feeding structure allows operators to load longer tubes efficiently and achieve continuous cutting operations.
Simple And Practical Machine Design
Compared with complex multi-function pipe processing systems,the simple plasma pipe cutting machine focuses on essential cutting performance and easy operation.
Key benefits:
Simple machine structure
Easy installation
Convenient operation
Low maintenance requirements
Affordable investment cost
It is suitable for small and medium-sized manufacturers,workshops,and industrial fabrication companies.
CNC Control System
The machine is equipped with an intelligent CNC control system for accurate cutting operation.
Main functions:
Cutting program input
Automatic path control
Digital parameter adjustment
Pipe positioning control
Cutting process monitoring
Benefits:
Easy operation
Reduced operator workload
Stable cutting quality
Faster production preparation
Improved efficiency
The CNC system helps ensure consistent cutting results for different pipe designs.
High Efficiency Long Pipe Cutting Solution
The Feeding 6 Meters Simple Plasma Pipe Cutting Machine provides an efficient solution for long tube processing.
Faster Production
Automatic feeding reduces loading time and improves production speed.
Accurate Cutting
CNC control ensures stable cutting dimensions and repeatability.
Cost-Effective Operation
Plasma technology provides strong cutting capability with reasonable operating costs.
Flexible Applications
Suitable for different pipe sizes and industrial fabrication requirements.
