Round Pipe Plasma Cutting Machine Technical Parameters

Round Pipe Plasma Cutting Machine is designed for accurate and efficient cutting of metal round pipes. With CNC plasma technology,it provides fast,stable,and economical solutions for steel tube fabrication,pipe hole cutting,and industrial metal proces.

The Round Pipe Plasma Cutting Machine is a professional CNC plasma cutting system specially designed for precision processing of round metal pipes and tubes. Equipped with advanced plasma cutting technology and intelligent CNC control,this machine provides fast cutting speed,stable performance,and excellent processing efficiency for industrial pipe fabrication.

Designed for manufacturers requiring reliable round tube cutting solutions,the machine can perform pipe cutting,hole cutting,slot cutting,branch pipe processing,and customized profile cutting. It is suitable for carbon steel pipes,stainless steel tubes,and other conductive metal materials.

Compared with traditional manual cutting methods,the CNC Round Pipe Plasma Cutting Machine offers higher accuracy,better production consistency,and improved working efficiency. It is widely used in steel structures,construction,automotive components,shipbuilding,mechanical manufacturing,and metal fabrication industries.

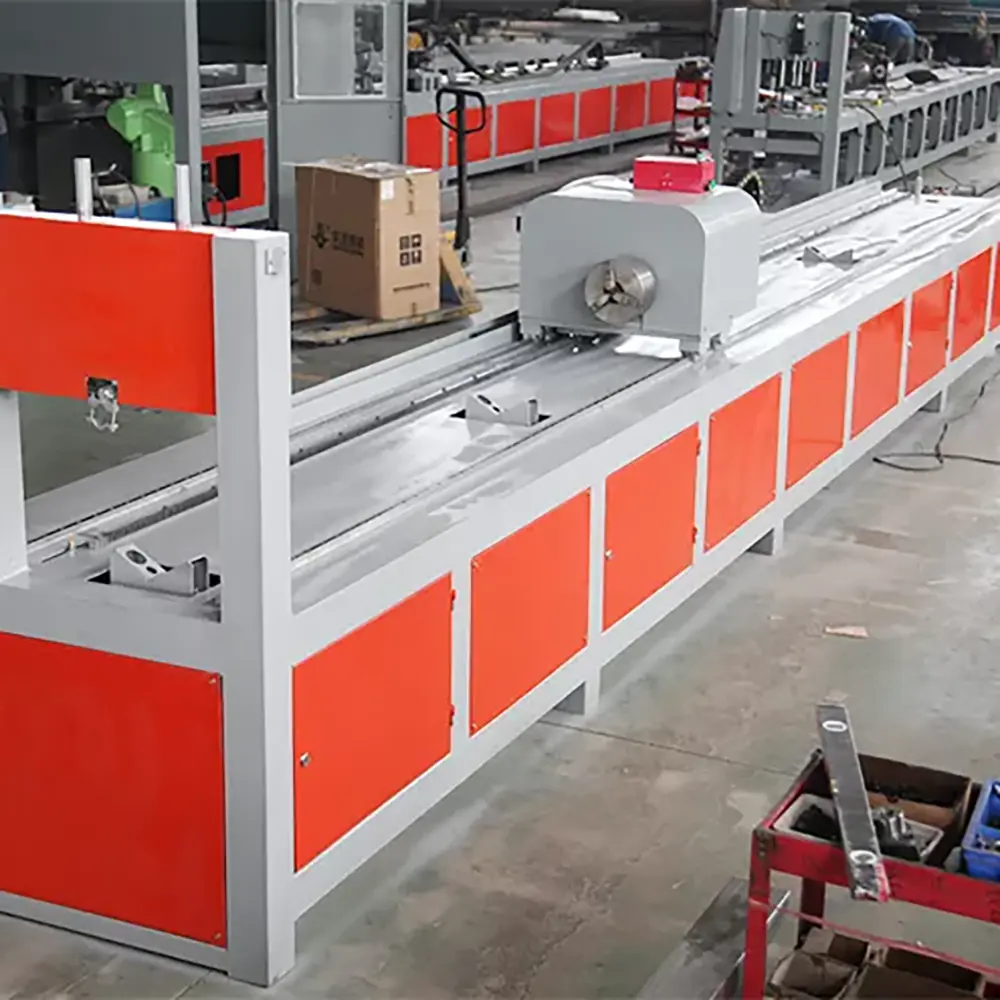

6 meters round tube plasma cutting machine
Suitable pipe to cut Tube material: carbon steel/ steel
diameter: round tube ,φ25-φ219 thickness within 10mm(can be customized)
Length: 6000mm
  Cut notching , cut hole ,cut off(30-90degree ),
model SP219(6000)
Measure 7600*1900*600mm (Subject to the actual object)
Weight of product 1500KG   (Subject to the actual object)
Input power supply 380V (three-phase, four-wire)
Output power supply 24V

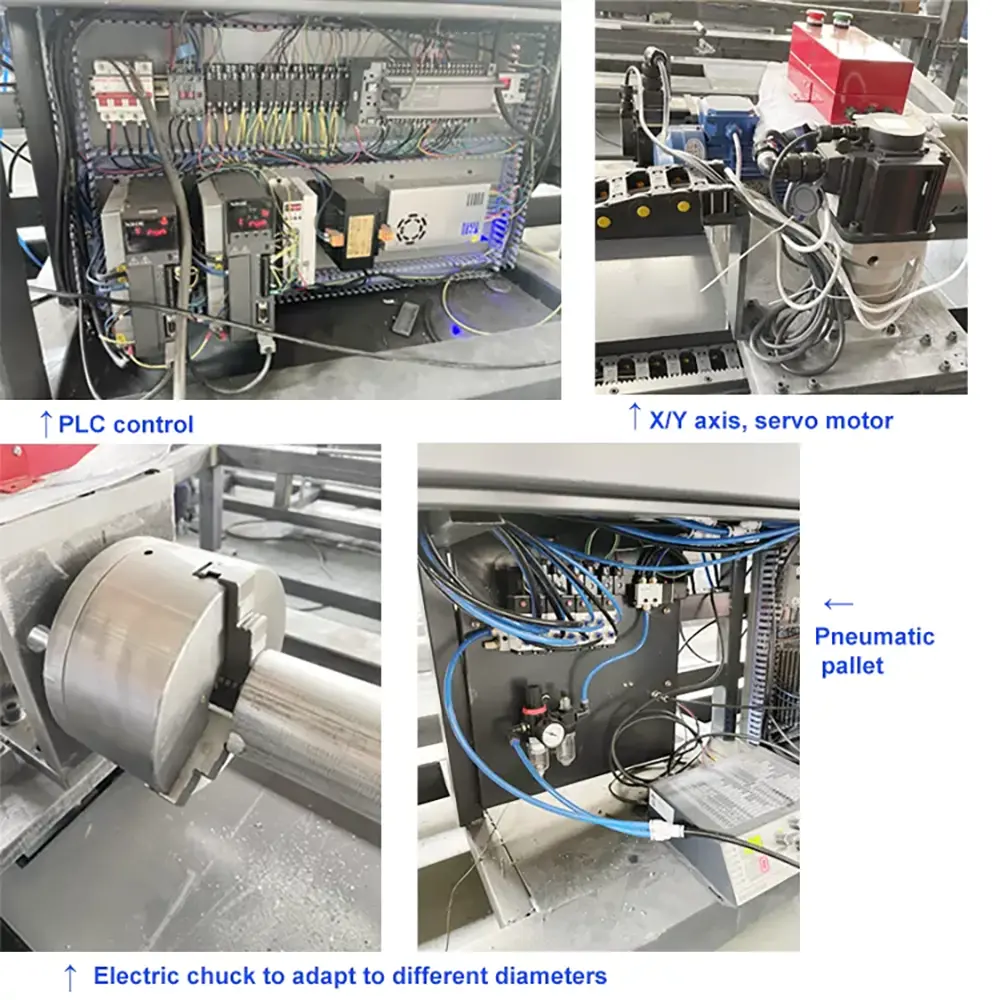

Mode of transmission Rack and pinion drive

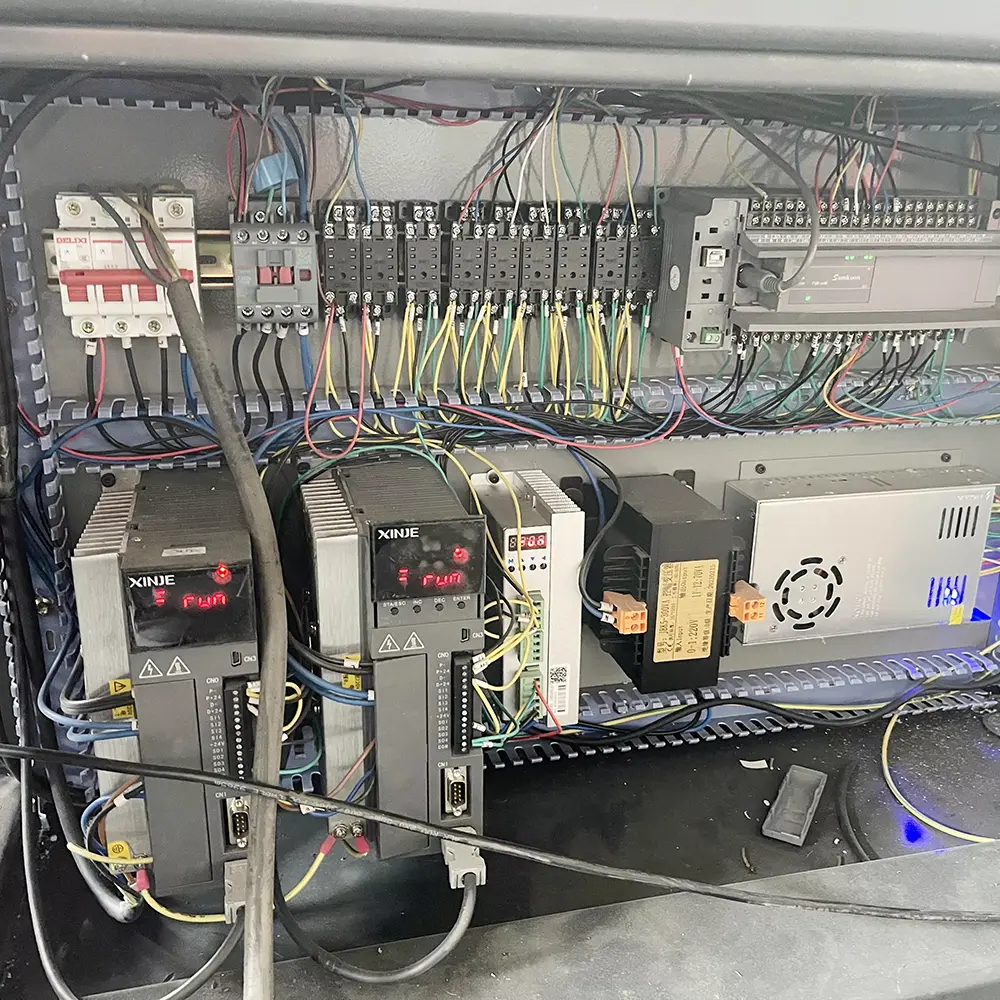

Mode of control PLC controlled touch screen
Thickness of fuselage coaming plate The 2.0 mm
Plasma power supply Customer's own
Pipe for fuselage frame 100 x100x3. 75 mm
Processing technology Manual feeding - automatic fixing - automatic rotation - automatic cutting – finishing
Main component Settings and parameters
Electric control unit chint
Size of guide rail Round guide rail
Operating system Numerical control system software
chuck Electric three-jaw chuck (feeding)
Auxiliary support system Automatic rise and fall support frame
Servo servo system Servo station operator

Advanced CNC Plasma Cutting Technology

The Round Pipe Plasma Cutting Machine adopts advanced CNC plasma technology to achieve efficient and precise pipe processing.

Main processing functions:

Round pipe cutting
Pipe hole cutting
Slot cutting
Pipe intersection cutting
Angle cutting
Customized shape cutting

Plasma cutting advantages:

High cutting speed
Strong cutting capability
Suitable for thick metal pipes
Low operating cost
Easy maintenance

The powerful plasma arc provides stable cutting performance for different metal thicknesses.

Professional Round Pipe Processing System

The machine is specially designed for round pipe applications and provides accurate tube positioning during cutting.

Suitable materials:

Carbon Steel Pipe
Stainless Steel Pipe
Mild Steel Tube
Galvanized Steel Pipe
Alloy Conductive Metals

Suitable applications:

Steel pipe fabrication
Tube structure manufacturing
Pipe connection processing
Industrial metal production

The specialized rotary pipe system ensures stable movement and precise cutting results.

CNC Intelligent Control System

The machine features an advanced CNC control system for efficient operation.

Main functions:

CAD drawing import
Automatic cutting path calculation
Digital parameter adjustment
Automatic positioning
Cutting process monitoring

Benefits:

Easy operation
Reduced operator requirements
Faster production adjustment
Stable cutting quality
Improved productivity

The CNC system allows operators to quickly process different pipe designs and sizes.

High Efficiency Round Pipe Cutting Performance

The Round Pipe Plasma Cutting Machine provides reliable performance for industrial production.

Fast Cutting Speed

Plasma technology enables efficient cutting of medium and thick metal pipes.

Strong Cutting Capability

Suitable for heavy-duty steel pipe processing.

Accurate Processing

CNC control improves cutting consistency and dimensional accuracy.

Flexible Applications

Supports different pipe diameters and cutting requirements.

Economical Operation

Lower equipment cost and consumable expenses make it suitable for various manufacturing applications.

Wide Application Industries
Steel Structure Industry

Applications:

Steel frames
Structural pipes
Engineering components
Construction Industry

Used for:

Building pipe structures
Metal supports
Architectural frameworks
Automotive Manufacturing

Applications:

Vehicle frame tubes
Exhaust components
Metal brackets
Shipbuilding Industry

Used for:

Marine pipe systems
Steel structures
Pipe fabrication
Machinery Manufacturing

Applications:

Equipment frames
Mechanical components
Industrial pipe parts
Suitable Materials

The Round Pipe Plasma Cutting Machine can process:

Carbon Steel
Stainless Steel
Mild Steel
Galvanized Steel
Other Conductive Metals

Suitable pipe types:

Round Steel Pipe
Stainless Steel Tube
Industrial Pipe
Structural Tube
Advantages Compared With Traditional Pipe Cutting
Higher Production Efficiency

CNC plasma cutting reduces manual processing time and improves output.

Better Cutting Quality

Automatic control provides consistent cutting results.

Lower Equipment Investment

Compared with laser cutting systems,the plasma solution offers a cost-effective option for many applications.

Flexible Pipe Processing

Suitable for different pipe diameters and cutting patterns.

Reduced Labor Cost

Automatic operation reduces dependence on manual cutting.

Reliable Industrial Machine Structure

The machine adopts a durable industrial structure for stable long-term operation.
