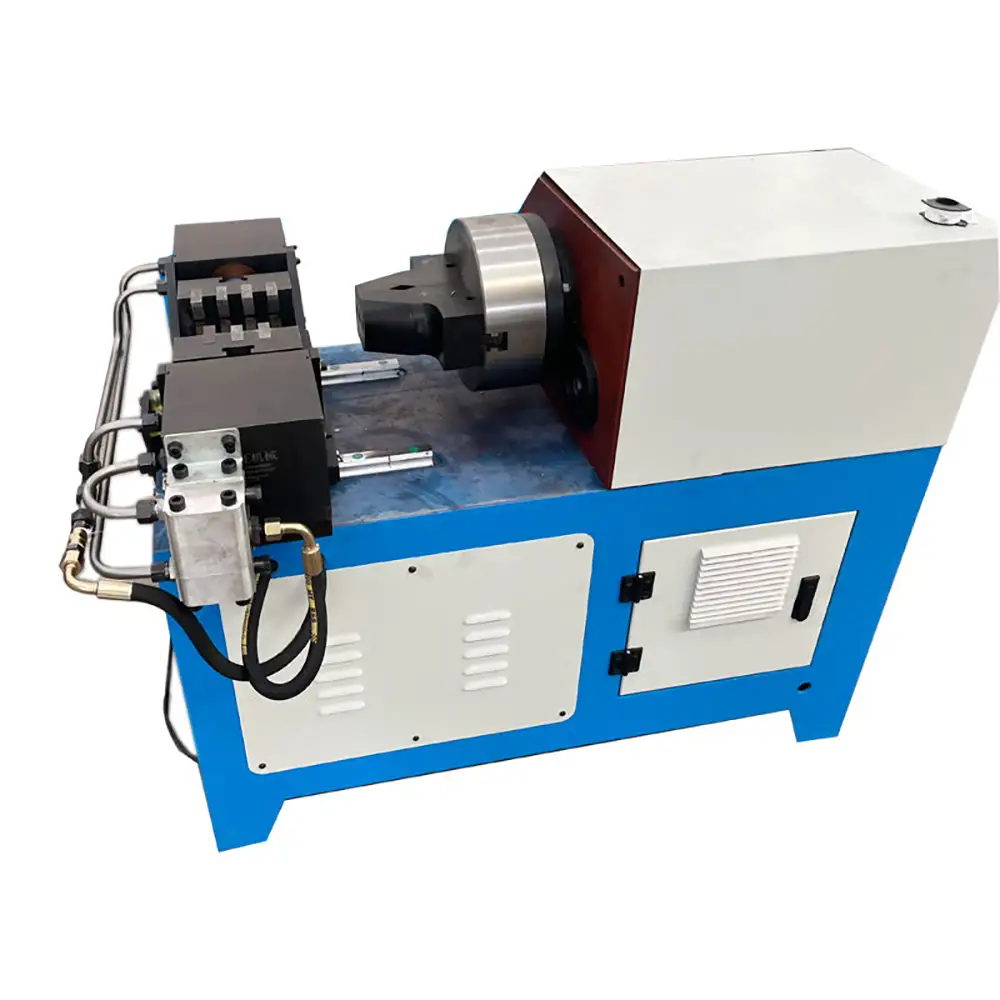

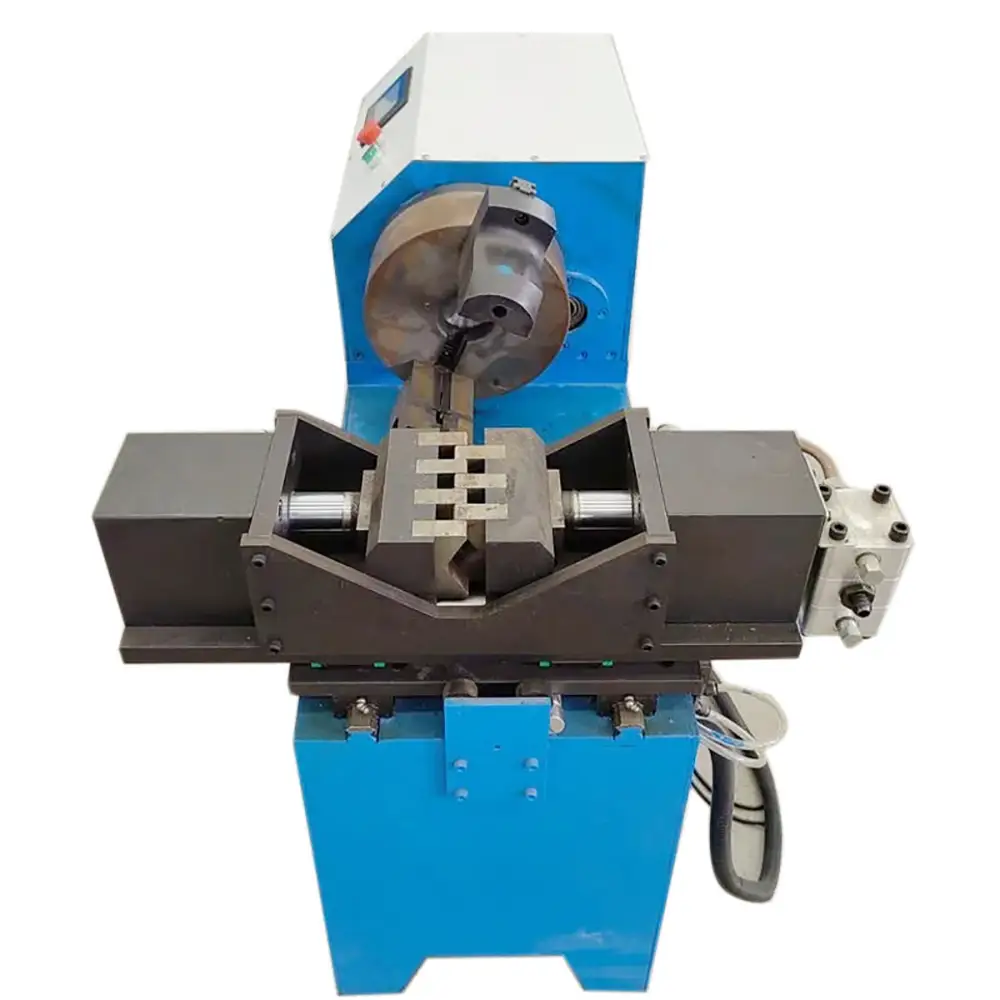

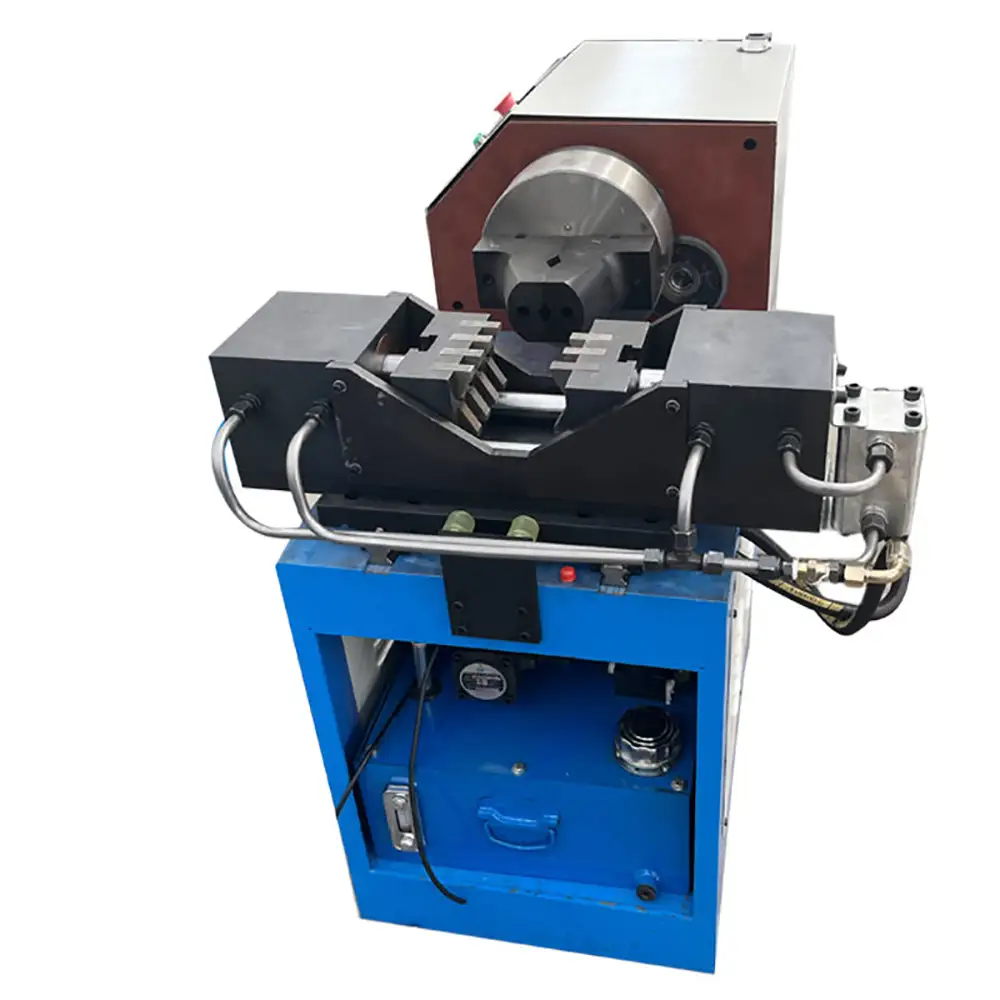

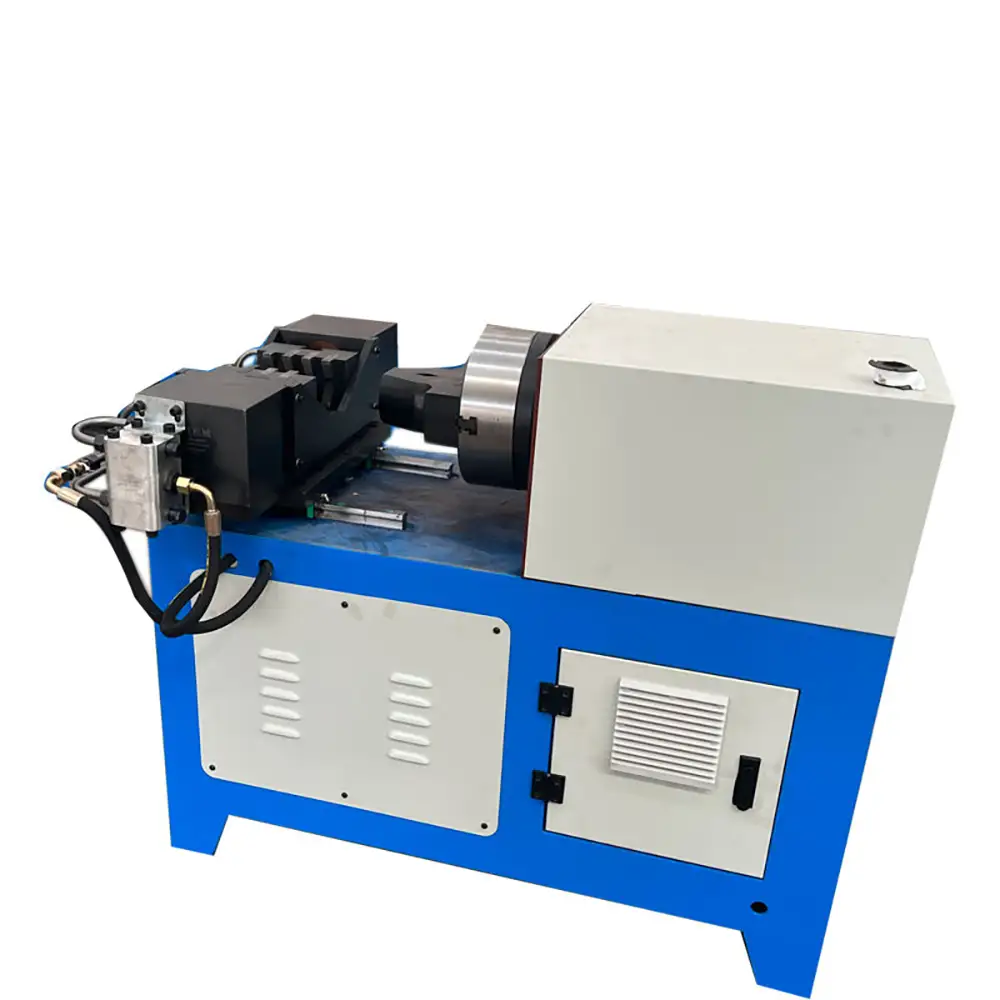

Sprinkler Pipe Tightening Machine Pipe End Screw Tightly Machine

1 The machine adopts flexible design, servo motor drive, automatic clamping and unclamping.

2 Angle and torque can be set to adapt to different pipe diameter tightening needs.


Model	65
Wattage	3kw
Processing specification	65
Maximum torque	400N.m
Processing efficiency	About 30s/piece
Overall Dimension	120*80*90mm
Weight	474kg

The Sprinkler Pipe Tightening Machine Pipe End Screw Tightly Machine is an industrial pipe assembly and tightening solution designed for efficient connection of threaded pipes, fittings, couplings, and other compatible pipeline components. It is particularly suitable for fire sprinkler pipe systems, steel pipe assembly, plumbing applications, construction projects, and industrial pipeline fabrication.

After pipe ends are threaded, the next production step often involves connecting pipes with threaded fittings or couplings. Manual tightening can require significant operator effort and may result in inconsistent tightening force. A dedicated Pipe End Screw Tightening Machine helps improve assembly efficiency by providing controlled mechanical tightening for compatible pipe connections.

Designed For Sprinkler Pipe Assembly

Fire sprinkler systems use threaded steel pipes and fittings in many installation and fabrication applications. Efficient assembly is important when preparing large quantities of sprinkler pipe sections, couplings, nipples, and related components.

The machine can be configured according to the pipe diameter, fitting type, connection structure, and production requirements. Suitable fixtures and gripping mechanisms help secure the pipe while the threaded component is tightened.

Pipe End Screw Tightening

The main function of the machine is to tighten threaded components onto pipe ends. Depending on the configuration, the equipment can be used for threaded pipe connections involving couplings, fittings, adapters, nipples, and other compatible components.

Controlled mechanical tightening helps reduce repetitive manual work and can improve production consistency. The appropriate tightening method depends on the pipe size, thread specification, fitting design, and required connection torque.

Efficient Pipe Connection Assembly

For manufacturers processing large quantities of sprinkler pipes or other threaded pipe components, manual assembly can become a time-consuming operation. The Sprinkler Pipe Tightening Machine provides a dedicated workstation for repetitive pipe connection tasks.

Operators can position the pipe and fitting according to the machine's operating procedure, allowing the tightening mechanism to complete the connection more efficiently.

Stable Pipe Clamping

Secure workpiece clamping is essential during pipe tightening. The machine can use suitable chucks, clamps, fixtures, or positioning systems to hold the pipe securely during assembly.

Stable clamping helps reduce pipe movement and allows the tightening force to be transferred more effectively to the threaded connection. Fixture design can be adjusted according to pipe diameter and product geometry.

Suitable For Fire Sprinkler Pipes

The machine is suitable for compatible fire sprinkler pipe assembly applications where threaded connections are used. It can support production processes involving sprinkler pipe sections and threaded fittings.

For fire protection projects, the final connection must meet the applicable project specifications and installation requirements. Machine settings and tooling should be selected according to the actual pipe and fitting system.

Pipe Coupling Tightening

Pipe couplings are widely used to connect two threaded pipe sections. Installing couplings manually can require repeated turning and physical effort, especially when processing large batches.

A Pipe Coupling Tightening Machine can help automate or mechanize this repetitive operation. The machine holds the workpiece securely while the coupling is tightened according to the selected operating parameters.

Pipe Fitting Assembly

In addition to couplings, the machine may be used with compatible threaded fittings such as adapters, connectors, nipples, and other pipe-end components.

Different fittings have different shapes and dimensions, so suitable tooling and fixtures may be required. Customers should provide fitting samples or drawings when requesting a customized configuration.

Controlled Tightening Process

Consistent tightening is important for threaded pipe connections. Excessive tightening may damage components, while insufficient tightening may affect the intended connection.

The machine can be configured to provide a controlled tightening process according to the application. Actual tightening force or torque requirements depend on the pipe material, fitting type, thread size, connection design, and applicable standards.

Improved Production Efficiency

The Pipe End Screw Tightly Machine is designed for repetitive industrial operations. Mechanized tightening can reduce manual turning and help operators process more components within a production shift.

It is especially useful for factories and pipe fabrication companies that prepare large quantities of standardized pipe assemblies.

Suitable For Steel And Metal Pipes

The machine can be configured for suitable steel pipes, galvanized steel pipes, carbon steel pipes, and other compatible metal pipe products.

Pipe diameter, wall thickness, thread profile, fitting dimensions, and component weight should be considered when selecting the correct clamping and tightening configuration.

Flexible Machine Configuration

Different pipe products require different workholding and tightening solutions. The machine can be configured with suitable fixtures, chucks, tightening heads, guides, control systems, and feeding arrangements according to the customer's production requirements.

For automated production lines, additional pipe feeding, positioning, inspection, and discharge systems may also be considered depending on the application.

B2B Customized Pipe Assembly Solution

Every pipe assembly project may involve different pipe sizes, thread standards, fittings, production volumes, and connection requirements. Therefore, machine selection should be based on actual samples and technical specifications.

We support B2B customers with application evaluation, machine configuration, tooling recommendations, sample testing, technical documentation, and export services. Customers can provide pipe samples, fitting samples, drawings, dimensions, thread specifications, and required production capacity for evaluation.

Key Features
Sprinkler Pipe Tightening Application
Pipe End Screw Tightening
Pipe Coupling Assembly
Threaded Pipe Fitting Assembly
Stable Pipe Clamping
Controlled Tightening Operation
Suitable For Steel Pipes
Fire Sprinkler Pipe Applications
Reduced Manual Assembly
Improved Production Efficiency
Customized Fixtures And Tooling
B2B Industrial Pipe Assembly Solution
Main Applications
Fire Sprinkler Pipes
Sprinkler Pipe Couplings
Steel Pipe Assemblies
Threaded Pipe Fittings
Pipe Nipples
Pipe Adapters
Pipeline Components
Plumbing Pipe Assembly
Fire Protection Systems
Construction Pipe Fabrication
Industrial Pipeline Assembly
Metal Pipe Processing
FAQs
1. What is a Sprinkler Pipe Tightening Machine?

It is an industrial machine designed to tighten threaded fittings, couplings, or other compatible components onto sprinkler pipes and other threaded metal pipes.

2. What is a Pipe End Screw Tightening Machine?

It is equipment used to mechanically tighten threaded components onto a pipe end, helping reduce manual assembly work and improve production efficiency.

3. Can it be used for fire sprinkler pipes?

Yes. The machine can be configured for compatible threaded fire sprinkler pipe assembly applications. Pipe and fitting specifications should be confirmed before selecting the configuration.

4. Can it tighten pipe couplings?

Yes. Suitable pipe couplings can be tightened when the machine is equipped with the appropriate clamping and tightening tooling.

5. What pipe materials can be processed?

Suitable applications may include carbon steel, galvanized steel, steel, and other compatible metal pipes, depending on machine configuration and tooling.

6. Can it be used for different pipe diameters?

Different pipe diameters may require different fixtures, chucks, tightening heads, or tooling. The required pipe size range should be provided before machine selection.

7. Does the machine control tightening force?

Depending on the machine configuration, the tightening process can be controlled according to the application's requirements. Specific torque or force capabilities should be confirmed based on the selected model.

8. Can it process different fittings?

Potentially yes. Couplings, adapters, nipples, connectors, and other compatible threaded fittings can be supported with suitable fixtures and tooling.

9. Can the machine be integrated into an automatic production line?

Yes. Depending on production requirements, feeding, positioning, tightening, inspection, and discharge functions can be integrated into a customized production system.

10. What information is needed for customization?

Please provide pipe diameter, pipe length, material, thread specification, fitting or coupling type, connection requirements, production volume, and product samples or drawings.

Why Choose Us
Specialized Pipe Assembly Equipment

We provide industrial solutions for pipe threading, pipe end processing, pipe fitting assembly, coupling tightening, and related metal pipe production applications.

Fire Sprinkler Application Support

We can evaluate compatible sprinkler pipe, fitting, and coupling applications and recommend suitable machine configurations and workholding solutions.

Customized Tightening Tooling

Different pipe sizes and fittings require different fixtures and tightening components. We can provide tooling recommendations based on customer samples and technical drawings.

Sample-Based Technical Support

Customers can send pipe and fitting samples, drawings, dimensions, and connection specifications for application evaluation before ordering.

Factory-Direct Supply

We support pipe manufacturers, fire protection equipment suppliers, plumbing companies, construction contractors, distributors, and industrial fabrication businesses.

International Export Service

We provide technical documentation, machine operating guidance, export packaging, shipping coordination, and after-sales support for overseas customers.
