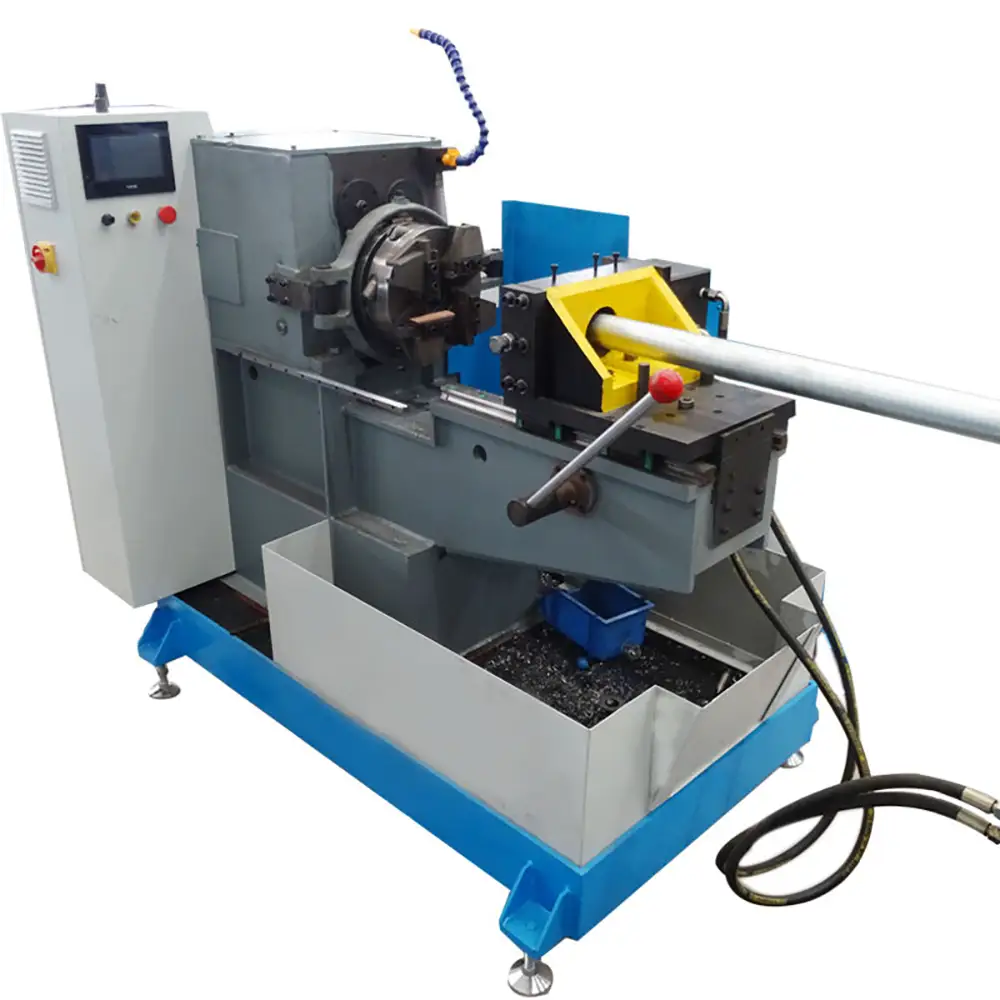

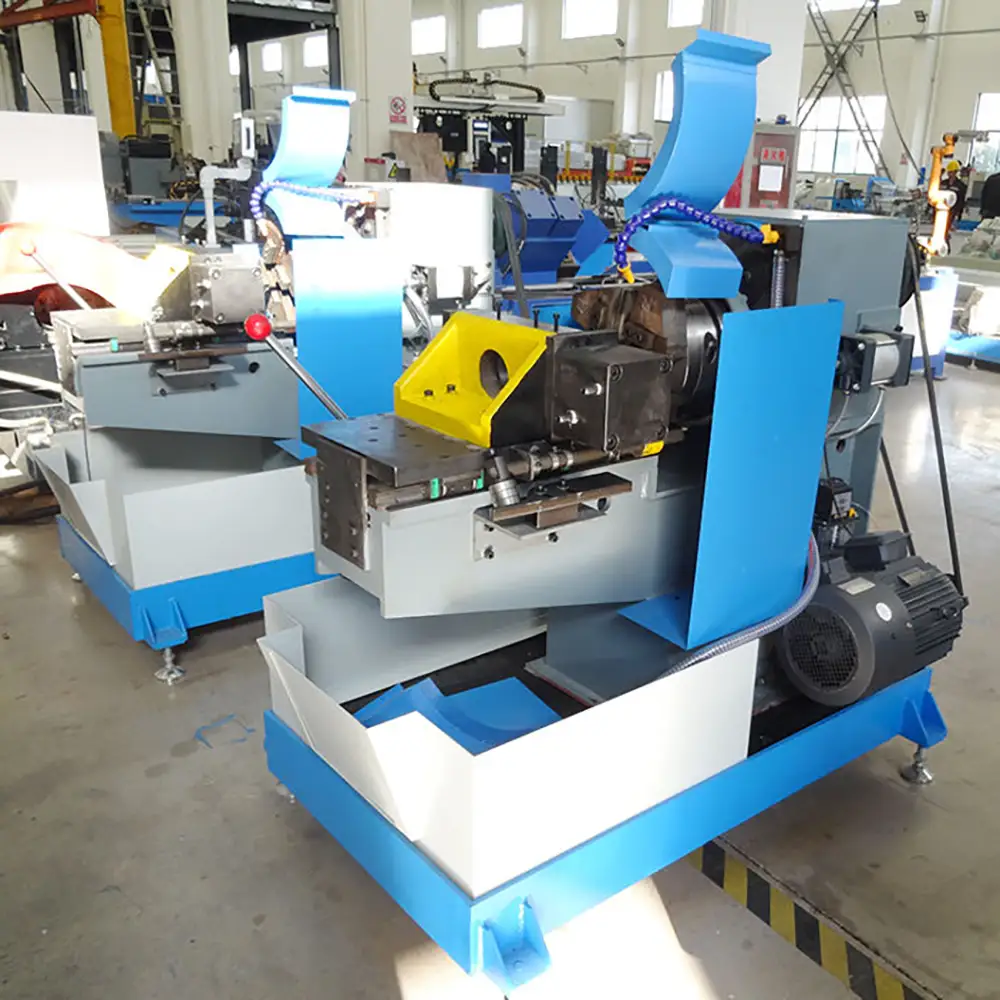

Manual Operational Pipe Threading Machinesuitable for Short Pipes

1, single-headed manual feed pipe, suitable for short pipes
2, the machine is simple to operate, high efficiency
3, the threading tool can be used 30,000-50,000 times
4, light weight and small size of the machine, can be moved at will

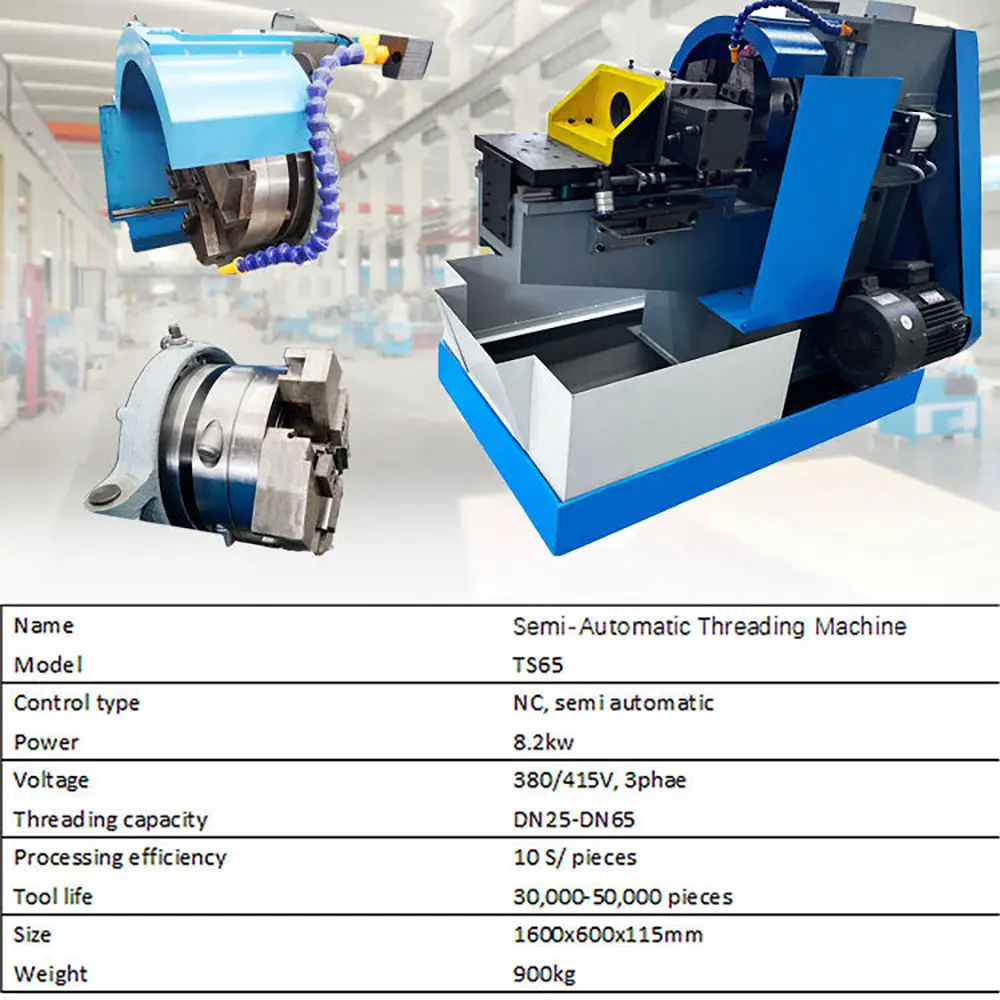

Model	65
Control type	NC, semi automatic
Power	8.2kw
Threading capacity	DN25-DN65
Processing efficiency	10 S/ pieces
Tool life	30,000-50,000 pieces
Size	1600x600x115mm
Weight	900kg

The Manual Operational Pipe Threading Machine Suitable for Short Pipes is a practical industrial pipe processing solution designed for threading short steel pipes, metal tubes, and other compatible pipe components. It is suitable for workshops, plumbing applications, construction projects, maintenance operations, and small to medium-volume pipe fabrication where manual operation and flexible workpiece handling are required.

Short pipes can be difficult to process with some conventional threading equipment because limited workpiece length can affect clamping, positioning, and operator access. A dedicated Short Pipe Threading Machine provides a practical solution by using suitable clamping and threading components designed around shorter workpieces.

Manual Pipe Threading Operation

The machine uses a manual operating method that allows the operator to control the workpiece and threading process directly. This simple operating concept can be useful for workshops and production environments that do not require a fully automatic threading line.

Manual operation also provides flexibility when processing different pipe lengths, small batches, replacement components, repair parts, or customized pipe assemblies. Operators can adjust the workpiece position and threading operation according to the specific application.

Designed for Short Pipes

The primary advantage of this equipment is its suitability for short pipe applications. Short pipe sections are commonly used in plumbing fittings, pipeline connections, construction components, machinery assemblies, and maintenance work.

The machine can be configured with appropriate clamping fixtures and threading tooling according to pipe diameter, material, thread specification, and workpiece geometry. Proper clamping is especially important when processing shorter pipe sections because the available gripping area may be limited.

Efficient Pipe Threading

The Manual Pipe Threading Machine is designed to produce external threads on compatible metal pipes. Threading dies are selected according to the required pipe diameter and thread profile.

During operation, the pipe is securely positioned and the threading tool is applied to the pipe end. Controlled manual operation allows the operator to monitor the cutting process and make adjustments when necessary.

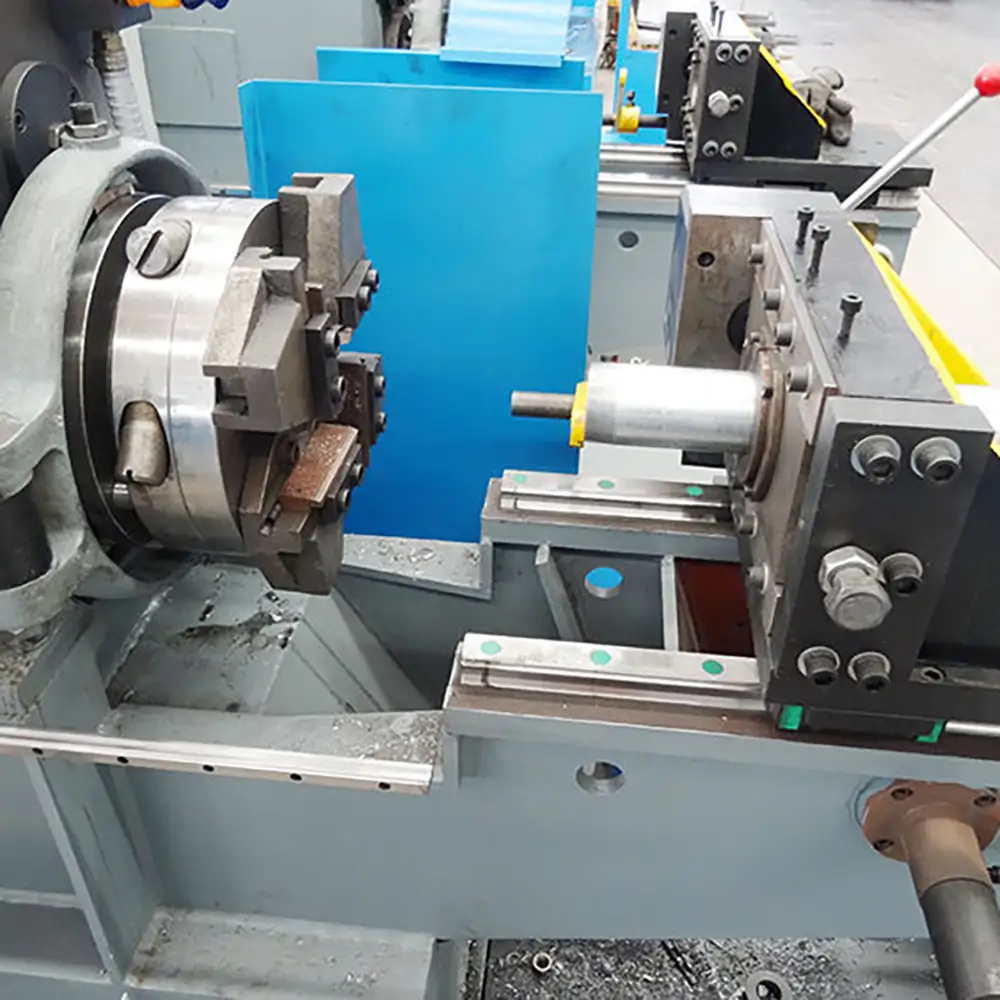

Stable Workpiece Clamping

Secure pipe clamping helps prevent movement during threading. The machine can use suitable chucks, clamps, fixtures, or other workholding components according to the machine design.

Stable positioning helps maintain consistent thread alignment and can reduce vibration during processing. For short pipes, proper fixture selection is particularly important because the workpiece provides less gripping length than a standard long pipe.

Suitable for Steel and Metal Pipes

The machine can be used for suitable steel pipes, galvanized steel pipes, carbon steel pipes, stainless steel pipes, and other compatible metal tubes, depending on the tooling and machine configuration.

Material hardness, pipe wall thickness, outside diameter, thread specification, and required thread length should be considered before selecting the appropriate dies and machine setup.

Flexible Threading Dies

Different pipe sizes and thread profiles require corresponding threading dies. Replaceable or interchangeable dies allow the machine to support different pipe threading requirements when compatible tooling is available.

Customers should provide the required pipe diameter, thread type, pitch, standard, and thread length so that appropriate tooling can be evaluated for the application.

Suitable for Plumbing Applications

Short threaded pipes are widely used in plumbing installations and pipe fitting assemblies. The machine can support suitable pipe preparation for water supply systems, utility piping, building services, and maintenance work.

It may also be used for preparing threaded pipe sections for fittings, couplings, valves, elbows, and other compatible components.

Construction and Maintenance Applications

Construction and maintenance teams often need to process individual pipe sections rather than operate a large automated production line. A manual pipe threader can provide a flexible solution for these applications.

It can be used in workshops, fabrication areas, equipment maintenance facilities, and construction-related pipe processing operations where portability, simple operation, and adaptable threading are important.

Workshop Pipe Fabrication

For small and medium production batches, a manual machine can provide a cost-effective alternative to highly automated threading equipment. Operators can process different workpieces according to production requirements without setting up a complete automated line.

This makes the machine suitable for custom pipe components, replacement parts, repair work, prototype production, and general metalworking applications.

Consistent Thread Quality

Although operation is manual, proper workpiece clamping, suitable dies, correct lubrication, and controlled operating procedures can help achieve consistent thread quality.

Thread quality should be checked according to the requirements of the final pipe connection. For demanding applications, customers should provide technical drawings or samples so the machine and tooling can be evaluated before production.

Easy Operation and Maintenance

The straightforward operating principle makes the machine practical for factory and workshop environments. Operators can load the pipe, secure it in the workholding system, install the appropriate threading die, and perform the threading operation according to established procedures.

Routine cleaning, lubrication, die inspection, and mechanical maintenance can help maintain stable performance and extend equipment service life.

B2B Customized Pipe Threading Solution

Different customers may have different requirements for pipe diameter, pipe length, material, thread standard, thread length, and production volume. Therefore, machine configuration and tooling should be selected according to the actual application.

We can support B2B customers with machine selection, threading die recommendations, fixture configuration, sample testing, technical documentation, and export service. Customers can provide pipe samples, drawings, dimensions, material information, and required thread specifications for evaluation.

Key Features
Manual Pipe Threading Operation
Designed For Short Pipes
Stable Workpiece Clamping
Suitable For Steel And Metal Pipes
Replaceable Threading Dies
Flexible Pipe Size Applications
Consistent External Threading
Simple Workshop Operation
Reduced Equipment Complexity
Suitable For Small Batch Production
Easy Maintenance
B2B Customized Configuration
Main Applications
Short Steel Pipes
Metal Tubes
Plumbing Pipes
Galvanized Steel Pipes
Carbon Steel Pipes
Stainless Steel Pipes
Pipe Fittings
Pipeline Components
Construction Pipe Fabrication
Plumbing Maintenance
Workshop Pipe Processing
Industrial Maintenance
FAQs
1. What is a Manual Operational Pipe Threading Machine?

It is a manually operated machine designed to create external threads on compatible metal pipes and tubes. It is particularly suitable for workshops and applications requiring flexible processing of short pipe sections.

2. Is this machine suitable for short pipes?

Yes. The machine is designed for applications involving short pipe sections, with suitable clamping and threading tooling selected according to the workpiece dimensions.

3. What materials can be threaded?

Suitable applications may include carbon steel, galvanized steel, stainless steel, and other compatible metal pipes. Material suitability depends on machine capacity and tooling.

4. Is the machine fully automatic?

No. This model is designed for manual operation. The operator controls workpiece loading, positioning, and the threading process.

5. What pipe sizes can it process?

The applicable pipe diameter depends on the specific machine configuration and threading dies. Customers should provide the required pipe dimensions before selecting the machine.

6. Can different threading dies be used?

Yes. Suitable threading dies can be selected or configured for different pipe sizes and thread specifications.

7. Is it suitable for plumbing applications?

Yes. It can be used for suitable threaded pipe preparation in plumbing installation, maintenance, pipe fitting, and related applications.

8. Can it process stainless steel pipes?

Compatible stainless steel pipes may be processed when the machine and threading dies are suitable for the material. Material grade and pipe dimensions should be confirmed before production.

9. What information is needed for machine selection?

Please provide pipe outside diameter, wall thickness, pipe length, material, thread standard, thread diameter, pitch, thread length, and expected production volume.

10. Can customized tooling be provided?

Yes. Threading dies, workholding fixtures, guides, and other tooling can be selected or customized according to the customer's pipe and thread requirements.

Why Choose Us
Specialized Pipe Threading Equipment

We provide industrial pipe threading machinery for steel pipes, metal tubes, plumbing components, and customized pipe processing applications.

Short Pipe Application Support

Short workpieces require suitable clamping and tooling. We can evaluate the customer's pipe dimensions and recommend an appropriate machine configuration.

Customized Threading Dies

Different pipe sizes and thread specifications require suitable dies. We provide tooling recommendations based on customer drawings, samples, and technical requirements.

Sample-Based Technical Support

Customers can send pipe samples, drawings, material information, and thread specifications for application evaluation before ordering.

Factory-Direct Supply

We support importers, distributors, plumbing equipment suppliers, pipe fabrication companies, construction businesses, and industrial manufacturers.

International Export Service

We provide technical documentation, operating guidance, export packaging, shipping coordination, and after-sales support for international customers.
