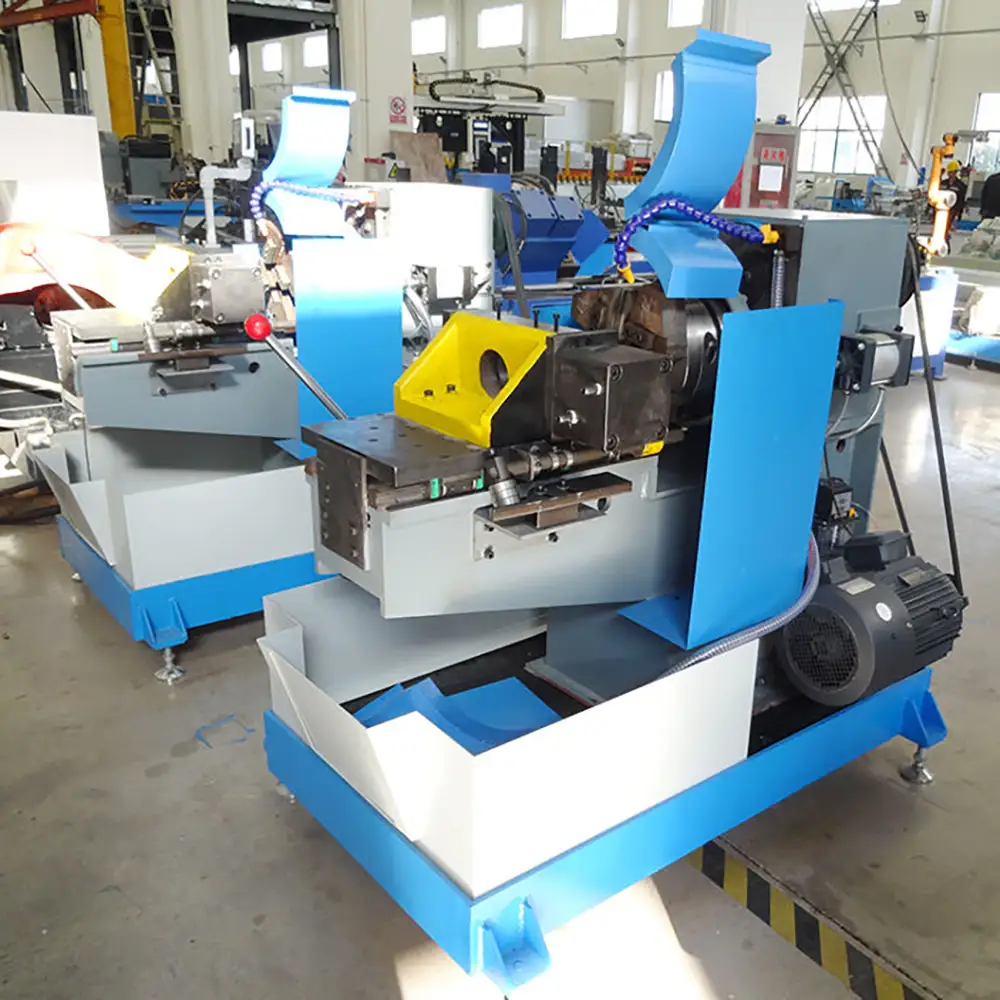

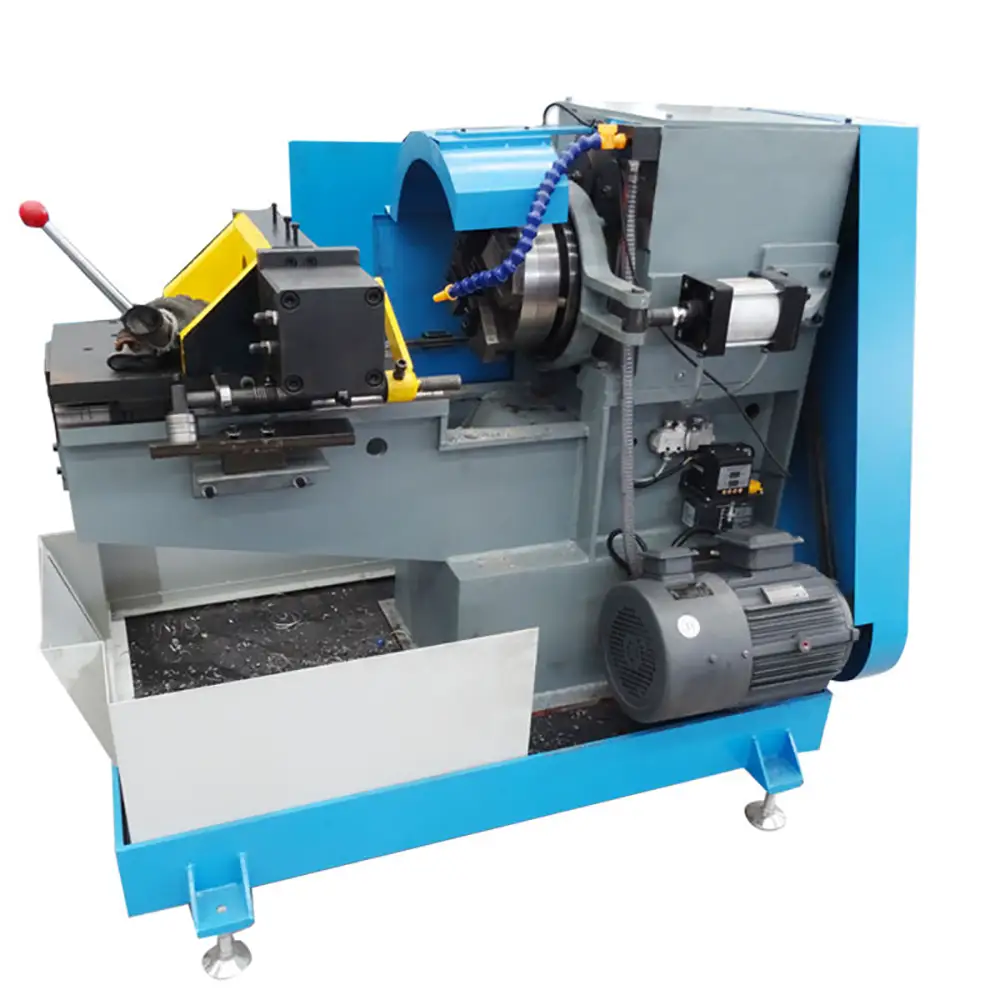

Single Station Semi Automatic Pipe End Threading Machine

1, single-headed manual feed pipe, suitable for short pipes
2, the machine is simple to operate, high efficiency
3, the threading tool can be used 30,000-50,000 times
4, light weight and small size of the machine, can be moved at will


Model	65
Control type	NC, semi automatic
Power	8.2kw
Threading capacity	DN25-DN65
Processing efficiency	10 S/ pieces
Tool life	30,000-50,000 pieces
Size	1600x600x115mm
Weight	900kg

The Single Station Semi Automatic Pipe End Threading Machine is an industrial pipe processing solution designed for efficient and consistent threading of steel pipes, metal tubes, and other compatible pipe products. Its single-station configuration provides a practical working arrangement for factories, workshops, pipe fabrication companies, plumbing suppliers, and industrial manufacturers that require reliable pipe end threading without the complexity of a fully automatic production line.

Semi-automatic operation combines operator-controlled workpiece loading with mechanized threading functions. This configuration can reduce repetitive manual threading work while maintaining flexibility for different pipe lengths, diameters, materials, and production batches.

Single Station Pipe Threading Design

The single-station design provides a dedicated area for pipe clamping and end threading. This straightforward structure is suitable for manufacturers that need a compact and practical threading solution for repetitive pipe processing.

The operator can load and position the pipe, secure it in the clamping system, and start the threading cycle according to the machine's operating procedure. After processing, the finished pipe can be removed and the next workpiece loaded.

Semi Automatic Pipe End Threading

The Semi Automatic Pipe End Threading Machine reduces the amount of manual effort required during the threading operation. While the operator remains responsible for workpiece loading and unloading, the machine performs the main threading process mechanically.

This operating method is useful for small and medium production batches, customized pipe fabrication, maintenance operations, and factories where production flexibility is more important than a fully automated production line.

Efficient Pipe End Processing

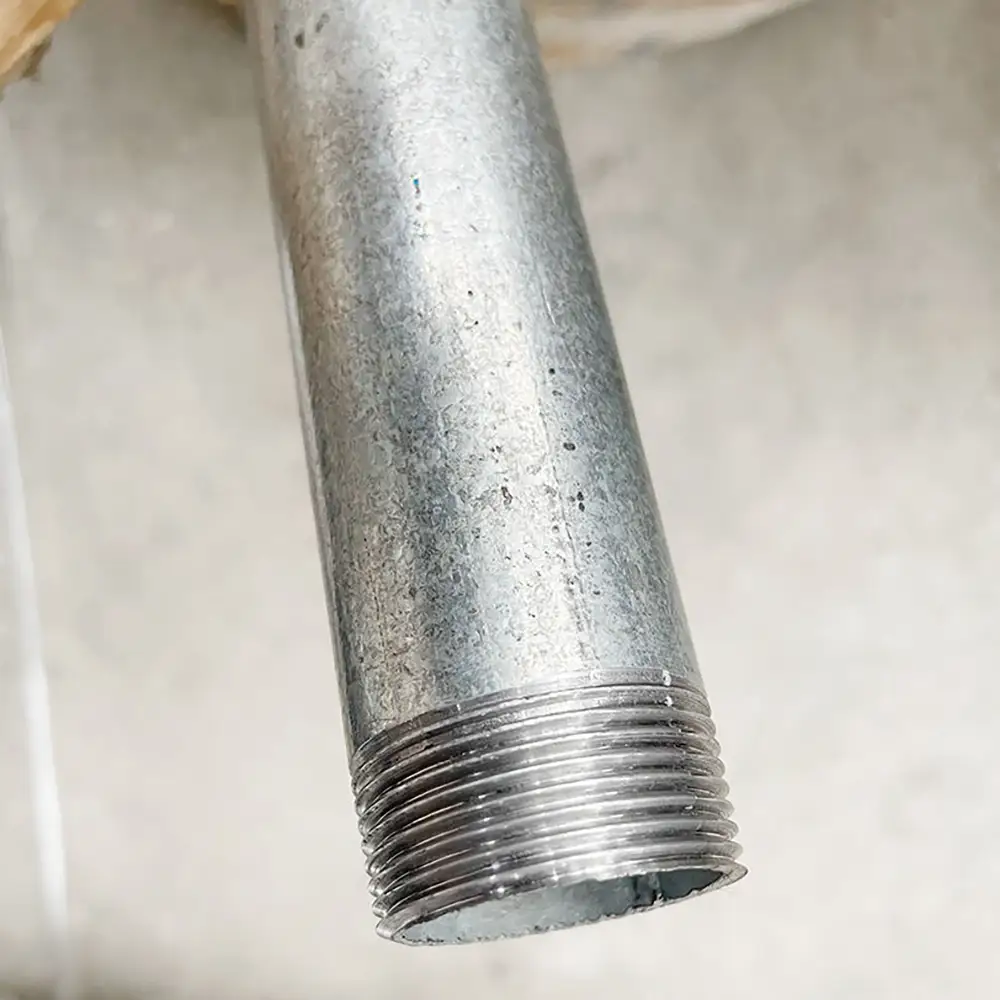

Pipe end threading is commonly required before connecting pipes with threaded fittings, couplings, valves, adapters, and other components. Accurate end processing helps prepare the pipe for subsequent assembly.

The machine can be configured with suitable threading dies and tooling according to pipe diameter, thread specification, thread length, and material. Proper tooling selection helps achieve consistent thread profiles throughout the production batch.

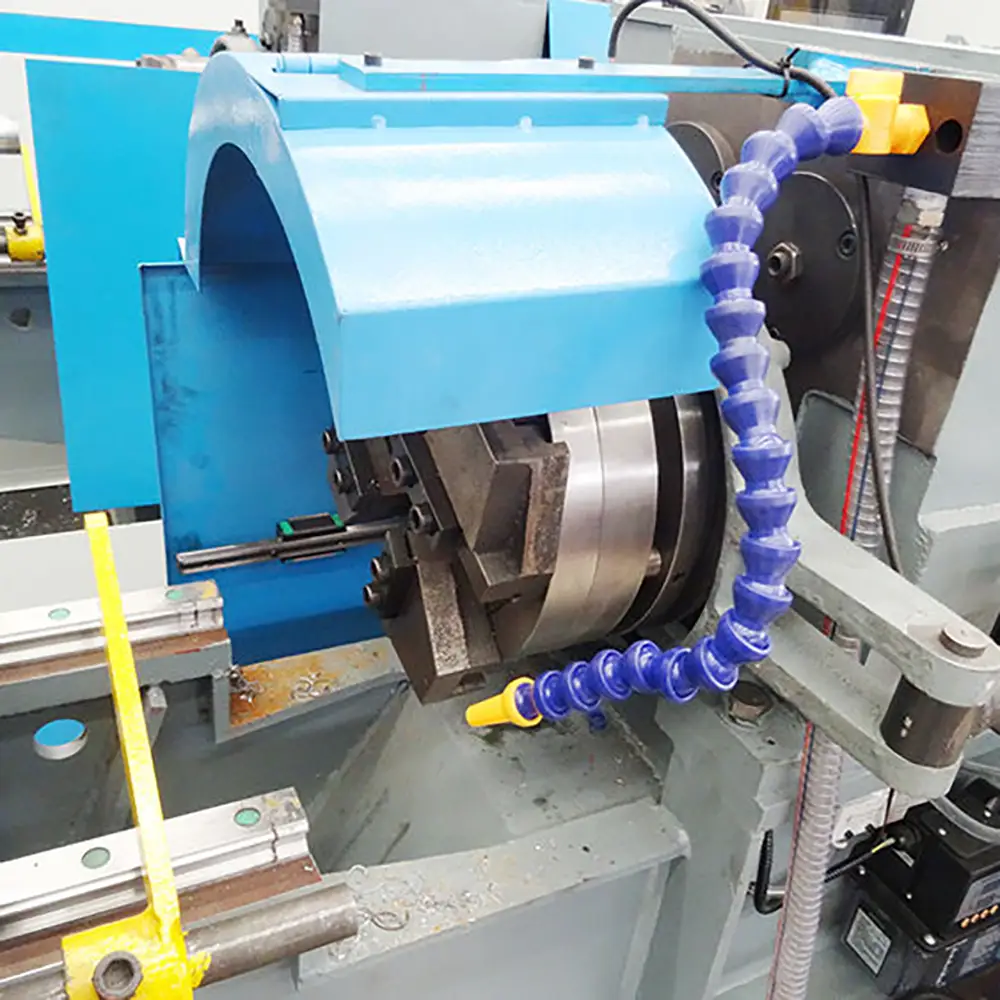

Stable Pipe Clamping

Stable workpiece clamping is an important part of pipe threading. The machine uses an appropriate chuck, clamp, or fixture to hold the pipe securely during the threading operation.

Secure clamping can help reduce vibration and workpiece movement, supporting more consistent thread alignment. The clamping system can be selected according to pipe dimensions and machine configuration.

Suitable For Steel Pipes

The machine can be used for compatible carbon steel pipes, galvanized steel pipes, stainless steel pipes, and other suitable metal tubes.

Material hardness, pipe wall thickness, outside diameter, thread profile, and required thread length should be considered when selecting threading dies and operating parameters. For special materials or unusual pipe designs, sample testing is recommended.

Accurate Thread Formation

The quality of the pipe thread directly affects the connection between the pipe and its fitting. Proper die selection, pipe alignment, cutting conditions, and lubrication can help maintain a clean and consistent thread.

The Pipe End Threading Machine can be configured according to the required thread specifications. Customers should provide drawings, samples, or detailed thread information when requesting machine and tooling recommendations.

Flexible Threading Tooling

Different pipe diameters and thread standards require corresponding dies and tooling. Suitable tooling can be selected according to the required thread size, pitch, profile, and application.

Replaceable threading components can also make the machine more flexible when a production facility handles several compatible pipe specifications.

Suitable For Plumbing And Pipeline Applications

Threaded steel pipes are widely used in plumbing, fire protection, water systems, compressed air systems, industrial piping, and construction projects.

The machine can help prepare compatible pipe ends for subsequent installation or assembly with threaded fittings. Actual use should comply with the relevant project specifications and applicable standards.

Workshop And Factory Production

The single-station semi-automatic configuration is suitable for workshops and factories that need a reliable threading workstation without installing a large automated production line.

It can be used for production orders, replacement pipe components, maintenance parts, custom pipe assemblies, and batch processing of standardized pipe products.

Improved Production Efficiency

Compared with completely manual pipe threading, semi-automatic operation can reduce repetitive physical work and provide a more consistent processing cycle.

The operator can concentrate on loading, unloading, inspection, and production monitoring while the machine performs the primary threading operation.

Consistent Processing Quality

A controlled mechanical threading process helps reduce variations that may occur when every pipe is threaded manually. Stable clamping, suitable dies, and repeatable machine operation can contribute to more consistent thread quality.

Quality inspection can be performed using appropriate gauges or fitting tests according to the customer's production requirements.

Compact And Practical Configuration

A single-station design can be a practical choice for factories with limited floor space or production lines that require an independent pipe threading workstation.

The machine can be positioned within a broader pipe fabrication workflow and used together with pipe cutting, deburring, measuring, inspection, and assembly equipment.

B2B Customized Production Solution

Different customers may require different pipe diameters, thread standards, thread lengths, materials, and production capacities. Machine configuration should therefore be selected according to the actual application.

We can support B2B customers with machine selection, threading die recommendations, fixture configuration, sample testing, technical documentation, export packaging, and after-sales service. Customers can provide pipe samples, drawings, material information, thread specifications, and expected production volume for evaluation.

Key Features
Single Station Threading Design
Semi Automatic Pipe Threading
Efficient Pipe End Processing
Stable Pipe Clamping
Suitable For Steel And Metal Pipes
Accurate External Thread Formation
Replaceable Threading Dies
Flexible Pipe Size Applications
Reduced Manual Labor
Consistent Threading Results
Compact Workshop Configuration
B2B Customized Machine Solution
Main Applications
Steel Pipe Threading
Galvanized Pipe Threading
Stainless Steel Pipe Threading
Plumbing Pipe Processing
Fire Protection Pipe Processing
Water Pipe Threading
Industrial Pipeline Fabrication
Construction Pipe Processing
Pipe Fitting Preparation
Pipe Coupling Preparation
Workshop Pipe Fabrication
Industrial Pipe Maintenance
FAQs
1. What is a Single Station Semi Automatic Pipe End Threading Machine?

It is a pipe processing machine with one dedicated threading station that uses semi-automatic mechanical operation to produce external threads on compatible pipe ends.

2. What does semi automatic operation mean?

The operator normally loads and unloads the pipe, while the machine performs the main threading operation mechanically according to the selected settings.

3. What pipes can the machine process?

Suitable applications may include carbon steel, galvanized steel, stainless steel, and other compatible metal pipes. The actual range depends on machine configuration and tooling.

4. Can it process different pipe diameters?

Yes, compatible pipe diameters can be processed when the machine has suitable threading dies, clamping components, and configuration for the required sizes.

5. Can different thread specifications be produced?

Different thread specifications generally require appropriate threading dies and machine settings. Customers should provide the required thread standard, size, pitch, and profile before selecting tooling.

6. Is the machine suitable for plumbing applications?

Yes. It can be used for compatible threaded pipe preparation in plumbing, water piping, fire protection, construction, and industrial pipeline applications.

7. Can it thread galvanized steel pipes?

Yes, compatible galvanized steel pipes can be processed when suitable threading dies and machine settings are used.

8. Is it suitable for mass production?

It can support repetitive production, particularly small and medium batch manufacturing. Production capacity depends on pipe dimensions, thread length, operator workflow, and machine configuration.

9. Can the machine be customized?

Yes. Clamping fixtures, threading dies, tooling, controls, and other components can be selected or customized according to customer requirements.

10. What information is needed for machine selection?

Please provide pipe outside diameter, wall thickness, pipe length, material, thread standard, thread size, pitch, thread length, required production volume, and product drawings or samples.

Why Choose Us
Professional Pipe Threading Equipment

We provide industrial pipe threading and pipe end processing machinery for steel pipes, metal tubes, plumbing components, and pipeline fabrication.

Single Station Production Solution

The single-station configuration offers a practical setup for workshops and factories that need a dedicated pipe threading workstation without a complex multi-station line.

Semi Automatic Operation

The machine reduces repetitive manual threading work while allowing operators to maintain flexible control over workpiece loading, unloading, and production inspection.

Customized Threading Tooling

Different pipe sizes and thread specifications require suitable dies and fixtures. We provide tooling recommendations based on customer samples, drawings, and technical requirements.

Factory-Direct Supply

We support importers, distributors, pipe manufacturers, plumbing equipment suppliers, construction companies, and industrial fabrication businesses.

International Export Support

We provide technical documentation, operating guidance, export packaging, shipping coordination, and after-sales support for international customers.
