Spot Welding Machine, Foot-operated Spot Welder for Easy Operation Technical Parameters

Foot-operated spot welding machine for easy and efficient resistance welding of sheet metal. Reliable foot pedal control, adjustable welding time, strong electrodes, and customizable configurations for industrial fabrication..

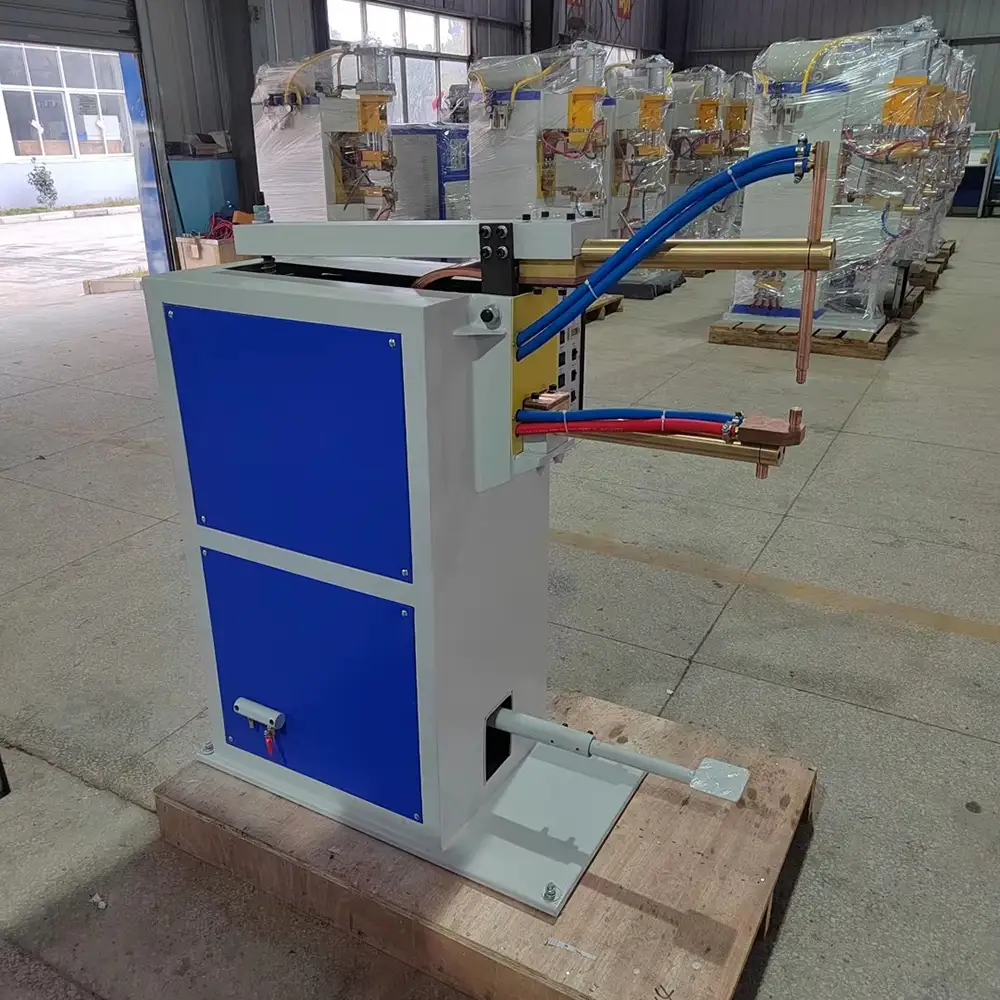

Foot pedal operated spot welding machine adopts lever pedal type spring pressurized structure. Easy operation, quick response. Suitable for various kind of positioning accuracy and complicated shape welding occasion. Under the operation of transformer, foot pedal spot welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generate high heat to make the work pieces in the molten condition. Thus, the purpose of welding the two pieces of work pieces is achieved.
Simple Structure with Durable Quality
Easy Operation for worker. Low machine cost
Raw materials made to standard

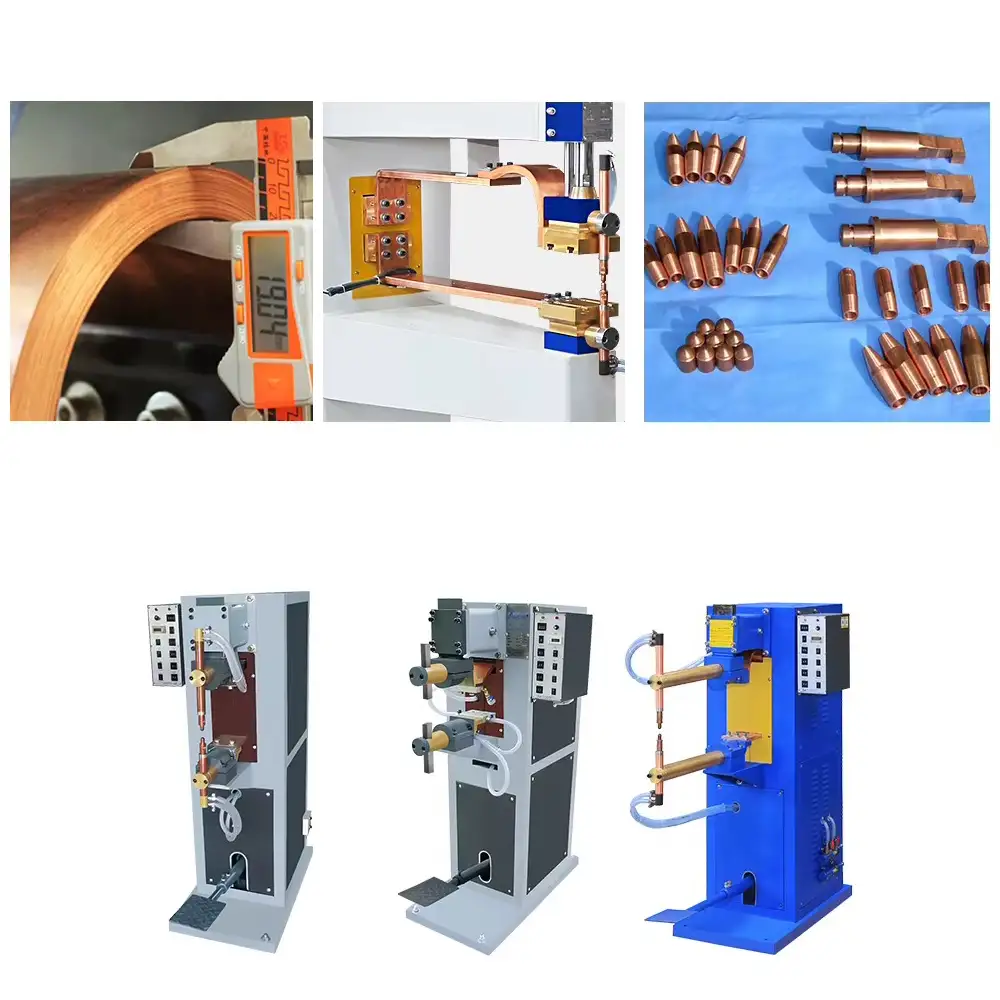

Thicker Copper Plate or Copper Belt
To ensure stable conductivity in welding
Custom processing of electrodes
Customized Electrodes which will be suitable for
Welding material like steel, aluminium, silver, stainless
Steel, and nickel steel.
Plenty of machines in stock, fast delivery
We keep more than hundreds set of machines in stock. We can deliver the machines to you within 1 week.

Features of The AC Pulse Spot Welding Machine
1. Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation.
2. Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding.
3. Integrated pressurizing mechanism with good followability, fast welding speed and long service life.
4. High permeability silicon steel transformer and high power silicon controlled components provide strong output power.
5. Different output currents can be controlled and adjusted at will to satisfy various welding processes.
Model Input
Voltage
Input
Power
Output Current Adjustable stroke Electrode Distance Cooling Water
  V KVA A mm mm L/min
WL-FT-16K 380/1 phase 16 10000 30 100 6
WL-FT-25K 380/1 phase 25 12000 30 100 6
WL-FT-35K 380/1 phase 35 14000 30 100 6
WL-FT-50K 380/1 phase 50 18000 30 100 6
