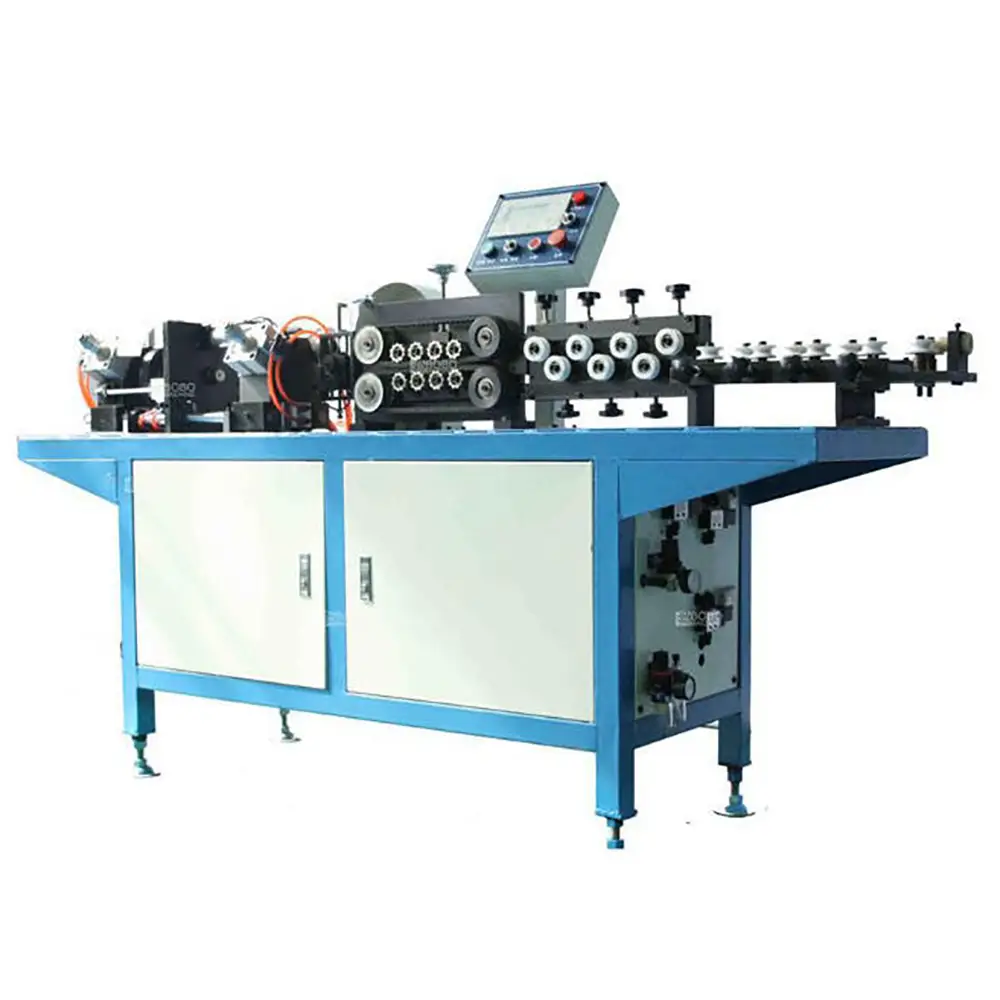

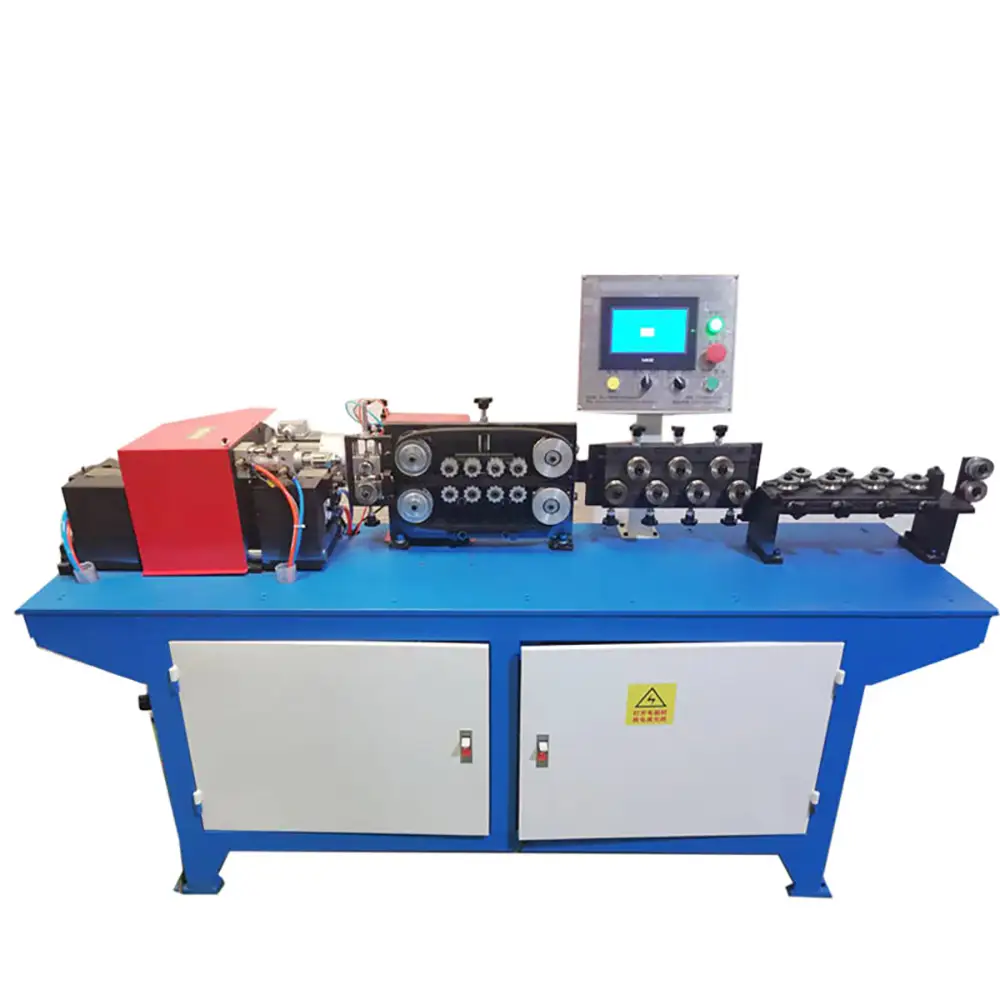

Small Diameter Copper Automatic Pipe Cutting Machine New Condition Feeding Straightening Function Condenser Metal Alloy

Copper Tube Feeding System

The automatic feeding system is designed to continuously deliver copper tube material toward the cutting station. Controlled feeding helps reduce repetitive manual positioning and can improve production consistency when large quantities of identical tube sections are required.

Depending on the configuration, the feeding system can work with straight tube stock or suitable continuous/coiled material. The feeding mechanism should be selected according to tube diameter, wall thickness, material hardness, coil condition, and required cut length.

Accurate feeding is particularly important when producing condenser and heat-exchanger components because inconsistent tube lengths can affect downstream assembly and fabrication processes.

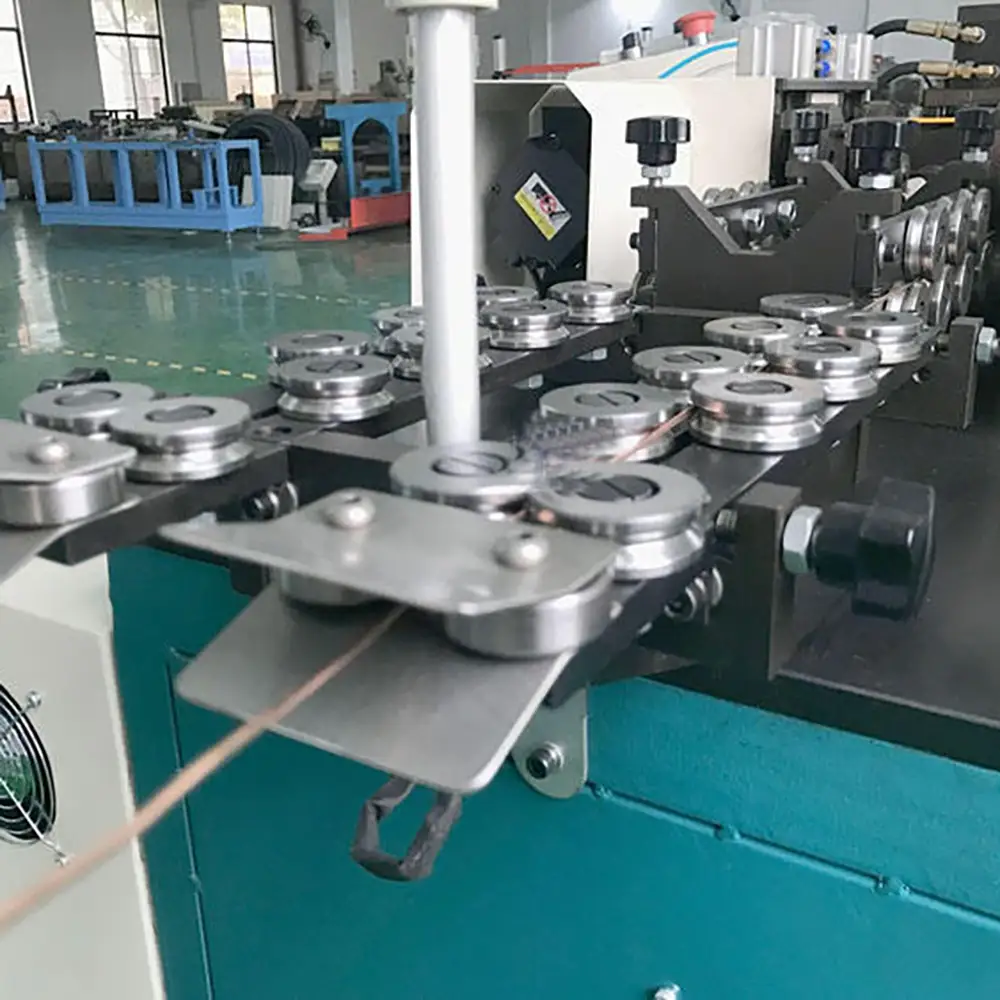

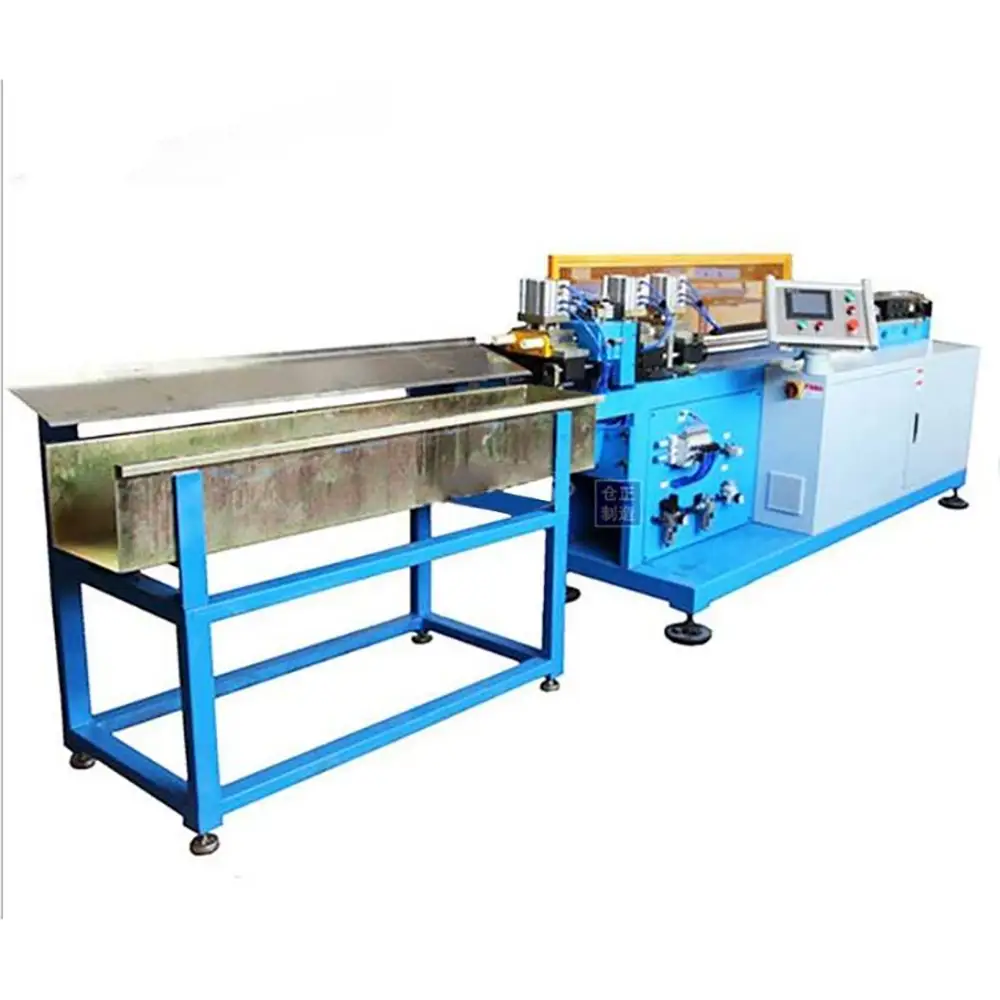

Tube Straightening Function

Copper tubes can become curved or distorted during coiling, transportation, or material handling. The integrated straightening function is designed to help bring suitable tubing into a more controlled straight condition before cutting.

Straightening is especially useful when processing small-diameter copper tubing supplied in coils. Proper straightening can improve:

Tube alignment
Feeding stability
Cutting consistency
Length repeatability
Downstream assembly efficiency
Overall production workflow

The actual straightening range depends on the tube material, outside diameter, wall thickness, hardness, and machine design. Excessive straightening force should be avoided because thin-wall copper tubes can be sensitive to deformation.

Small Diameter Copper Pipe Cutting

Copper is widely used because of its thermal conductivity, corrosion resistance, formability, and suitability for many fluid and heat-transfer applications.

Small-diameter copper tubing is commonly found in:

Condenser assemblies
Heat exchangers
Refrigeration systems
Air conditioning equipment
HVAC components
Plumbing systems
Automotive thermal systems
Electrical equipment
Industrial cooling systems

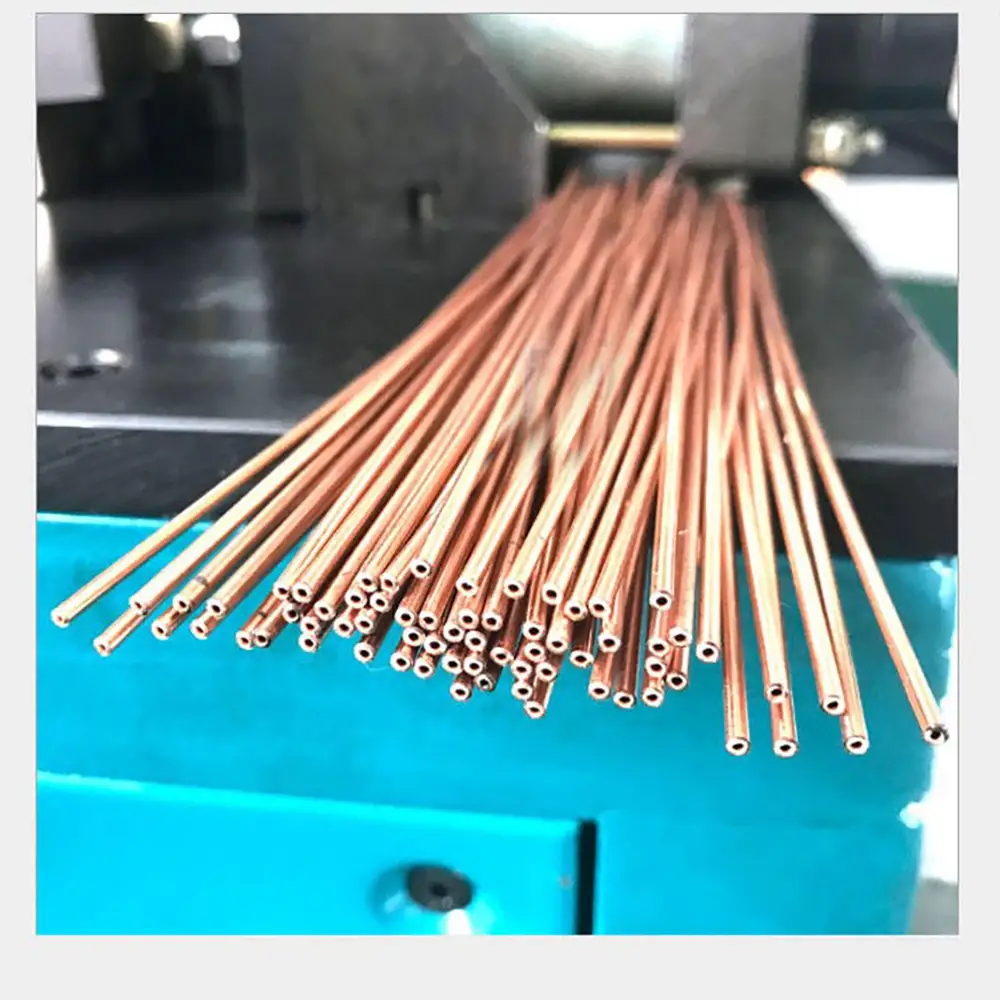

The cutting system can produce repeatable tube sections for subsequent bending, flaring, expansion, brazing, assembly, or other manufacturing processes.

Condenser and Heat Exchanger Tube Applications

Condenser and heat-exchanger manufacturers often need large quantities of accurately cut tubing. Automatic feeding and cutting can help standardize tube preparation before the tubes enter subsequent production processes.

For condenser applications, the required tube length and dimensional consistency should be determined according to the heat exchanger design. The machine itself performs the cutting operation; it does not automatically determine the final condenser design or thermal performance.

Different copper grades and metal alloys may also require different cutting parameters and tooling.

Automatic Cutting Process

A typical production cycle may include:

Loading the copper tube or coil material.
Feeding the material into the straightening section.
Straightening the tube as required.
Feeding the tube to the cutting position.
Measuring or positioning the required length.
Clamping or supporting the tube.
Performing the cutting operation.
Releasing and collecting the finished tube section.
Repeating the cycle automatically.

This workflow reduces repetitive manual handling and is suitable for production environments where many tube sections need to be manufactured to similar dimensions.

The exact automation level depends on the selected machine. Automatic feeding and cutting should not be interpreted as completely unmanned operation because material loading, unloading, inspection, tooling changes, and maintenance may still require operator involvement.

Cutting Quality and Tube Protection

Small-diameter copper tubing requires careful workholding because excessive clamping force can deform the tube. The cutting tool, guide system, feeding rollers, and support components should be matched to the tube dimensions.

Proper tooling can help achieve clean tube ends while minimizing deformation. Depending on the final application, additional processes such as deburring, chamfering, cleaning, or end forming may be required after cutting.

The required edge condition should be specified when purchasing the machine so the cutting method and tooling can be evaluated appropriately.

Metal Alloy Compatibility

Although copper is the primary application described by this product keyword, suitable configurations may also process certain metal alloys and other non-ferrous tubing.

Different materials have different hardness, ductility, thermal characteristics, and cutting behavior. Copper, brass, aluminum, and copper alloys should not automatically be processed with identical tooling or parameters.

Customers should provide the exact material grade or alloy, tube outside diameter, wall thickness, and required cutting length when requesting a machine recommendation.

Production Efficiency

Automatic feeding, straightening, and cutting can create a continuous workflow that is particularly valuable for high-volume tube production.

Compared with manual tube measuring and cutting, an automated system can reduce repetitive handling and make production more standardized. It can also help operators focus on material supply, quality inspection, machine monitoring, and downstream production.

Actual production output depends on tube size, material, wall thickness, feeding method, cutting length, cutting technology, machine configuration, loading conditions, and required accuracy.

Industrial Applications

This automatic copper pipe cutting machine can be used in various industries, including:

HVAC manufacturing
Refrigeration equipment
Condenser manufacturing
Heat exchanger production
Automotive components
Plumbing equipment
Electrical equipment
Industrial cooling systems
Copper tube fabrication
Metal tube processing

It can be used as an independent cutting machine or incorporated into a larger tube-processing production line.

New Condition and B2B Supply

For customers sourcing new-condition metal tube cutting equipment, machine configuration should be evaluated based on the actual production application rather than the product name alone.

For B2B buyers, we can discuss machine configuration, tube-size range, feeding requirements, straightening requirements, cutting method, automation level, electrical specifications, spare parts, packaging, and technical documentation.

OEM and ODM cooperation can also be discussed for suitable projects, including customized machine configurations and branding requirements.

Installation and Maintenance

Routine maintenance is important for maintaining stable feeding and cutting performance. Operators should regularly inspect feeding rollers, straightening components, cutting tools, guides, bearings, electrical connections, and other wear components.

Copper chips and production debris should be removed from the working area. Cutting tools should be replaced or maintained according to their condition and the manufacturer's recommendations.

Before production begins, the machine should be properly aligned and tested using the customer's actual tubing whenever practical. Trial production can help verify feeding stability, straightening performance, cut length, and finished tube quality.

Frequently Asked Questions
1. What materials can this machine cut?

It is primarily designed for small-diameter copper tubing and can potentially be configured for suitable metal alloys and other non-ferrous tubes.

2. Can it process coiled copper tubing?

Suitable configurations can include feeding and straightening functions for coiled copper tube. The maximum coil and tube specifications should be confirmed according to the machine model.

3. What is the purpose of the straightening function?

The straightening section helps reduce curvature in tubing before cutting, especially when the material is supplied in coils.

4. Can it be used for condenser tubes?

Yes. It is suitable for preparing copper tube sections used in condenser and heat-exchanger manufacturing, provided the tube dimensions match the machine's working range.

5. Can it cut thin-wall copper tubes?

It can be configured for suitable thin-wall tubing. Proper feeding, support, clamping force, and cutting tooling are important to minimize deformation.

6. Is the feeding system automatic?

The machine is designed with automatic feeding functionality, although the exact feeding method and automation level depend on the selected configuration.

7. Can it cut brass or aluminum tubes?

Potentially, depending on the machine configuration. Brass, aluminum, copper, and other alloys have different cutting characteristics and may require different tooling and parameters.

8. How accurate is the cutting length?

Actual cutting accuracy depends on the tube material, diameter, wall thickness, feeding system, cutting method, machine setup, and required production conditions. Specific tolerance requirements should be confirmed before ordering.

9. Does the machine deburr the tube ends?

The standard cutting configuration may not automatically include a deburring process. If clean or finished tube ends are required, an additional deburring or end-processing function can be evaluated.

10. What information is needed for machine selection?

Provide the tube material, alloy or grade, outside diameter, wall thickness, tube length, feeding method, production quantity, required tolerance, and desired automation level.

11. Is this a new-condition machine?

The product is described as a new-condition machine. Specific manufacturing date, machine configuration, warranty, and included components should be confirmed with the supplier before purchase.

12. Can the machine be customized?

Yes. Feeding, straightening, cutting, control, workholding, and other configuration requirements can be evaluated for specific production applications.
