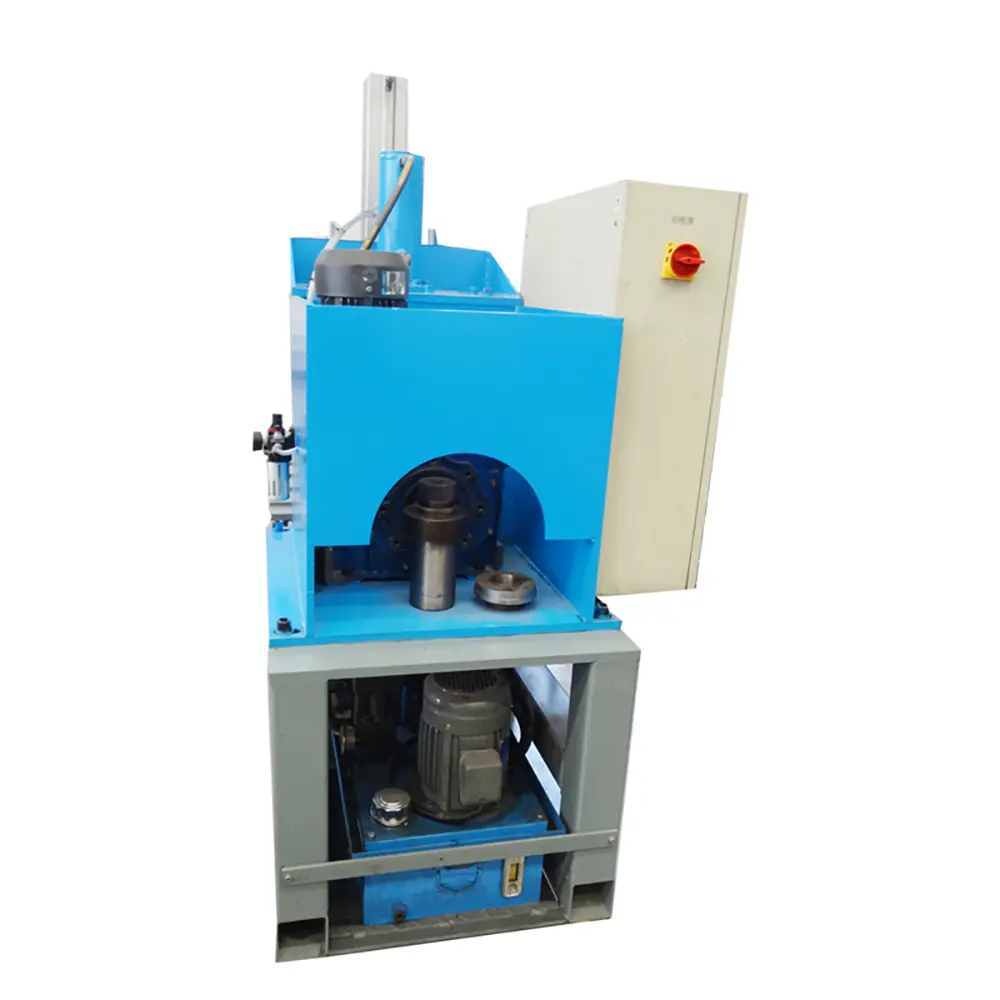

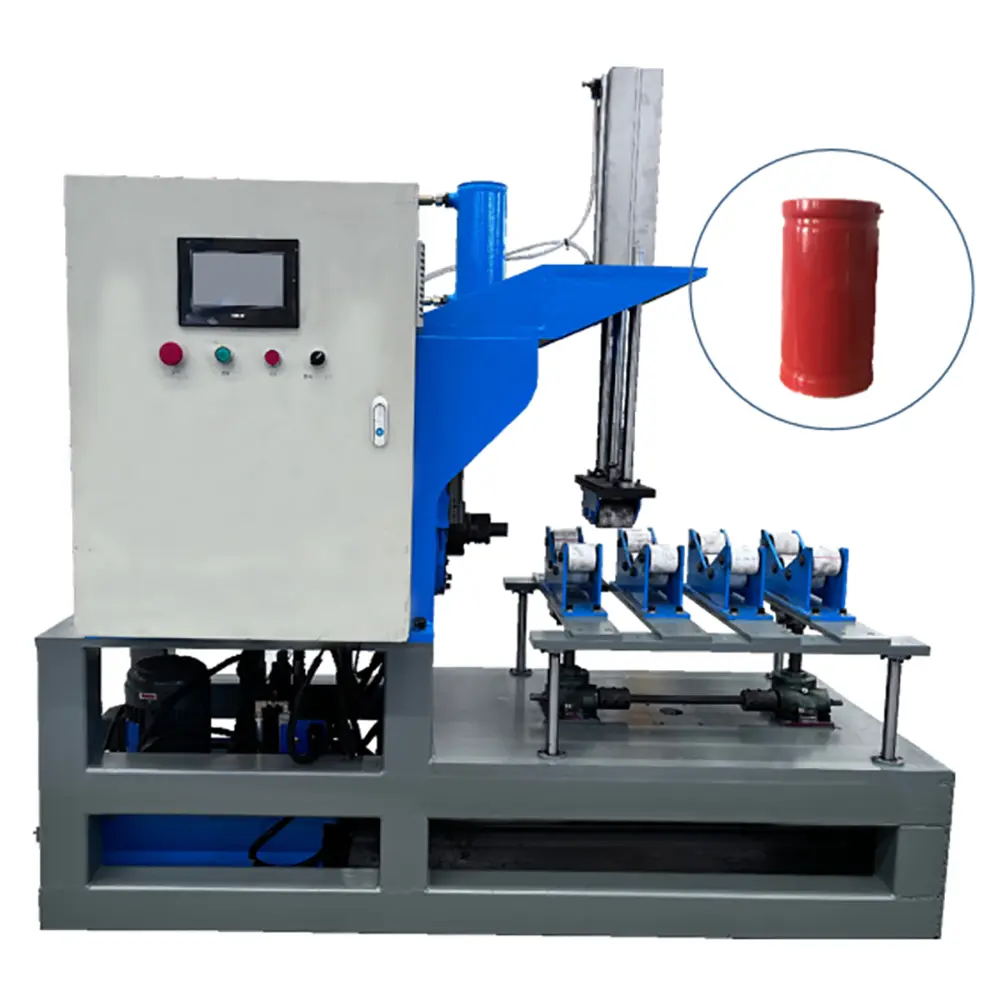

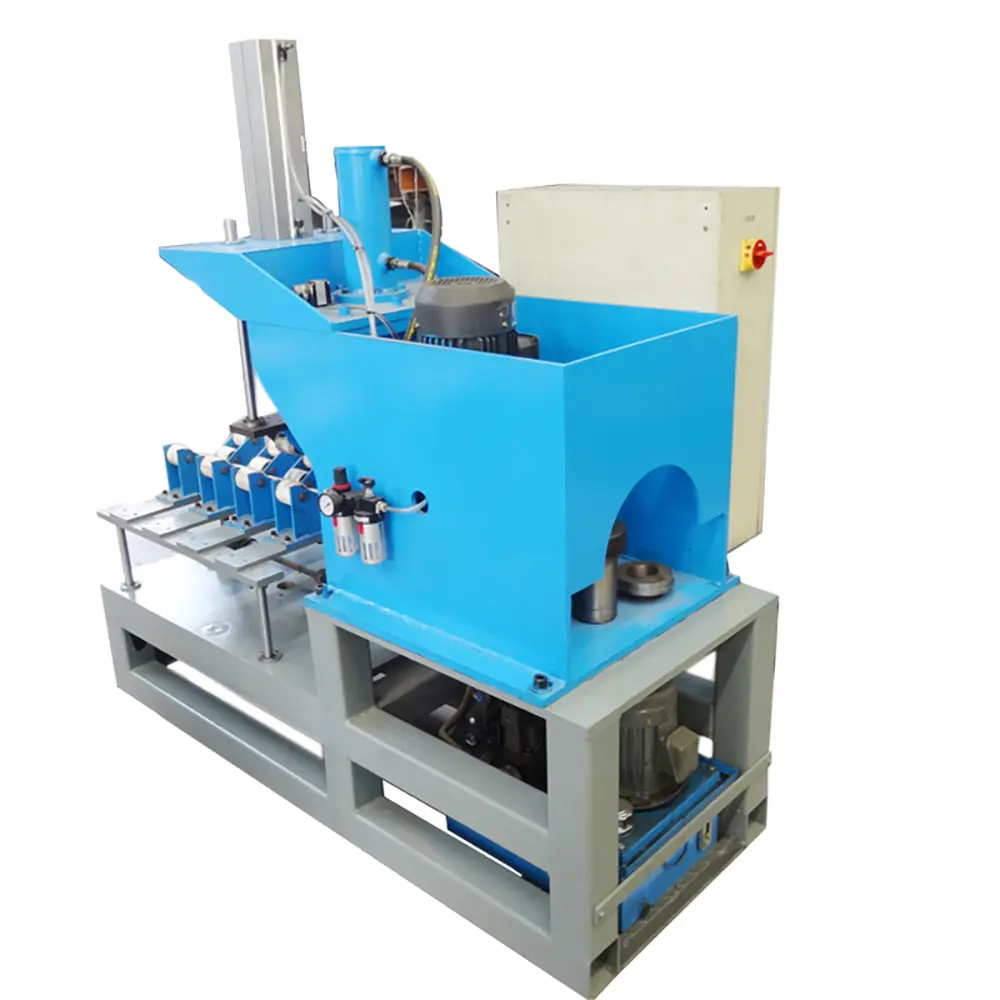

Semi Automatic Pipe End Grooving Machine

The Semi Automatic Pipe End Grooving Machine is a professional metal pipe processing machine designed for efficient and accurate groove machining on pipe ends. With a semi-automatic operating system and precision cutting technology,this machine provides an ideal solution for producing grooved pipes used in construction,fire protection,HVAC,pipeline systems,and industrial applications.

The machine is mainly used for creating high-quality grooves on steel pipes,stainless steel tubes,and other metal pipes to prepare them for mechanical pipe connections. Compared with traditional manual grooving methods,the semi automatic pipe end grooving machine improves processing efficiency,reduces labor intensity,and ensures consistent groove dimensions.

This equipment is widely used by pipe manufacturers,construction material suppliers,and metal fabrication factories requiring reliable pipe end groove processing.

Model	YC-200NC
Grooving capacity	DN65-DN200
Power	5kw
Voltage	380/400/145-3phase
Processinig   efficiency	35s/   piece（depend on the pipe size and rotary   speed）
Grooving moulds	DN65/80 DN100/125/150 DN200
Weight	650kg
Measure	1.5x1.1x1.5m

Advanced Pipe End Grooving Technology

The Semi Automatic Pipe End Grooving Machine adopts professional groove forming technology to achieve accurate and stable pipe end machining.

Main processing functions include:

Pipe end grooving
Tube groove forming
Pipe connection preparation
Groove depth control
Metal tube processing

The machine can produce precise grooves for:

Fire protection pipes
Water supply pipes
Industrial pipelines
Mechanical connection systems

The accurate groove design improves pipe assembly efficiency and connection reliability.

Semi Automatic Operating System

The machine combines manual loading with automatic groove processing to achieve high efficiency and easy operation.

Working process:

Pipe loading
Manual positioning and clamping
Automatic groove machining
Finished pipe removal

Advantages:

Simple operation
Reduced labor requirements
Faster processing speed
Stable groove quality
Lower equipment investment

It is suitable for small and medium-sized pipe production factories.

Precision Groove Processing Performance

The Semi Automatic Pipe End Grooving Machine provides accurate groove dimensions through a stable processing system.

Main advantages:

Uniform groove depth
Smooth groove surface
Accurate pipe positioning
Reduced processing errors
Improved connection performance

The machine helps manufacturers achieve consistent quality for large quantities of grooved pipes.


Wide Application Industries
Fire Protection Pipe Industry

Applications:

Fire sprinkler pipes
Grooved pipe connection systems
Building fire protection pipelines
Construction Industry

Used for:

Steel structure pipelines
Mechanical pipe connections
Building service systems
HVAC Industry

Applications:

Air conditioning pipelines
Ventilation systems
Cooling water pipes
Industrial Pipeline Manufacturing

Used for:

Factory pipelines
Fluid transportation systems
Metal pipe assemblies
Metal Fabrication Industry

Suitable for:

Customized steel pipe processing
Tube component manufacturing
Suitable Materials

The Semi Automatic Pipe End Grooving Machine can process:

Carbon Steel Pipes
Stainless Steel Tubes
Galvanized Steel Pipes
Alloy Steel Pipes
Metal Tubes

Suitable pipe applications:

Round Steel Pipes
Water Pipes
Fire Protection Pipes
Industrial Pipes

Different groove specifications can be customized according to customer requirements.

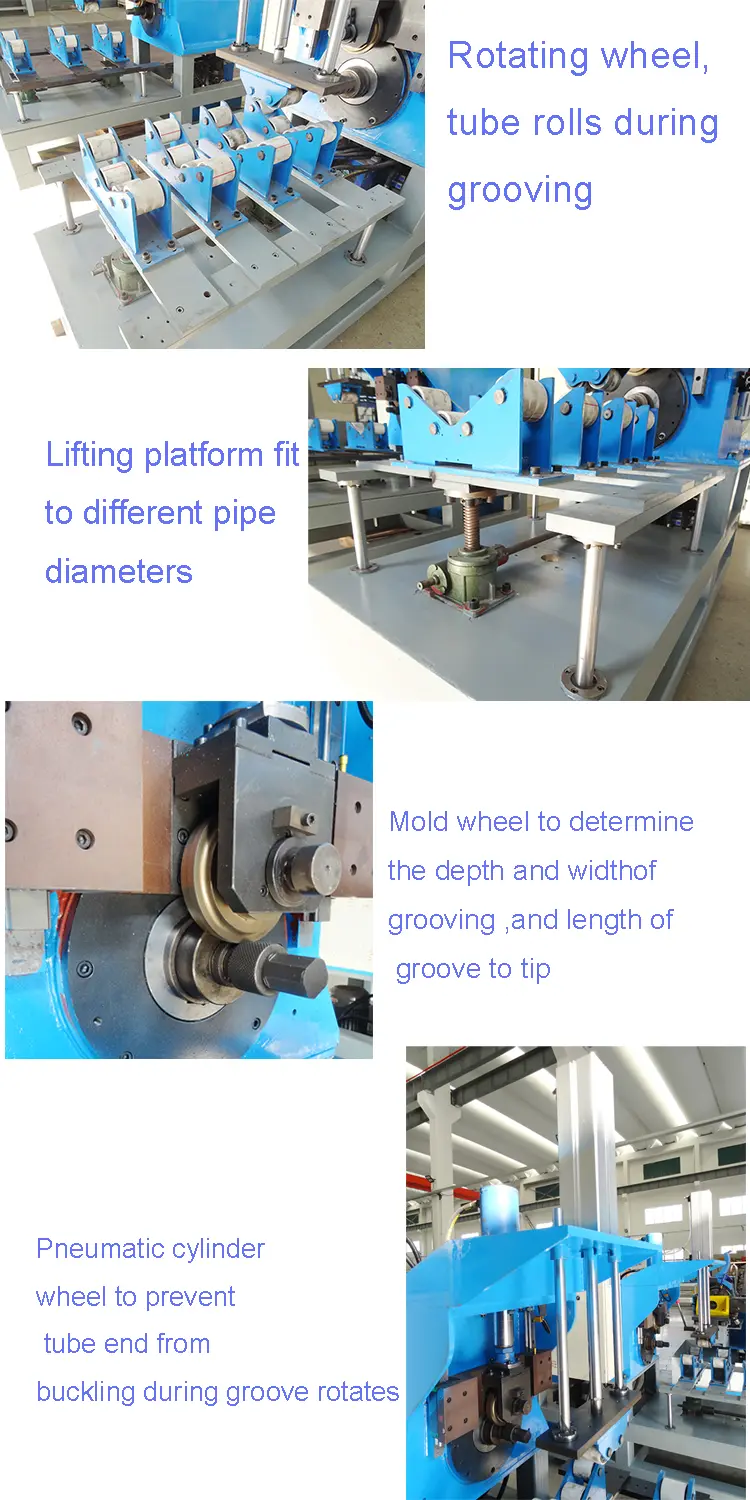

Reliable Machine Structure

The machine adopts a strong industrial structure for stable long-term operation.

Main features:

Heavy-duty machine frame
Stable clamping system
Precision groove cutting mechanism
Durable components
Easy maintenance

The reliable structure ensures consistent performance in demanding production environments.

Key Features Of Semi Automatic Pipe End Grooving Machine
1. Semi Automatic Operation

Combines simple operation with efficient automatic processing.

2. Precision Pipe Groove Machining

Produces accurate and consistent pipe end grooves.

3. Wide Pipe Compatibility

Suitable for different metal pipe materials and sizes.

4. Stable Processing Performance

Ensures reliable groove quality during production.

5. Cost Effective Production Solution

Provides higher efficiency than manual processing methods.

6. Customized Groove Specifications

Supports different groove dimensions and pipe requirements.

Why Choose Our Semi Automatic Pipe End Grooving Machine?
Professional Pipe Processing Equipment Manufacturer

We specialize in manufacturing pipe grooving,forming,and metal tube processing equipment for global customers.

Efficient Production Solution

The semi automatic system improves processing speed while reducing labor costs.

High Precision Groove Quality

Advanced processing technology ensures accurate groove dimensions and smooth surfaces.

Customized Machine Solutions

Pipe diameter range,groove specifications,tooling,and automation functions can be customized.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete Technical Service

We provide installation guidance,operator training,maintenance support,and spare parts supply.

FAQS
Q1: What is a Semi Automatic Pipe End Grooving Machine used for?

It is used for machining grooves on the ends of metal pipes for mechanical pipe connections.

Q2: What pipes can be processed?

It can process carbon steel pipes,stainless steel tubes,galvanized pipes,and other metal pipes.

Q3: What industries use pipe end grooving machines?

They are widely used in fire protection,construction,HVAC,industrial pipelines,and metal fabrication industries.

Q4: What is the advantage of semi automatic operation?

It reduces manual work while maintaining simple operation and lower equipment costs.

Q5: Can groove sizes be customized?

Yes. Groove depth,width,and specifications can be customized according to pipe connection requirements.

Q6: Is this machine suitable for mass production?

Yes. It is suitable for continuous pipe processing in small and medium production environments.

Q7: Can the machine process different pipe diameters?

Yes. Different clamping systems and tooling can be configured for various pipe sizes.
