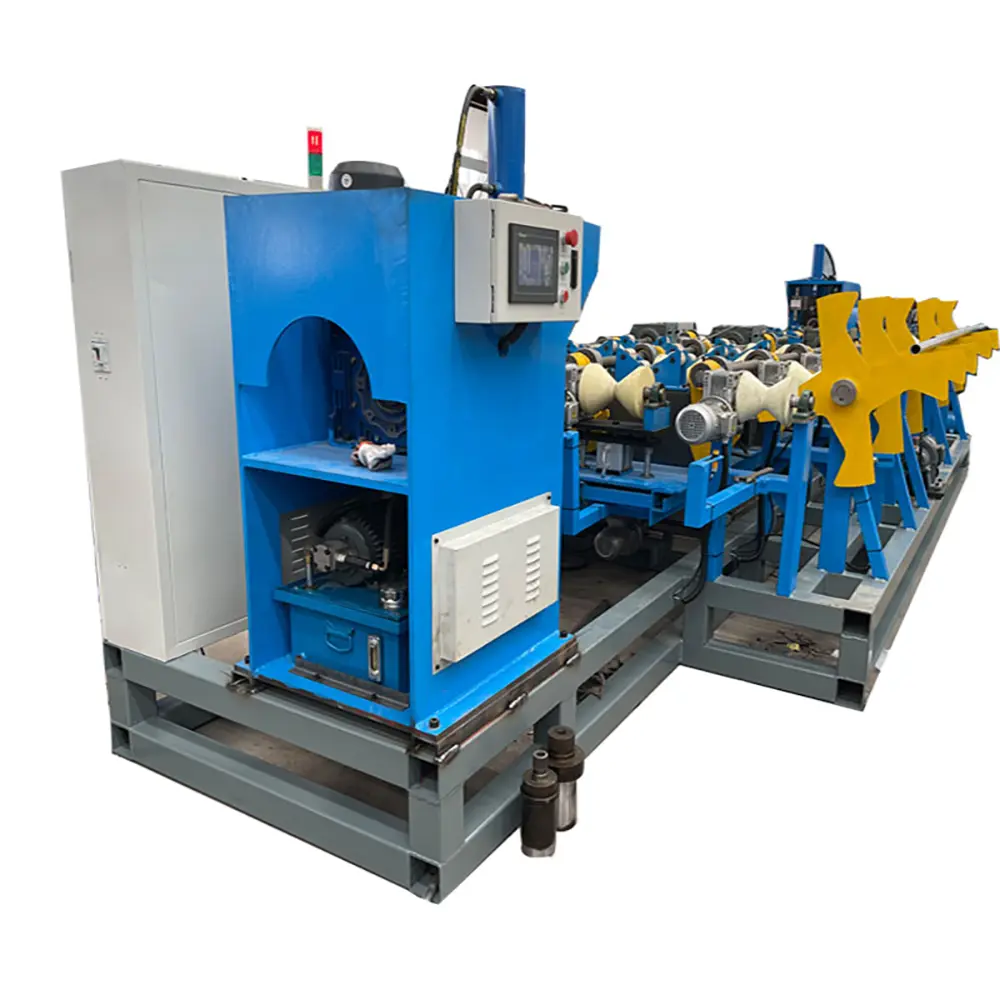

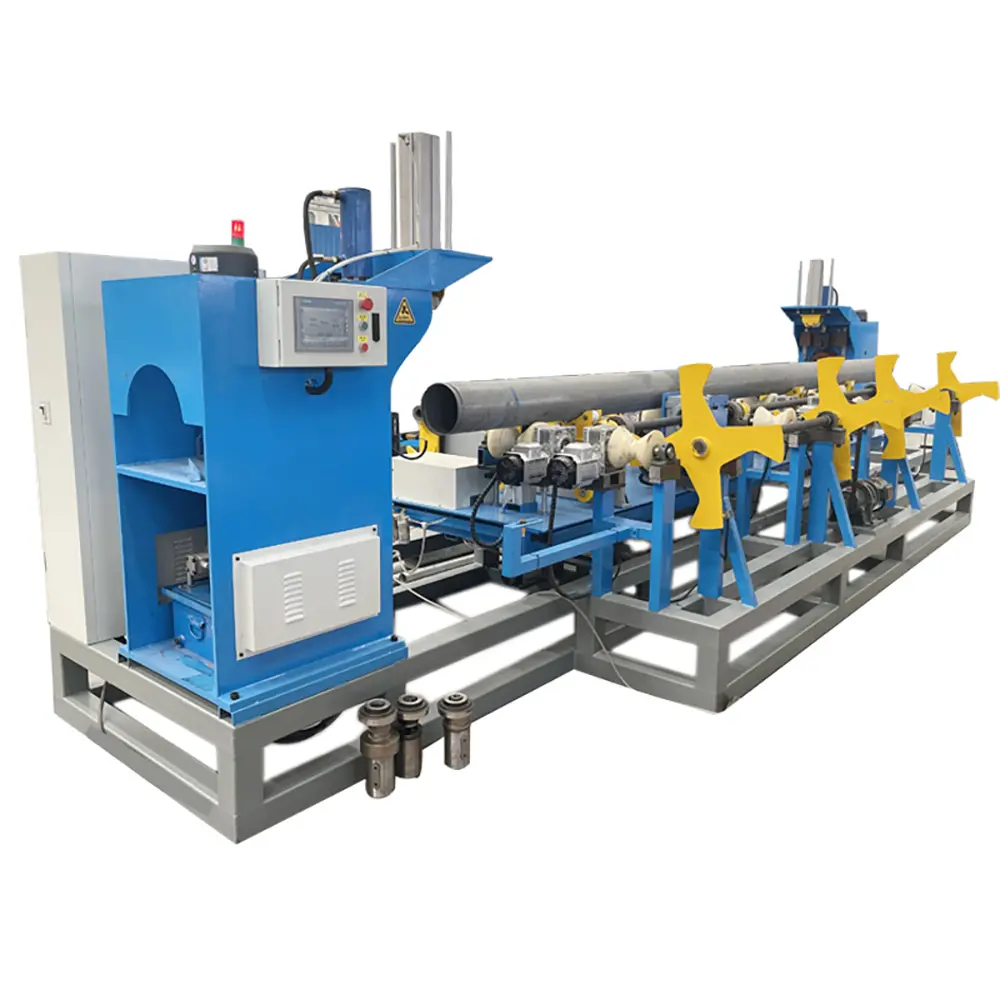

Double Stations Pipe End Grooving Machine

Double Stations Pipe End Grooving Machine

The Double Stations Pipe End Grooving Machine is an advanced metal pipe processing machine designed for high-speed and precision groove machining on pipe ends. Featuring a dual-station working structure,the machine can process two pipes simultaneously or complete different grooving operations efficiently,significantly improving production capacity and reducing processing time.

This double station pipe grooving equipment is widely used in fire protection pipeline manufacturing,construction,HVAC systems,industrial piping,metal fabrication,and steel tube production industries. It is suitable for processing carbon steel pipes,stainless steel tubes,galvanized pipes,and other metal tube materials.

Compared with traditional single-station grooving machines,the double stations pipe end grooving machine provides higher productivity,better equipment utilization,and more stable processing quality. It is an ideal solution for factories requiring continuous and high-volume pipe groove production.

Advanced Double Station Pipe Grooving Technology

The machine adopts a dual working station design to improve processing efficiency.

Main functions include:

Pipe end grooving
Tube groove forming
Pipe connection preparation
Groove depth control
Metal tube machining

The double station structure provides:

Higher production output
Reduced waiting time
Improved workflow efficiency
Better machine utilization
Stable groove quality

It is especially suitable for large-volume pipe processing applications.

The production process

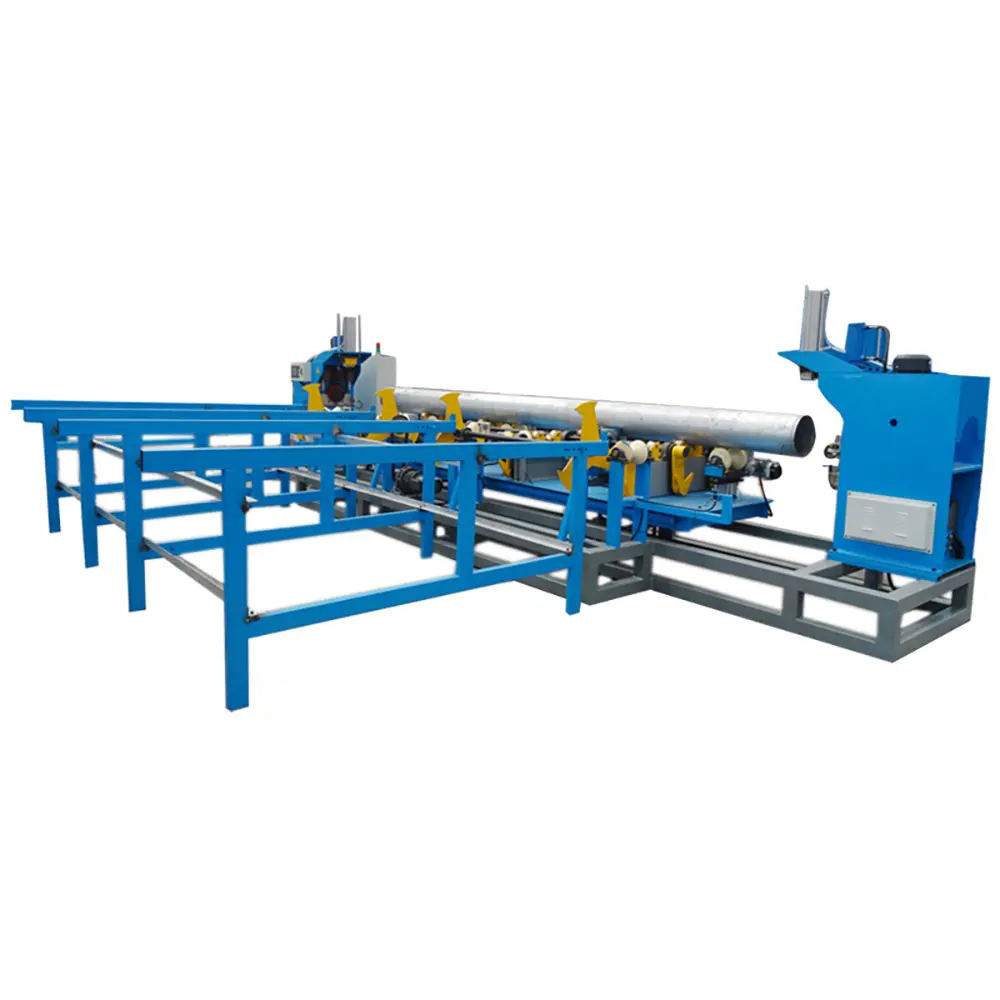

The steel pipe is laid flat on material rack → pipe enters adjustment station for left and right adjustment → complete → No1# rotating arm drags pipe into   No. 1 grooving station to press left notch → complete → 2# rotating arm drags pipe to enter No. 2 grooving station presses right notch → finished → 3# rotating arm drags the steel pipe into finished material rack
3 Parameter configuration

Item	parameter
structure type	two-grooving stations electric mechanical feeding mechanism
Pipe diameter	OD 42-220mm,
Pipe length	Standard length3-6m
Pipe thickness	Less 6mm
Pressure groove size	Meet the industry standard CJ/T156-2001 standard，or customized
way to control	Touch screen input, PLC programming control
Pressure roller configuration	DN32-DN40, DN60--DN80,DN100--DN150, DN200mm , There are 4 set grooving deis
Power	Feeding motor       1.5KW
	Adjust the aligned motors   0.37KW
	Rotating arm motor   1.5KW
	Roller lifting motor   0.75KW
	Roller motor      0.37KW
	Feeding mechanism lifting   0.55KW
	Spindle motor    4.0KW
	Oil pump motor     1.5KW
	Actual average power consumption 8KW
power supply	Three-phase four-wire system
Measure	8.2x5x2m
Productivity	An average one for piece each minute.

Accessories

Items	Manufacturer/board
fuselage frame	Self-made
Motor	Shanhhai huabing
Reducer	Wuxi Delia
PLC	Delta
Electrical Equipment	Chint
Optoelectronic switch	Shanghai chuan yue
Hydraulic Cylinder	Shandong xinyu
Pressure valve	Ningbo WeiFeng

Efficient Dual Station Working System

The Double Stations Pipe End Grooving Machine allows two processing positions to work efficiently.

Working advantages:

Two pipes can be processed in one cycle
Reduced material handling time
Increased production capacity
Improved operator efficiency
Suitable for continuous operation

The dual-station design helps manufacturers achieve higher output without significantly increasing equipment space.

Precision Pipe End Groove Processing

The machine is designed to produce accurate and uniform pipe grooves for reliable mechanical connections.

Processing advantages:

Accurate groove dimensions
Smooth groove surface
Consistent processing results
Reduced machining errors
Improved pipe connection performance

It ensures high-quality grooved pipes for professional pipeline systems.

Wide Application Industries
Fire Protection Pipe Manufacturing

Applications:

Fire sprinkler pipes
Grooved coupling pipe systems
Building fire protection pipelines
HVAC Industry

Used for:

Cooling water pipes
Air conditioning pipelines
Ventilation systems
Construction Industry

Applications:

Building pipelines
Steel structure projects
Mechanical pipe connections
Industrial Pipeline Manufacturing

Used for:

Factory piping systems
Fluid transportation pipelines
Industrial tube assemblies
Metal Fabrication Industry

Suitable for:

Customized steel pipe products
Tube processing factories
Suitable Materials

The Double Stations Pipe End Grooving Machine can process:

Carbon Steel Pipes
Stainless Steel Tubes
Galvanized Steel Pipes
Alloy Steel Pipes
Metal Tubes

Applicable products:

Round Steel Pipes
Fire Protection Pipes
Water Supply Pipes
Industrial Pipes

Different groove specifications can be customized according to pipe size and connection requirements.

Reliable Machine Structure

The machine is built with a durable industrial structure for long-term production.

Main features:

Heavy-duty machine frame
Stable pipe clamping system
Precision grooving mechanism
Reliable transmission components
Easy maintenance design

The robust construction ensures stable performance under continuous working conditions.

Key Features Of Double Stations Pipe End Grooving Machine
1. Double Station Processing Design

Improves production efficiency with dual working positions.

2. High Precision Groove Machining

Ensures accurate and consistent pipe end grooves.

3. Automatic Processing System

Reduces manual operation and improves productivity.

4. Wide Pipe Compatibility

Suitable for various metal pipe materials and sizes.

5. Stable Industrial Performance

Designed for continuous factory production.

6. Customized Grooving Solutions

Supports different groove sizes and pipe specifications.

Why Choose Our Double Stations Pipe End Grooving Machine?
Professional Pipe Processing Equipment Manufacturer

We specialize in manufacturing pipe grooving,forming,and metal tube processing machines for global industrial customers.

High Efficiency Production Solution

The double station structure improves output and reduces processing cycle time.

Reliable Groove Quality

Precision machining technology ensures accurate groove dimensions and stable results.

Customized Machine Design

Pipe diameter range,groove specifications,clamping systems,and automation functions can be customized.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete Technical Support

We provide installation guidance,operator training,maintenance service,and spare parts supply.

FAQS
Q1: What is a Double Stations Pipe End Grooving Machine used for?

It is used for machining grooves on metal pipe ends for mechanical connection systems.

Q2: What is the advantage of double stations?

The dual-station design improves production efficiency and allows more pipes to be processed in the same working time.

Q3: What pipes can be processed?

It can process carbon steel pipes,stainless steel tubes,galvanized pipes,and other metal pipes.

Q4: Which industries use this machine?

It is widely used in fire protection,construction,HVAC,industrial pipelines,and metal fabrication industries.

Q5: Can groove specifications be customized?

Yes. Groove depth,width,and tooling can be customized according to customer requirements.

Q6: Is the machine suitable for mass production?

Yes. The double station structure is designed for high-volume industrial production.

Q7: Can different pipe diameters be processed?

Yes. Different clamping tools and groove cutters can be configured for various pipe sizes.

Prev：Automatic Laser Cutting & Grooving Machine Fire Protection Pipe Production Line For Metal Processing

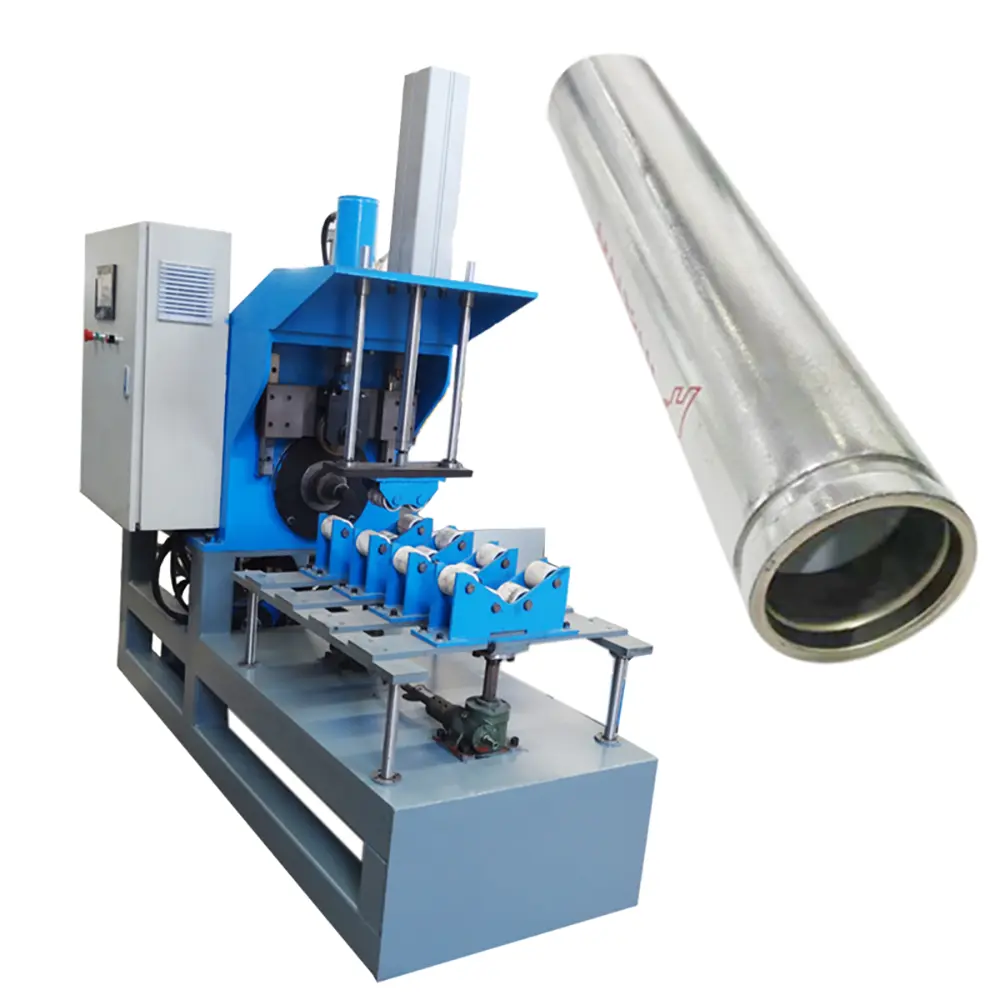

Next：Semi Automatic Pipe End Grooving Machine
