Introduction to the Linkage of Laser Cutting Machine and Grooving Machine
The linkage between a laser cutting machine and a grooving machine mainly relies on an automated control system to connect the processing procedures of the two devices, realizing the continuous production of "cutting forming + precise grooving". It is mainly used for the integrated processing of materials such as metal plates, so as to improve efficiency and precision.
1. Core Linkage Logic
1.Data Integration: Through dedicated linkage software (such as PLC control system, industrial robot system), the designed "cutting path" and "grooving parameters" (e.g., grooving position, depth, width) are integrated into a unified processing file, which is sent to the two devices simultaneously.

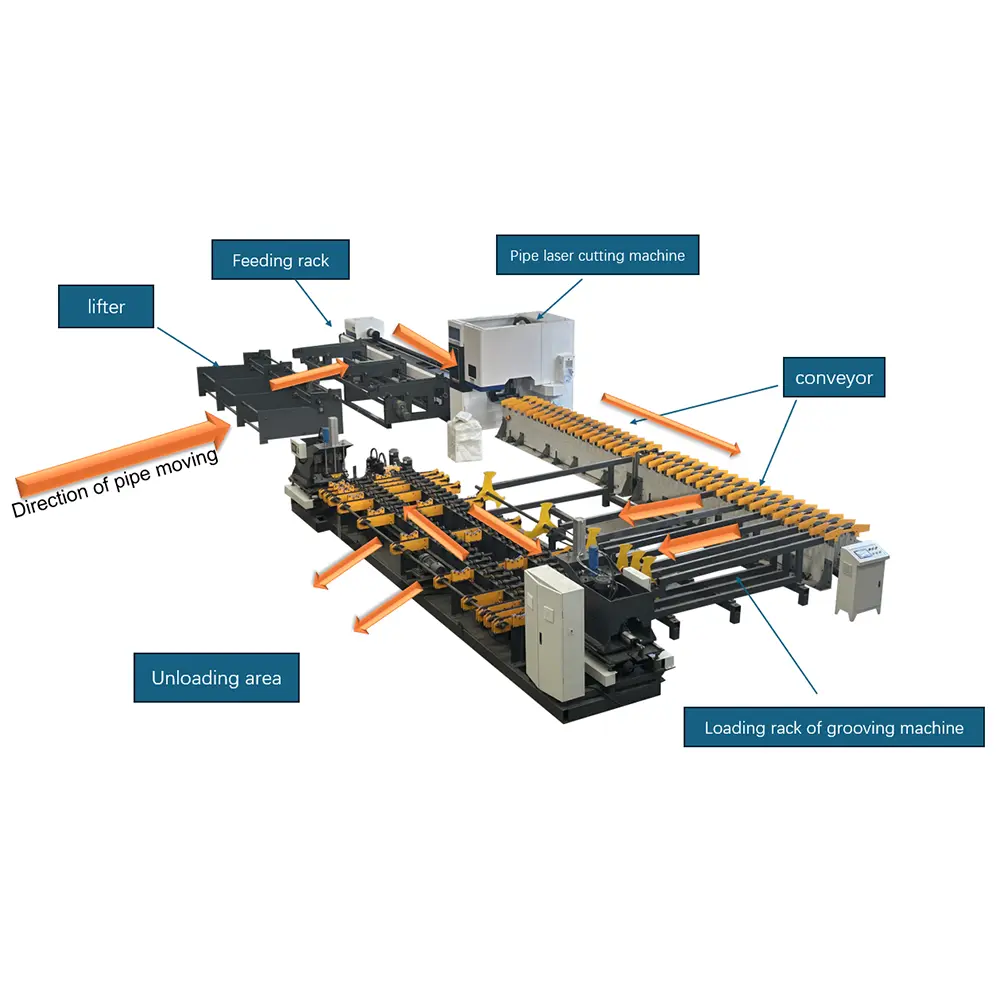

2.Process Connection: The laser cutting machine first completes the contour cutting and hole processing of the plate. Then, the cut workpiece is accurately transferred to the designated processing position of the grooving machine through an automated conveying mechanism (such as a conveyor belt, a robotic arm).
3.Positioning Synchronization: The two devices adopt a unified positioning reference (such as tooling fixtures, laser positioning) to ensure that after the workpiece is transferred, the grooving position completely matches the design drawing and avoids secondary positioning errors.
2. Key Components
1. Core Control Unit: Usually a PLC (Programmable Logic Controller) or an industrial computer. It acts as the "brain" to coordinate the start, stop, processing parameter adjustment of the two devices, as well as the movement of the conveying mechanism.
2. Automated Conveying Mechanism: Responsible for transferring workpieces between the two devices. Common types include servo motor-driven conveyor belts and multi-axis robotic arms, which need to ensure that the transfer speed matches the processing rhythm of the devices.
3. Positioning and Detection System: Real-time detects the workpiece position through laser positioning, vision cameras, etc., feeds back to the control unit, and dynamically adjusts the processing coordinates of the grooving machine to ensure precision (generally up to ±0.1mm)
3. Typical Application Scenarios
It is mainly used in metal processing fields with high requirements for precision and efficiency, such as:
1. Sheet metal part production: For example, distribution box casings and air conditioner outdoor unit sheet metals. They need to have their outer shapes cut first, and then grooves pressed at specific positions (to enhance structural strength or adapt to assembly).
2..Pipe/profile processing: Some metal pipes need to be cut into fixed lengths first, and then sealing grooves or connecting grooves pressed at the ports or middle positions.
4. Core Advantages of Linkage
1.Efficiency Improvement: Eliminates the links of manual transfer and secondary positioning, shortens the processing cycle by 30%-50%, and is suitable for mass production.
2.Precision Guarantee: Avoids positioning errors caused by manual operations, and the relative precision between the grooving position and the cutting contour is more stable.
3.Labor Reduction: Only 12 people are needed to monitor the operation of the equipment, reducing labor costs and operational risks.
Why Choose Our Automatic Laser Cutting & Grooving Machine?
Professional Pipe Processing Equipment Manufacturer
We specialize in manufacturing automatic metal pipe processing equipment and provide complete production solutions for global customers.
Advanced Manufacturing Technology
Laser cutting,CNC control,and automatic grooving technology provide high-quality processing performance.
Customized Production Lines
Pipe diameter range,production capacity,laser power,grooving system,and automation level can be customized according to customer requirements.
Factory Direct Supply
Direct manufacturer supply provides competitive prices,reliable quality,and professional technical support.
Complete Technical Service
We provide installation guidance,operator training,maintenance support,and spare parts supply.
FAQS
Q1: What is an Automatic Laser Cutting & Grooving Machine used for?
It is used for automatic cutting and grooving of steel pipes,especially for fire protection pipe production.
Q2: What industries use this production line?
It is widely used in fire protection,construction,industrial pipeline,and metal fabrication industries.
Q3: What materials can the machine process?
It can process carbon steel,galvanized steel,stainless steel,and other metal pipes.
Q4: What are the advantages of laser cutting?
Laser cutting provides high accuracy,smooth edges,low deformation,and reduced material waste.
Q5: Can the grooving size be adjusted?
Yes. Groove dimensions and processing parameters can be adjusted according to pipe specifications.
Q6: Does the production line require multiple operators?
No. The automatic system reduces manual operation and improves production efficiency.
Q7: Can the production line be customized?
Yes. Pipe size range,production capacity,automation functions,and machine configuration can be customized.
