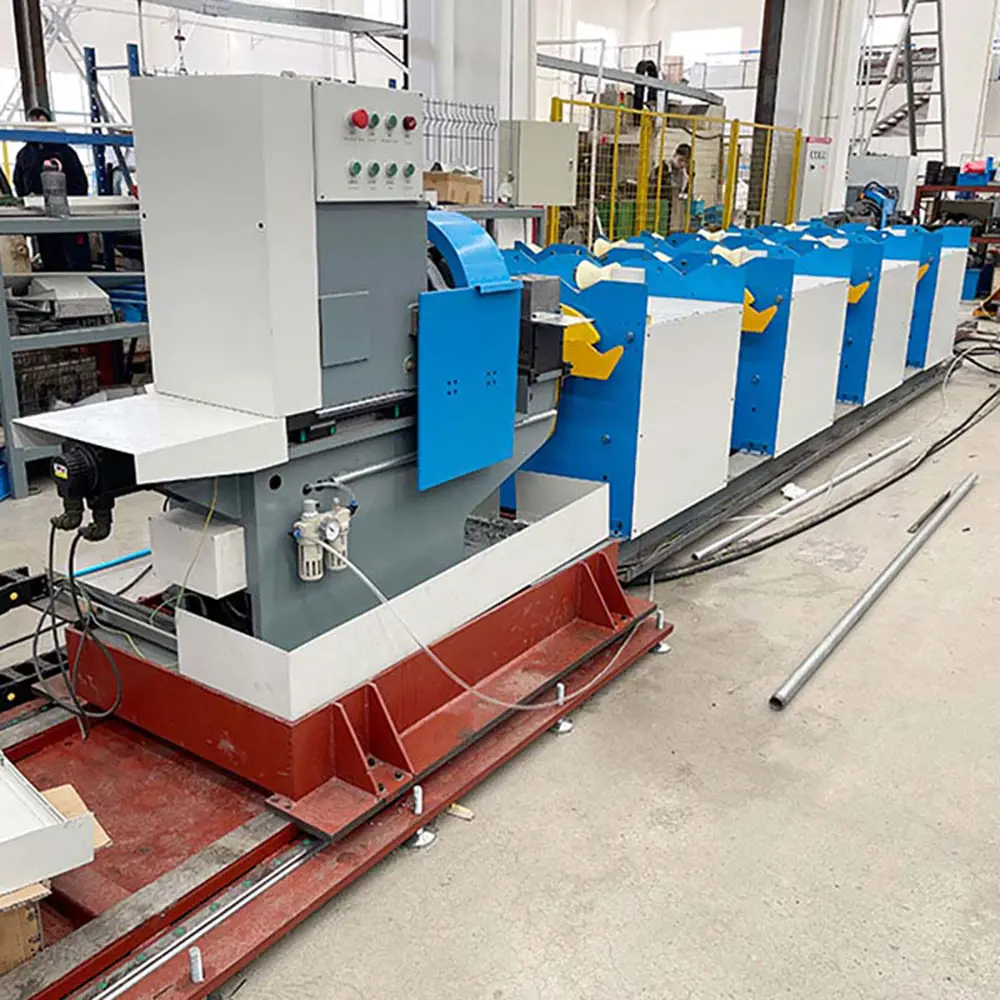

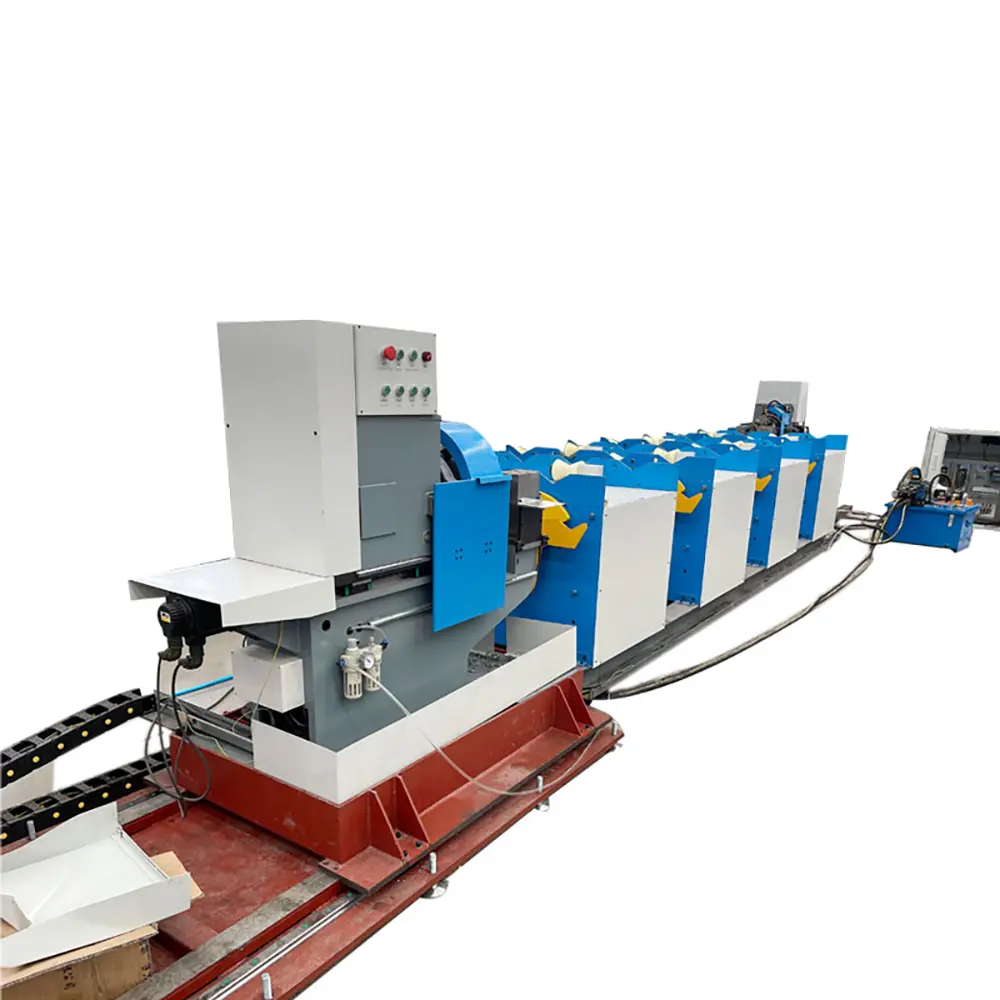

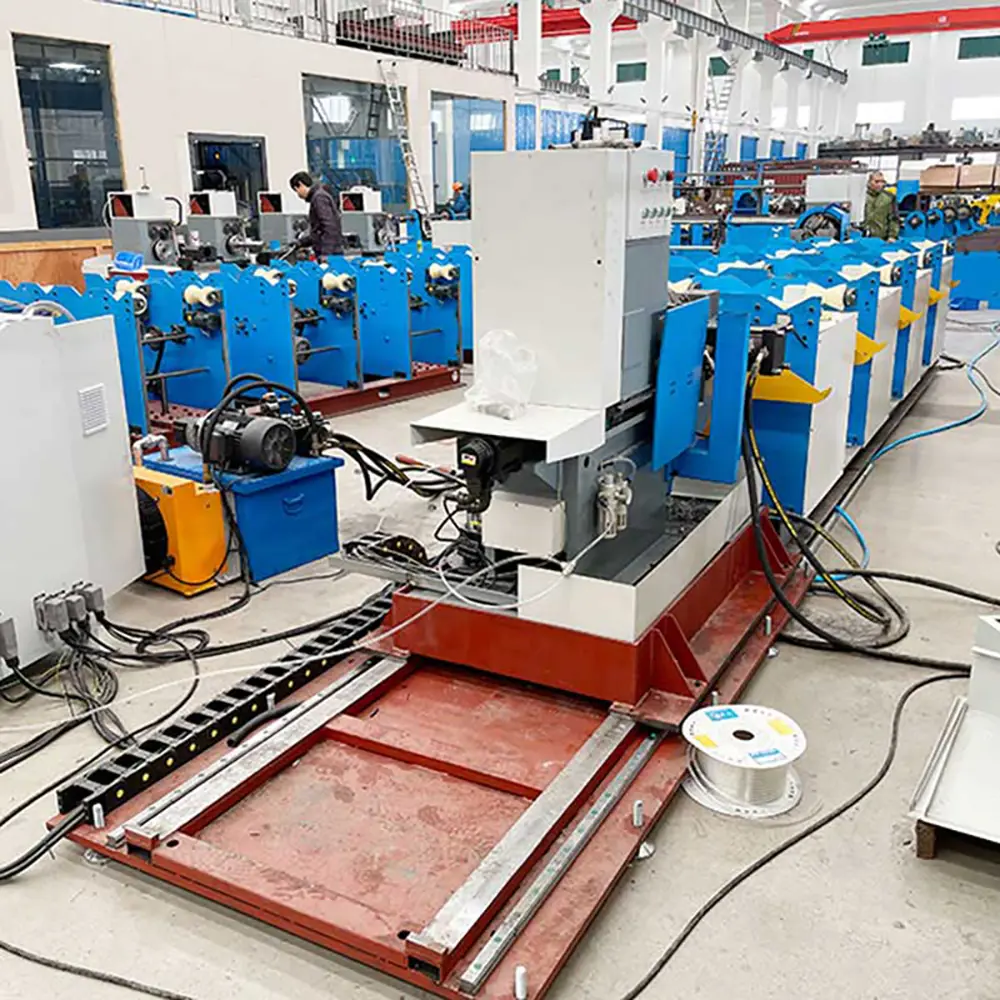

Automatic Threading Production Line

The Automatic Threading Production Line is an advanced automated pipe processing system designed for high-speed and high-precision threading operations on metal pipes and tubes. Integrating automatic feeding,positioning,thread cutting,and material handling functions,this production line provides an efficient solution for manufacturers requiring large-scale pipe threading production.

This automatic threading system is widely used in steel pipe manufacturing,metal furniture,scaffolding,construction materials,automotive components,fire protection pipes,and industrial tube fabrication. It is suitable for processing round pipes,steel tubes,stainless steel pipes,and other metal profiles requiring internal or external thread machining.

Compared with traditional manual threading machines,the automatic pipe threading production line significantly improves production efficiency,reduces labor costs,and ensures consistent thread quality. It is an ideal choice for factories pursuing intelligent manufacturing and continuous production.

Technical parameter:

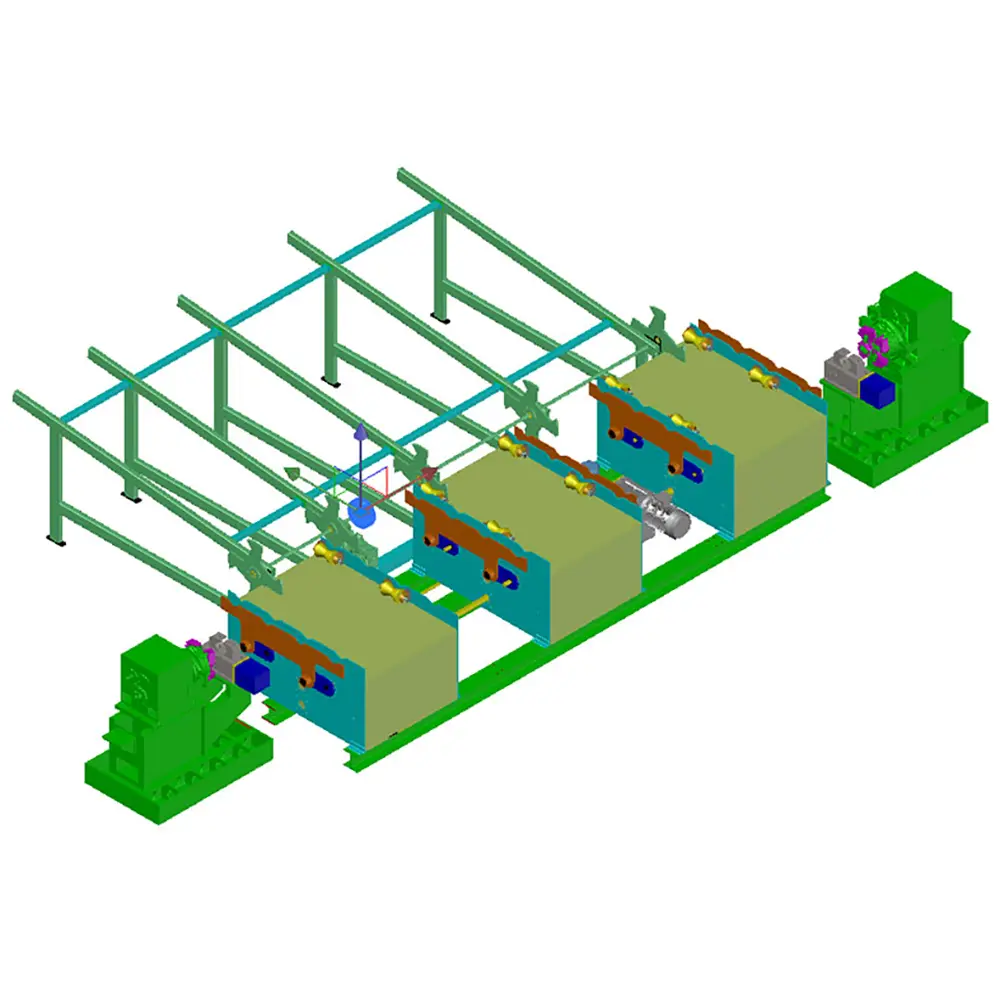

1. threading production line is composed of a storage platform, a feeding mechanism, a predetermined length mechanism, a hydraulic clamping mechanism, a spindle power mechanism, and a servo threading feeding mechanism. Each mechanism has undergone machine tool dynamics analysis and finite element analysis to make its geometric structure more reasonable, and its proper matching with stiffeners ensures the high rigidity of foundation. The overall structure of the machine tool conforms to advanced design concept of material mechanics, which can ensure the heavy load capacity during processing.
2. Adopting intelligent control of Delta PLC system, feed of machine head and rotation of   spindle are controlled by the servo motor, which can safely and reliably set   start and end points of threading to meet   needs of different threading lengths and ensure processing accuracy.
3. Use C3 grade high precision and high strength ball screw. use of high-precision lock nuts and pre-stretched ball screw greatly increase transmission rigidity and eliminate effect of thermal deformation during movement, thus ensuring the positioning accuracy and repeat positioning accuracy of the machine tool.
4. threading spindle feed adopts a heavy-duty linear slide support design. The linear slide is widened and enlarged. roller heavy-duty linear guide can meet customer’s requirements for fast speed and high precision, and it can also cut strongly. At the same time, it also increases the service life of machine tool guide rail.

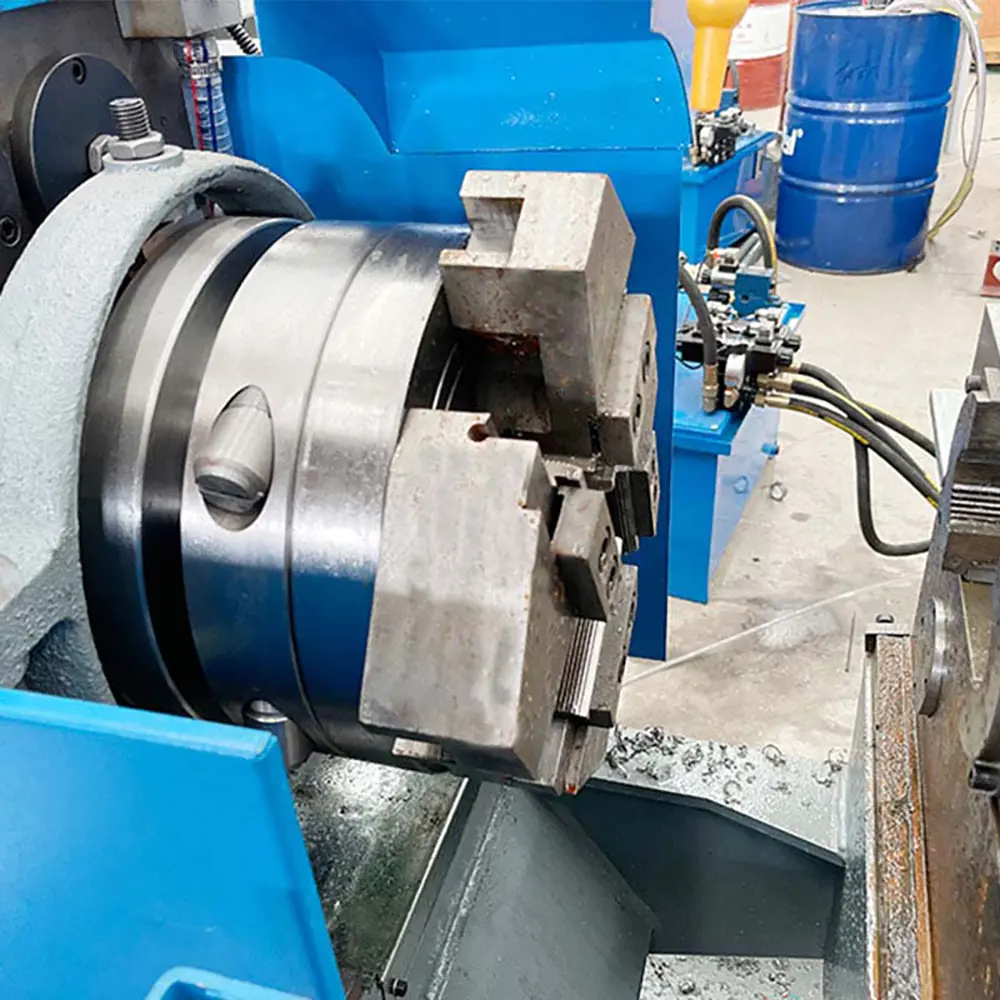

5. opening and closing of the machine head is controlled by the cylinder, clamping and loosening of the pipeline is controlled by cylinder, and fixture has a self-centering function.
6. machine tool is equipped with a sealed protective cover, which effectively protects guide rail and lead screw and prolongs its service life.
7. whole frame can be automatically raised and lowered to meet the processing of different pipe diameters.
8. Lubrication system: guide rail is lubricated with a volume distributor with oil filling, and oil needed by the guide rail is supplied regularly and quantitatively to reduce the waste of lubricant and avoid environmental pollution.
9. wiring inelectrical cabinet is in compliance with electrical safety regulations to ensure that control system is free from external interference during operation. Better guarantee production safety.

Model	65A
power	20kw
Main axis speed	100RPM
Threading capacity	1-2.5inch/25-63mm
Fit to pipe length	1.8-8m
Threading machine head	2
RPM	1200 R/M
Control meth	PLC
Dimensions	9000*5000*1600mm

Quotation:$48,500 FOB
Leading time: 30days

Advanced Automatic Threading System

The Automatic Threading Production Line combines multiple processing functions into one complete production system.

Main functions include:

Automatic pipe feeding
Tube positioning
Pipe clamping
Thread cutting
Automatic unloading
Finished product collection

The fully automated workflow reduces manual operation and improves production stability.

Key advantages:

High production speed
Accurate thread dimensions
Stable processing quality
Reduced labor requirements
Continuous operation capability
Precision CNC Pipe Threading Technology

The production line adopts advanced CNC control technology to achieve accurate and repeatable threading performance.

The CNC system provides:

Precise thread depth control
Adjustable processing parameters
Stable cutting speed
Easy operation
Fast product changeover

It ensures high-quality thread processing for different pipe specifications and production requirements.

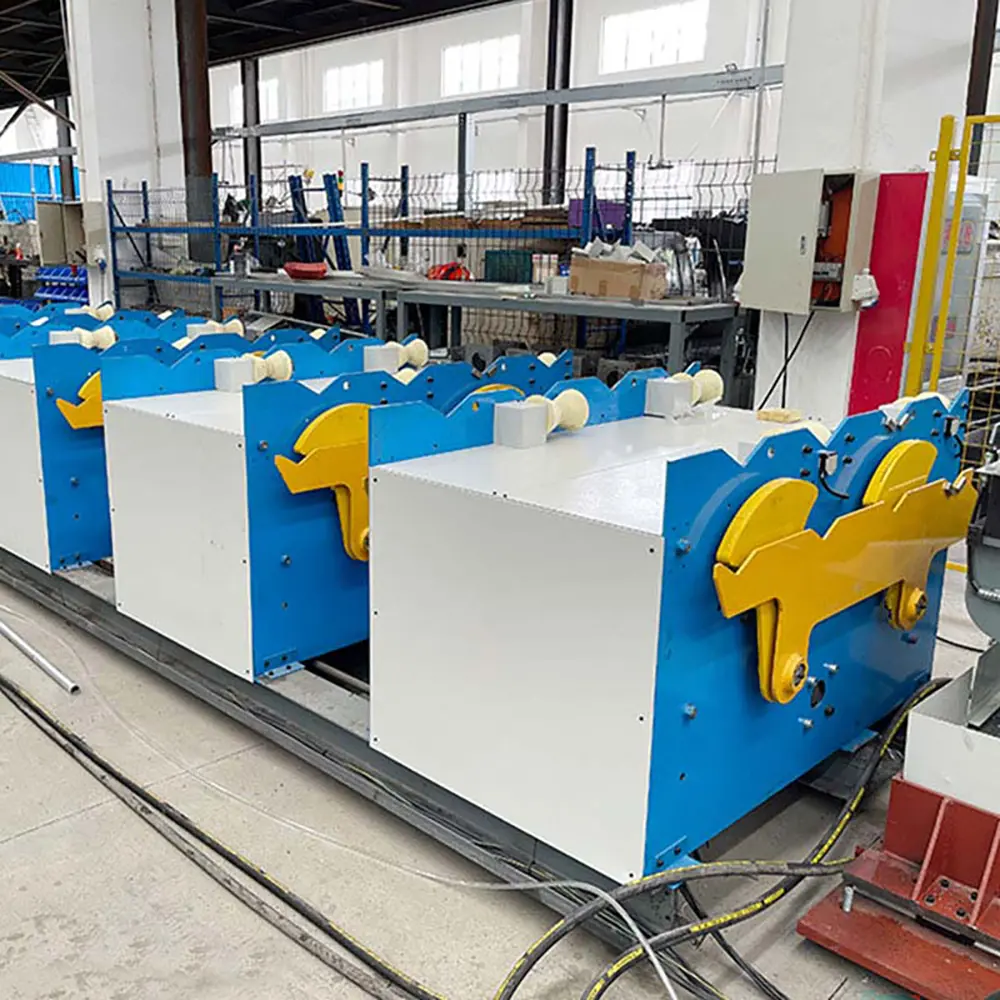

Automatic Feeding And Processing System

The automatic feeding system improves production efficiency by reducing manual material handling.

Working process:

Pipe loading
Automatic feeding
Tube positioning
Thread machining
Finished pipe output

Production benefits:

Faster cycle time
Higher output capacity
Reduced operator workload
Improved safety
Better production consistency
High Precision Thread Cutting Performance

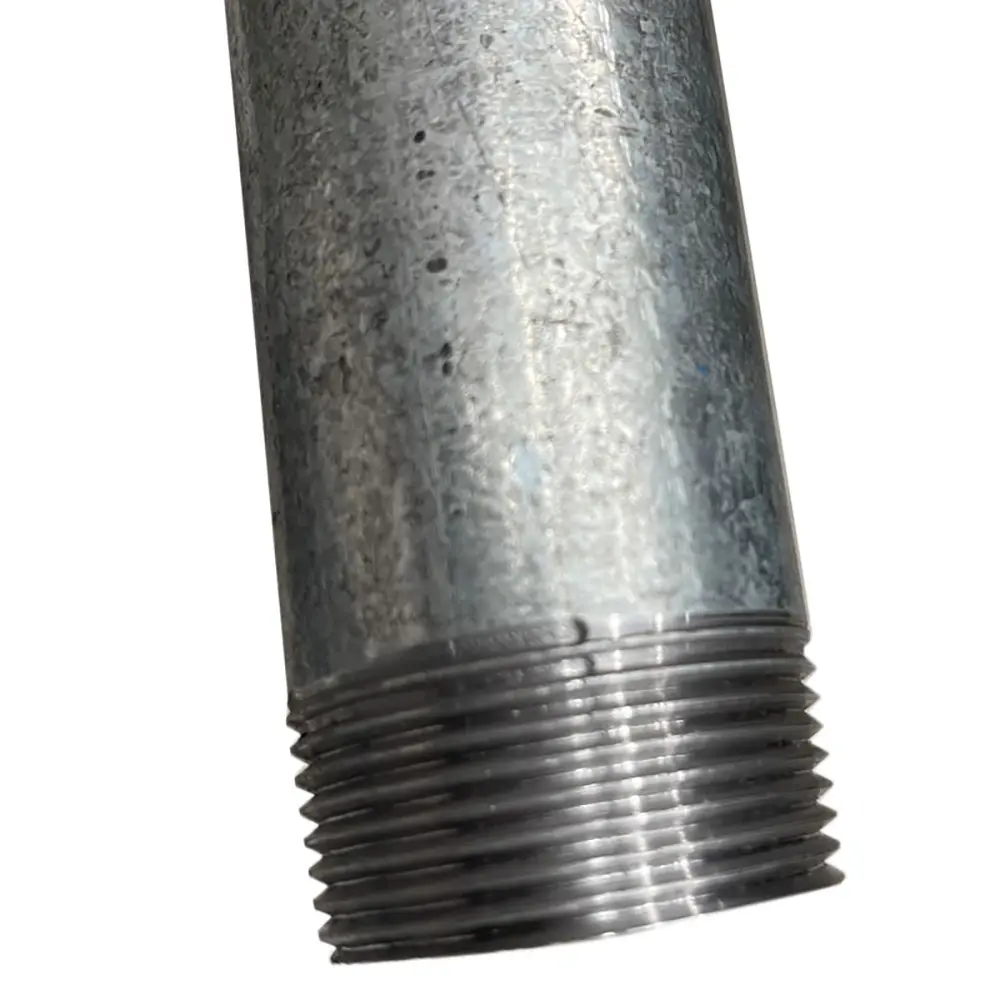

The Automatic Threading Production Line is designed to produce accurate and durable pipe threads.

Processing advantages:

Smooth thread surface
Accurate thread pitch
Consistent thread depth
Strong connection performance
Reduced machining errors

It is suitable for applications requiring reliable threaded pipe connections.

Wide Application Industries
Steel Pipe Manufacturing

Applications:

Industrial steel pipes
Structural pipes
Pipeline components
Fire Protection Pipe Industry

Used for:

Fire sprinkler pipes
Pipe connection systems
Building protection pipelines
Metal Furniture Industry

Applications:

Furniture frames
Steel tube structures
Decorative metal products
Construction Industry

Used for:

Scaffolding pipes
Steel structures
Support tubes
Automotive And Industrial Fabrication

Applications:

Metal components
Machine parts
Custom tube assemblies
Suitable Materials

The Automatic Threading Production Line can process:

Carbon Steel Pipes
Stainless Steel Tubes
Galvanized Steel Pipes
Alloy Steel Pipes
Metal Tubes
Round Pipes

Suitable products include:

Water Pipes
Gas Pipes
Structural Tubes
Industrial Pipes
Threaded Tube Components
Reliable Industrial Production Structure

The production line is designed for long-term factory operation with durable industrial components.

Main features:

Heavy-duty machine frame
Stable automatic control system
Precision threading unit
Reliable transmission system
Easy maintenance design

The robust structure ensures stable performance during continuous production.

Key Features Of Automatic Threading Production Line
1. Fully Automatic Operation

Integrates feeding,threading,and unloading for efficient production.

2. CNC Precision Control

Ensures accurate thread dimensions and repeatable processing.

3. High Production Efficiency

Suitable for large-volume pipe threading requirements.

4. Wide Pipe Compatibility

Processes different metal pipe materials and sizes.

5. Reduced Labor Cost

Minimizes manual operation and improves productivity.

6. Customized Production Solutions

Thread specifications,pipe sizes,and automation levels can be customized.

Why Choose Our Automatic Threading Production Line?
Professional Pipe Processing Equipment Manufacturer

We specialize in manufacturing automatic pipe threading machines and complete metal tube processing solutions for global customers.

Advanced Automation Technology

Automatic feeding and CNC threading systems improve production efficiency and product consistency.

High Precision Thread Quality

Professional threading technology ensures smooth and accurate pipe connections.

Customized Machine Design

Production capacity,pipe diameter range,thread specifications,and automation functions can be customized according to customer requirements.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete Service Support

We provide installation guidance,operator training,maintenance support,and spare parts supply.

FAQS
Q1: What is an Automatic Threading Production Line used for?

It is used for automatic threading operations on metal pipes and tubes in industrial production.

Q2: What pipes can be processed by this production line?

It can process carbon steel pipes,stainless steel tubes,galvanized pipes,and various metal tubes.

Q3: What are the advantages of automatic threading?

Automatic threading improves production speed,thread accuracy,and product consistency while reducing labor costs.

Q4: Which industries use pipe threading production lines?

They are widely used in steel pipe manufacturing,construction,fire protection,metal furniture,and industrial fabrication.

Q5: Can thread specifications be customized?

Yes. Thread type,diameter,pitch,and processing parameters can be customized according to customer requirements.

Q6: Is the production line suitable for mass production?

Yes. The automatic system is designed for continuous high-volume manufacturing.

Q7: Can the line be integrated with other machines?

Yes. Feeding systems,cutting machines,inspection systems,and packaging equipment can be integrated.
