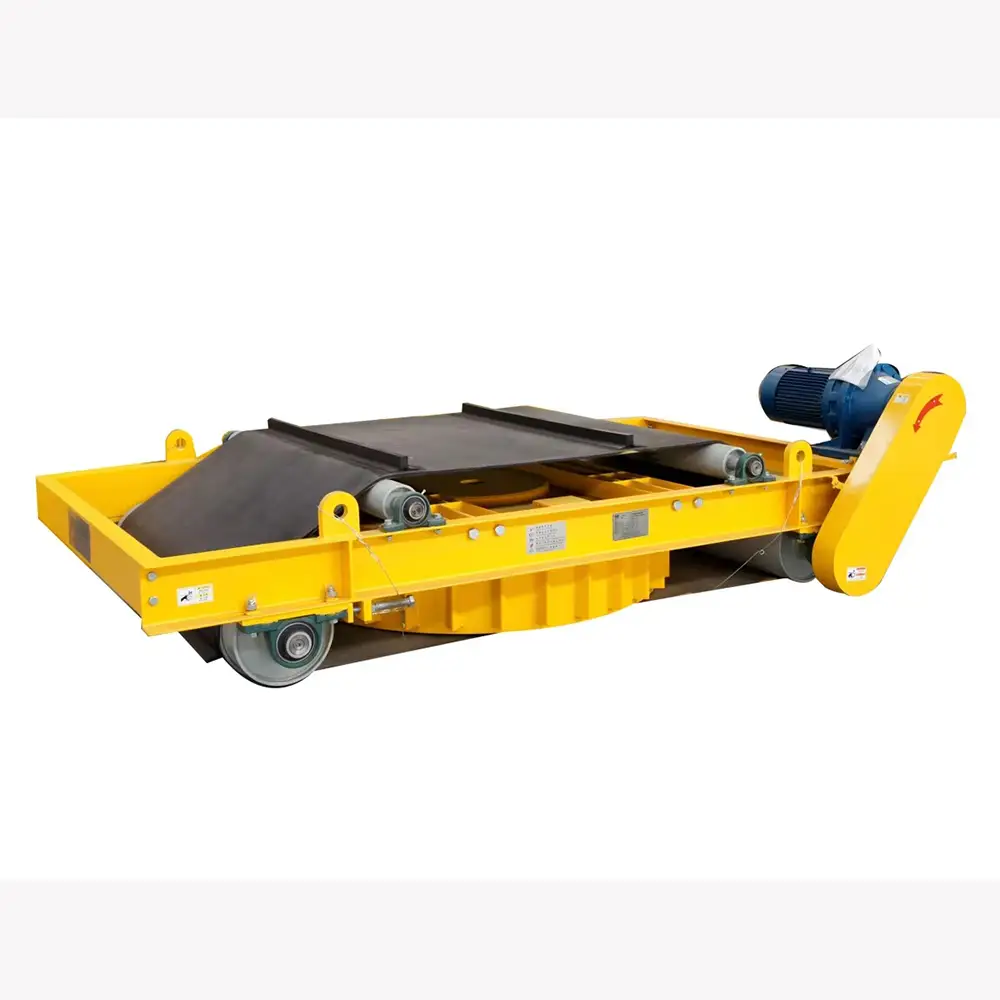

RCDD Self-Cleaning Electric Magnetic Tramp Iron Separator

RCDD Self-Cleaning Electric Magnetic Tramp iron Separator It is used to eliminate the powder or massive waste iron from the nonmagnetic material. The inner adopts the special resin to cast with wholly sealed structure. It features with deep revealed magnetic depth, strong magnetic force, dust-protection and rain-protection, erosion wearing and so on. It can be operated in the harsh environment.

Major technical parameters:

The RCDD Self-Cleaning Electric Magnetic Tramp Iron Separator is a heavy-duty magnetic separation system designed to continuously remove unwanted ferrous metal from bulk material transported on conveyor belts. It is commonly installed above or near belt conveyors to protect crushers, screens, mills, feeders, and other downstream equipment from damaging tramp iron.

Using an electric magnetic field, the separator attracts ferrous contaminants from materials such as coal, ore, limestone, aggregates, cement raw materials, sand, gravel, and recycled materials. Its self-cleaning structure automatically carries captured iron away from the magnetic zone, allowing continuous operation without frequent manual cleaning.

For demanding material handling applications, the RCDD design provides a practical solution for automatic iron removal, equipment protection, and improved material purity. Different magnetic strengths, belt widths, suspension heights, discharge configurations, and conveyor layouts can be customized according to the customer's production requirements.

What Is an RCDD Tramp Iron Separator?

An RCDD Tramp Iron Separator is an electric overband magnetic separator designed to separate ferrous metal from a moving bulk material stream.

"Tramp iron" refers to unwanted ferrous objects that accidentally enter a material handling system. These may include bolts, nuts, steel pieces, tools, broken machine components, wire, reinforcing steel, and other magnetic metal fragments.

When installed over a conveyor, the magnetic separator creates a strong magnetic field that attracts ferrous contaminants as the material passes underneath. A built-in cleaning belt then transports the captured metal away from the magnetic field and discharges it into a collection area.

This automatic process makes the RCDD suitable for continuous-duty industrial environments.

How Does the Self-Cleaning Electric Magnetic Separator Work?

The operating process is straightforward:

Bulk material is transported by the conveyor belt.
The material passes through the magnetic field generated by the electric magnetic system.
Ferrous metal is attracted upward toward the separator.
The captured metal adheres to the moving self-cleaning belt.
The belt carries the tramp iron beyond the main magnetic field.
The separated metal is discharged automatically.
Cleaned bulk material continues along the conveyor.

The continuous cleaning mechanism reduces the need for operators to stop the conveyor and manually remove accumulated metal.

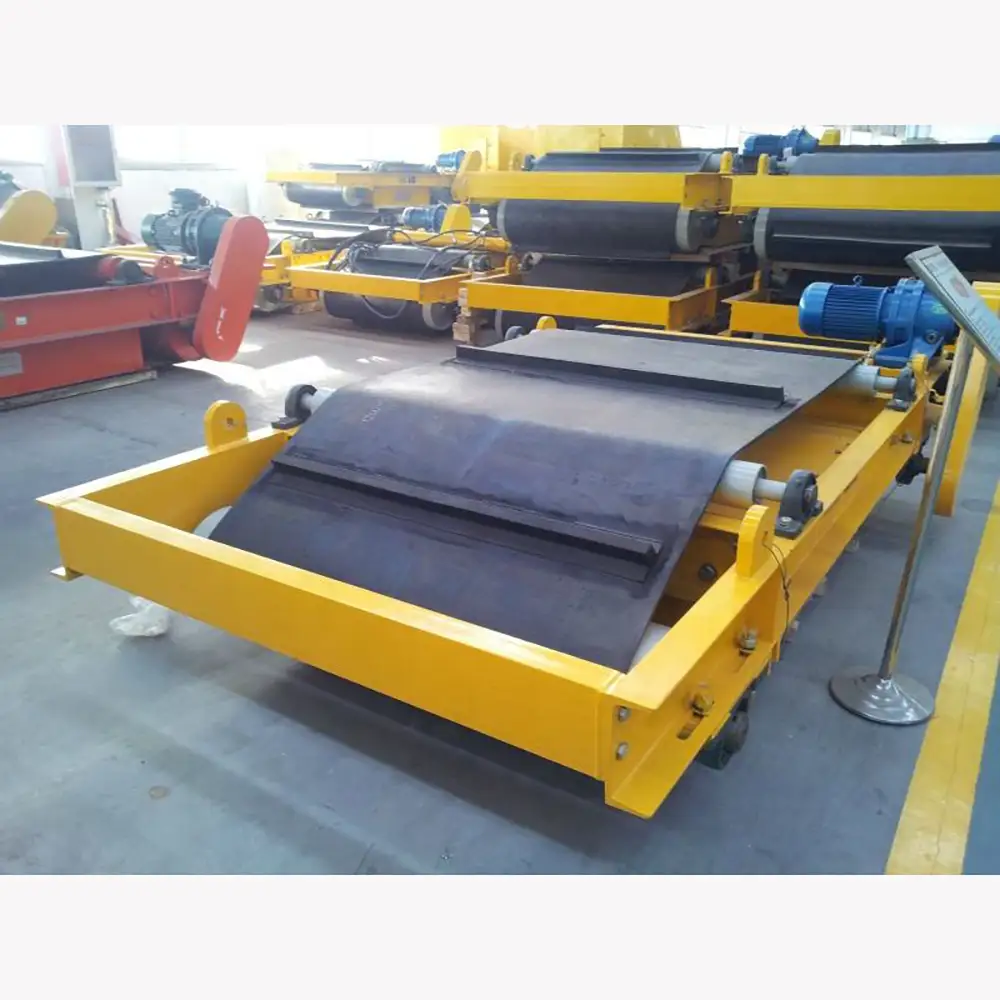

Main Components

A typical RCDD Self-Cleaning Electric Magnetic Tramp Iron Separator includes:

Electromagnetic Magnetic Core
Self-Cleaning Discharge Belt
Drive Motor
Reducer or Transmission System
Separator Frame
Protective Housing
Adjustable Suspension Structure
Belt Tracking Components
Magnetic Field System
Automatic Iron Discharge Area

The frame and components can be designed for outdoor installations, dusty environments, high-capacity conveyor systems, and heavy industrial applications.

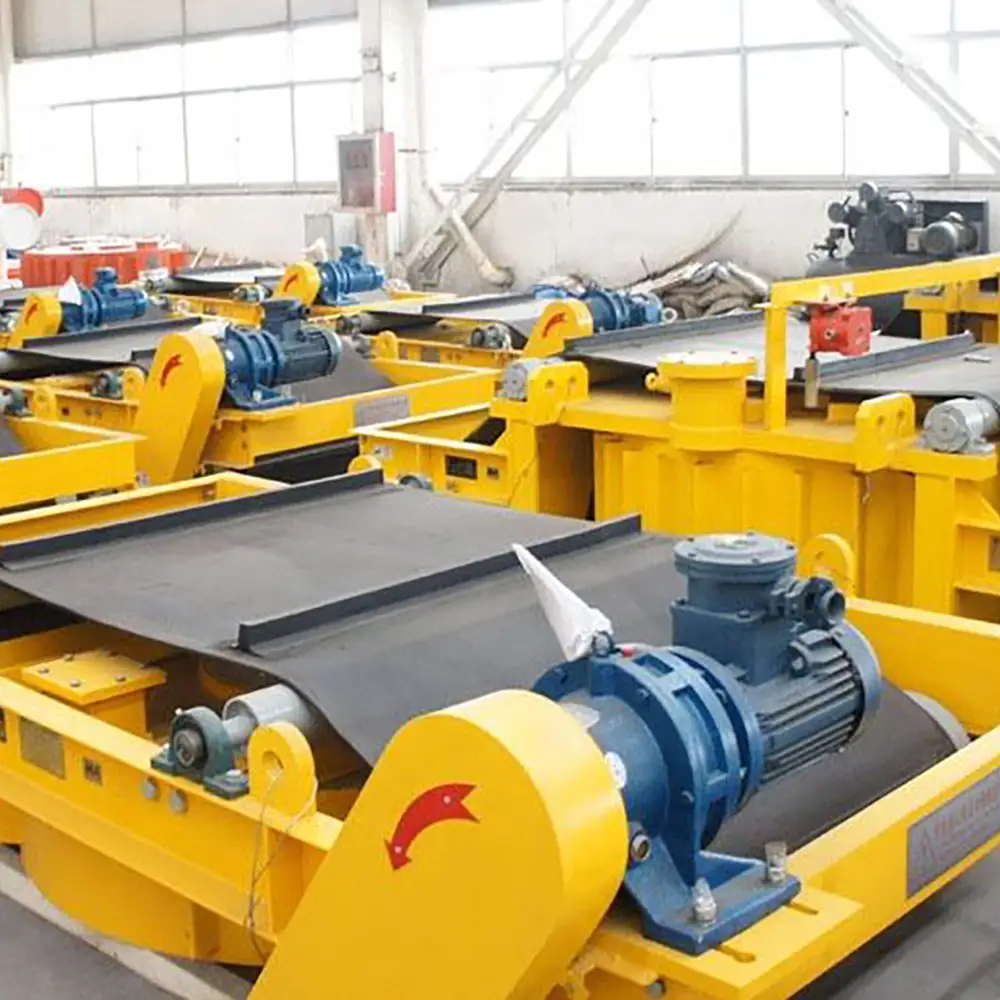

Overband Magnetic Separator for Conveyor Systems

The RCDD separator is particularly suitable for conveyor-based material handling. It can be suspended above a conveyor in either a cross-belt or inline configuration depending on the material flow and installation conditions.

A cross-belt configuration places the magnetic separator perpendicular to the conveyor direction. Ferrous objects are lifted from the material stream and transported laterally to the side of the conveyor.

An inline configuration places the separator along the material flow. The magnetic field captures ferrous material and the self-cleaning belt carries it toward the discharge end.

The appropriate configuration depends on conveyor width, belt speed, material depth, particle size, tramp iron characteristics, and available installation space.

Industrial Applications
Mining and Mineral Processing

Mining operations can use the RCDD magnetic separator to remove steel fragments and tramp iron from crushed ore, mineral materials, and aggregate streams. Removing ferrous contaminants helps protect crushers, screens, and other expensive processing equipment.

Coal Handling

Coal preparation plants and power plants can install an overband magnetic separator above coal conveyors to remove bolts, steel fragments, and other ferrous contaminants before they reach crushers and processing equipment.

Cement and Building Materials

Cement plants handle large volumes of limestone, clinker, gypsum, coal, and other raw materials. A magnetic iron separator can help protect crushers, conveyors, grinding equipment, and feeders from unwanted metal.

Aggregate and Quarry Operations

Sand, gravel, crushed stone, and aggregate processing systems may contain metal fragments originating from excavators, loaders, crushers, or maintenance activities. Continuous magnetic separation provides an additional layer of equipment protection.

Recycling

Recycling plants use magnetic separation to recover ferrous metals from mixed waste, construction debris, municipal waste, and industrial scrap. Self-cleaning operation is particularly useful for high-volume conveyor systems.

Steel and Metallurgical Industries

The separator can be incorporated into material handling systems for ores, slag, raw materials, and other bulk materials where ferrous contamination must be removed.

Key Advantages
Continuous Automatic Iron Removal

The self-cleaning belt continuously transports captured ferrous metal away from the magnetic field, minimizing manual intervention.

Strong Electromagnetic Separation

The electric magnetic system can generate a strong magnetic field for reliable removal of ferrous contaminants from bulk material streams.

Equipment Protection

Removing tramp iron before it reaches crushers, shredders, mills, screens, and other equipment can help reduce the risk of mechanical damage and unexpected downtime.

Heavy-Duty Construction

The separator can be manufactured for demanding mining, quarry, cement, coal, aggregate, and recycling environments.

Flexible Conveyor Installation

The RCDD design can be adapted to different conveyor widths, material capacities, suspension heights, and installation layouts.

Continuous Production

Automatic discharge allows the conveyor and magnetic separator to operate continuously without frequent shutdowns for cleaning.

Improved Material Purity

Removing unwanted ferrous metal can improve the quality and cleanliness of the processed material.

How to Select the Right RCDD Magnetic Separator

Several factors should be evaluated before selecting an electric tramp iron separator:

Conveyor Belt Width
Conveyor Belt Speed
Material Throughput
Material Density
Material Layer Thickness
Maximum Tramp Iron Size
Required Magnetic Suspension Height
Type of Bulk Material
Installation Configuration
Available Electrical Power
Ambient Operating Conditions

The size and magnetic performance should be matched to the actual material flow and conveyor conditions. For difficult applications, information about the largest expected tramp iron and its position within the material burden is especially important.

Installation and Maintenance

Correct installation is essential for effective magnetic separation. The separator should be positioned at an appropriate height above the conveyor, with sufficient clearance for the material stream and automatic iron discharge.

Routine maintenance should include inspection of the self-cleaning belt, drive motor, transmission components, bearings, belt tracking, electrical connections, and structural fasteners. Material buildup should be removed from areas where it could interfere with belt movement.

Operators should also inspect the separator regularly for excessive wear, abnormal vibration, unusual noise, belt slippage, and other operating conditions.

OEM and Custom Magnetic Separator Solutions

As an industrial magnetic separator manufacturer and supplier, we can provide customized RCDD tramp iron separation equipment according to specific conveyor and material handling requirements.

Customization can include magnetic intensity, separator dimensions, belt width, suspension structure, discharge direction, electrical configuration, frame design, protective housing, and installation accessories.

OEM solutions are suitable for mining companies, cement plants, coal handling systems, aggregate producers, recycling plants, material handling equipment manufacturers, and industrial processing projects.

Why Choose Us
Professional Industrial Magnetic Separator Manufacturing
Heavy-Duty Equipment for Continuous Material Handling
Custom Conveyor and Installation Configurations
Self-Cleaning Automatic Iron Discharge
Suitable for Mining, Coal, Cement, Aggregate, and Recycling
Engineering Support for Magnetic Separation Systems
OEM and Custom Manufacturing Available
Quality-Controlled Components and Assembly
Export-Oriented B2B Supply Service
Complete Solutions for Industrial Material Handling
FAQs
1. What is an RCDD Self-Cleaning Electric Magnetic Tramp Iron Separator?

It is an industrial electromagnetic separator designed to automatically remove ferrous metal contaminants from bulk materials transported on conveyor belts.

2. What does tramp iron mean?

Tramp iron refers to unwanted ferrous metal objects that enter a material handling system, including bolts, steel fragments, tools, wires, and broken equipment components.

3. Is the RCDD separator self-cleaning?

Yes. A continuously moving cleaning belt carries captured ferrous material away from the magnetic field and automatically discharges it.

4. Where is an RCDD magnetic separator installed?

It is commonly suspended above conveyor belts in mining, coal, cement, quarry, aggregate, recycling, and industrial material handling systems.

5. What materials can it separate?

It can remove ferrous contaminants from coal, limestone, ore, aggregates, sand, gravel, cement raw materials, recycled materials, and many other bulk materials.

6. What is the difference between an overband magnet and a standard magnetic separator?

An overband magnetic separator is specifically designed to work over a conveyor and continuously remove ferrous metal from a moving material stream.

7. Can the separator protect crushers?

Yes. Removing tramp iron before material reaches crushers, shredders, mills, and other equipment can help reduce the risk of damage caused by unwanted metal.

8. Can the RCDD separator be customized?

Yes. Dimensions, magnetic performance, belt configuration, mounting structure, discharge direction, and other parameters can be customized for different applications.

9. Does the separator require regular maintenance?

Routine inspection and maintenance are recommended for the cleaning belt, drive system, bearings, electrical components, fasteners, and structural parts.

10. How do I choose the correct magnetic separator?

Selection depends on conveyor width, belt speed, material capacity, material characteristics, tramp iron size, installation height, and required separation performance. Providing these details allows the appropriate model to be specified.
