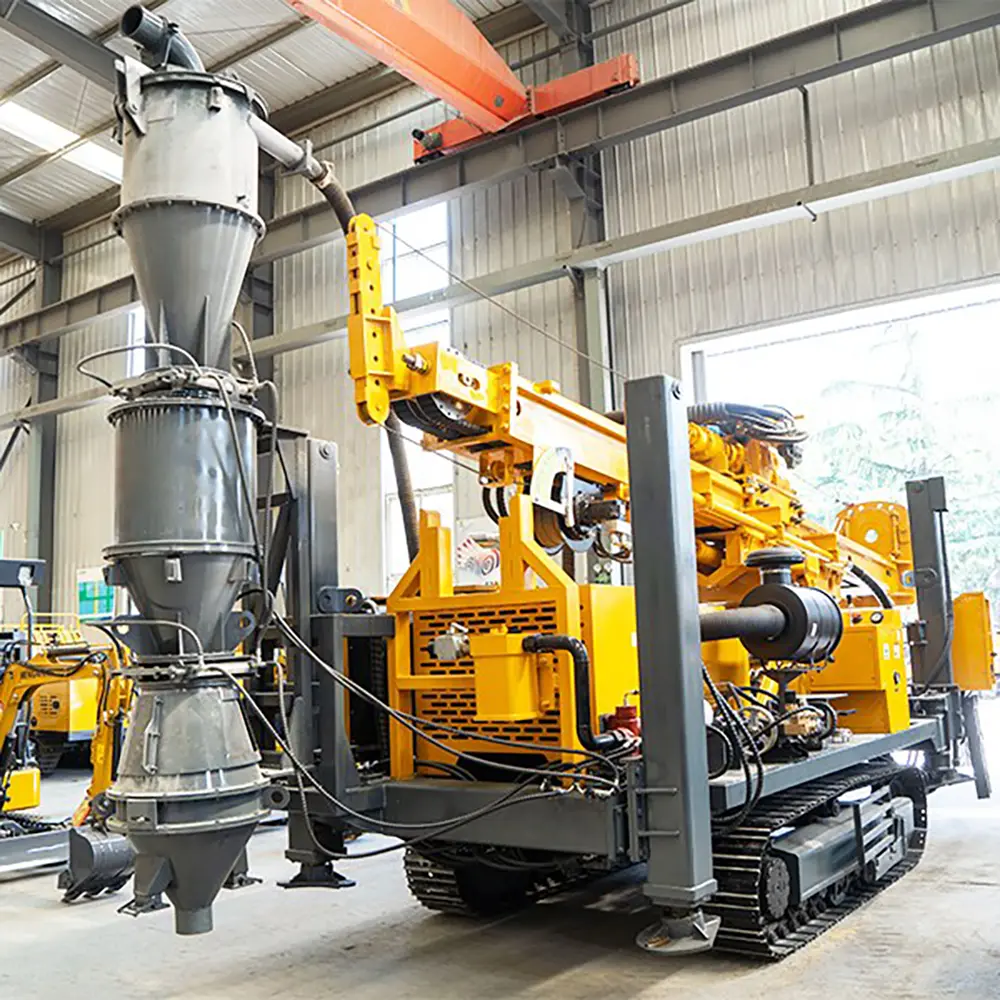

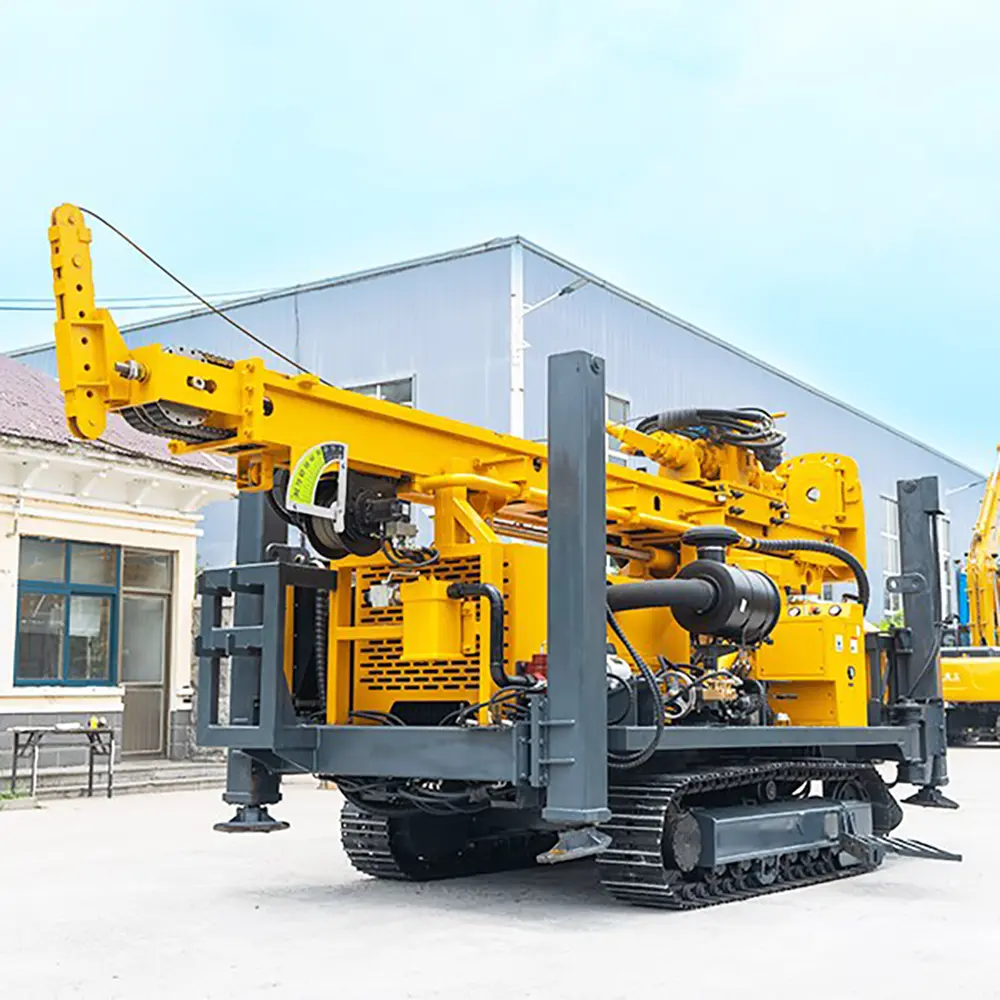

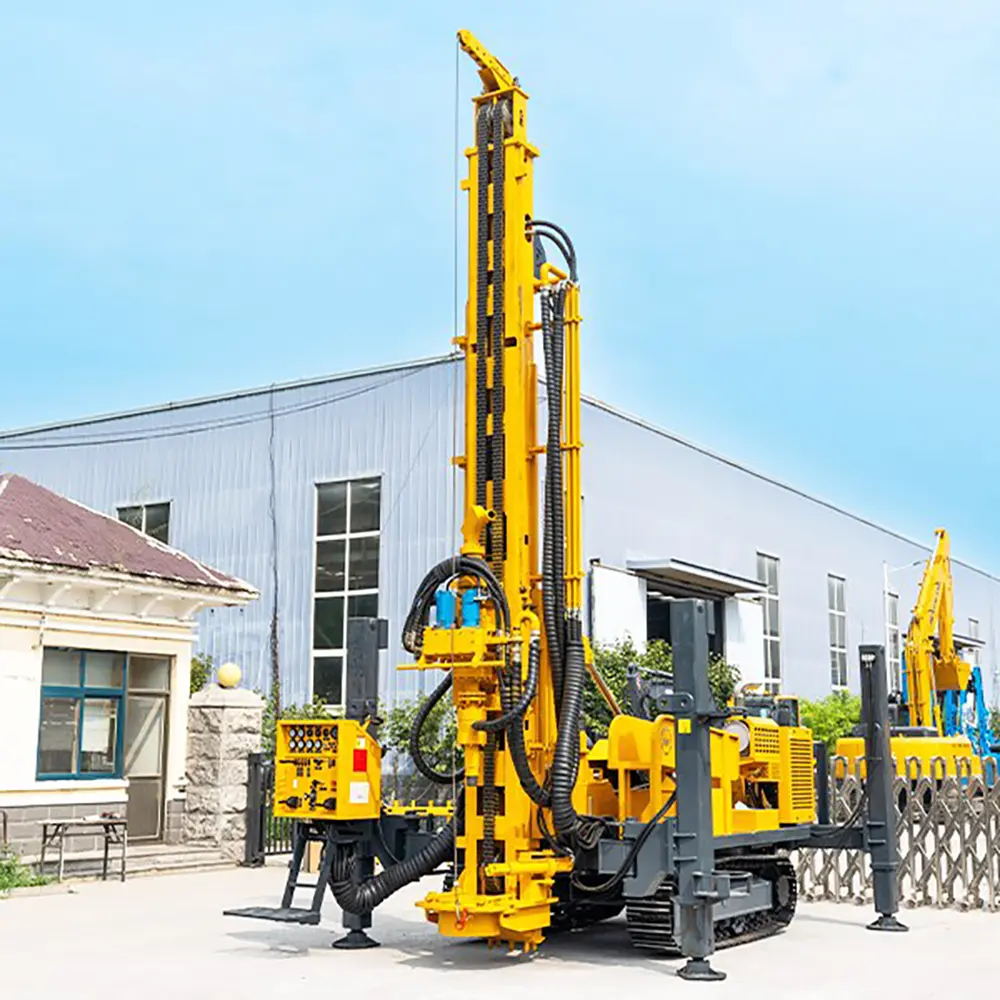

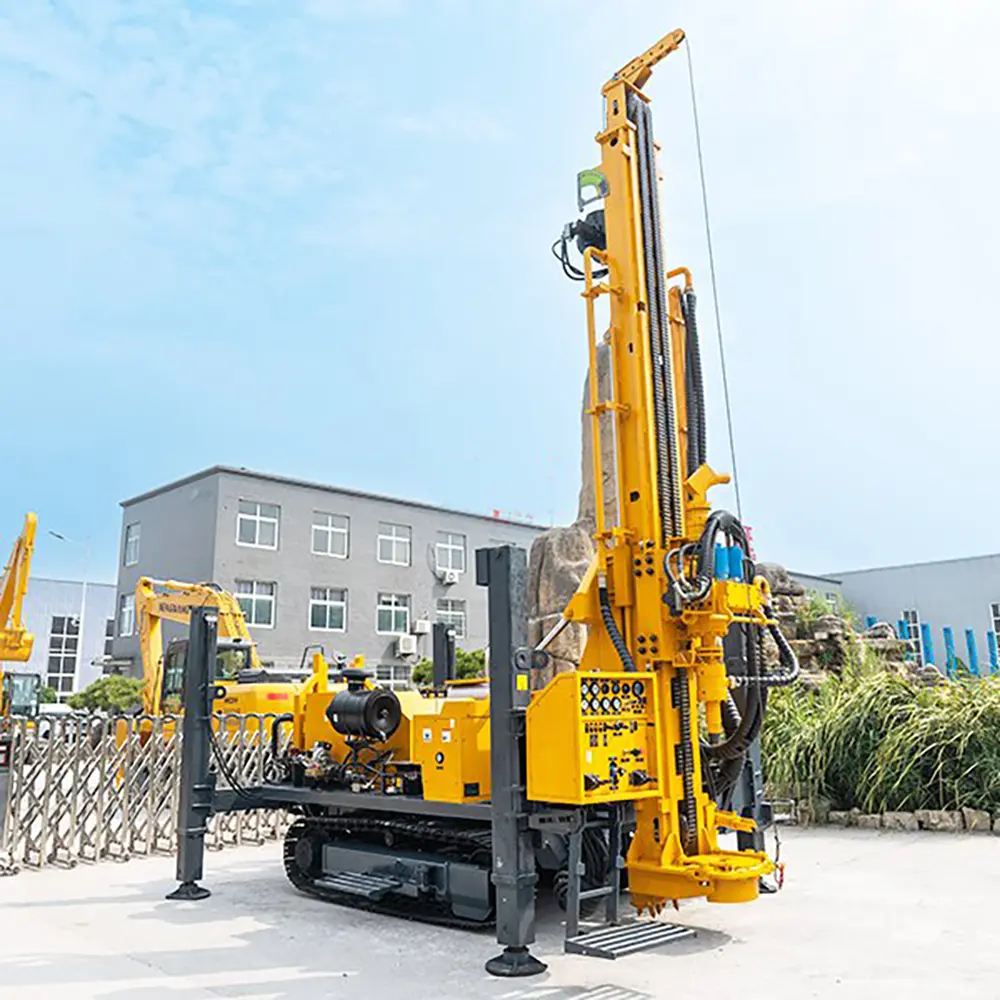

RC500 Reverse Circulation Drill Rig

Drilling depth: 400m
Drilling diameter: 105-400mm
Engine Power: 132Kw

Model	RC500
Engine	Cummins Engine
Power	132 kW
Maximum Drilling Depth	400 m
Drilling Diameter	105–400 mm
Working Air Pressure (MPa)	1.6–6MPa
Total Air Consumption	16–55 m³/min
Drill Rod Length	3 m
Drill Rod Diameter	Φ102/Φ114mm
Axial Pressure	7 t
Lifting Capacity	25 t
Slow Lifting Speed	23m/min
Fast Lifting Speed	33m/min
Rotational Torque	10000/5000 Nm
Rotational Speed	0–75 r/min; 0–150 r/min
Feed Efficiency	10–35 m/h
Travel Speed	2.5 km/h
Climbing Ability	21°
Machine Weight	12t
Dimensions	7×2.1×2.8m

RC500 Reverse Circulation Drill Rig

The RC500 Reverse Circulation Drill Rig is an advanced exploration drilling machine designed for mineral exploration, geological investigation, ore sampling, and mining resource development projects. With powerful drilling performance, efficient reverse circulation technology, and reliable hydraulic operation, the RC500 provides a professional solution for obtaining high-quality rock samples from deep underground formations.

Unlike traditional drilling methods, reverse circulation drilling uses dual-wall drill rods and compressed air to transport rock cuttings directly from the bottom of the hole to the surface. This technology reduces sample contamination, improves drilling efficiency, and provides cleaner geological samples for accurate analysis.

The RC500 Reverse Circulation Drill Rig is widely used in open-pit mining exploration, mineral resource evaluation, geological surveying, and drilling projects that require fast penetration and reliable sample recovery. The machine can achieve drilling depths of up to approximately 500 meters and is designed for efficient exploration drilling operations.

With a powerful engine system, strong lifting capacity, and stable drilling performance, the RC500 helps mining companies and exploration contractors improve productivity while reducing drilling costs.

Advanced Reverse Circulation Drilling Technology

The RC500 Reverse Circulation Drill Rig adopts advanced RC drilling technology to improve drilling efficiency and sample quality.

During operation, high-pressure compressed air enters through the outer pipe of the double-wall drill rod. The air lifts rock cuttings through the inner tube and transports them quickly to the surface for collection.

This drilling method provides several advantages:

Cleaner rock samples
Faster drilling speed
Reduced hole blockage risk
Lower drilling fluid consumption
Improved drilling efficiency
Reduced environmental impact

The reverse circulation system minimizes the accumulation of cuttings inside the borehole, helping prevent drill string jamming and unexpected downtime during difficult drilling operations.

Powerful Drilling Performance

The RC500 Reverse Circulation Drill Rig is designed for demanding mining and exploration applications.

The machine features a powerful hydraulic drilling system that provides:

Strong rotary torque
Stable drilling speed
High lifting force
Efficient penetration capability
Continuous operation performance

The RC500 is equipped with a powerful engine system with approximately 132 kW rated power, providing sufficient energy for deep exploration drilling. It also offers strong lifting capacity for handling long drill rods and complex drilling conditions.

The optimized power system allows the rig to maintain stable performance in challenging geological environments.

Deep Hole Drilling Capability

One of the major advantages of the RC500 Reverse Circulation Drill Rig is its excellent deep drilling capability.

The machine is suitable for:

Mineral exploration drilling
Ore grade testing
Geological sampling
Mining investigation
Resource evaluation projects

The RC500 can reach drilling depths of approximately 500m, making it suitable for medium and deep exploration applications.

Its powerful drilling structure allows operators to collect representative samples from underground formations, supporting accurate geological analysis and resource assessment.

High Quality Sample Recovery

For mining exploration, sample quality is extremely important.

The RC500 Reverse Circulation Drill Rig helps improve sample accuracy through:

Double-wall drill pipe technology
Fast cuttings transportation
Reduced sample contamination
Continuous sample collection
Efficient surface recovery

High-quality samples allow geologists to better evaluate mineral resources and make more accurate decisions during exploration projects.

Wide Application Areas

The RC500 Reverse Circulation Drill Rig is widely used in different industries.

Mining Exploration

The RC500 is ideal for mineral exploration projects, including:

Gold exploration
Copper exploration
Iron ore investigation
Mineral resource evaluation
Geological Survey

The machine provides reliable drilling data for geological analysis and underground structure research.

Ore Grade Testing

The RC500 allows mining companies to collect rock samples for laboratory testing and resource estimation.

Open-Pit Mining Projects

The rig is suitable for exploration drilling before and during mining operations.

Excellent Adaptability to Geological Conditions

The RC500 Reverse Circulation Drill Rig is designed to work in various geological formations.

It can handle:

Hard rock formations
Weathered rock
Gravel layers
Mixed geological structures
Mineralized zones

The powerful rotary system and reverse circulation technology help maintain stable drilling performance even in challenging conditions.

Operators can select suitable drill bits and drilling parameters according to different rock characteristics.

Efficient and Environment-Friendly Drilling

Compared with traditional drilling methods, the RC500 Reverse Circulation Drill Rig reduces the requirement for large amounts of drilling mud and chemical additives.

Advantages include:

Less drilling waste
Lower environmental impact
Reduced water consumption
Lower operating costs
Cleaner working conditions

The efficient air-driven sample transport system improves productivity while supporting more sustainable drilling operations.

Durable Structure and Reliable Operation

The RC500 Reverse Circulation Drill Rig is manufactured for long-term professional use.

Its durable design includes:

Strong steel frame structure
Reliable hydraulic components
Heavy-duty drilling system
Stable crawler mobility
Long service life components

The robust construction allows the machine to operate effectively in remote mining areas and demanding outdoor environments.

Easy Operation and Maintenance

The RC500 is designed with operator convenience in mind.

The practical control system allows operators to manage:

Rotation speed
Drilling pressure
Feeding speed
Lifting operation

Maintenance advantages include:

Easy access to components
Reduced service time
Simple inspection procedures
Lower maintenance costs

The user-friendly design improves working efficiency and reduces equipment downtime.

Main Features of RC500 Reverse Circulation Drill Rig
Up to 500m drilling depth
Reverse circulation drilling technology
Designed for mineral exploration
High-quality rock sample recovery
Powerful hydraulic drilling system
132kW engine power
Strong lifting capability
Efficient compressed air circulation
Suitable for hard rock drilling
Reliable mining exploration performance

Why Choose Our RC500 Reverse Circulation Drill Rig?
1. Professional Exploration Performance

The RC500 is specially designed for mineral exploration and geological sampling projects.

2. High Drilling Efficiency

Advanced reverse circulation technology improves penetration speed and reduces downtime.

3. Excellent Sample Quality

Clean and reliable rock samples help improve geological evaluation accuracy.

4. Strong Deep Drilling Capability

The machine supports deep exploration drilling requirements up to approximately 500 meters.

5. Durable and Reliable Design

Heavy-duty components ensure stable operation in harsh working environments.

6. Lower Operating Cost

Efficient drilling technology reduces consumable usage and improves project profitability.

FAQS
1. What is the RC500 Reverse Circulation Drill Rig used for?

The RC500 is mainly used for mineral exploration, geological sampling, ore grade testing, and mining investigation projects.

2. How deep can the RC500 drill?

The RC500 can achieve drilling depths of up to approximately 500 meters depending on geological conditions and drilling configuration.

3. What is reverse circulation drilling?

Reverse circulation drilling is a method that uses dual-wall drill rods and compressed air to transport rock cuttings from the bottom of the hole to the surface.

4. What are the advantages of RC drilling?

RC drilling provides faster drilling speed, cleaner samples, reduced contamination, and improved exploration efficiency.

5. Can the RC500 drill hard rock?

Yes. With suitable drill bits and operating parameters, the RC500 can work in various rock formations.

6. Is the RC500 suitable for mining companies?

Yes. It is specifically designed for mineral exploration and resource evaluation applications.

7. What power system does the RC500 use?

The RC500 uses a powerful engine system with approximately 132kW rated power to support deep exploration drilling.

8. Can the RC500 be customized?

Yes. Different configurations, accessories, and drilling solutions can be customized according to project requirements.

Product Conclusion

The RC500 Reverse Circulation Drill Rig is a professional mining exploration machine designed for deep drilling, mineral sampling, and geological investigation.

With advanced reverse circulation technology, powerful drilling performance, excellent sample recovery, and durable construction, the RC500 provides an efficient solution for modern exploration projects.

For mining companies and drilling contractors looking for reliable, high-performance exploration equipment, the RC500 Reverse Circulation Drill Rig is an ideal choice.
