JZF-D Reverse Circulation Drilling Rig

JZF-D Reverse Circulation Drilling Rig

The JZF-D Reverse Circulation Drilling Rig is a versatile crawler-type drilling machine designed for efficient water well drilling, geological exploration, agricultural irrigation wells, and engineering pile hole construction. Combining positive circulation and reverse circulation drilling technologies, the JZF-D provides excellent adaptability for different geological conditions and improves drilling efficiency in complex environments.

Unlike traditional single-function drilling equipment, the JZF-D integrates two drilling methods in one machine. The positive circulation mode is mainly suitable for sandy soil formations, while the reverse circulation mode performs effectively in sludge, clay, and pebble layers. This flexibility allows operators to select the appropriate drilling method according to ground conditions, improving drilling stability and productivity.

The JZF-D Reverse Circulation Drilling Rig features a crawler-mounted chassis, compact structure, and strong mobility. It is designed for projects where transportation flexibility, reliable operation, and adaptability are important. With a drilling diameter range of approximately 300-1000mm, drilling depth up to around 80m, and a machine weight of about 3.2 tons, the JZF-D is suitable for various medium-depth drilling applications.

Advanced Reverse Circulation Drilling Technology

The JZF-D Reverse Circulation Drilling Rig uses advanced reverse circulation technology to improve drilling efficiency and hole quality.

During reverse circulation drilling, drilling fluid and cuttings are transported through the drill pipe, allowing efficient removal of debris from the borehole. This process helps maintain cleaner drilling conditions, improves drilling speed, and reduces wear on drilling tools.

The reverse circulation system is especially effective in formations containing:

Pebbles
Gravel layers
Sludge
Clay formations
Complex soil structures

By improving cuttings removal and maintaining stable borehole conditions, the JZF-D helps operators achieve better drilling results.

Dual Positive and Reverse Circulation Functions

One of the biggest advantages of the JZF-D Reverse Circulation Drilling Rig is its dual drilling capability.

The machine combines:

Positive Circulation Drilling

Positive circulation is suitable for:

Sandy soil
Loose formations
General soil layers

It provides effective flushing and stable drilling performance in softer formations.

Reverse Circulation Drilling

Reverse circulation is suitable for:

Sludge layers
Pebble formations
Difficult geological conditions

This combination allows the JZF-D to handle multiple ground conditions without requiring different machines for different projects.

Crawler-Mounted Design for Easy Mobility

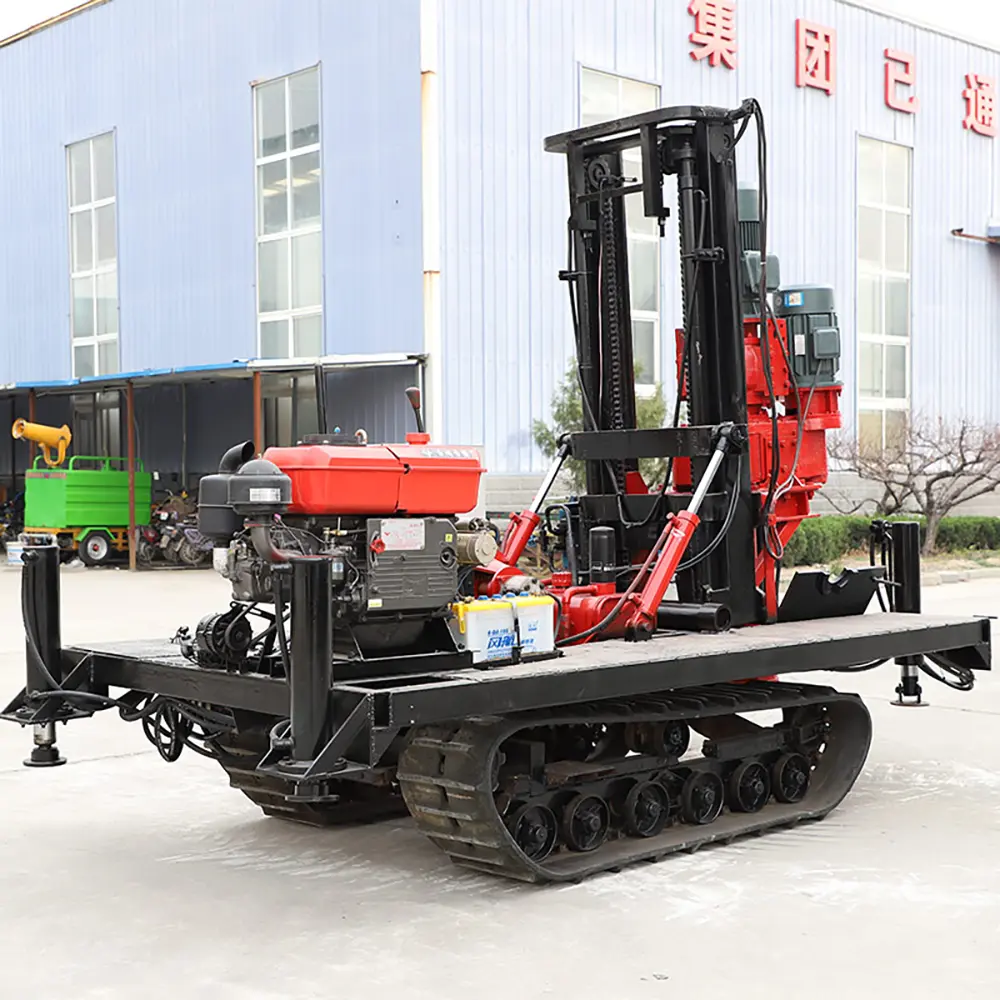

The JZF-D Reverse Circulation Drilling Rig adopts a crawler chassis design, providing excellent mobility and stability on different terrains.

The crawler structure offers several advantages:

Easy movement between drilling locations
Strong adaptability to uneven ground
Stable support during drilling operations
Reduced transportation requirements

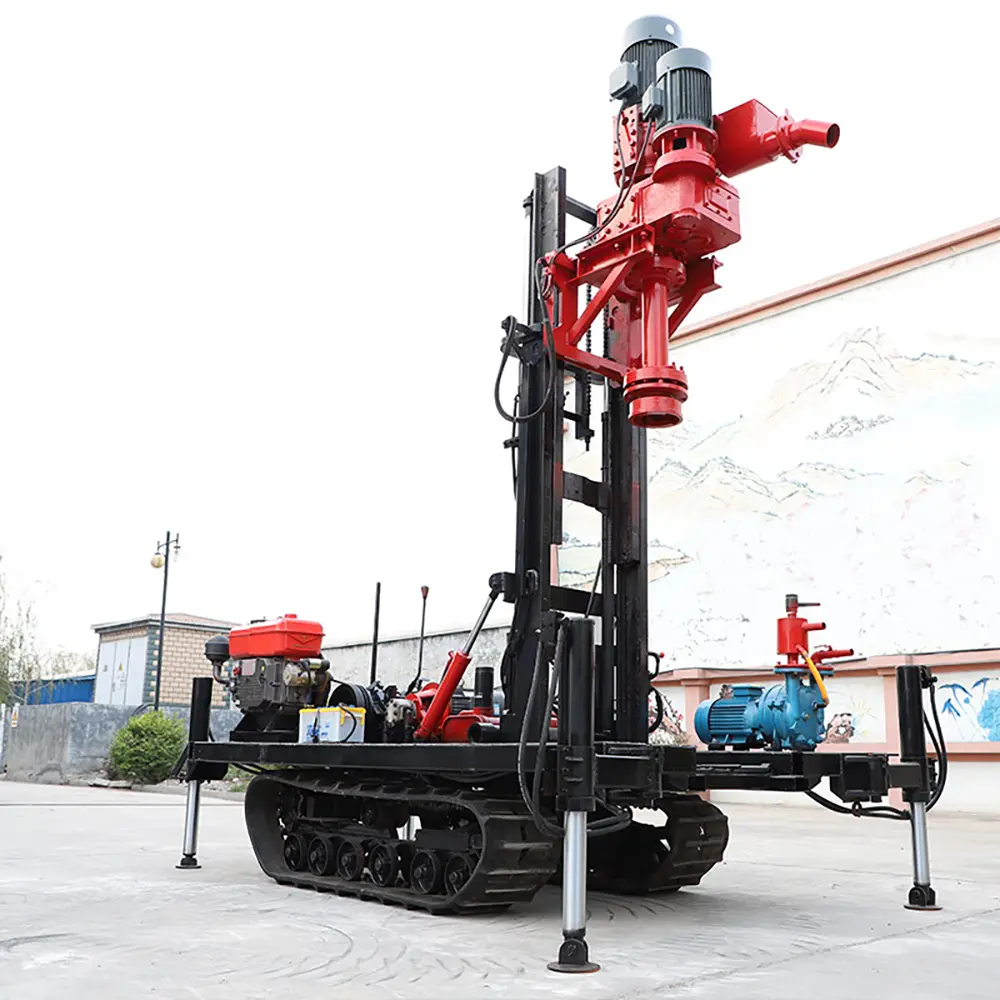

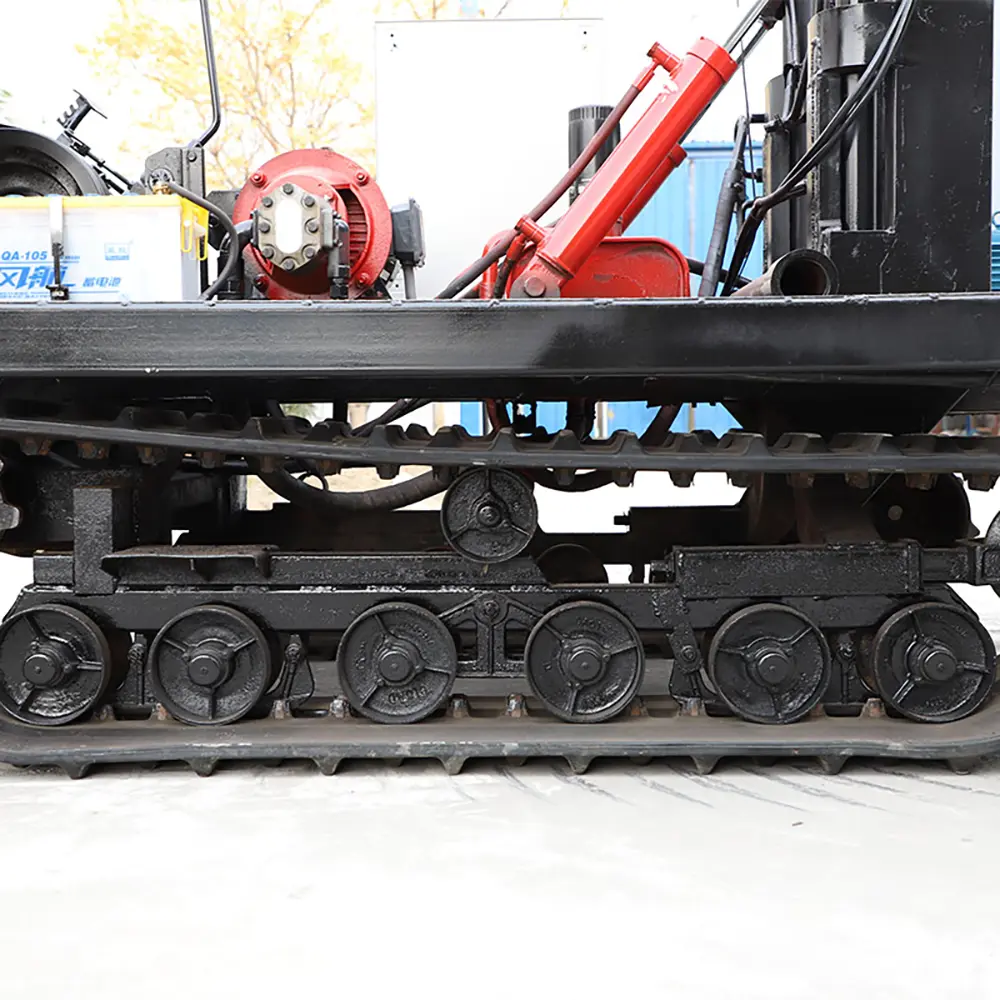

The crawler chassis uses steel wire rubber tracks, which help reduce walking noise and minimize damage to urban road surfaces. Hydraulic outriggers are equipped to assist machine leveling and improve drilling stability.

This makes the JZF-D suitable for rural areas, construction sites, farmland projects, and infrastructure development.

Wide Application Areas

The JZF-D Reverse Circulation Drilling Rig is widely used in many industries, including:

Water well drilling
Agricultural irrigation wells
Engineering pile holes
Geological exploration
Groundwater development
Construction projects
Foundation drilling
Infrastructure engineering

For agricultural applications, the JZF-D provides an efficient solution for groundwater extraction and irrigation well construction.

For construction projects, it can be used for engineering pile holes and foundation-related drilling operations.

For geological projects, the machine provides reliable drilling performance for investigating underground conditions.

Strong Adaptability to Various Geological Conditions

The JZF-D Reverse Circulation Drilling Rig is designed to handle different geological environments.

It can effectively work in:

Soil layers
Sand formations
Sludge layers
Pebble layers
Loose geological structures

The ability to switch between positive and reverse circulation drilling methods allows operators to adapt quickly to changing ground conditions.

This flexibility reduces project delays and improves overall drilling efficiency.

Durable Structure and Reliable Performance

The JZF-D Reverse Circulation Drilling Rig is built with durable components and a strong mechanical structure to ensure long-term operation.

Its crawler chassis provides excellent stability, while the reliable power system supports continuous drilling performance.

Key durability advantages include:

Strong machine frame
Reliable hydraulic components
Stable drilling operation
Easy maintenance
Long service life

The machine is designed for demanding outdoor working environments and professional drilling applications.

Easy Operation and Maintenance

The JZF-D features a practical design that makes operation and maintenance convenient.

The electric-start diesel engine reduces operator workload and improves starting performance, especially in colder environments.

Maintenance advantages include:

Simple operating controls
Convenient component inspection
Reduced downtime
Lower maintenance costs

The user-friendly design helps operators improve productivity while reducing operating difficulty.

Main Features of JZF-D Reverse Circulation Drilling Rig
Positive and reverse circulation drilling functions
Crawler-mounted mobile structure
300-1000mm drilling diameter capability
Up to 80m drilling depth
Suitable for soil, sand, sludge, and pebble layers
Hydraulic leveling outriggers
Stable drilling performance
Easy transportation and operation
Reliable diesel power system
Wide application range

Why Choose Our JZF-D Reverse Circulation Drilling Rig?
1. Dual Drilling Function

The JZF-D combines positive and reverse circulation systems, allowing flexible operation in different geological conditions.

2. Excellent Mobility

The crawler chassis provides strong movement capability and stability on various terrains.

3. Wide Geological Adaptability

The machine can efficiently handle soil, sand, sludge, and pebble formations.

4. High Drilling Efficiency

The optimized circulation system improves cutting removal and drilling performance.

5. Durable Construction

High-quality components ensure reliable operation and long equipment lifespan.

6. Professional Technical Support

We provide complete drilling solutions, customized configurations, and technical assistance according to customer requirements.

FAQS
1. What is the JZF-D Reverse Circulation Drilling Rig used for?

The JZF-D is mainly used for water wells, agricultural irrigation wells, geological drilling, and engineering pile hole construction.

2. What is the difference between positive and reverse circulation drilling?

Positive circulation pumps drilling fluid downward through the drill pipe and returns cuttings upward outside the drill pipe. Reverse circulation uses the opposite flow direction, which is more suitable for removing cuttings from difficult formations.

3. What geological conditions can the JZF-D handle?

The JZF-D can drill through soil, sand, sludge, pebble layers, and other common geological formations.

4. What is the drilling diameter range of the JZF-D?

The reverse circulation drilling diameter range is approximately 300-1000mm, while positive circulation drilling can support different diameter requirements depending on configuration.

5. Is the JZF-D suitable for agricultural irrigation wells?

Yes. The machine is widely used for farm irrigation wells and groundwater development projects.

6. Why does the JZF-D use a crawler chassis?

The crawler chassis improves mobility, stability, and adaptability on uneven construction sites.

7. Is the JZF-D easy to operate?

Yes. The machine features a practical control system and convenient operation design.

8. Can the JZF-D be customized?

Yes. Different configurations and drilling solutions can be customized according to project requirements.
