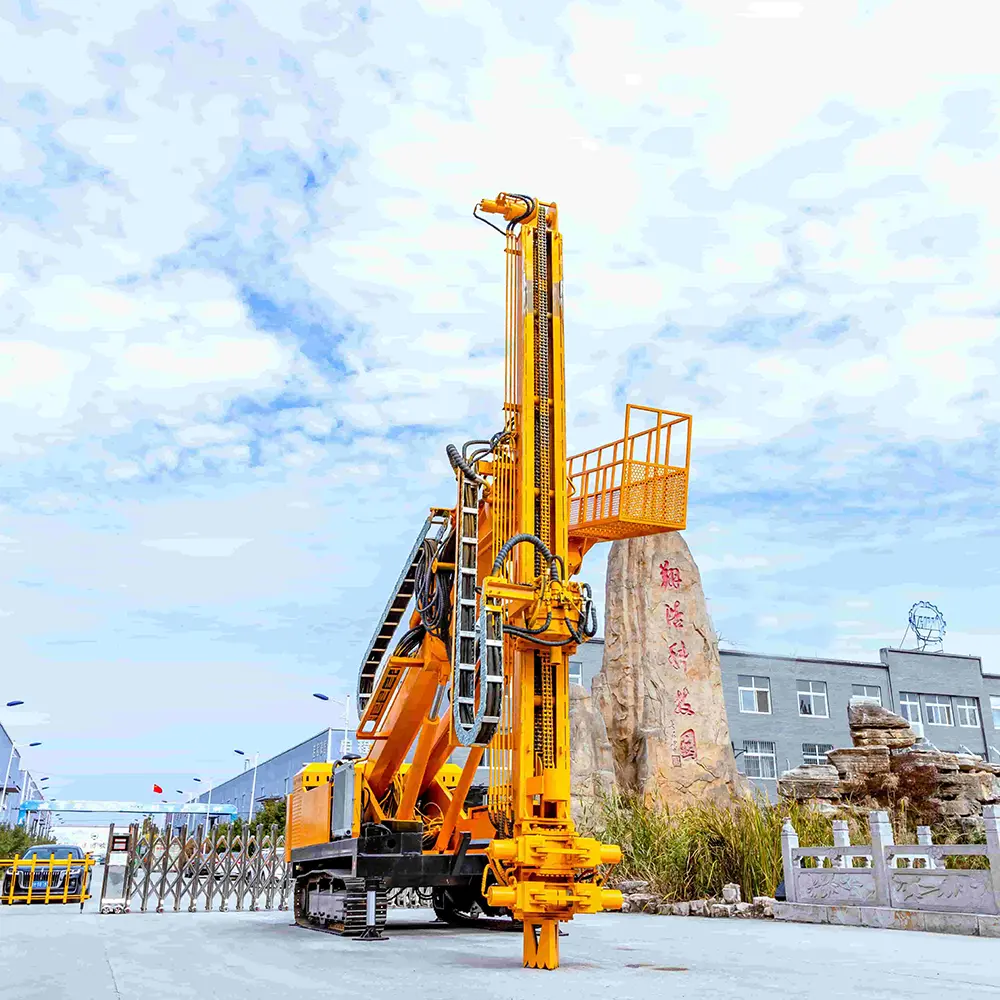

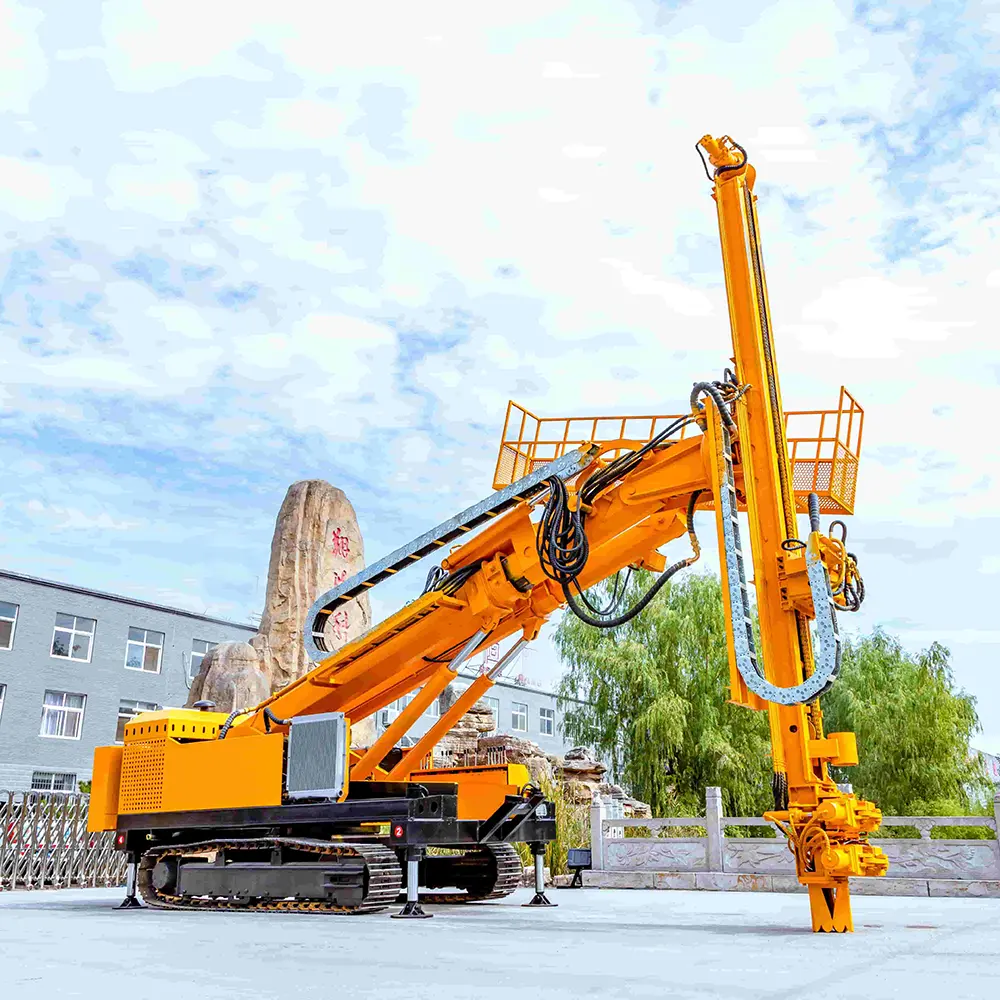

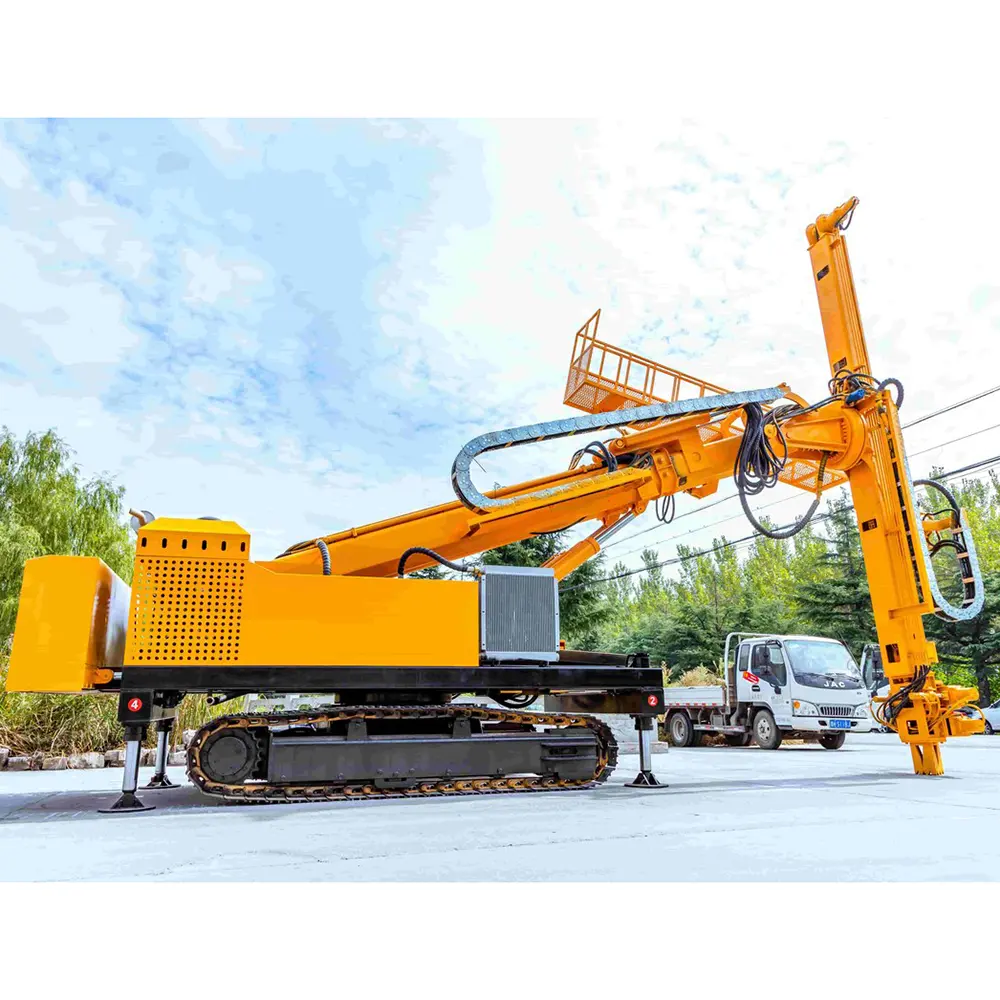

MG-8M Anchoring Drilling Rig

Drill diameter: 0～300mm
Drill depth (m): 0～30m
Drilling angle: 0-360°The crawler anchor drilling rig incorporates a full hydraulic control mode, ensuring precise control and smooth operation. Its crawler-type walking device enhances mobility and maneuverability, allowing it to traverse various terrains with ease.
With its high efficiency, specialty focus, and fast hole expansion speed, the crawler anchor drilling rig is an ideal choice for a wide range of drilling applications. It offers reliable and efficient performance, making it a valuable asset for projects in various industries.

maximum vertical height	8m
Overall dimensions of crawler chassis	3500*2300
Track shoe width	400
engine model	YCD4J22T-105 (Yuchai)
Engine maximum power/speed	78kw / 2300r/min
electric motor	45kw (with multi-function distribution box)
Lower slewing bearing	1m; 360 degree rotation; single planetary reducer
Upper slewing bearing	SE21-A0A (Henuan Intelligent); 360 degree rotation
Hydraulic oil pump	50/50/32
Big frame	individual frame
Hydraulic legs	Four hydraulic legs
support arm	Two sections (both arms)
Power Head	Dual hydraulic motor power head
drilling angle	Can drill flat holes/can drill oblique holes/can drill vertical holes
Drilling diameter/depth	300mm/30m
Chain carriage	Travel 3.5m
Drill pipe propulsion and lifting power	planetary power
Hydraulic system radiator	YS-27A(Hengsheng)
encircle	Fully enclosed (including engine cover)
Counterweight	Solid counterweight; telescopic back 1 meter

Features:
1. Reliability, practicality, and portability: The drilling rig is designed with a focus on reliability, ensuring stable and consistent performance. It is also practical and portable, allowing for easy transportation and setup at different job sites.

2. Stable performance and long service life: The entire machine is engineered to deliver stable performance over an extended period. Its components are designed for durability, resulting in a long service life.

3. Lightweight construction: To optimize drilling capacity without compromising mobility, this model incorporates alloy steel components to reduce weight as much as possible. This enhances portability and ease of maneuverability.

4. Split structure with quick relocation: The rig features a split structure, allowing for convenient detachment and quick relocation. This enables efficient and seamless installation, making it possible to complete porous construction in a single relocation.

5. Operator-friendly design: The design ensures that the operator can work at a safe distance from the orifice, creating a favorable working environment. Additionally, the rig is engineered to minimize labor intensity, promoting ease of operation.

6. Versatile construction capabilities: The drilling rig is suitable for multi-process construction, including pneumatic down-the-hole hammer drilling, casing and pipe drilling, and long helical drill pipe drilling. It offers flexibility for a wide range of drilling requirements.

7. Wide application scope: The rig is ideal for various construction projects, such as hydropower station projects, prestressed anchor holes, drainage holes on slopes of railways and highways, as well as landslide prevention and rock collapse disaster control projects. It is designed to meet the demands of these applications effectively.


MG-8M Anchoring Drilling Rig

The MG-8M Anchoring Drilling Rig is a high-efficiency hydraulic drilling machine developed for professional anchoring and reinforcement applications. Designed with advanced hydraulic technology, compact structure, and reliable performance, this drilling rig provides an effective solution for rock anchoring, foundation reinforcement, slope stabilization, and underground construction projects.

The MG-8M Anchoring Drilling Rig is widely applied in construction engineering, mining operations, railway and highway projects, tunnel support, hydropower facilities, geological exploration, and other fields requiring precise anchor hole drilling. It is designed to improve drilling efficiency, reduce labor requirements, and provide stable performance in different working environments.

Compared with traditional drilling equipment, the MG-8M offers better flexibility, higher energy efficiency, and improved drilling accuracy. Its hydraulic drive system delivers consistent power output, allowing the machine to perform efficiently in various rock formations and complex geological conditions.

Efficient Hydraulic Drilling Performance

The MG-8M Anchoring Drilling Rig features a powerful hydraulic system that provides stable drilling force and excellent torque performance. The hydraulic drive technology ensures smooth operation, fast drilling speed, and improved energy utilization.

The hydraulic control system allows operators to adjust drilling pressure, rotation speed, and feed speed according to different project requirements. This flexibility helps achieve accurate drilling results while maintaining high productivity.

Whether used for anchor bolts, cable anchors, or soil nailing applications, the MG-8M provides dependable drilling performance and helps contractors complete projects more efficiently.

Compact Design for Flexible Applications

One of the major advantages of the MG-8M Anchoring Drilling Rig is its compact and practical design. The machine can operate effectively in limited spaces, making it suitable for urban construction, underground projects, tunnels, and restricted job sites.

The compact structure makes transportation and installation easier while maintaining strong drilling capability. Operators can quickly move and position the equipment according to site conditions, improving overall construction efficiency.

The MG-8M is an excellent choice for projects that require both mobility and reliable drilling power.

Wide Application Fields

The MG-8M Anchoring Drilling Rig is designed for multiple engineering applications, including:

Rock anchor drilling
Foundation reinforcement
Slope stabilization
Soil nailing construction
Tunnel support drilling
Mining operations
Hydropower projects
Highway and railway construction
Geological engineering
Underground reinforcement

In slope protection projects, the MG-8M creates precise anchor holes for installing reinforcement systems that improve slope stability and prevent geological risks.

In mining and underground construction, the drilling rig provides reliable drilling performance for rock support systems, improving safety and operational efficiency.

Strong Adaptability to Different Geological Conditions

The MG-8M Anchoring Drilling Rig is designed to handle various geological environments. Its powerful hydraulic system allows stable operation in different rock conditions, including:

Hard rock
Soft rock
Limestone
Granite
Sandstone
Fractured rock formations
Mixed geological layers

The adjustable drilling parameters enable operators to optimize machine performance according to specific ground conditions. This adaptability makes the MG-8M suitable for a wide range of engineering projects.

Durable Structure and Reliable Operation

The MG-8M Anchoring Drilling Rig is manufactured with high-quality materials and advanced production technology to ensure long-term reliability.

The reinforced machine structure provides excellent stability during drilling operations. High-performance hydraulic components help reduce equipment failures and improve service life.

Designed for demanding construction environments, the MG-8M offers dependable performance with lower maintenance requirements. Proper maintenance can further extend the working lifespan and maximize investment value.

Improve Construction Efficiency and Reduce Costs

For contractors and engineering companies, improving productivity while controlling costs is essential. The MG-8M Anchoring Drilling Rig helps achieve these goals through efficient drilling performance and easy operation.

The machine reduces manual workload, improves drilling accuracy, and shortens project completion time. Its reliable performance allows continuous operation even in challenging working environments.

From small reinforcement projects to large infrastructure developments, the MG-8M provides a practical and economical drilling solution.

Why Choose Our MG-8M Anchoring Drilling Rig?
1. Advanced Hydraulic System

The MG-8M uses modern hydraulic technology to provide strong drilling power, stable operation, and high efficiency.

2. Compact and Mobile Design

The small and flexible structure allows easy transportation and operation in narrow construction areas.

3. High Drilling Accuracy

The precise control system ensures accurate anchor hole drilling and consistent construction quality.

4. Excellent Durability

Strong structural design and quality components provide long service life and reliable operation.

5. Easy Operation and Maintenance

The user-friendly design reduces operator training requirements and simplifies routine maintenance.

6. Professional Manufacturing Support

We provide high-quality anchoring drilling solutions, technical support, and customized configurations according to customer needs.

Main Features of MG-8M Anchoring Drilling Rig
High-performance hydraulic drilling system
Compact structure and easy transportation
Strong drilling torque and stability
Suitable for various rock conditions
Efficient anchor drilling performance
Low operating and maintenance costs
Long equipment lifespan
Wide engineering applications
FAQS
1. What is the MG-8M Anchoring Drilling Rig mainly used for?

The MG-8M Anchoring Drilling Rig is mainly used for anchor bolt drilling, rock anchoring, slope reinforcement, foundation stabilization, tunnel construction, and mining support projects.

2. What are the benefits of using a hydraulic anchoring drilling rig?

Hydraulic anchoring drilling rigs provide stronger power output, higher drilling efficiency, better stability, and lower energy consumption compared with traditional drilling equipment.

3. Can the MG-8M drill hard rock?

Yes. The MG-8M is designed to work in different geological conditions, including hard rock, granite, limestone, sandstone, and fractured formations.

4. Is the MG-8M suitable for small construction areas?

Yes. Its compact design allows it to work efficiently in narrow spaces, underground areas, tunnels, and complex construction environments.

5. How does the MG-8M improve drilling efficiency?

The machine improves efficiency through hydraulic power, precise control, fast drilling speed, and reduced downtime during operation.

6. Which industries use the MG-8M Anchoring Drilling Rig?

It is widely used in construction, mining, transportation infrastructure, hydropower engineering, geological projects, and foundation reinforcement.

7. How long is the service life of the MG-8M drilling rig?

With proper operation and regular maintenance, the MG-8M can provide long-term reliable performance in demanding working conditions.

8. Can the MG-8M be customized?

Yes. Different configurations and drilling solutions can be customized according to project requirements and geological conditions.

Product Conclusion

The MG-8M Anchoring Drilling Rig is a compact, powerful, and reliable hydraulic drilling solution designed for modern engineering applications. With excellent drilling performance, flexible operation, and durable construction, it helps customers improve productivity and reduce project costs.

Whether used for anchor drilling, slope stabilization, foundation reinforcement, mining, or tunnel construction, the MG-8M delivers dependable performance and long-term value.
