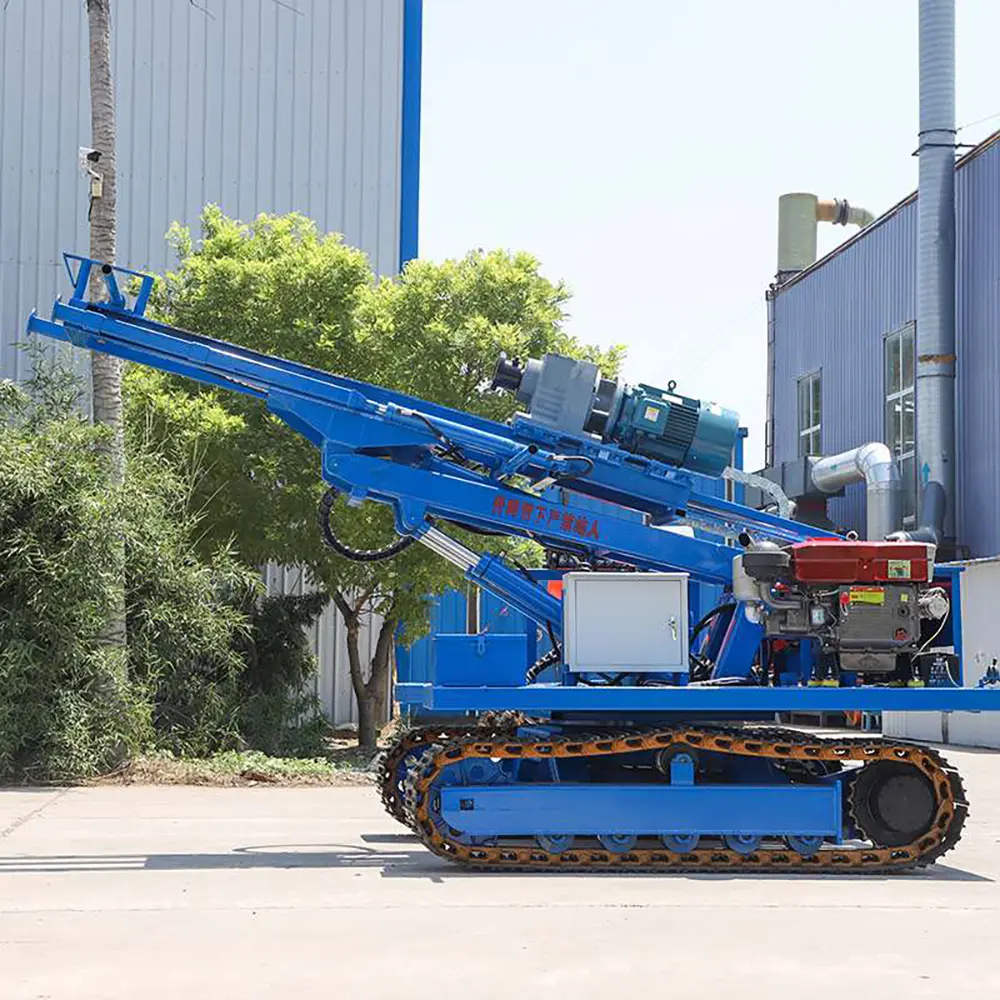

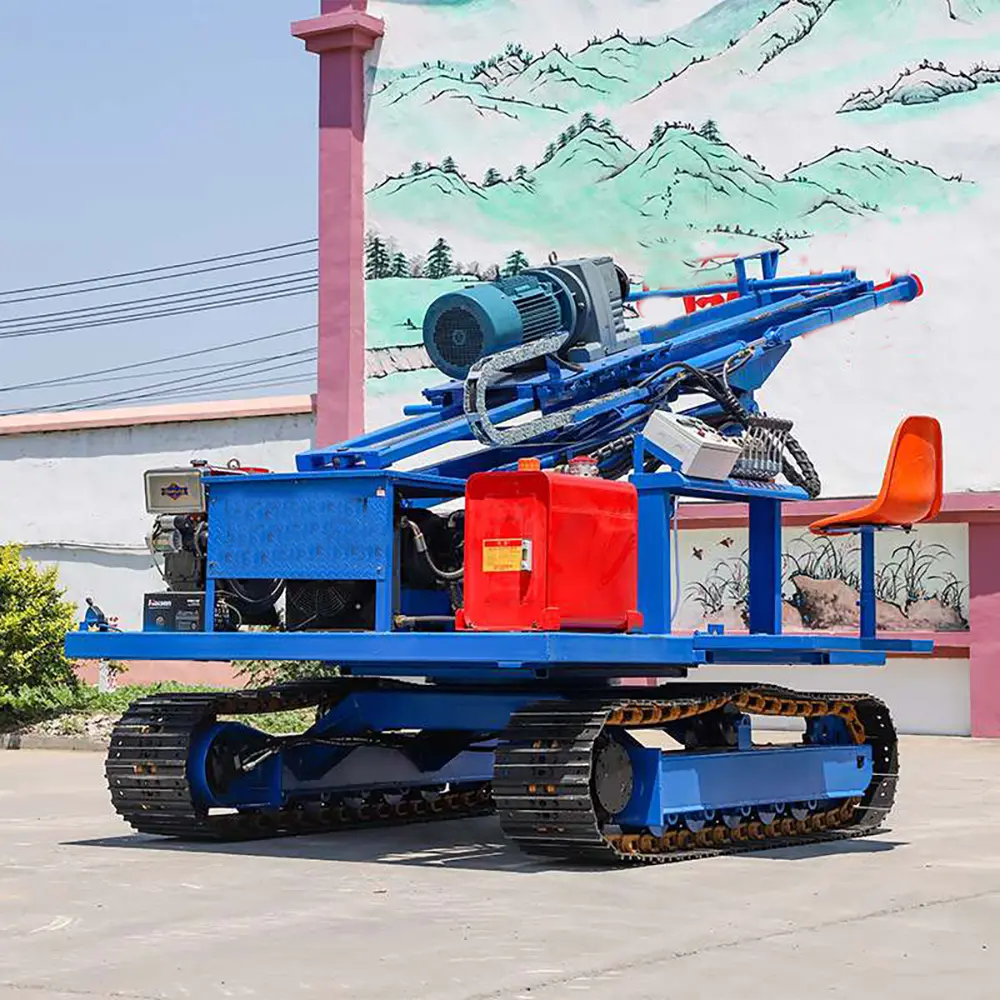

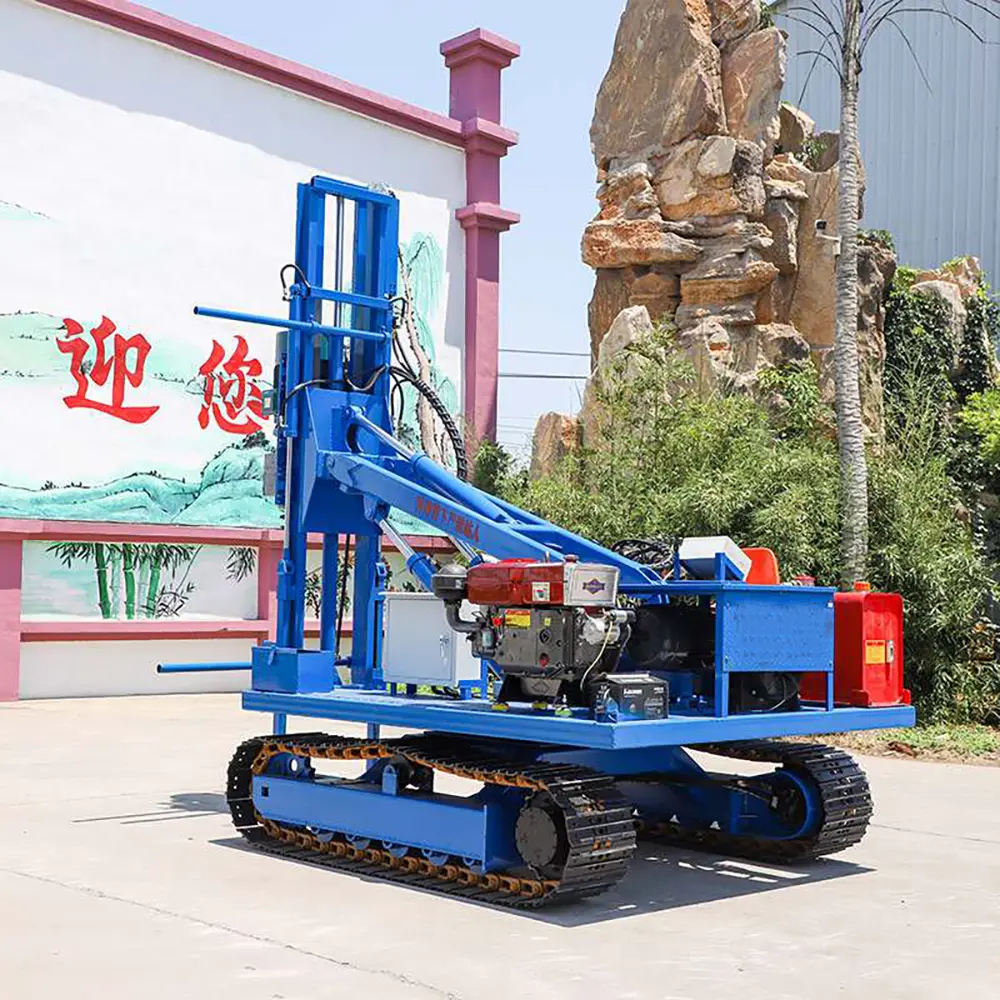

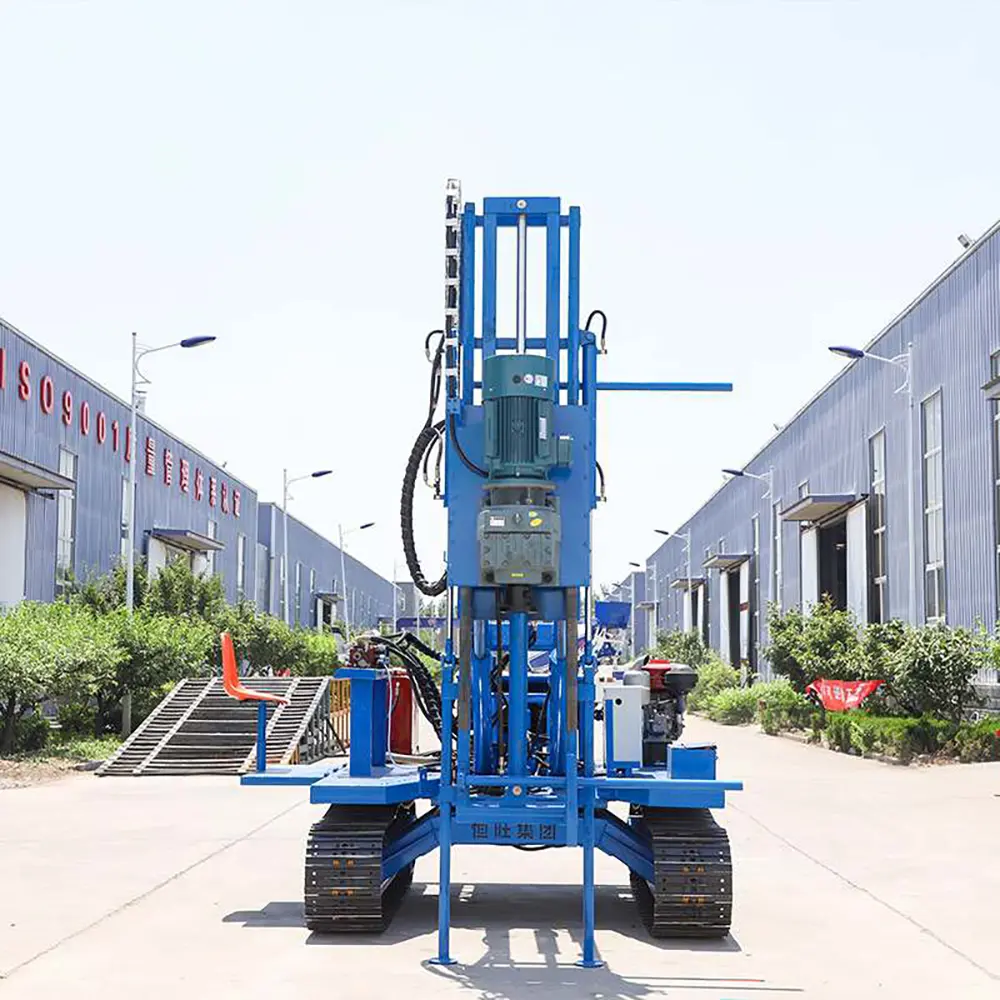

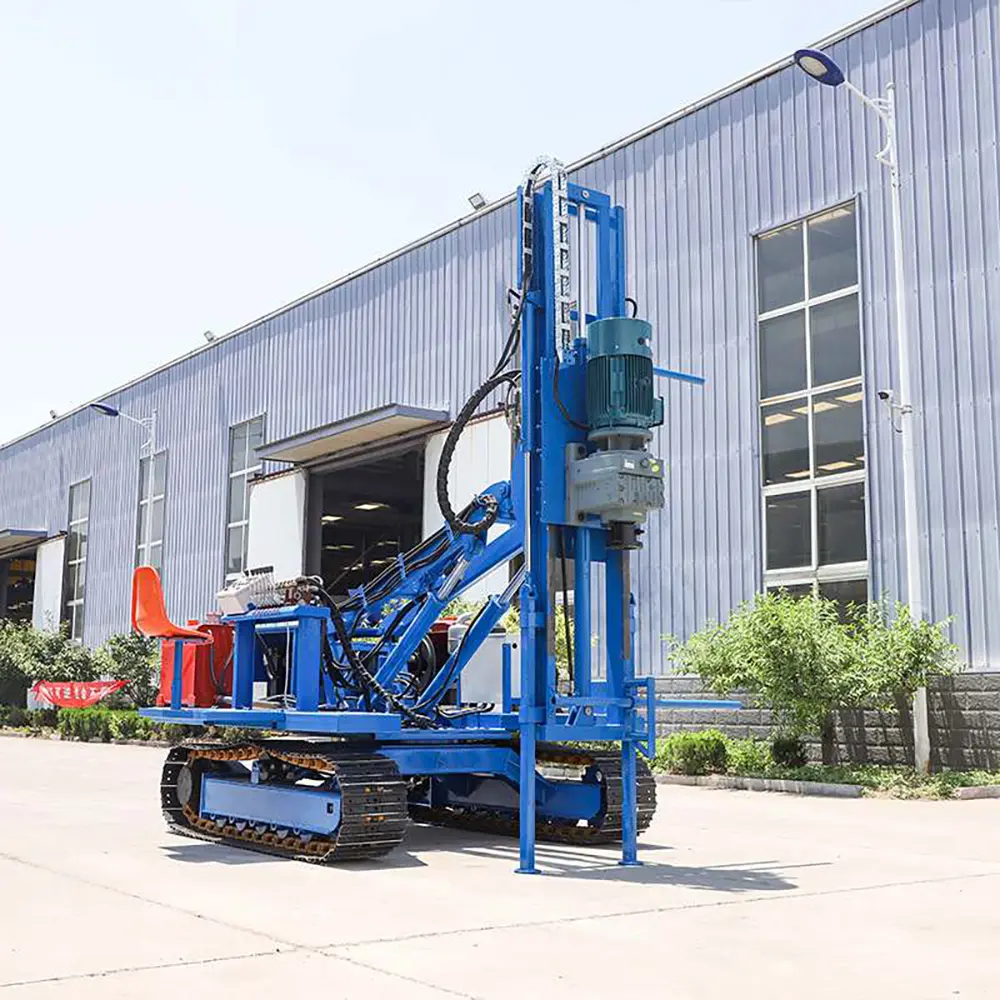

MG-5.5M Anchoring Drilling Rig

Drill diameter: 65～220mm
Drill depth (m): 0～30m
Drilling angle: 0-180°
The anchoring rig is primarily employed for landslide and hazardous rock mass anchoring projects, aimed at preventing and controlling various geological disasters in hydropower stations, railways, and highway slopes. It is particularly well-suited for high slope rock mass anchoring projects. Additionally, it is suitable for urban deep foundation pit support, anti-floating bolt and foundation grouting reinforcement engineering holes, blasting holes for blasting engineering, high-pressure jetting piles, tunnel pipe shed support holes, and other applications.



Quality Certification

maximum vertical height	3.5m
Overall dimensions of crawler chassis	2500*2200
Track shoe width	270
engine model	changfa
Engine maximum power/speed	22 HP
electric motor	Travel motor 15kw
Lower slewing bearing	fixed
Upper slewing bearing	180 degree rotation
Hydraulic oil pump	40
Big frame	/
Hydraulic legs	/
support arm	Single section (both arms)
Power Head	Electric 22kw
drilling angle	Can drill flat holes/can drill oblique holes/can drill vertical holes
Drilling diameter/depth	65-220mm/30m
Chain carriage	1.8m
Drill pipe propulsion and lifting power	40
Hydraulic system radiator	electric wind

MG-5.5M Anchoring Drilling Rig

The MG-5.5M Anchoring Drilling Rig is a professional hydraulic drilling machine designed for efficient anchor drilling, foundation reinforcement, slope protection, and underground engineering applications. Featuring advanced hydraulic technology, compact structure, and reliable operating performance, the MG-5.5M provides an ideal drilling solution for demanding construction environments.

The MG-5.5M Anchoring Drilling Rig is widely used in highway slope stabilization, railway construction, mining operations, tunnel reinforcement, hydropower projects, geological engineering, and foundation support applications. It is specially developed for drilling anchor holes required for anchor bolts, cable anchors, and soil nailing systems.

With a powerful hydraulic drive system and flexible drilling capability, the MG-5.5M delivers stable performance in different geological conditions. It improves drilling efficiency, reduces manual workload, and helps contractors complete reinforcement projects faster and more economically.

Powerful Hydraulic Drilling Performance

The MG-5.5M Anchoring Drilling Rig adopts a high-performance hydraulic system that provides strong torque, stable rotation, and efficient drilling power. The hydraulic drive ensures continuous operation even in challenging rock formations.

Compared with traditional pneumatic drilling equipment, hydraulic anchoring drilling rigs provide better energy utilization, stronger drilling force, and improved working stability.

The advanced hydraulic control system allows operators to adjust drilling parameters according to actual site conditions. Rotation speed, drilling pressure, and feed speed can be optimized to achieve better drilling accuracy and higher productivity.

The powerful performance of the MG-5.5M makes it suitable for deep anchoring projects, rock reinforcement, and large-scale engineering applications.

Compact Structure and Flexible Operation

The MG-5.5M Anchoring Drilling Rig combines strong drilling capability with a practical and compact design. Its flexible structure allows easy transportation, installation, and operation in different working environments.

The machine is suitable for construction areas where space is limited, including underground tunnels, slopes, foundations, and urban engineering projects.

The ergonomic control system makes operation simple and efficient. Operators can quickly adjust working parameters to match different drilling requirements, improving construction quality and reducing operation difficulty.

Wide Application Areas

The MG-5.5M Anchoring Drilling Rig is designed for multiple industries and engineering fields, including:

Rock anchor drilling
Anchor bolt installation
Foundation reinforcement
Highway slope stabilization
Railway construction
Tunnel support projects
Mining reinforcement
Hydropower engineering
Geological exploration
Soil nailing construction

For slope stabilization projects, the MG-5.5M creates accurate drilling holes for anchor systems that improve structural stability and prevent slope failure.

In underground mining and tunnel construction, the drilling rig provides reliable rock support solutions, improving safety and construction efficiency.

Excellent Adaptability for Different Geological Conditions

Construction projects often involve complex geological environments. The MG-5.5M Anchoring Drilling Rig is designed to maintain stable performance in various rock conditions.

It can effectively work in:

Hard rock formations
Soft rock layers
Granite
Limestone
Sandstone
Fractured rock
Mixed geological structures

The adjustable hydraulic system allows operators to select suitable drilling parameters according to different ground conditions. This improves drilling efficiency and ensures consistent results.

Durable Design and Long Service Life

The MG-5.5M Anchoring Drilling Rig is manufactured with high-quality components and advanced production technology to provide excellent durability.

The reinforced drilling frame ensures stable operation under heavy workloads. Reliable hydraulic components reduce equipment failure and improve service life.

Designed for continuous engineering applications, the MG-5.5M offers low maintenance requirements and excellent cost performance.

Proper maintenance and regular inspection can further extend the equipment lifespan and ensure long-term reliable operation.

Improve Construction Efficiency and Reduce Operating Costs

The MG-5.5M Anchoring Drilling Rig helps contractors increase productivity by providing faster drilling speed and improved accuracy.

Its hydraulic power system reduces energy waste, while the efficient drilling mechanism shortens project completion time.

The machine reduces dependence on manual labor and improves overall construction safety. Whether used in large infrastructure projects or specialized reinforcement applications, the MG-5.5M provides reliable and economical drilling performance.

Why Choose Our MG-5.5M Anchoring Drilling Rig?
1. High-Efficiency Hydraulic System

The MG-5.5M uses advanced hydraulic technology to provide powerful drilling force and stable performance.

2. Strong Drilling Capability

The machine delivers excellent torque and penetration performance for different rock conditions.

3. Flexible Application

Suitable for construction, mining, tunnels, slopes, foundations, and geotechnical engineering.

4. Durable Construction

High-quality materials and strict manufacturing standards ensure long service life.

5. Easy Operation and Maintenance

The practical design makes operation simple and reduces maintenance requirements.

6. Professional Manufacturing Support

We provide reliable drilling solutions, technical assistance, and customized equipment options.

Main Features of MG-5.5M Anchoring Drilling Rig
Powerful hydraulic drilling system
High drilling efficiency
Stable and accurate operation
Compact and flexible structure
Suitable for complex geological conditions
Low maintenance cost
Long service lifespan
Wide engineering applications
FAQS
1. What is the MG-5.5M Anchoring Drilling Rig used for?

The MG-5.5M Anchoring Drilling Rig is mainly used for anchor bolt drilling, rock anchoring, foundation reinforcement, slope stabilization, tunnel support, and mining projects.

2. What are the advantages of the MG-5.5M hydraulic system?

The hydraulic system provides strong power output, smooth operation, high drilling efficiency, and better energy efficiency compared with traditional drilling systems.

3. Can the MG-5.5M drill hard rock?

Yes. The MG-5.5M is designed to handle different geological conditions, including granite, limestone, sandstone, and fractured rock formations.

4. Is the MG-5.5M suitable for underground projects?

Yes. Its flexible structure and reliable performance make it suitable for tunnels, mines, and underground reinforcement applications.

5. How does the MG-5.5M improve construction efficiency?

The machine improves efficiency through fast drilling speed, accurate control, strong hydraulic power, and reduced downtime.

6. What industries commonly use this drilling rig?

The MG-5.5M is widely used in construction, mining, transportation infrastructure, hydropower, geological engineering, and foundation projects.

7. How often does the MG-5.5M require maintenance?

Regular inspection and maintenance according to operating conditions help maintain performance and extend service life.

8. Can the MG-5.5M Anchoring Drilling Rig be customized?

Yes. Different configurations and drilling solutions can be provided according to customer requirements and project conditions.

Product Conclusion

The MG-5.5M Anchoring Drilling Rig is a reliable and efficient hydraulic drilling solution for modern anchoring and reinforcement projects. With powerful drilling performance, durable construction, and flexible operation, it meets the requirements of construction companies, mining contractors, and engineering professionals.

From slope stabilization and foundation reinforcement to tunnel and underground projects, the MG-5.5M delivers stable performance, improved productivity, and long-term value.
