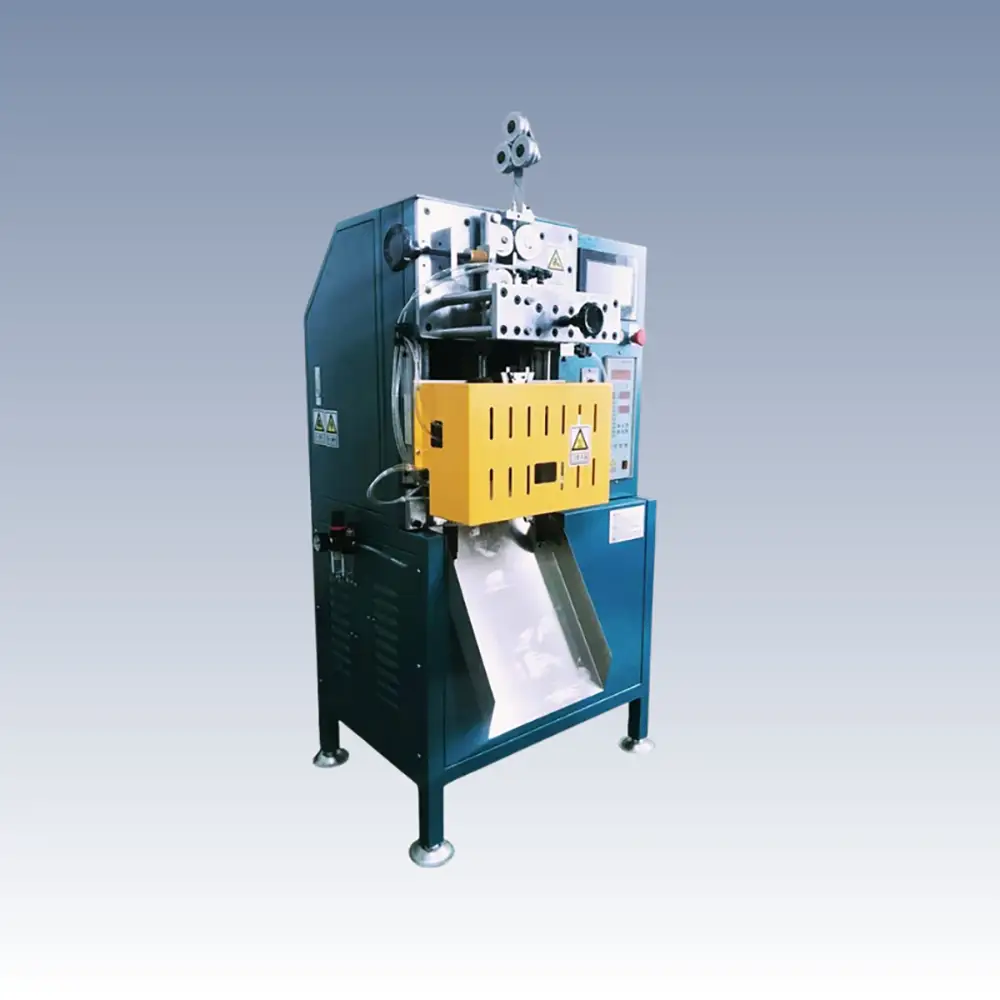

Wire Rope Cone Tip Fusing Machine for Elevator, Crane & Sling Ropes

The Wire Rope Cone Tip Fusing Machine is a specialized industrial machine designed for tapering, forming, and fusing the ends of wire ropes used in elevators, cranes, lifting slings, hoisting equipment, and other wire rope applications. By combining controlled wire rope end preparation with cone tip forming and fusing, the machine provides an efficient production solution for manufacturers and service companies that require consistent wire rope end processing.

Wire rope is widely used in lifting, transportation, construction, mining, elevator systems, marine equipment, and material handling. In many applications, the rope end needs to be prepared into a specific tapered or fused configuration before it can be connected to a socket, fitting, termination system, or other component.

Manual wire rope end preparation can require considerable skill and time. Inconsistent tapering or fusing may also result in dimensional variations that make downstream assembly more difficult. An automated Wire Rope End Fusing Machine can help standardize the production process and improve repeatability.

Automatic Wire Rope End Tapering

The end of a wire rope often needs to be tapered or compacted before the final termination process.

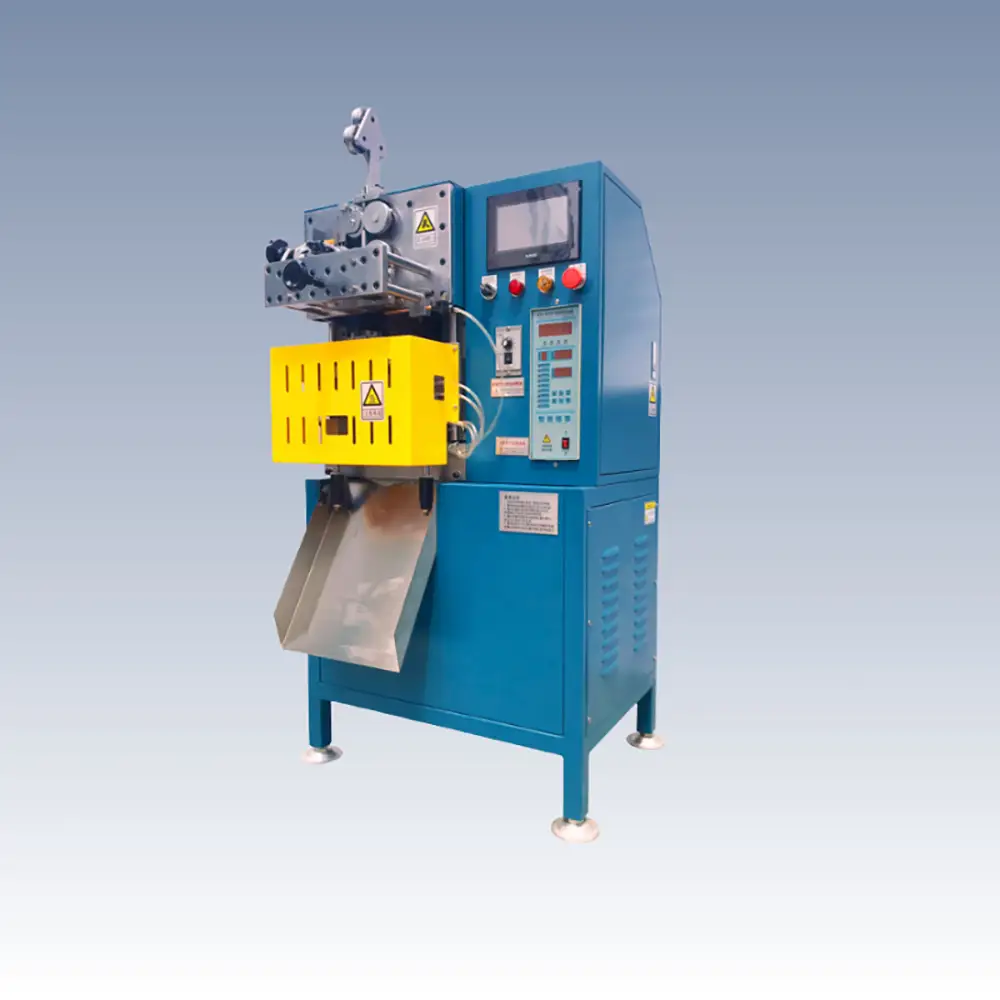

A Wire Rope End Tapering Machine is designed to process the rope end into a controlled shape. The machine can help arrange and form individual wires into a more compact tapered section before fusing or cone forming.

The exact process depends on the wire rope construction, rope diameter, material, and required end configuration.

A controlled tapering process can provide more consistent results than manual preparation and can simplify subsequent cone or socket termination operations.

Typical parameters that may be considered include:

Wire Rope Diameter
Rope Construction
Rope Length
Taper Length
Cone Dimensions
Heating Parameters
Fusing Time
End Forming Requirements

Manufacturers should confirm the exact machine configuration according to the wire rope specifications and final termination design.

Wire Rope Cone Tip Fusing

The main function of the machine is to create a controlled cone-shaped fused end on a suitable wire rope.

During the process, the rope end is prepared, positioned, heated or fused according to the machine design, and formed into the required configuration.

The resulting cone tip can provide a standardized rope-end structure for subsequent assembly or termination processes.

A controlled fusing operation can help reduce loose wire strands at the rope end and maintain a more consistent shape.

For production environments, repeatable end dimensions are important because the finished wire rope may need to fit a specific socket, fitting, or termination component.

Elevator Wire Rope Applications

Elevator systems commonly use wire ropes for hoisting and suspension applications. Because elevator equipment operates under demanding conditions, rope selection, installation, inspection, and termination must follow the applicable engineering requirements and safety standards.

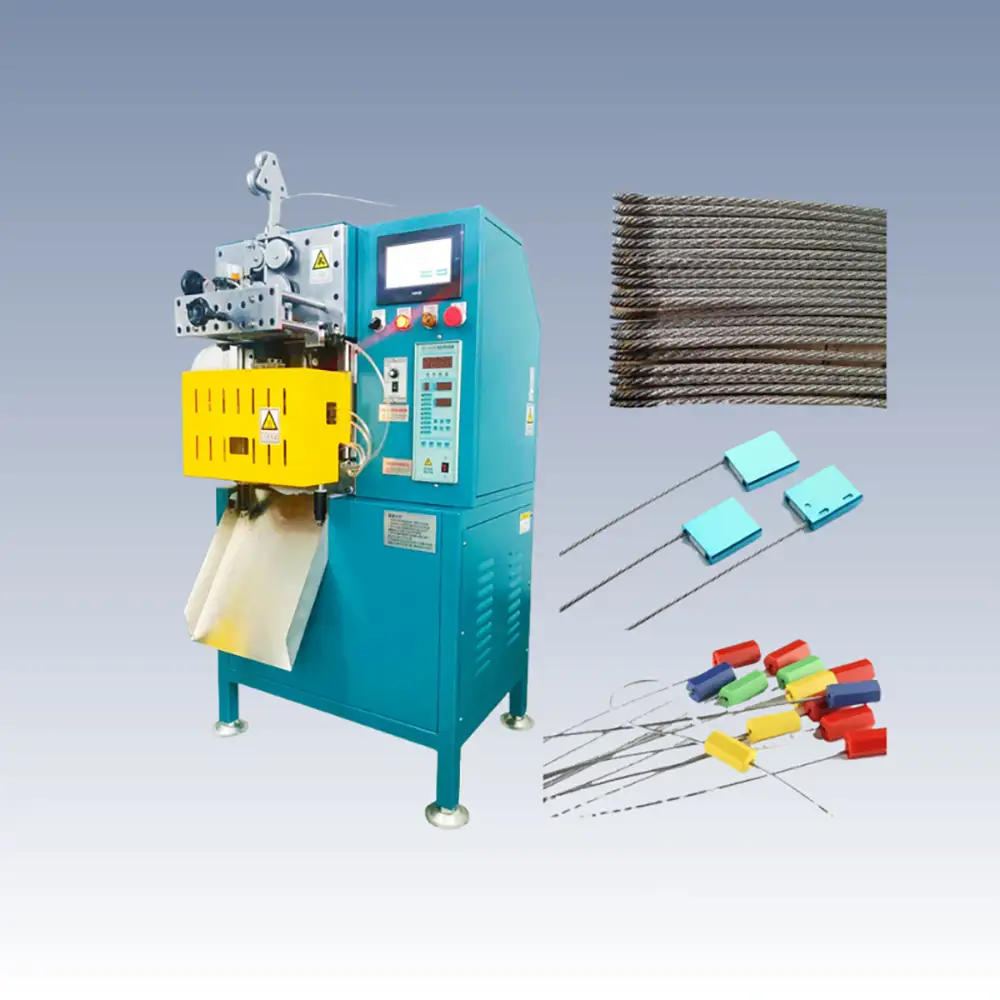

The Elevator Wire Rope Fusing Machine can be used by suitable manufacturers or service providers for preparing compatible elevator wire rope ends.

Potential applications include:

Elevator Hoisting Ropes
Elevator Suspension Ropes
Traction Elevator Components
Wire Rope Termination Preparation
Elevator Maintenance
Rope End Processing

The machine should always be selected based on the specific elevator rope construction, diameter, termination method, and applicable manufacturer or industry requirements.

Crane Wire Rope End Processing

Cranes and lifting equipment use wire ropes in many demanding applications. Rope ends may require specialized preparation before being connected to sockets, fittings, or other termination systems.

A Crane Wire Rope Machine can help standardize rope-end preparation for suitable applications.

Potential applications include:

Overhead Cranes
Tower Cranes
Gantry Cranes
Mobile Cranes
Hoists
Winches
Lifting Equipment
Material Handling Systems

Because crane and lifting applications are safety-critical, the finished rope termination must be manufactured, installed, and inspected according to the applicable requirements.

The machine itself does not determine whether a finished rope assembly is safe for a particular lifting application; the complete rope, termination, fitting, installation method, and inspection procedure must all meet the relevant specifications.

Sling Wire Rope Processing

Wire rope slings are commonly used for lifting and material handling. Depending on the sling design, rope ends may require specialized termination or forming.

The Sling Wire Rope Fusing Machine can provide a controlled method for preparing suitable rope ends before final assembly.

It can be useful for manufacturers producing different wire rope sling configurations where consistent end preparation is required.

The system can help reduce repetitive manual work and establish a standardized processing procedure for production teams.

Consistent Wire Rope End Forming

A major advantage of automated rope-end processing is repeatability.

A properly configured Wire Rope End Forming Machine can help standardize the shape and dimensions of processed rope ends.

Consistent end forming can be important for:

Socket Assembly
Cone Termination
Rope Fittings
Sling Manufacturing
Elevator Rope Processing
Crane Rope Preparation
Industrial Hoisting Equipment

The final dimensions should be checked using appropriate inspection tools and procedures.

For OEM production, the manufacturer can use defined machine parameters and tooling to produce rope ends according to approved drawings or specifications.

Suitable for Different Wire Rope Diameters

Different applications use different rope diameters and constructions. Therefore, machine selection should be based on the actual rope specifications rather than simply choosing a general-purpose machine.

Important factors include rope diameter, strand construction, wire material, rope grade, end geometry, production volume, and termination method.

Interchangeable tooling or adjustable fixtures may allow one machine platform to accommodate a range of rope sizes, depending on the model.

Before purchasing, customers should provide detailed wire rope information and, where possible, drawings or samples of the required cone tip.

Efficient Production Workflow

For wire rope manufacturers and termination specialists, production efficiency is an important consideration.

Manual rope-end preparation can involve cutting, untwisting, arranging, tapering, binding, forming, and other repetitive operations.

An automated fusing machine can integrate selected stages into a more controlled production workflow.

This can help:

Reduce Manual Processing
Improve End Consistency
Shorten Processing Time
Standardize Production Parameters
Reduce Repetitive Labor
Improve Workflow Organization
Support Larger Production Volumes

Actual production capacity depends on rope diameter, end configuration, heating or fusing process, machine cycle time, and operator workflow.

Intelligent Control System

An intelligent wire rope processing machine can be equipped with a digital control system for managing important process parameters.

Depending on the model, the control interface may provide settings for heating temperature, fusing time, forming pressure, processing time, and other parameters.

Production programs can be established for different rope specifications, allowing operators to select the appropriate setup more efficiently.

The actual control functions depend on the machine configuration.

Operators should validate process parameters using production samples before beginning continuous manufacturing.

Industrial Construction

A wire rope cone tip machine should be designed for reliable operation in professional manufacturing environments.

A stable machine frame, suitable heating or fusing components, forming tooling, clamping mechanism, and control system can help support repeatable production.

Routine maintenance should include inspection of electrical components, heating elements, forming tools, fixtures, and other wear parts.

Keeping the equipment clean and properly maintained can also help preserve processing consistency over time.

Applications Across Multiple Industries

The Wire Rope Cone Tip Fusing Machine can be used in various industries where compatible wire rope end processing is required.

Elevator Industry

For suitable elevator wire rope end preparation and termination processes.

Crane Industry

For processing rope ends used with cranes, hoists, and lifting equipment.

Sling Manufacturing

For producing suitable wire rope sling components.

Mining Equipment

For compatible wire rope used in hoisting and material handling systems.

Marine Equipment

For selected marine lifting and cable applications.

Industrial Hoisting

For wire rope used in winches, lifting systems, and material handling equipment.

Why Choose Our Wire Rope Cone Tip Fusing Machine?
1. Specialized Rope-End Processing

Designed specifically for wire rope tapering, forming, and cone tip fusing applications.

2. Consistent End Formation

Controlled processing helps maintain repeatable rope-end dimensions and shapes.

3. Wide Industrial Applications

Suitable for compatible elevator, crane, sling, hoisting, and industrial wire rope applications.

4. Reduced Manual Work

Automates repetitive rope-end preparation processes and can improve production efficiency.

5. Flexible Rope Specifications

Machine configuration can be selected according to rope diameter, construction, and required termination.

6. Efficient Production

A standardized process can help manufacturers establish a more efficient rope-end production workflow.

7. Intelligent Operation

Digital controls can provide convenient adjustment of applicable production parameters.

8. B2B Manufacturing Solution

Suitable for wire rope manufacturers, elevator suppliers, crane equipment companies, lifting product manufacturers, and specialized rope-processing businesses.

FAQ
1. What Is a Wire Rope Cone Tip Fusing Machine?

A wire rope cone tip fusing machine is specialized equipment used to taper, form, and fuse suitable wire rope ends into a controlled cone-shaped configuration.

2. What Is Wire Rope End Fusing?

Wire rope end fusing is a process used to consolidate and form the end of compatible wire rope. It can help create a controlled rope-end shape for subsequent termination or assembly.

3. Can It Be Used for Elevator Wire Rope?

Yes, suitable configurations can be used for compatible elevator wire rope end-processing applications. The rope specifications and termination requirements must be confirmed before selecting the machine.

4. Can It Process Crane Wire Rope?

Yes. The machine can be configured for suitable crane and hoisting wire rope applications, depending on rope diameter, construction, and end termination requirements.

5. Is It Suitable for Wire Rope Slings?

Yes. It can be used for suitable wire rope sling manufacturing and end-preparation processes.

6. What Rope Diameters Can the Machine Process?

The applicable diameter range depends on the specific machine model and tooling. Customers should provide the minimum and maximum rope diameters required for production.

7. Can Different Cone Sizes Be Produced?

Different cone dimensions may be possible with suitable tooling and machine configuration. The required cone diameter, length, and shape should be confirmed before production.

8. Can the Machine Be Customized?

Yes. Machine configuration can be adapted according to rope diameter, rope construction, cone dimensions, processing method, production volume, and other application requirements.

9. Does the Finished Rope Need Inspection?

Yes. Wire rope terminations used in lifting, elevator, crane, or other safety-critical applications should be inspected and tested according to applicable specifications and procedures.

10. How Do I Choose the Right Machine?

Provide the wire rope diameter, rope construction, material, application, required cone dimensions, termination method, and target production capacity. A manufacturer can use this information to determine a suitable machine configuration.
