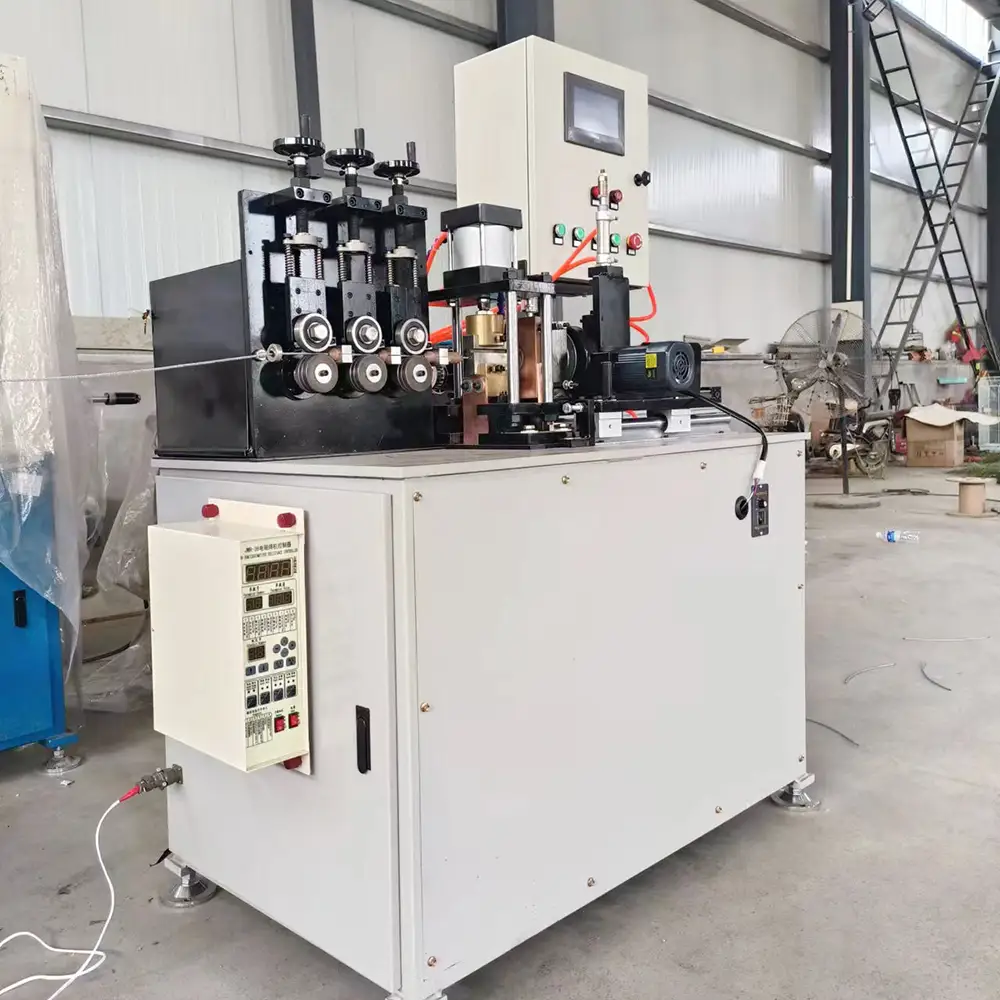

Automatic 6mm Cable Steel Wire Rope Cutting Fusing Machine


Automatic 6mm Cable Steel Wire Rope Cutting Fusing Machine

The Automatic 6mm Cable Steel Wire Rope Cutting Fusing Machine is a specialized industrial solution designed for cutting and processing steel wire rope and cable into predetermined lengths while preparing the rope end through a controlled fusing process. It is particularly suitable for production environments where consistent wire rope lengths and secure, neatly formed rope ends are required.

Steel wire rope is widely used in lifting equipment, cranes, elevators, winches, construction machinery, industrial handling systems, safety equipment, and cable assemblies. When processing wire rope manually, operators may need to measure, cut, secure, and prepare each rope end individually. This can be time-consuming and may result in inconsistent lengths or loose strands.

An automated Wire Rope Cutting Machine combines material feeding, length measurement, cutting, and end fusing into a more efficient production workflow. For manufacturers processing approximately 6mm wire rope, this type of machine can help reduce repetitive manual work while improving production consistency.

The exact cutting and fusing process depends on the machine configuration, wire rope construction, material, diameter, and required finished product.

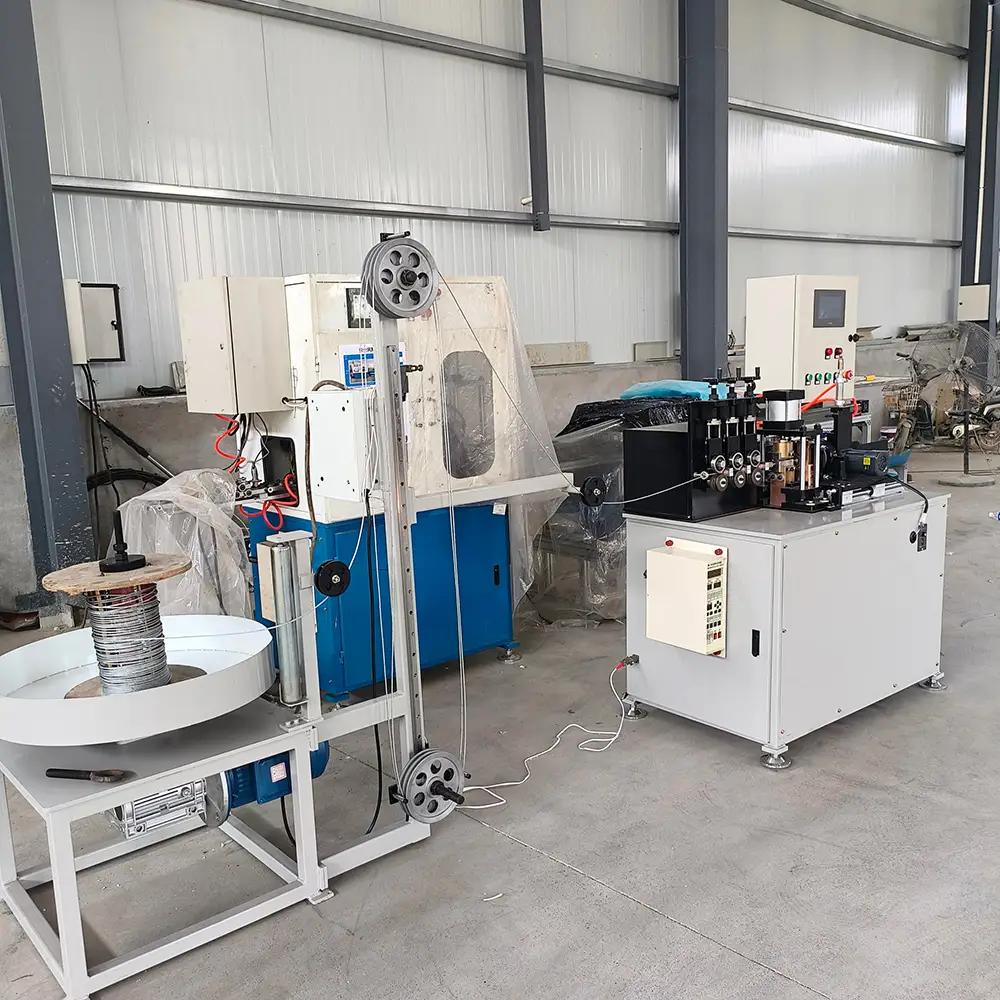

Automatic Wire Rope Feeding

The production process begins with controlled wire rope or steel cable feeding.

The rope can be supplied from a coil or reel and guided through the machine's feeding system. The automatic feeding mechanism advances the material according to the programmed production length.

A controlled feeding system helps maintain consistent positioning and reduces the need for operators to manually measure every piece.

The feeding process may include:

Cable Payoff
Wire Rope Guiding
Automatic Feeding
Length Measurement
Cutting Positioning
Finished Rope Transfer

The actual feeding capacity and compatible coil dimensions depend on the machine model.

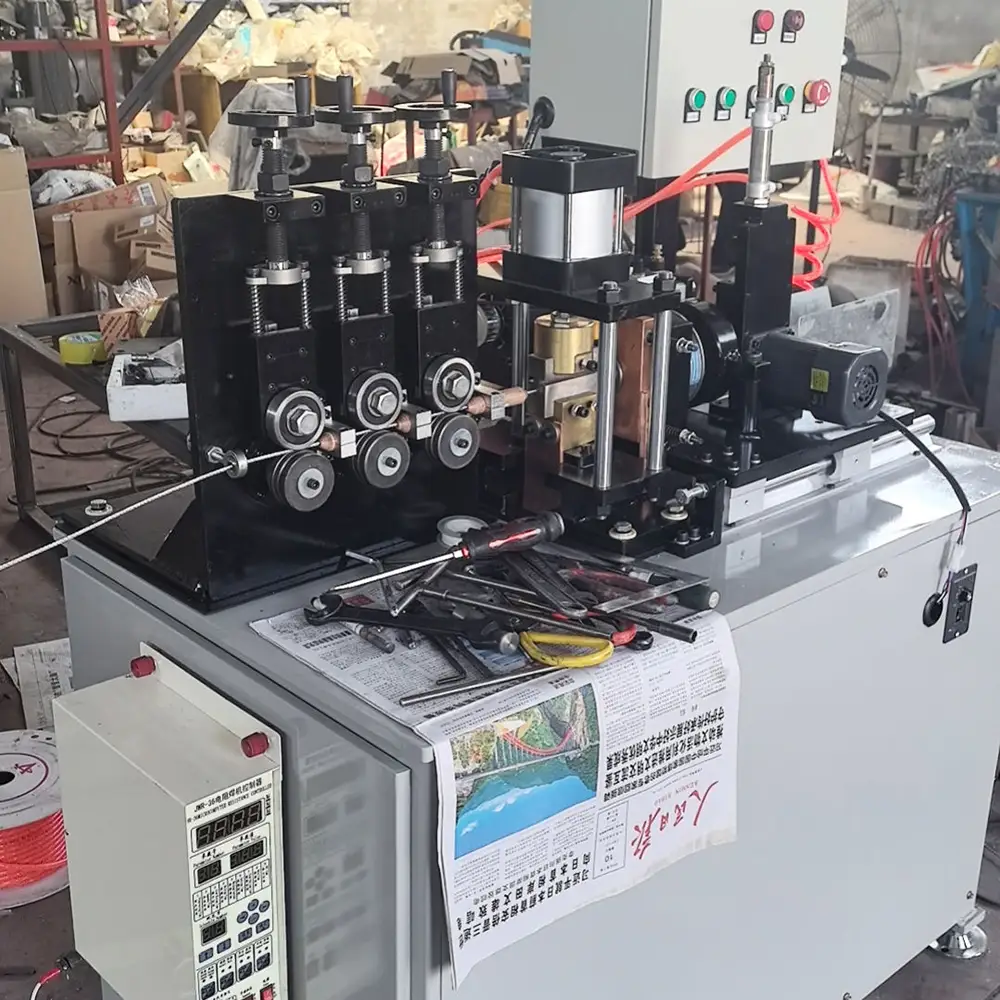

6mm Steel Wire Rope Cutting

The machine is designed around a 6mm steel wire rope application, making it suitable for manufacturers processing small- to medium-diameter steel cable.

The cutting system is engineered to separate the rope at the programmed position while maintaining a repeatable cutting cycle.

Depending on the design, the machine may use a dedicated mechanical cutting system, hydraulic cutting system, or another suitable cutting technology.

Important factors for selecting the cutting mechanism include:

Rope Diameter
Rope Construction
Steel Grade
Rope Breaking Strength
Rope Hardness
Cutting Length
Production Speed
Required End Condition

Customers should confirm the exact rope specifications before ordering to ensure the cutting system is correctly configured.

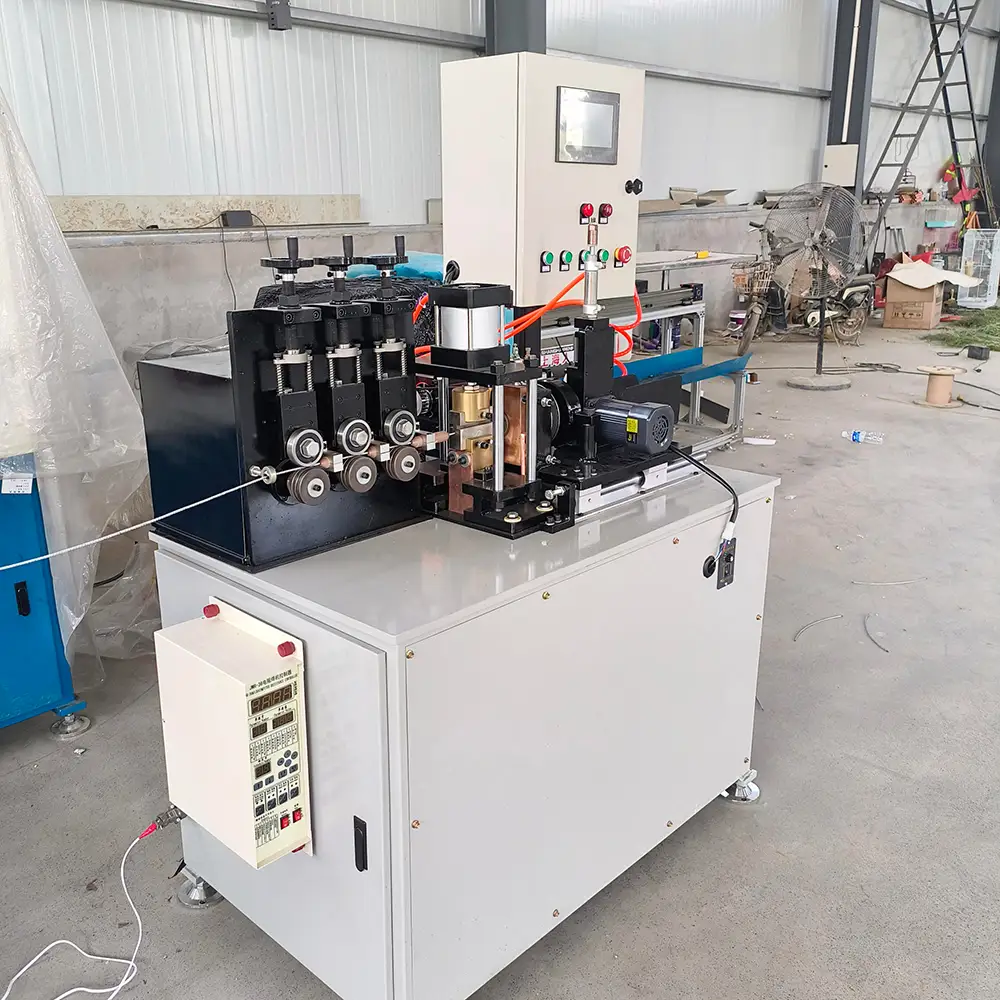

Wire Rope End Fusing

After cutting, the rope end can be processed through the fusing section.

The Wire Rope Fusing Machine is designed to consolidate or fuse the wire rope end into a more controlled configuration. This can help reduce the tendency of individual wires and strands to separate after cutting.

End fusing can be especially useful for manufacturing processes where a clean and stable rope end is required for subsequent assembly.

The final end configuration depends on the machine design and process parameters.

For safety-critical lifting applications, the fused end should not be assumed to replace an approved rope termination method. The complete finished assembly must comply with the applicable engineering and safety requirements.

Consistent Rope Length

Accurate length control is one of the major advantages of automatic wire rope processing.

The operator can set the desired cutting length through the machine's control system. The feeding mechanism then advances the rope to the programmed position before the cutting cycle is performed.

This makes the machine suitable for batch production where many pieces of the same length are required.

Typical applications may require:

Short Cable Sections
Fixed-Length Wire Rope
Pre-Cut Steel Cable
Sling Components
Elevator Rope Sections
Industrial Cable Assemblies

Actual length tolerance depends on the machine configuration, feeding system, rope elasticity, diameter, construction, and operating conditions.

Automatic Cutting and Fusing Workflow

The integrated production cycle can follow a sequence such as:

Cable Feeding → Length Measurement → Positioning → Cutting → End Fusing → Finished Product Removal

This integrated process reduces the number of separate manual operations.

Instead of using a separate cutting machine and manually securing each rope end, the combined system can perform multiple processing stages within one production workflow.

This can be particularly valuable for manufacturers that need to process large quantities of identical wire rope products.

Applications for Steel Cable

Steel wire rope is used in many industries because of its high tensile strength and flexibility.

The machine can be suitable for compatible applications involving:

Steel Cable
Steel Wire Rope
Galvanized Wire Rope
Hoisting Rope
Crane Cable
Elevator Rope
Winch Cable
Industrial Wire Rope
Lifting Rope
Mechanical Cable Assemblies

The machine should be matched to the actual rope type and application.

Different rope constructions can behave differently during cutting and fusing, so sample testing is recommended before mass production.

Elevator Wire Rope Processing

Elevator systems use specialized wire ropes that require carefully controlled manufacturing, installation, and inspection procedures.

A suitable wire rope cutting and end-processing machine can be used in manufacturing or service environments for compatible elevator rope processing.

Potential applications include:

Elevator Rope Cutting
Fixed-Length Rope Preparation
Rope End Processing
Replacement Rope Preparation
Elevator Component Manufacturing

For elevator applications, all finished rope assemblies should meet the applicable elevator manufacturer requirements and relevant safety standards.

Crane and Hoisting Applications

Cranes, hoists, and winches frequently use steel wire rope for lifting and material handling.

A Steel Cable Cutting Machine can support production workflows where predetermined cable lengths are required.

Potential applications include:

Overhead Cranes
Gantry Cranes
Tower Cranes
Hoists
Winches
Construction Equipment
Material Handling Systems
Lifting Equipment

The machine's cutting capacity must be matched to the rope diameter, construction, and application requirements.

Improved Production Efficiency

Manual wire rope cutting can involve repetitive measuring and handling operations. When production quantities are high, these tasks can consume considerable labor.

An automatic system can streamline the workflow by controlling the feeding, measuring, cutting, and end-processing stages.

Potential benefits include:

Reduced Manual Measuring
Consistent Cutting Lengths
Faster Batch Processing
Reduced Repetitive Labor
Improved Production Organization
Consistent End Processing
Easier Production Scheduling

Actual production speed depends on rope diameter, cutting length, machine cycle time, feeding speed, and fusing requirements.

Intelligent Control System

The machine can be equipped with a digital or PLC-based control system for managing the production cycle.

Depending on the configuration, operators may be able to set:

Cutting Length
Production Quantity
Feeding Speed
Cutting Parameters
Fusing Parameters
Automatic Cycle
Manual Operation
Alarm Information

A user-friendly control interface can make it easier to switch between different production orders.

For factories producing multiple cable lengths, programmable operation can reduce setup time and improve production organization.

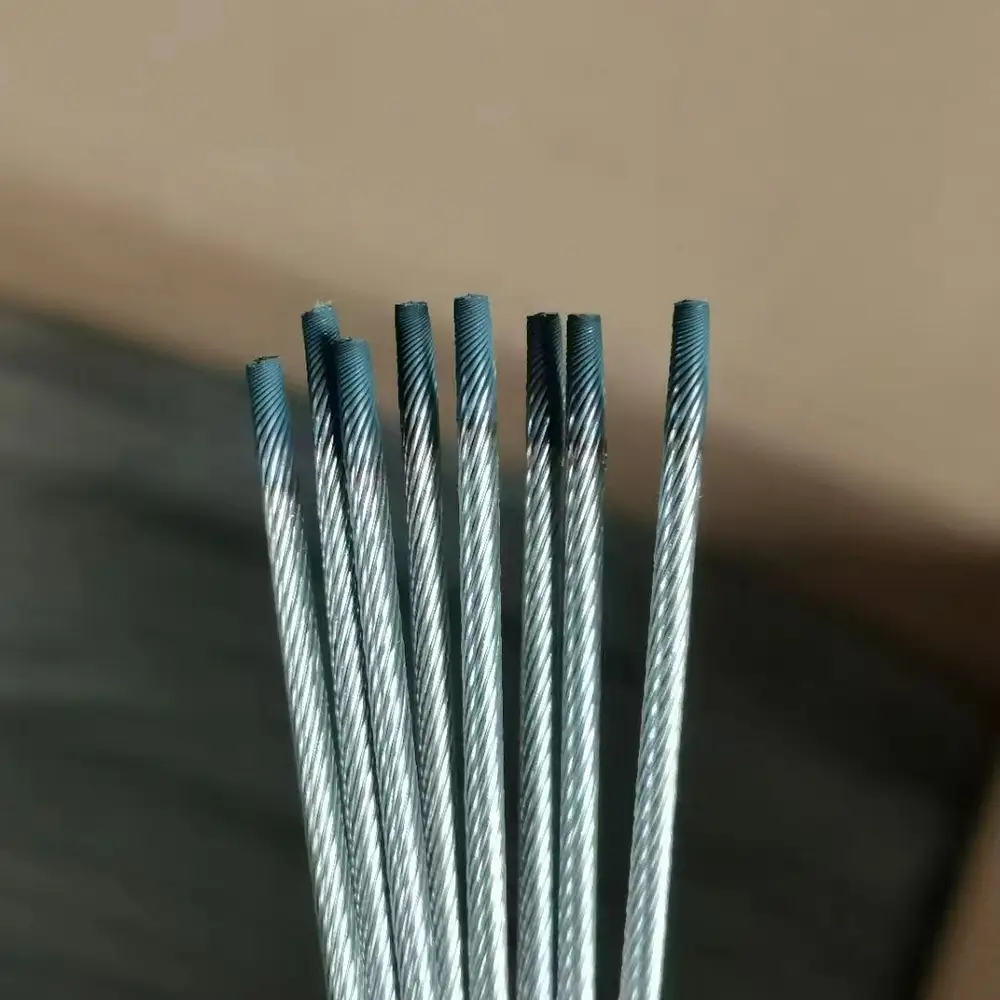

Wire Rope End Quality

After cutting, steel wire rope can develop loose or separated strands. Controlled end fusing can help stabilize the rope end for subsequent processing.

The final quality depends on the rope type, fusing method, temperature or process parameters, processing time, tooling, and machine setup.

Operators should inspect initial samples after changing rope specifications.

Quality checks may include:

Rope Length
Cut Quality
End Shape
Fused Area
Wire Strand Condition
Surface Condition
Dimensional Consistency
Suitable for Industrial Production

The machine is designed for professional manufacturing environments where repeatable wire rope processing is required.

Its compact production workflow can help manufacturers reduce manual handling while maintaining consistent processing parameters.

It may be used by:

Wire Rope Manufacturers
Cable Manufacturers
Lifting Equipment Suppliers
Elevator Component Manufacturers
Crane Equipment Companies
Sling Manufacturers
Industrial Hardware Manufacturers
Cable Assembly Companies

OEM configurations can be developed according to specific rope specifications and production requirements.

Maintenance and Operation

Regular maintenance helps maintain stable machine performance.

Recommended maintenance tasks may include:

Inspecting Cutting Tools
Checking Feeding Rollers
Cleaning Cable Guides
Inspecting Fusing Components
Checking Sensors
Inspecting Electrical Connections
Lubricating Mechanical Components
Checking Safety Devices

Operators should follow the manufacturer's maintenance schedule and replace worn components when necessary.

Why Choose Our Automatic 6mm Wire Rope Cutting Fusing Machine?
1. Integrated Cutting And Fusing

Combines wire rope cutting and end fusing in one streamlined production process.

2. Designed for 6mm Steel Wire Rope

Optimized for compatible 6mm steel cable and wire rope applications.

3. Automatic Length Control

Programmable feeding and measuring help produce consistent rope lengths.

4. Reduced Manual Labor

Automates repetitive measuring, cutting, and end-processing operations.

5. Consistent Rope Ends

Controlled fusing helps stabilize suitable wire rope ends after cutting.

6. Flexible Industrial Applications

Suitable for compatible elevator, crane, hoist, winch, sling, and industrial cable applications.

7. Easy Production Control

Digital control functions can simplify parameter setting and automatic production cycles.

8. Customizable B2B Solution

Machine configuration can be adapted to rope diameter, construction, cutting length, production capacity, and end-processing requirements.

FAQ
1. What Is an Automatic Wire Rope Cutting Fusing Machine?

It is an automated machine designed to feed, measure, cut, and fuse compatible steel wire rope or cable ends in a controlled production cycle.

2. Is This Machine Designed for 6mm Wire Rope?

Yes. This machine specification is intended for compatible 6mm steel wire rope applications. Exact rope construction and material should be confirmed before ordering.

3. Can It Cut Steel Wire Rope?

Yes. It is designed for cutting compatible steel wire rope and cable within its specified capacity.

4. What Is Wire Rope End Fusing?

Wire rope end fusing is a process that consolidates or stabilizes the rope end after cutting, helping reduce loose wires and strands.

5. Can It Cut Different Rope Lengths?

Yes. The automatic feeding and control system can be configured to produce different programmed cutting lengths within the machine's operating range.

6. Can It Process Galvanized Wire Rope?

Compatible galvanized wire rope may be processed depending on the rope construction and machine specifications. Customers should provide the exact rope information for confirmation.

7. Is It Suitable for Elevator Rope?

It can be used for compatible elevator wire rope processing, provided the rope and machine meet the required specifications. Elevator applications must comply with applicable safety and manufacturer requirements.

8. Can It Be Used for Crane Cable?

Yes. Compatible crane wire rope and hoisting cable can be processed when the diameter and construction are within the machine's rated capacity.

9. Does the Machine Automatically Feed the Cable?

Yes. The automatic feeding system advances the rope according to the programmed cutting length and production cycle.

10. How Can I Get a Machine Quote?

Provide the wire rope diameter, construction, material, coil dimensions, required cutting lengths, desired production capacity, and end-fusing requirements. These details help determine the appropriate machine configuration and price.
