High Speed W12 Hydraulic Four Roll Plate Rolling Machine

High Speed W12 Hydraulic Four Roll Plate Rolling Machine

The High Speed W12 Hydraulic Four Roll Plate Rolling Machine is an industrial metal forming solution designed for efficient and repeatable bending of steel plates, stainless steel, aluminum, and other suitable metal materials. Combining a four-roll structure with hydraulic control, the W12 series provides a practical solution for cylindrical, conical, curved, and other plate forming applications.

Compared with conventional manual bending processes, a hydraulic four-roll plate rolling machine can provide more controlled material positioning and forming. The four-roller configuration helps simplify plate feeding, pre-bending, and rolling operations, making it suitable for manufacturers that require consistent production and efficient processing.

The machine can be used in tank manufacturing, pressure vessel production, pipe fabrication, boiler manufacturing, HVAC duct production, steel structure fabrication, chemical equipment, oil and gas equipment, and general metalworking.

Actual machine capacity and forming speed depend on the selected model, plate dimensions, material properties, roller configuration, hydraulic system, and production requirements.

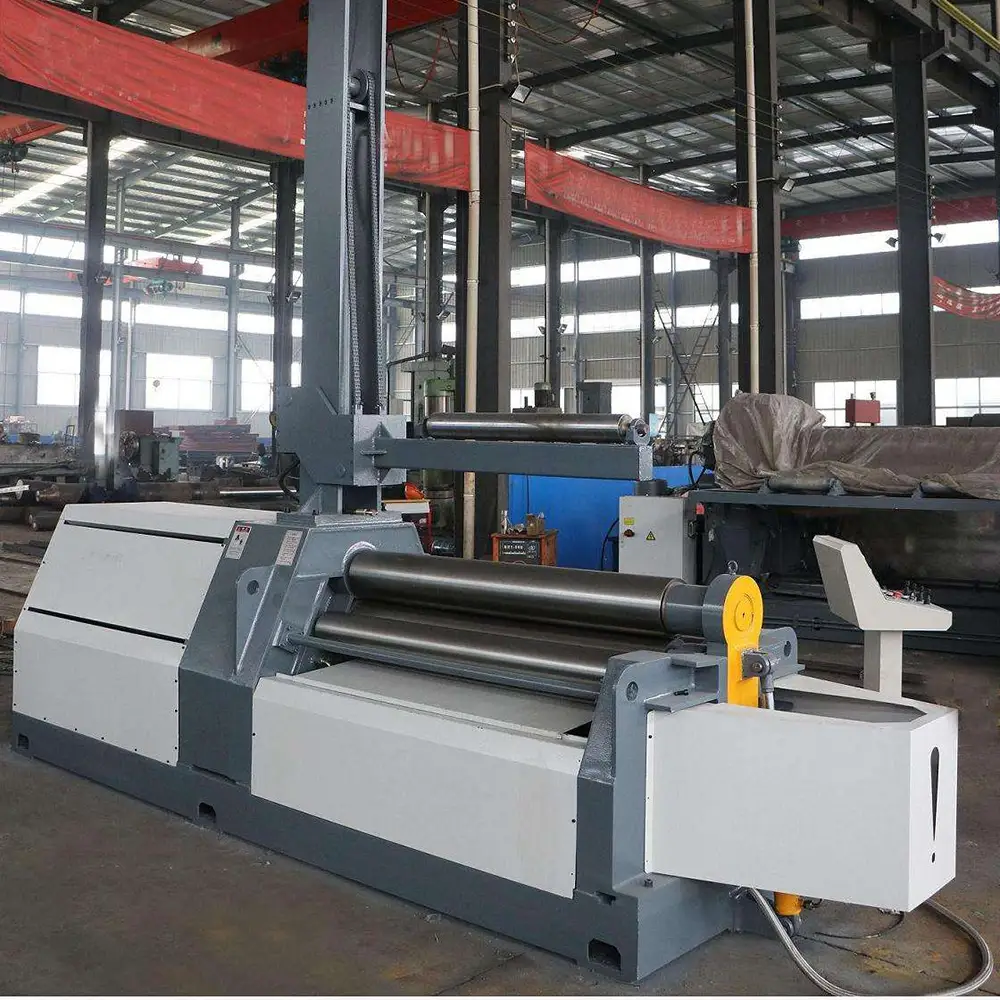

High-Speed Plate Rolling Performance

Production efficiency is an important consideration for modern metal fabrication companies. The High Speed Plate Rolling Machine is designed to support efficient material handling and forming while maintaining controlled roller movement.

The four-roll configuration allows the metal plate to be positioned and supported between multiple rollers. During the rolling cycle, controlled roller movement progressively forms the plate to the required radius.

A faster forming cycle can be particularly beneficial for manufacturers producing repeated cylindrical shells, tanks, pipes, ducts, and other curved components.

However, actual production speed should be evaluated together with plate thickness, material strength, rolling diameter, workpiece dimensions, and required forming accuracy. Higher speed should not compromise the quality or stability of the forming process.

W12 Hydraulic Four-Roll Design

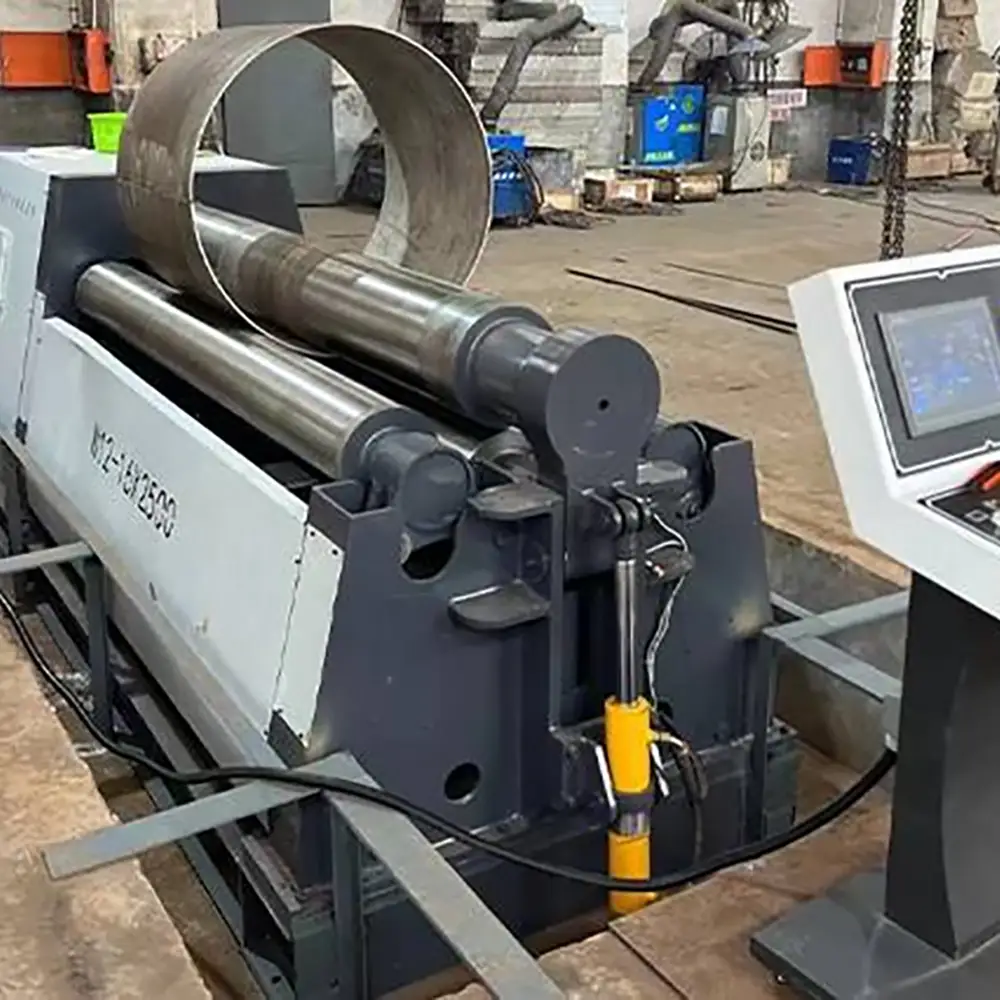

The W12 Four Roll Plate Rolling Machine uses four rollers to provide controlled plate positioning and bending.

The four-roll design can provide advantages for industrial fabrication applications, including:

Efficient Plate Feeding
Controlled Pre-Bending
Reduced Plate Repositioning
Stable Workpiece Support
Cylindrical Rolling
Conical Rolling
Repeatable Forming
Improved Production Efficiency

Hydraulic systems can be used for roller movement and positioning depending on the machine configuration. Hydraulic control provides strong and controlled mechanical movement for applications involving medium or heavy metal plates.

The machine structure, roller diameter, hydraulic capacity, drive system, and control system should be selected according to the customer's actual production requirements.

Cylindrical Plate Rolling

One of the primary applications of the W12 hydraulic four-roll machine is cylindrical plate forming.

Flat steel plates can be progressively rolled into cylindrical shells for manufacturing:

Storage Tanks
Industrial Tanks
Pressure Vessel Shells
Steel Pipes
Boiler Shells
HVAC Ducts
Cylindrical Covers
Chemical Equipment
Oil And Gas Components
Industrial Machinery

The required minimum rolling diameter depends on the machine model, roller dimensions, material thickness, material strength, and forming method.

For manufacturers producing large numbers of cylindrical workpieces, a four-roll machine can help establish a repeatable rolling process.

Conical Plate Rolling

The W12 four-roll configuration can also be designed for conical plate rolling.

Conical forming requires controlled differences in the forming conditions across the plate width. The machine can be configured to support cone-shaped components according to the required dimensions and material specifications.

Typical conical products include:

Conical Tanks
Reducers
Hopper Components
Conical Covers
Transition Sections
Chemical Equipment Components
Industrial Duct Components

Customers should provide the required cone angle, maximum and minimum diameter, plate thickness, plate width, and material type when selecting equipment for conical applications.

Hydraulic Plate Bending

The hydraulic system is an important part of the machine's forming process. Depending on the configuration, hydraulic cylinders can control roller lifting, positioning, tilting, or other movements.

Hydraulic operation can provide strong forming capability for demanding applications while allowing controlled roller adjustment.

For heavy-duty plate rolling, the hydraulic system should be matched with the machine frame, rollers, drive system, and intended working capacity.

Materials

The W12 hydraulic four-roll plate rolling machine can be configured for various metal materials.

Common materials include:

Carbon Steel
Mild Steel
Stainless Steel
Aluminum
Galvanized Steel
Other Formable Metal Alloys

Material strength is an important factor when selecting a plate rolling machine. High-strength materials may require greater forming force than mild steel with the same thickness.

Stainless steel applications may also require suitable forming parameters to achieve the desired radius without unnecessary surface damage or deformation.

For accurate machine selection, buyers should provide the material type, maximum thickness, maximum width, minimum rolling diameter, and material strength.

Heavy-Duty Plate Rolling

For thick steel plate and demanding industrial applications, machine construction is critical.

A Heavy Duty Plate Rolling Machine requires an appropriately engineered frame, forming rollers, bearings, hydraulic components, drive system, and transmission.

The rated capacity should always be evaluated based on the complete combination of:

Plate Thickness
Plate Width
Material Strength
Minimum Rolling Diameter
Roller Diameter
Production Requirements

This ensures that the selected equipment matches the actual working conditions rather than relying on a single nominal capacity figure.

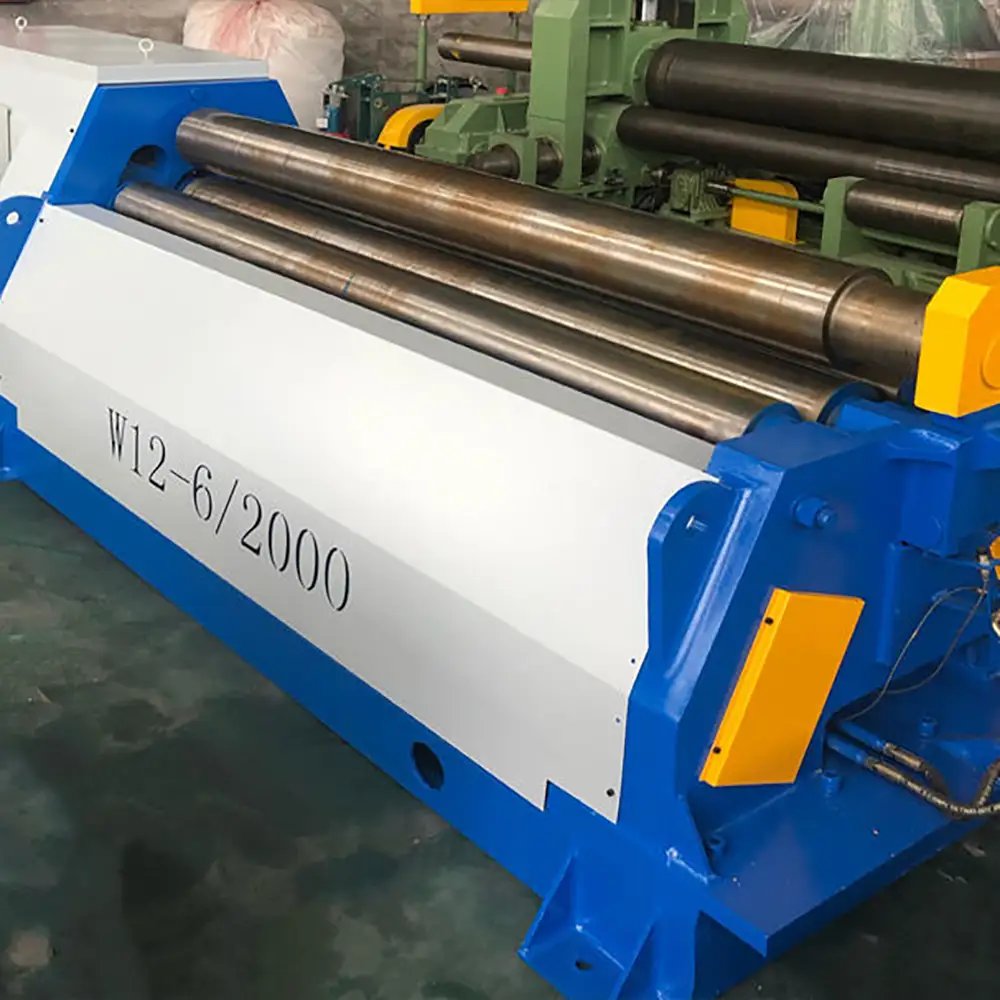

CNC and Automatic Control

Depending on the selected configuration, the W12 machine can be equipped with programmable or CNC control systems.

A programmable control system can help operators establish repeatable roller positions and forming sequences. This can be useful when production involves multiple workpiece specifications.

Automation can help reduce manual adjustment, improve repeatability, and simplify production changeovers.

For high-volume manufacturing, the machine can also be integrated with plate handling, cutting, welding, inspection, and other fabrication equipment to create a more complete production workflow.

Flexible Industrial Applications

The W12 four-roll plate rolling machine is suitable for both general metal fabrication and specialized industrial production.

Common applications include:

Pressure Vessel Manufacturing
Storage Tank Manufacturing
Steel Pipe Production
Boiler Manufacturing
HVAC Duct Fabrication
Chemical Equipment
Oil And Gas Equipment
Shipbuilding
Steel Structure Manufacturing
Stainless Steel Fabrication
Aluminum Fabrication
Industrial Machinery
Metal Fabrication

Its flexible configuration makes it suitable for manufacturers producing different sizes and shapes of curved metal components.

Custom Machine Configuration

Every metal fabrication operation has different requirements. The correct machine should therefore be selected according to the actual workpiece rather than simply choosing a standard machine based on general specifications.

Custom configuration can be considered for:

Working Length
Maximum Plate Thickness
Maximum Plate Width
Minimum Rolling Diameter
Roller Diameter
Hydraulic System
Drive Configuration
Control System
Production Speed
Cylindrical Rolling
Conical Rolling
Automation Requirements

Customers can provide drawings, plate specifications, material information, target diameters, and production volume for technical evaluation.

Why Choose Our W12 Hydraulic Four Roll Plate Rolling Machine?
1. Four-Roll Industrial Design

The four-roll configuration provides controlled plate positioning and supports efficient forming operations.

2. Hydraulic Operation

Hydraulic systems provide controlled roller movement and strong forming capability for industrial applications.

3. Efficient Production

The machine is designed to support efficient plate feeding, pre-bending, rolling, and production cycles.

4. Multiple Materials

Suitable configurations are available for carbon steel, stainless steel, aluminum, galvanized steel, and other formable metals.

5. Cylindrical And Conical Forming

The machine can be configured for cylindrical shells, cones, tanks, pipes, ducts, and other curved components.

6. Custom Engineering

Machine dimensions, forming capacity, roller configuration, control system, and hydraulic specifications can be customized according to production requirements.

7. OEM & B2B Support

We provide machine solutions for industrial manufacturers, metal fabricators, distributors, and OEM customers.

Main Applications

The High Speed W12 Hydraulic Four Roll Plate Rolling Machine is suitable for:

Steel Tank Manufacturing
Pressure Vessel Production
Steel Pipe Manufacturing
Boiler Manufacturing
Chemical Equipment Manufacturing
Oil And Gas Equipment
HVAC Duct Manufacturing
Shipbuilding
Steel Structure Fabrication
Stainless Steel Fabrication
Aluminum Plate Forming
Industrial Machinery
Metal Fabrication
FAQS
1. What is a W12 Four Roll Plate Rolling Machine?

It is a four-roll industrial machine designed to bend and form flat metal plates into cylindrical, conical, and curved shapes.

2. What does W12 mean?

W12 is commonly used to identify a category of four-roll plate rolling machines. The exact configuration and specifications vary by manufacturer and model.

3. What materials can the machine process?

Depending on configuration, it can process carbon steel, mild steel, stainless steel, aluminum, galvanized steel, and other suitable metals.

4. Can it roll stainless steel plate?

Yes. The machine can be configured for stainless steel according to plate thickness, width, strength, and required rolling diameter.

5. Can the W12 produce cylindrical shells?

Yes. Cylindrical rolling is one of the main applications of a four-roll plate rolling machine.

6. Can it perform conical rolling?

Yes. Suitable configurations can support conical plate forming according to the required cone dimensions and material specifications.

7. Is the machine hydraulically operated?

Yes. The W12 hydraulic configuration uses hydraulic components for controlled roller movement and positioning.

8. Is CNC control available?

CNC or programmable control can be configured depending on the selected machine model and production requirements.

9. Is this machine suitable for high-speed production?

It can be configured for efficient production cycles. Actual forming speed depends on material, thickness, width, diameter, machine capacity, and forming requirements.

10. How do I choose the right W12 model?

You should consider maximum plate thickness, maximum plate width, material strength, minimum rolling diameter, production volume, and whether cylindrical or conical rolling is required.

11. Can the machine be customized?

Yes. Working length, roller dimensions, hydraulic system, controls, forming capacity, and other specifications can be customized.

12. What industries use four-roll plate rolling machines?

They are widely used for tanks, pressure vessels, pipes, boilers, HVAC ducts, chemical equipment, oil and gas equipment, steel structures, and general fabrication.

13. What information is required for a quotation?

Please provide material type, maximum thickness, maximum width, minimum rolling diameter, required shape, production volume, and available drawings or technical specifications.
