High-speed Laser Cutting Machine, No Chuck, Clamping Fixture, Feeding Length

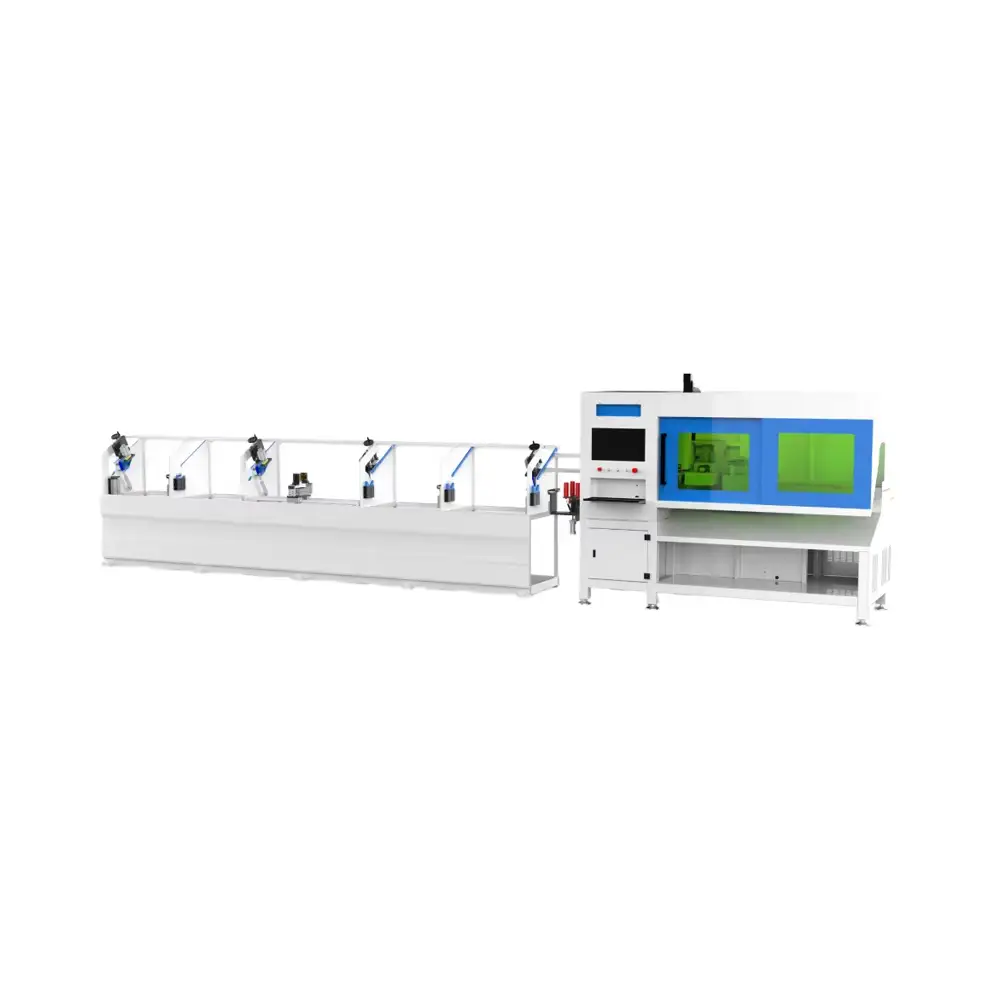

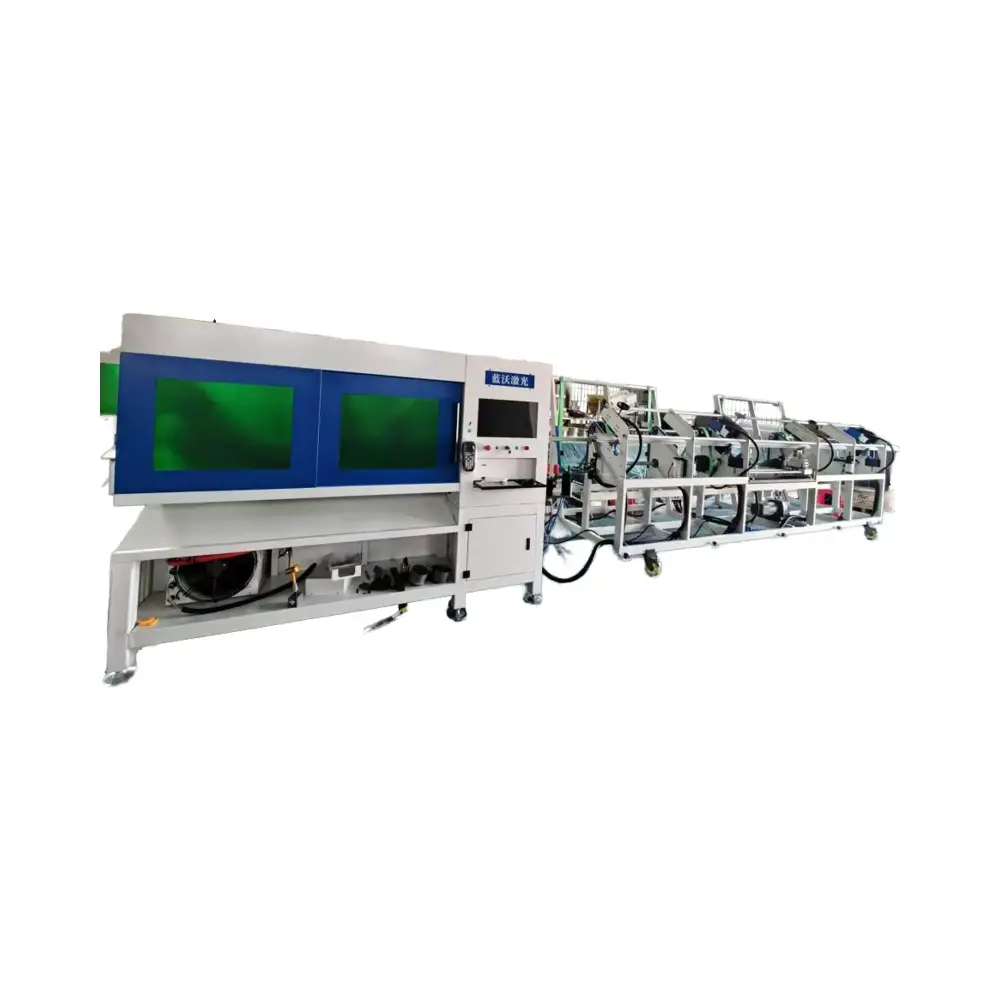

High-Speed Tube Laser Cutting

The machine is designed for high-speed processing of compatible metal tubes and profiles. Fiber laser technology provides a concentrated cutting beam that enables fast and precise non-contact cutting.

High-speed processing can be particularly valuable for manufacturers producing large quantities of standardized tube components. By combining automatic feeding with CNC control, the machine can reduce repeated manual positioning and help create a more continuous production workflow.

Actual cutting speed depends on laser power, material type, tube dimensions, wall thickness, cutting geometry, gas configuration, and other processing parameters.

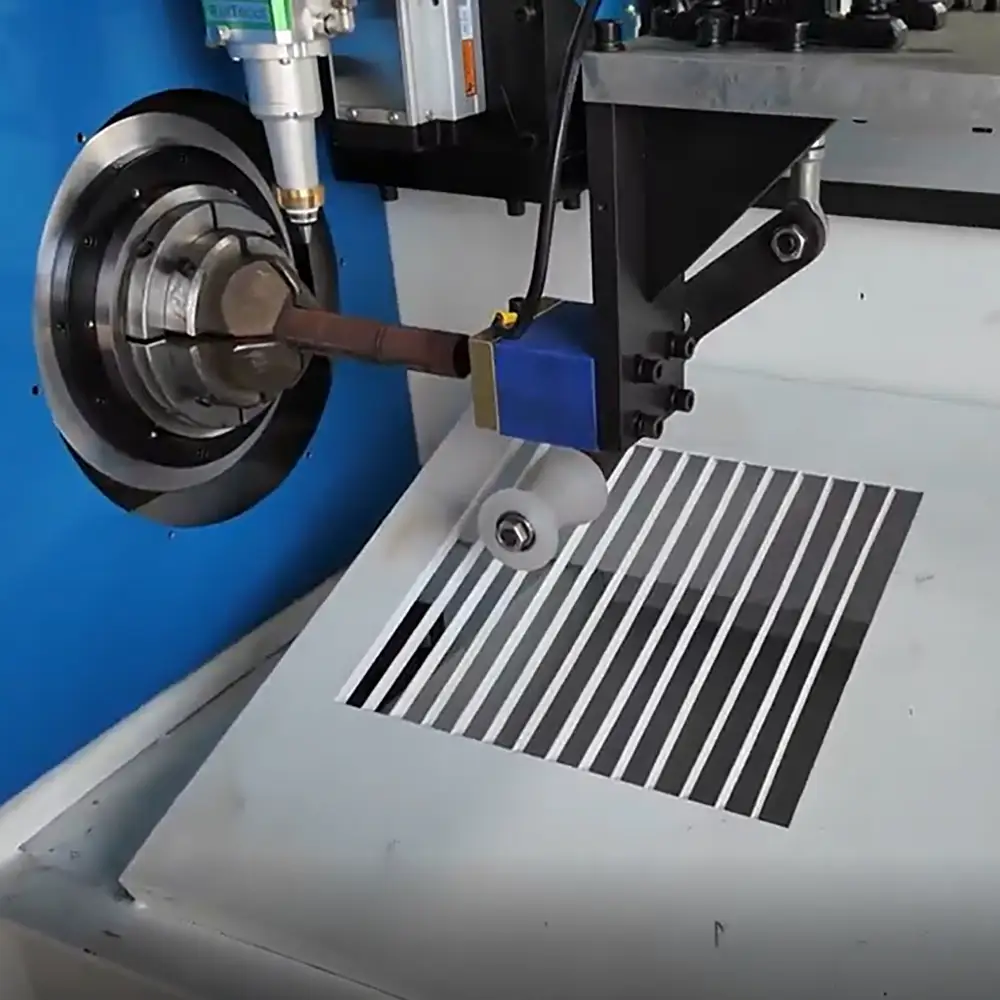

No-Chuck Cutting Configuration

The no-chuck design eliminates the need for a conventional rotating chuck mechanism in suitable applications. Instead, the machine uses a clamping fixture and feeding mechanism to guide and position the tube during processing.

This configuration can provide a compact and practical solution for manufacturers that prioritize efficient feeding and continuous tube processing. It can also reduce mechanical complexity in applications where traditional chuck rotation is not required.

The specific workpiece range and supported tube profiles depend on the machine configuration.

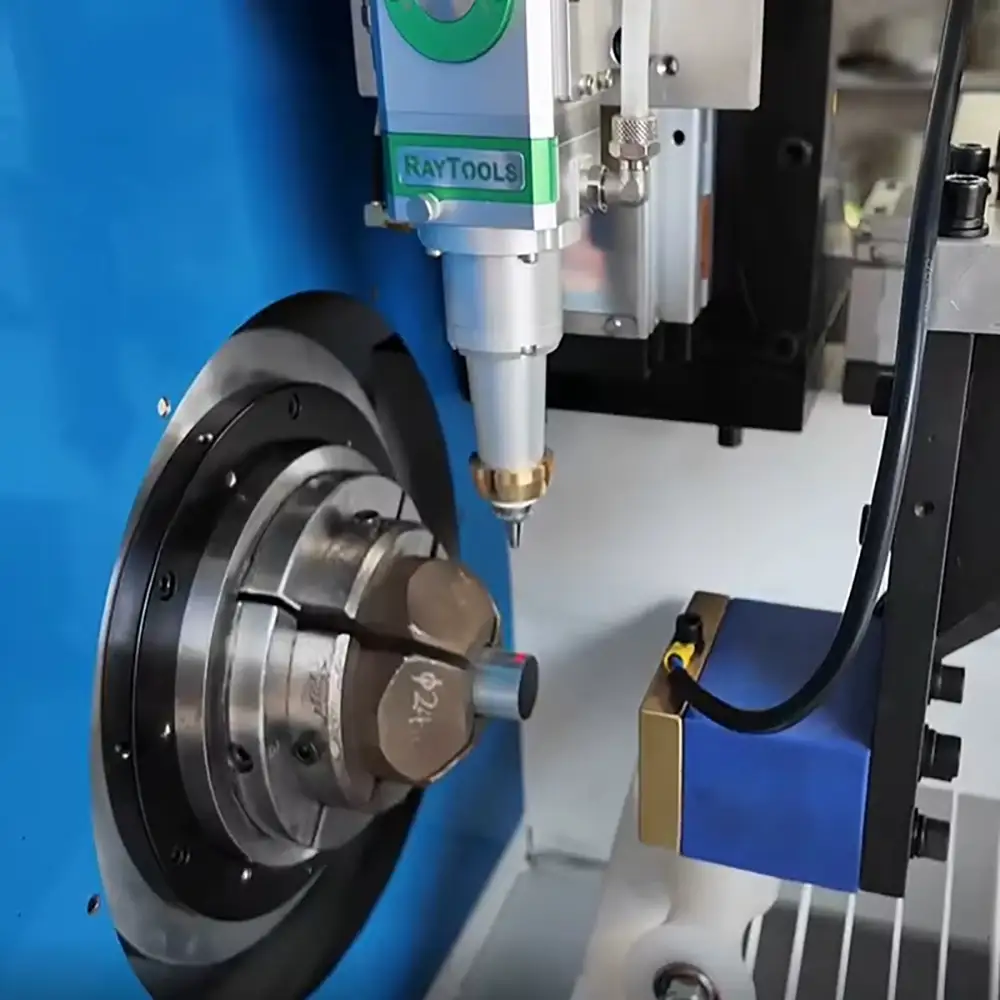

Clamping Fixture For Stable Positioning

The clamping fixture is designed to secure the tube during laser processing and help maintain consistent positioning. Proper workpiece positioning is essential for achieving repeatable cutting results, especially when processing multiple components in a production batch.

The fixture can be configured according to the tube profile and production requirements. Depending on the machine design, compatible workpieces may include round tubes, square tubes, rectangular tubes, and other supported profiles.

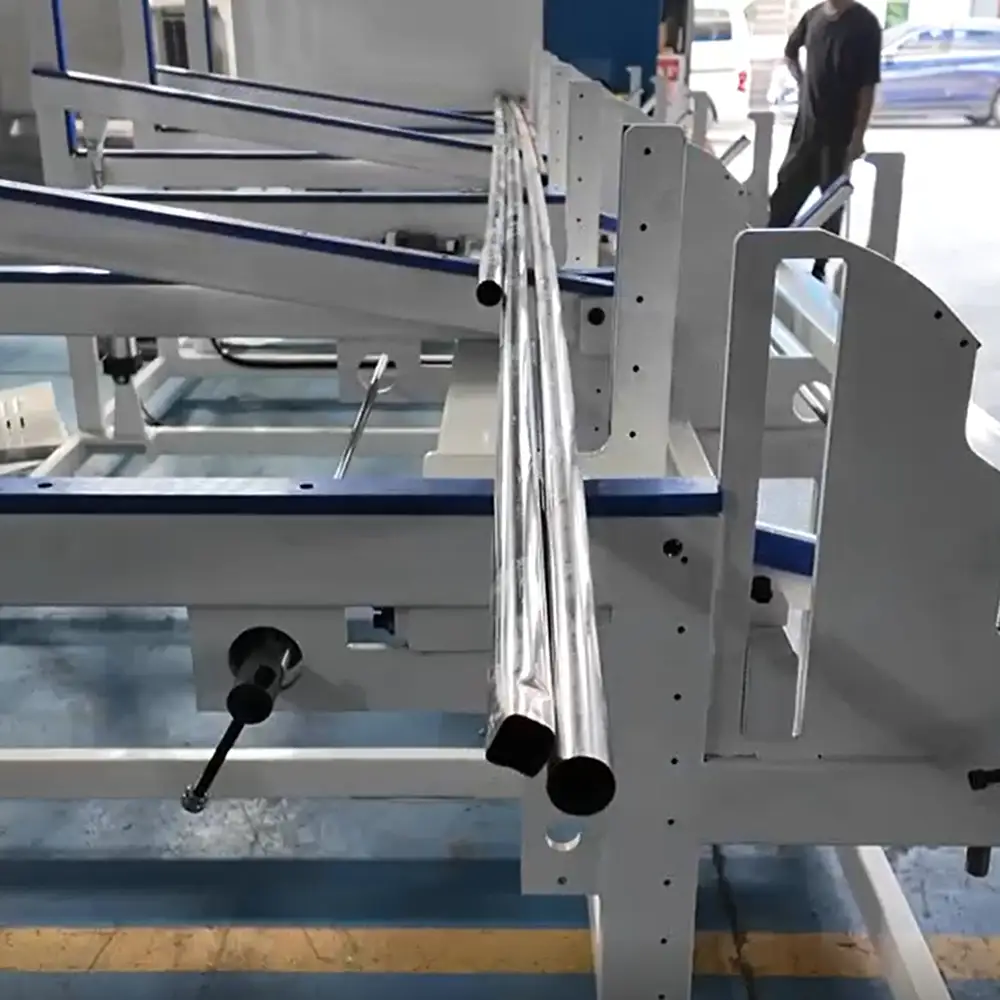

Automatic Feeding And Feeding Length

The feeding system is one of the key functions of this laser cutting machine. It automatically moves the raw tube through the cutting area according to the programmed production sequence.

The available feeding length should be selected according to the customer's raw material dimensions, product design, and production workflow. Automatic feeding can reduce the need for operators to repeatedly reposition long tubes manually.

For continuous production, this can help improve material handling efficiency and make the production process easier to standardize.

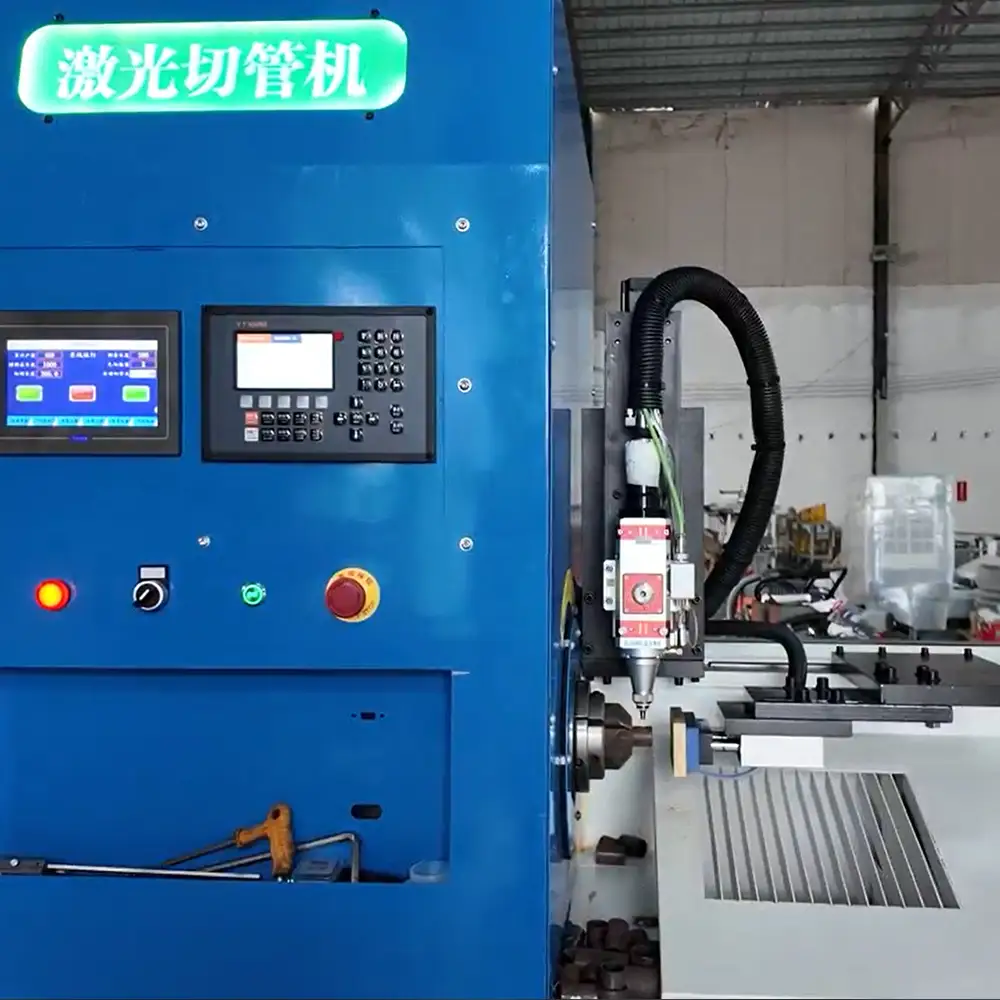

CNC Control System

The CNC control system manages cutting paths, feeding movements, positioning, and other programmed operations. Operators can prepare cutting programs according to the required tube geometry and production specifications.

For manufacturers producing repeated batches, CNC programming allows the same cutting pattern to be reproduced across multiple workpieces. This can help reduce manual measuring, marking, and positioning operations.

The system can also support flexible production where different tube components are processed by changing the programmed cutting design.

Fiber Laser Technology For Metal Tubes

Fiber laser technology is suitable for precision cutting of compatible metal materials. Typical materials may include carbon steel, stainless steel, and other suitable metal tubes and profiles.

The laser cutting process is non-contact, meaning there is no conventional cutting blade or mechanical cutting tool directly contacting the workpiece. This can be advantageous for automated tube-processing applications requiring repeatable cutting paths.

Laser power and process parameters should be selected according to the material, thickness, tube dimensions, cutting requirements, and production volume.

Applications For High-Volume Tube Processing

The high-speed no-chuck laser tube cutter is suitable for manufacturers producing metal furniture frames, fencing components, lighting structures, machinery parts, construction components, fitness equipment, automotive-related parts, and other tube-based products.

For B2B manufacturers, the combination of automatic feeding, clamping fixture, and CNC laser cutting can provide a practical production solution for standardized components as well as customized tube orders.

Key Features
High-speed fiber laser cutting for compatible metal tubes.
No-chuck design for streamlined tube processing.
Clamping fixture for stable workpiece positioning.
Automatic feeding system for continuous material movement.
Flexible feeding length according to machine configuration.
CNC control for programmable cutting operations.
Suitable for round, square, rectangular, and compatible tube profiles.
Designed for carbon steel, stainless steel, and other suitable metals.
Reduced manual tube handling and positioning.
Suitable for batch production and customized metal fabrication.
Main Applications

The machine can be used for:

Metal Furniture Tube Cutting
Steel Fence Manufacturing
Construction Tube Processing
Machinery Components
Equipment Frames
Fitness Equipment
Lighting Structures
Agricultural Machinery
Automotive Components
Steel Structure Parts
Industrial Tube Fabrication
General Metal Processing
FAQs
1. What Is A No-Chuck Laser Tube Cutting Machine?

It is a fiber laser tube cutting machine that uses a clamping fixture and feeding system instead of a conventional chuck configuration for suitable tube-processing applications.

2. What Is The Advantage Of A No-Chuck Design?

A no-chuck configuration can simplify the mechanical structure and provide an efficient feeding solution for applications where conventional chuck rotation is not required.

3. What Is The Clamping Fixture Used For?

The clamping fixture secures and positions the tube during laser processing, helping maintain stable workpiece positioning and repeatable cutting.

4. What Does Feeding Length Mean?

Feeding length refers to the length of material that the feeding system can move through the cutting area according to the machine configuration and production requirements.

5. Is The Machine Suitable For High-Speed Production?

It is designed for high-speed tube processing. Actual cutting and production speed depends on laser power, material, thickness, tube dimensions, cutting pattern, and machine configuration.

6. What Materials Can It Cut?

Typical compatible materials include carbon steel, stainless steel, and other suitable metal tubes and profiles.

7. Can It Cut Round And Square Tubes?

Depending on the selected configuration, the machine can be designed for round, square, rectangular, and other compatible tube profiles.

8. Is Automatic Feeding Available?

Yes. The machine is designed with an automatic feeding system to move compatible tube material through the cutting area and reduce repeated manual handling.

9. Can The Feeding Length Be Customized?

The feeding configuration can be selected according to raw material length, tube dimensions, product design, and production requirements.

10. Can You Recommend A Suitable Configuration?

Yes. Customers can provide tube material, profile dimensions, wall thickness, required feeding length, production volume, and cutting requirements so the appropriate machine configuration can be evaluated.

Why Choose Us
High-Speed Laser Processing

We provide fiber laser cutting equipment designed for manufacturers that need efficient tube processing and repeatable production.

No-Chuck Technology

The no-chuck configuration provides an alternative solution for suitable tube applications, with a clamping fixture and feeding mechanism designed around continuous material handling.

Flexible Feeding Solutions

Feeding length and material-handling configuration can be selected according to tube dimensions, raw material requirements, and production workflow.

Customized Machine Configuration

Laser power, fixture design, feeding system, tube-processing range, CNC control, and other options can be evaluated according to the customer's application.

Factory-Direct B2B Supply

We support OEM, distributor, project, and industrial customers with direct factory communication, production coordination, and technical consultation.

International Export Support

We provide machine testing, technical documentation, export packaging, shipping coordination, and after-sales technical assistance for overseas customers.
