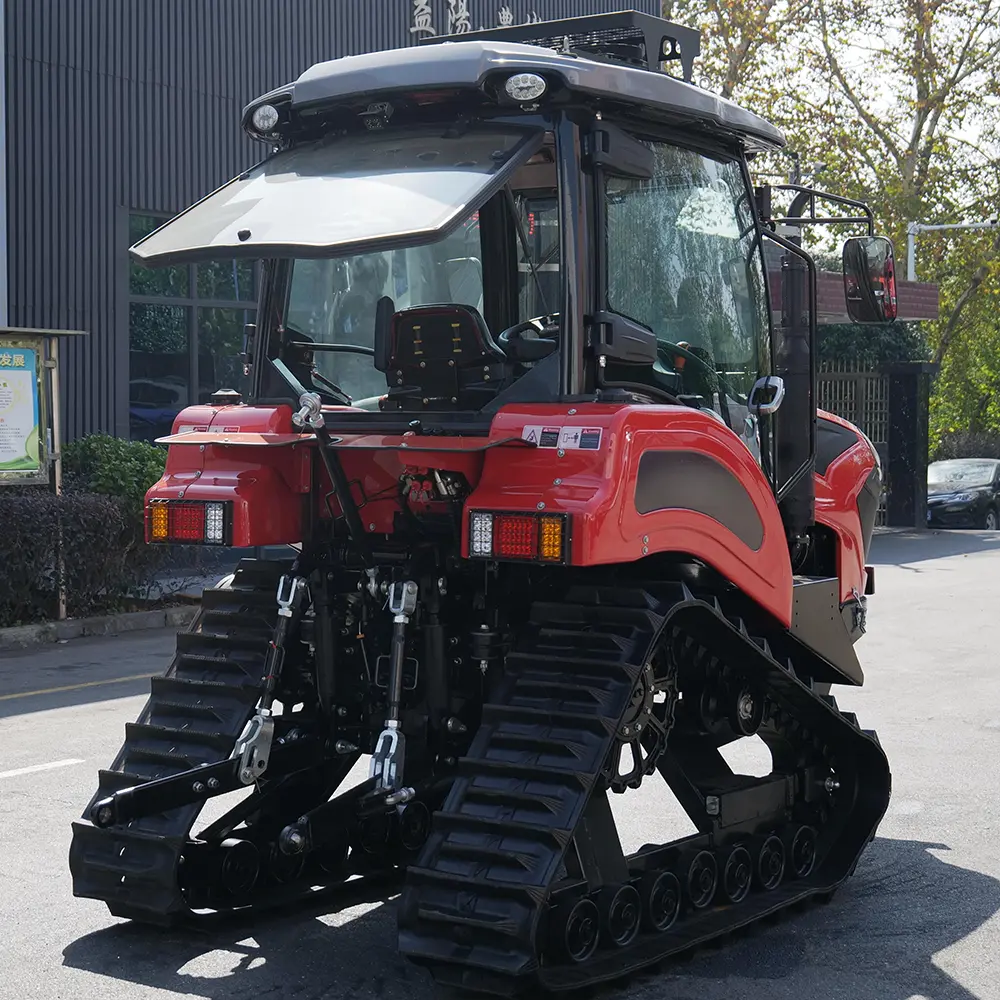

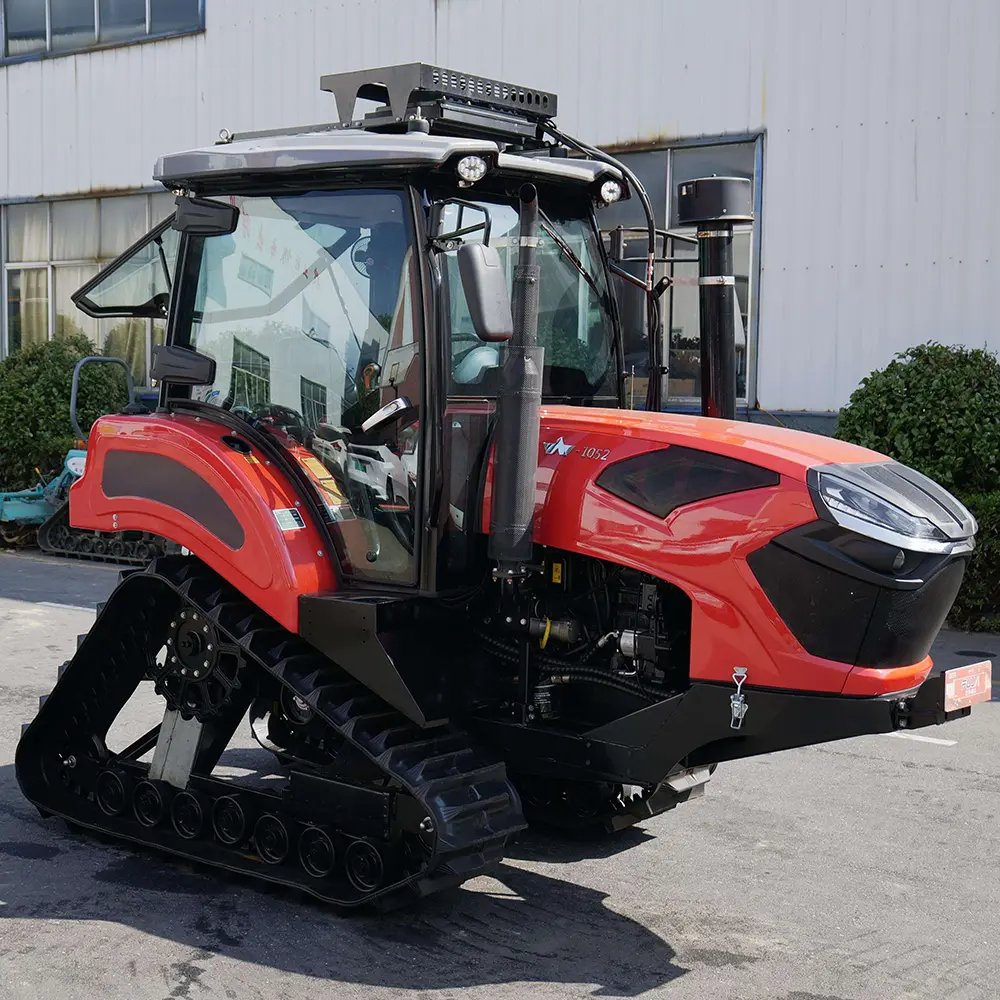

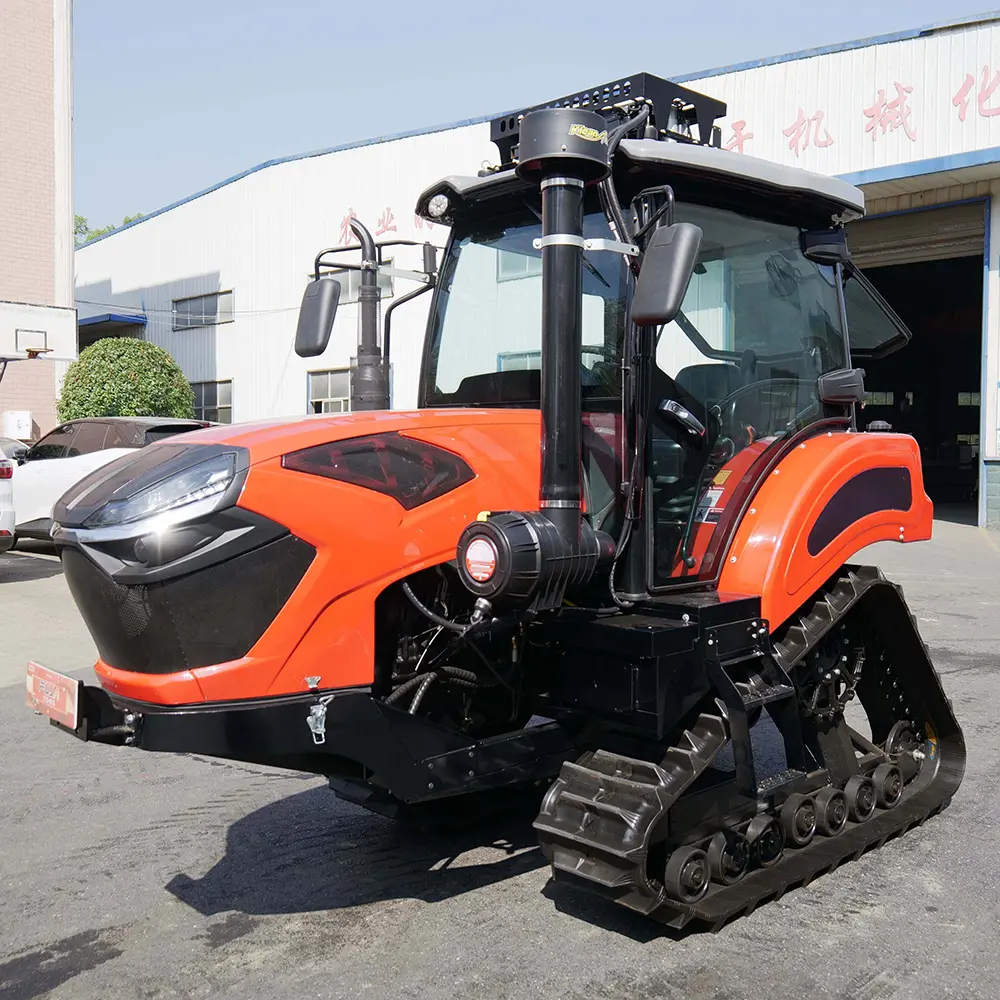

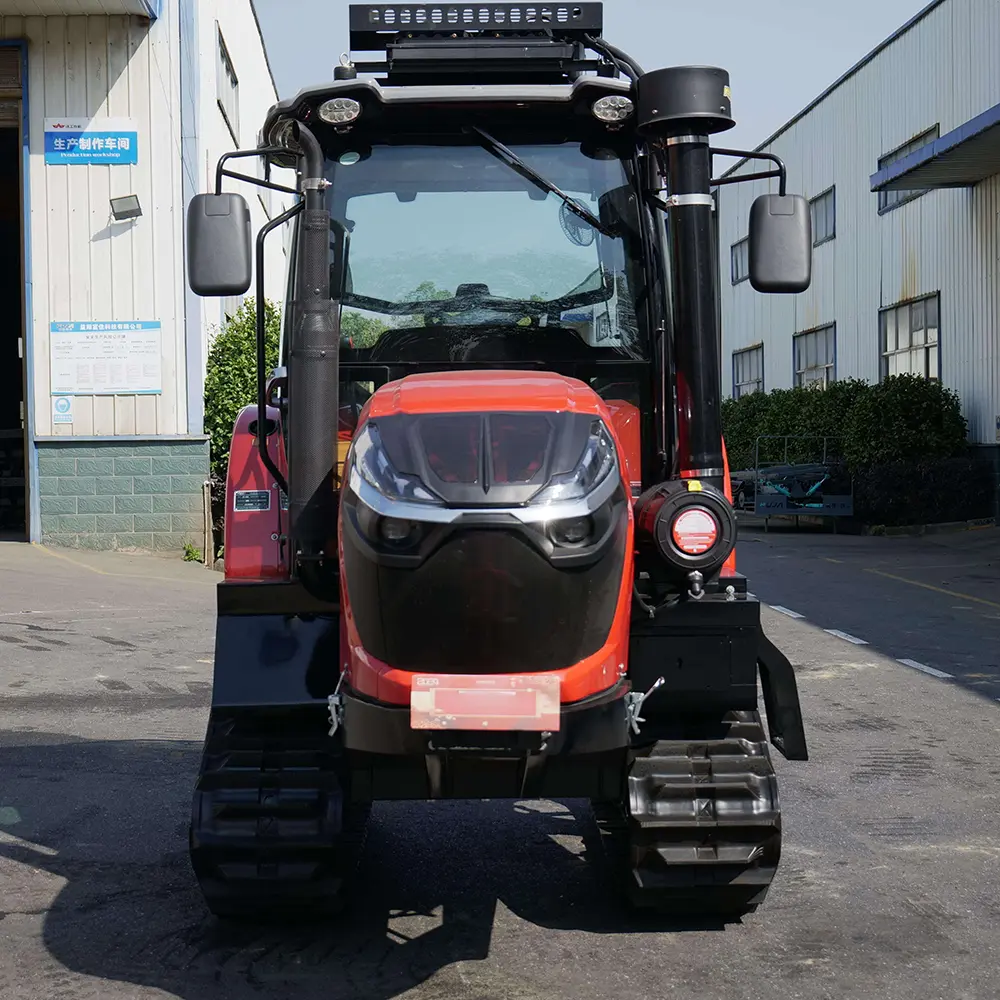

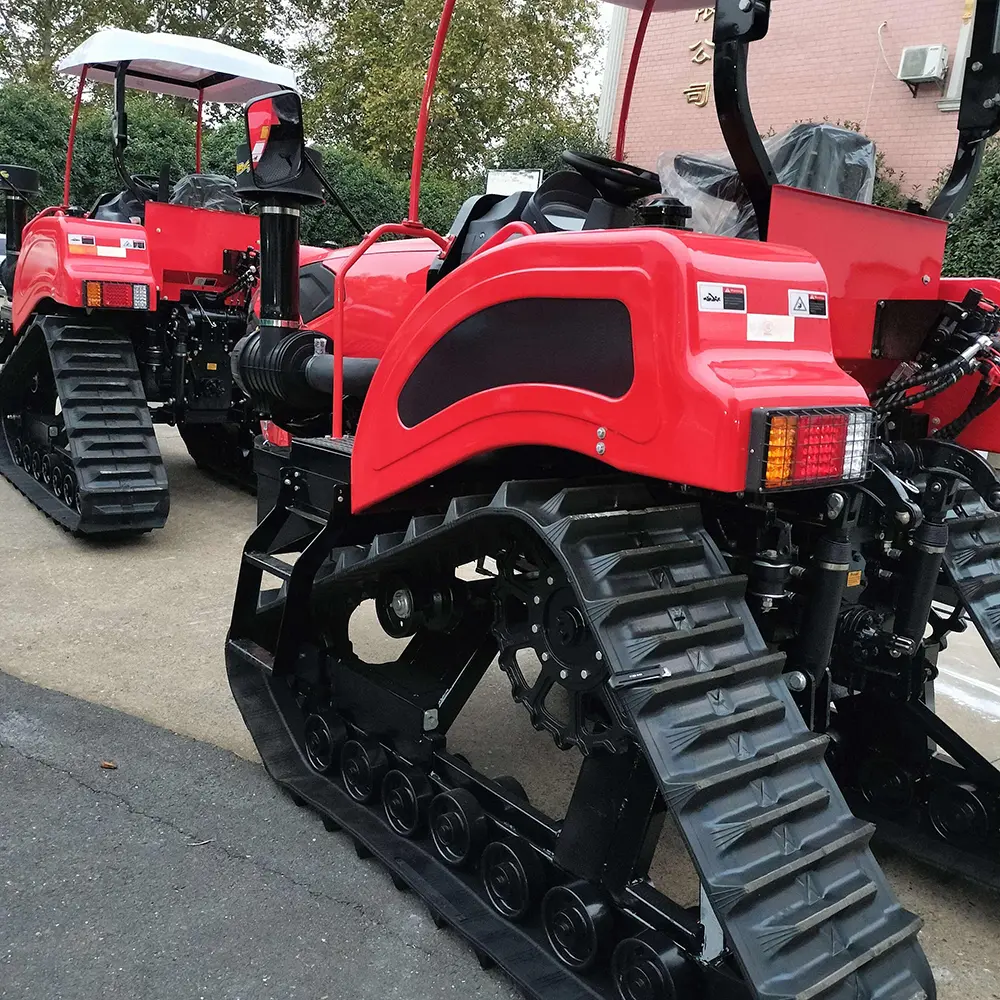

High Chassis Tracked Tractor

The High Chassis Tracked Tractor is a professional agricultural crawler tractor designed for farmers who require reliable performance in wet, muddy, and challenging environments.

With its high ground clearance structure, powerful diesel engine, strong crawler traction, and multifunctional agricultural capability, this tractor is an excellent choice for paddy fields, wetland farming, and modern agricultural operations.

For customers searching for a high clearance crawler tractor, diesel tracked tractor, paddy field tractor, or agricultural crawler machine, the High Chassis Tracked Tractor provides superior mobility, durability, and working efficiency.

Model		SG-602	SG-702		SG-802	SG-902
Size	length×width×height(mm)	2900×1360×1500	3430×1590×2300		3690×1650×2560
Weight	(Kg)	1700	2200		2450
Minimum Ground Clearance	(mm)	260	410		420
Engine	Model	3G25TC	YD4CZ70C1		YD4EZ80C1	YD4EZ90C1
	Form	Electronic injection. Vertical. Water-cooled. four-stroke
	Rated power(kW)	44.1	51.5		58.8	66.2
	Fuel	Diesel
	Rated power(r/min)	2400
	Starting method	Electric start			Electric start
Steering Brake System	Steering system type	Planetary differential steering			Planetary differential steering
	Brake system type	Wet friction steering			Wet friction steering
Drive Train	Clutch type	Single-chip single-acting			Single-chip single-acting
	Transmission type	2(mechanical file)+ 2×2(hydraulic stepless speed change)			Eight forward speed+ reverse gear
	Transmission shift model	Gear shift			Gear shift
Walking System	Rack form	Rigid frame type			Rigid frame type
	Track pitch section × number × width	90×46×280		90×50×350	90×56×400
	The theoretical speed of each file(km/h)	Forward: mechanical block:4.86; 8.65 Hydraulic block: 0-5.75; 0-10.24			Forward:1.22;1.80;2.92; 3.84;5.50;8.08;13.13;17.25
		Backward:0-5.75;0-10.24			Backward:0.97;1.43;2.32; 3.04;4.36;6.41;10.42;13.68
Working Device	Lifter type	Semi-split			Semi-split
	Tillage depth control	Force adjustment			Force adjustment
	PTO form	Type1, non-independent			Type1, non-independent
	Power output shaft speed(r/min)	624/960			720/1000

High Chassis Tracked Tractor

The High Chassis Tracked Tractor is a specialized diesel-powered agricultural crawler tractor designed for farming operations that require higher ground clearance, strong traction, and excellent terrain adaptability. With an elevated chassis structure and reliable crawler track system, this tractor provides superior performance in muddy fields, wet farmland, rice paddies, and uneven agricultural environments.

Unlike standard tractors, the High Clearance Tracked Tractor features a raised undercarriage design that increases the distance between the machine body and the ground. This allows the tractor to move through deeper mud, wet soil, and crop areas while reducing contact with plants and improving operational flexibility.

The high chassis tracked tractor is suitable for:

Paddy field cultivation
Rice farming operations
Wetland agriculture
Vegetable farming
Crop transportation
Soil preparation
Agricultural land maintenance

With its powerful diesel engine, durable crawler tracks, and high-clearance structure, this tractor provides farmers with an efficient solution for challenging agricultural conditions.

High Ground Clearance Design For Agricultural Use

The main advantage of the High Chassis Crawler Tractor is its elevated chassis design.

The higher ground clearance provides:

Better mud passing ability
Reduced crop damage
Improved field mobility
Easier operation in wet conditions
Better obstacle crossing capability

This design is especially beneficial for:

Rice fields
Wet farmland
Tall crop areas
Uneven terrain

Compared with conventional tractors, the high chassis structure allows the machine to work in environments where ordinary agricultural equipment may struggle.

Powerful Diesel Engine Performance

The High Clearance Tracked Tractor is equipped with a reliable diesel engine system designed for demanding agricultural applications.

Engine advantages include:

Strong torque output
Stable power performance
Excellent fuel efficiency
Long service life
Continuous working capability

The diesel engine provides sufficient power for:

Deep soil cultivation
Rotary tilling
Transportation tasks
Field preparation
Heavy agricultural operations

The combination of diesel power and crawler drive ensures efficient performance in difficult working conditions.

Advanced Crawler Track System

The tracked drive system is the foundation of the High Chassis Tracked Tractor.

Crawler tracks provide:

Strong Traction

The wide track contact area delivers excellent grip on:

Muddy fields
Wet soil
Slopes
Soft farmland

This reduces slipping and improves productivity.

Low Ground Pressure

The crawler structure helps:

Prevent sinking
Protect soil structure
Reduce field damage
Superior Stability

The tracked chassis provides:

Better balance
Smooth driving performance
Safer operation

These advantages make it ideal for wet agricultural environments.

Excellent Performance In Paddy Fields

The High Chassis Paddy Field Tractor is specifically designed for rice-growing areas.

Paddy fields often have:

Deep mud
High moisture content
Soft soil conditions

The high chassis crawler design helps farmers overcome these challenges.

Advantages in rice fields:

Strong mud resistance
High flotation capability
Stable operation
Reduced soil compaction

Applications include:

Paddy field preparation
Rice cultivation support
Field transportation
Irrigation area maintenance
Suitable For Wetland And Dry Land Farming

Although designed for wet environments, the High Ground Clearance Crawler Tractor can also operate effectively on dry farmland.

Applications include:

Land cultivation
Soil preparation
Crop management
Fertilizer transportation
Farm maintenance

The machine provides excellent adaptability across different agricultural conditions.

Multifunctional Agricultural Applications

The High Chassis Tracked Tractor can work with various agricultural implements.

Compatible attachments include:

Rotary Tiller

Used for:

Soil loosening
Seedbed preparation
Paddy field cultivation
Plow

Used for:

Land preparation
Soil turning
Trailer

Used for:

Crop transportation
Fertilizer movement
Farm material handling
Harvester Support Equipment

Used for:

Field logistics
Agricultural assistance
Advantages For Rice And Crop Farming

The high chassis tracked tractor provides several benefits for modern agriculture:

Reduced Crop Damage

The elevated structure helps avoid unnecessary contact with crops.

Better Field Access

The tractor can enter areas with:

Mud
Standing water
Uneven surfaces
Improved Productivity

Strong traction and stable operation improve farming efficiency.

Durable Structure For Long-Term Farming

The Diesel High Chassis Tracked Tractor is built for harsh agricultural environments.

Main structural features:

Reinforced crawler frame
Heavy-duty chassis
Durable transmission system
Reliable hydraulic components

Benefits:

Longer service life
Lower maintenance costs
Stable operation under heavy workloads
Easy Operation And Maintenance

The tractor is designed for practical farm operation.

Operator advantages:

Simple control system
Comfortable operation
Easy maintenance access
Reliable mechanical structure

Maintenance includes:

Engine oil inspection
Track system checking
Hydraulic maintenance
Filter cleaning

Regular maintenance ensures long-term performance and reliability.

Main Features Of High Chassis Tracked Tractor
High ground clearance crawler design
Diesel engine power system
Strong traction performance
Suitable for paddy fields and wetlands
Low ground pressure operation
Excellent mud passing ability
Stable tracked chassis
Agricultural implement compatibility
Durable heavy-duty structure
Efficient farming solution
Why Choose High Chassis Tracked Tractor?
1. Excellent Wetland Performance

Designed for muddy fields, rice paddies, and soft agricultural land.

2. High Ground Clearance Design

Provides better obstacle crossing and reduces crop damage.

3. Strong Crawler Traction

Ensures stable operation in challenging terrain.

4. Fuel-Efficient Diesel Power

Provides reliable performance with economical operation costs.

5. Multifunctional Agricultural Capability

Works with different implements for various farming tasks.

6. Durable And Reliable Construction

Built for long-term agricultural use.

FAQS
1. What is a high chassis tracked tractor?

A high chassis tracked tractor is a crawler agricultural tractor with increased ground clearance, designed for wet fields, paddy farming, and difficult terrain.

2. Why does a tracked tractor need high chassis clearance?

High clearance improves mud passing ability, reduces crop damage, and allows operation in deeper fields.

3. Can this tractor work in rice paddy fields?

Yes. The crawler track system and high chassis design make it highly suitable for rice fields and wet farmland.

4. Is it suitable for dry farmland?

Yes. It can also perform cultivation, transportation, and soil preparation on dry land.

5. What attachments can be used with this tractor?

It can work with rotary tillers, plows, trailers, cultivators, and other agricultural implements.

6. What are the advantages of crawler tracks?

Crawler tracks provide stronger traction, lower ground pressure, and better stability compared with wheeled tractors.

7. Is the tractor suitable for small farms?

Yes. High chassis tracked tractors are available in different sizes for small and medium agricultural operations.

8. How is maintenance performed?

Regular engine service, track inspection, hydraulic checks, and lubrication help maintain reliable performance.

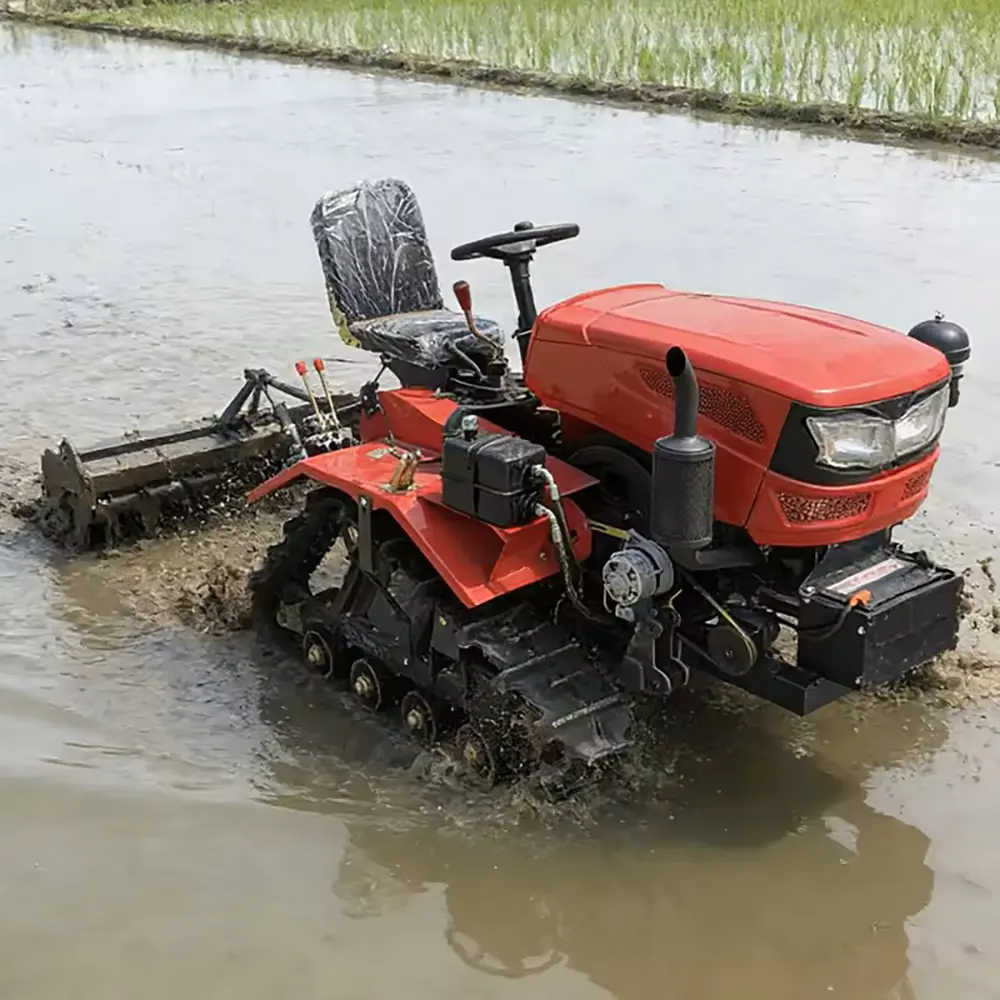

Prev：Paddy Field Tracked Tractor

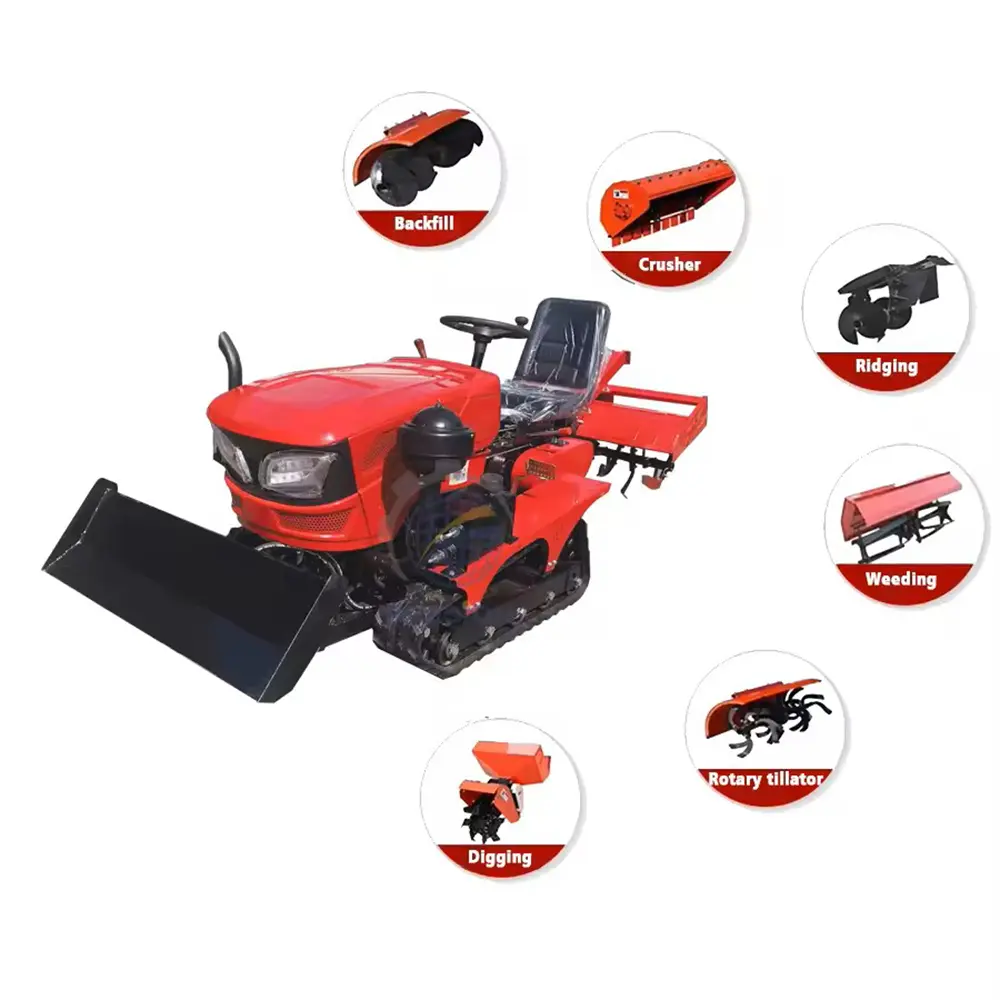

Next：Track Tractor with Bulldozer
