Full Automatic Dual 360mm Chuck Laser Pipe Cutting Machine Round Square Tube Metal Laser Cutter

The Full Automatic Dual 360mm Chuck Laser Pipe Cutting Machine is an industrial CNC fiber laser cutting solution designed for efficient processing of metal pipes, tubes, and profiles. Featuring a dual chuck configuration with a 360mm chuck size, the machine is designed to provide stable workpiece positioning and flexible cutting performance for professional metal fabrication applications.

With an automatic processing concept, CNC control system, fiber laser technology, and dedicated tube cutting mechanism, this laser pipe cutter is suitable for manufacturers that need accurate and repeatable processing of round tubes, square tubes, and other compatible metal profiles.

The machine can be configured for different material types, tube dimensions, laser power requirements, and production volumes. It is suitable for compatible carbon steel, stainless steel, aluminum, and other metal materials according to the selected machine configuration.

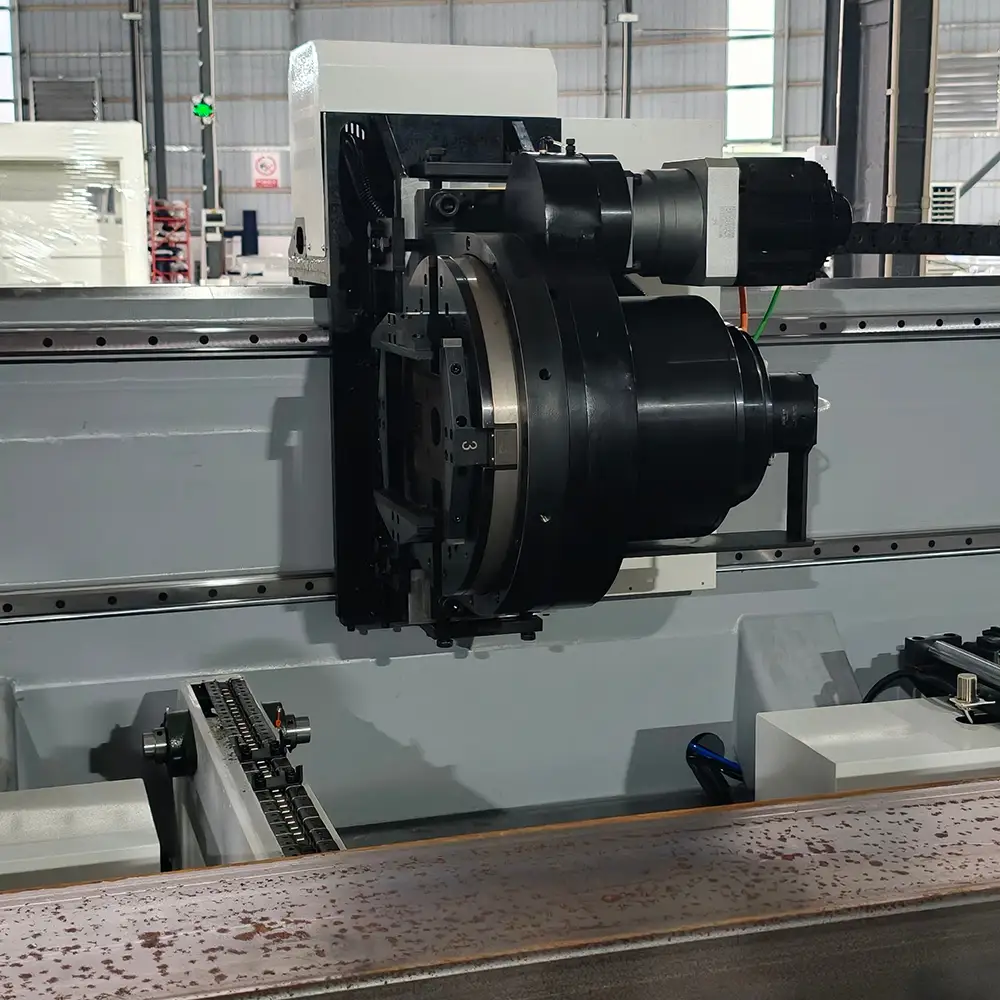

Dual 360mm Chuck Tube Cutting System

The dual chuck system is an important component of the machine's tube processing structure. The two chucks work together to hold and position the tube during laser cutting, helping provide stable workpiece support throughout the cutting process.

With a 360mm chuck configuration, the machine is designed for tube and pipe applications within the corresponding dimensional range. The actual maximum processing diameter depends on the machine model, chuck structure, laser head, tube shape, and other configuration parameters.

Dual chuck technology can be particularly useful for long tubular workpieces because the workpiece can be supported and positioned at multiple points. This helps improve flexibility when processing different tube lengths and geometries.

Full Automatic Tube Laser Cutting

The automatic design helps simplify tube processing by reducing manual intervention during production. Depending on the selected configuration, automatic functions can include material feeding, positioning, chuck clamping, cutting program execution, and workpiece processing.

CNC automation allows manufacturers to prepare digital cutting programs for different components and repeat the same cutting operations with consistent machine control.

This is especially useful for factories producing multiple tube components or handling repeat orders. Automated processing can help reduce repeated manual measuring and positioning operations and improve overall workflow efficiency.

Round Tube Laser Cutting

The machine is suitable for round tube laser cutting applications when configured with the appropriate tube processing system.

Round metal tubes are widely used in furniture, automotive components, agricultural machinery, construction products, handrails, frames, fitness equipment, and industrial structures.

The CNC laser cutting system can create straight cuts, holes, slots, openings, notches, and customized profiles according to the programmed design. This allows manufacturers to prepare tubular components for subsequent welding, assembly, and fabrication.

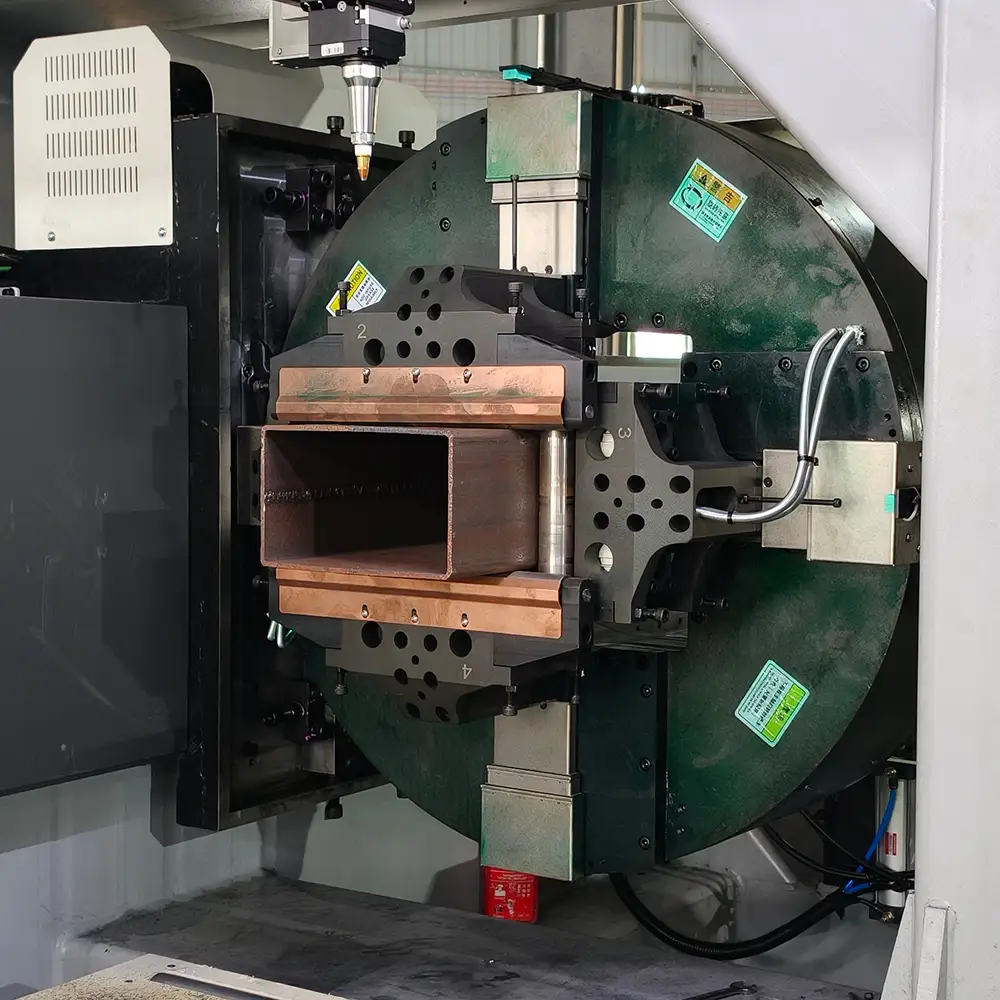

Square Tube Laser Cutting

The Square Tube Laser Cutting Machine configuration is designed for processing compatible square metal profiles. Square tubes are commonly used for structural frames, machinery bases, furniture, agricultural equipment, construction structures, and industrial products.

Laser cutting provides a flexible method for creating openings and customized contours without requiring separate mechanical tooling for every design.

For manufacturers producing different square tube components, CNC programming allows cutting files to be changed according to product specifications and customer requirements.

Fiber Laser Cutting Technology

The machine uses fiber laser technology to concentrate laser energy onto the workpiece surface for cutting. The laser cutting head follows programmed CNC paths to process the tube according to the required geometry.

Fiber laser technology provides a non-contact cutting process, which can be used for various compatible metal materials when the appropriate laser power, auxiliary gas, nozzle, focus position, and cutting parameters are selected.

The final cutting performance depends on material type, wall thickness, tube dimensions, laser power, cutting head configuration, gas conditions, machine settings, and other production factors.

CNC Control And Precision Processing

The CNC control system coordinates tube positioning and laser cutting movements according to the programmed design. This allows manufacturers to process complex tube components with repeatable digital instructions.

CNC operation is suitable for customized parts, prototypes, batch manufacturing, and continuous industrial production. Operators can prepare different programs for different products, helping manufacturers respond to changing production requirements.

The system can also support multiple cutting patterns and part designs, reducing the need for dedicated mechanical tooling for each new product.

Industrial Metal Tube Applications

The Dual Chuck Laser Pipe Cutting Machine can be used across many industries, including:

Metal Furniture Manufacturing
Steel Structure Production
Automotive Parts
Agricultural Machinery
Construction Equipment
Fitness Equipment
Industrial Machinery
Handrail Manufacturing
Metal Frame Production
HVAC Components
Custom Tube Fabrication
General Metal Processing

It is particularly suitable for factories that need to process round and square tubes as part of a larger welding and assembly workflow.

Production Flexibility

For B2B manufacturers, production flexibility is an important factor when selecting a tube laser cutter. The machine can support different product designs through CNC programming, allowing manufacturers to switch between tube components according to production requirements.

Automatic processing can also help reduce repetitive manual operations. When combined with suitable material loading, unloading, and production management systems, the machine can be integrated into a more efficient tube fabrication workflow.

Flexible Machine Configuration

The final machine configuration can be selected according to the customer's tube dimensions, material type, wall thickness, required cutting operations, and production volume.

Options may include different fiber laser power levels, CNC controllers, laser cutting heads, automatic focusing systems, dual chuck systems, tube loading equipment, auxiliary gas systems, and other automation components.

Customers can provide tube drawings, material information, dimensions, and sample requirements for technical evaluation before selecting the final configuration.

Key Features
Full Automatic Tube Laser Cutting
Dual 360mm Chuck Configuration
CNC Fiber Laser Cutting Technology
Round And Square Tube Processing
Automatic Tube Positioning
Stable Dual Chuck Workpiece Support
Suitable For Multiple Compatible Metals
Digital CNC Cutting Programs
Multifunction Tube Processing
Industrial B2B Metal Fabrication Solution
FAQs
1. What is the purpose of the dual chuck system?

The dual chuck system provides multiple workpiece holding and positioning points, helping support and process tubular materials during laser cutting.

2. What does the 360mm chuck specification mean?

It refers to the specified chuck size or processing configuration. The actual maximum tube diameter depends on the complete machine design and selected configuration.

3. Can this machine cut round tubes?

Yes. The machine can be configured for round metal tube cutting.

4. Can it cut square tubes?

Yes. Compatible square tubes can be processed with the appropriate chuck and CNC tube cutting configuration.

5. What materials can the machine cut?

Depending on configuration, it can process carbon steel, stainless steel, aluminum, and other compatible metal tubes and pipes.

6. Is the machine fully automatic?

The machine is designed around an automatic tube processing workflow. Specific automatic functions such as loading, feeding, positioning, clamping, and unloading depend on the selected configuration.

7. Can it cut holes and slots in tubes?

Yes. CNC laser programming can create holes, slots, openings, notches, and other customized cutting profiles.

8. How do I choose the correct laser power?

Laser power should be selected according to tube material, wall thickness, tube dimensions, production volume, and required cutting performance.

9. Can the machine be customized?

Yes. Laser power, chuck configuration, automation functions, cutting head, CNC system, loading equipment, and other components can be customized according to production requirements.

10. Do you provide technical support?

Yes. We can provide technical consultation, machine configuration recommendations, sample testing, operation guidance, spare parts support, installation assistance, and after-sales service according to the sales agreement.

Why Choose Us
Professional Tube Laser Cutting Equipment

We provide industrial fiber laser cutting solutions designed for metal tube and pipe fabrication, helping customers select equipment according to actual production requirements.

Dual Chuck Configuration

The dual chuck design provides flexible workpiece positioning for tube processing and is suitable for manufacturers working with different tubular components.

Automatic Production Solution

The automatic processing concept helps reduce repetitive manual operations and supports efficient CNC tube cutting for batch and continuous production.

Customized Machine Configuration

Laser power, chuck size, tube processing capacity, CNC system, cutting head, loading equipment, and automation options can be selected according to the customer's requirements.

Factory-Direct B2B Supply

We support distributors, metal fabrication companies, engineering companies, industrial manufacturers, and international buyers with factory-direct equipment and customized production solutions.

Technical And After-Sales Support

We provide technical documentation, installation guidance, operation support, spare parts assistance, and after-sales technical service for international customers.
