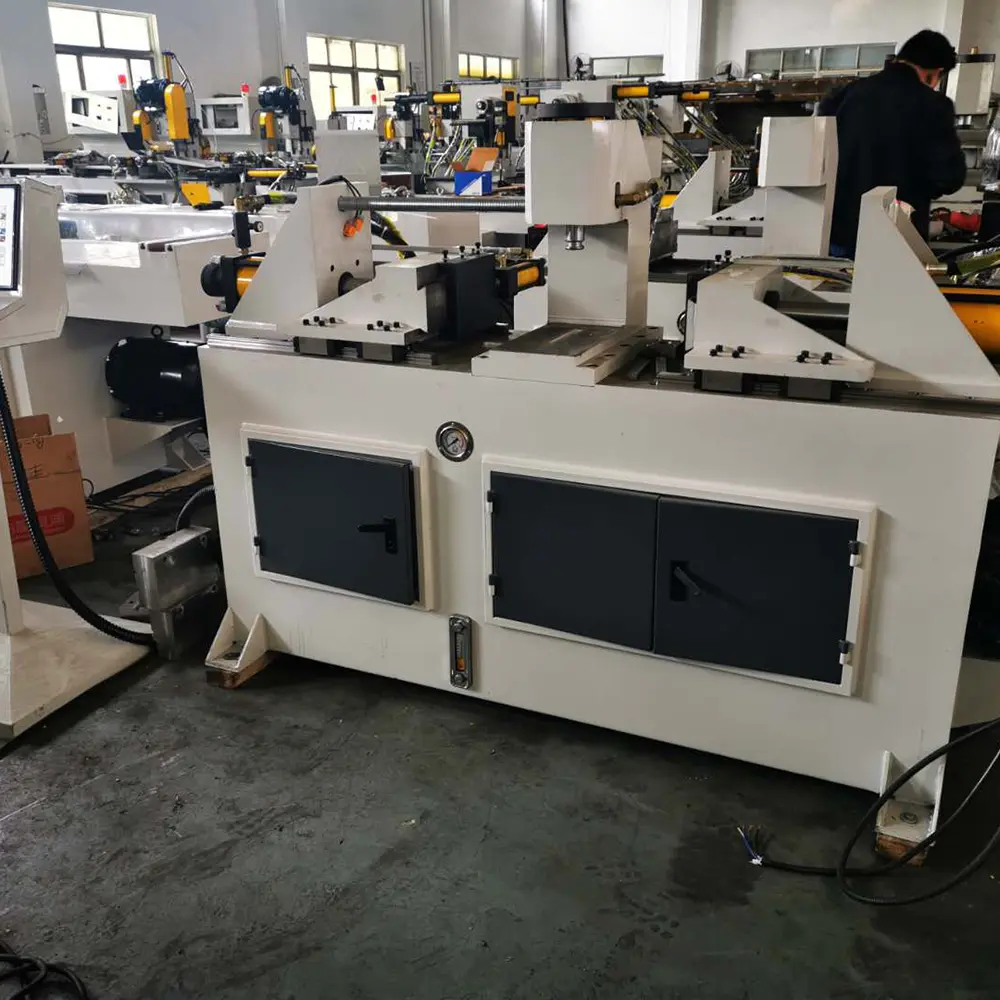

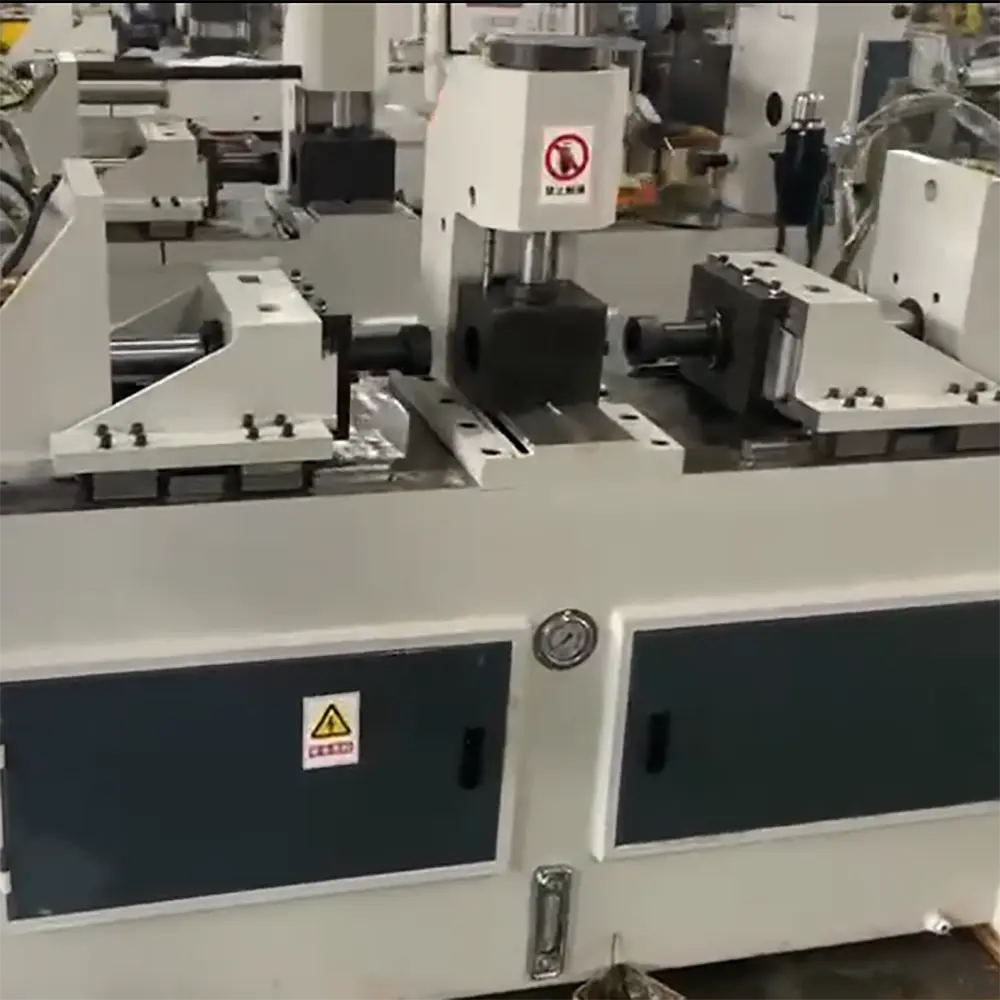

Double Head Pipe End Forming Machine

The Double Head Pipe End Forming Machine is a professional metal tube processing machine designed for automatic forming,shaping,and finishing of pipe ends. Equipped with a double-head working structure,the machine can process both ends of a tube simultaneously,significantly improving production efficiency and ensuring consistent forming quality.

This advanced tube end forming equipment is widely used in metal furniture manufacturing,automotive components,bicycle frames,fitness equipment,construction materials,and industrial metal fabrication. It is suitable for processing round pipes,square tubes,rectangular tubes,and various metal profiles requiring accurate end forming.

Compared with traditional single-head processing methods,the double head pipe end forming machine reduces processing time,improves production capacity,and provides more stable product dimensions. It is an ideal solution for factories requiring high-volume production of metal tube components.

Model	SG50NC	SG60NC	SG80NC	SG100NC	SG120NC
Max pipe capacity	φ50×3 MM	φ60×3 MM	φ80×6 MM	φ100×8 MM	φ120×8 MM
Pipe cycle	4	4	4	5	6
Power	5.5	7.5	11	11	18.5
Overall size (L×W×H)m	2.4×0.5×1.6	3×1.1×1.9	3×1.1×1.9	4×1.2×1.9	4×1.2×1.9
Weight（T） T	0.9	1.7	2	3.6	3.8
Applicable to pipe shape	convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type.
Applicable to material of pipe	Carbon steel,stainless steel copper pipe, aluminium alloypipe

Advanced Double Head Pipe End Forming Technology

The machine adopts a double-head forming design,allowing two tube ends to be processed at the same time.

Main processing functions include:

Pipe end forming
Tube end shaping
End pressing
Profile forming
Connection preparation

The double-head structure provides:

Higher production efficiency
Reduced processing cycles
Improved dimensional consistency
Lower labor requirements
Increased manufacturing capacity

It is suitable for mass production environments where processing speed and accuracy are critical.

Efficient Simultaneous Tube End Processing

The biggest advantage of the Double Head Pipe End Forming Machine is its ability to process both ends of a pipe in one operation.

Production benefits:

Two-side forming in one cycle
Reduced material handling
Faster output
Improved working efficiency
Consistent finished products

This design is especially suitable for manufacturing products requiring identical processing on both tube ends.

Precision Hydraulic Forming System

The machine uses a powerful hydraulic forming system to provide stable and accurate forming pressure.

Hydraulic advantages:

Strong forming force
Smooth operation
Accurate shaping
Reduced tube deformation
Long service life

The hydraulic system ensures reliable processing performance for different metal materials and tube specifications.

Wide Range Of Pipe End Applications

The Double Head Pipe End Forming Machine can perform various tube end processing operations according to different tooling designs.

Applications include:

Tube end reducing
Pipe end shaping
Expansion forming
Flattening
Special profile forming
Welding preparation

Customized forming dies can be developed for different products and industries.

Wide Application Industries
Metal Furniture Manufacturing

Applications:

Chair frames
Table legs
Sofa structures
Furniture supports
Decorative metal tubes
Automotive Industry

Used for:

Exhaust components
Vehicle frame tubes
Structural supports
Metal brackets
Bicycle And Sports Equipment

Applications:

Bicycle frames
Fitness equipment
Sports structures
Construction Industry

Used for:

Steel railings
Handrails
Decorative structures
Metal frames
Industrial Fabrication

Suitable for:

Customized tube products
Metal components
Structural parts
Suitable Materials

The Double Head Pipe End Forming Machine can process various metal tubes:

Carbon Steel Pipes
Stainless Steel Tubes
Galvanized Steel Pipes
Aluminum Tubes
Copper Tubes
Round Pipes
Square Tubes
Rectangular Tubes

Different forming tools can be customized according to tube diameter,wall thickness,and product requirements.

Reliable Machine Structure

The machine is designed for long-term industrial operation with a strong and stable structure.

Main features:

Heavy-duty machine frame
Accurate positioning system
Stable hydraulic performance
Durable components
Easy maintenance

The robust design ensures reliable performance in continuous production environments.

Key Features Of Double Head Pipe End Forming Machine
1. Double Head Processing Design

Processes both tube ends simultaneously to improve efficiency.

2. Automatic Tube End Forming

Reduces manual operation and improves production consistency.

3. High Precision Hydraulic System

Provides stable forming force and accurate results.

4. Wide Tube Compatibility

Suitable for various metal pipes and profiles.

5. Customized Tooling Available

Supports different end shapes and forming requirements.

6. Industrial Production Capability

Designed for continuous and high-volume manufacturing.

Why Choose Our Double Head Pipe End Forming Machine?
Professional Tube Processing Equipment Manufacturer

We specialize in manufacturing pipe forming,tube processing,and metal fabrication equipment for global customers.

High Efficiency Production Solution

The double-head design improves production speed and reduces manufacturing costs.

Reliable Forming Quality

Advanced hydraulic technology ensures accurate dimensions and stable product quality.

Customized Machine Solutions

Tube sizes,forming methods,tooling,and automation levels can be customized according to customer requirements.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete After-Sales Support

We provide installation guidance,operator training,maintenance service,and spare parts supply.

FAQS
Q1: What is a Double Head Pipe End Forming Machine used for?

It is used for automatic forming and shaping of both ends of metal pipes and tubes.

Q2: What is the advantage of double-head design?

The double-head structure allows both tube ends to be processed simultaneously,improving production efficiency.

Q3: What materials can the machine process?

It can process carbon steel,stainless steel,galvanized steel,aluminum,copper,and other metal tubes.

Q4: What industries use this machine?

It is widely used in furniture,automotive,bicycle,construction,and industrial metal fabrication industries.

Q5: Can different tube shapes be processed?

Yes. The machine can process round pipes,square tubes,rectangular tubes,and customized profiles.

Q6: Can the forming dies be customized?

Yes. Customized tooling can be supplied according to different tube sizes and end shapes.

Q7: Is this machine suitable for mass production?

Yes. The double-head automatic design is ideal for continuous industrial production.
