Copper Tube Expander End Forming Machine Technical Parameters

Copper Tube Expander End Forming Machine is designed for automatic copper pipe expansion and tube end forming. It provides high precision solutions for HVAC, refrigeration,air conditioning,and industrial copper tube processing..

 Copper Tube Expander End Forming Machine

The Copper Tube Expander End Forming Machine is a professional tube processing machine designed for automatic expansion and end forming of copper pipes. It is widely used in HVAC,refrigeration,air conditioning,heat exchanger,and copper tube fabrication industries where accurate tube expansion and reliable connection performance are required.

Using advanced mechanical forming technology,the machine expands copper tube ends to achieve precise dimensions for pipe connection,assembly,and welding applications. Compared with manual expansion tools,the automatic copper tube expander machine provides higher production efficiency,better consistency,and improved processing accuracy.

This equipment is suitable for processing copper tubes with different diameters and wall thicknesses. It is an ideal solution for manufacturers producing air conditioner pipes,refrigeration components,heat exchanger tubes,and customized copper tube assemblies.

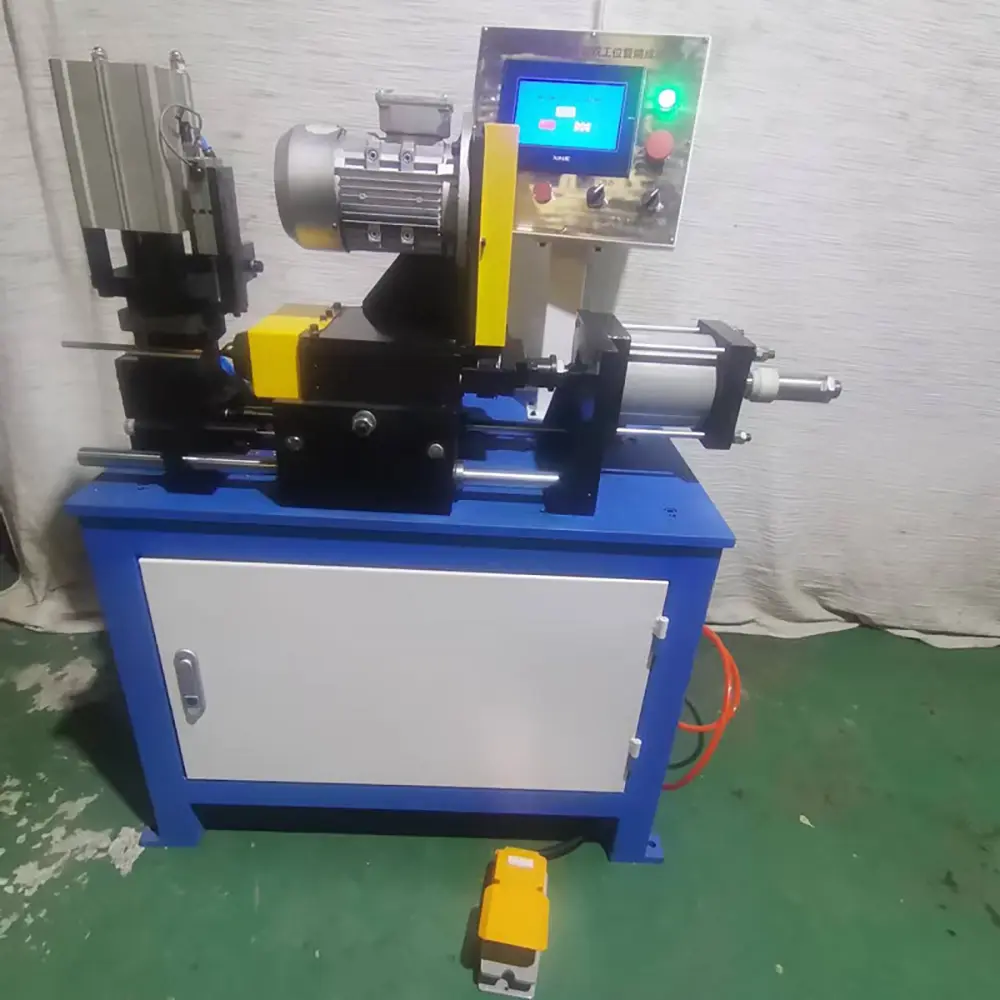

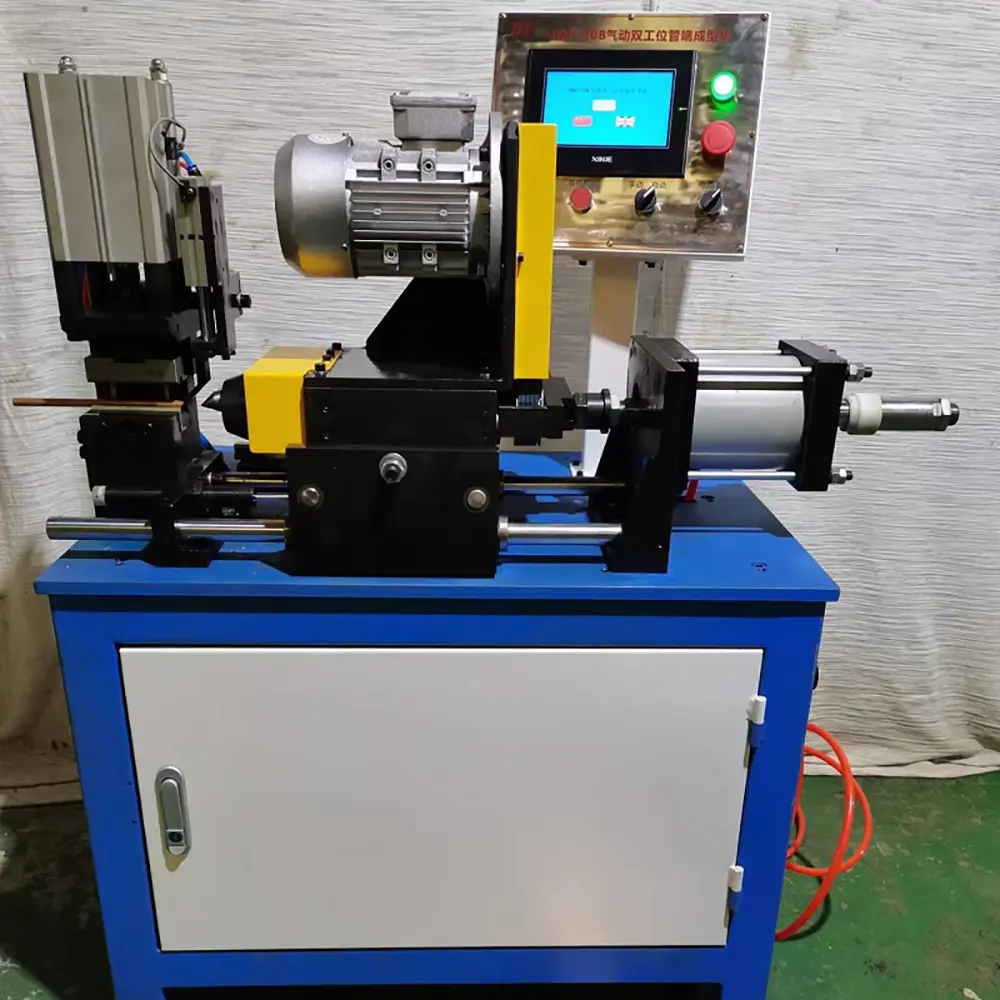

It is mainly composed of steel body, pneumatic tube clamping mechanism, linear guide mechanism rotary whole mouth + rotary flaring, positioning mechanism, pneumatic shifting mechanism, pneumatic flaring mechanism, mould, pneumatic components, electric cabinet and operation panel, etc.

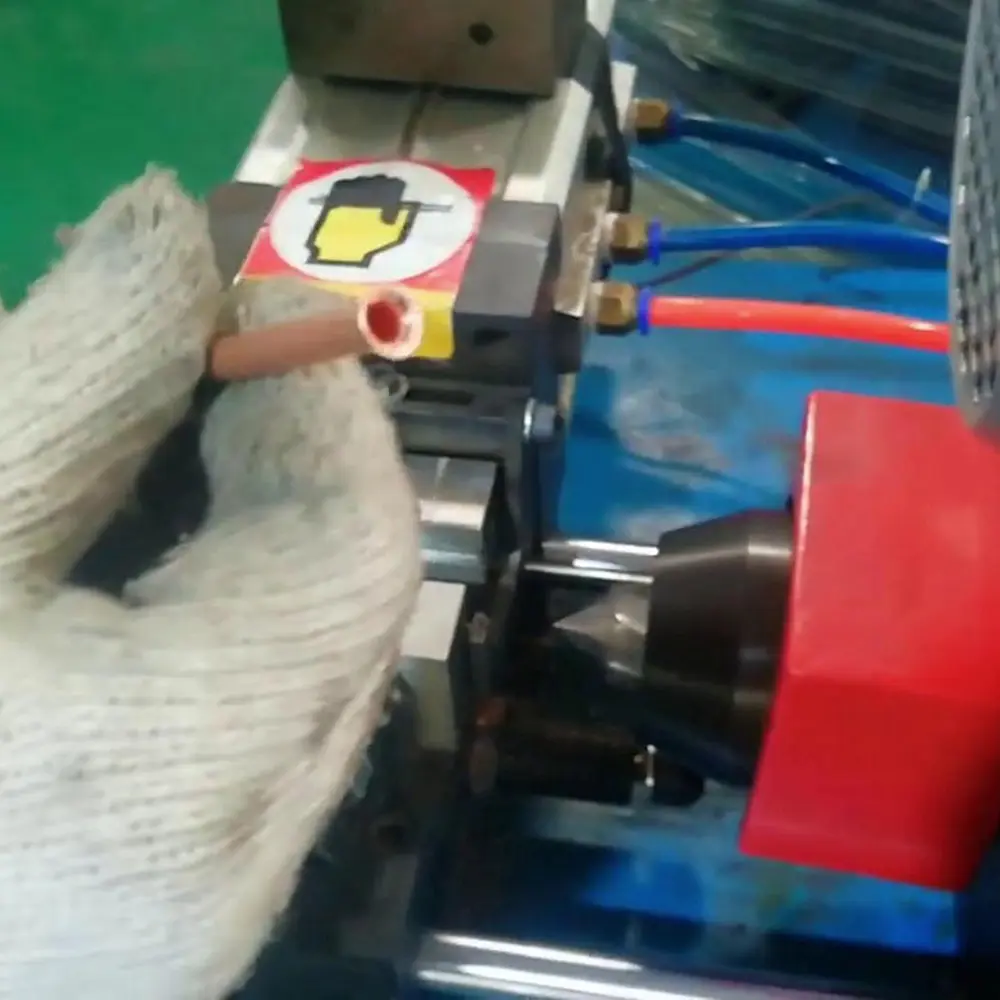

Firstly, carry out manual debugging and confirm the workpiece is qualified. Manually put on the tube, put the tube into the clamping die and push it to the positioning block, the foot switch will automatically complete the automatic action and take the tube manually.

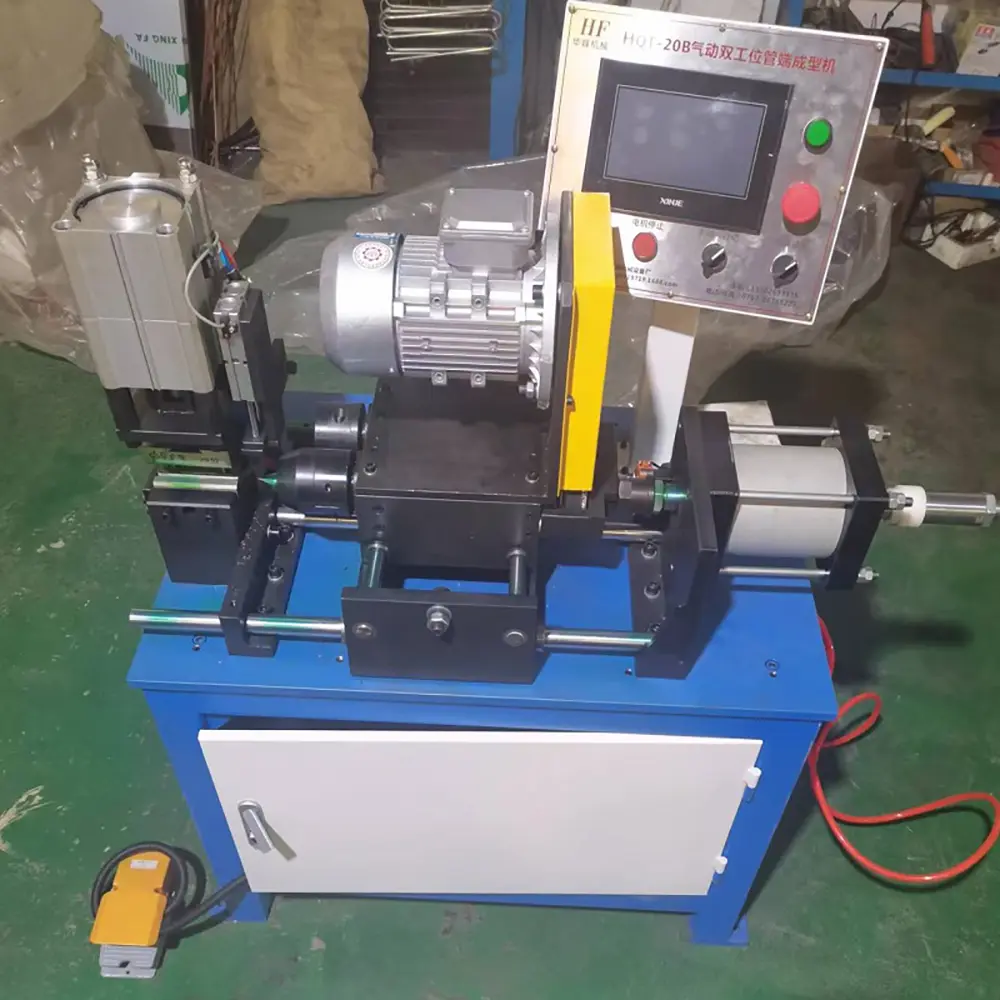

model HQT-20b
Working air pressure 0.4-0.8mPa
Using power 380V/50Hz
Processing Tubes copper tube
Processing pipe diameter belowΦ19.05
Flare shape Horn shape
Moulds Customizable
Dimension 1000mm*580mm*1250mm
Package Size 1100mm*650mm*1350mm
Machine weight 250kg



Advanced Copper Tube Expansion Technology

The Copper Tube Expander End Forming Machine adopts precision expansion technology to enlarge and shape copper tube ends without damaging the tube structure.

Main processing functions include:

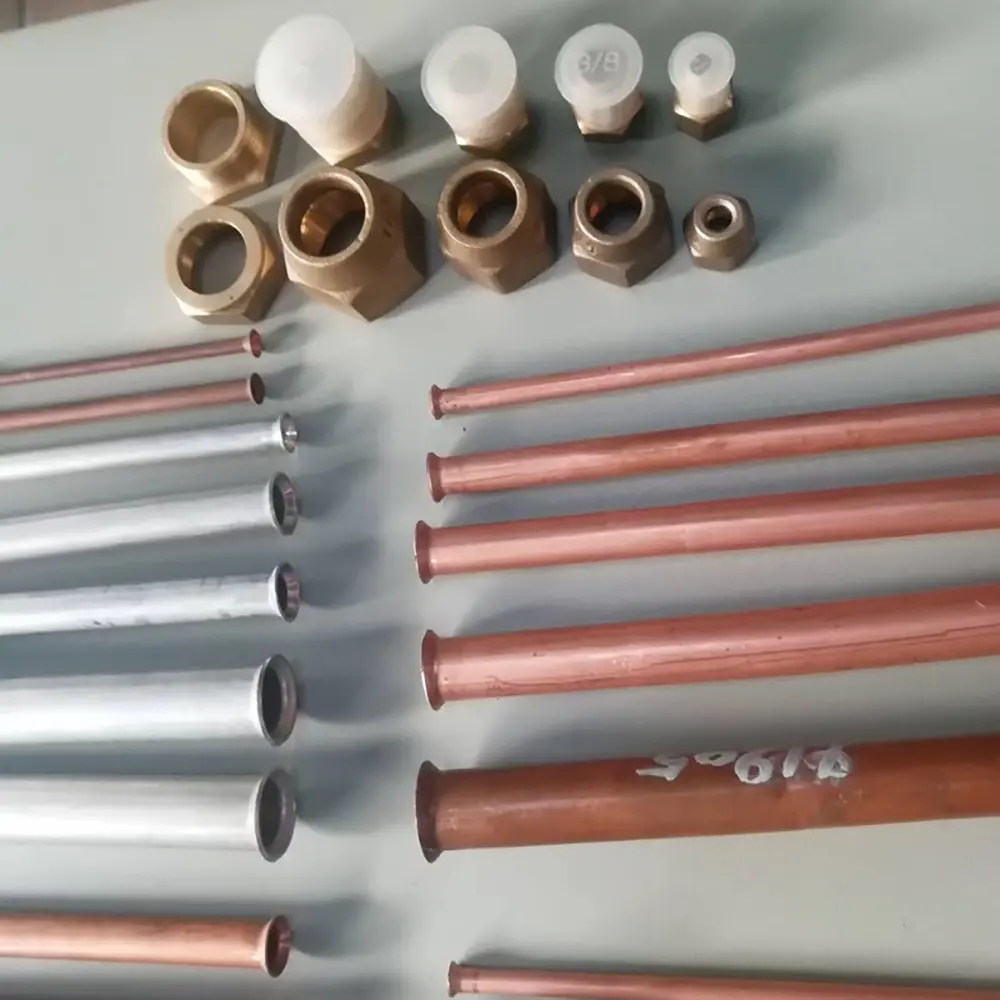

Copper tube end expansion
Tube end forming
Pipe diameter enlargement
Connection preparation
Tube shaping

The expansion process provides:

Accurate tube dimensions
Smooth inner and outer surfaces
Reliable connection performance
Reduced material deformation
Consistent production quality
Automatic Copper Pipe End Forming System

Designed for industrial production,the machine integrates automatic positioning and forming functions.

Working process:

Copper tube loading
Automatic positioning
Expansion forming
Finished tube output

Advantages:

Faster production cycle
Reduced manual operation
Improved production efficiency
Stable forming quality
Lower labor costs

The automatic operation makes it suitable for continuous mass production.

Precision Expansion For HVAC And Refrigeration Applications

Copper tube expansion is widely used in HVAC and refrigeration manufacturing because it improves pipe connection accuracy.

Applications include:

Air conditioner copper pipes
Refrigeration system tubes
Heat exchanger components
Cooling system pipelines
Copper fittings

The machine ensures accurate tube ends for better assembly and welding performance.

High Efficiency Copper Tube Processing Solution

Compared with traditional manual expanding methods,the machine offers significant advantages:

Higher expansion accuracy
Faster processing speed
Better repeatability
Lower production errors
Improved product appearance

The stable forming process helps manufacturers improve product quality and production capacity.

Wide Application Industries
HVAC Industry

Applications:

Air conditioning copper pipes
Refrigeration pipe assemblies
Heat pump systems
Refrigeration Equipment Manufacturing

Used for:

Cooling system components
Refrigeration pipelines
Copper tube connections
Heat Exchanger Industry

Applications:

Copper heat exchanger tubes
Industrial cooling equipment
Thermal transfer components
Plumbing Industry

Used for:

Copper pipe fittings
Water system components
Tube connection parts
Industrial Copper Fabrication

Suitable for:

Customized copper tube products
Metal processing factories
Suitable Materials

The Copper Tube Expander End Forming Machine is mainly used for:

Copper Tubes
Brass Tubes
Aluminum Tubes
Thin Wall Metal Tubes

Suitable tube applications:

Round Copper Pipes
HVAC Copper Tubes
Refrigeration Tubes
Heat Transfer Tubes

Customized expansion tooling can be supplied according to tube size and production requirements.

Reliable Machine Structure

The machine adopts a durable industrial design for stable long-term operation.

Main features:

Strong machine frame
Precision expansion mechanism
Stable forming pressure
Easy operation
Low maintenance requirements

The robust structure ensures reliable performance in demanding manufacturing environments.

Key Features Of Copper Tube Expander End Forming Machine
1. Automatic Copper Tube Expansion

Improves production efficiency and reduces manual operation.

2. Precision End Forming

Creates accurate tube ends for reliable connections.

3. High Repeatability

Ensures consistent processing quality during mass production.

4. Wide Tube Compatibility

Suitable for different copper tube sizes and specifications.

5. Efficient Industrial Performance

Reduces processing time and production costs.

6. Customized Expansion Dies

Supports different tube diameters and forming requirements.

Why Choose Our Copper Tube Expander End Forming Machine?
Professional Tube Processing Equipment Manufacturer

We specialize in manufacturing tube expanding,forming,and metal processing equipment for global customers.

High Precision Processing

Advanced forming technology ensures accurate expansion dimensions and stable quality.

Efficient Production Solution

Automatic operation improves productivity and reduces labor requirements.

Customized Machine Design

Expansion diameter,tube specifications,tooling,and automation functions can be customized according to customer needs.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete Technical Support

We provide installation guidance,operator training,maintenance service,and spare parts supply.

FAQS
Q1: What is a Copper Tube Expander End Forming Machine used for?

It is used for expanding and forming copper tube ends for connection and assembly applications.

Q2: Which industries use this machine?

It is widely used in HVAC,refrigeration,air conditioning,heat exchanger,and copper pipe manufacturing industries.

Q3: What materials can the machine process?

It mainly processes copper tubes and can also handle brass and aluminum tubes.

Q4: What are the advantages of automatic tube expansion?

Automatic expansion provides higher accuracy,faster production,and more consistent results compared with manual tools.

Q5: Can different tube sizes be processed?

Yes. Different expansion dies can be customized according to tube diameter and wall thickness.

Q6: Does tube expansion affect pipe strength?

Proper expansion maintains tube integrity while providing accurate connection dimensions.

Q7: Can the machine be customized?

Yes. Machine specifications,tooling,and automation levels can be customized according to production requirements.
