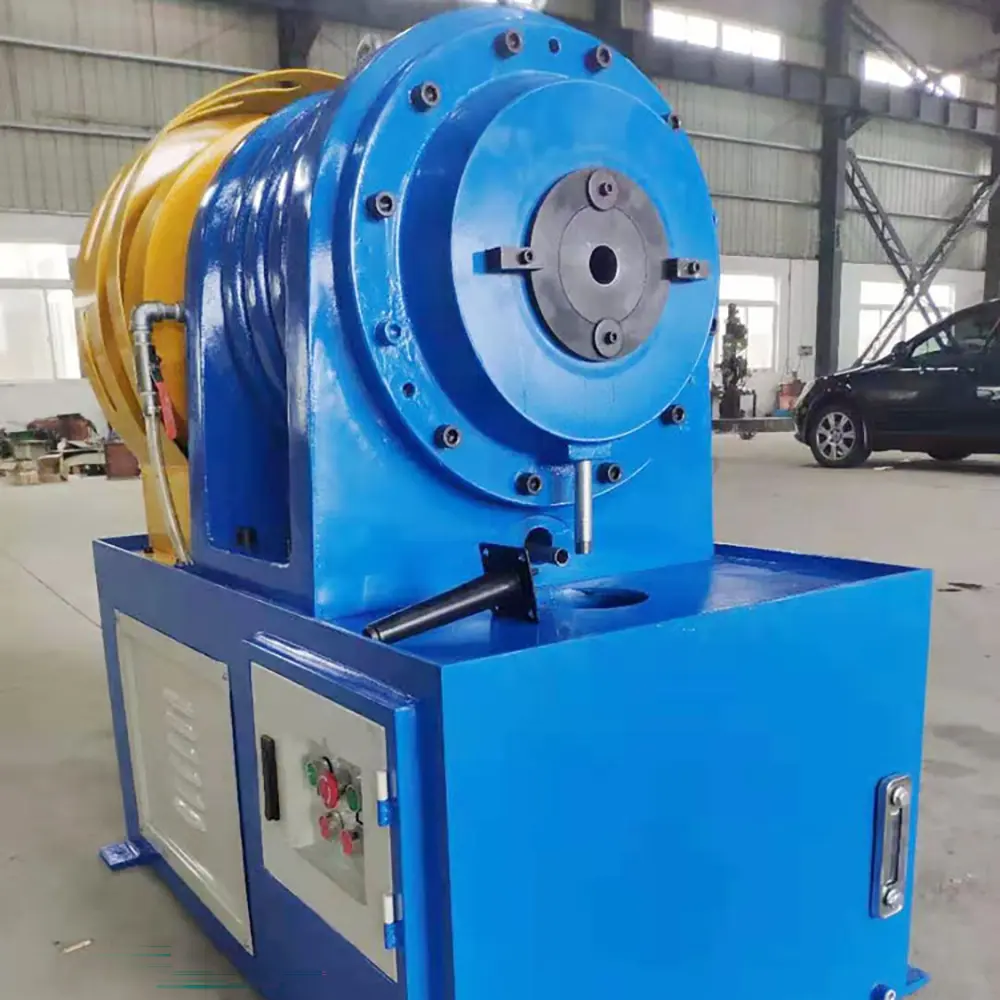

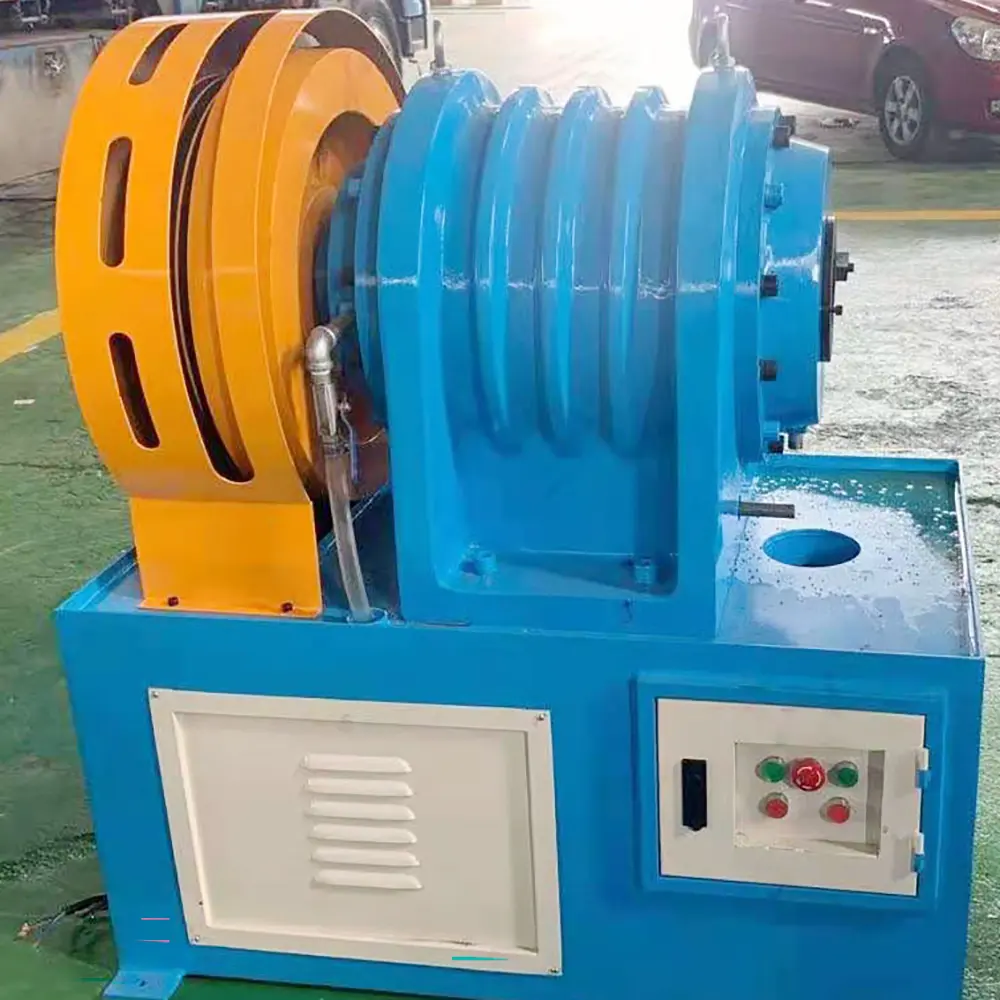

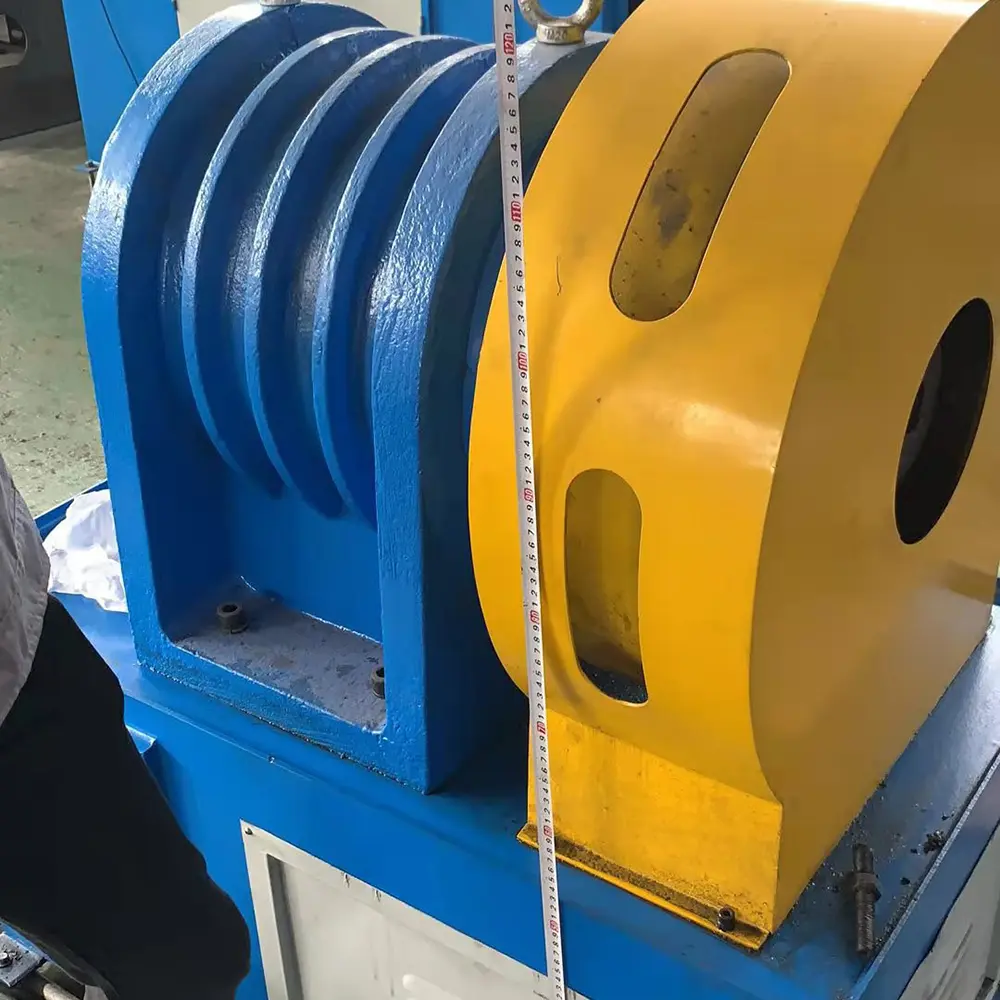

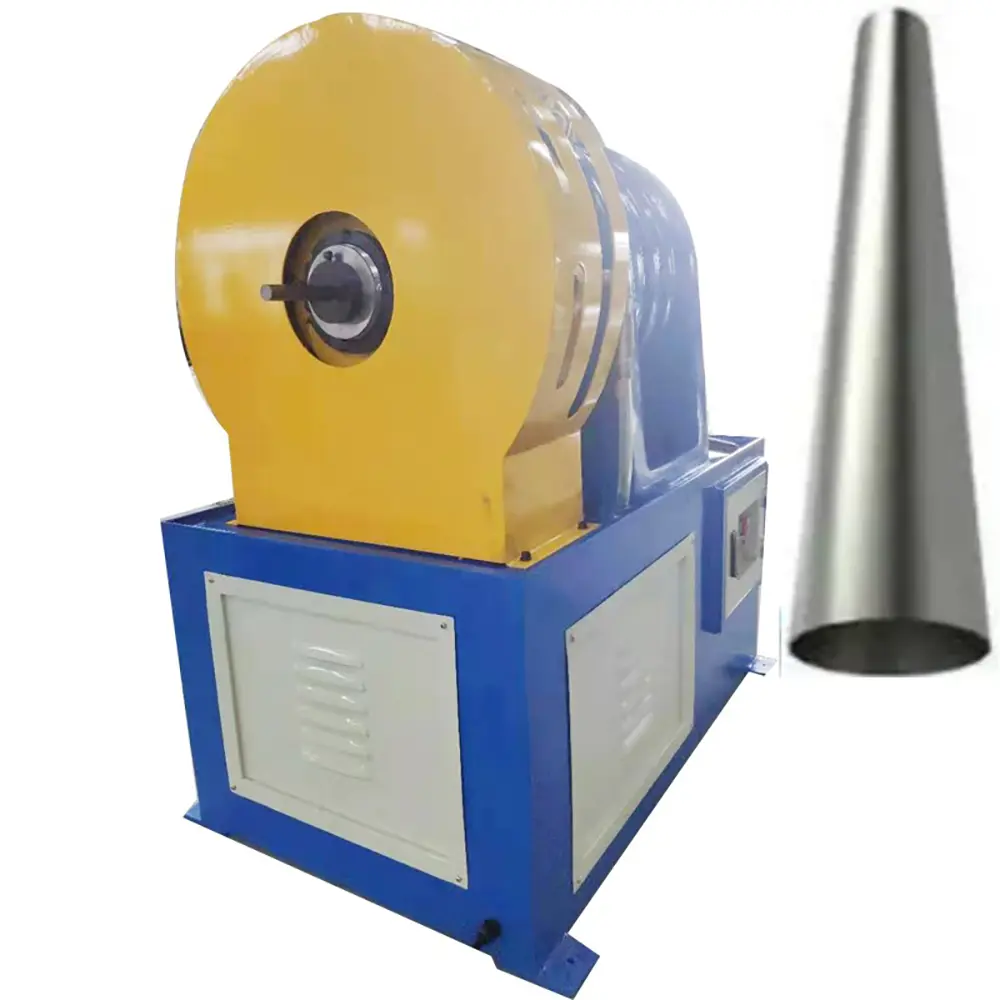

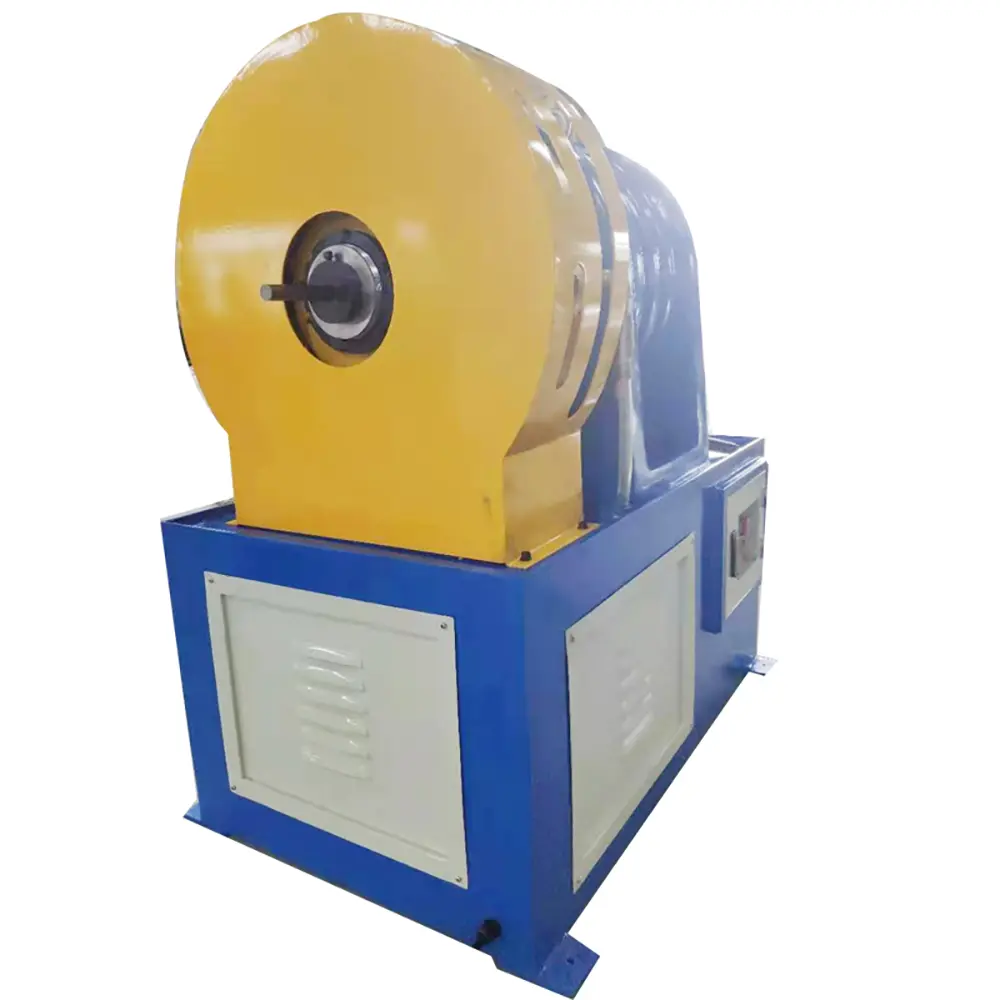

38MM 50MM 76MM Pipe Taper Forming Machine

Maximum cone diameter	Φ38mm×300
Maximum length of cone tube	300mm
Mold size	300×32×44mm
Spindle speed	177rpm
Parameter shift production	About 3000 pieces
Motor power	5.5KW
Oil pump motor power	0.75KW
Molding time	6-15sec/time
One-time shrinking capacity	300mm
Mold opening and closing volume	2mm
Working voltage:	3 phase 380V 50Hz or customized
Mould material	Cr12mov

Maximum cone diameter	Φ50mm×2.0
Maximum length of cone tube	400mm
Mold size	400×32×44mm
Spindle speed	177 rpm
Parameter shift production	about 3000 pieces
Motor power	5.5KW
Oil pump motor power	0.75KW
Molding time	6-15 seconds/time
One-time shrinking capacity	300mm
Mold opening and closing volume	2mm
Working voltage:	380V 50H3 phase or customized
Mould material	Cr12moc

Maximum cone diameter	Φ76mm×800
Maximum length of cone tube	800mm
Mold size	800×32×44mm
Spindle speed	177 rpm
Parameter shift production	about 3000 pieces
Motor power	5.5KW
Oil pump motor power	0.75KW
Molding time	6-15 seconds/time
One-time shrinking capacity	400mm
Mold opening and closing volume	2mm
Working voltage:	3 phase 380V 50Hz or customized
Mould material	Cr12mo

The 38MM 50MM 76MM Pipe Taper Forming Machine is a professional metal tube processing machine designed for taper forming,reducing,and shaping operations on different sizes of pipes and tubes. With advanced forming technology and precision tooling,this machine provides an efficient solution for manufacturing tapered pipe ends used in furniture,automotive,lighting,construction,and industrial applications.

Designed for pipe diameters of 38mm,50mm,and 76mm, this taper forming machine can process various metal tubes with high accuracy and consistent quality. It is widely used for producing tapered table legs,chair frames,lamp poles,decorative tubes,structural components,and customized metal products.

Compared with traditional cutting,welding,and grinding methods,the pipe taper forming machine provides smoother forming results,better dimensional accuracy,and higher production efficiency. The forming process reduces material waste and improves the appearance and strength of finished tube products.

Advanced Pipe Taper Forming Technology

The 38MM 50MM 76MM Pipe Taper Forming Machine uses professional mechanical forming technology to reduce and shape pipe ends into tapered profiles.

Main processing functions include:

Pipe end taper forming
Tube diameter reducing
Metal tube shaping
End profile forming
Decorative pipe processing

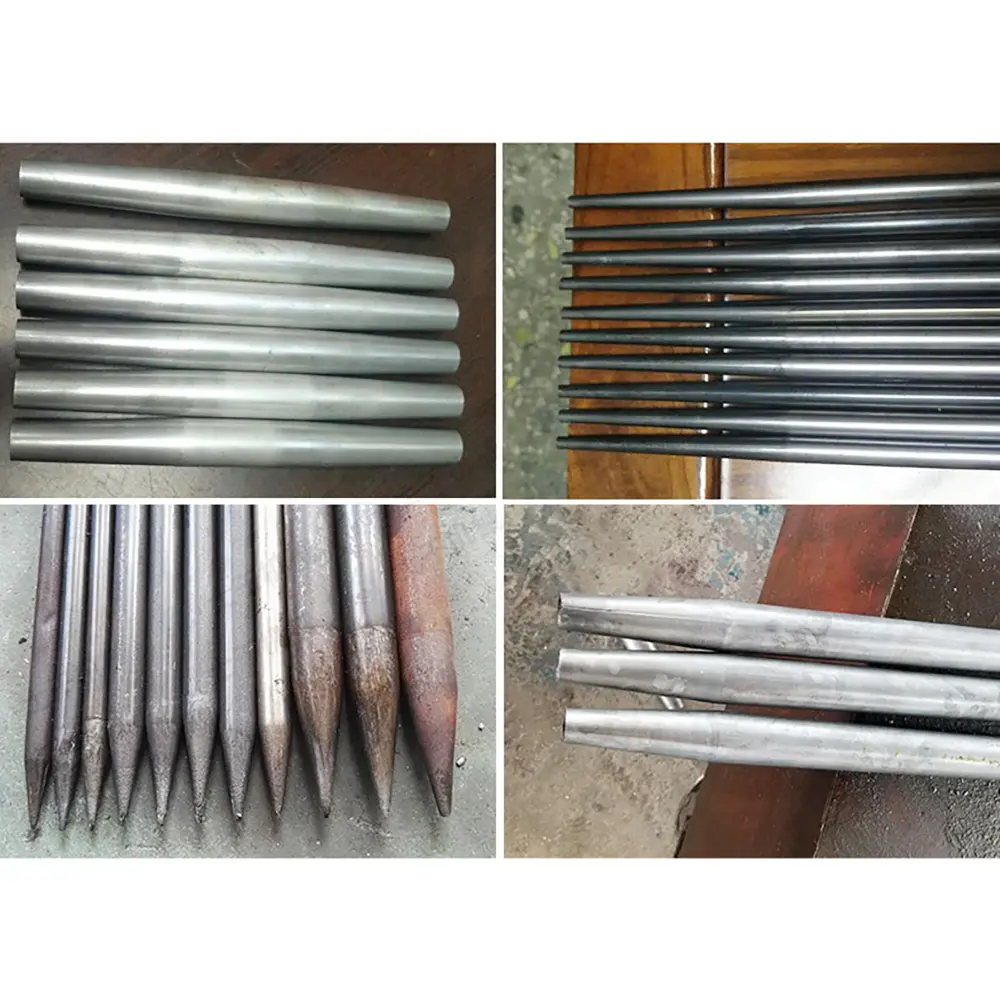

The machine can create:

Conical tube ends
Gradual diameter transitions
Furniture tapered legs
Custom-shaped tube sections

The precise forming process ensures stable dimensions and excellent surface quality.

Multi-Size Pipe Processing Capability

This machine supports different pipe diameter applications:

38MM Pipe Taper Forming Machine

Suitable for:

Small diameter metal tubes
Furniture components
Decorative products
Light structural applications
50MM Pipe Taper Forming Machine

Suitable for:

Medium-size steel tubes
Furniture frames
Industrial tube products
General fabrication
76MM Pipe Taper Forming Machine

Suitable for:

Larger diameter pipes
Heavy-duty tube structures
Industrial applications
Stronger metal components

Different forming dies can be customized according to pipe diameter,wall thickness,and taper requirements.

High Precision Hydraulic Forming System

The machine adopts a powerful hydraulic forming system to provide stable pressure during the tapering process.

Hydraulic advantages:

Strong forming force
Smooth operation
Accurate taper dimensions
Reduced pipe deformation
Long service life

The hydraulic system ensures reliable forming performance for continuous industrial production.

Efficient Pipe End Reducing Process

The taper forming process improves production efficiency compared with traditional machining methods.

Working process:

Pipe loading
Tube positioning
Taper forming operation
Finished product inspection

Production advantages:

Fast processing speed
Reduced manual labor
Consistent taper shape
Improved production capacity
Lower manufacturing costs
Wide Application Industries
Metal Furniture Manufacturing

Applications:

Tapered table legs
Chair frames
Furniture supports
Decorative metal structures
Lighting Industry

Used for:

Lamp poles
Lighting brackets
Decorative tubes
Automotive Industry

Applications:

Exhaust pipe components
Vehicle frame tubes
Structural metal parts
Bicycle And Sports Equipment

Suitable for:

Bicycle frames
Fitness equipment
Sports structures
Construction And Decoration

Used for:

Metal railings
Handrails
Decorative tube products
Suitable Materials

The 38MM 50MM 76MM Pipe Taper Forming Machine can process:

Carbon Steel Pipes
Stainless Steel Tubes
Galvanized Steel Pipes
Aluminum Tubes
Round Pipes
Square Tubes
Rectangular Tubes

Different materials and thicknesses can be processed by selecting suitable forming dies and machine parameters.

Reliable Machine Structure

The machine is designed for industrial production with a strong and durable structure.

Main features:

Heavy-duty machine frame
Stable hydraulic system
Precision forming mechanism
Durable components
Easy maintenance

The robust construction ensures long-term reliable operation in manufacturing environments.

Key Features Of 38MM 50MM 76MM Pipe Taper Forming Machine
1. Multiple Diameter Processing

Supports 38mm,50mm,and 76mm pipe taper forming applications.

2. Precision Taper Forming

Creates smooth and accurate tapered tube ends.

3. Hydraulic High Pressure System

Provides stable and powerful forming performance.

4. Wide Material Compatibility

Suitable for different metal pipes and tubes.

5. High Production Efficiency

Improves output compared with manual processing.

6. Customized Tooling Available

Supports special taper designs and tube sizes.

Why Choose Our 38MM 50MM 76MM Pipe Taper Forming Machine?
Professional Tube Processing Equipment Manufacturer

We specialize in manufacturing pipe taper forming machines and complete metal tube processing solutions for global customers.

High Precision Forming Quality

Advanced forming technology ensures accurate dimensions and smooth tapered surfaces.

Efficient Production Solution

The machine reduces labor requirements and improves manufacturing efficiency.

Customized Machine Solutions

Pipe diameter range,forming dies,hydraulic capacity,and automation functions can be customized according to customer requirements.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete Technical Service

We provide installation guidance,operator training,maintenance support,and spare parts supply.

FAQS
Q1: What is a 38MM 50MM 76MM Pipe Taper Forming Machine used for?

It is used for tapering and reducing the ends of metal pipes and tubes.

Q2: What pipe sizes can this machine process?

This model is designed for 38mm,50mm,and 76mm diameter pipe taper forming applications.

Q3: What materials can be processed?

It can process carbon steel,stainless steel,galvanized steel,aluminum,and other metal tubes.

Q4: What industries use pipe taper forming machines?

They are widely used in furniture,lighting,automotive,bicycle,construction,and metal fabrication industries.

Q5: Can different taper shapes be produced?

Yes. Customized forming dies can be designed for different taper shapes and product requirements.

Q6: What are the advantages compared with cutting methods?

Forming provides better surface quality,higher efficiency,and less material waste.

Q7: Can the machine be customized?

Yes. Pipe sizes,forming tools,hydraulic specifications,and automation levels can be customized.
