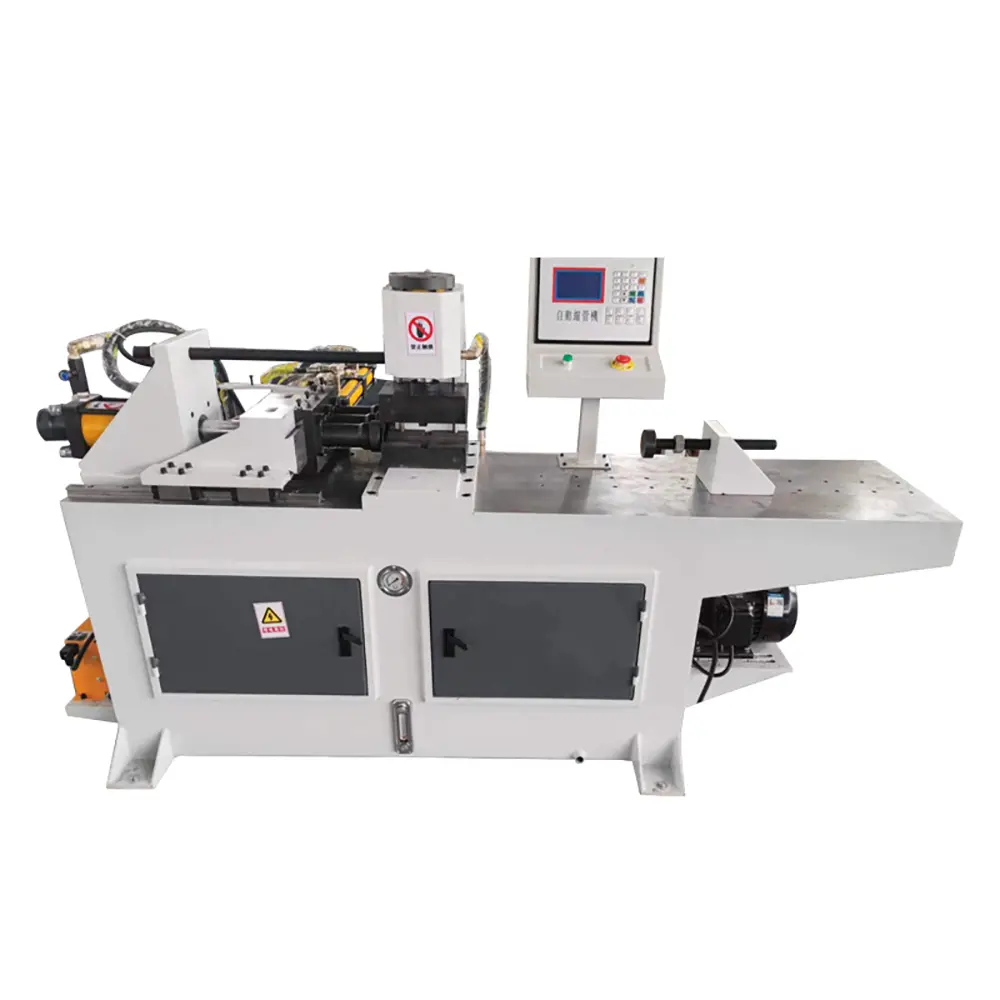

60NC 80NC 100 NC 120NC Pipe End Forming Machine

60NC 80NC 100NC 120NC Pipe End Forming Machine

The 60NC 80NC 100NC 120NC Pipe End Forming Machine is an advanced NC-controlled metal tube processing machine designed for automatic pipe end forming,expanding,reducing,and shaping operations. Available in four different models including 60NC,80NC,100NC,and 120NC, this machine provides flexible solutions for processing different pipe diameters,wall thicknesses,and industrial applications.

Equipped with a powerful hydraulic forming system and precision NC control technology,the machine delivers stable forming pressure,accurate positioning,and consistent production quality. It is widely used in metal furniture manufacturing,automotive components,bicycle frames,fitness equipment,construction materials,and general metal fabrication industries.

Compared with traditional manual tube processing methods,the NC pipe end forming machine significantly improves production efficiency,reduces labor costs,and ensures uniform product quality. It is an ideal choice for manufacturers requiring high-speed and reliable pipe end forming solutions.

Model	SG60NC
Max pipe capacity	φ60×3 MM
Pipe cycle	4
Power	7.5
Overall size (L×W×H)m	3×1.1×1.9
Weight（T） T	1.7
Applicable to pipe shape	convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type.
Applicable to material of pipe	Carbon steel,stainless steel copper pipe, aluminium alloypipe

Advanced NC Pipe End Forming Technology

The 60NC 80NC 100NC 120NC Pipe End Forming Machine combines NC control technology with hydraulic forming power to achieve accurate tube end processing.

Main processing functions include:

Pipe end forming
Tube end expanding
Pipe reducing
End shrinking
Profile shaping
Connection preparation

The machine can process:

Round steel pipes
Stainless steel tubes
Square pipes
Rectangular tubes
Metal profiles

The NC control system ensures repeatable processing accuracy and easy adjustment for different products.

Multiple NC Models For Different Production Requirements
60NC Pipe End Forming Machine

Suitable for:

Small and medium diameter pipes
Furniture tube processing
Decorative metal products
Light industrial applications
80NC Pipe End Forming Machine

Suitable for:

Medium-size steel tubes
Automotive components
General industrial fabrication
100NC Pipe End Forming Machine

Suitable for:

Larger diameter pipes
Heavy-duty tube processing
Structural metal products
120NC Pipe End Forming Machine

Suitable for:

Large tube diameters
Thick-wall pipes
High-strength industrial applications

Different models allow customers to select suitable forming capacity according to product specifications and production requirements.

Powerful Hydraulic Forming System

The machine uses a high-performance hydraulic system to provide stable forming force.

Hydraulic advantages:

Strong forming pressure
Smooth operation
Accurate forming results
Reduced tube deformation
Long equipment lifespan

The hydraulic system enables reliable processing of different metal materials and thicknesses.

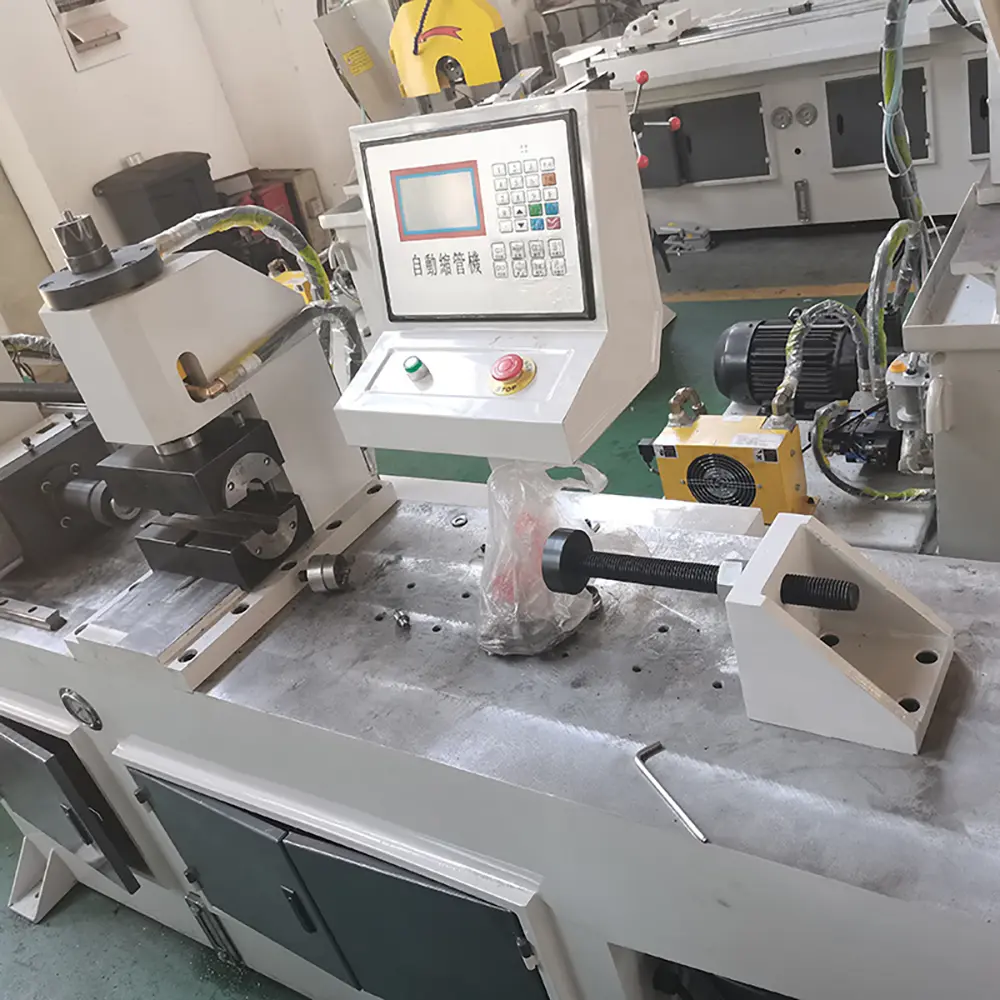

Precision NC Control System

The NC control system improves production efficiency and operating convenience.

Main features:

Digital parameter setting
Accurate position control
Repeatable forming process
Easy operation
Quick product changeover

Operators can easily adjust forming parameters for different tube sizes and production requirements.

High Efficiency Automatic Processing

The Pipe End Forming Machine simplifies traditional tube processing procedures.

Working process:

Tube loading
Automatic positioning
Hydraulic forming
Finished product removal

Production advantages:

Faster processing speed
Reduced manual operation
Improved product consistency
Higher production capacity
Lower manufacturing costs

It is suitable for continuous industrial production.

Wide Application Industries
Metal Furniture Manufacturing

Applications:

Chair frames
Table legs
Sofa structures
Furniture supports
Decorative tubes
Automotive Industry

Used for:

Exhaust components
Vehicle frame tubes
Structural supports
Metal brackets
Bicycle And Sports Equipment

Applications:

Bicycle frames
Fitness equipment
Sports structures
Construction Industry

Used for:

Metal railings
Handrails
Steel structures
Decorative components
Industrial Fabrication

Suitable for:

Customized tube products
Machine components
Metal assemblies
Suitable Materials

The 60NC 80NC 100NC 120NC Pipe End Forming Machine can process:

Carbon Steel Pipes
Stainless Steel Tubes
Galvanized Steel Pipes
Aluminum Tubes
Copper Tubes
Round Pipes
Square Tubes
Rectangular Tubes

Customized forming dies are available according to tube diameter,material,and end shape requirements.

Reliable Industrial Structure

The machine is designed for long-term factory operation with a durable structure.

Main features:

Heavy-duty machine frame
Stable hydraulic system
Precision forming mechanism
Durable components
Easy maintenance

The strong structure ensures reliable performance in demanding production environments.

Key Features Of 60NC 80NC 100NC 120NC Pipe End Forming Machine
1. Multiple NC Model Options

Available in 60NC,80NC,100NC,and 120NC configurations.

2. Automatic Pipe End Processing

Improves production efficiency and reduces manual labor.

3. Hydraulic Precision Forming

Provides strong and stable forming performance.

4. NC Control Technology

Ensures accurate and repeatable processing.

5. Wide Tube Compatibility

Suitable for various metal pipes and profiles.

6. Customized Tooling Solutions

Supports different tube shapes and forming requirements.

Why Choose Our Pipe End Forming Machine?
Professional Tube Processing Equipment Manufacturer

We specialize in manufacturing NC pipe forming machines and complete metal tube processing solutions for global customers.

High Precision Production

Advanced hydraulic and NC technologies ensure accurate forming dimensions and stable quality.

Efficient Manufacturing Solution

Automatic processing reduces labor costs and improves production efficiency.

Customized Equipment Design

Machine capacity,forming dies,tube sizes,and automation functions can be customized according to customer requirements.

Factory Direct Supply

Direct manufacturer supply provides competitive pricing,reliable quality,and professional technical support.

Complete Service Support

We provide installation guidance,operator training,maintenance service,and spare parts supply.

FAQS
Q1: What is a 60NC 80NC 100NC 120NC Pipe End Forming Machine used for?

It is used for automatic forming,expanding,reducing,and shaping of metal pipe ends.

Q2: What is the difference between 60NC,80NC,100NC,and 120NC models?

The main difference is processing capacity and suitable pipe size range. Larger models are designed for larger diameter and thicker pipes.

Q3: What materials can the machine process?

It can process carbon steel,stainless steel,galvanized steel,aluminum,copper,and other metal tubes.

Q4: What industries use pipe end forming machines?

They are widely used in furniture,automotive,bicycle,construction,and industrial metal fabrication industries.

Q5: Can the machine perform different forming operations?

Yes. With different tooling,it can perform expanding,reducing,shaping,and customized end forming.

Q6: Can forming dies be customized?

Yes. Customized dies can be manufactured according to tube specifications and product requirements.

Q7: Is this machine suitable for mass production?

Yes. The NC-controlled hydraulic system is designed for stable continuous production.
