Containerized RO Reverse Osmosis Water Treatment Equipment,Water Purification, Seawater Desalination, RO Reverse Osmosis

the reverse osmosis equipment passes the raw water through fine filters, granular activated carbon filters, compressed activated carbon filters, etc., and then pressurizes it through a pump, utilizing a pore size of 1/10000 μ The reverse osmosis membrane (RO membrane) of m (equivalent to 1/6000 of the size of Escherichia coli and 1/300 of the size of the virus) separates high concentration water into extremely low concentration water (i.e. pure water) and higher concentration water. Low concentration water is used, and high concentration water is discharged or reused as resources

Containerized RO Reverse Osmosis Water Treatment Equipment

Containerized RO Reverse Osmosis Water Treatment Equipment is a modular and space-efficient solution for water purification, reverse osmosis treatment, and seawater desalination. By integrating major water treatment components into a standard or specially configured container, the system provides a compact, transportable, and practical alternative to conventional fixed water treatment plants.

The containerized design is particularly suitable for projects where installation space is limited, construction time must be minimized, or the treatment system needs to be transported between different locations. The equipment can be configured for freshwater purification, brackish water treatment, industrial process water, or seawater desalination depending on the source water and final water quality requirements.

A complete containerized RO system can integrate pretreatment, filtration, high-pressure pumping, RO membranes, control equipment, storage, and optional post-treatment into a single modular solution.

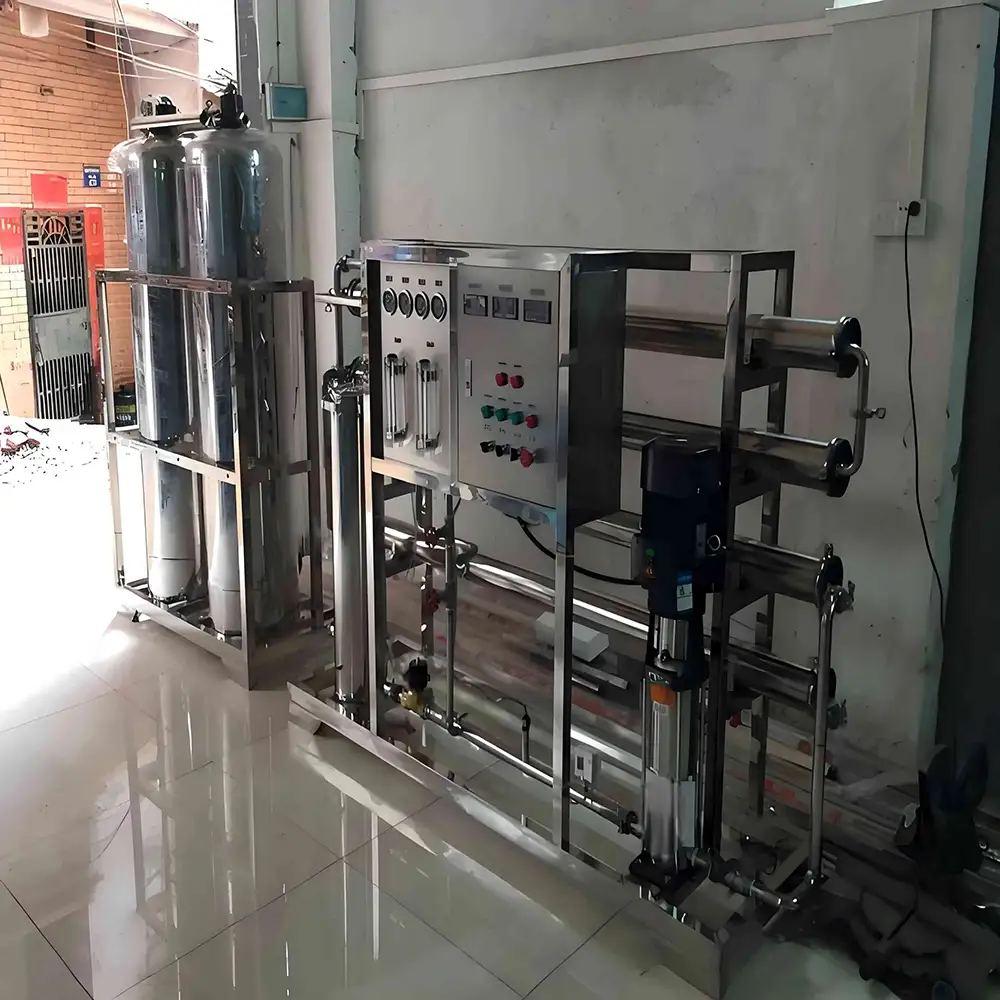

Containerized Reverse Osmosis System

Reverse osmosis is a membrane separation technology that uses pressure to force water through a semipermeable membrane. The membrane allows water molecules to pass while rejecting many dissolved salts, minerals, suspended contaminants, and other impurities.

A containerized RO system places the main treatment equipment inside a weather-resistant enclosure. Depending on the project requirements, the container may include raw water pumps, multimedia filters, activated carbon filters, cartridge filters, high-pressure pumps, RO membrane housings, electrical control cabinets, dosing equipment, instruments, and piping.

This integrated configuration reduces the amount of on-site construction and can simplify transportation, installation, commissioning, and maintenance.

Water Purification Applications

Containerized RO equipment can be designed for a variety of water purification applications. For municipal or commercial water sources, the system can provide purified water for drinking water treatment, food and beverage processing, hotels, resorts, schools, hospitals, restaurants, and commercial buildings.

For industrial applications, the equipment can provide process water, equipment cleaning water, cooling water, boiler feedwater pretreatment, and other purified water requirements.

The exact filtration stages depend on the characteristics of the source water. Sediment filtration can remove suspended particles, while activated carbon can reduce chlorine, organic compounds, odors, and certain contaminants that may affect RO membrane performance.

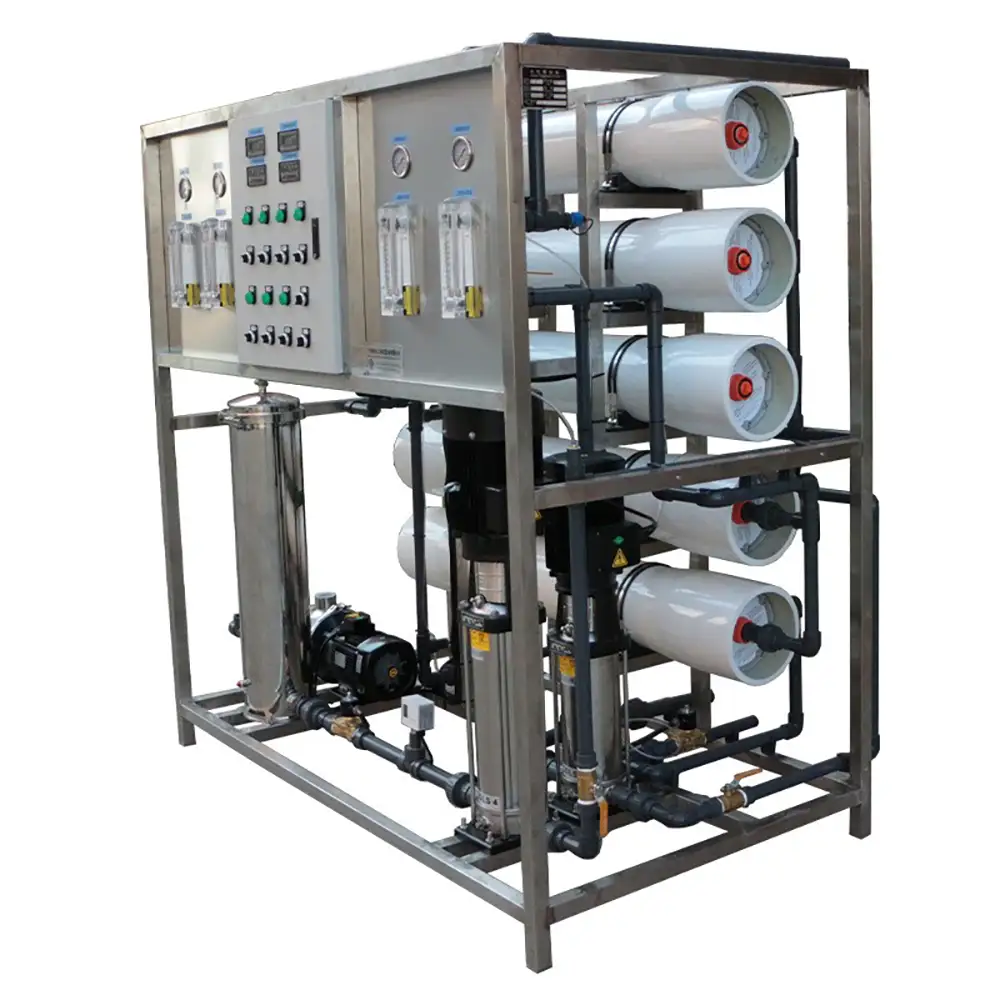

Containerized Seawater Desalination

The containerized design is especially useful for seawater desalination projects in coastal and remote locations. A seawater reverse osmosis system can be installed inside a container together with seawater pretreatment, high-pressure pumping, specialized SWRO membranes, energy recovery components, and control systems.

Seawater contains a high concentration of dissolved salts and therefore requires higher operating pressure than conventional freshwater RO. Specialized membranes and corrosion-resistant components are selected for marine conditions.

Depending on the seawater quality, pretreatment may include screening, multimedia filtration, ultrafiltration, microfiltration, cartridge filtration, and chemical dosing.

For larger seawater desalination systems, energy recovery devices can be integrated to recover energy from the high-pressure concentrate stream and improve overall system efficiency.

Modular and Transportable Design

One of the main advantages of containerized water treatment equipment is mobility. The treatment system can be manufactured and assembled before delivery, allowing much of the installation work to be completed in a controlled environment.

Once the container reaches the project site, it can be connected to the raw water intake, treated water pipeline, electrical supply, drainage system, and other required utilities.

This can significantly reduce on-site installation work compared with building a conventional water treatment room from the beginning.

Containerized systems can also be relocated when project requirements change. This makes them useful for temporary water supply, construction sites, emergency response, remote industrial facilities, mining operations, military or humanitarian projects, and other locations where permanent infrastructure may not be practical.

Flexible Treatment Capacity

Containerized RO systems can be configured for different production capacities. Small systems can support relatively low water demand, while larger systems can use multiple containers or parallel RO trains to provide higher production capacity.

Multiple treatment modules can also provide operational flexibility. If one module requires maintenance, other modules may continue operating depending on the system configuration.

The container can include water treatment equipment, electrical systems, control panels, pumps, valves, instruments, and safety components. External tanks and intake or discharge systems can be added according to the project requirements.

Automatic Monitoring and Control

Modern containerized RO systems can incorporate automatic control systems to monitor important operating parameters. These may include feedwater pressure, RO operating pressure, permeate flow, concentrate flow, conductivity, tank level, pump status, and system alarms.

Automatic flushing can help maintain membrane performance, while pressure protection and low-water protection can help protect pumps and other components.

Remote monitoring can also be incorporated when the project requires centralized operation or supervision. The specific control configuration depends on system capacity and application requirements.

Efficient Operation and Maintenance

Containerized construction does not eliminate the need for routine maintenance. Pretreatment filters must be inspected and replaced according to water quality and operating conditions. RO membranes should be monitored for changes in flow, pressure, conductivity, and salt rejection.

Membrane cleaning may be necessary when fouling or scaling causes performance to decline. Proper pretreatment can significantly reduce membrane fouling and help extend membrane service life.

The enclosed container provides a dedicated working environment for the treatment equipment and can help organize pumps, valves, electrical components, and piping in a compact layout. Appropriate ventilation, temperature control, drainage, and corrosion protection should be considered according to the installation environment.

Why Choose Us?

Containerized water treatment requires careful integration of mechanical equipment, membrane technology, electrical controls, piping, and environmental protection. A properly designed system can reduce installation complexity while providing reliable water purification in locations where conventional treatment plants are difficult to construct.

Our Containerized RO Reverse Osmosis Water Treatment Equipment can be configured for freshwater purification, brackish water treatment, industrial water treatment, and seawater desalination.

We focus on compact system integration, stable RO performance, practical maintenance access, efficient operation, and flexible installation. The containerized configuration is suitable for permanent facilities as well as temporary or rapidly deployable water treatment projects.

The system can be equipped with pretreatment, RO membranes, high-pressure pumps, energy recovery, disinfection, remineralization, storage, and automatic control according to actual project requirements.

Frequently Asked Questions

1. What is a containerized RO system?

A containerized RO system is a complete or partially integrated reverse osmosis water treatment plant installed inside a shipping-style or specially designed container for easy transportation and installation.

2. Can a containerized RO system treat seawater?

Yes. Containerized SWRO systems can be designed specifically for seawater desalination using high-pressure pumps, seawater RO membranes, appropriate pretreatment, and optional energy recovery.

3. Can the equipment treat freshwater or brackish water?

Yes. The RO configuration can be selected according to the source water quality, including municipal water, groundwater, brackish water, and seawater.

4. What are the advantages of containerized water treatment?

The main advantages include compact installation, reduced on-site construction, easier transportation, faster deployment, organized equipment layout, and potential relocation.

5. Can the system produce drinking water?

Yes. When properly designed and maintained, a containerized RO system can be integrated into a drinking water treatment process that meets applicable water quality requirements.

6. What pretreatment is required?

Pretreatment depends on source water quality and may include sediment filtration, multimedia filtration, activated carbon, cartridge filtration, ultrafiltration, microfiltration, or chemical dosing.

7. Can energy recovery be added to seawater RO?

Yes. Energy recovery devices can be integrated into larger seawater RO systems to recover energy from the high-pressure concentrate stream.

8. Can the system be moved to another location?

Yes. One major advantage of containerized systems is that they can be transported and redeployed when project requirements change.

9. How is a containerized RO system maintained?

Maintenance includes filter replacement, pump and valve inspection, RO membrane monitoring, membrane cleaning when necessary, instrument checks, and electrical system inspection.

10. What information is needed to select the system?

Important factors include source water analysis, required water production capacity, target water quality, daily operating hours, installation conditions, available power, ambient conditions, and whether the application is freshwater purification or seawater desalination.
