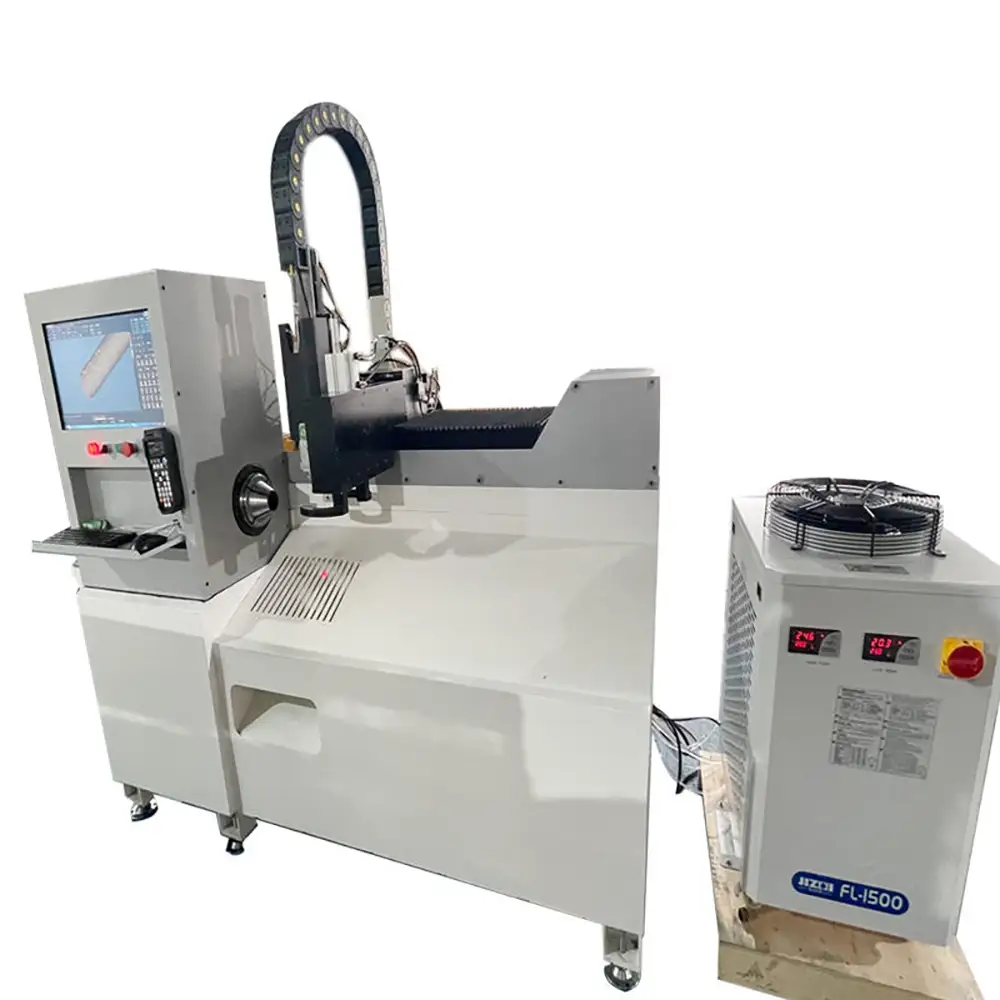

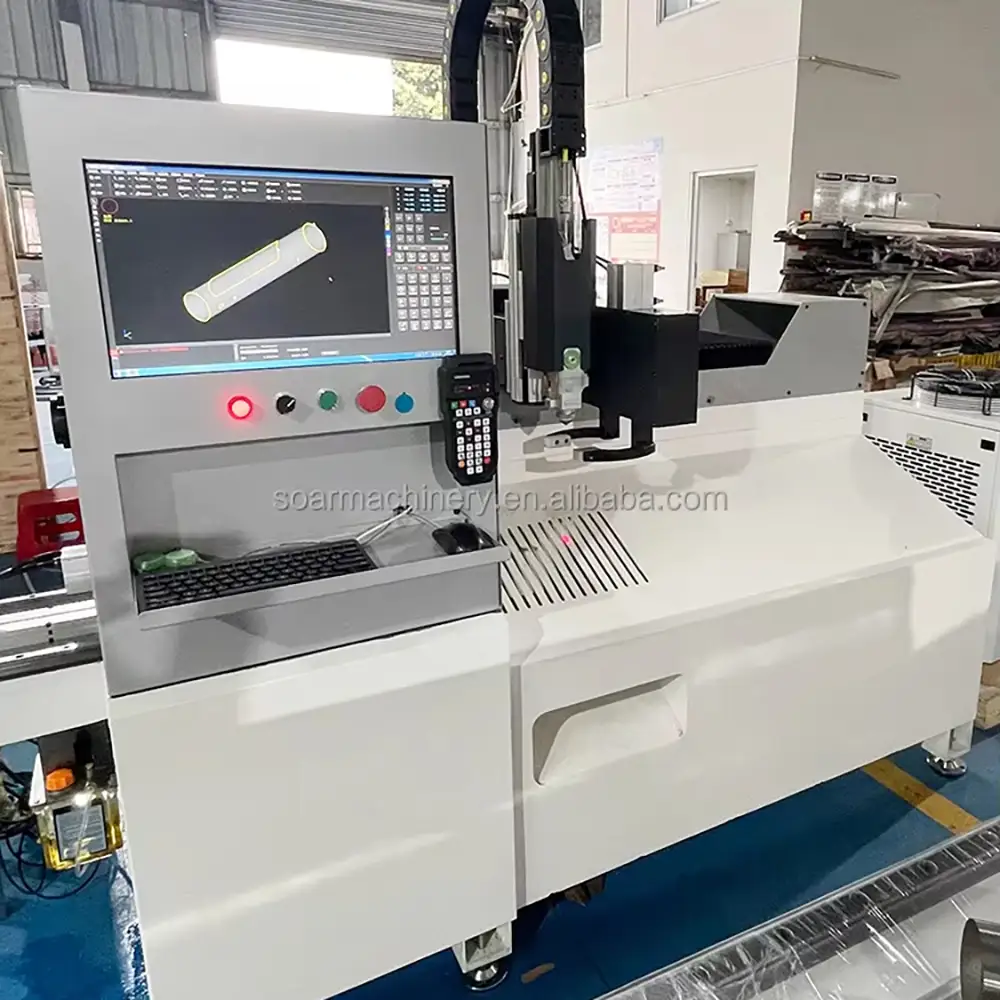

CNC Laser Welding Machine for Stainless Steel Pipe Welding

CNC Laser Welding Machine | Stainless Steel Pipe & Tube Fiber Laser Welder

The CNC Laser Welding Machine For Stainless Steel Pipe Welding is an advanced laser welding solution designed for precision joining of stainless steel pipes, tubes, and compatible metal components. Combining CNC-controlled movement with fiber laser welding technology, the machine provides manufacturers with a flexible and efficient solution for pipe fabrication, metal assemblies, and industrial production.

Stainless steel pipe welding is widely used in furniture, architectural structures, railings, kitchen equipment, sanitary products, automotive components, machinery, and industrial equipment. Compared with conventional welding methods, laser welding can provide a concentrated heat source and a controlled welding process, making it suitable for applications where appearance, precision, and repeatability are important.

Name	Specification	Origin/Brand
Fiber laser	1000W ultra-fine heart diameter	Tottenham Laser
Laser cutting head		Jiaqiang,shanghai
System		Ncstudio
Chuck diameter	90mm
Lead screw	C7 precision lead screw
X-axis servo motor	1000W high torque	Ncstudio
Y-axis servo motor	1000W high torque	Ncstudio
Z-axis servo motor	400W with brake	Ncstudio
B-axis servo motor	1500W high torque	Ncstudio
Pneumatic electromagnetic valve		AirTAC
Accuracy	position accuracy ±0.5mm, hole cutting accuracy ±0.1mm

CNC-Controlled Laser Welding

The CNC system controls the movement of the welding head and workpiece according to programmed welding paths. This allows manufacturers to create repeatable welding procedures for standardized stainless steel pipe components.

For production environments handling multiple product designs, digital programming can help reduce repetitive manual operations. Once a welding program has been established and tested, it can be reused for subsequent workpieces.

The exact number of CNC axes, movement structure, controller, and automation functions depend on the selected machine configuration.

Fiber Laser Welding Technology

Fiber laser welding uses a concentrated laser beam to generate localized heat at the joint between compatible metal components. The controlled energy input can create precise welds while limiting unnecessary heat exposure to surrounding areas.

For stainless steel tube and pipe applications, this technology can be used for suitable butt joints, lap joints, corner joints, and other configurations depending on the product design, material thickness, joint preparation, and welding parameters.

Actual welding performance depends on laser power, material grade, wall thickness, joint design, welding speed, shielding gas, wire-feeding requirements, and other process conditions.

Stainless Steel Pipe Welding

Stainless steel pipes are commonly used in applications where corrosion resistance, surface appearance, and structural durability are important. Typical products include stainless steel railings, handrails, furniture frames, kitchen equipment, sanitary components, decorative structures, and industrial pipe assemblies.

The CNC laser welding machine can be configured according to the pipe dimensions and welding requirements. Proper fixture design is important for maintaining tube alignment and joint positioning during welding.

For production applications, sample testing can help determine suitable laser power, welding speed, shielding gas, focus position, and other parameters.

Stainless Steel Tube Welding

Stainless steel tubes are frequently used in both structural and decorative applications. Laser welding can help manufacturers create consistent joints on compatible tube assemblies while supporting a digitally controlled production process.

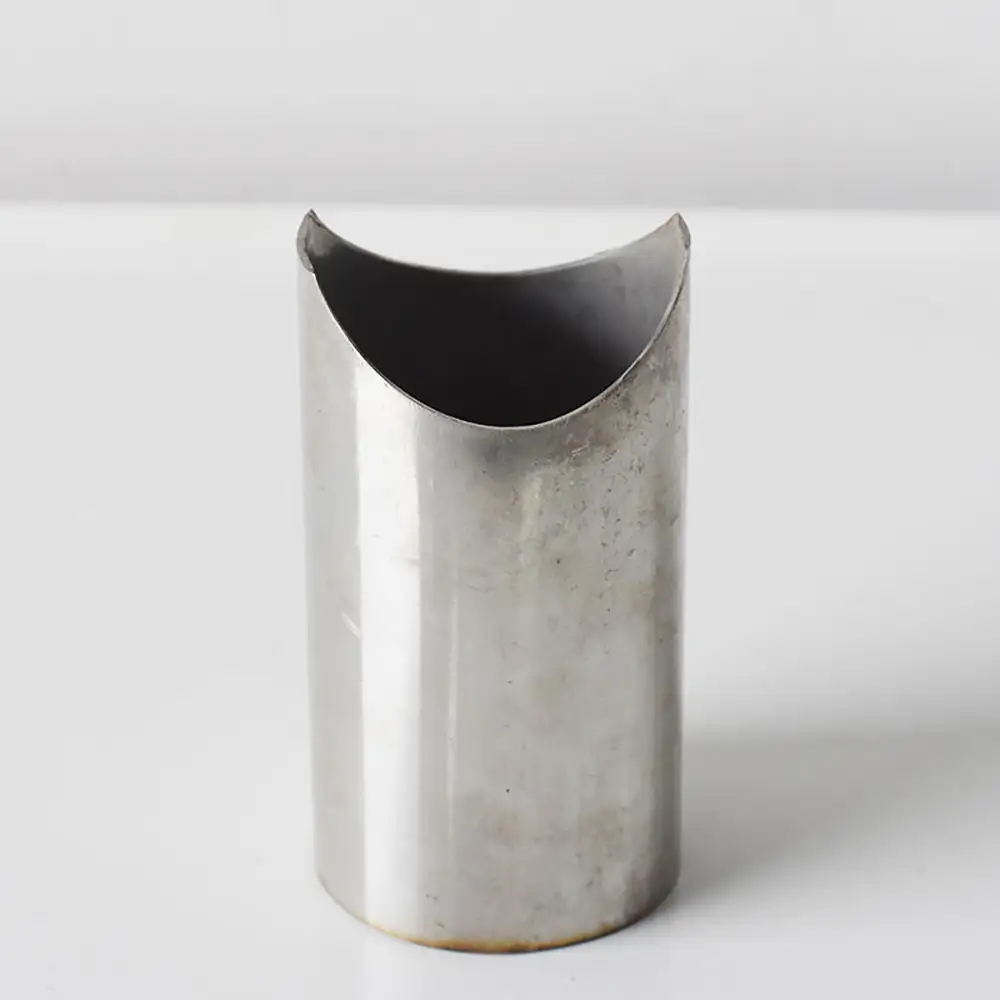

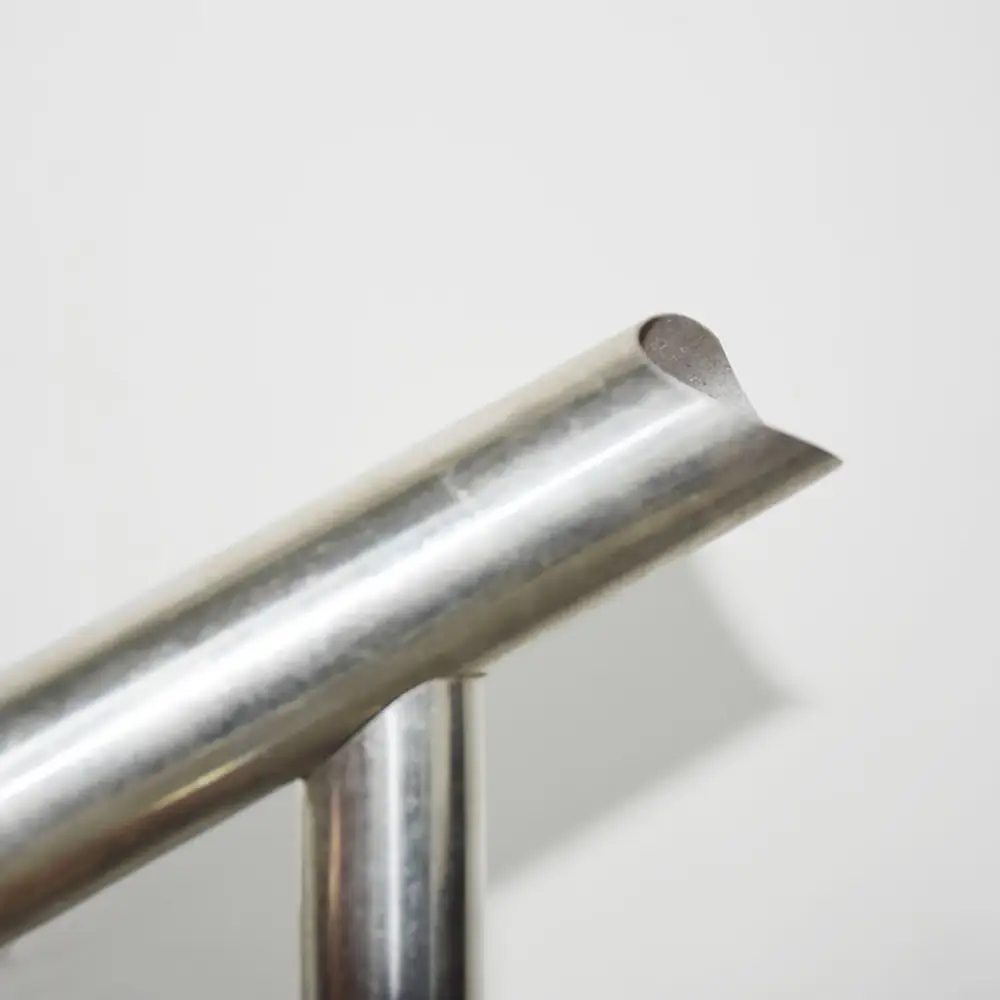

The machine can be applied to straight tube joints, frame assemblies, tube intersections, and other suitable stainless steel components.

For thin-wall stainless steel tubing, controlled laser energy can help minimize excessive heat input. However, final welding results depend on the actual material and joint design.

Precision Welding For Metal Pipes

Laser welding is suitable for applications where manufacturers require controlled weld positioning and repeatable results. The CNC system follows programmed paths, while the laser source provides concentrated energy to the welding area.

This can be beneficial for products requiring clean and consistent weld seams before subsequent grinding, polishing, coating, or assembly operations.

For visible stainless steel products, appropriate welding parameters and joint preparation can also help reduce the amount of downstream finishing work.

Automatic Welding Production

Depending on the machine configuration, CNC laser welding can reduce repetitive manual positioning and movement during production. Fixtures and automated movement systems can help maintain consistent workpiece positioning.

This is particularly useful for manufacturers producing repeated stainless steel pipe assemblies, metal frames, furniture components, railings, and industrial products.

Automation level can be selected according to production volume, product design, welding complexity, and factory workflow.

Suitable For Different Pipe Applications

The machine can be used for compatible stainless steel pipes and tubes in many industries. Applications may include architectural metalwork, stainless steel furniture, handrails, stair railings, kitchen equipment, sanitary products, industrial equipment, machinery frames, and customized metal structures.

For OEM manufacturing, CNC programming allows different welding patterns to be stored and reused according to customer product designs.

Welding Quality And Production Consistency

Consistent welding depends on several factors, including material preparation, joint fit-up, fixture accuracy, laser power, welding speed, shielding gas, focal position, and machine control.

A CNC laser welding platform provides controlled movement and repeatable process parameters, helping manufacturers standardize production procedures.

Before mass production, sample welding is recommended to establish appropriate process parameters for the actual stainless steel pipe material and joint configuration.

B2B Machine Configuration

Different customers require different laser power levels, welding areas, automation systems, fixtures, and workpiece handling solutions. The machine can therefore be configured according to the customer's actual production requirements.

Important considerations include stainless steel grade, pipe diameter, wall thickness, joint type, welding speed, production volume, laser power, welding head, CNC controller, fixture system, and optional wire-feeding or automation equipment.

OEM manufacturers and distributors can provide pipe samples, drawings, material specifications, and welding requirements for technical evaluation.

Key Features
CNC-controlled laser welding system.
Designed for stainless steel pipe and tube welding.
Fiber laser welding technology.
Suitable for compatible metal pipe assemblies.
Supports repeatable programmed welding paths.
Suitable for customized and batch production.
Concentrated laser heat input.
Flexible fixture and automation configuration.
Suitable for industrial metal fabrication.
Factory-direct B2B technical support.
Main Applications

The CNC Stainless Steel Pipe Laser Welding Machine is suitable for:

Stainless Steel Pipe Welding
Stainless Steel Tube Welding
Metal Tube Assembly
Stainless Steel Furniture
Stair Railings
Handrails
Architectural Metalwork
Kitchen Equipment
Sanitary Equipment
Machinery Frames
Industrial Pipe Components
Customized Metal Fabrication
FAQs
1. What Is A CNC Laser Welding Machine?

A CNC laser welding machine uses a computer-controlled movement system and laser welding source to perform programmed welding operations on compatible metal components.

2. Can It Weld Stainless Steel Pipes?

Yes. The machine is designed for compatible stainless steel pipe and tube welding applications.

3. What Types Of Stainless Steel Can Be Welded?

Common stainless steel grades can be evaluated according to the machine configuration and welding requirements. Material grade and thickness should be confirmed before selecting laser parameters.

4. Can It Weld Thin Stainless Steel Tubes?

Laser welding is suitable for many thin-wall metal applications, but actual performance depends on material thickness, joint design, laser power, welding speed, and process parameters.

5. What Types Of Pipe Joints Can It Weld?

Depending on the product design and machine configuration, suitable butt, lap, corner, and other joint configurations can be processed.

6. Does It Require A Welding Fixture?

A suitable fixture is generally recommended to maintain consistent pipe alignment and joint positioning, especially for repeat production.

7. Can The Welding Process Be Automated?

Yes. CNC-controlled movement and optional automation systems can be configured according to production volume and product requirements.

8. What Affects Stainless Steel Laser Welding Quality?

Material grade, wall thickness, joint fit-up, laser power, welding speed, shielding gas, focal position, fixture accuracy, and surface preparation can all affect welding results.

9. Is It Suitable For Mass Production?

Yes. CNC programming and repeatable welding parameters make the equipment suitable for batch production and OEM manufacturing.

10. Can The Machine Be Customized?

Yes. Laser power, CNC axes, working area, welding head, fixture system, wire-feeding option, automation level, and other configurations can be evaluated according to customer requirements.

Why Choose Us
Professional Laser Welding Solutions

We provide CNC fiber laser welding equipment for stainless steel pipe, tube, and metal assembly applications, supporting industrial manufacturers and international B2B customers.

Stainless Steel Welding Expertise

The equipment is designed around the specific requirements of stainless steel tube and pipe fabrication, including precision joint positioning and repeatable welding processes.

Flexible CNC Configuration

CNC axes, welding area, fixture systems, laser power, welding head, and automation options can be selected according to the customer's production requirements.

Sample-Based Technical Support

Customers can provide pipe samples, drawings, material specifications, and welding requirements for technical evaluation and machine configuration.

Factory-Direct B2B Supply

We support OEM manufacturers, distributors, metal fabricators, and industrial buyers with direct factory communication, technical consultation, production coordination, and export services.

International Export Service

We provide machine testing, technical documentation, export packaging, shipping coordination, installation guidance, and after-sales technical assistance for overseas customers.
