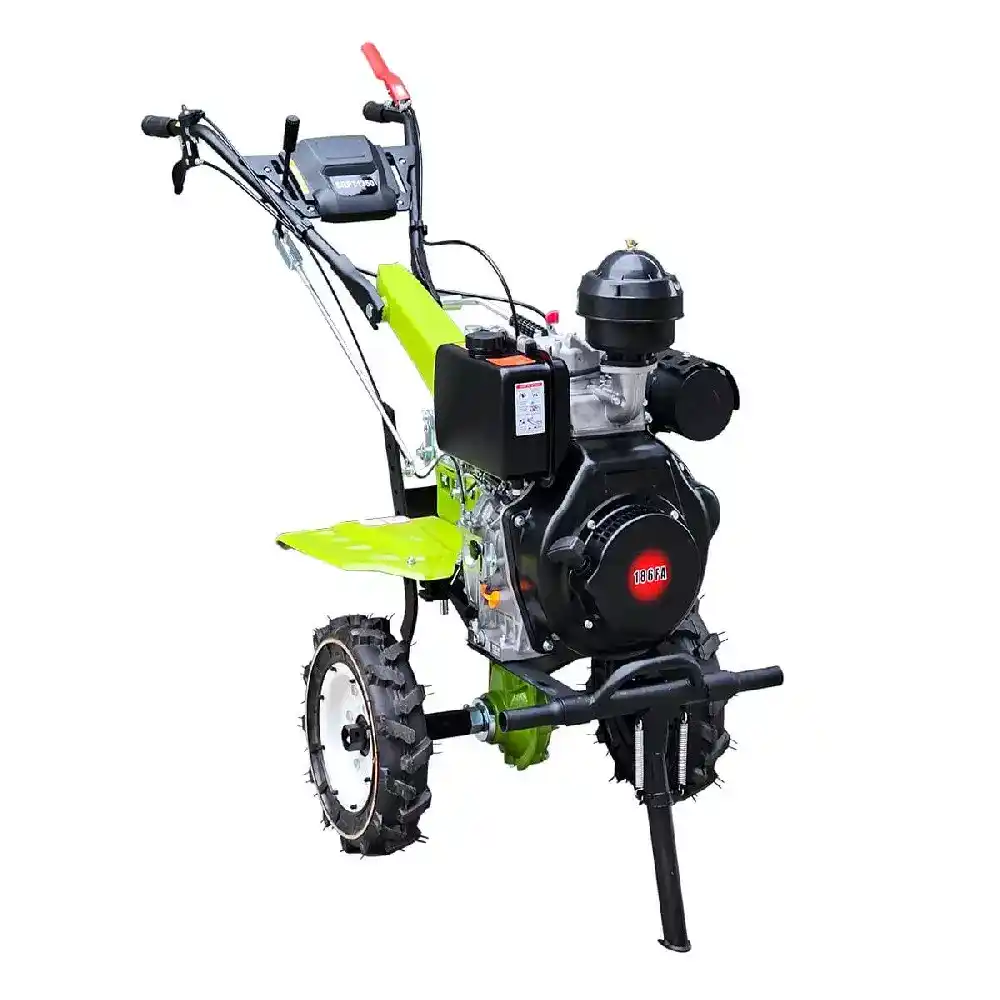

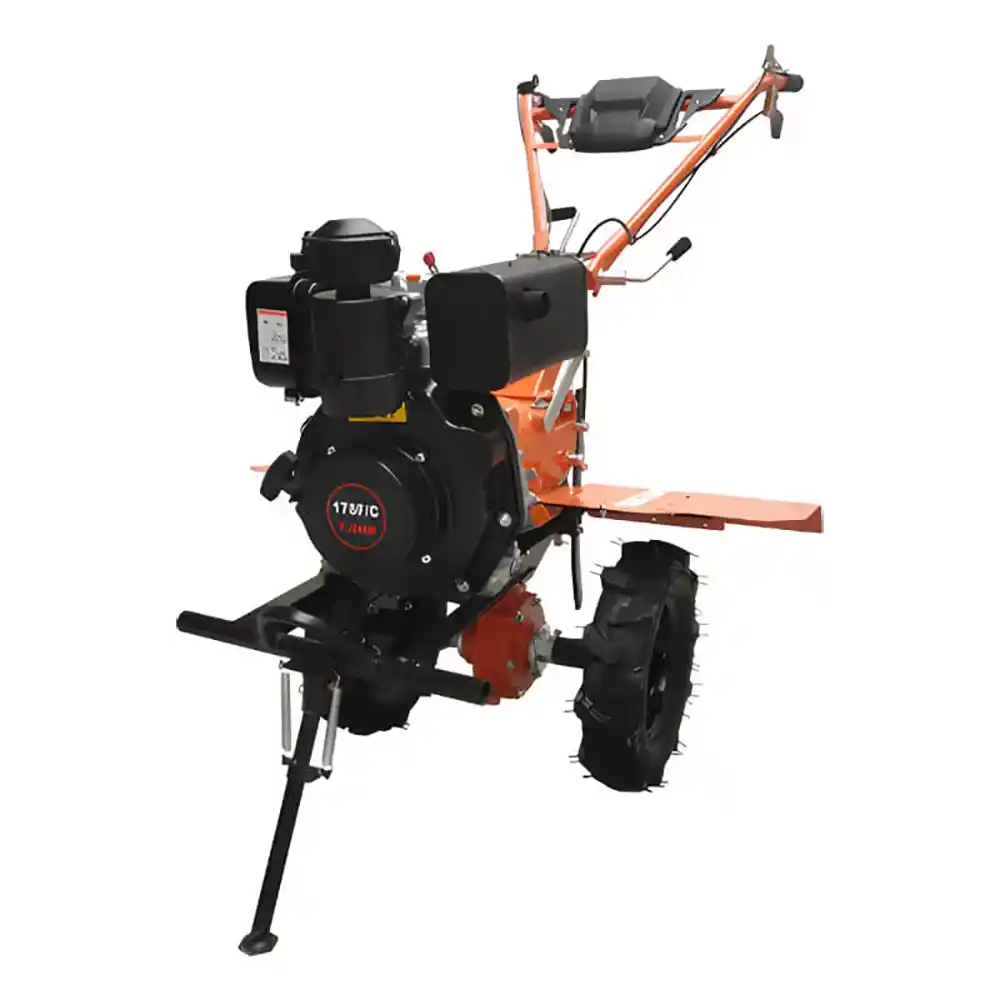

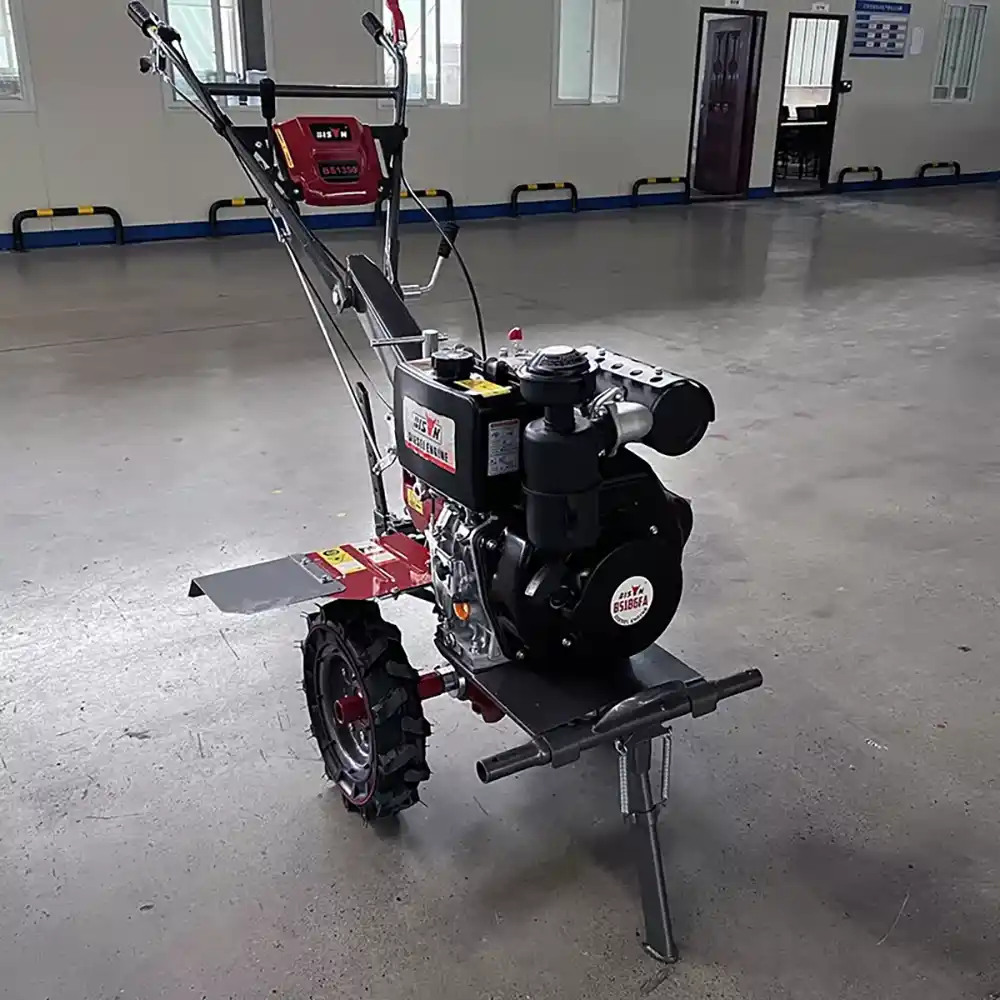

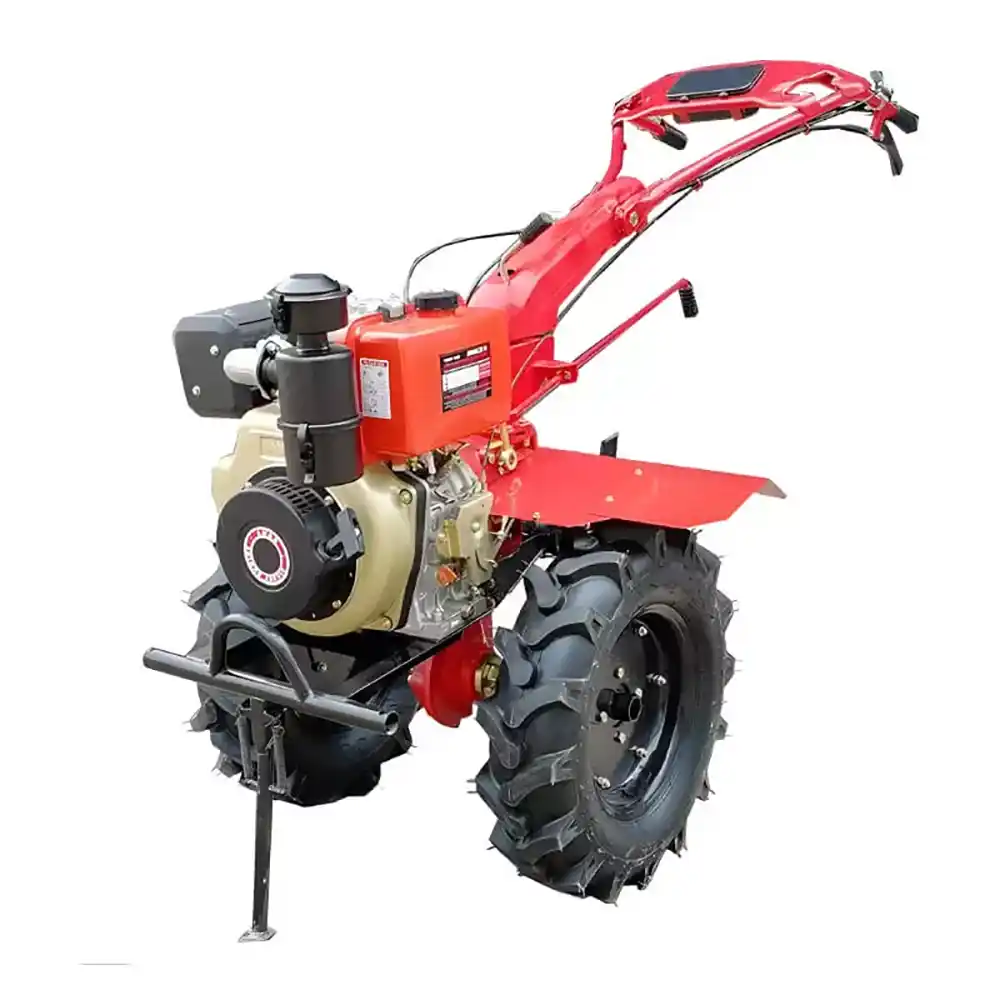

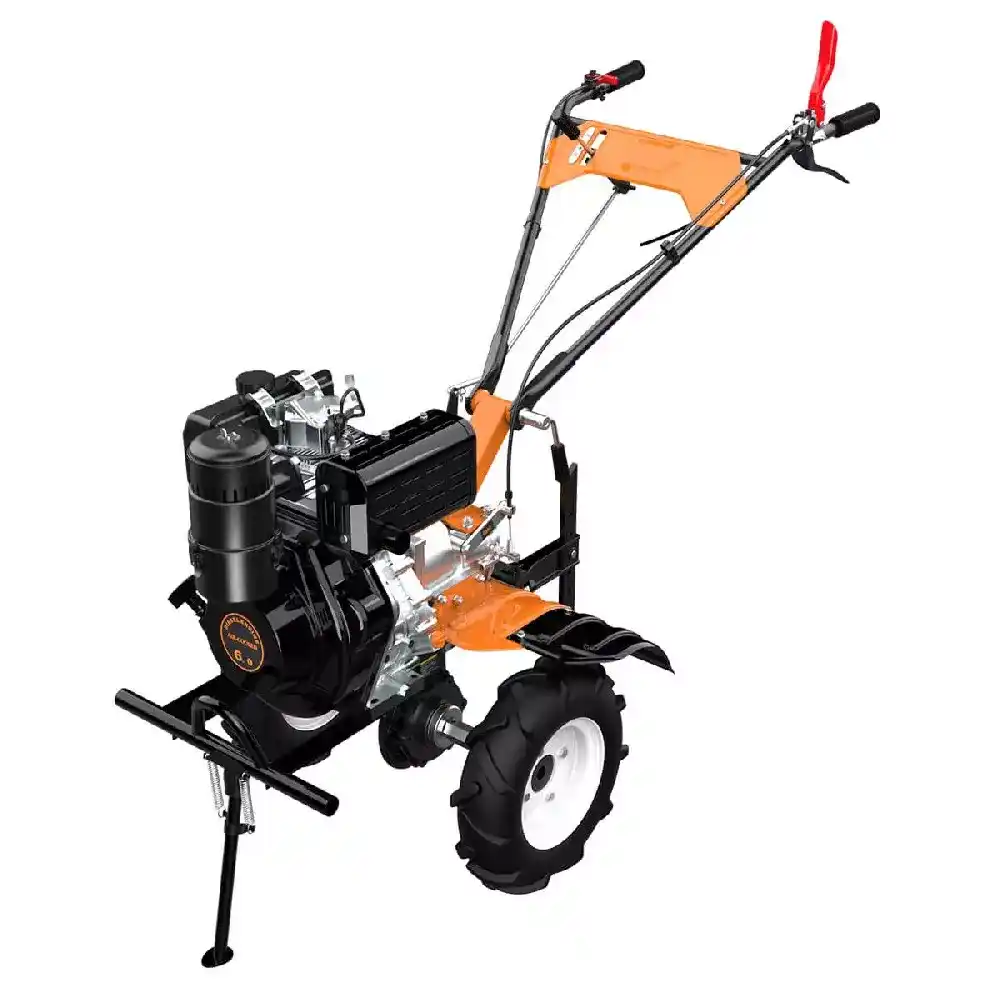

Agriculture Power Tiller Technical Parameters

Power Tiller Series Agricultural Machinery Power Tillers Grass Cutter Mini Cultivator Rotary Tiller of Farm Model 173F/C 178F/C 186FA/C 190F/C 192F/C Bore * stroke 73mm * 60mm 78mm * 62mm 86mm * 72mm 90mm * 75mm 92mm * 75mm Power Max:5.5HP.

Power Tiller Series Agricultural Machinery Power Tillers Grass Cutter Mini Cultivator Rotary Tiller of Farm

Model 173F/C 178F/C 186FA/C 190F/C 192F/C
Bore * stroke 73mm * 60mm 78mm * 62mm 86mm * 72mm 90mm * 75mm 92mm * 75mm
Power Max:5.5HP / Rated:5.0HP Max:6HP / Rated:5.4HP Max:10HP / Rated:9.0HP Max:10.2HP / Rated:9.5HP Max:11.2HP / Rated:10.5HP
Type 1 cylinder, 4 stoke, air cooling 1 cylinder, 4 stoke, air cooling 1 cylinder, 4 stoke, air cooling 1 cylinder, 4 stoke, air cooling 1 cylinder, 4 stoke, air cooling
Fuel capacity 2.5 Liter 3.5 Liter 5.5 Liter 5.5 Liter 5.5 Liter
Fuel consumption ≤290 Gram / kw.Hour ≤285 Gram / kw.Hour ≤282 Gram / kw.Hour ≤282 Gram / kw.Hour ≤282 Gram / kw.Hour
Lube capacity 0.75 Liter 1.1 Liter 1.65 Liter 1.65 Liter 1.65 Liter
Start system Manual pull Manual pull Manual pull Manual pull Manual pull
Max. Power 4.05kw /3600RPM 4kw /3600RPM 6.3kw /3600RPM 7.5kw /3600RPM 8.2kw /3600RPM
Lube capacity Gear Box: 0.95 Liter Gear Box: 2.5 Liter Gear Box: 2.5 Liter Gear Box: 2.5 Liter Gear Box: 2.5 Liter
Working width 1050 mm 1150 mm 1350 mm 1350 mm 1350 mm
Working depth ≥100 mm ≥100 mm ≥100 mm ≥100 mm ≥100 mm
Gear shifting 2 Forward: Fast and Slow / 1 Reverse / Neutral 2 Forward: Fast and Slow / 1 Reverse / Neutral 2 Forward: Fast and Slow / 1 Reverse / Neutral 2 Forward: Fast and Slow / 1 Reverse / Neutral 2 Forward: Fast and Slow / 1 Reverse / Neutral
Transmission Gear Gear Gear Gear Gear
Packing detail PLY Wood PLY Wood PLY Wood PLY Wood PLY Wood
Packing size 840*460*600 mm 910*570*780 mm 910*570*780 mm 910*570*780 mm 910*570*780 mm
Qty(40HQ) 280 156 156 156 156
N.W. / G.W. 82KG / 92KG 110KG / 121KG 120KG / 131KG 121KG / 132KG 131KG / 142KG
