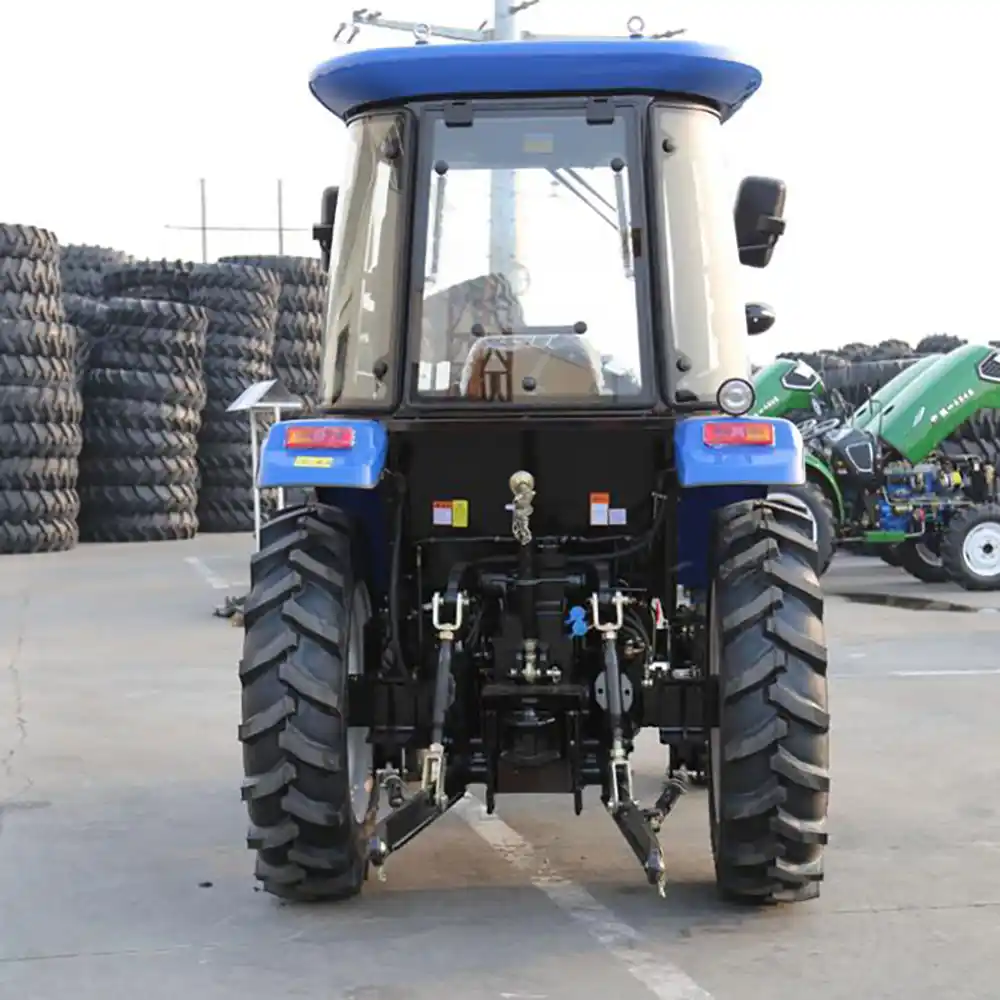

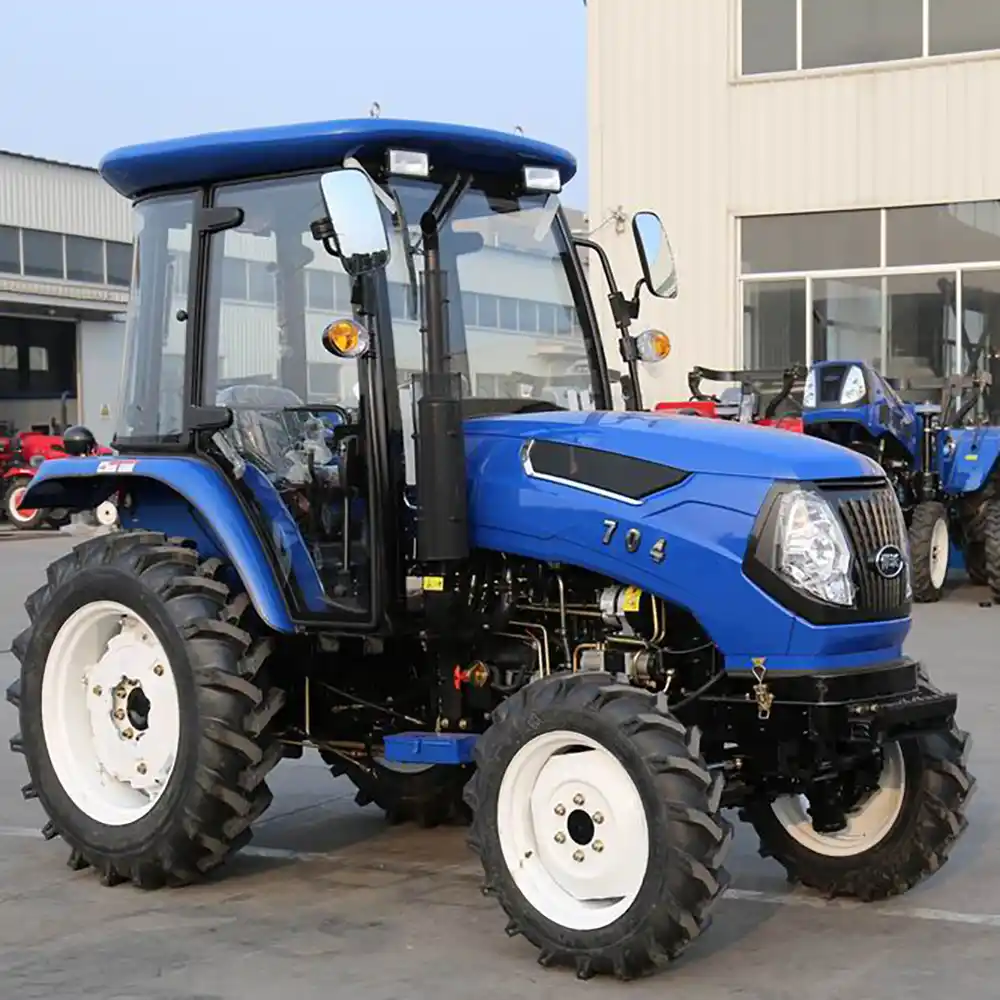

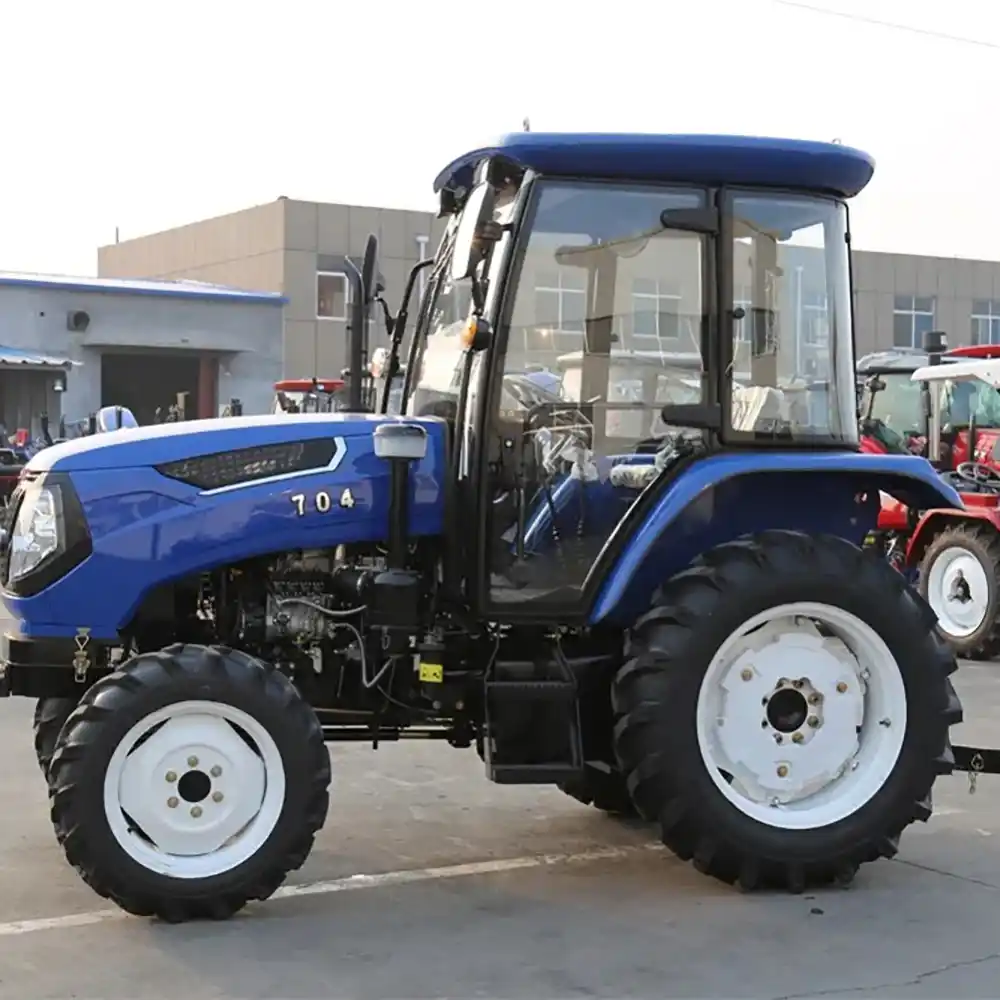

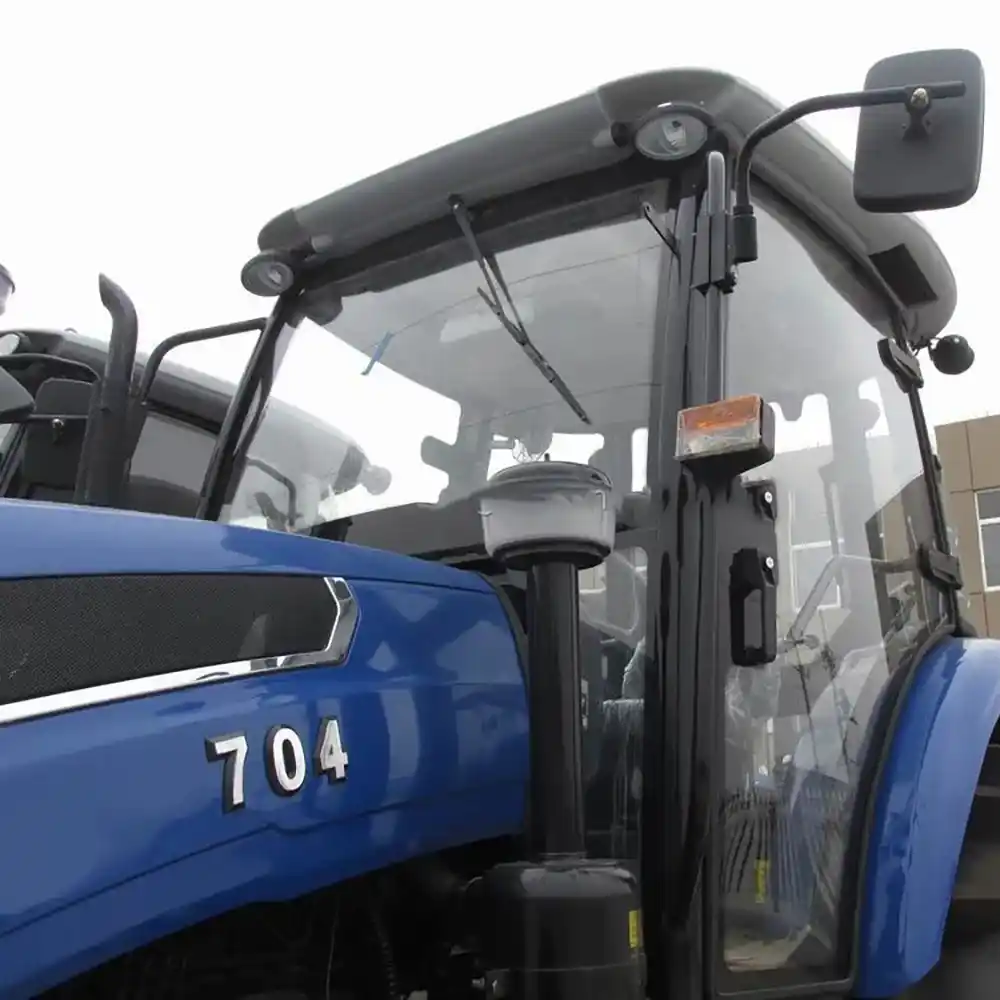

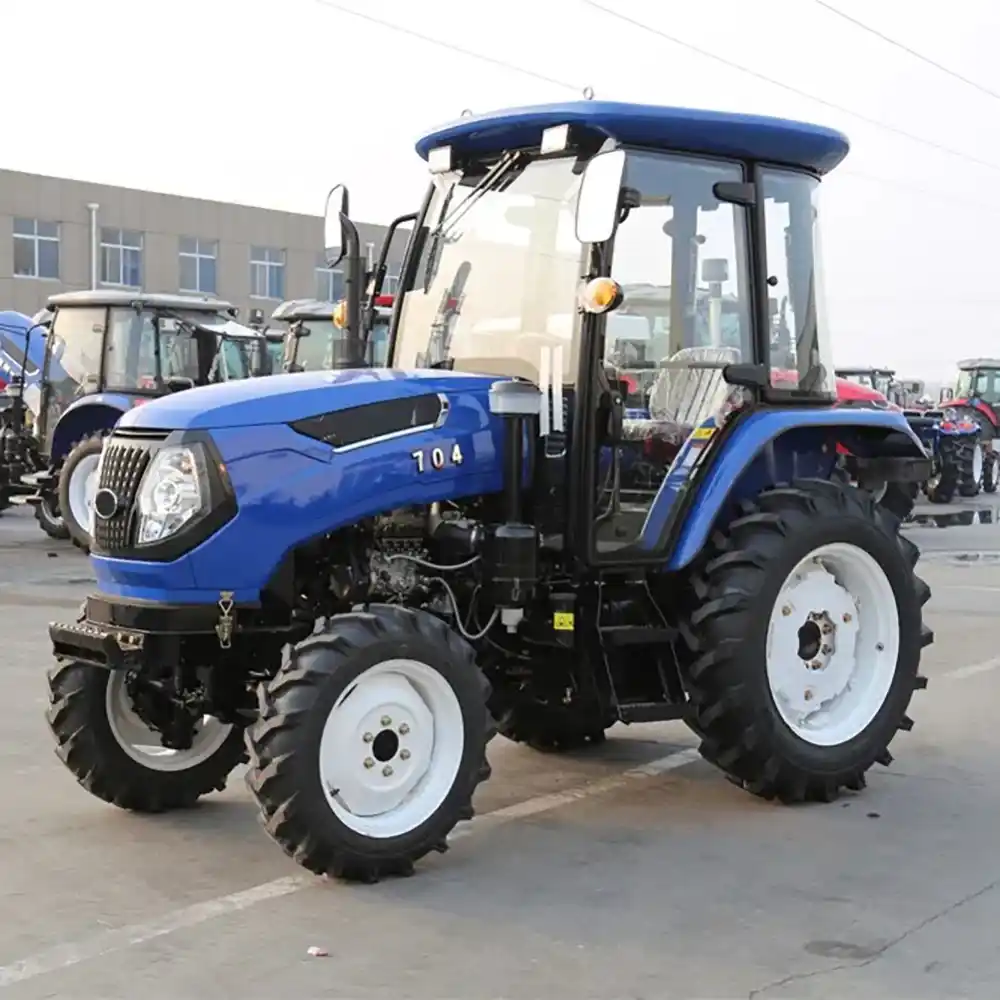

70hp Farm Tractor Usage and Wheel Tractor Type tractor and tools
Whether it’s your perfectly manicured and landscaped grounds, your straight and even fence line, your bountiful garden, your smooth gravel driveway, or your well-kept horse stalls, you take pride in doing a job well done. Our Farm Tractor shares your passion of doing it right. This is why we design and manufacture a line of compact tractors that combines superior performance, more functional features as standard equipment and better value as compared to other brands.
Tractor offers a wide range of compact tractors in various horsepower and chassis sizes that provides land owners, small farmers (typically with 30 acres or less) and commercial users the ability to select a model perfectly suited for their needs.When you have larger acreage or commercial contract work, and you need a more powerful tractor that can handle heavy-duty applications, consider our heavy tractors. The abilities of our 4WD heavy-duty tractors go far beyond the basics of mowing, plowing and tilling fields. Whether its heavy lifting, hay operations, livestock ranches, or commercial operations, we’ve got a utility tractor with the power, features and comfort to do the job.
|
SPECIFICATIONS FOR 90HP TRACTOR |
|
|
|
(mm)Dimensions of Tractor |
Length (to front ballast) |
3900mm |
|
Width |
1795mm |
|
Height (to the exhaust vent) |
2160mm |
|
Wheel Base(mm) |
2075 |
|
Track base(mm) front wheel |
1408 |
|
Track base(mm) rear wheel |
1408 |
|
Min.Ground Clearance(mm) |
410 |
|
Engine |
Model |
Quanchai QC4108, 4 Cylinders |
|
Type |
Vertical,4-Cylinder,Water Cooled and 4-stroke |
|
Rated Power(kw) |
51.5Kw |
|
Rated speed (r/min) |
2400rpm |
|
Fuel |
Diesel |
|
tires |
Front Wheel |
8.3-24 |
|
Rear Wheel |
14.9-30 |
|
Structure weight (kg) |
2700 |
|
Clutch |
Dual-stage clutch |
|
Steering |
Hydraulic steering |
|
Transmission Type |
12+12 shift |
|
Suspension Type |
3-point links(Category II) |
|
PTO |
Type and Rev |
Semi-independent Type 540/760r/m |
|
Spline Size |
I35 Rectangle Spline with 6 teeth/8 teeth |
Standard Equipment Features:
1.Engine:Quanchai, 4 Cylinders
2.4*4 wheel drive, 70hp
3.Full Hydraulic Steering
4.With Dual-Stage Clutch
5.12+12 shuttle gear(optional creeper gear)
6.3-point linkage(Category II)
7.Dual-Speed PTO
8.Hydraulic forced lifting and dropping system
9.Tires: 8.3-24/14.9-30
Option:
-Front weights
-Rear weights
-Air brake
-ROPS
-Canopy
-Heater Cabin
-A/C
-Multi-way valve
-Swing draw bar
