50HZ Perkins Diesel Generator Set

The 50Hz Perkins Diesel Generator Set is powered by Perkins series diesel engines and designed for stable power supply in hotels, schools, factories, ship and port projects, mines, medical facilities, construction sites, industrial projects, farms, temporary construction projects, and emergency power applications. This 50Hz Perkins generator set series supports 400V, 6kV–10.5kV, 3P 4W configurations according to the provided model table. The series covers 8kW / 10kVA to 1800kW / 2250kVA prime power and 8.8kW / 11kVA to 2000kW / 2500kVA standby power, helping buyers select suitable models for different power requirements. According to the provided material, this Perkins diesel genset series uses Perkins series diesel engines, European and American technology, and high-strength wear-resistant materials. It is designed for excellent performance, stable operation, low vibration, low fuel consumption rate, low oil consumption rate, long operation life, long overhaul time, and low noise.

The 50HZ Perkins Diesel Generator Set is a reliable, efficient, and durable power generation solution designed for industrial, commercial, and emergency applications.

With advanced Perkins diesel engine technology, stable 50Hz electricity output, excellent fuel efficiency, intelligent control functions, and rugged construction, it provides dependable power wherever electricity reliability is essential.

Whether used for factories, hospitals, construction sites, commercial buildings, data centers, or remote operations, the 50HZ Perkins Diesel Generator Set delivers outstanding performance, long service life, and excellent economic value.

Genset Model	Standby Power KW/KVA	Prime Power KW/KVA	Engine Model	No. of Cylinder	Bore×Stroke mm	Overall Size mm	Gross Weight kg
SP11GF/K/S	8.8/11	8/10	403D-11G	3.L	77×81	1150×550×1000	385
SP14GF/K/S	11/14	10/12.5	403A-15G1	3.L	84×90	1150×550×1000	405
SP14GF/K/S	14/17	12/15	403A-15G2	3.L	84×90	1150×550×1000	405
SP22GF/K/S	18/22	16/20	404D-22G	4.L	84×100	1300×550×1050	480
SP28GF/K/S	22/28	20/25	1103A-33G	3.L	105×127	1550×720×1150	680
SP33GF/K/S	27/33	24/30	1103A-33G	3.L	105×127	1550×720×1150	680
SP42GF/K/S	33/42	30/37.5	1103A-33TG1	3.L	105×127	1550×720×1150	750
SP55GF/K/S	44/55	40/50	1103A-33TG2	3.L	105×127	1700×760×1170	800
SP70GF/A/S	56/70	50/62.5	1103A-33TG2	3.L	105×127	1700×760×1170	830
SP70GF/K/S	56/70	50/62.5	1104A-44TG1	4.L	105×127	1800×760×1200	930
SP85GF/K/S	68/85	60/75	1104A-44TG2	4.L	105×127	1800×760×1200	1000
SP110GF/K/S	88/110	80/100	1104C-44TAG2	4.L	105×127	1900×760×1300	1050
SP140GF/K/S	112/140	100/125	1106A-70TG1	6.L	105×135	2250×880×1400	1500
SP165GF/K/S	132/165	120/150	1106A-70TAG2	6.L	105×135	2250×880×1400	1600
SP200GF/K/S	160/200	150/187.5	1106A-70TAG3	6.L	105×135	2350×880×1450	1700
SP200GFA/K/S	160/200	150/187.5	1106A-70TAG4	6.L	105×135	2350×880×1450	1700
SP220GF/K/S	176/220	160/200	1106A-70TAG4	6.L	105×135	2350×880×1450	1750
SP275GF/K/S	220/275	200/250	1206A-E70TTAG3	6.L	105×135	3520×1200×1950	3000
SP350GF/K/S	280/350	250/312.5	1706A-E93TAG1	6.L	114×149	2450×1080×1650	1850
SP400GF/K/S	320/400	300/375	2206C-E13TAG3	6.L	130×157	3200×1150×2050	2950
SP450GF/K/S	360/450	320/400	2206C-E13TAG3	6.L	130×157	3200×1150×2050	2950
SP500GF/K/S	400/500	360/450	2506C-E15TAG1	6.L	137×171	3500×1150×2050	3650
SP550GF/K/S	440/550	400/500	2506C-E15TAG2	6.L	137×171	3500×1150×2050	3650
SP625GF/K/S	500/625	450/562.5	2806C-E18TAG1A	6.L	145×183	3400×1600×2050	4600
SP700GF/K/S	560/700	500/625	2806A-E18TAG2	6.L	145×183	3400×1600×2050	4600
SP825GF/K/S	660/825	600/750	4006-23TAG2A	6.L	160×190	3750×1680×2405	5840
SP880GF/K/S	704/880	640/800	4006-23TAG3A	6.L	160×190	3750×1680×2405	5840
SP1000GF/K/S	800/1000	720/900	4008TAG1A	8.L	160×190	4700×2100×2405	7800
SP1100GF/K/S	880/1100	800/1000	4008TAG2	8.L	160×190	4700×2010×2405	7800
SP1250GF/K/S	1000/1250	900/1125	4008-30TAG3	12.V	160×190	4700×2010×2405	8000
SP1375GFK/S	1100/1375	1000/1250	4012-46TWG2A	12.V	160×190	4950×2100×2435	11000
SP1650GFK	1320/1650	1200/1500	4012-46TAG2A	12.V	160×190	5600×2200×2450	11000
SP1800GFK	1440/1800	1320/1650	4012-46TAG3A	12.V	160×190	5600×2200×2450	11500
SP2100GFK	1680/2100	1500/1875	4016TAG1A	16.V	160×190	5900×2200×2721	13200
SP2200GFK	1760/2200	1600/2000	4016TAG2A	16.V	160×190	5900×2200×2721	13800
SP2500GFK	2000/2500	1800/2250	4016-61TRG3	16.V	160×190	5900×2200×2721	14200

50HZ Perkins Diesel Generator Set

The 50HZ Perkins Diesel Generator Set is a professional power generation solution designed to deliver stable, efficient, and reliable electricity for industrial, commercial, and emergency applications. Equipped with a high-performance Perkins diesel engine and a durable alternator system, this generator set provides consistent 50Hz frequency power output for global electrical systems requiring dependable energy supply.

Perkins diesel engines are internationally recognized for their excellent reliability, fuel efficiency, durability, and long service life. Combined with advanced generator technology, the 50HZ Perkins Diesel Generator Set offers outstanding performance for factories, hospitals, construction projects, data centers, commercial buildings, mining operations, agricultural facilities, and remote power applications.

Compared with conventional power generation equipment, this generator set provides:

Stable 50Hz electricity output
High fuel efficiency
Strong load capacity
Reliable continuous operation
Low maintenance requirements
Long service life

The 50HZ Perkins Diesel Generator Set is an excellent choice for customers who require dependable prime power or standby backup power solutions.

Powerful Perkins Diesel Engine Technology

The core component of the 50HZ Perkins Diesel Generator Set is its advanced Perkins diesel engine.

Perkins engines are widely recognized for:

Reliable performance
Strong power output
Excellent fuel economy
Low operating costs
Long operating lifespan

The optimized combustion system improves fuel utilization while maintaining stable power output.

The Perkins engine is designed for:

Industrial applications
Continuous power generation
Emergency backup systems
Remote electricity supply

Its proven engineering ensures dependable operation under different working conditions.

Stable 50HZ Frequency Power Output

The 50HZ Perkins Diesel Generator Set is designed to provide accurate 50Hz frequency electricity output.

The system delivers:

Stable voltage regulation
Accurate frequency control
Reduced electrical fluctuation
Reliable power quality

50Hz output makes it suitable for:

International electrical markets
Manufacturing equipment
Commercial facilities
Agricultural machinery
Communication systems

Stable power supply helps ensure the safe operation of electrical equipment.

High Fuel Efficiency And Economic Operation

The Perkins diesel engine provides excellent fuel economy through advanced combustion technology.

Main benefits include:

Lower fuel consumption
Reduced operating expenses
Longer operating time
Better energy efficiency

The 50HZ Perkins Diesel Generator Set helps customers achieve reliable power generation while reducing overall operating costs.

It is suitable for applications requiring:

Long running hours
Stable energy supply
Cost-effective operation
Reliable Alternator Performance

The generator set is equipped with a high-efficiency alternator designed for stable electricity production.

Alternator advantages include:

High conversion efficiency
Stable voltage output
Strong overload capability
Long service life

The combination of Perkins engine performance and premium alternator technology creates a complete and reliable power generation system.

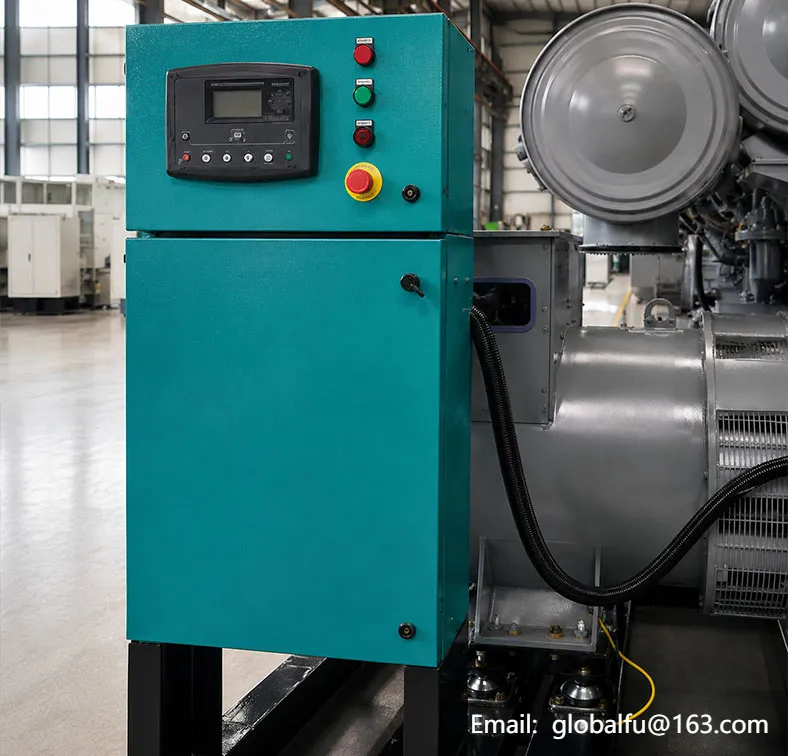

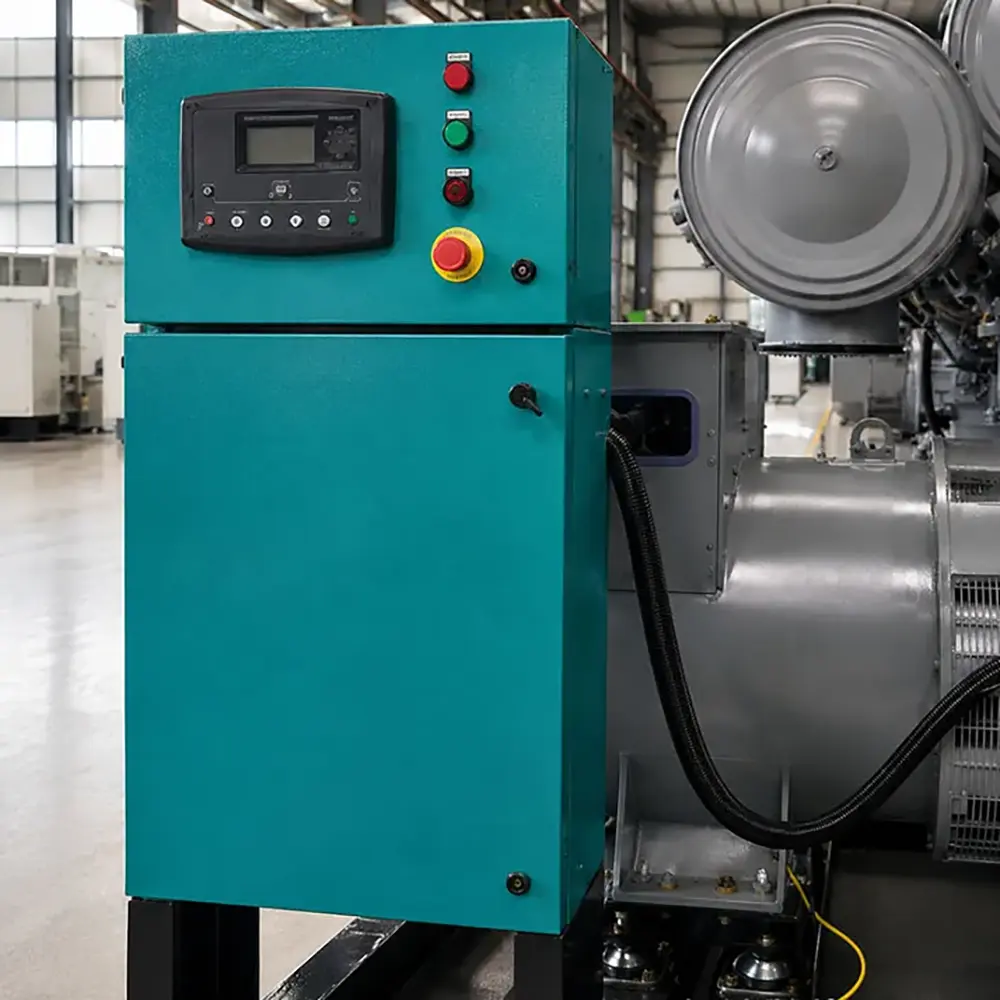

Intelligent Generator Control System

The 50HZ Perkins Diesel Generator Set is equipped with an intelligent controller to improve operation convenience and safety.

Control features include:

Automatic start and stop
Voltage monitoring
Frequency monitoring
Fault alarm system
Emergency shutdown protection

Optional remote monitoring functions allow users to check operating status and manage generator performance efficiently.

The intelligent system improves:

Operating safety
Maintenance efficiency
Power management
User convenience
Heavy-Duty Industrial Structure

The generator set is designed for demanding industrial environments.

Main structural features include:

Strong steel frame
Anti-vibration design
Durable engine components
Efficient cooling system
Protective enclosure options

The robust design allows reliable operation in:

Factories
Construction sites
Outdoor environments
Mining areas
Remote locations

The durable structure ensures long-term performance and reduced downtime.

Advanced Cooling And Protection System

The efficient cooling system maintains stable engine temperature during extended operation.

Benefits include:

Effective heat dissipation
Improved engine protection
Stable operation under high loads
Extended component lifespan

Safety protection functions may include:

High coolant temperature alarm
Low oil pressure protection
Overload protection
Short circuit protection

These systems improve reliability and operational safety.

Wide Application Areas
Industrial Manufacturing

The 50HZ Perkins Diesel Generator Set is widely used for:

Factory production lines
Industrial machinery
Manufacturing facilities
Emergency power systems
Construction Industry

Applications include:

Building projects
Infrastructure construction
Road development
Temporary electricity supply
Healthcare Facilities

Used for:

Hospitals
Clinics
Medical equipment backup
Emergency energy systems

Reliable electricity is essential for healthcare operations.

Commercial Buildings

Suitable for:

Hotels
Shopping centers
Office buildings
Business facilities
Data Centers And Communication Systems

Provides reliable backup power for:

Server rooms
Communication stations
IT infrastructure
Remote Power Applications

Ideal for:

Mining operations
Oil fields
Rural projects
Off-grid locations
Prime Power And Standby Power Capability

The 50HZ Perkins Diesel Generator Set can be configured for different electricity requirements.

Prime Power Application

Suitable for:

Continuous power generation
Remote areas
Off-grid projects
Standby Power Application

Suitable for:

Emergency backup
Grid failure protection
Critical facilities

This flexibility makes it suitable for multiple industries.

Easy Maintenance And Long-Term Reliability

The Perkins diesel generator is designed for simple maintenance.

Advantages include:

Easy engine access
Convenient inspection
Simple filter replacement
Reduced service downtime

Regular maintenance helps achieve:

Stable operation
Longer equipment life
Lower maintenance costs
Main Features Of 50HZ Perkins Diesel Generator Set
Perkins diesel engine technology
Stable 50Hz frequency output
High fuel efficiency
Reliable alternator system
Intelligent control panel
Strong load adaptability
Durable industrial construction
Low maintenance requirements
Prime and standby power options
Wide application capability
Why Choose Our 50HZ Perkins Diesel Generator Set?
1. World-Class Perkins Engine Performance

Provides excellent reliability, durability, and fuel efficiency.

2. Stable 50Hz Power Output

Suitable for international electrical systems requiring 50Hz frequency.

3. Low Operating Costs

Efficient fuel consumption reduces long-term expenses.

4. Reliable Industrial Design

Built for harsh environments and continuous operation.

5. Flexible Power Applications

Suitable for standby, prime, and emergency power supply.

6. Professional Service Support

We provide customized generator solutions, technical support, spare parts, and after-sales service.

FAQS
1. What is a 50HZ Perkins Diesel Generator Set?

A 50HZ Perkins Diesel Generator Set is a diesel power generation system equipped with a Perkins engine and designed to provide stable 50Hz electricity output.

2. Where are Perkins diesel generators commonly used?

They are widely used in factories, hospitals, construction sites, commercial buildings, mining projects, and remote areas.

3. What are the benefits of Perkins diesel engines?

Perkins engines offer reliable performance, excellent fuel efficiency, strong durability, and long service life.

4. Can this generator provide standby power?

Yes. It is widely used as an emergency backup power system for critical applications.

5. Can it operate continuously?

Yes. With proper configuration and maintenance, it can provide reliable prime power operation.

6. Why choose a 50Hz generator?

A 50Hz generator is designed for electrical systems and equipment requiring 50Hz frequency output.

7. Can the generator specifications be customized?

Yes. Generator power rating, enclosure design, control system, and accessories can be customized.

8. How should the generator be maintained?

Regular oil changes, filter replacement, inspections, and system checks are recommended according to operating conditions.
