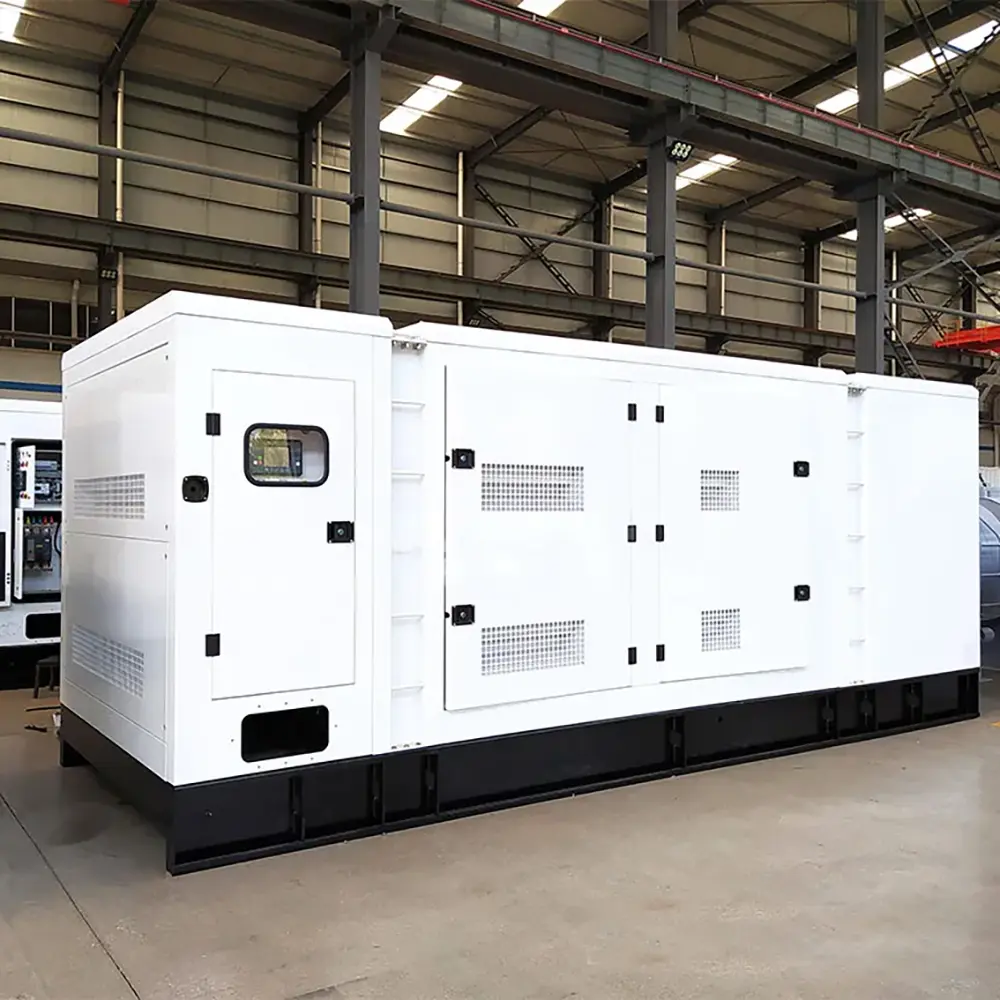

50HZ Cummins Diesel Generator Set

The 50Hz Cummins Diesel Generator Set is powered by Cummins series diesel engines and designed for stable power supply in construction sites, hotels, hospitals, factories, aquaculture projects, coal mines, data and communication facilities, commercial buildings, industrial projects, oil fields, highways, ports, and temporary project environments. This 50Hz Cummins generator set series supports 400V, 6kV–10.5kV, 3P 4W configurations according to the provided model table. The series covers 16kW / 20kVA to 2500kW / 3125kVA prime power and 18kW / 22kVA to 2650kW / 3300kVA standby power, helping buyers select a suitable model for different load requirements. With Cummins diesel engine power, simple control, high reliability, long maintenance cycle, low vibration, low noise design, high-quality vibration damping pads, upgraded silent process, high-strength bent base frame, and digital control system options, this Cummins diesel genset provides a practical power solution for contractors, equipment dealers, EPC buyers, industrial users, and project owners.

The 50HZ Cummins Diesel Generator Set is a reliable, efficient, and durable power generation solution designed for industrial, commercial, and emergency applications.

With advanced Cummins diesel engine technology, stable 50Hz frequency output, excellent fuel efficiency, intelligent control functions, and heavy-duty construction, it provides dependable electricity wherever reliable power is required.

Whether used for factories, hospitals, construction projects, data centers, mining operations, or remote locations, the 50HZ Cummins Diesel Generator Set delivers outstanding performance, long service life, and excellent economic value.

Genset Model	Standby Power KW/KVA	Prime Power KW/KVA	Engine Model	No. of Cylinder	Bore×Stroke mm	Overall Size mm	Gross Weight kg
SC22GF/K/S	18/22	16/20	4B3.9-G11	4.L	102×120	1650×700×1185	800
SC28GF/K/S	22/28	20/25	4B3.9-G1	4.L	102×120	1650×700×1185	850
SC28GF/K/S	22/28	20/25	4B3.9-G2	4.L	102×120	1650×800×1315	850
SC33GF/K/S	27/33	24/30	4BT3.9-G1	4.L	102×120	1700×700×1190	900
SC33GF/K/S	27/33	24/30	4BT3.9-G2	4.L	102×120	1700×700×1190	900
SC42GF/K/S	33/42	30/37.5	4BT3.9-G2	4.L	102×120	1700×700×1190	900
SC42GF/K/S	33/42	30/37.5	4BTA3.9-G2	4.L	102×120	1700×700×1190	900
SC55GF/K/S	44/55	40/50	4BTA3.9-G2	4.L	102×120	1750×800×1260	950
SC70GF/K/S	56/70	50/62.5	4BTA3.9-G11	4.L	102×120	1900×800×1500	1180
SC85GF/K/S	68/85	60/75	4BTA3.9-G11	4.L	102×120	1900×800×1500	1180
SC110GF/K/S	88/110	80/100	6BT5.9-G1	6.L	102×120	2250×880×1445	1480
SC110GF/K/S	88/110	80/100	6BT5.9-G2	6.L	102×120	2250×880×1445	1480
SC110GFA/K/S	88/110	80/100	4BTA3.9-G13	4.L	102×120	1900×800×1500	1250
SC140GF/K/S	112/140	100/125	6BTA5.9-G2	6.L	102×120	2250×880×1530	1500
SC165GF/K/S	132/165	120/150	6BTAA5.9-G12	6.L	102×120	2400×880×1530	1580
SC200GF/K/S	160/200	150/187.5	6CTA8.3-G1	6.L	114×135	2400×900×1620	1905
SC200GF/K/S	160/200	150/187.5	6CTA8.3-G2	6.L	114×135	2400×900×1620	1905
SC220GF/K/S	176/220	160/200	6CTAA8.3-G2	6.L	114×135	2460×960×1650	2050
SC275GF/K/S	220/275	200/250	6LTAA8.9-G2	6.L	114×145	2550×1000×1780	2410
SC350GF/K/S	280/350	250/312.5	6LTAA9.5-G1	6.L	114×145	2850×1120×1750	2700
SC400GF/K/S	320/400	300/375	6ZTAA13-G3	6.L	130×163	3100×1380×2000	3500
SC400GFA/K/S	320/400	300/375	NTAA855-	6.L	140×152	3185×1120×2050	3490
SC450GFA/K/S	360/450	320/400	NTAA855-G7	6.L	140×152	3185×1120×2050	3490
SC450GF/K/S	360/450	320/400	6ZTAA13-G2	6.L	130×163	3100×1380×2000	3500
SC500GF/K/S	400/500	360/450	6ZTAA13-G4	6.L	130×163	3250×1360×2065	3600
SC500GFA/K/S	400/500	360/450	KTA19-G3	6.L	159×159	3480×1380×2200	4600
SC550GF/K/S	440/550	400/500	QSZ13-G3	6.L	130×163	3250×1360×2065	3600
SC550GFA/K/S	440/550	400/500	KTA19-G3A	6.L	159×159	3480×1380×2200	4600
SC625GF/K/S	500/625	450/562.5	QSZ13-G10	6.L	130×163	3250×1360×2065	3800
SC625GFA/K/S	500/625	450/562.5	KTAA19-G6	6.L	159×159	3600×1550×2300	5000
SC700GF/K/S	560/700	500/625	KTAA19-G6A	6.L	159×159	3600×1550×2300	5000
SC825GF/K/S	660/825	600/750	KT38-G2	12.V	159×159	4400×1820×2450	7800
SC880GF/K/S	704/880	640/800	KT38-G2B	12.V	159×159	4400×1820×2450	7800
SC1000GF/K/S	800/1000	720/900	KT38-G2A	12.V	159×159	4400×1820×2450	7800
SC1100GF/K/S	880/1100	800/1000	KT38-G5	12.V	159×159	4400×1820×2450	7900
SC1250GF/K/S	1000/1250	900/1125	KT38-G9	12.V	159×159	4420×1850×2450	8000
SC1375GF/K/S	1100/1375	1000/1250	KTA50-G3	16.V	159×159	5000×2020×2500	8250
SC1650GFK	1320/1650	1200/1500	KTA50-GS8	16.V	159×159	5650×2150×2520	10900
SC1800GFK	1440/1800	1320/1650	KTA50-G15	16.V	159×159	5550×2230×2720	11420
SC2200GFK	1760/2200	1600/2000	QSK60-G4	16.V	159×190	5660×2200×2550	14500
SC2500GFK	2000/2500	1800/2250	QSK60-G8	16.V	159×190	5660×2200×2550	14500
SC2750GFK	2200/2750	2000/2500	QSK60-G23	16.V	159×190	6100×2600×2800	17000
SC3000GFK	2400/3000	2200/2750	QSK78-G9	18.V	170×190	6750×2750×3160	20500
SC3300GFK	2650/3300	2500/3125	QSK95-G5	16.V	190×210	7100×2800×2900	25000

50HZ Cummins Diesel Generator Set

The 50HZ Cummins Diesel Generator Set is a high-performance and reliable power generation solution designed to provide stable electricity for industrial, commercial, and emergency applications. Equipped with a world-class Cummins diesel engine and a high-efficiency alternator system, this generator set delivers consistent 50Hz frequency power output for electrical systems requiring dependable energy supply.

Cummins diesel engines are globally recognized for their outstanding reliability, fuel efficiency, durability, and excellent performance under demanding working conditions. Combined with advanced generator technology, the 50HZ Cummins Diesel Generator Set provides a complete power solution for factories, hospitals, construction sites, data centers, commercial buildings, mining operations, communication facilities, and remote areas.

Compared with conventional generator systems, this Cummins diesel generator offers:

Stable 50Hz electricity output
Excellent fuel economy
Strong load acceptance capability
Reliable continuous operation
Low maintenance requirements
Long operating lifespan

The 50HZ Cummins Diesel Generator Set is an ideal choice for customers requiring dependable prime power or standby backup power solutions.

Advanced Cummins Diesel Engine Performance

The core advantage of the 50HZ Cummins Diesel Generator Set is its powerful Cummins diesel engine technology.

Cummins engines are known worldwide for:

High reliability
Strong power output
Advanced combustion efficiency
Low fuel consumption
Long service life

The optimized engine design ensures efficient fuel utilization while maintaining stable power output.

The Cummins diesel engine is suitable for:

Industrial electricity generation
Emergency backup power
Continuous operation
Remote power supply projects

Its proven technology allows reliable performance in harsh and demanding environments.

Stable 50HZ Frequency Power Output

The 50HZ Cummins Diesel Generator Set is specifically designed to provide accurate 50Hz frequency electricity output.

The generator system delivers:

Stable voltage regulation
Precise frequency control
Reduced electrical fluctuations
Reliable power quality

50Hz output is widely used in:

International electrical markets
Industrial equipment
Commercial buildings
Agricultural facilities
Communication systems

Stable power supply helps ensure safe operation of electrical equipment and reduces downtime.

High Fuel Efficiency And Economic Operation

Cummins diesel technology provides excellent fuel efficiency through advanced combustion design.

Key benefits include:

Lower fuel consumption
Reduced operating expenses
Longer continuous running time
Improved energy utilization

The 50HZ Cummins Diesel Generator Set helps customers achieve reliable power generation while controlling long-term operating costs.

It is especially suitable for:

Factories requiring continuous power
Remote projects
Backup energy systems
Industrial applications
Reliable Alternator System

The generator set is equipped with a premium alternator designed for efficient electricity production.

Alternator advantages include:

High electrical conversion efficiency
Stable voltage output
Strong overload resistance
Long service lifespan

The combination of Cummins engine technology and high-quality alternator performance creates a complete and reliable power generation system.

Intelligent Control System

The 50HZ Cummins Diesel Generator Set features an advanced control system for convenient operation and monitoring.

Control functions include:

Automatic start and stop
Voltage monitoring
Frequency monitoring
Fault alarm protection
Emergency shutdown functions

Optional remote monitoring systems allow operators to manage generator status more efficiently.

The intelligent control system improves:

Operation safety
Maintenance efficiency
Power management
User convenience
Heavy-Duty Industrial Structure

Designed for demanding applications, the 50HZ Cummins Diesel Generator Set features a strong and durable construction.

Main design advantages include:

Heavy-duty steel base frame
Anti-vibration system
Reliable cooling structure
High-quality components
Protective enclosure options

The generator can operate reliably in:

Industrial plants
Construction sites
Outdoor environments
Mining areas
Remote locations

The durable structure ensures long-term operation and reduced maintenance downtime.

Efficient Cooling And Safety Protection

The advanced cooling system maintains stable engine performance during long operating periods.

Benefits include:

Effective heat dissipation
Improved engine protection
Stable operation under heavy loads
Extended component lifespan

Protection systems may include:

High coolant temperature alarm
Low oil pressure protection
Overload protection
Short circuit protection

These safety features improve equipment reliability and operator safety.

Wide Application Areas
Industrial Manufacturing

The 50HZ Cummins Diesel Generator Set is widely used for:

Factory production lines
Industrial machinery
Manufacturing facilities
Emergency power supply
Construction Projects

Applications include:

Building construction
Infrastructure projects
Road development
Temporary electricity supply
Healthcare Facilities

Used for:

Hospitals
Clinics
Medical equipment backup
Emergency power systems

Reliable electricity ensures continuous operation of critical equipment.

Data Centers And Communication Systems

Suitable for:

Server rooms
Data centers
Communication stations
IT infrastructure backup
Mining And Remote Power Applications

Provides reliable electricity for:

Mining operations
Oil fields
Rural areas
Off-grid projects
Prime Power And Standby Power Capability

The 50HZ Cummins Diesel Generator Set can be configured for different power requirements.

Prime Power Application

Suitable for:

Continuous electricity generation
Remote power stations
Off-grid operations
Standby Power Application

Suitable for:

Emergency backup
Grid outage protection
Critical facilities

Its flexible configuration allows use across many industries.

Easy Maintenance And Long Service Life

The Cummins diesel generator set is designed for convenient maintenance.

Advantages include:

Easy access to engine components
Simple service procedures
Convenient oil and filter replacement
Reduced downtime

Regular maintenance helps achieve:

Stable performance
Longer service life
Lower ownership costs
Main Features Of 50HZ Cummins Diesel Generator Set
Genuine Cummins diesel engine technology
Stable 50Hz frequency output
High fuel efficiency
Strong load acceptance capability
Reliable alternator system
Intelligent controller system
Durable industrial structure
Low maintenance requirements
Prime and standby power capability
Wide application range
Why Choose Our 50HZ Cummins Diesel Generator Set?
1. Reliable Cummins Engine Technology

Provides proven performance, durability, and excellent fuel economy.

2. Stable 50Hz Power Output

Ensures dependable electricity supply for international applications.

3. Excellent Operating Efficiency

Reduces fuel costs while maintaining high performance.

4. Strong Industrial Reliability

Designed for harsh environments and continuous operation.

5. Flexible Power Solutions

Suitable for prime power, standby power, and emergency applications.

6. Professional Support Service

We provide customized generator solutions, technical assistance, spare parts, and after-sales support.

FAQS
1. What is a 50HZ Cummins Diesel Generator Set?

A 50HZ Cummins Diesel Generator Set is a diesel-powered electricity generation system equipped with a Cummins engine and designed to provide stable 50Hz power output.

2. Where can Cummins diesel generators be used?

They are widely used in factories, hospitals, construction sites, commercial buildings, data centers, mining projects, and remote areas.

3. What are the advantages of Cummins diesel engines?

Cummins engines provide reliable performance, strong power output, excellent fuel efficiency, and long service life.

4. Can this generator be used as a standby power source?

Yes. It is widely used for emergency backup power in critical facilities.

5. Can the generator run continuously?

Yes. With proper configuration and regular maintenance, it can provide reliable prime power.

6. Why choose a 50Hz diesel generator?

A 50Hz generator is designed for electrical systems and equipment requiring 50Hz frequency operation.

7. Can generator specifications be customized?

Yes. Power rating, enclosure type, controller system, fuel tank capacity, and accessories can be customized.

8. How often should the generator be maintained?

Maintenance intervals depend on operating hours, load conditions, and working environment. Regular inspection is recommended.
