504 Tractor, 50 HP Tractor 4WD with Deluxe Cabin, Fan, Cab Heater, Air Conditioner Technical Parameters

504 Tractor, 50HP Tractor 4WD with Deluxe Cabin, Fan, Warmer, Air Conditioner The tractor is adapted to the harsh climate, therefore it has a bridge, which is designed to work with tractors with a capacity of 50 hp..

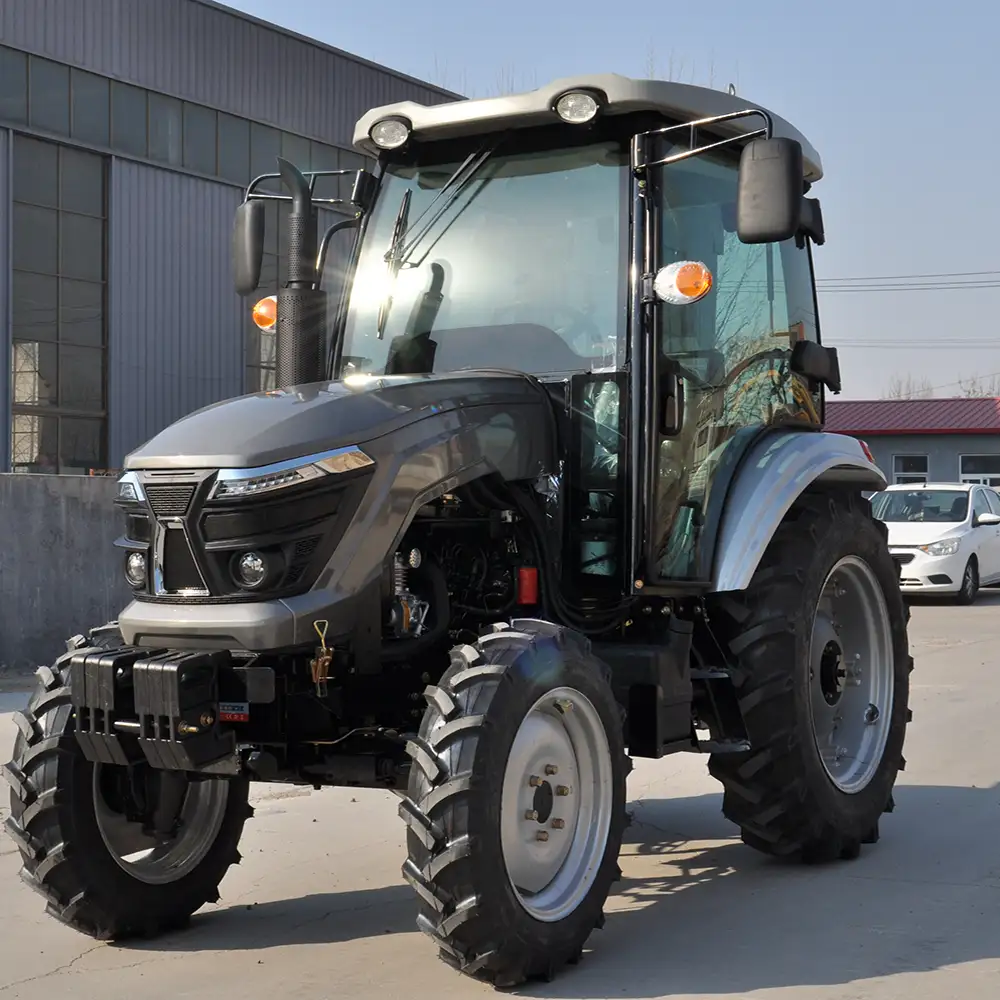

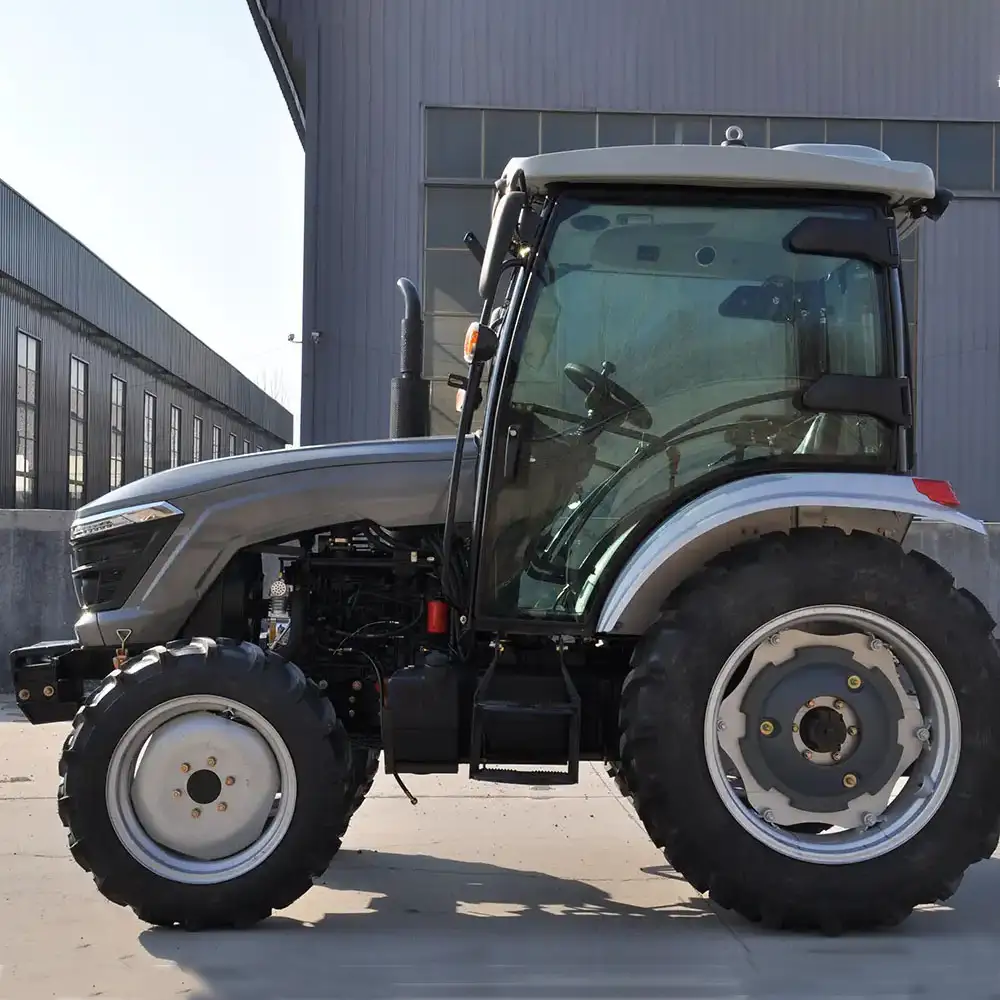

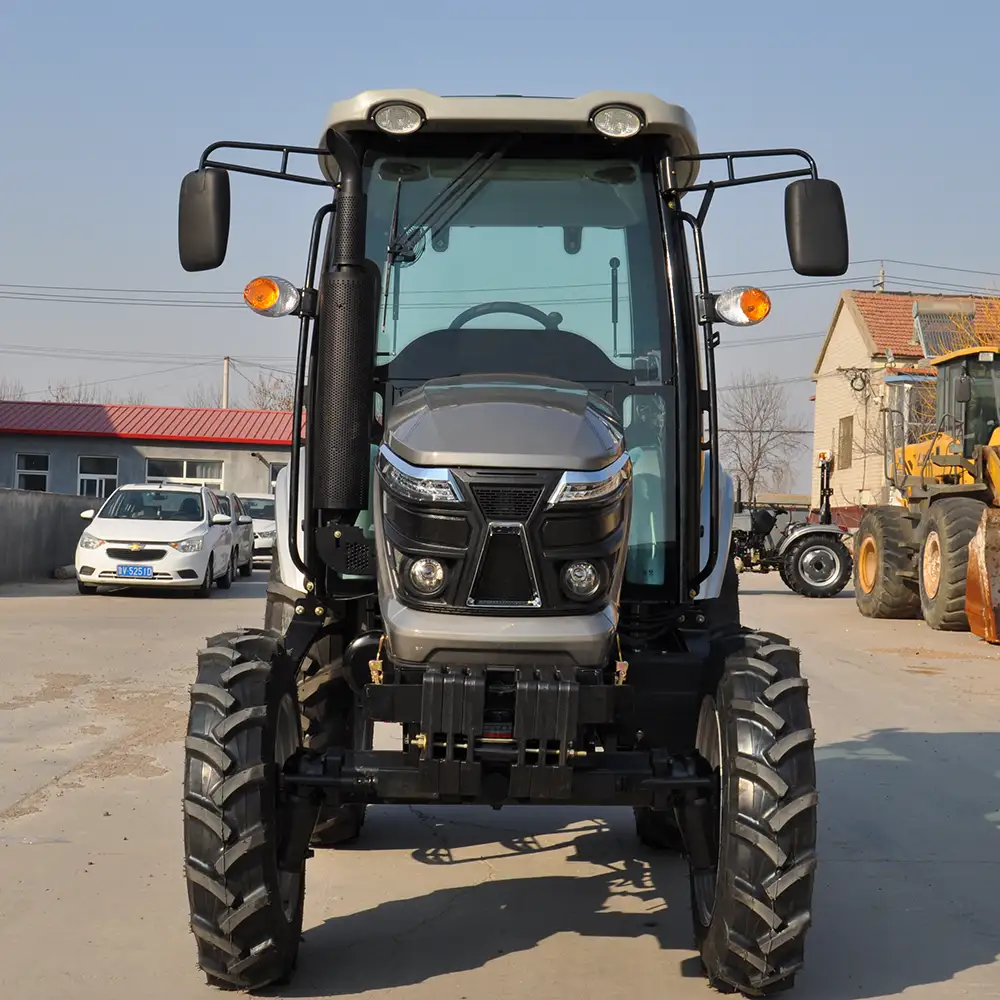

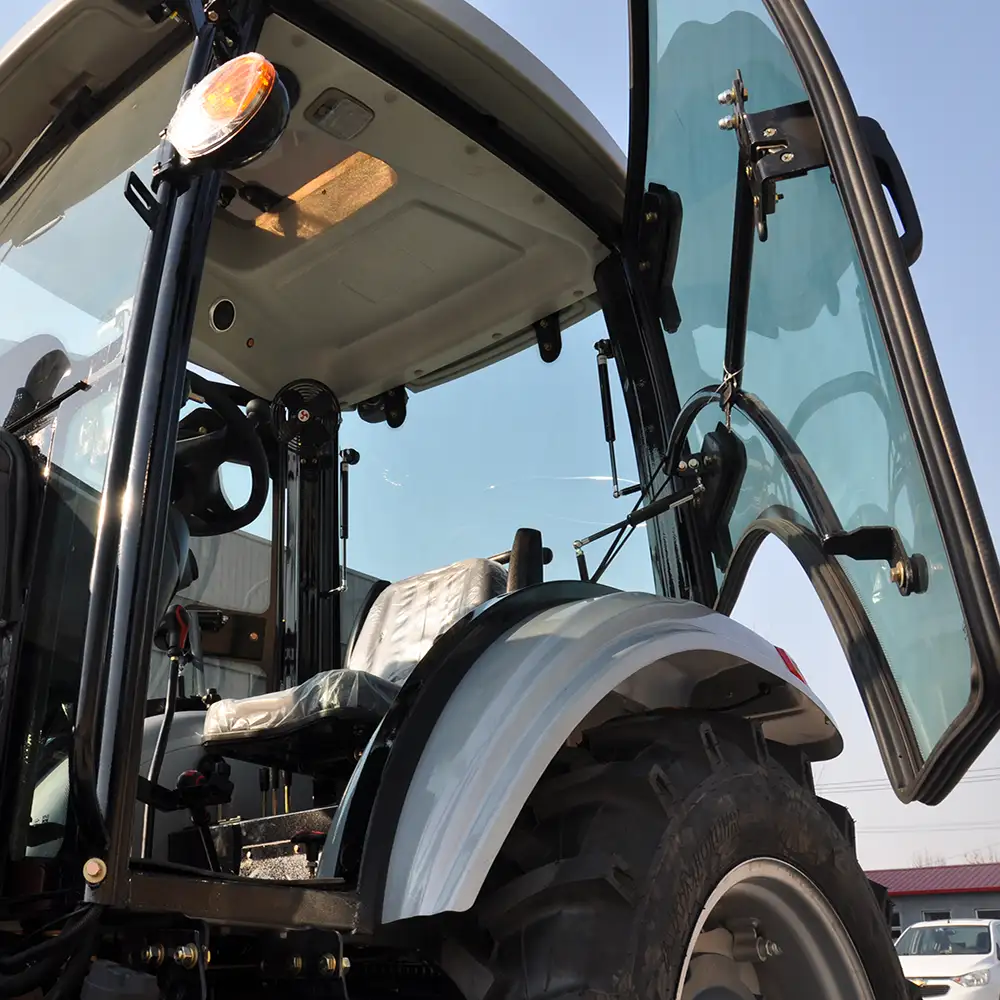

504 Tractor, 50HP Tractor 4WD with Deluxe Cabin, Fan, Warmer, Air Conditioner

The tractor is adapted to the harsh climate, therefore it has a bridge, which is designed to work with tractors with a capacity of 50 hp.
The attachment is connected to a three-point hitch with a maximum carrying capacity of up to 880 kg, as well as to a two-speed PTO shaft of 540/1000 rpm.
The tractor is made in a compact size for its class, with a small turning radius, for work in confined conditions

Overall dimensions, mm
Length 3800 | Width 1520 | Cab height at the top point 2880
Ground clearance, mm
340
Structural weight without attachments, kg
1890
Rear wheel size
11.2 "-24
Front wheel size
6.50 "-16
Track, mm
1400
PTO type and speed
Non-autonomous six-slot Ø35 with square splines, 540/760 rpm
Engine driven
Direct connection of the engine to the gearbox through the clutch
Transmission type
Mechanical
Number of gears
(4 forward + 1 backward) × 2
Differential lock
Rear axle planetary lock
Wheel formula
4x4 (all wheel drive)
Power steering (GUR)
Fully hydraulic steering gear with separate hydraulic circuit

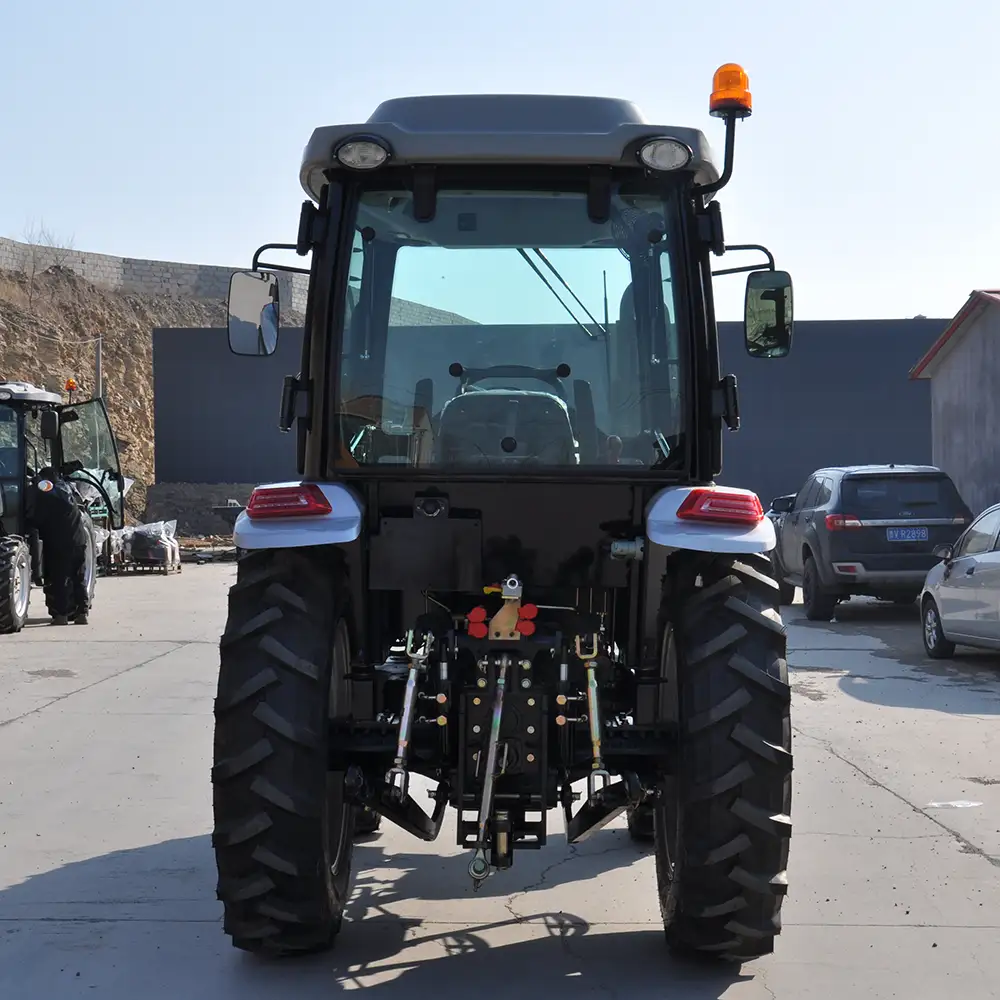

Rear linkage type
Three-point linkage system | 880 kg load capacity
Braking system type
Sealed disc brake, separate for each wheel
Clutch type
Single-disc, single-stage, dry, permanent mesh
Hydraulic distributor
Standard distributor for three-point suspension
Number of additional hydraulic outlets
1 pair of hydraulic valves
Light system
High and low beam | Turn signals | Marker Lights | Stop signal | Rear suspension light
Sound signal
Klaxon
Dashboard
Ammeter | Coolant temperature sensor | Oil pressure switch | Hour meter | Fuel level
Minimum turning radius, cm
430
Availability of a coupling device for a trailer
Mechanical hitch and electrical outlet
Compressor
Yes
Weights available as standard
Front ballast 90 kg
