20 Ton Single Line 3m Cutting And Punching Machine Technical Parameters

20 Ton Single Line 3m Cutting And Punching Machine is designed for automatic cutting and punching of steel tubes, square pipes, and metal profiles. With powerful hydraulic punching performance, it provides efficient and precise solutions for industria.

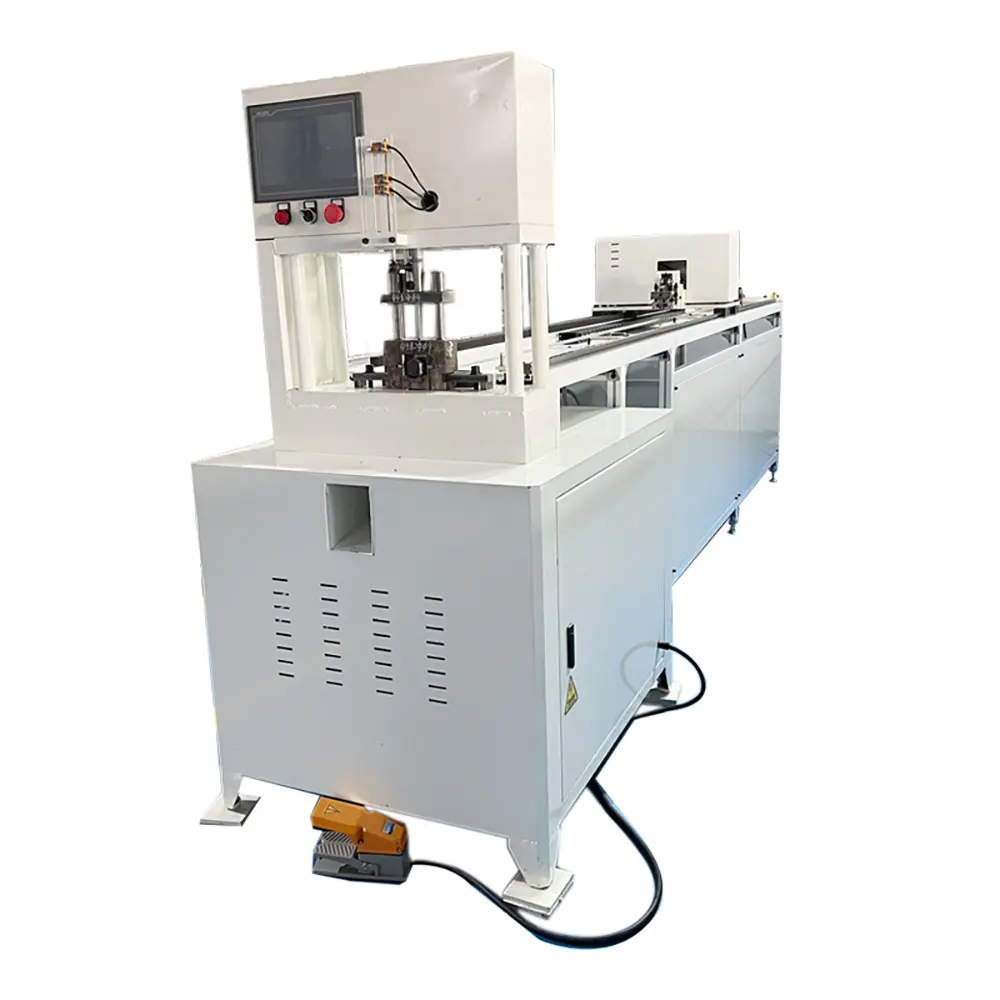

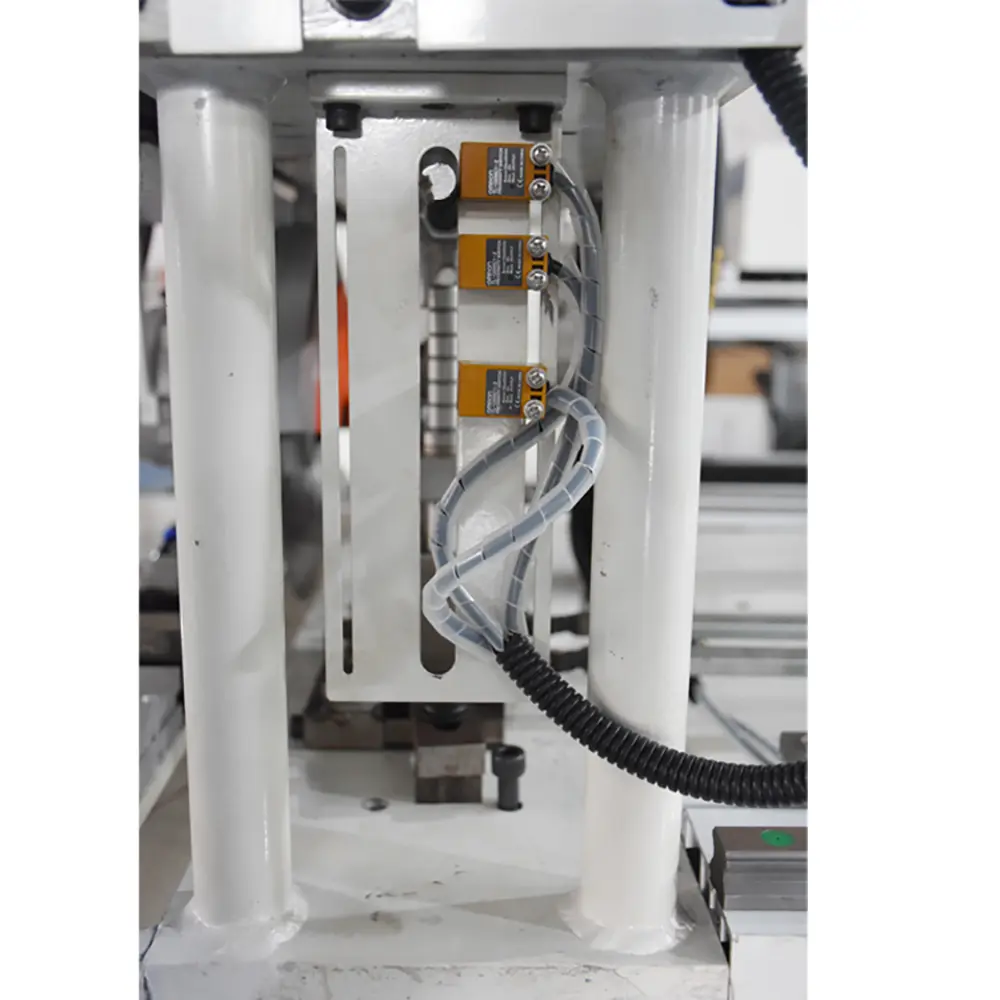

The 20 Ton Single Line 3m Cutting And Punching Machine is a high-performance automatic metal tube processing machine designed for cutting and punching operations on steel pipes, square tubes, rectangular tubes, and various metal profiles. Equipped with a powerful 20-ton hydraulic punching system, precision positioning technology, and efficient cutting functions, this machine provides a reliable solution for large-scale metal fabrication industries.

This equipment is widely used in steel structure manufacturing, furniture production, solar mounting systems, automotive components, construction materials, and industrial metal processing. Compared with traditional manual drilling and cutting methods, the 20 Ton Single Line Cutting And Punching Machine improves production efficiency, reduces labor costs, and ensures consistent processing accuracy.

With a 3-meter processing length and single-line punching design, this machine is suitable for factories requiring accurate hole punching and cutting of medium-length metal tubes with high production efficiency.

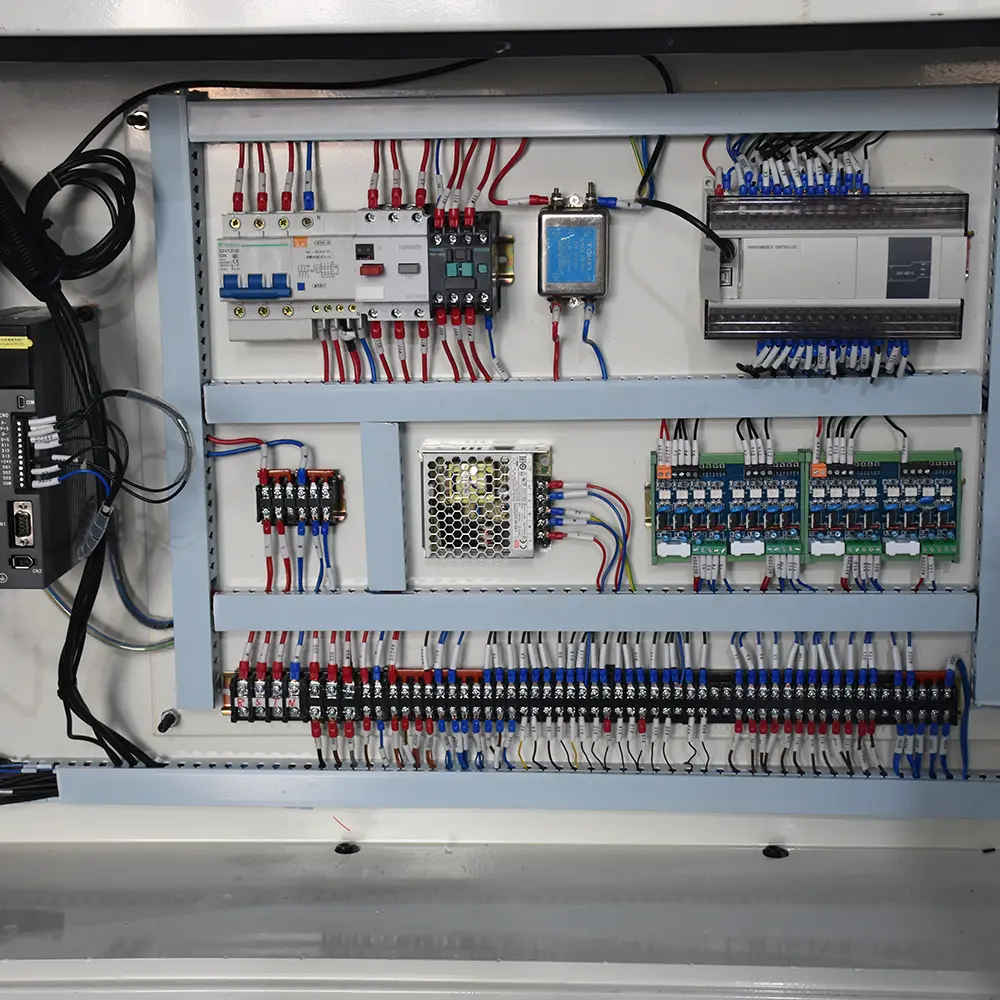

1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Structure: Steel plate welded structure
3. Mould replacement: change the dies easily without adjusting the dies to reduce mould damage rate , Skilled workers can change the mould within 10 minutes.
4. Punching Category: (1).single hole punching; (2).double hole punching; (3).Isometric hole punching; (4). none- Isometric hole punching,(5) rotary punching(only for round pipe).(6) punch from upward side and horizontal two sides
5. Hydraulic ,pneumatic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
7. double punching heads machine can punch hole with two hydraulic cylinders, or only one cylinder punch separately. Note: A mean single machine head, B mean double machine heads
The above data is standard configuration, it can be customized in feed length, oil pressure, operation system langue and so on ,also with cutting function or not. Just let us know what you need
Model 15TA 15TB 20TA 20TB
Feed length 3000 6000 3000 6000
Nominal force 150kn 250kn
Stroke 120mm 150mm
Max punch Thickness SS 2.4mm,MS:3mm SS 4mm,MS:5mm
Motor power 5.5kw 7kw
Punching capacity(metal thickness) ≤3mm ≤5mm
Fit to material Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on
Fit to shape Round, square, rectangle ,oval, angle steel
Tube and hole size Moulds can be customized as different requirement
Depend on tube material and thickness, also hole size,
Punching hole accuracy 0.01mm
Feed accuracy 0.1mm
Color white , or customized
Feed way
Slideway and servo motor
Control way PLC, 10 inch Touch Screen
Clamping way Pneumatic(air compressor is with machine)
programs stored 200 sets, each program store different processing message
Operation language Chinese and English, or customized
Voltage 220V,380V,415V,440v, customized as requirement
Cutting method(option ) Saw blade ,or hydraulic punch cutting


Measure
Machine head 1500x1000x1700mm

Feed frame
3500x600x12500mm(single,3m feed)
3500x900x12500mm(double,3m feed)
6500x600x12500mm(single,6m feed)
6500x900x12500mm(double,6m feed)
