  • 20 Ton Double Line Cutting CNC Automatictube/Profile/Pipe/Angle Hole Punch Machine Punching Machine
20 Ton Double Line Cutting CNC Automatictube/Profile/Pipe/Angle Hole Punch Machine Punching Machine Technical Parameters

20 Ton Double Line Cutting CNC Automatic Tube Profile Pipe Angle Hole Punching Machine is designed for high-speed cutting and punching of tubes,profiles,pipes,and angle steel. Advanced CNC control ensures precise and efficient metal processing..

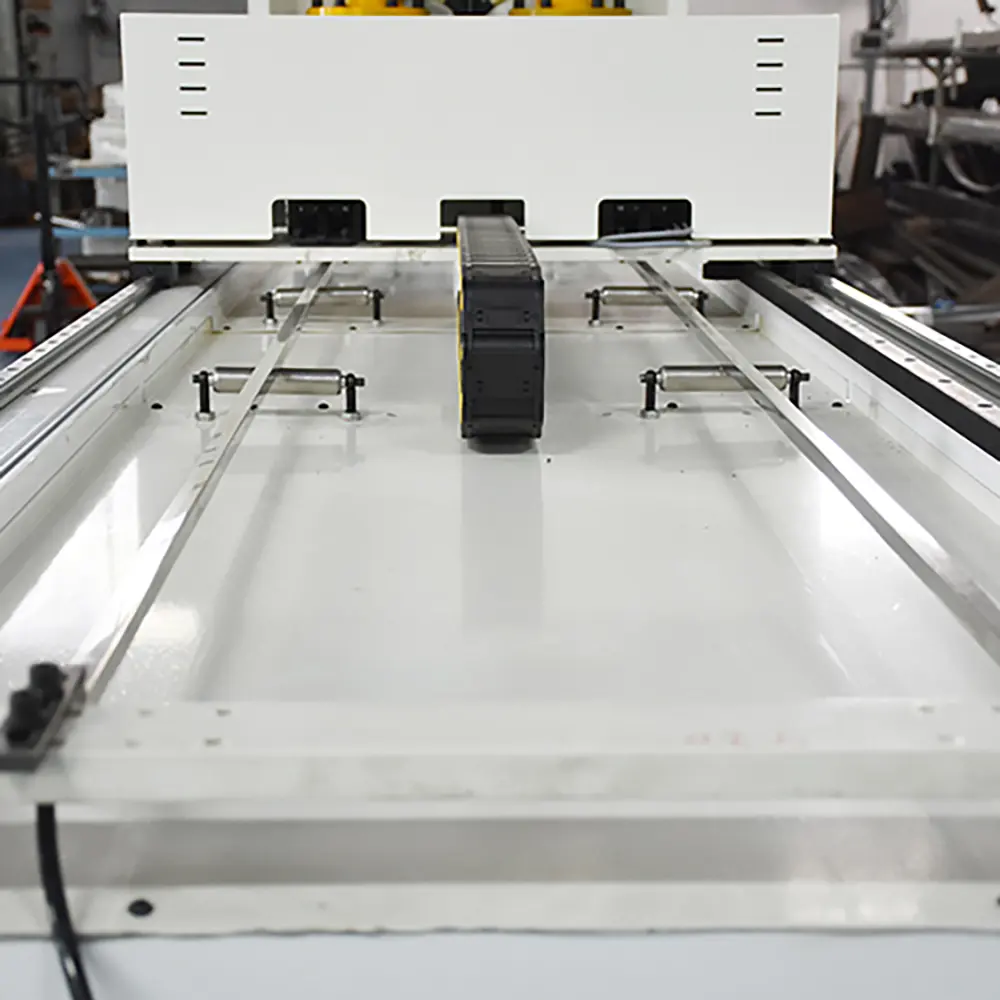

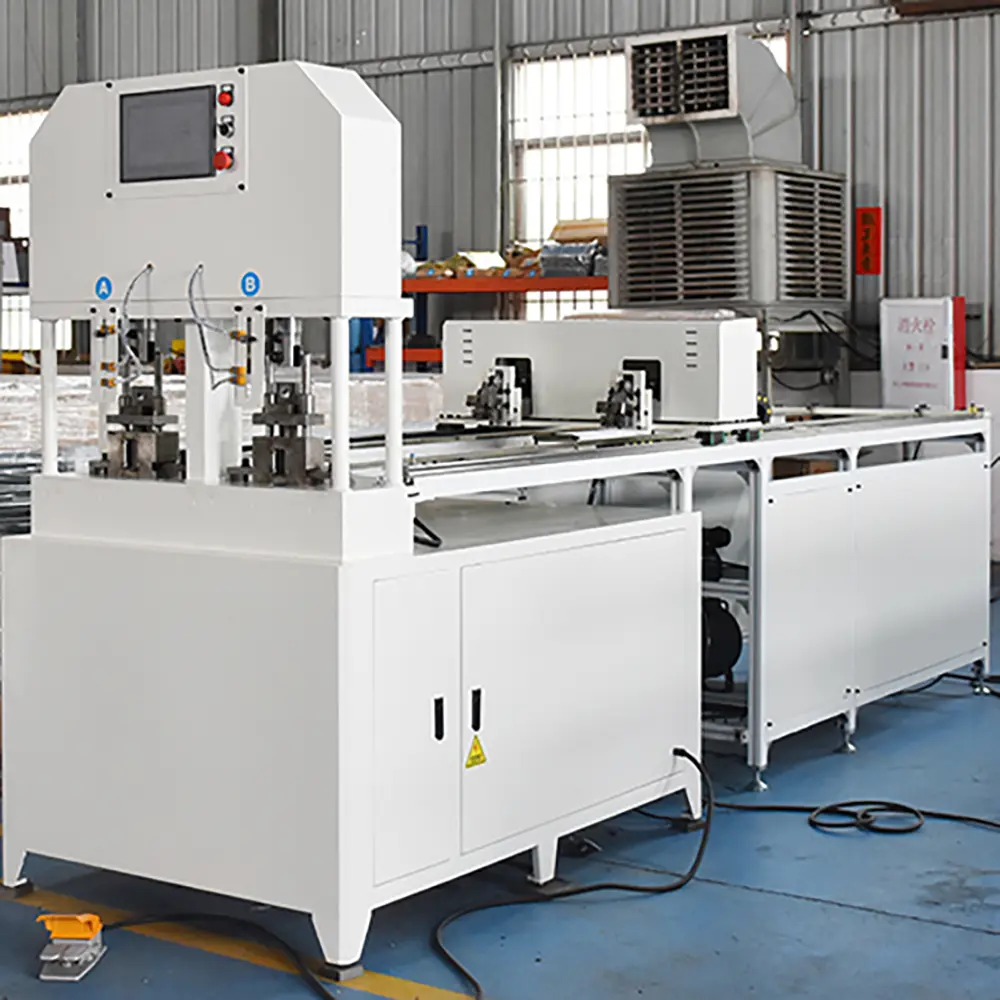

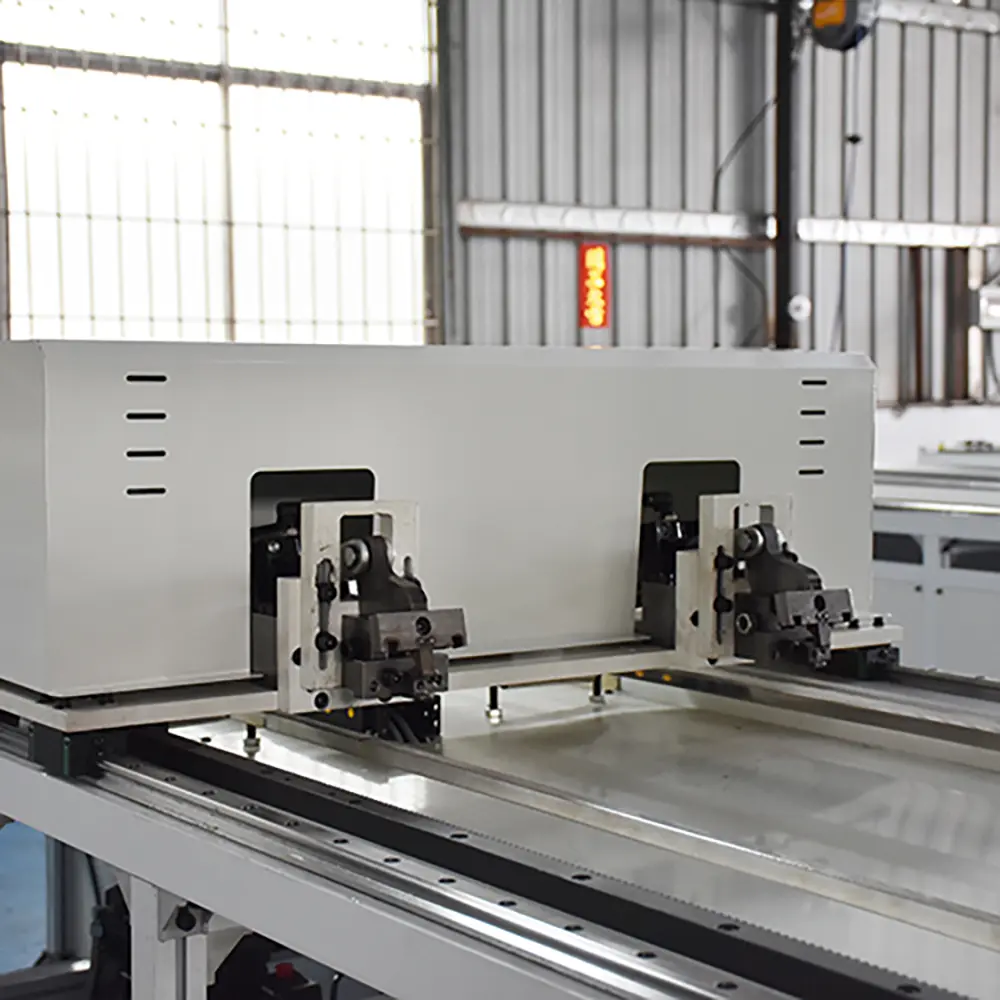

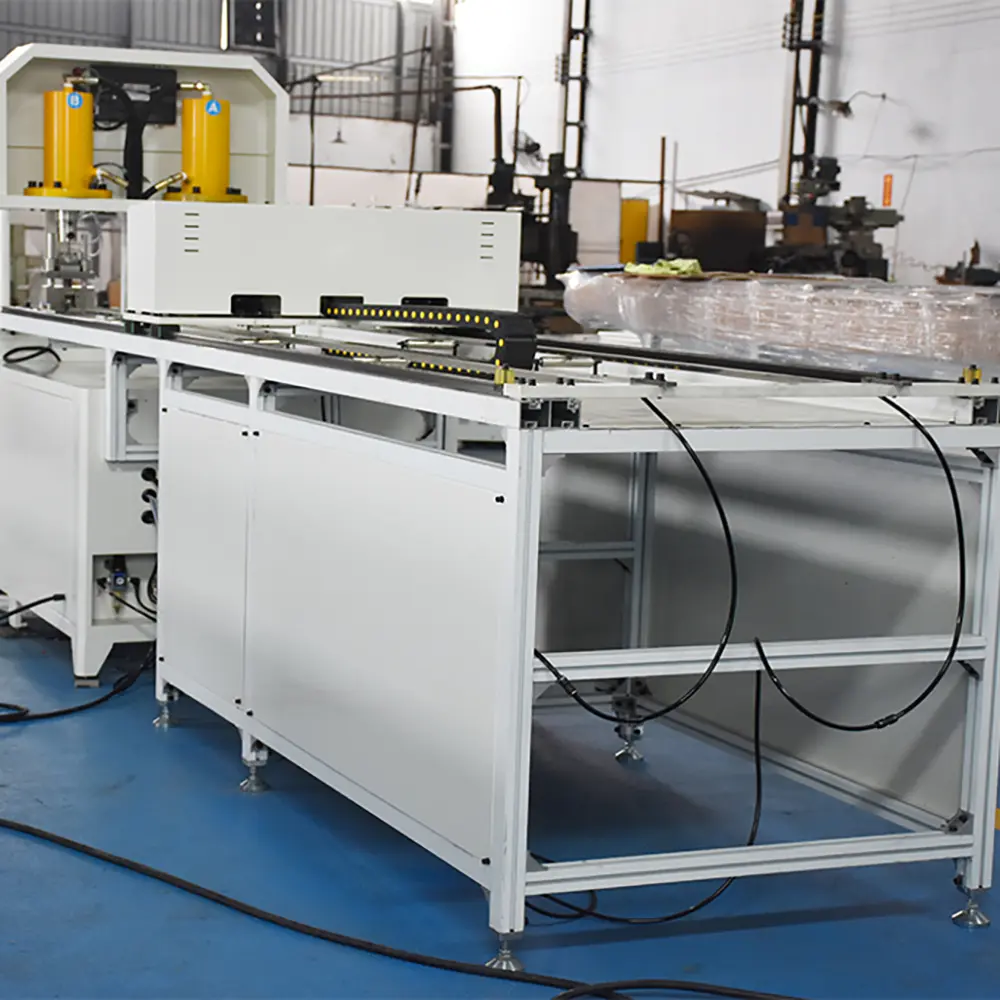

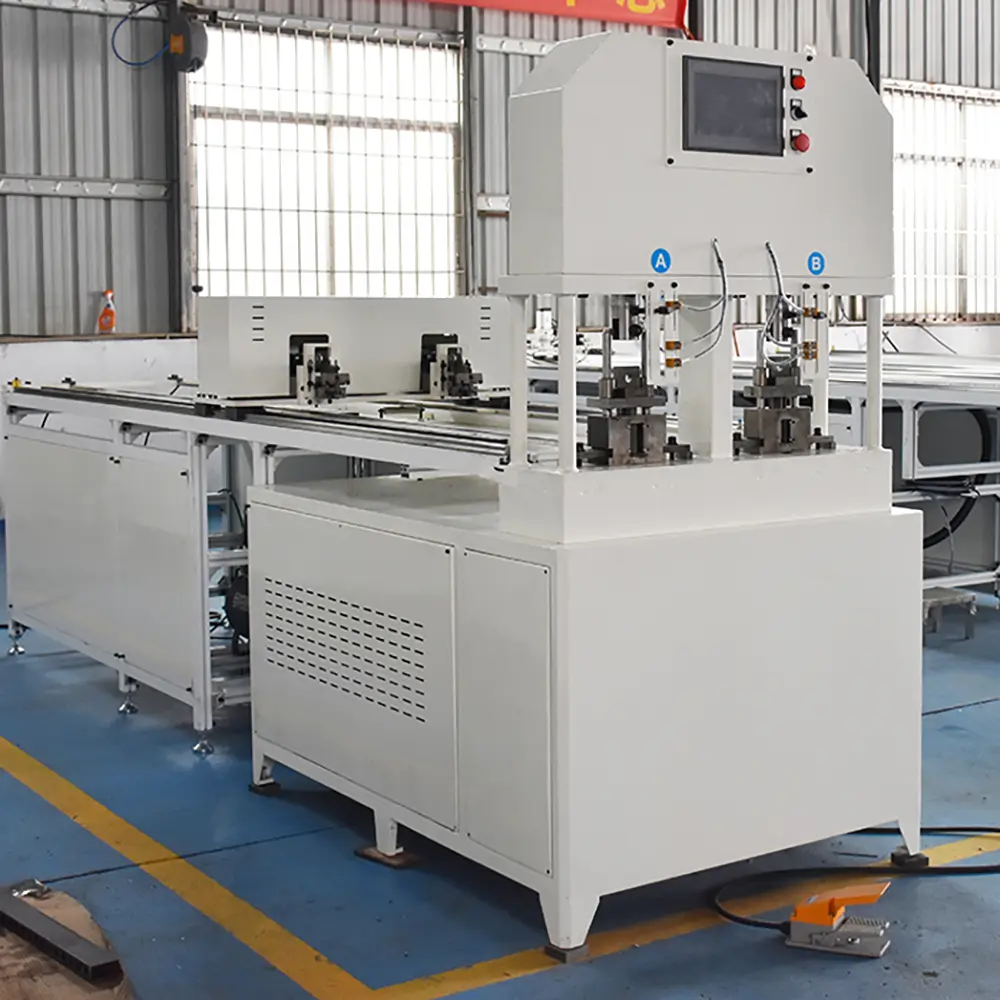

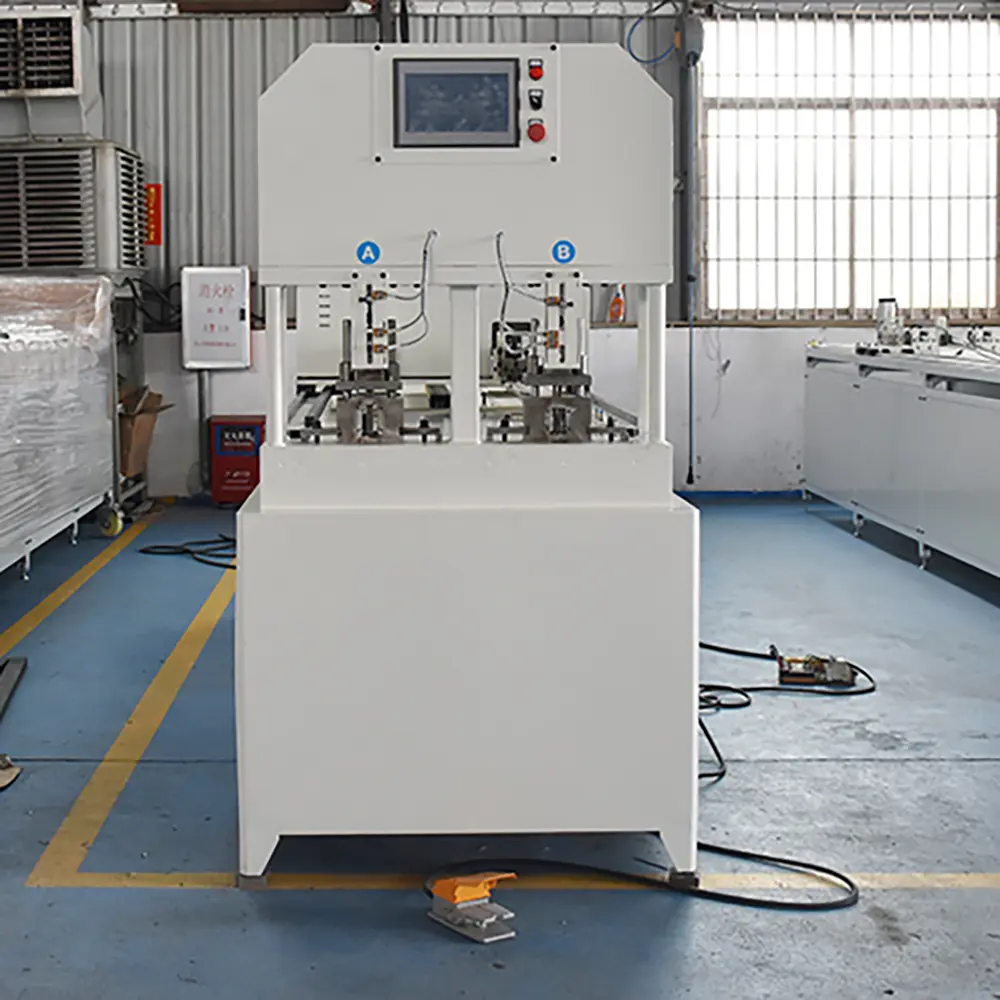

20 Ton Double Line Cutting CNC Automatic Tube Profile Pipe Angle Hole Punching Machine

The 20 Ton Double Line Cutting CNC Automatic Tube Profile Pipe Angle Hole Punching Machine is a high-efficiency automatic metal processing machine designed for precision cutting and multi-position punching of tubes,profiles,pipes,and angle steel. Equipped with a powerful 20-ton hydraulic punching system,double-line punching technology,and CNC automatic control,it provides an advanced solution for mass production in steel fabrication,furniture manufacturing,construction,solar mounting systems,and industrial metal processing.

Compared with traditional drilling and cutting methods,this CNC automatic punching machine combines feeding,positioning,punching,and cutting operations into one integrated system. It significantly improves production efficiency,reduces labor costs,and ensures consistent hole positioning and processing quality.

The machine is suitable for square tubes,rectangular tubes,round pipes,angle steel,and various metal profiles. With double-line punching capability,it is especially suitable for customers requiring high-volume production and higher processing speed.

1.Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
2. Structure: Steel plate welded structure
3. Mould replacement: change the dies easily without adjusting the dies to reduce mould damage rate , Skilled workers can change the mould within 10 minutes.
4. Punching Category: (1).single hole punching; (2).double hole punching; (3).Isometric hole punching; (4). none- Isometric hole punching,(5) rotary punching(only for round pipe).(6) punch from upward side and horizontal two sides
5. Hydraulic ,pneumatic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.

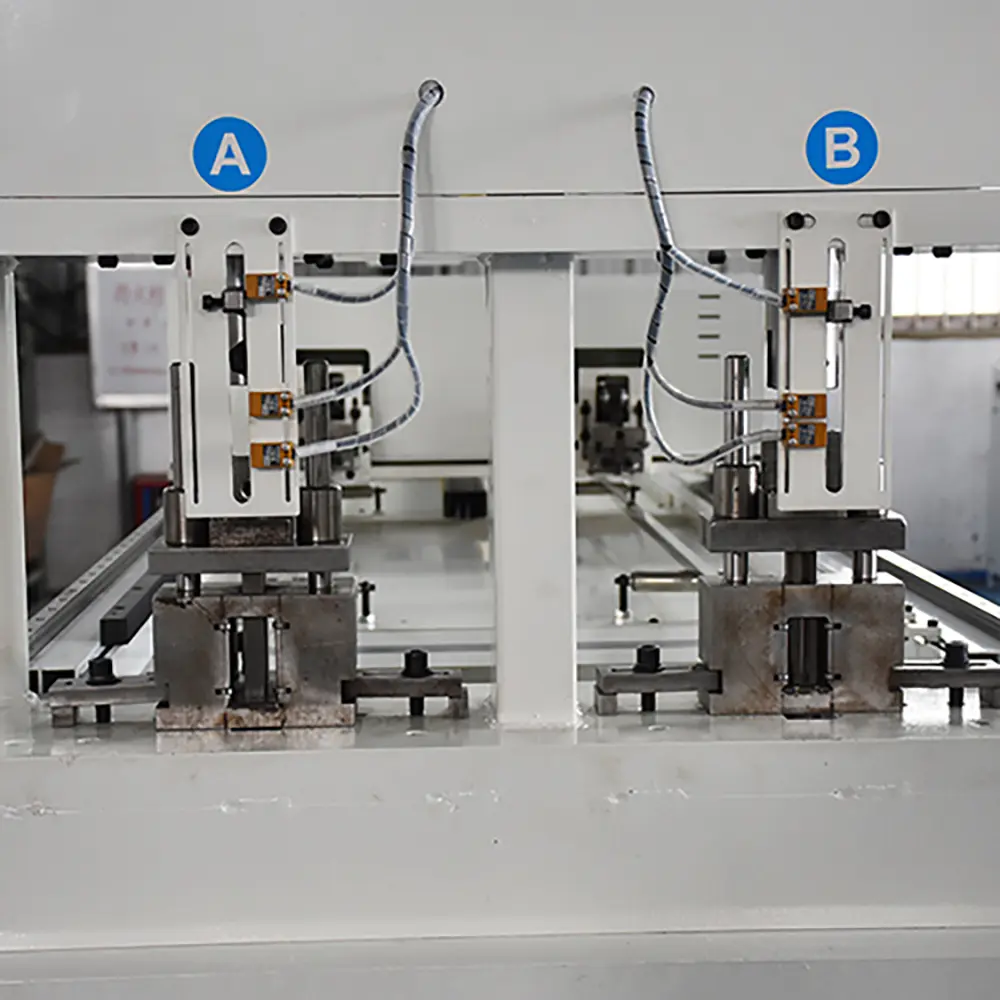

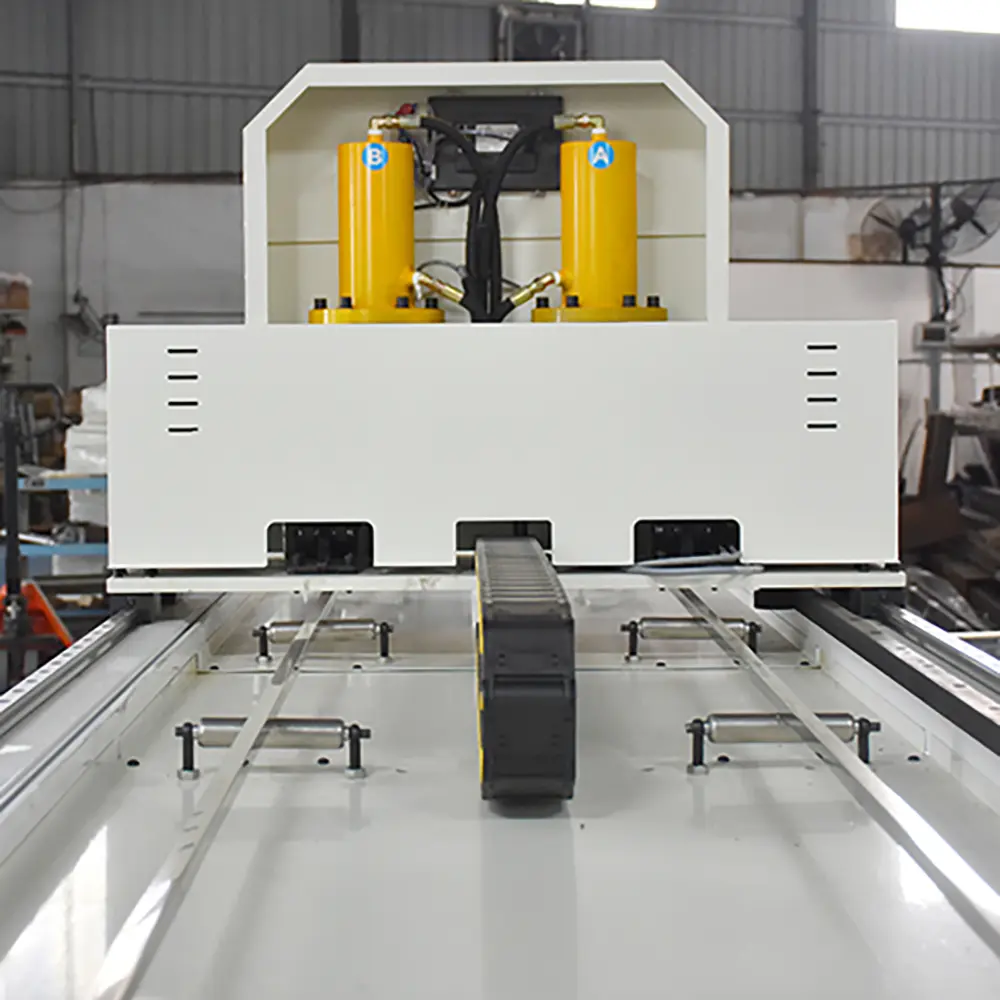

7. double punching heads machine can punch hole with two hydraulic cylinders, or only one cylinder punch separately. Note: A mean single machine head, B mean double machine heads
The above data is standard configuration, it can be customized in feed length, oil pressure, operation system langue and so on ,also with cutting function or not. Just let us know what you need.
Products Description
Model 15TA 15TB 20TA 20TB
Feed length 3000 6000 3000 6000
Nominal force 150kn 250kn
Stroke 120mm 150mm
Max punch Thickness SS 2.4mm,MS:3mm SS 4mm,MS:5mm
Motor power 5.5kw 7kw
Punching capacity(metal thickness) ≤3mm ≤5mm
Fit to material Fiberglass Carbon steel, stainless , copper, aluminum, iron, and so on
Fit to shape Round, square, rectangle ,oval, angle steel
Tube and hole size Moulds can be customized as different requirement
Depend on tube material and thickness, also hole size,
Punching hole accuracy 0.01mm
Feed accuracy 0.1mm
Color white , or customized
Feed way Slideway and servo motor
Control way PLC, 10 inch Touch Screen
Clamping way Pneumatic(air compressor is with machine)
programs stored 200 sets, each program store different processing message
Operation language Chinese and English, or customized
Voltage 220V,380V,415V,440v, customized as requirement
Cutting method(option ) Saw blade ,or hydraulic punch cutting


Measure
Machine head 1500x1000x1700mm

Feed frame
3500x600x12500mm(single,3m feed)
3500x900x12500mm(double,3m feed)
6500x600x12500mm(single,6m feed)
6500x900x12500mm(double,6m feed)
