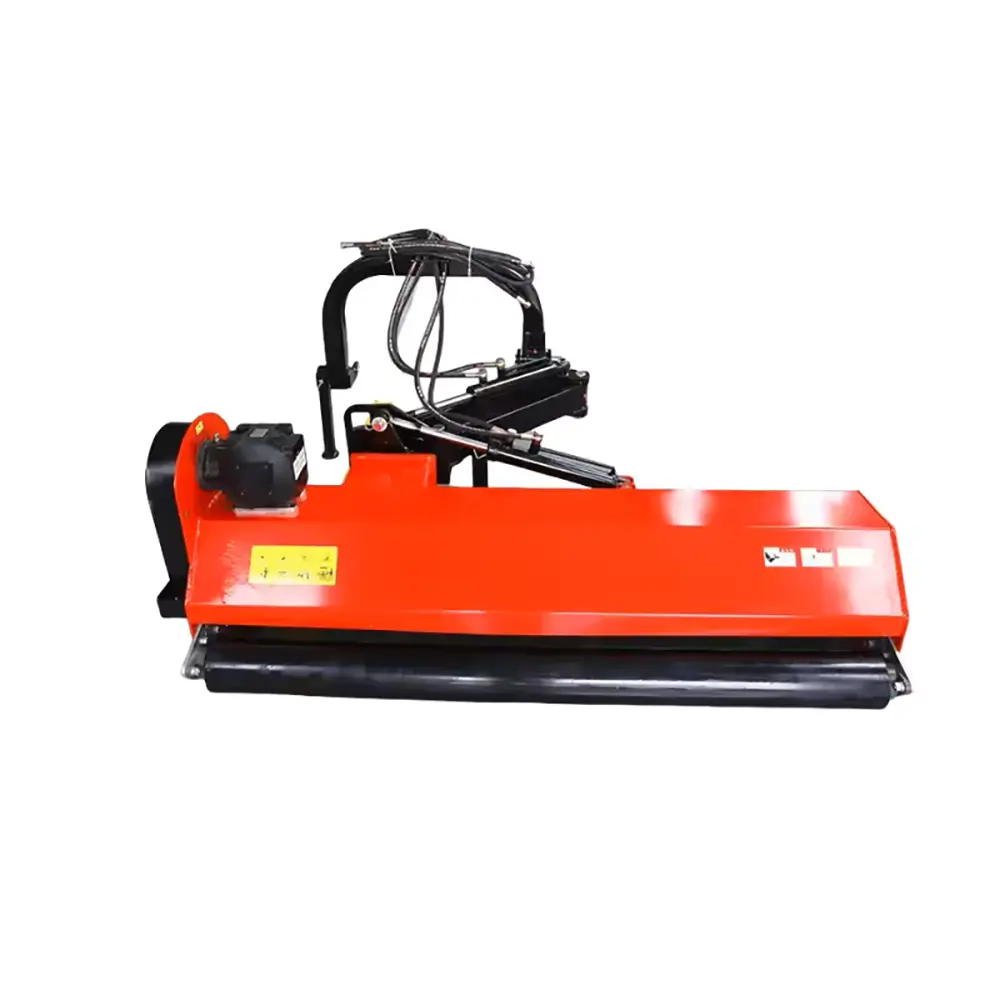

Side Shift Flip Flail Lawn Mower

Technical Data	EFGC-135	EFGC-155	EFGC-175	EFGC-195
Dimensions (LxWxH)	162x94x83cm / 64x37x33inch	182x94x83cm / 72x37x33inch	202x94x83cm / 80x37x33inch	222x94x83cm / 88x37x33inch
total weight	287kg / 634lbs	304kg / 670lbs	323kg / 712lbs	343kg / 135cm / 756lbs
cutting width	135cm / 53inch	155cm / 61inch	175cm / 68inch	195cm / 76inch
adjustable mowing height	2-8cm / 0.75-2.95inch
3-point hitch	Cat I (Cat II bushings included)
PTO shaft, clockwise	540 RPM
PTO shaft length	100cm / 39inch
working efficiency per hour(approx.)	5000-10000m2 / 1.3–2.6acre	5000-10000m2 / 1.5–3acre	7000-14000m2 / 1.7–3.4acre	8500-17000m2 / 2.1–4.2acre
drive system	3 belt system		4 belt system
tractor engine power; recommended	25-40hp / 18-30KW	30-40hp / 22-30KW	40-55hp / 30-41KW	45-60hp / 34-45KW
material strength flail shaft cover	4mm / 0.15inch
material strength side walls	6mm / 0.23inch
painting	powder coating
flail form	forged steel hammer (Y-knives available)
number of flails (separately exchangable)	18	22	26	28
weight per flail	800gr / 1.76lb
RPM of flail shaft	2200RPM
transport box (LxWxH)	163x83x81cm / 64x33x32inch	183x3x81cm / 72x33x32inch	203x83x81cm / 80x33x32inch	223x83x81cm / 88x33x32inch

EFGC flail mower for small and medium tractors with 25hp to 60hp with CAT I. 3-point hitch.
Application:
The Twins Industry EFGC(middle duty) flail mower series is ideal for tractors with 20 to 65hp, up to 100cm/40inch grass height. Twins Industry EFGC mower has a reinforced transmission making it the perfect choice for maintaining large fields, plantations, wine yards or horse paddocks. With available working widths of up to 195cm Twins Industry performance EFGC mowers will help you to find a perfect match for your tractor and the job you need to do. Twins Industry EFGC mower use 18 to 28 large, forged and galvanized high performance hammer knives (depending on working width) - each with a weight of 800gram/1.76lb - that ensure a perfect mowing result on grass, undergrowth and bushes of up to 25mm/1inch diameter.


Comer Transmission. Twins Industry EFGC flail mower use transmission from Comer Industries.
SKF ball bearing for rotor shaft. Twins Industry EFGC mower is with rotor shaft with SKF ball bearings and CNC bearing seats.
Stainless steel grease nipples. Twins Industry EFGC mower is stainless steel grease nipples.

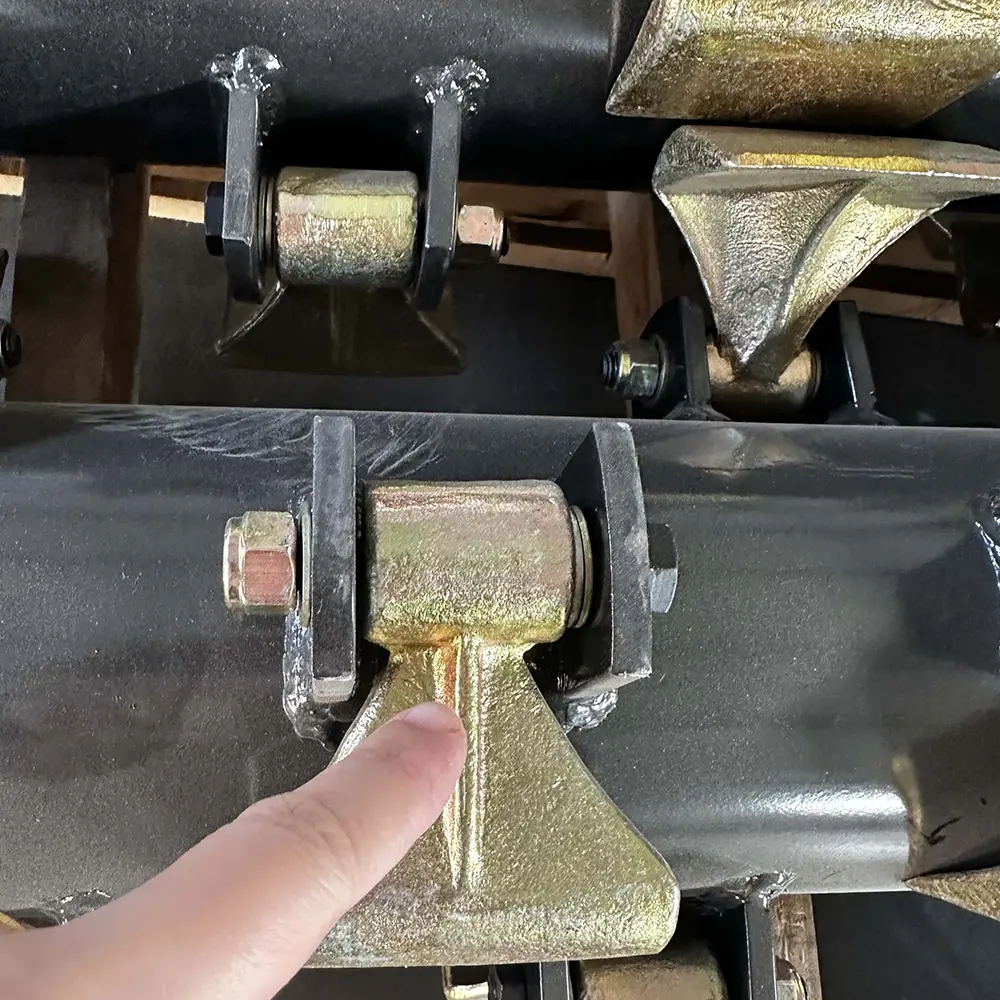

Forged flail hammer. Twins Industry EFGC is with forged and galvanized high performance hammer knives, each weight is 800gram/1.76lb.
Replaceable counter knife. The new replaceable counter knife, integrated in the mower housing, are helping to do an even more efficient job as before.
Heavy duty roller. The mowing height is adjusted by the heavy, ball-bearing mounted self cleaning rear roller which is 133mm / 5.3inch diameter, to prevent the mower from cutting into the ground on bumpy surface.
Heavy duty front flaps. The mower′s front is equipped with heavy duty safety flaps to prevent debris and stones being thrown out of the machine.
Wooden packing box. The completely assembled machine is delivered in the massive Twins Industry wooden boxes. Just the improved Cat-1 3-point hitch (Cat-2 bushings are included) and the front and rear safety bar have to be assembled, taking you less than 30min. We offer an assembly guide with photos to assist you.
Electronically balanced rotor. Like all other Twins Industry mowers, the EFGC series has an electronically balanced rotor shaft which is driven by 3 or 4 belts depending on the working width. Despite the high flail hammer knife weight of 800gr each, this guarantees an almost 100% power transfer rate with virtually 0% belt slippage. The new Nova belt cover is unique in the EFGC mower class. The correct belt tension can be checked within seconds without having to remove the belt cover. This makes service and maintenance a lot easier than before.
We from Twins Industry firmly believe that you will not find a better value for money mid size flail mower in the US market. Feel free to compare ours to the other products in the market and we are sure you will agree.
ATTENTION
Partially assembled machines do not contain any fuel, oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the English user manual.

Side Shift Flip Flail Lawn Mower
Professional Vegetation Management Solution

The Side Shift Flip Flail Lawn Mower is a versatile and highly efficient attachment designed for modern agricultural, landscaping, municipal, and property maintenance operations. Equipped with hydraulic side shift and flip mechanisms, this mower allows operators to easily reach difficult mowing areas such as roadsides, fence lines, orchards, drainage ditches, and embankments.

Unlike conventional rotary mowers, a flail mower uses multiple heavy-duty flail hammers or Y-blades attached to a rotating rotor. This design produces a cleaner cut while effectively handling dense grass, weeds, brush, crop residue, and light vegetation.

Built for durability and productivity, the Side Shift Flip Flail Lawn Mower offers exceptional performance in demanding working environments while reducing maintenance requirements and operating costs.

Advanced Hydraulic Side Shift System

One of the key advantages of this mower is its hydraulic side shift capability.

Benefits Of Side Shift Operation
Greater mowing reach
Easy fence line trimming
Improved roadside maintenance
Enhanced operator visibility
Increased productivity
Reduced manual trimming

The side shift function allows operators to position the mower outside the tractor wheel track for precise cutting.

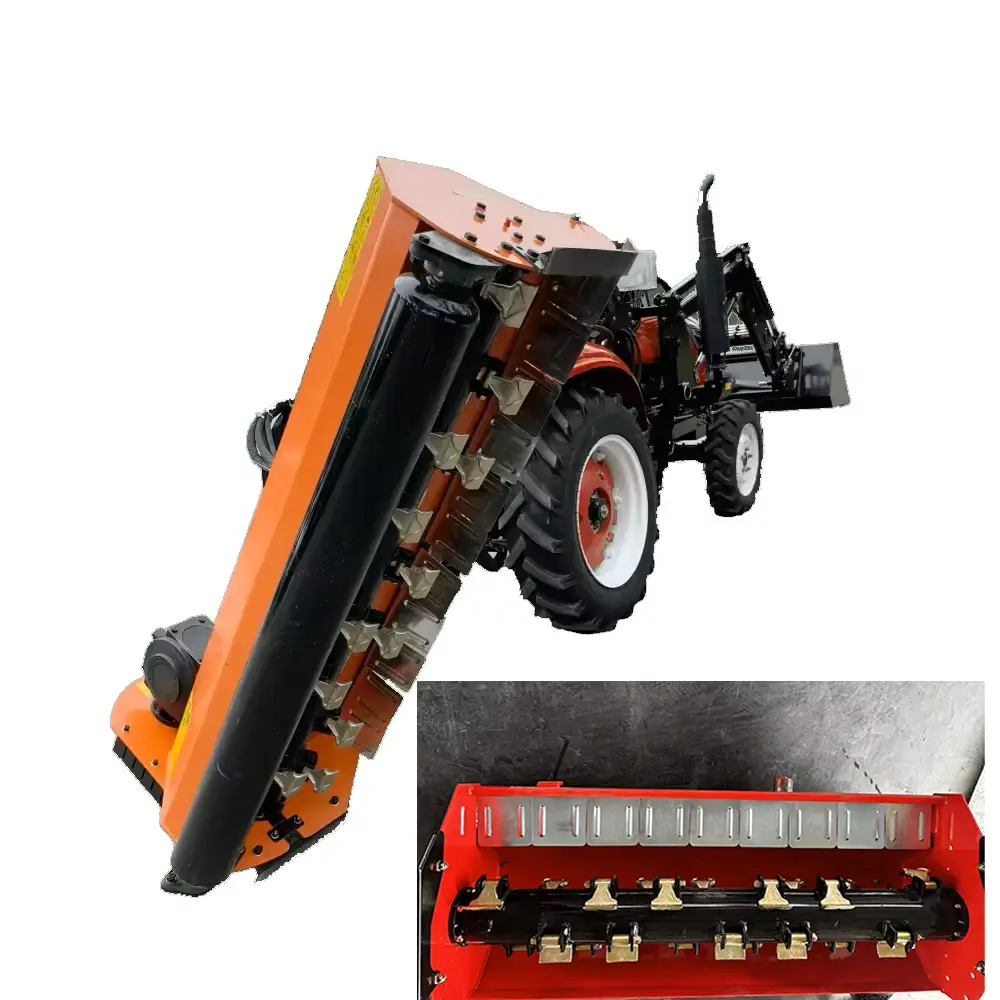

Hydraulic Flip Function For Difficult Terrain

The hydraulic flip mechanism improves flexibility when working in challenging locations.

Flip Function Advantages
Ditch bank mowing
Slope maintenance
Embankment cutting
Orchard operation
Roadside vegetation control
Increased working versatility

The mower can be adjusted to various working angles for optimal cutting performance.

Superior Flail Cutting Technology

Flail mowers are known for their efficient cutting action.

Cutting Benefits
Uniform grass cutting
Fine mulching effect
Reduced debris projection
Better safety performance
Cleaner finish
Improved vegetation management

The rotor system processes vegetation efficiently while leaving a neat appearance.

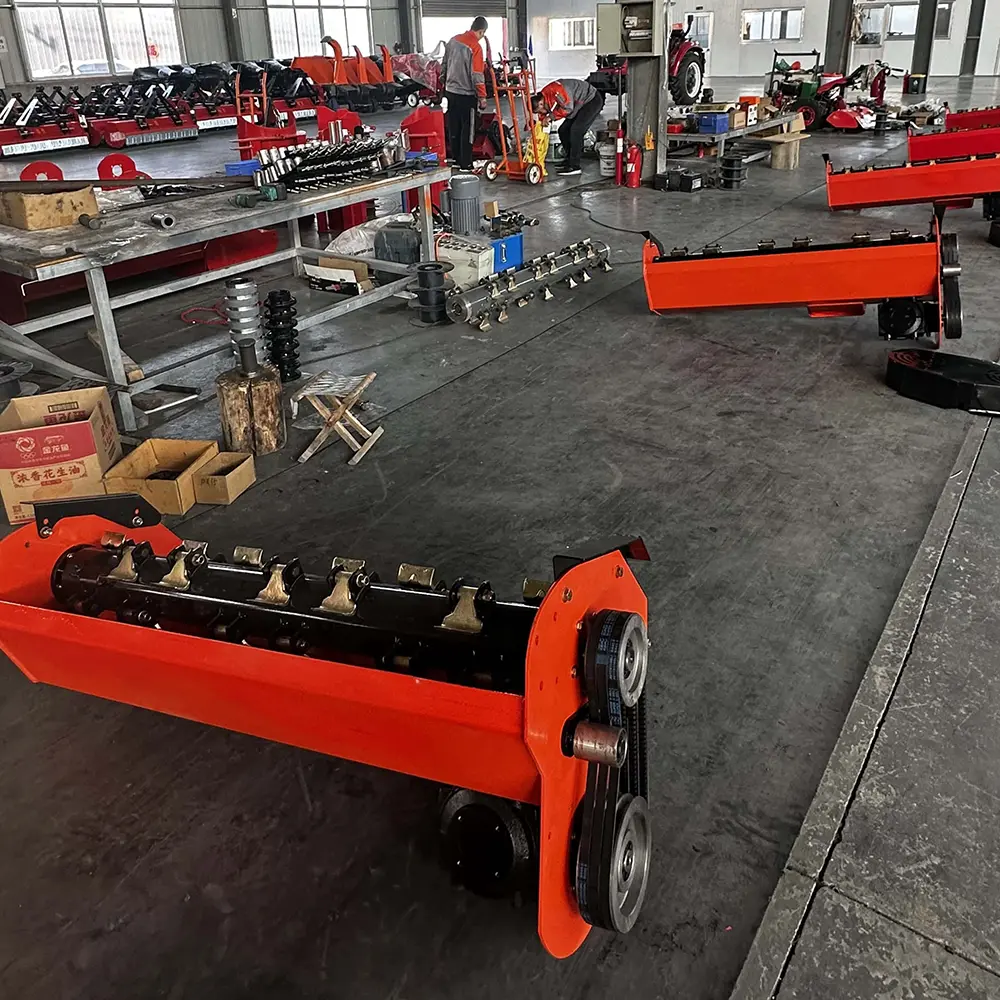

Heavy Duty Rotor Construction

The rotor is the heart of every flail mower.

Rotor Features
Dynamically balanced rotor
Heavy-duty shaft design
Precision manufacturing
Smooth operation
Reduced vibration
Long service life

The robust rotor ensures consistent performance under heavy workloads.

Durable Steel Frame Design

The mower is engineered for demanding agricultural and commercial applications.

Structural Features
Reinforced steel housing
Heavy-duty side plates
Wear-resistant components
Industrial-grade bearings
Precision welded frame
Corrosion-resistant coating

These features maximize durability and operational reliability.

Ideal For Agricultural Applications

Farmers use side shift flail mowers for numerous vegetation management tasks.

Agricultural Uses
Orchard maintenance
Vineyard mowing
Pasture management
Field edge mowing
Crop residue control
Farm road maintenance

The mower helps improve field appearance and productivity.

Perfect For Roadside Maintenance

Municipal and commercial operators rely on flail mowers for roadside vegetation control.

Roadside Applications
Highway shoulders
Road embankments
Public parks
Municipal properties
Utility corridors
Drainage channels

The hydraulic side shift function increases efficiency and safety.

Orchard And Vineyard Management

Orchard owners benefit greatly from the mower's flexibility.

Orchard Benefits
Precision mowing between rows
Weed suppression
Reduced labor costs
Improved orchard appearance
Better accessibility
Efficient vegetation control

The side shift design minimizes the risk of tree damage.

Efficient Mulching Performance

The flail mower finely shreds vegetation.

Mulching Benefits
Faster decomposition
Improved soil health
Reduced waste removal
Cleaner work areas
Natural nutrient recycling
Lower maintenance costs

Mulched material remains on the ground as beneficial organic matter.

PTO Driven Reliable Power Transmission

The mower is powered through the tractor PTO system.

PTO Advantages
Consistent power delivery
Efficient operation
Simple maintenance
High reliability
Lower operating costs
Broad tractor compatibility

The PTO system ensures dependable performance during long working hours.

Compatible With Various Tractor Models

The mower can be used with a wide range of tractors.

Suitable Equipment
Compact Tractors
Utility Tractors
Agricultural Tractors
Orchard Tractors
Vineyard Tractors
Municipal Tractors

Different working widths are available to match various tractor sizes.

Safe And User-Friendly Operation

Operator safety is an important design consideration.

Safety Features
Protective guards
Rear safety flaps
Stable operation
Reduced debris discharge
Secure mounting system
Smooth hydraulic control

These features contribute to safer daily operation.

Easy Maintenance And Long Service Life

Routine maintenance is simple and efficient.

Maintenance Benefits
Easy blade replacement
Accessible lubrication points
Durable bearing system
Simple inspection procedures
Long component lifespan
Reduced downtime

Proper maintenance ensures maximum productivity and reliability.

Cost Effective Vegetation Management Solution

The Side Shift Flip Flail Lawn Mower provides exceptional value.

Economic Benefits
Increased mowing efficiency
Reduced labor requirements
Lower operating costs
Multi-purpose functionality
Extended equipment lifespan
Excellent return on investment

It is an ideal choice for professional vegetation management operations.

Why Choose Us
Professional Agricultural Equipment Manufacturer

We specialize in producing premium flail mowers and tractor attachments.

Strict Quality Control

Every mower is thoroughly inspected before shipment.

Factory Direct Pricing

Competitive pricing without compromising quality.

Advanced Manufacturing Technology

Modern production equipment ensures precision engineering.

Custom Manufacturing Services

Working widths and specifications can be customized.

Global Export Experience

Products exported to customers worldwide.

Fast Production And Delivery

Efficient manufacturing ensures timely shipment.

Complete Technical Support

Installation guidance and after-sales support are available.

Durable Product Quality

Built for demanding agricultural and commercial applications.

Long-Term Customer Partnership

Committed to customer satisfaction and long-term cooperation.

FAQs
Q1: What is a Side Shift Flip Flail Lawn Mower?

A: It is a tractor-mounted flail mower equipped with hydraulic side shift and flip functions for mowing difficult-to-reach areas.

Q2: What vegetation can it cut?

A: Grass, weeds, brush, crop residue, light shrubs, and roadside vegetation.

Q3: What is the benefit of hydraulic side shift?

A: It allows the mower to move sideways for easier mowing along fences, roadsides, and orchards.

Q4: What is the flip function used for?

A: The flip mechanism enables mowing on slopes, ditch banks, and embankments.

Q5: Is it suitable for orchards?

A: Yes. It is widely used for orchard and vineyard vegetation management.

Q6: Does it require PTO power?

A: Yes. The mower operates through the tractor PTO system.

Q7: What tractor sizes are compatible?

A: Compact, utility, agricultural, orchard, and municipal tractors.

Q8: Is it suitable for roadside maintenance?

A: Yes. It is specifically designed for roadside and municipal mowing applications.

Q9: Is maintenance difficult?

A: No. Routine lubrication and blade inspection are generally sufficient.

Q10: Why choose a Side Shift Flip Flail Lawn Mower?

A: It provides superior flexibility, efficient vegetation control, and professional mowing results in difficult terrain.
