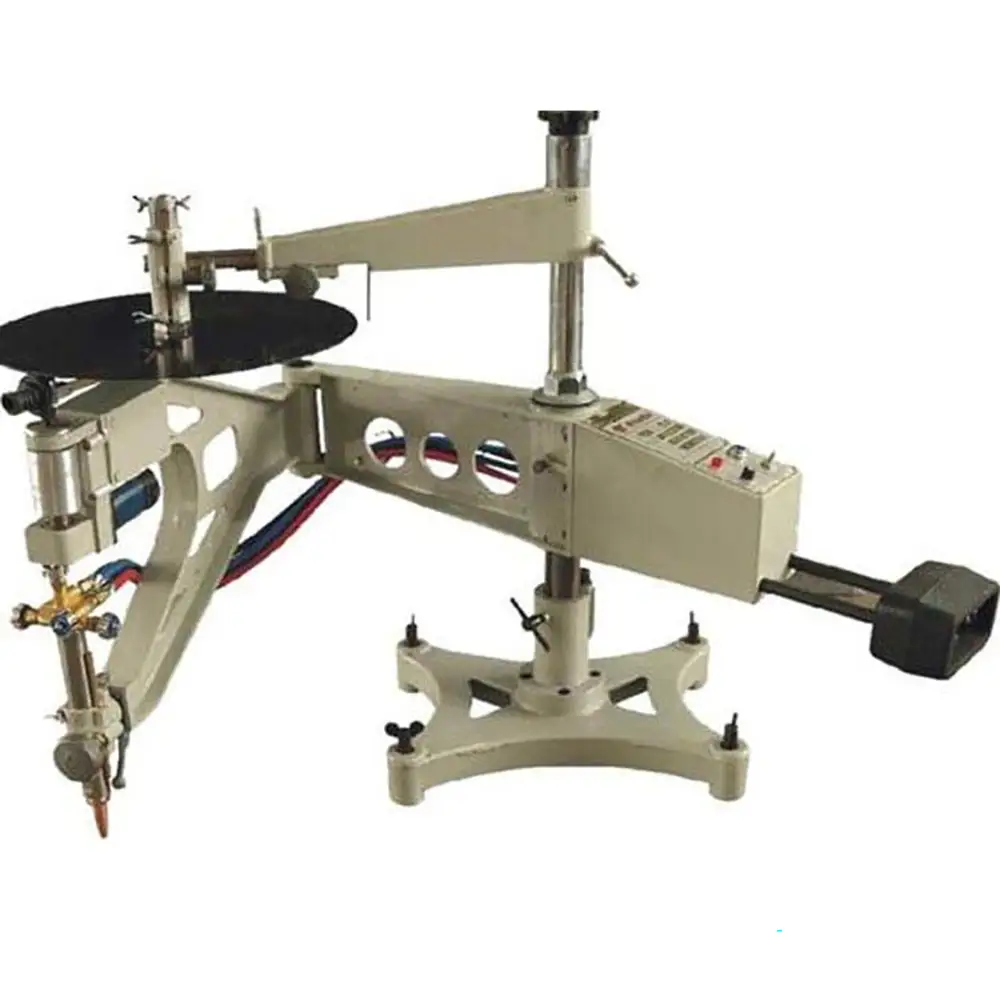

Profiling Cutting Machine Small Round Steel Sheet Metal Profiling Gas Cutter Metal Sheet Cutting Machine Gas Cutter

dimensions	1190×335×800mm (length×width×height)
Cutting thickness	8-60mm
Cutting speed	50-750mm/min
Cutting circle diameter	φ600mm (CG2-150A type is 1800mm in diameter)
Maximum square size for cutting	500×500mm
Cutting rectangle size	400×900mm, 450×750mm
Cutting straight line length	1200mm
Input voltage	AC220V 50Hz
Motor	ZYT261/A5 DC110V24W 3600r/min

The Profiling Cutting Machine Small Round Steel Sheet Metal Profiling Gas Cutter is designed for efficient profile cutting of steel sheets,metal plates,small round steel,and other compatible metal materials using a gas cutting process. It provides a practical solution for manufacturers and metal fabrication workshops that need to produce shaped profiles,round components,and customized steel parts.

Profiling cutting is widely used in steel fabrication,construction,machinery manufacturing,shipbuilding,repair workshops,and general metalworking. Compared with manually guiding a torch for every shape,the use of a dedicated profiling cutting machine can help standardize the cutting path and improve repeatability when producing similar workpieces.

The actual cutting capacity,material thickness,and profile dimensions depend on the specific machine configuration,cutting torch,gas system,workpiece material,and operating parameters.

Profiling Cutting Technology

A profiling cutting machine follows a predetermined profile or template to guide the gas cutting torch. The cutting system transfers the required shape to the workpiece,allowing the operator to reproduce similar profiles more consistently.

Depending on the machine design,the profiling method may use a physical template,profile guide,mechanical tracing system,or another pattern-following mechanism. The exact operating principle depends on the model.

Gas cutting uses a controlled flame and oxygen cutting process to separate suitable ferrous metals. It is particularly useful for carbon steel and compatible steel plate applications. Proper gas pressure,torch adjustment,cutting speed,and nozzle selection are important for achieving stable results.

Small Round Steel Cutting

Small round steel and circular steel components may require accurate profile or shape cutting for fabrication projects. A profiling gas cutter can be configured for suitable workpieces depending on the machine's working area and cutting arrangement.

When processing small round steel components,the workpiece should be securely positioned to prevent movement during cutting. Stable positioning helps maintain the intended profile and can reduce dimensional variation.

The actual diameter range should be confirmed according to the machine specification. The phrase "small round steel" should not be interpreted as a universal cutting diameter because different models have different workholding and cutting capabilities.

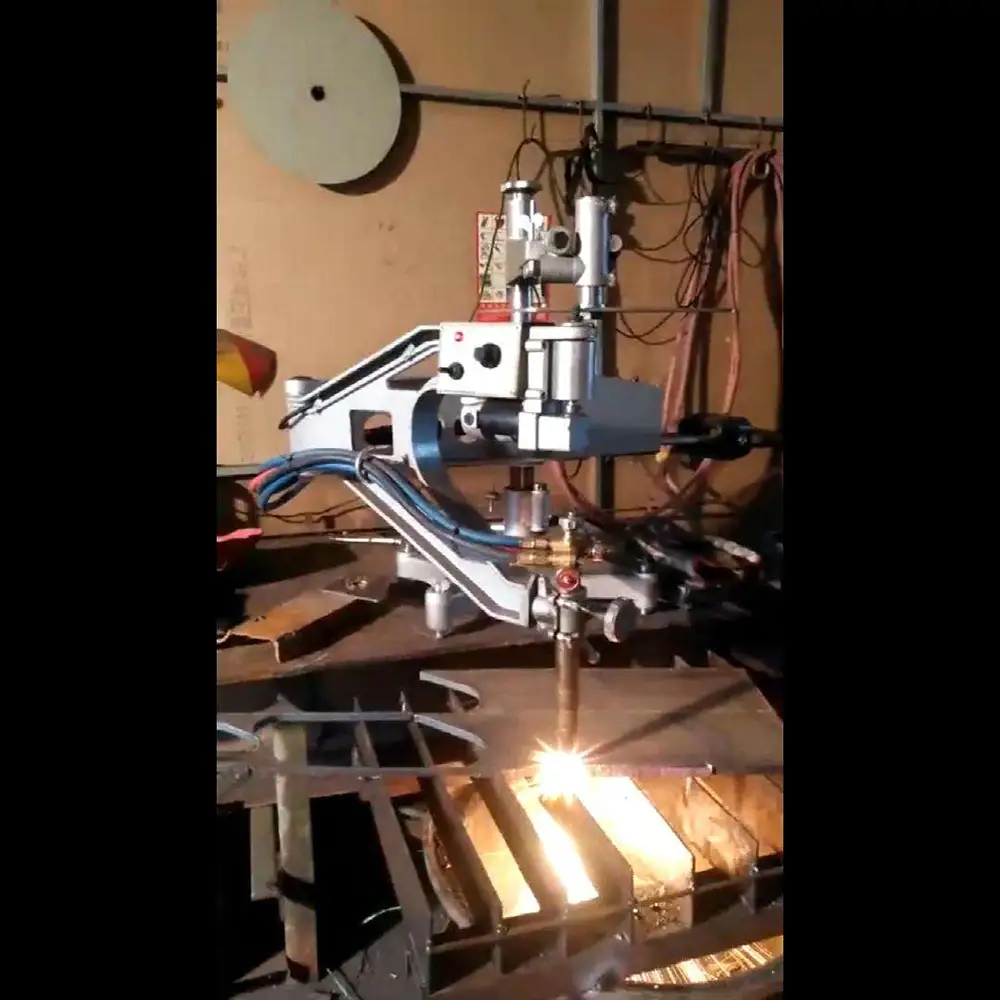

Metal Sheet and Steel Plate Cutting

The machine can also be used for compatible metal sheet and steel plate cutting applications. Gas cutting is commonly used for carbon steel because the process can handle a broad range of plate thicknesses when the correct torch,nozzle,gas supply,and operating parameters are selected.

Typical workpieces may include steel plates,metal sheets,structural steel components,flanges,brackets,base plates,and custom fabrication parts.

For repeated profile production,the cutting template or guide can help reproduce the same shape across multiple workpieces. This is useful for workshops producing brackets,plates,structural components,and replacement parts.

Profile Cutting Applications

Profiling cutting is useful when a workpiece requires a specific outline rather than a simple straight cut. The machine can be used for suitable shapes such as circular profiles,irregular outlines,arcs,and other template-based geometries.

Typical applications include:

Steel plate profile cutting

Round steel component cutting

Metal bracket production

Structural steel fabrication

Flange preparation

Base plate cutting

Machinery component fabrication

Construction steel processing

Shipbuilding and repair

General metalworking

Custom steel parts production

Maintenance and repair workshops

The machine can therefore serve both general fabrication and specialized profile-cutting requirements.

Gas Cutting Process

Gas cutting requires a suitable fuel gas and oxygen supply. The cutting torch produces a controlled flame for preheating,while oxygen is used in the cutting process to separate suitable ferrous material.

The correct torch and nozzle configuration should be selected according to material type and thickness. Cutting speed and gas pressure also influence the resulting cut quality.

Operators should follow the equipment manufacturer's instructions when connecting gas cylinders,regulators,hoses,and cutting torches. Gas systems require careful handling because they involve pressurized and combustible gases.

Cutting Accuracy and Profile Quality

Profile cutting quality depends on the machine guide system,template accuracy,torch condition,material thickness,gas pressure,cutting speed,and operator setup.

A stable mechanical guide can help the torch follow the required cutting path. Proper torch height and nozzle alignment are also important for maintaining a consistent cut.

The final edge may require additional grinding,cleaning,slag removal,or deburring depending on the application. For precision components,the required dimensional tolerance should be discussed before selecting the machine.

Production Efficiency

A profiling machine can improve productivity when the same or similar shapes need to be cut repeatedly. Instead of manually drawing and guiding every profile,the operator can establish the required pattern and repeat the cutting process.

For workshops producing low-to-medium volume custom steel parts,this can simplify production while avoiding the complexity of some advanced CNC cutting systems.

The machine can also be used as a complementary tool alongside CNC plasma cutters,laser cutting machines,band saws,and other fabrication equipment.

Material Compatibility

Gas profiling cutting is primarily associated with suitable ferrous materials,especially carbon steel. Material composition and thickness should be confirmed before processing.

It should not be assumed that the same gas cutting process is suitable for aluminum,stainless steel,and other non-ferrous metals. These materials have different thermal and cutting characteristics and often require alternative cutting technologies such as plasma,laser,waterjet,or specialized mechanical cutting.

For carbon steel,the correct fuel gas,oxygen supply,torch,and nozzle combination should be selected according to the material thickness and machine configuration.

Workshop Applications

The Profiling Cutting Machine can be valuable for fabrication shops that need a flexible cutting solution without relying entirely on computer-controlled equipment.

It can be used for customized steel components,repair parts,construction plates,and structural fabrication. Its mechanical profiling concept can also be useful where operators need to reproduce a physical pattern or template.

For workshops with changing production requirements,the machine can provide flexibility for different profile shapes without requiring a completely new CNC program for every simple template-based job.

Safety Considerations

Gas cutting involves open flame,high temperatures,pressurized gas,and hot metal. Safe operation requires appropriate training and proper workplace controls.

Gas cylinders should be stored and secured correctly. Hoses,regulators,connections,and torches should be inspected regularly. Operators should use suitable eye protection,heat-resistant gloves,protective clothing,and other required personal protective equipment.

Adequate ventilation should also be maintained to control fumes and combustion products. The machine should be operated in accordance with applicable workplace safety requirements and the manufacturer's instructions.

The specific safety equipment supplied with the machine depends on the selected configuration and should be confirmed before purchase.

Maintenance

Routine maintenance helps maintain consistent cutting performance. Operators should inspect the cutting torch,nozzle,hoses,gas connections,guide mechanism,and mechanical components regularly.

The nozzle should be kept clean and replaced when necessary. Gas pressure and flame condition should also be checked before production.

The profiling guide or template should remain clean and properly aligned because contamination or mechanical wear can affect the cutting path.

Regular inspection can help reduce unexpected downtime and maintain stable profile cutting quality.

OEM and Custom Solutions

Different fabrication projects require different cutting sizes,profile shapes,and material thicknesses. Customized configurations can therefore be evaluated according to the customer's requirements.

When requesting a quotation,customers should provide material type,plate thickness,round steel dimensions,maximum workpiece size,required profile shapes,production volume,and preferred gas cutting system.

Drawings,templates,or sample workpieces can also help determine the appropriate machine configuration.

FAQs

1. What is a profiling cutting machine?

A profiling cutting machine is a metal cutting system that guides a gas cutting torch along a predefined template or profile to reproduce specific shapes on suitable metal workpieces.

2. What materials can it cut?

It is primarily suitable for compatible ferrous metals such as carbon steel. Material type and thickness should be confirmed according to the machine and torch configuration.

3. Can it cut small round steel?

Yes,compatible small round steel components can be processed when their dimensions fall within the machine's working and cutting capacity.

4. Can it cut steel sheets?

Yes. The machine can be used for compatible steel sheet and plate profile cutting applications.

5. What is a profiling gas cutter used for?

It is used to reproduce specific shapes and profiles on metal workpieces using a guided gas cutting torch.

6. Can it cut irregular shapes?

Depending on the profiling mechanism and template,the machine can follow suitable curved and irregular profiles.

7. Is it a CNC cutting machine?

Not necessarily. A profiling machine may use mechanical template or tracing technology rather than CNC programming. The exact control method depends on the model.

8. Can it cut stainless steel?

Standard oxygen-fuel gas cutting is mainly intended for suitable ferrous materials such as carbon steel. Stainless steel generally requires another cutting technology or specialized process.

9. Can it cut aluminum?

Standard gas cutting is generally not the preferred process for aluminum. Plasma,laser,waterjet,or mechanical cutting may be more appropriate depending on the application.

10. What affects gas cutting quality?

Material thickness,torch and nozzle selection,gas pressure,cutting speed,flame adjustment,workpiece condition,and machine alignment can all affect the final cut.

11. Is the machine suitable for workshops?

Yes. It can be useful for steel fabrication,repair,construction,and general metalworking workshops that need template-based profile cutting.

12. Can the machine be customized?

Yes. Working dimensions,cutting configuration,torch arrangement,profiling system,and other options can be evaluated according to the customer's requirements.

Why Choose Us

Profile Cutting Capability – Designed for template-guided cutting of suitable steel sheets,plates,and metal components.

Gas Cutting Technology – Provides an established cutting method for compatible carbon steel applications.

Flexible Applications – Suitable for round steel,steel plates,brackets,flanges,and customized metal profiles.

Repeatable Profiling – Template-based operation can help reproduce similar shapes during batch fabrication.

Workshop Friendly – Suitable for fabrication,maintenance,repair,and general metalworking environments.

Practical Production Solution – Provides an alternative or complementary solution to CNC plasma and laser cutting equipment.

Multiple Profile Applications – Can support suitable circular,curved,and irregular profile cutting according to the machine design.

OEM & Custom Support – Machine configuration can be evaluated according to material dimensions,profile requirements,templates,and production needs.
