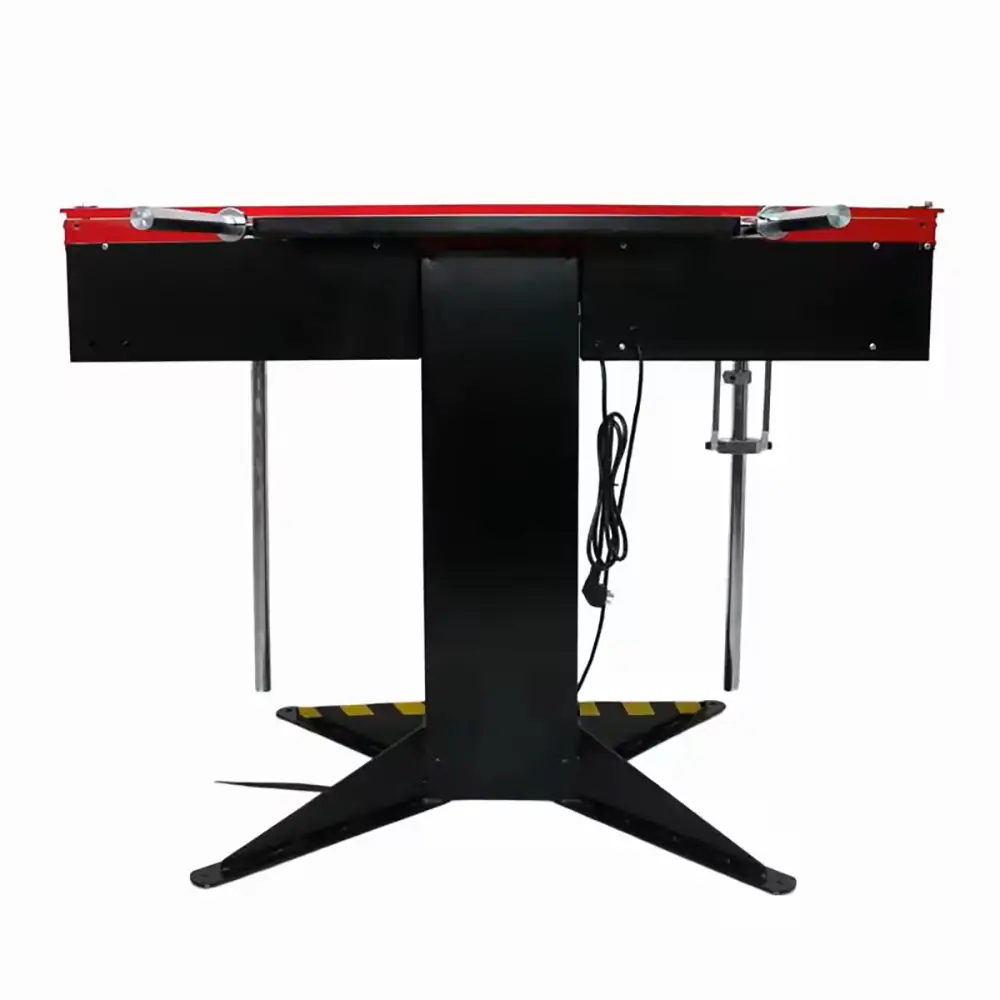

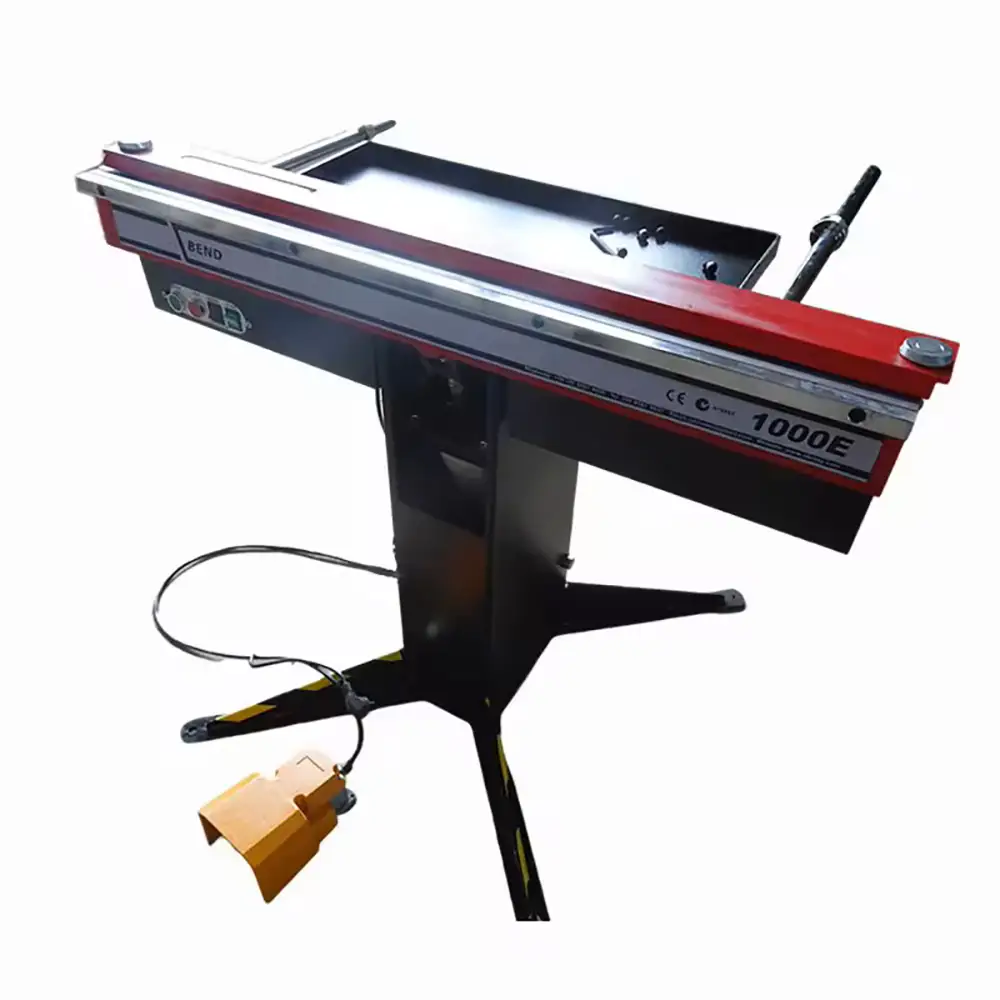

Pneumatic Electromagnetic Sheet Metal Bending Machine

 The Pneumatic Electromagnetic Sheet Metal Bending Machine is a specialized sheet metal forming solution designed for bending and folding metal sheets into accurate straight or angular profiles. Combining electromagnetic clamping technology with pneumatic-assisted operation, this machine can provide a practical solution for fabrication shops, HVAC manufacturers, metalworking businesses, sign manufacturers and other industrial applications requiring efficient sheet metal bending.

Unlike conventional mechanical bending machines that rely primarily on fixed tooling and mechanical clamping, an electromagnetic sheet metal bender uses magnetic force to secure the workpiece during the bending process. This design can provide greater flexibility when handling different sheet shapes and bending configurations. Depending on the machine design, removable or adjustable components can also help accommodate different workpiece requirements.

The pneumatic system can assist with specific machine functions such as clamping, positioning, tooling movement or other configured operations. The exact pneumatic arrangement depends on the machine model and customer requirements. Combining pneumatic assistance with electromagnetic clamping can help simplify certain bending operations while providing controlled workpiece handling.

This type of sheet metal bending machine is suitable for a wide range of metals, including mild steel, carbon steel, stainless steel, galvanized sheet, aluminum and other suitable conductive materials. Material selection and machine capacity should always be evaluated according to the actual sheet thickness, length, tensile strength and bending requirements. Stainless steel and high-strength materials may require greater forming force than thin aluminum or mild steel sheets.

One of the main advantages of electromagnetic sheet metal bending is the ability to hold the workpiece along a magnetic clamping line. This can be useful when producing boxes, channels, trays, panels, covers and other sheet metal components with different flange configurations. Because the workpiece is not necessarily restricted by a traditional full-length mechanical clamping beam, the operator may have greater flexibility for certain complex bending operations.

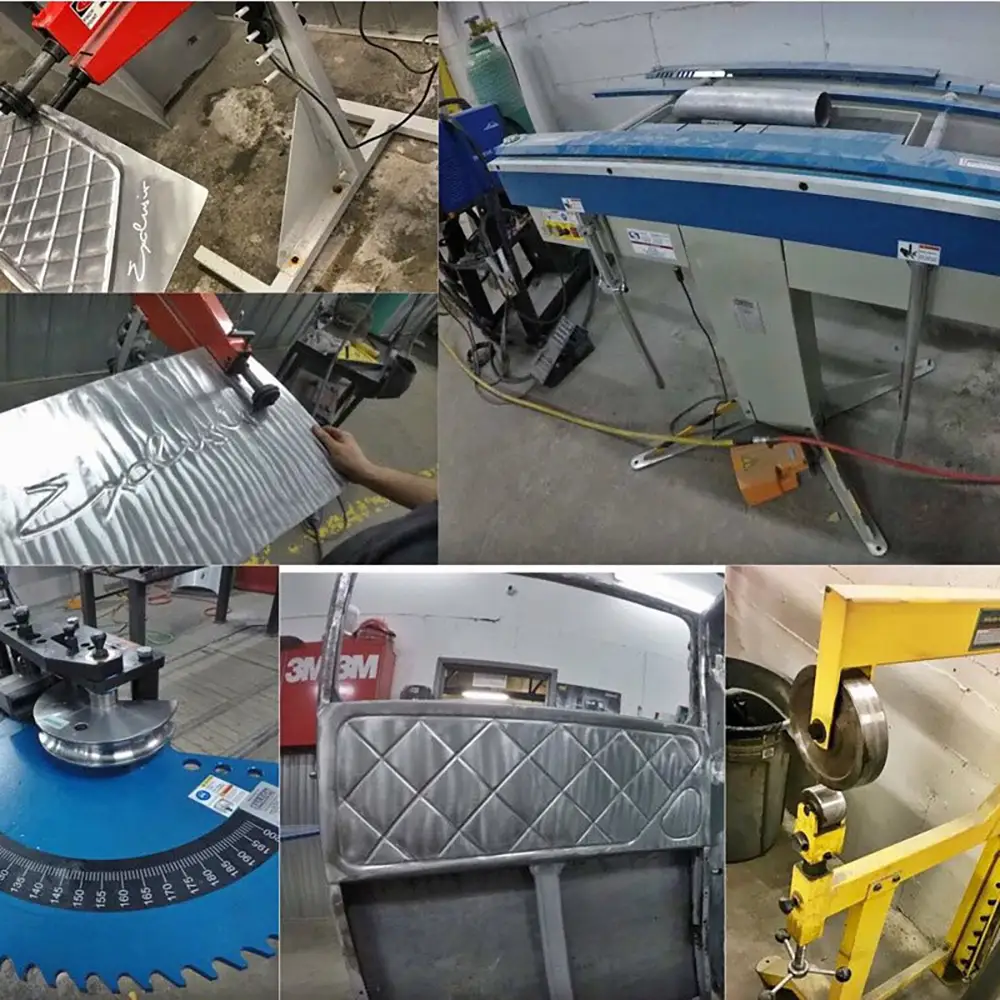

The machine can be used for both standard and custom sheet metal fabrication. Common products include electrical enclosures, HVAC duct components, metal cabinets, equipment covers, flashing, trays, architectural panels, signs, furniture components and custom fabricated sheet metal parts. The actual bending range depends on machine length, magnetic clamping capacity, material thickness, tooling and machine configuration.

For fabrication shops, compact electromagnetic bending equipment can also help reduce the amount of manual setup required for certain jobs. Operators can position the sheet, establish the desired bend line and perform the bending operation according to the machine's operating procedure. Pneumatic assistance can help with repeatable machine functions, although the level of automation depends on the specific configuration.

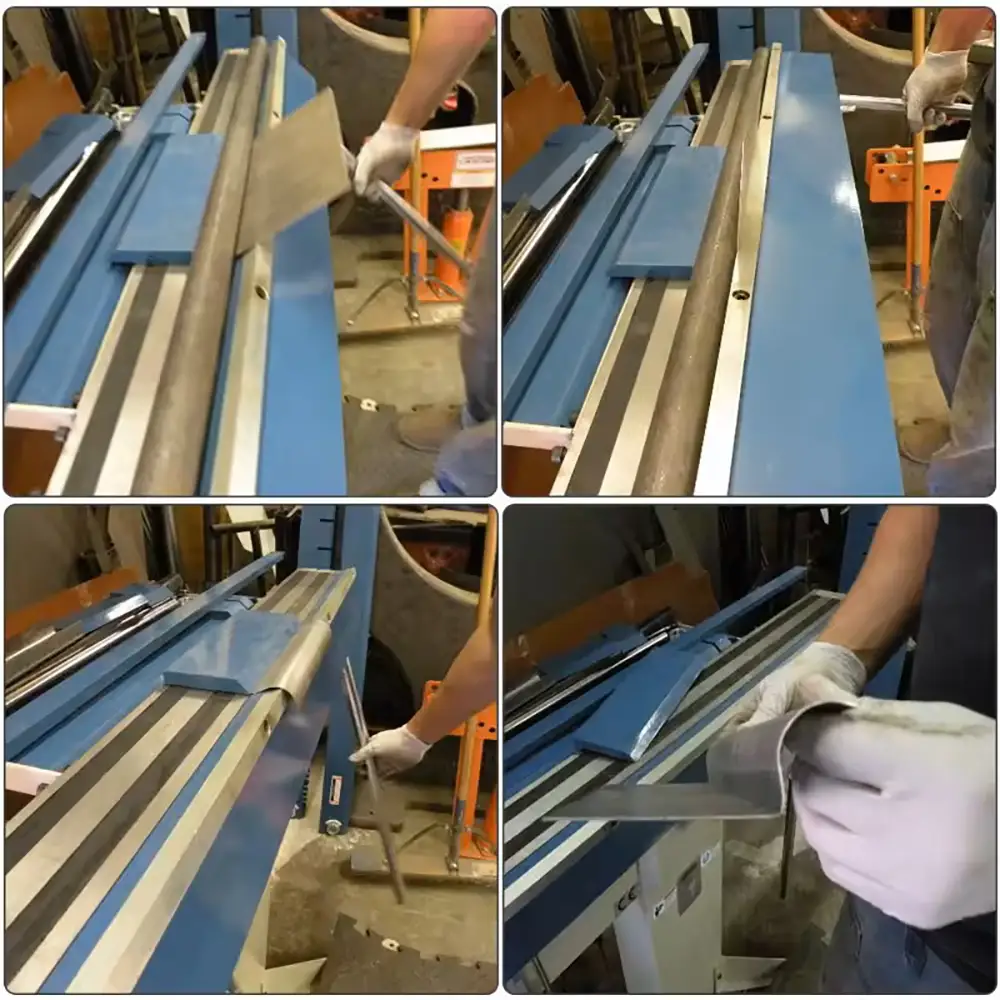

The bending process generally starts with preparing the sheet according to the required finished dimensions. The operator positions the workpiece on the machine and aligns the intended bend line. The electromagnetic clamping system is then activated to secure the material. After confirming the setup, the bending beam or forming mechanism is operated to create the required angle.

For multiple bends, the workpiece can be repositioned and the process repeated according to the component drawing. This makes the machine suitable for producing boxes, trays, U-channels, Z-profiles, panels and other formed sheet metal products. When several identical parts are required, standardized operating procedures can help improve production consistency.

Electromagnetic bending can be particularly useful for thin and medium-gauge sheet metal applications. However, the actual maximum capacity depends on the machine's magnetic force, bending length, material properties and design. Buyers should provide the supplier with information about the material, maximum thickness, sheet dimensions and desired bend angles before selecting a machine.

Surface quality is another consideration in sheet metal fabrication. Because different clamping and forming methods interact differently with the workpiece, electromagnetic bending can be useful where operators want to minimize certain tooling limitations. Nevertheless, surface results depend on material condition, machine setup, protective measures and the specific forming application.

The machine can be integrated into a complete sheet metal production workflow. A typical process may include laser cutting or CNC punching for blank preparation, electromagnetic bending for forming, spot or TIG/MIG welding for assembly, grinding or polishing for finishing and final dimensional inspection. The bending machine therefore serves as an important forming stage within a broader fabrication process.

For OEM manufacturers, the Pneumatic Electromagnetic Sheet Metal Bending Machine can be configured around different production requirements. Possible considerations include bending length, magnetic clamping force, pneumatic system configuration, electrical controls, bending angle, tooling arrangement, working height and auxiliary equipment. Custom machine configurations can be discussed according to product drawings and production requirements.

Safety is also an important consideration. Operators should follow the manufacturer's operating instructions and use appropriate protective measures. The actual machine may include emergency stop functions, electrical protection, guards or other safety-oriented features depending on the configuration. Local workplace safety requirements should be considered during installation and operation.

For businesses purchasing sheet metal equipment internationally, it is important to evaluate not only the machine itself but also technical documentation, electrical specifications, replacement parts, installation requirements and after-sales support. A suitable supplier should be able to communicate machine capacity and configuration clearly according to the buyer's actual production needs.

The Pneumatic Electromagnetic Sheet Metal Bending Machine provides a flexible approach to sheet metal forming by combining electromagnetic clamping with pneumatic-assisted machine functions. Its application range covers general fabrication, HVAC, electrical cabinets, architectural sheet metal, custom metalwork and other industries. With the correct machine configuration, it can support efficient bending operations for a variety of suitable sheet metal materials.

Why Choose Us:

Electromagnetic Clamping Technology
The electromagnetic clamping structure provides a flexible method for securing suitable sheet metal during bending operations.

Pneumatic-Assisted Operation
Pneumatic functions can support configured clamping, positioning or machine movement operations for more convenient production.

Flexible Sheet Metal Applications
Suitable applications include panels, boxes, trays, covers, cabinets, duct components and custom metal parts.

Multi-Material Capability
Machine configurations can be evaluated for mild steel, stainless steel, aluminum, galvanized sheet and other suitable materials.

Custom Machine Configuration
Bending length, magnetic capacity, pneumatic functions, controls and other specifications can be discussed according to production requirements.

OEM And Custom Support
We can evaluate drawings, samples, materials and production volumes for customized sheet metal bending solutions.

B2B Manufacturing Support
We provide equipment solutions for manufacturers, fabrication shops, distributors, wholesalers and industrial buyers.

Complete Fabrication Solutions
Related cutting, punching, welding, finishing and inspection processes can be considered for a complete sheet metal production workflow.

FAQs:

What Is A Pneumatic Electromagnetic Sheet Metal Bending Machine?
It is a sheet metal forming machine that combines electromagnetic clamping with pneumatic-assisted functions for bending and folding suitable metal sheets.

How Does Electromagnetic Sheet Metal Bending Work?
A magnetic clamping system secures suitable conductive sheet metal while the bending mechanism forms the material along the required bend line.

What Does The Pneumatic System Do?
Depending on the machine configuration, pneumatic functions may assist clamping, positioning, tooling movement or other machine operations.

What Materials Can Be Bent?
Suitable materials may include mild steel, carbon steel, stainless steel, aluminum, galvanized sheet and other compatible metal sheets.

Can It Bend Stainless Steel?
Yes, provided the machine is configured for the required stainless steel thickness, length and forming requirements.

Can It Bend Aluminum?
Yes. Aluminum is commonly used in sheet metal fabrication, but the machine capacity should be matched to the alloy, thickness and workpiece dimensions.

What Products Can Be Made?
Typical products include metal boxes, trays, cabinets, covers, panels, HVAC components, flashing, signs and custom sheet metal parts.

Is An Electromagnetic Bender Better For Thin Sheet Metal?
Electromagnetic bending can be particularly useful for many thin and medium-gauge sheet metal applications, but suitability depends on material and machine specifications.

Is The Machine Fully Automatic?
Not necessarily. Pneumatic assistance and electromagnetic clamping do not automatically mean completely unmanned operation. The actual automation level depends on the selected configuration.

How Do I Select The Correct Bending Machine?
Consider maximum sheet thickness, bending length, material type, magnetic clamping capacity, required bend angles, production volume and desired automation level.

Can The Machine Be Customized?
Yes. Machine dimensions, bending length, magnetic capacity, pneumatic configuration, electrical controls and other features can be discussed for OEM applications.

Can You Evaluate My Sheet Metal Application?
Yes. Providing material type, thickness, sheet dimensions, bend drawings and production requirements allows the supplier to evaluate a suitable machine configuration.
