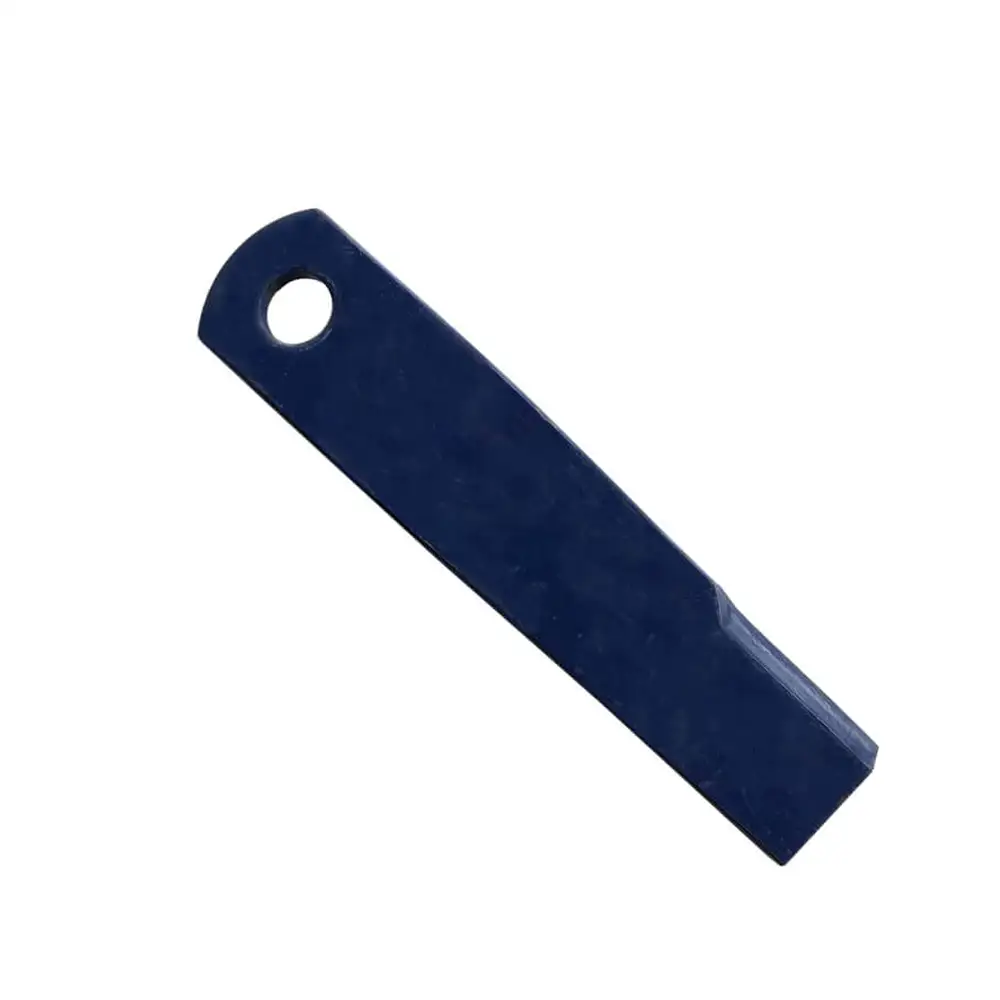

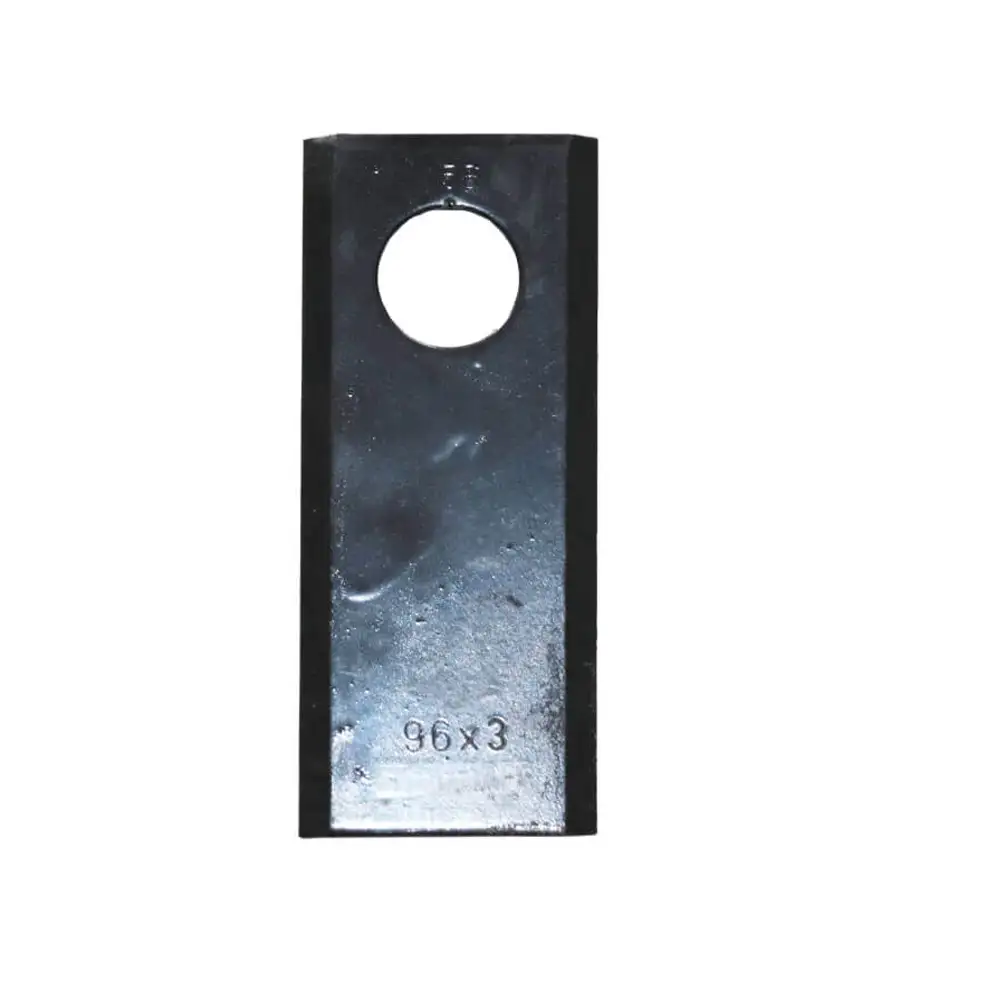

Mower Blades Parts, Drum Blade for Grass Mower Technical Parameters

Mower Blades Parts Supplier, Drum Blade,Grass MowerWhosaler, Grass-cutting knife series The tractor as the main power source,applicable field,Grass,Road and other mowing work. Material: 60Si2Mn 65Mn Surface treatment:black.

Grass-cutting knife series The tractor as the main power source,applicable field,Grass,Road and other mowing work. Material: 60Si2Mn 65Mn Surface treatment:black and coating Packaging:Carton and pallet.

Diameter Height of bow Thickness
MM INCH MM MM
255 10 12 3
305 12 19 3
330 13 25 3
355 14 38 3
410 15 38-50 3
430 17 57 3;4
460 18 38-60 3;4
480 19 57 3;4
510 20 44-63 3;4;5
535 21 63 3;4;5
560 22 60-85 4;5;6
585 23 75-90 4;5;6
610 24 75-95 4;5;6
660 26 86-115 5;6;7;8
710 28 100-130 5;6;7;8
760 30 100-135 6;7;8;10;12
810 32 100-140 7;8;10;12
910 36 120-200 8;10;12
960 38 120-200 8;10;12
