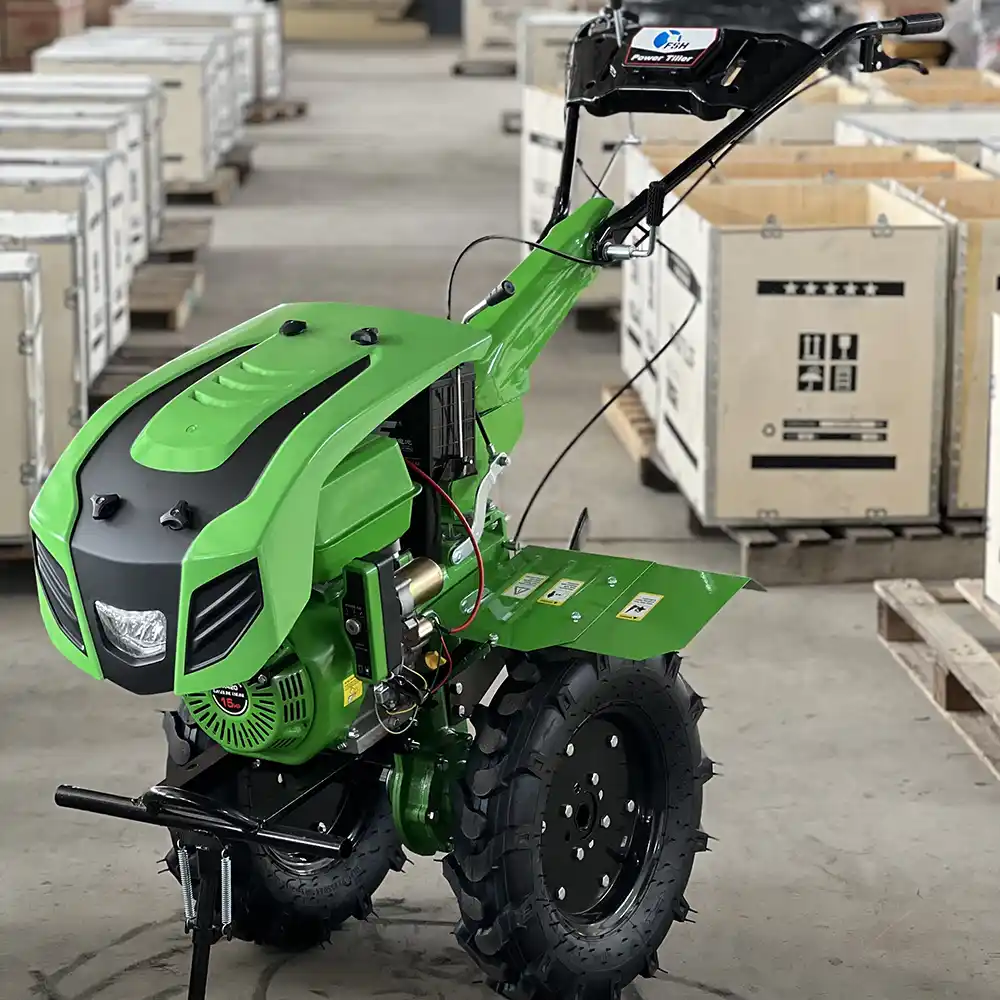

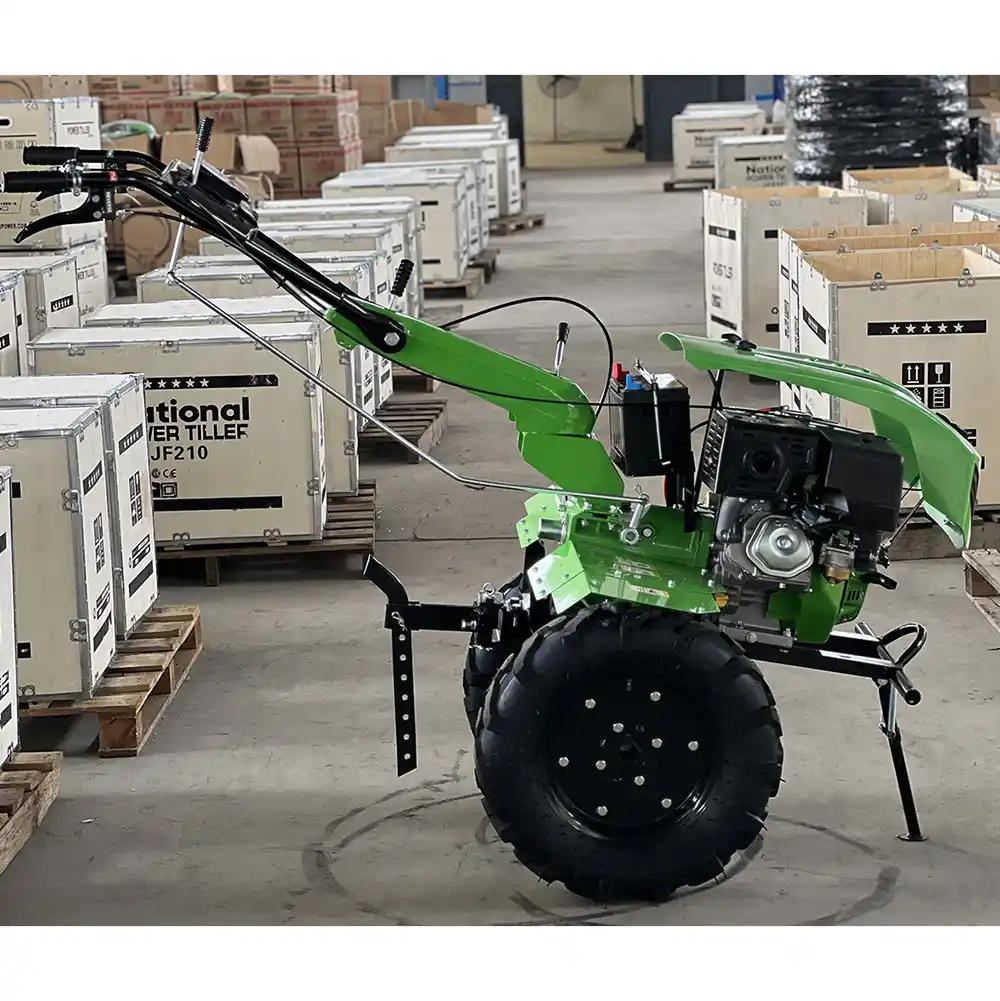

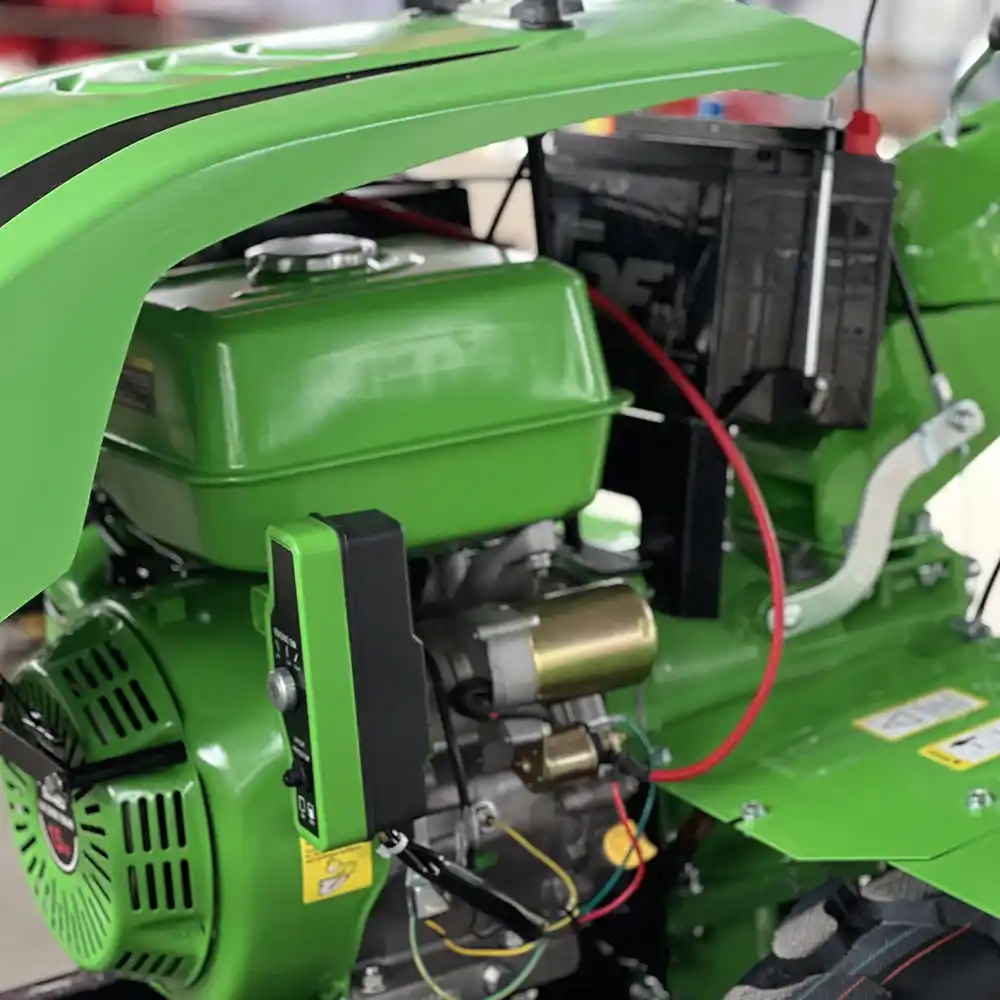

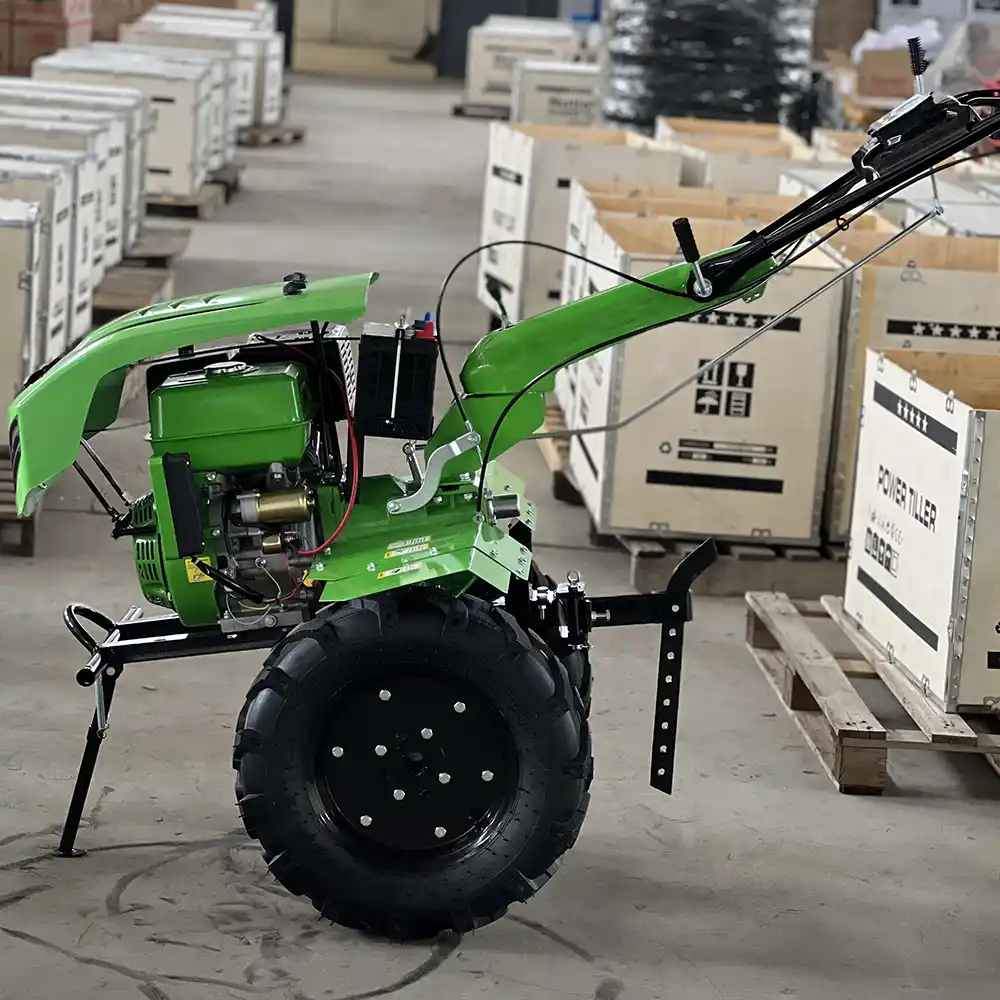

Mini Power Tiller Technical Parameters

Gasoline Power Mini Tiller 24 Blades Small Cultivator Engine model 170F (7HP gasoline) 170F (7HP gasoline) 177F (9HP gasoline) 190F (15HP gasoline) Starting mode Manual starter,Recoil Manual starter,Recoil Manual starter,Recoil Manual start.

Gasoline Power Mini Tiller 24 Blades Small Cultivator

Engine model 170F (7HP gasoline)  170F (7HP gasoline)  177F (9HP gasoline) 190F (15HP gasoline)
Starting mode Manual starter,Recoil   Manual starter,Recoil   Manual starter,Recoil   Manual starter,Recoil
Transmission box Full cast iron  Aluminium alloy + die cast iron Aluminium alloy + die cast iron Aluminium alloy + die cast iron
Drive type Chain + belt Gear Gear Gear
Clutch type (optional) Tensioning clutch Forward clutch Forward clutch Forward clutch
Bumper Common type with stand Common type with stand Common type with stand Common type with stand
Handrail Common type Common type Common type Common type
Direction adjust  Up/Down  Up/Down  Up/Down/Left/Right  Up/Down/Left/Right
Shifting 1,0,2,-1 1,0,2,-1 1,0,2,-1 1,0,2,-1
Blade 3pcs 4 groups dryland blade, total 24pcs 3pcs 4 groups dryland blade, total 24pcs 4pcs 4 groups dryland blade, total 32pcs 4pcs 5groups dryland blade, total 40pcs
Wheel 4.00-8 4.00-8 5.00-12 5.00-12
Tilling width 95cm 100cm 105cm 135cm
Tilling depth ≥10cm ≥10cm ≥10cm ≥10cm
Efficiency per hour ≥0.04hm²/(h·m) ≥0.04hm²/(h·m) ≥0.04hm²/(h·m) ≥0.04hm²/(h·m)
Blade revolutions Fast-124r/min;  Slow-89r/min;  R-79r/min Fast-130r/min;   Slow-93r/min;  R-68r/min Fast-145r/min;  Slow- 83r/min;  R-63r/min Fast-145r/min;   Slow- 83r/min;  R-63r/min
Packing method Iron frame inside + carton outside Iron frame inside + carton outside Iron frame inside + carton outside Iron frame inside + carton outside
Master qty 1pc/ctn 1pc/ctn 1pc/ctn 1pc/ctn
Net weight 75kg 85kg 100kg 105kg
Gross Weight 86kg 95kg 110kg 115kg
Packing meas. 840*465*660 840*465*660 1005*560*845 1005*560*845
40HQ loading qty 280 280 144 144
