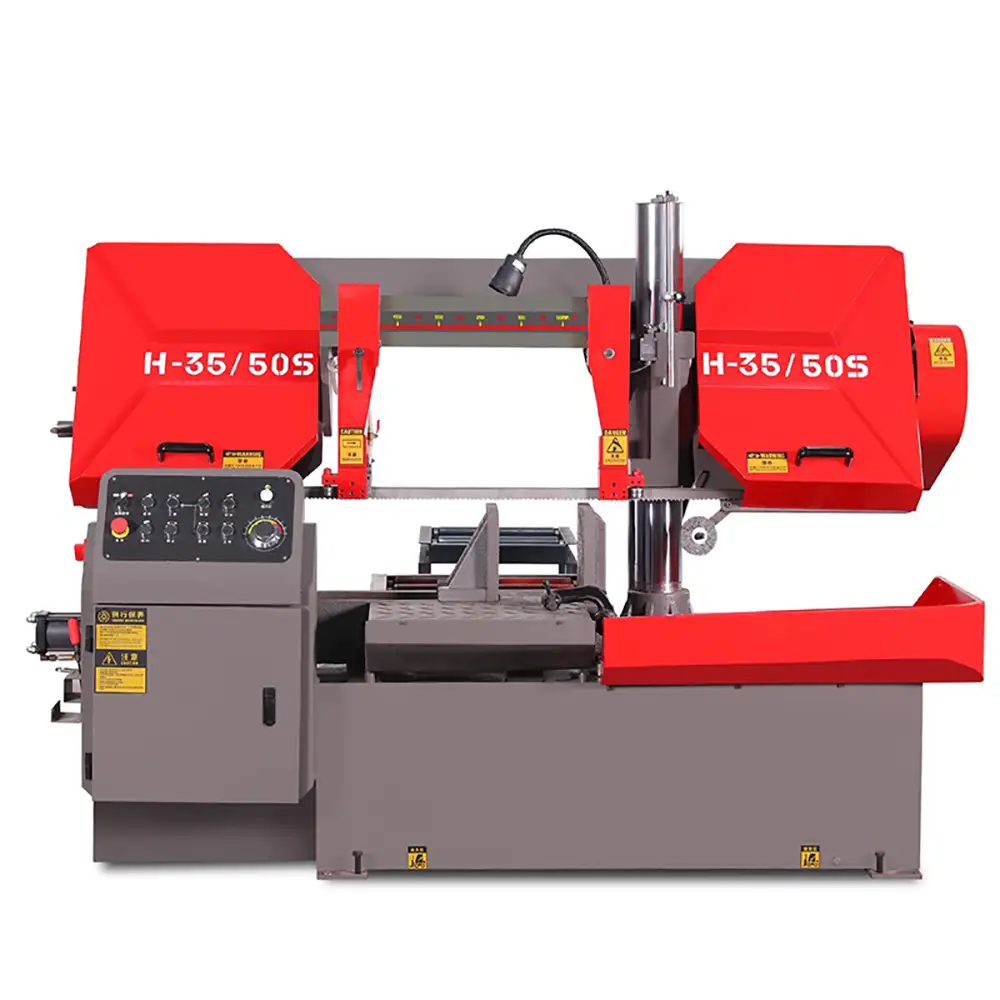

Metal Band Saw Machine Horizontal Double Column Automatic Cutting 350x500mm

Horizontal Double Column Metal Band Saw Machine for Automatic Cutting

The Metal Band Saw Machine Horizontal Double Column Automatic Cutting system is designed for efficient and repeatable cutting of metal materials in industrial manufacturing, metal fabrication, steel processing, machinery production, and general workshop applications. With a horizontal band saw structure, double-column support, and automatic cutting functions, the machine provides a practical solution for processing bars, tubes, pipes, profiles, plates, and other metal workpieces.

Compared with conventional manual cutting equipment, an automatic horizontal band saw can reduce repetitive operator work while improving consistency from one cutting cycle to the next. The double-column structure provides stable support for the saw head and cutting mechanism, which is particularly useful when processing larger or heavier workpieces.

The actual cutting capacity, material range, blade specification, cutting speed, and degree of automation depend on the specific machine configuration. Buyers should confirm the required workpiece dimensions, material grade, cutting length, production volume, and desired automation level before selecting the machine.

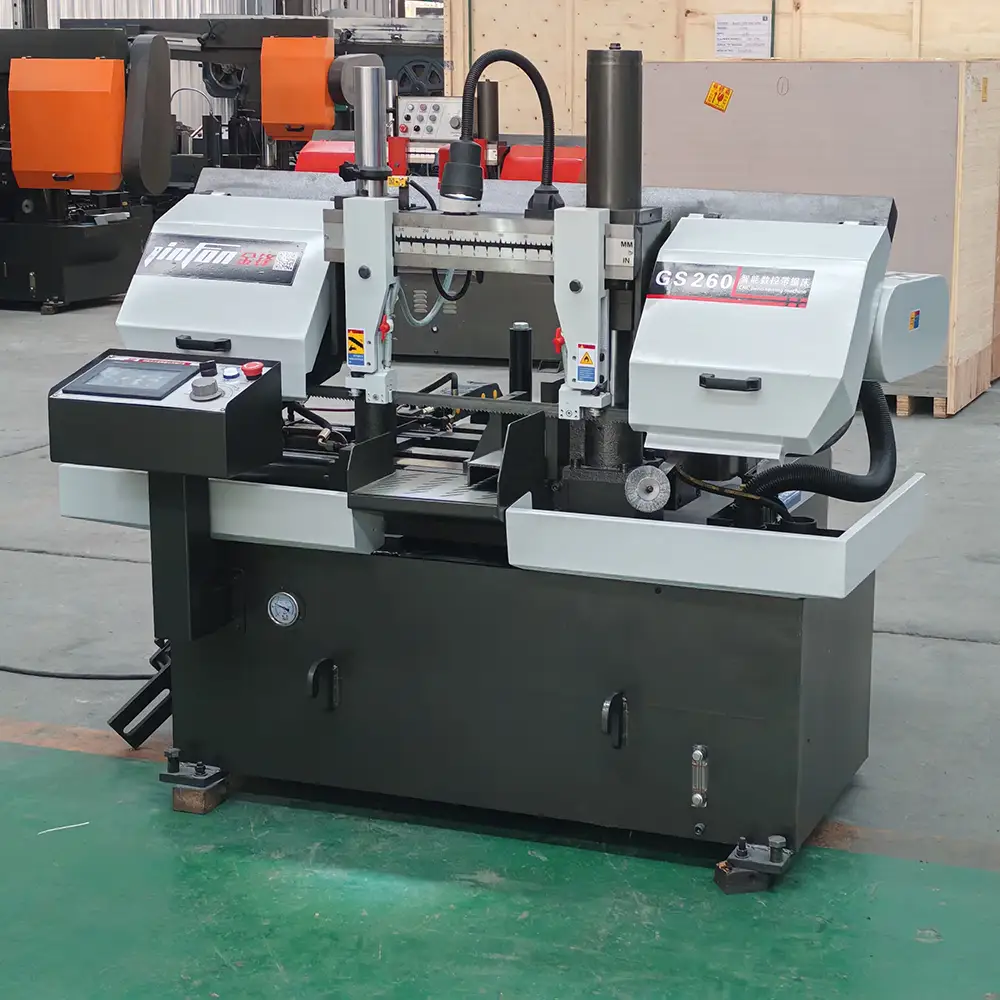

MODEL GS260
Fully automatic:  Automatic feeding, automatic measurement, and automatic cutting
Maximum Cutting Capacity(mm)	round	Round:Φ260mm
	rectangular	Rectangular:260mm(W)x260mm(H)
	Bundle cutting capacity	Maximum:260mm(W)×80mm(H)
Drive Capacity(kw)	Main Motor	2.2KW 3 phase
	Hydraulic Motor	0.42KW 3 phase
	Coolant Pump	0.04KW 3 phase
Voltage		380V/220V(can be customized)
Blade Speed		40/60/80m/min regulated by cone pulley
Blade Size		3152x27*0.9mm
Work piece Clamping		Hydraulic Vise
Blade Tension		Manual
Maximum feeding stroke/time		400mm, if feed longer than 500mm,the feeding table could feed repeatedly.
Machine position accuracy/time		±0.2mm
Weight		820kg
Machine Size		2100x1550x1400mm
Vertical cutting accuracy		0.2/100
Cutting Speed		60~70cm2/min

Horizontal Band Saw Design

The horizontal configuration allows the saw blade to move through the workpiece in a controlled cutting direction. This design is widely used for cutting metal stock into predetermined lengths before machining, welding, assembly, or further fabrication.

The machine can be configured for different types of metal materials, including carbon steel, stainless steel, alloy steel, aluminum, copper, and other suitable materials, depending on the blade, cutting parameters, workholding system, and machine configuration.

A horizontal band saw is particularly useful when the production process requires repeated straight cuts rather than complex contours.

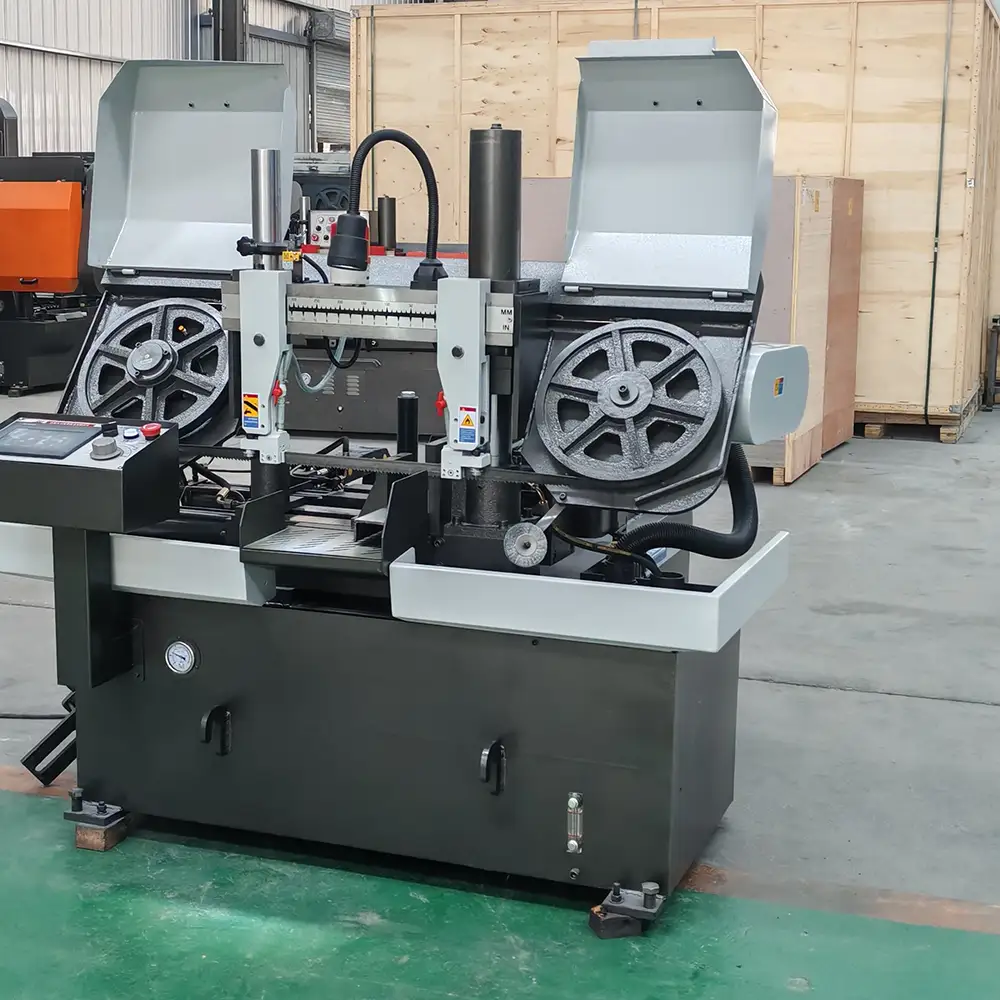

Double Column Construction

The double-column structure is an important feature of this type of industrial band saw machine. Two supporting columns provide a rigid framework for the saw head and help maintain controlled movement during cutting.

A stable machine structure can contribute to:

Reduced vibration during cutting
Consistent blade movement
Improved cutting repeatability
Better support for heavier workpieces
More stable long-term operation
Reliable performance in continuous production environments

The exact mechanical design varies between models, so the appropriate machine should be selected according to the size and weight of the workpieces being processed.

Automatic Metal Cutting Operation

The automatic cutting function is designed to simplify repetitive metal-cutting operations. Depending on the configuration, the machine may incorporate automatic workpiece feeding, hydraulic or mechanical clamping, automatic saw head movement, cutting-cycle control, and automatic return after the cutting operation.

A typical workflow includes loading the metal material, positioning it against the cutting reference, clamping the workpiece, starting the cutting cycle, completing the cut, and returning the saw head or preparing for the next cycle.

Automation can help reduce manual intervention and provide more consistent production when large quantities of similar workpieces need to be cut.

However, automatic operation does not necessarily mean completely unmanned production. Material loading, unloading, inspection, blade replacement, and other production tasks may still require operator involvement depending on the configuration and production line.

Metal Materials and Workpieces

This horizontal double-column band saw can be used for many common industrial metal workpieces.

Typical applications include:

Steel Bars:
Suitable for cutting round, square, rectangular, and other steel stock before machining or fabrication.

Metal Tubes and Pipes:
Useful for preparing pipe and tube sections for construction, machinery, structural fabrication, and industrial assemblies.

Steel Profiles:
Can be applied to suitable structural profiles and sections according to machine capacity and workholding requirements.

Stainless Steel:
With an appropriate band saw blade and cutting parameters, the machine can be configured for stainless steel processing.

Aluminum and Non-Ferrous Metals:
Aluminum, copper, and other non-ferrous materials require suitable blade selection and cutting conditions because their cutting characteristics differ from steel.

The actual maximum workpiece size should always be confirmed from the selected model's technical specifications.

Band Saw Blade Selection

The saw blade is one of the most important factors affecting cutting performance. Different materials and workpiece dimensions require different blade tooth configurations, blade materials, tooth pitches, and cutting parameters.

For example, solid round bars, thin-wall tubes, structural profiles, stainless steel, and aluminum may require different blade selections.

Correct blade selection can help improve:

Cutting efficiency
Blade service life
Surface quality
Dimensional consistency
Cutting stability
Overall production cost

Our technical team can recommend a suitable blade configuration according to the material, workpiece shape, size, required cutting length, and production volume.

Precision and Repeatability

In industrial metal fabrication, consistent cutting length is important because cut components often move directly into machining, welding, assembly, or forming operations.

The automatic cutting system can provide repeatable cutting cycles when the machine is correctly configured and operated. Proper material clamping, blade condition, feed control, machine alignment, and cutting parameters all influence final cutting quality.

For applications requiring tighter dimensional control, buyers should provide detailed cutting tolerance requirements so the machine configuration can be evaluated accordingly.

Industrial Applications

The Metal Band Saw Machine is suitable for a broad range of industries, including:

Steel fabrication
Metalworking
Machinery manufacturing
Automotive parts manufacturing
Agricultural machinery
Construction equipment
Structural steel processing
Pipe and tube fabrication
Hydraulic equipment manufacturing
Industrial equipment production
Welding and fabrication workshops
General machine shops

The machine can be used as a standalone cutting system or integrated into a larger material preparation and manufacturing workflow.

Production Efficiency

Automatic metal cutting can improve production efficiency by reducing repetitive manual cutting operations. When multiple pieces with the same or similar dimensions are required, automated feeding, clamping, and cutting functions can help establish a more standardized workflow.

For high-volume production, the band saw can also be integrated with material handling equipment or other production machinery, depending on the factory layout and project requirements.

Actual production output depends on the workpiece material, cross-sectional dimensions, cutting length, blade type, cutting speed, loading method, operator workflow, and machine configuration.

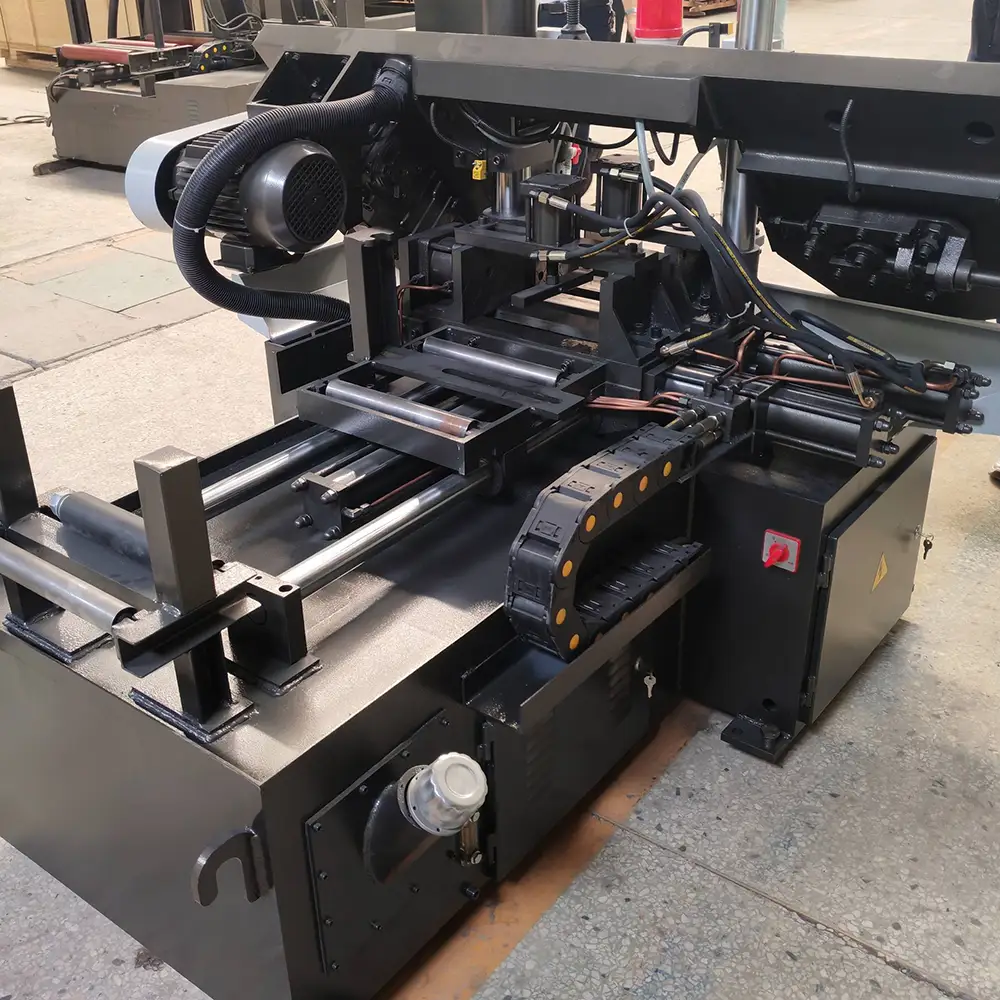

Workpiece Clamping

Stable workpiece clamping is essential for safe and accurate band sawing. The clamping system should hold the material securely throughout the cutting cycle while avoiding unnecessary deformation.

Different workpiece shapes may require different clamping arrangements. Round tubes, solid bars, rectangular profiles, bundles, and irregular sections should be evaluated separately.

For production applications involving multiple material shapes, customized workholding solutions may be available depending on the machine design.

Cooling and Blade Life

Metal band sawing can generate heat, chips, and friction at the cutting interface. Depending on the machine configuration and material, a suitable cutting-fluid or cooling system can help control cutting temperature and improve blade performance.

Regular inspection of blade condition is also important. A worn, damaged, or incorrectly tensioned blade can negatively affect cutting quality and increase the risk of premature blade failure.

Operators should follow the manufacturer's recommended blade tension, cutting parameters, lubrication, and maintenance procedures.

Easy Operation and Maintenance

An industrial automatic band saw should be maintained regularly to keep cutting performance stable. Routine maintenance may include cleaning metal chips, checking blade condition, inspecting guides and bearings, checking hydraulic or mechanical components where applicable, and maintaining the cooling or lubrication system.

The work area should remain clean and free from accumulated chips and debris. Operators should also inspect electrical and mechanical components according to the machine maintenance schedule.

Proper maintenance can help extend machine service life and reduce unexpected production interruptions.

Customized Metal Cutting Solutions

Different customers have different requirements for workpiece dimensions, production capacity, cutting accuracy, automation, material types, and factory layouts.

The Metal Band Saw Machine can therefore be evaluated and configured according to the customer's application. Optional functions may include different feeding systems, clamping configurations, blade specifications, cooling arrangements, material handling solutions, and control functions depending on the selected model.

For a customized quotation, buyers can provide the following information:

Material type and grade
Workpiece shape
Maximum and minimum dimensions
Required cutting length
Cutting tolerance
Required production volume
Desired automation level
Power supply requirements
Factory space or layout limitations

This information helps determine the appropriate machine configuration.

OEM and B2B Supply

For distributors, machinery dealers, metal fabrication companies, and industrial manufacturers, we can support OEM and ODM cooperation according to project requirements.

Technical specifications, machine configuration, branding, packaging, documentation, and other project details can be discussed according to the customer's requirements.

Whether the machine is needed for a single fabrication workshop or as part of a larger automated production line, selecting the correct band saw configuration is essential for achieving stable and economical cutting performance.

Frequently Asked Questions
1. What is a horizontal metal band saw machine?

A horizontal metal band saw machine uses a continuous toothed band blade to make straight cuts through metal workpieces. It is commonly used for cutting bars, tubes, pipes, profiles, and other metal stock.

2. What does double column mean?

Double column refers to the machine structure using two supporting columns for the saw head or cutting frame. This design provides stable structural support during the cutting process.

3. Is this band saw fully automatic?

The machine can be configured with automatic cutting functions, but the exact automation level depends on the model. Automatic feeding, clamping, cutting, and other functions should be confirmed according to the selected configuration.

4. What materials can the machine cut?

It can be configured for suitable metal materials such as carbon steel, stainless steel, alloy steel, aluminum, copper, and other metals. Blade and cutting parameters must be selected according to the material.

5. Can it cut round tubes and square tubes?

Yes, suitable models can process round tubes, square tubes, rectangular tubes, and other profiles, provided their dimensions are within the machine's cutting and clamping range.

6. Can it cut solid steel bars?

Yes. Horizontal band saws are commonly used for cutting solid metal bars. The required blade and cutting parameters depend on the bar diameter, material, and production requirements.

7. How accurate is the cutting?

Cutting accuracy depends on the machine model, blade condition, material, clamping stability, feeding system, cutting parameters, and required workpiece dimensions. Specific tolerances should be confirmed before ordering.

8. How do I select the correct blade?

Blade selection depends on material, workpiece shape, cross-sectional dimensions, cutting quantity, and desired surface quality. Different applications may require different tooth pitches and blade specifications.

9. Can the machine be integrated into an automated production line?

Yes, depending on the model and project requirements. Automatic feeding and material handling equipment can potentially be integrated into a larger production system.

10. What information should I provide for a quotation?

Provide the material, workpiece shape, maximum dimensions, required cutting length, cutting tolerance, production volume, desired automation level, and other special requirements.

11. Does the machine require regular maintenance?

Yes. Regular blade inspection, chip removal, lubrication or cooling-system maintenance, mechanical inspection, and electrical checks are important for stable operation.

12. Can you provide OEM or customized solutions?

Yes. OEM/ODM and customized machine configurations can be discussed according to workpiece requirements, production capacity, automation needs, and factory conditions.

Why Choose Us

Industrial Metal Cutting Experience – We understand the practical requirements of metal fabrication, tube processing, steel cutting, and industrial production.
Application-Based Machine Selection – We recommend machine configurations based on actual material, workpiece dimensions, cutting requirements, and production volume.
Automatic Cutting Solutions – Automatic cutting, feeding, clamping, and other functions can be evaluated according to the selected machine configuration.
Stable Double Column Structure – The horizontal double-column design provides solid support for demanding industrial cutting applications.
Flexible Material Compatibility – Machine and blade configurations can be selected for different metal materials and workpiece shapes.
Customized B2B Solutions – We can discuss feeding systems, workholding, control functions, blade options, and other project-specific requirements.
OEM and ODM Support – Branding, documentation, packaging, and technical specifications can be coordinated for qualified B2B projects.
Complete Technical Support – We can assist with machine selection, configuration confirmation, operation guidance, maintenance recommendations, and after-sales technical support.
