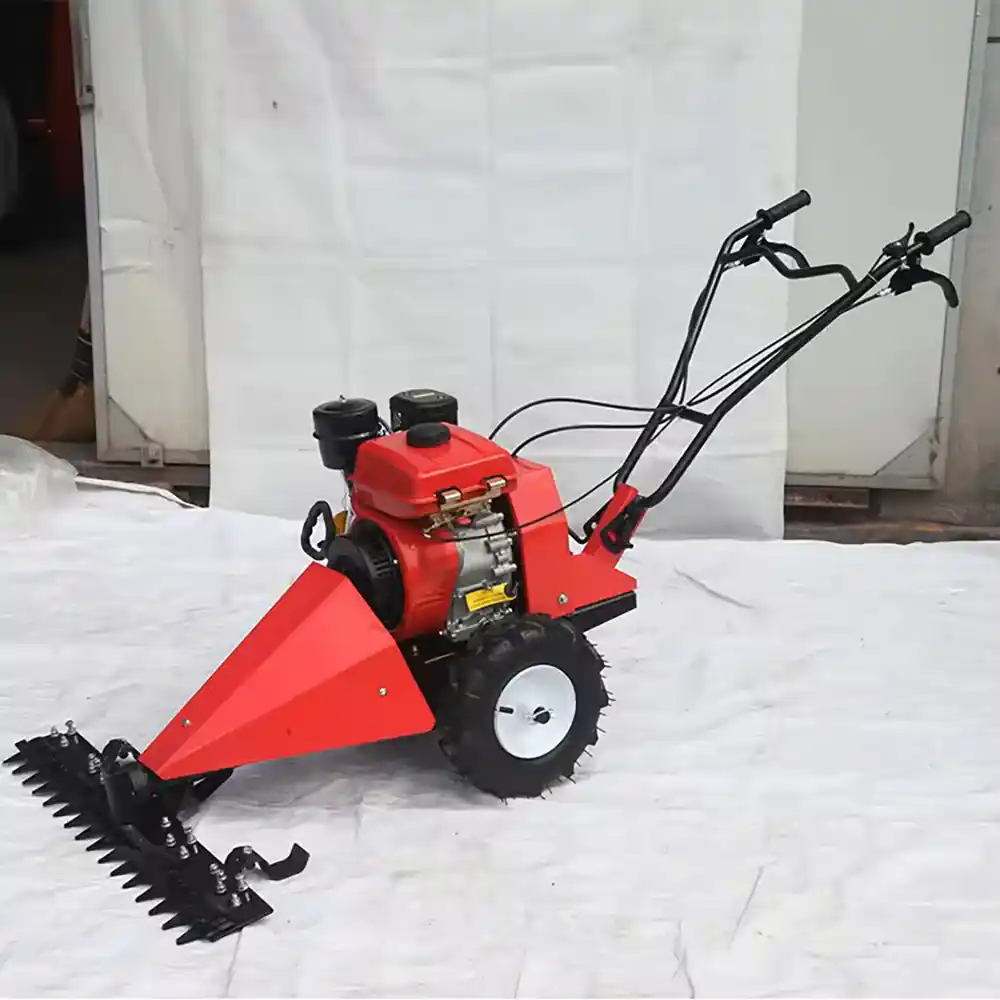

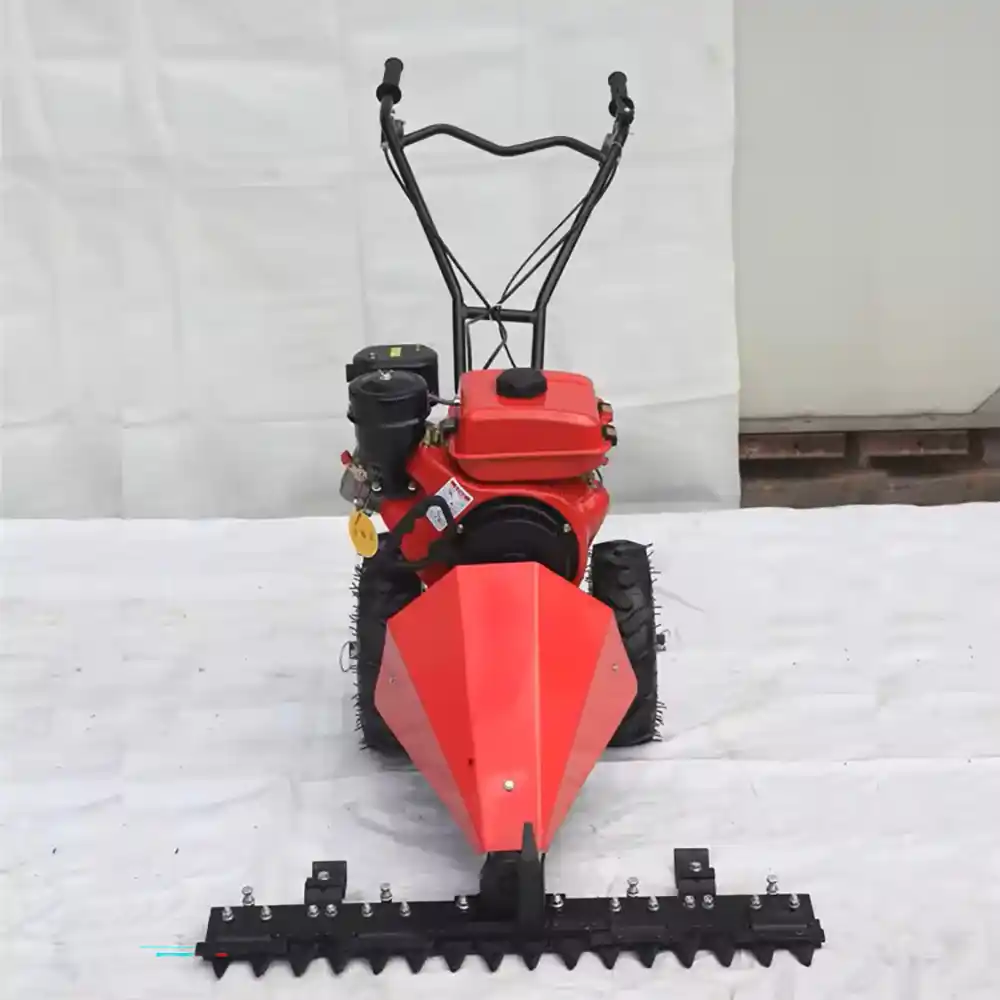

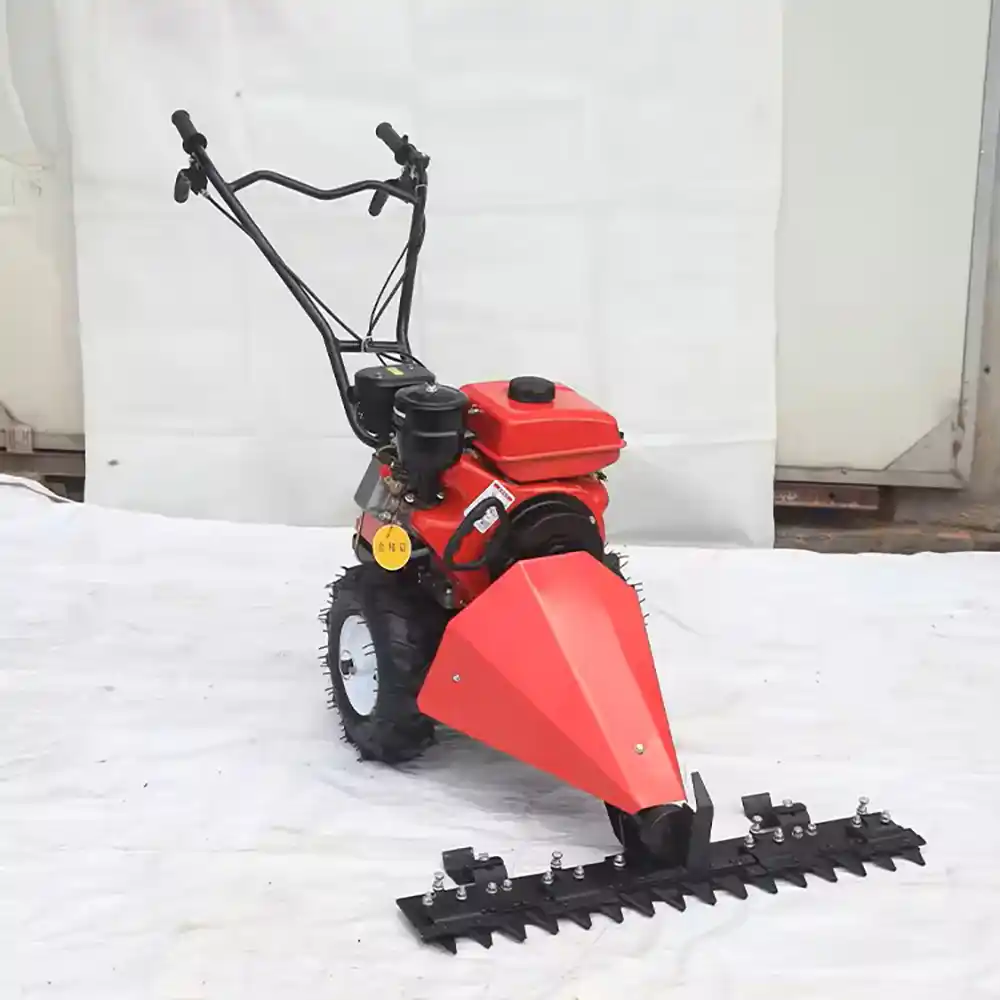

Two Wheel Tractor Mower, Sickle Bar Mower Technical Parameters

Two Wheel Tractor Mower for Sale, Sickle Bar Mower 1.Power:7.5hp available 2.Start method: electric startrecoil start 3.Weight: 120kg 4.Gears: 3 forward, 3 reverse 5.Handlebar: adjustable in height and sidewise in different positions.

Two Wheel Tractor Mower, Sickle Bar Mower

1.Power:7.5hp available
2.Start method: electric start&recoil start
3.Weight: 120kg
4.Gears: 3 forward, 3 reverse
5.Handlebar: adjustable in height and sidewise in different positions.It can be orientated of 180° 6.Working speed:forward: 1.18,2.76,12.67km/h reverse:1.24,2.91 km/h
7.Wheel Size:4.0×10.0
8.Transmission: all gear drive and direct power transmission
9.Lubricating system:oil bath lubrication
10.Clutch type: Dry clutch
11.P.T.O.:990rpm at 3600rpm of the motor
12.Gear ratio:264.2:1 112.9:1 24.5:1
13.Size:108*93*76cm
