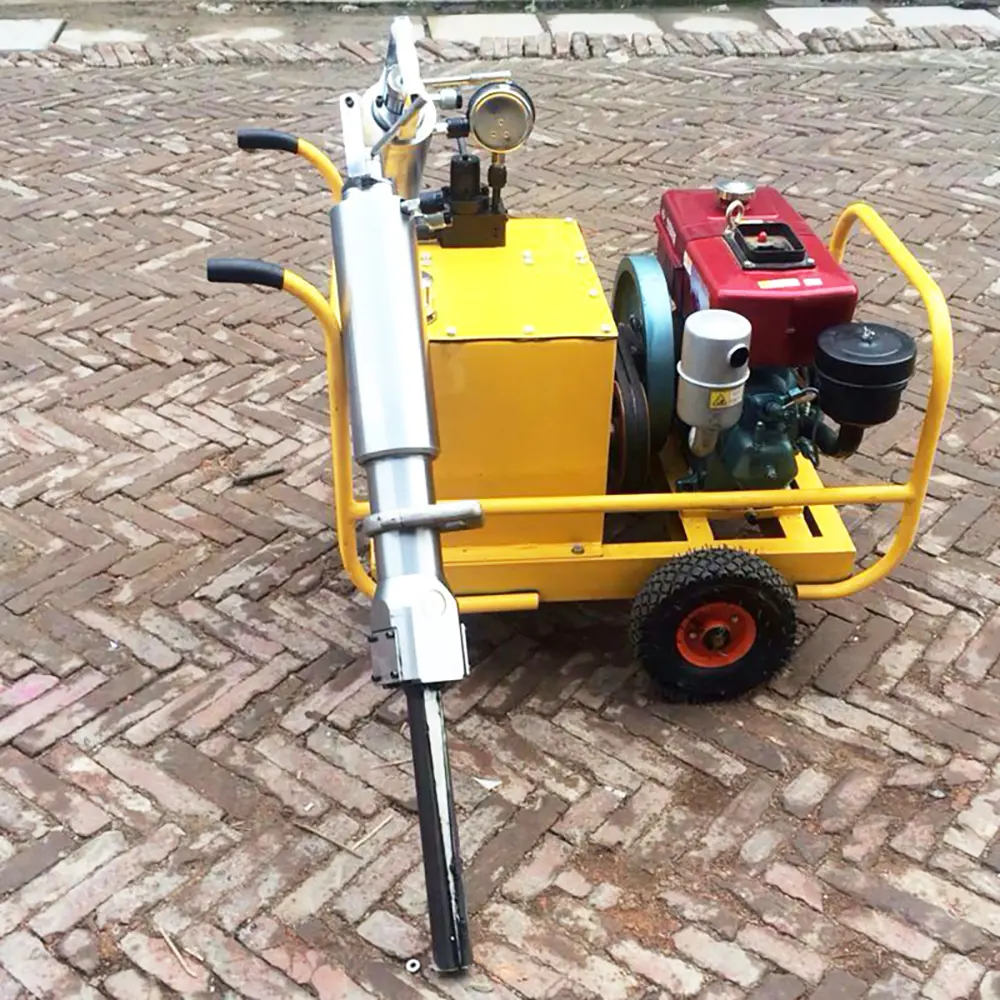

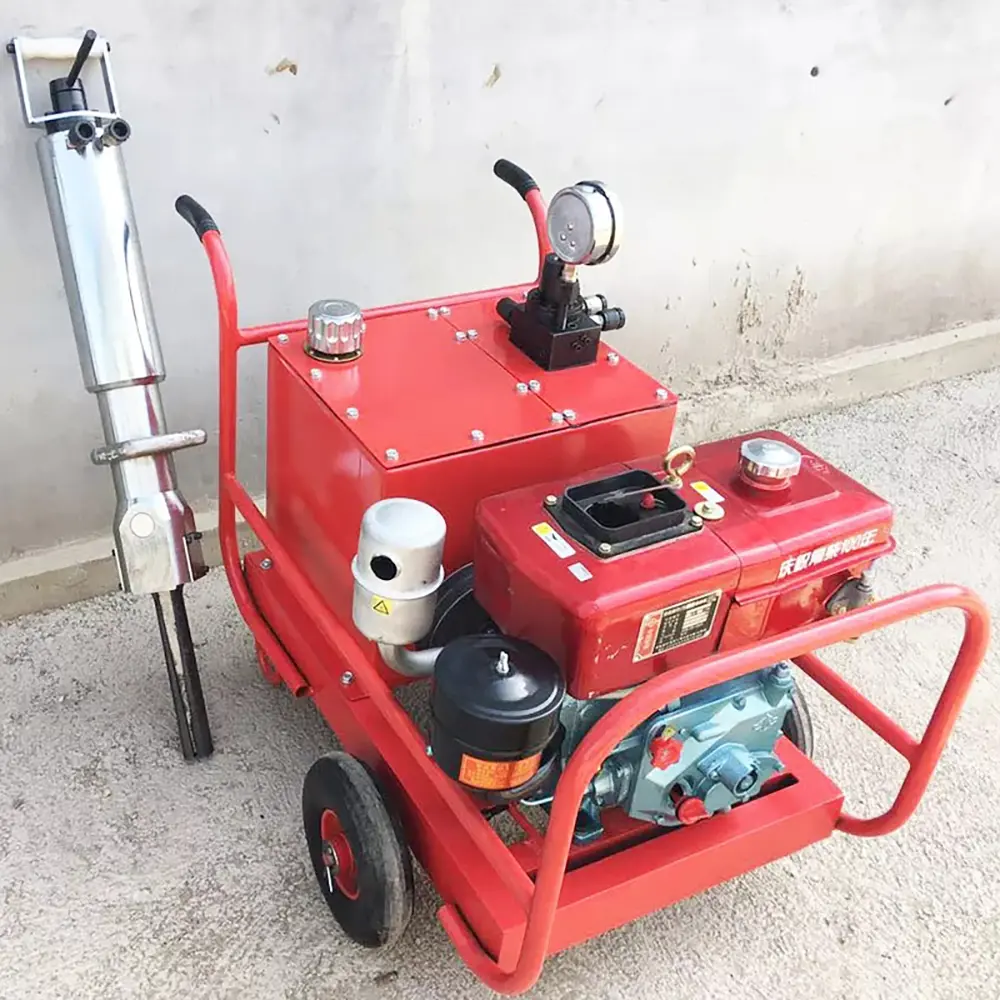

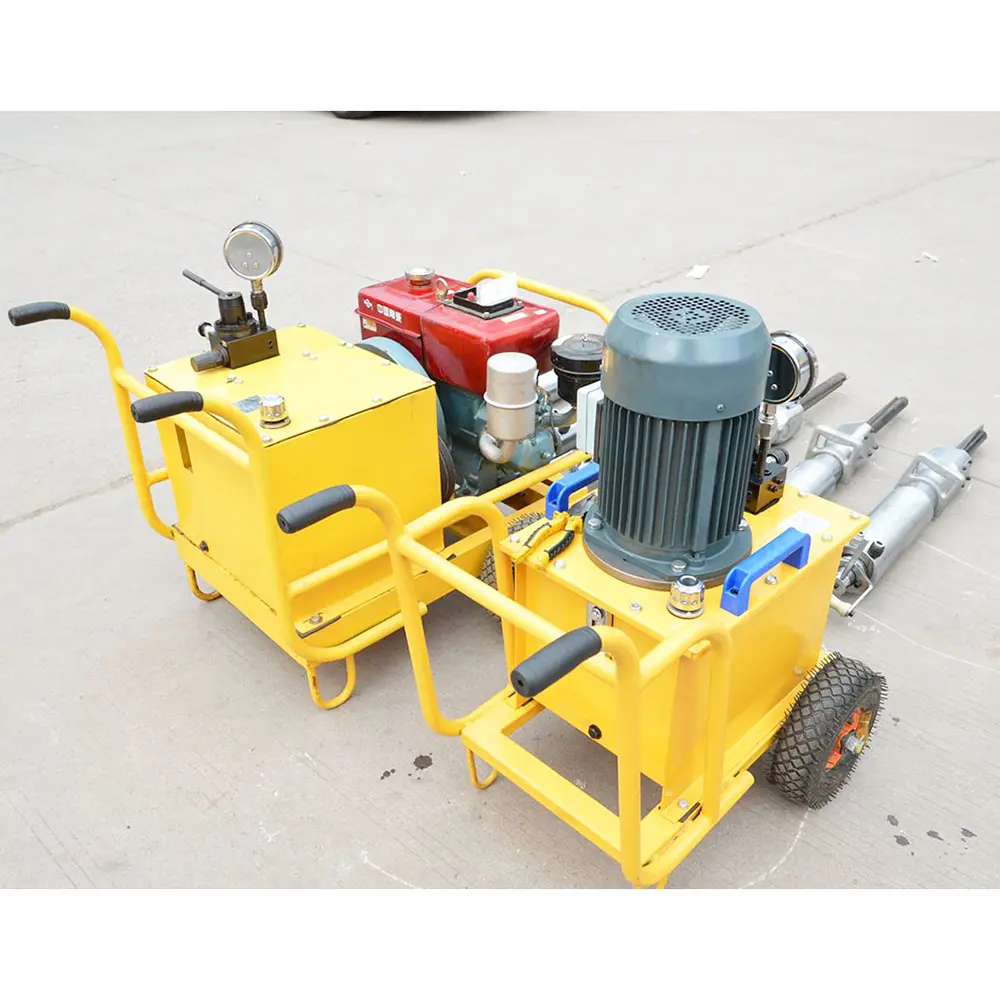

Hydraulic Rock Splitter

Hydraulic Rock Splitter
Powerful Non-Explosive Solution for Rock and Concrete Breaking

The Hydraulic Rock Splitter is an innovative demolition and rock-breaking machine designed to provide a safe, efficient, and environmentally friendly alternative to traditional blasting methods. By utilizing advanced hydraulic pressure and wedge expansion technology, the splitter generates tremendous force within pre-drilled holes, causing rock and concrete structures to fracture along natural cleavage lines.

Widely used in mining, quarrying, tunneling, construction, and demolition industries, hydraulic rock splitters offer exceptional breaking performance while significantly reducing noise, dust, vibration, and environmental impact. Unlike explosives, hydraulic splitters provide precise control over the splitting process, making them ideal for sensitive areas where blasting is restricted or prohibited.

As demand grows for safer and greener construction and mining practices, hydraulic rock splitters have become one of the most effective non-explosive demolition tools available worldwide.

How Hydraulic Rock Splitters Work

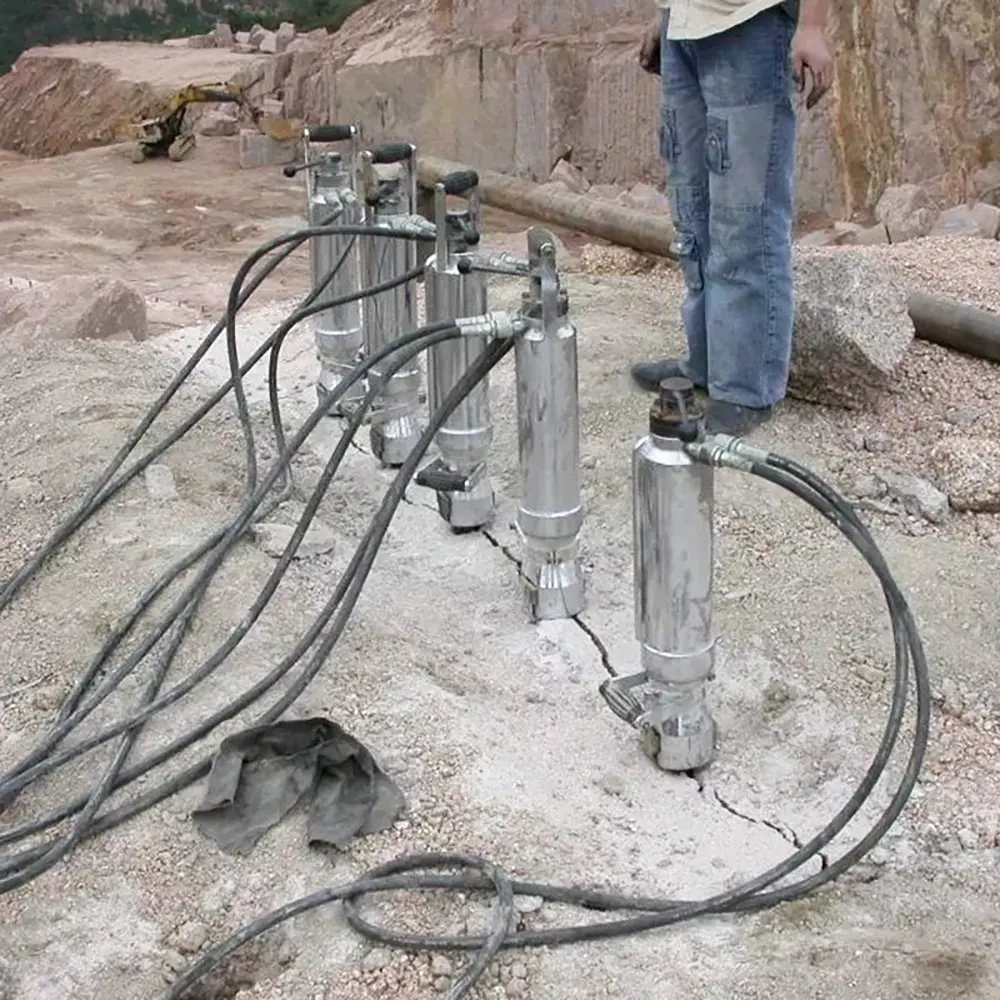

Hydraulic rock splitters operate on a simple yet highly effective principle. First, holes are drilled into the target rock or concrete using suitable drilling equipment. The splitter's wedge assembly is then inserted into the drilled holes.

When hydraulic pressure is applied, the center wedge pushes outward between two counter wedges. This action creates enormous lateral force against the surrounding material. Since rock and concrete possess relatively low tensile strength compared to compressive strength, cracks begin to form and rapidly propagate through the material.

The result is controlled splitting rather than impact breaking, providing a highly efficient and predictable demolition process.

Basic Operating Procedure
Drill holes according to project requirements.
Insert the hydraulic splitter wedges into the holes.
Connect the hydraulic power pack.
Activate the hydraulic system.
Generate splitting pressure.
Create controlled fractures.
Remove broken material.

This process eliminates the need for explosives while maintaining high productivity and safety standards.

Main Features
Extremely High Splitting Force

Hydraulic rock splitters can generate splitting forces ranging from hundreds to thousands of tons, allowing them to fracture even the hardest rock formations and reinforced concrete structures.

Non-Blasting Technology

The machine operates without explosives, making it suitable for urban construction, underground mining, and environmentally sensitive areas.

Low Noise Operation

Compared with blasting and hydraulic breakers, hydraulic splitters produce significantly lower noise levels, improving workplace conditions.

Minimal Vibration

The splitting process generates very little vibration, helping protect nearby structures and reducing environmental disturbance.

Environmentally Friendly

No toxic gases, fly rock, or shock waves are produced during operation, making hydraulic splitting a sustainable demolition method.

Precise Splitting Control

Operators can control crack direction and splitting locations accurately, reducing material waste and preventing unintended damage.

Easy Operation

The machine is simple to operate and requires minimal training compared to explosive demolition methods.

Long Service Life

Manufactured from premium alloy steel and high-quality hydraulic components, hydraulic rock splitters are designed for long-term reliability under demanding conditions.

Applications

Hydraulic rock splitters are widely used across numerous industries.

Quarrying Industry

Stone quarries use hydraulic splitters to extract granite, marble, limestone, sandstone, and other natural stones while preserving material integrity.

Mining Operations

Mining companies employ hydraulic splitters for ore extraction, secondary breaking, shaft sinking, and underground excavation where explosives may be restricted.

Tunnel Construction

Hydraulic splitters assist in tunnel enlargement, excavation, and controlled rock removal with minimal vibration.

Concrete Demolition

The equipment effectively fractures reinforced concrete foundations, bridge piers, retaining walls, columns, and large concrete structures.

Building Construction

Contractors use hydraulic splitters for foundation excavation, site preparation, and structural modification projects.

Road Construction

Rock obstacles encountered during highway and railway development can be removed efficiently without blasting.

Municipal Engineering

Urban infrastructure projects benefit from low-noise, low-vibration demolition methods.

Underwater Projects

Hydraulic splitters can be used in underwater demolition and excavation operations where conventional methods are unsuitable.

Advantages Over Traditional Blasting
Improved Safety

Explosives involve significant risks such as fly rock, shock waves, and accidental detonation. Hydraulic splitters eliminate these hazards.

Better Environmental Performance

Hydraulic splitting generates less dust, vibration, and noise compared with blasting and hydraulic hammering.

Reduced Regulatory Requirements

Projects often require extensive permits and safety procedures for blasting. Hydraulic splitters simplify compliance and project management.

Greater Precision

Controlled splitting allows operators to fracture only the desired area while protecting surrounding structures.

Lower Overall Costs

Reduced permitting, improved safety, and minimized damage can significantly lower total project costs.

Suitable Materials

Hydraulic rock splitters can effectively break:

Granite
Basalt
Marble
Limestone
Sandstone
Quartzite
Slate
Reinforced Concrete
Plain Concrete
Brick Structures
Large Boulders
Rock Formations

Their versatility makes them one of the most valuable demolition tools available today.

Safety Benefits

Safety remains a primary reason many contractors choose hydraulic splitting technology.

The machine eliminates many dangers associated with explosives while providing a controlled demolition process.

Key safety advantages include:

No fly rock
No explosions
No shock waves
Low vibration
Low noise
Reduced dust exposure
Safer working environment
Better regulatory compliance

These benefits make hydraulic splitters particularly suitable for hospitals, schools, residential areas, industrial facilities, and heritage preservation projects.

Why Hydraulic Rock Splitters Are Increasingly Popular

As governments and industries adopt stricter environmental and safety standards, traditional blasting methods are becoming more difficult to implement. Hydraulic rock splitters offer a modern solution that meets productivity requirements while reducing environmental impact.

Their ability to work efficiently in confined spaces, urban environments, underground operations, and environmentally sensitive locations makes them a preferred choice for contractors worldwide.

With lower operational risks and greater control over demolition outcomes, hydraulic splitters continue to gain popularity across construction, mining, and quarrying industries.

Why Choose Our Hydraulic Rock Splitter

Our company specializes in manufacturing professional rock-breaking and mining equipment designed to meet international standards.

Advanced Hydraulic Technology

High-pressure hydraulic systems deliver maximum splitting force and reliable performance.

Premium Materials

All critical components are manufactured using high-strength alloy steel for maximum durability.

Strict Quality Control

Each machine undergoes comprehensive inspection and testing before shipment.

Professional Manufacturing Experience

Years of industry experience ensure dependable product quality and performance.

Competitive Factory Pricing

Direct factory supply helps customers reduce procurement costs.

OEM & ODM Support

Customized specifications and branding services are available upon request.

Global Export Capability

Our equipment is exported to customers worldwide and complies with international requirements.

Comprehensive After-Sales Service

Professional technical support, spare parts supply, and maintenance assistance are available whenever needed.

Frequently Asked Questions (FAQs)
1. What is a Hydraulic Rock Splitter?

A Hydraulic Rock Splitter is a non-explosive demolition machine that uses hydraulic pressure and wedge expansion technology to split rock and concrete.

2. Can it replace blasting operations?

Yes. In many applications, hydraulic rock splitters provide a safer and more controlled alternative to blasting.

3. What types of rock can be split?

Granite, basalt, marble, limestone, sandstone, quartzite, and most natural rock formations can be effectively fractured.

4. Is it suitable for reinforced concrete?

Yes. Hydraulic splitters are widely used for breaking reinforced concrete structures and foundations.

5. How much splitting force can it generate?

Depending on the model, splitting force may reach hundreds or even thousands of tons.

6. Does it produce vibration?

Only minimal vibration is generated compared with hydraulic breakers or blasting.

7. Can it be used in urban areas?

Yes. Its low noise and vibration characteristics make it ideal for urban demolition projects.

8. What equipment is needed for operation?

A hydraulic power unit, drilling equipment, and hydraulic splitter assembly are typically required.

9. Is maintenance difficult?

No. Routine inspection, hydraulic oil replacement, and seal maintenance are generally sufficient.

10. Why choose a hydraulic splitter instead of a breaker hammer?

Hydraulic splitters provide quieter operation, better precision, lower vibration, and improved safety compared with breaker hammers.
