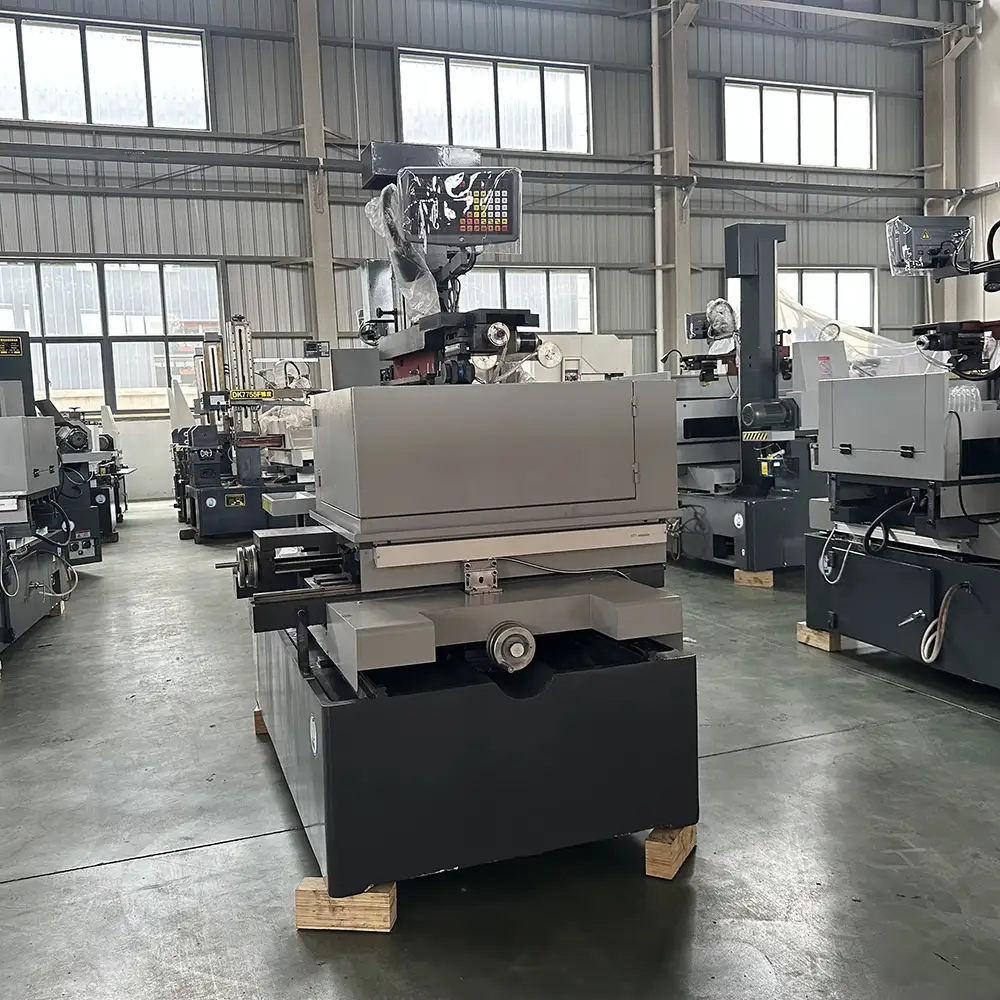

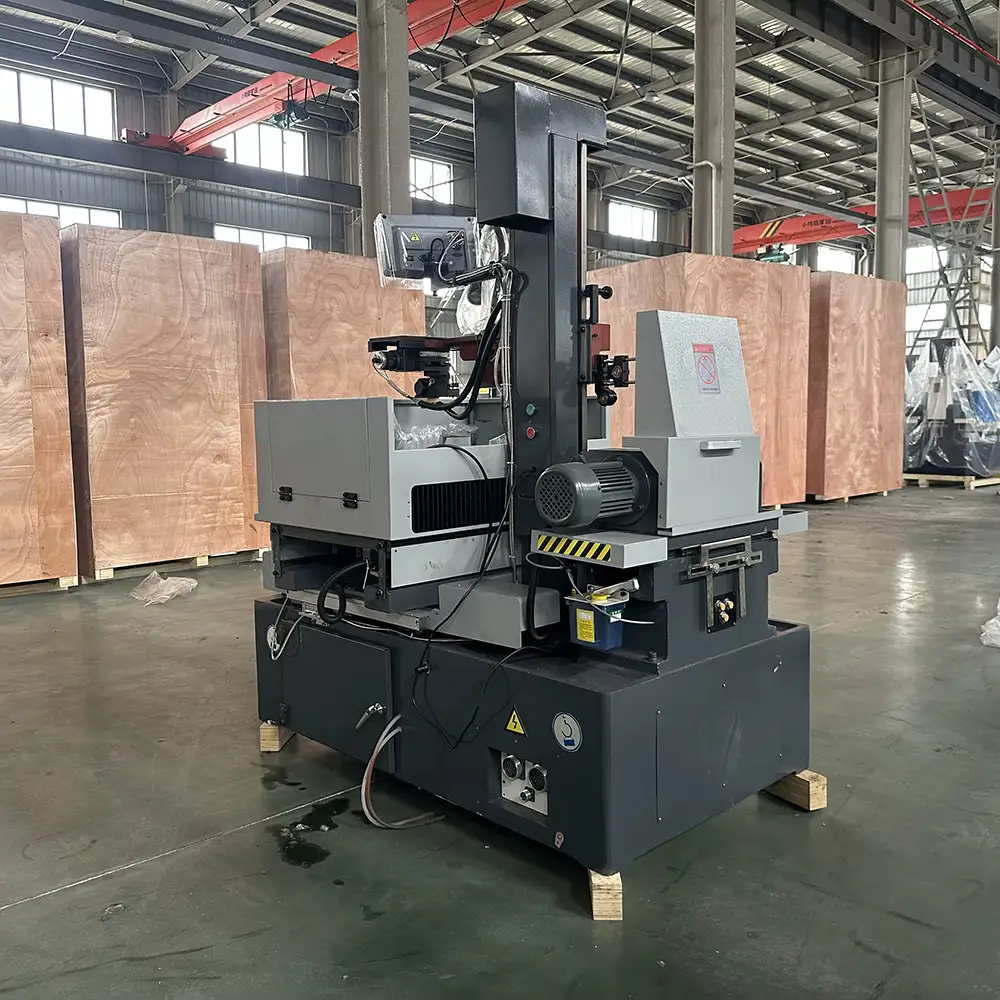

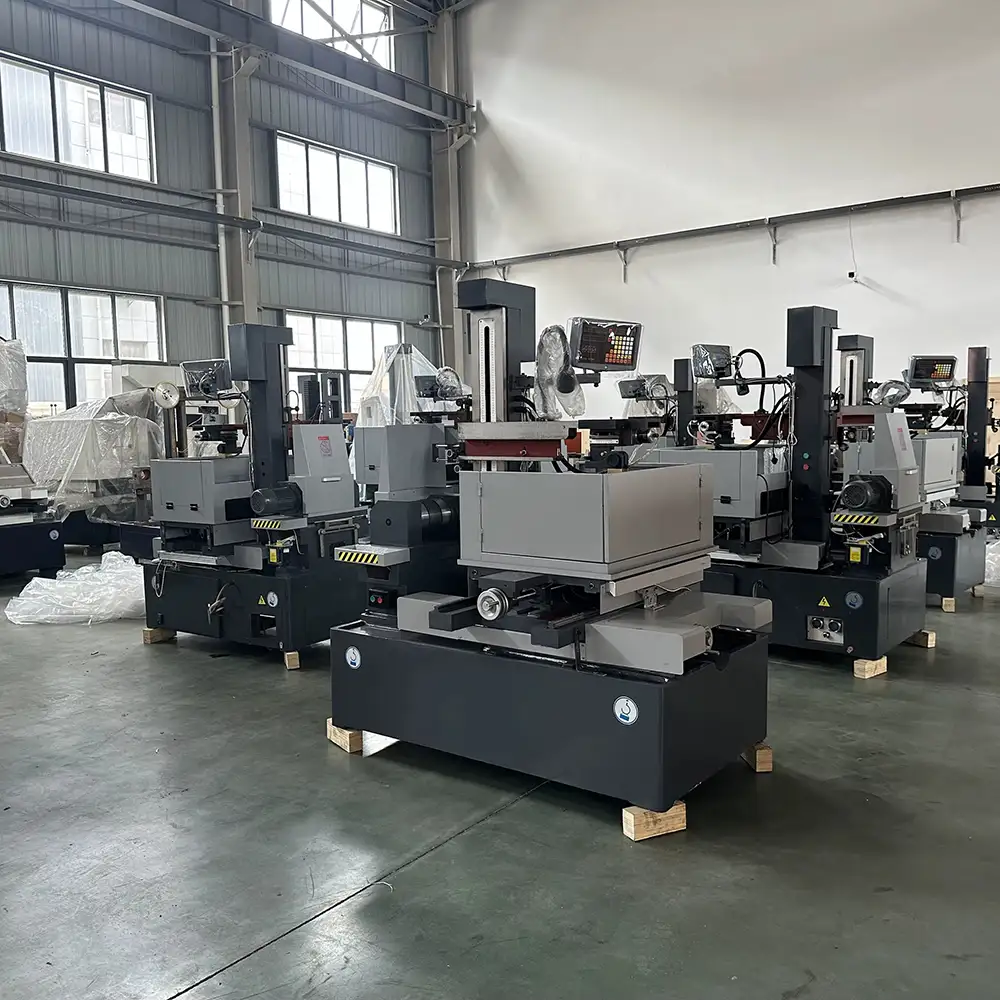

High Quality Edm Wire Cutting Machine Metal Erosion Machine Edm Wire Cut Machine

The High Quality EDM Wire Cutting Machine Metal Erosion Machine EDM Wire Cut Machine is a CNC precision machining solution designed for accurate cutting of electrically conductive metals and components. Using electrical discharge machining technology, the machine removes material through controlled electrical sparks between a continuously moving wire electrode and the workpiece.

Unlike conventional mechanical cutting methods, wire EDM does not rely on direct contact between a cutting tool and the workpiece. This makes it suitable for producing intricate profiles, narrow slots, internal openings, sharp corners, and complex contours in conductive materials.

The machine is widely applicable to mold manufacturing, die production, precision tooling, automotive components, electronics, aerospace parts, mechanical components, and other industries where accurate metal cutting is required.

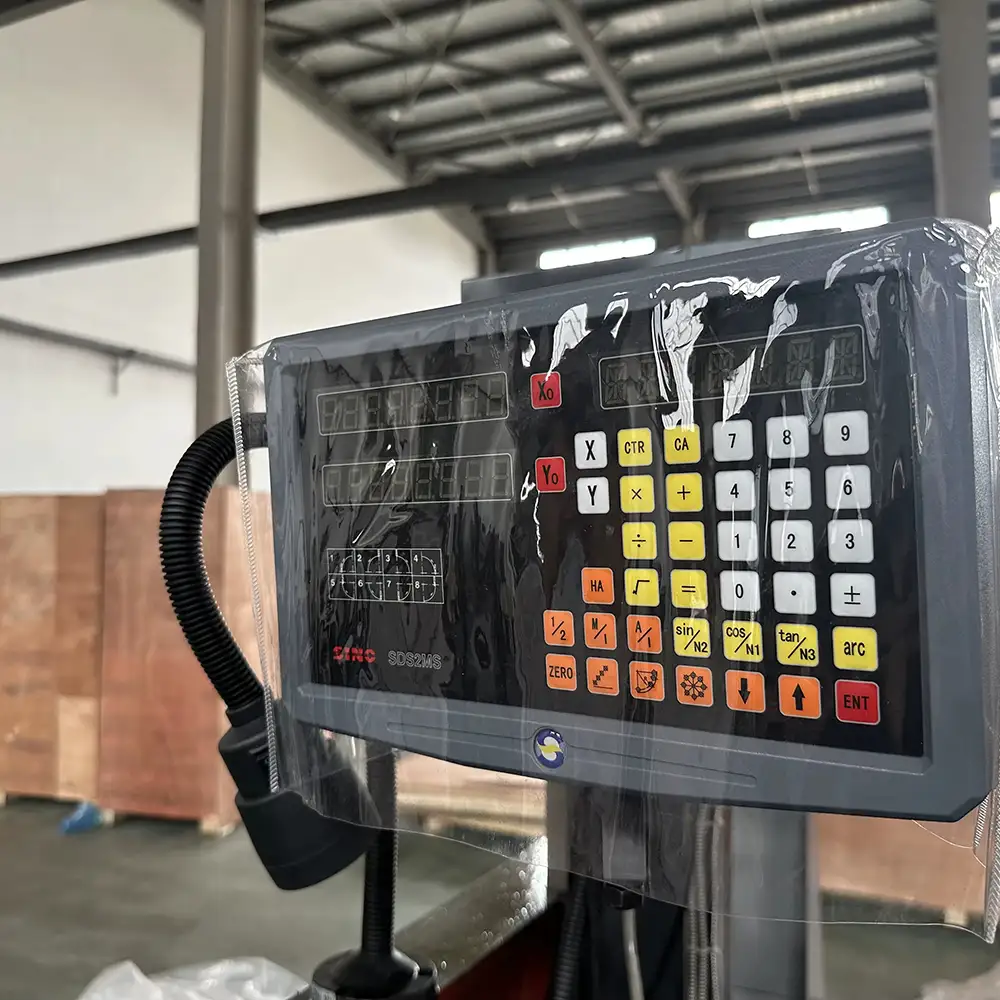

CNC EDM Wire Cutting Technology

CNC control allows the machine to follow programmed cutting paths with coordinated movement of the worktable and wire electrode. After the machining program is prepared, the system can execute complex profiles according to the programmed geometry.

This digital process reduces dependence on manual cutting and helps provide repeatable machining results for production batches. Operators can adjust cutting programs according to different workpiece shapes and processing requirements.

The actual machining accuracy and surface finish depend on the machine configuration, control system, wire electrode, workpiece material, cutting parameters, and machining strategy.

Model	Worktable travel(mm)	Worktable size(mm)	Max. cutting thickness(mm)	Max. load(kg)	Dimensions(mm)
DK7720	200*250	420*270	200	100	1250*950*1250
DK7725	250*320	520*340	300	200	1450*900*1500
DK7735(32)	350(320)*450(400)	710*460	400	300	1400*1100*1600
DK7745(40)	450(400)*550(500)	810*570	400	450	1600*1200*1600
DK7745F(40F)	450(400)*630	950*600	400/600	600	1600*1580*1600
DK7755(50)	550(500)*650(630)	950*650	700	700	2000*1500*1900
DK7755F(50F)	550(500)*800	1140*650	700	700	2000*1650*1900
DK7763	630*800	1140*750	700	1000	2100*1700*2050
DK7763F	630*1000	1350*750	700	1200	2250*1850*2050
DK7780	800*1000	1350*980	900	2000	2400*1900*2350
DK7780F	800*1200	1600*1050	900	2400	2550*1950*2400
DK77100	1000*1200	1600*1100	1000	2600	2850*2500*2500
DK77100F	1000*1400	1800*1250	1000	2800	2950*2050*2500
DK77120	1200*1400	1800*1350	1000	3000	3050*2750*2500
DK77120F	1200*1600	2000*1500	1000	3500	3100*2850*2500
DK77160	1600*1800	2000*1700	1000	4000	3250*3000*2500

Electrical Discharge Metal Erosion

The Metal Erosion Machine uses electrical discharge energy rather than conventional mechanical cutting. During machining, controlled electrical discharges occur between the wire electrode and conductive workpiece in a dielectric environment.

The localized discharge energy removes small amounts of material from the workpiece. Because the wire does not mechanically press against the workpiece in the same way as a conventional cutting tool, wire EDM can be used for delicate profiles and difficult-to-machine conductive materials.

This process is particularly useful when conventional milling, sawing, or mechanical cutting cannot easily produce the required geometry.

Precision Wire Cutting

Precision is one of the main advantages of wire EDM technology. The machine can produce complex contours and detailed profiles that require controlled CNC movement.

Applications may include narrow slots, intricate openings, stamping die profiles, punch components, gears, precision plates, and other specially shaped metal parts.

For manufacturers producing high-value tooling or precision components, CNC wire cutting can reduce the need for multiple mechanical machining operations and provide a more flexible approach to complex profile production.

Suitable For Conductive Metals

Wire EDM is designed primarily for electrically conductive materials. Depending on the machine configuration and process parameters, suitable materials may include hardened steel, tool steel, stainless steel, carbon steel, copper, brass, and other electrically conductive alloys.

It is particularly useful for materials that are difficult to machine efficiently with conventional cutting methods.

Material characteristics should be evaluated before production because electrical conductivity, thickness, hardness, geometry, and required surface quality can affect the appropriate wire EDM process.

Complex Profile Cutting

The machine can be programmed to produce complicated two-dimensional profiles and, depending on the machine configuration, controlled taper or multi-axis cutting operations.

This makes wire EDM suitable for manufacturing components with irregular contours, sharp internal corners, small openings, and detailed geometric features.

For mold and die manufacturers, complex profile cutting can be especially valuable because many tooling components require precise shapes that are difficult to achieve through standard cutting processes.

Mold And Die Manufacturing

EDM wire cutting is widely used in mold and die production. Stamping dies, punching dies, precision inserts, templates, and other tooling components often require accurate profile cutting.

The machine can process hardened conductive materials after heat treatment, reducing the need to perform certain profile-cutting operations before hardening.

For toolmakers, this can simplify the production workflow and provide greater flexibility when producing replacement parts or customized tooling.

Multi-Pass Wire EDM Processing

Depending on the machine configuration, wire EDM can support multiple cutting passes. A rough cutting pass can establish the main profile, followed by finishing passes designed to improve dimensional control and surface quality.

Multi-pass processing is useful for applications where the final component requires tighter dimensional control or a smoother machined surface.

The number of passes and final machining quality depend on the workpiece material, thickness, machine specifications, wire electrode, dielectric system, and selected cutting parameters.

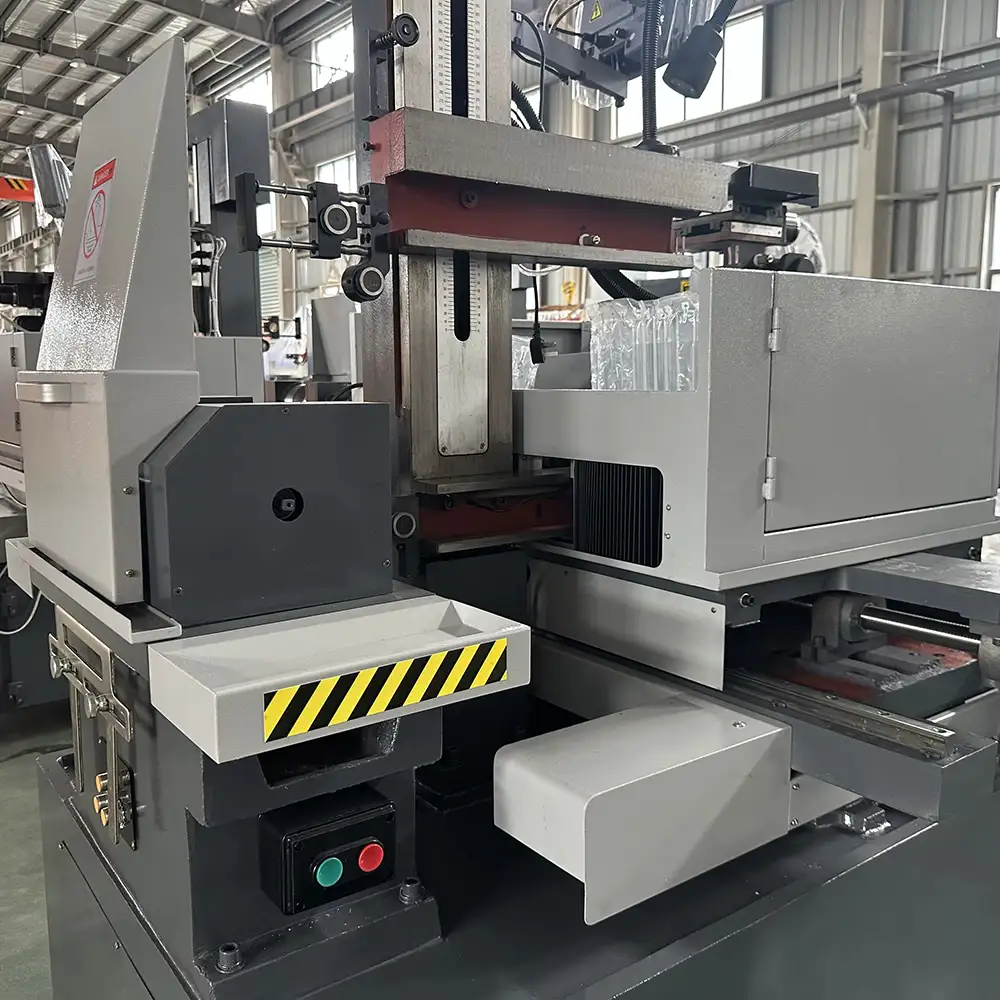

Automatic Wire Feeding

An automatic wire feeding system can help maintain continuous wire electrode supply during machining. This is particularly useful for longer machining cycles and production applications.

Stable wire movement contributes to consistent electrical discharge conditions and helps reduce interruptions associated with manual wire handling.

Depending on the machine model, additional wire threading or automatic wire recovery functions may be available.

Dielectric Water Filtration

Wire EDM normally uses a dielectric fluid, commonly deionized water, to support controlled electrical discharge and flush machining debris away from the cutting area.

A filtration system helps remove machining particles from the dielectric fluid. Maintaining appropriate water quality and filtration conditions is important for stable EDM performance.

The machine can be equipped with a circulation and filtration system according to the selected configuration and production requirements.

Stable Workpiece Positioning

Accurate workpiece positioning is essential for CNC wire cutting. The machine worktable and workholding system are designed to support the workpiece during the machining process.

Proper alignment and clamping can help reduce unwanted movement and improve repeatability.

For complex components, fixtures can be selected according to workpiece size, shape, weight, and machining requirements.

Efficient Precision Manufacturing

Although wire EDM is primarily selected for precision rather than high-speed bulk material removal, it can provide an efficient production solution for complex conductive components.

Digital CNC programming allows manufacturers to change between different component designs without requiring dedicated mechanical cutting tools for every profile.

This flexibility is particularly useful for prototype production, replacement parts, customized tooling, small batches, and precision manufacturing.

Applications In Multiple Industries

The High Quality EDM Wire Cutting Machine can be used across a wide range of manufacturing industries.

Typical applications include stamping dies, injection mold components, precision tooling, automotive parts, electronic components, mechanical parts, aerospace components, medical equipment components, gears, punches, templates, and precision plates.

Its ability to process complex profiles makes it a valuable machining solution for both specialized tooling production and general precision metalworking.

B2B Machine Configuration

Different customers require different wire cutting capabilities. Machine selection should consider workpiece dimensions, maximum cutting thickness, required accuracy, surface finish, taper requirements, production volume, and material type.

The CNC control system, wire electrode system, dielectric circulation, filtration unit, worktable, and optional automation functions can also influence the overall machine configuration.

For B2B buyers, providing sample drawings, material specifications, workpiece dimensions, and required machining tolerances can help determine a suitable configuration.

Production Repeatability

For repeated production, CNC wire EDM can store and reuse machining programs for compatible workpieces. This can help standardize production and reduce repeated manual programming.

Consistent workholding, wire conditions, dielectric quality, machine maintenance, and cutting parameters are important for maintaining repeatable machining results.

Regular inspection and maintenance of the wire guide, electrical system, filtration system, worktable, and other wear components can help maintain stable operation.

Key Features
High Quality CNC EDM Wire Cutting
Electrical Discharge Metal Erosion
Precision Wire Cutting Technology
CNC-Controlled Machining
Complex Profile Cutting
Narrow Slot And Opening Cutting
Suitable For Hardened Conductive Metals
Automatic Wire Feeding Options
Dielectric Water Circulation And Filtration
Multi-Pass Cutting Capability
Stable Workpiece Positioning
Flexible B2B Machine Configuration
Main Applications

The High Quality EDM Wire Cutting Machine is suitable for:

Mold Manufacturing
Stamping Die Production
Punch Die Manufacturing
Precision Tooling
Automotive Components
Aerospace Components
Electronics Parts
Mechanical Components
Hardened Steel Parts
Stainless Steel Components
Copper And Brass Components
Precision Metal Parts
FAQs
1. What Is An EDM Wire Cutting Machine?

An EDM wire cutting machine is a CNC electrical discharge machining system that uses a continuously moving wire electrode and controlled electrical discharges to cut electrically conductive materials.

2. What Does Metal Erosion Mean In EDM?

Metal erosion refers to the controlled removal of conductive material through electrical discharge energy. The process removes small amounts of material without conventional mechanical cutting contact.

3. What Materials Can Wire EDM Cut?

Suitable materials may include hardened steel, tool steel, stainless steel, carbon steel, copper, brass, and other electrically conductive metals. Actual compatibility depends on the machine and process conditions.

4. Can Wire EDM Cut Hardened Steel?

Yes. Wire EDM is particularly useful for cutting suitable hardened conductive materials because the process does not depend primarily on conventional mechanical tool hardness.

5. Can It Cut Complex Shapes?

Yes. CNC wire EDM can produce complex profiles, narrow slots, internal openings, detailed contours, and other programmed geometries.

6. Is Wire EDM Suitable For Mold Making?

Yes. Mold and die manufacturing is a major application for wire EDM, including stamping dies, punches, inserts, templates, and precision tooling components.

7. Can The Machine Perform Taper Cutting?

Taper cutting may be available depending on the machine's CNC system, mechanical configuration, and axis capability. The required taper range should be confirmed before selecting a machine.

8. Does The Machine Use A Wire Electrode?

Yes. A continuously moving wire electrode is used to generate controlled electrical discharges between the wire and the conductive workpiece.

9. Why Is Dielectric Water Used?

Dielectric water helps support the electrical discharge process and flush machining debris from the cutting area. Proper filtration and water quality are important for stable machining.

10. What Information Is Needed For Machine Selection?

Customers should provide workpiece material, dimensions, maximum thickness, drawing or profile, required accuracy, surface finish requirements, taper requirements, and expected production volume. These details help determine the appropriate machine configuration.

Why Choose Us
Precision EDM Technology

We provide CNC wire EDM solutions designed for precision metal cutting, complex profiles, mold production, die manufacturing, and specialized tooling applications.

Flexible Machine Configuration

Different workpieces require different machining capabilities. We can evaluate workpiece dimensions, material, thickness, accuracy, surface finish, and production requirements when recommending a suitable configuration.

Professional Technical Support

Our technical team can assist with machine selection, process evaluation, tooling considerations, wire electrode selection, and dielectric system configuration according to the intended application.

Suitable For Complex Metal Components

Wire EDM provides a flexible machining method for intricate conductive metal profiles that may be difficult to produce using conventional cutting equipment.

Production-Oriented Design

CNC control, automatic wire feeding options, dielectric circulation, filtration, and repeatable machining programs support practical workshop and industrial production workflows.
