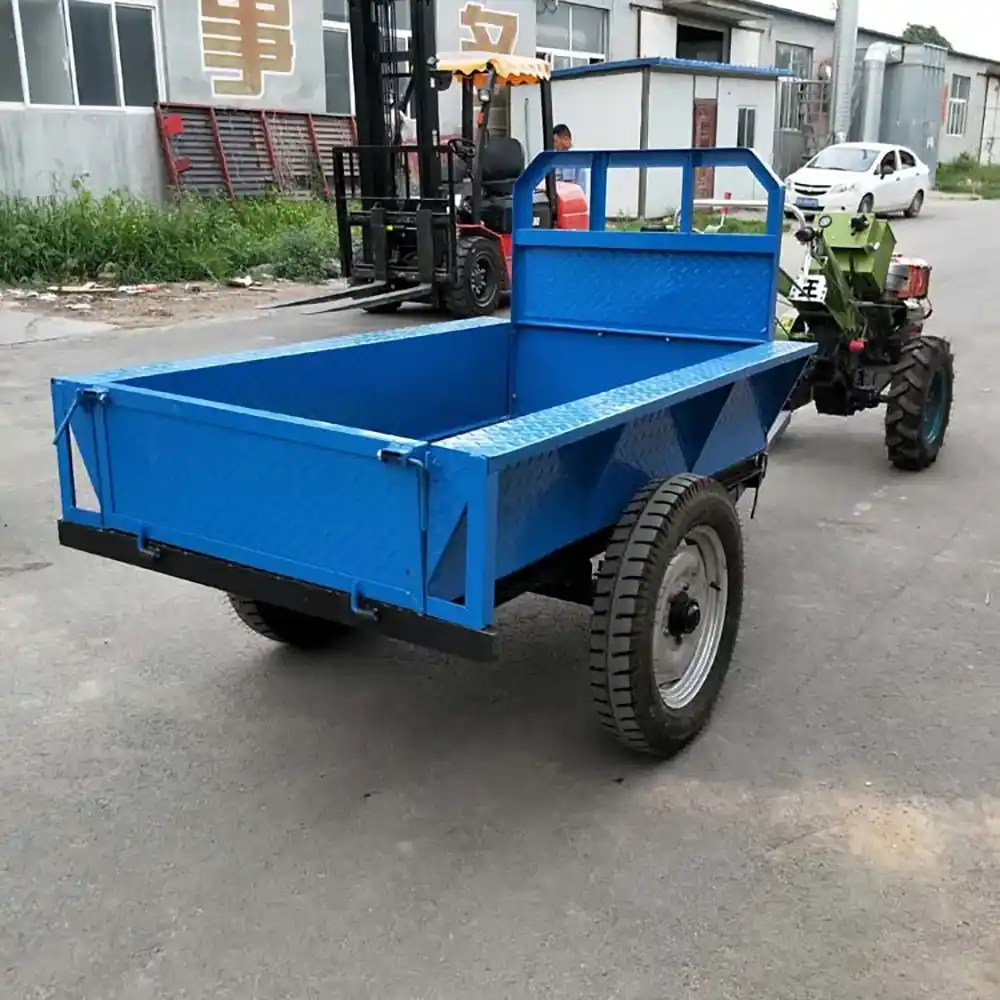

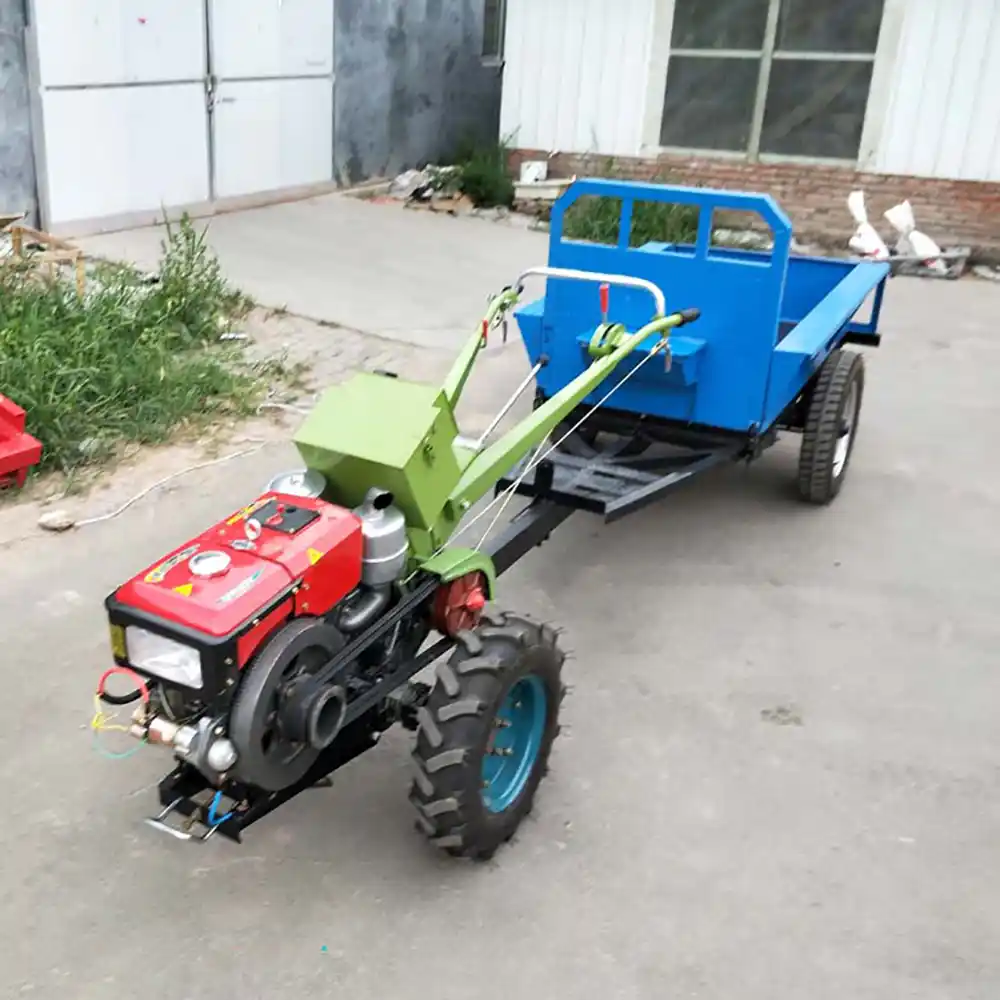

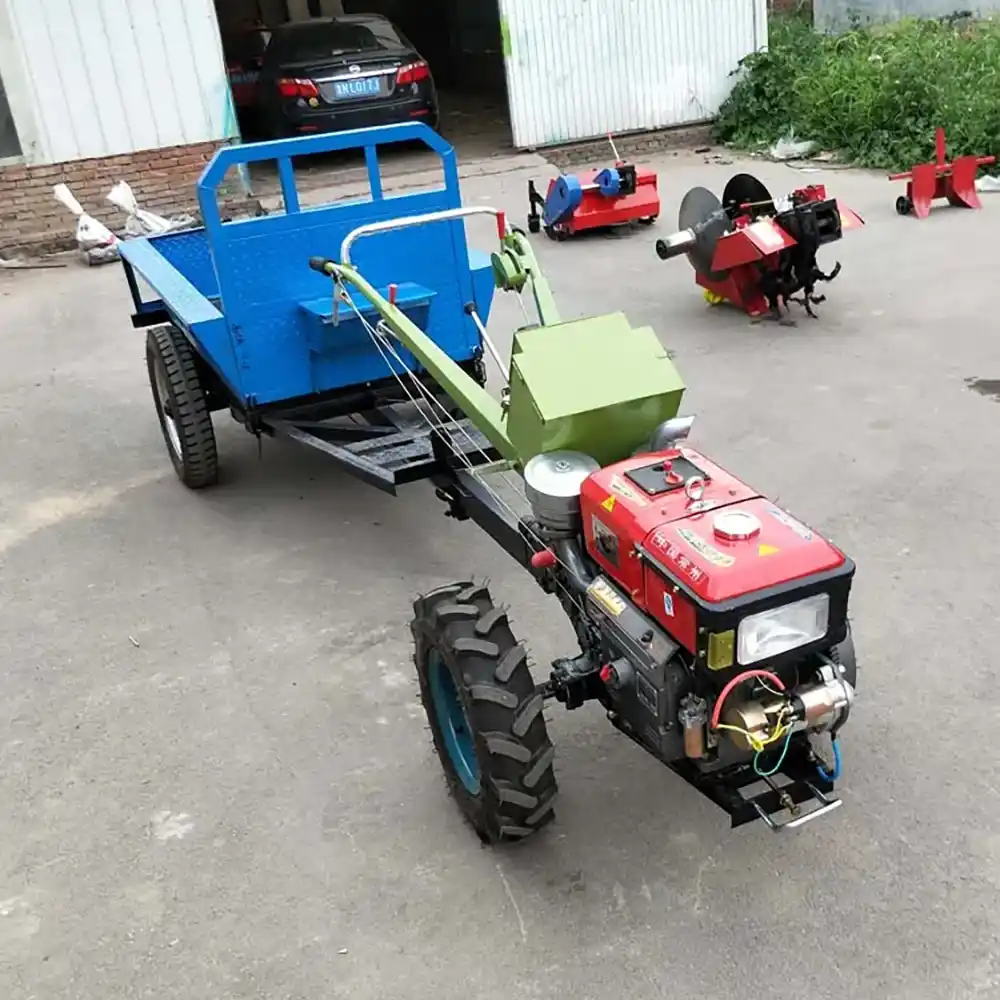

Hand Tractor Tiller with Farm Trailer Technical Parameters

Hand Tractor Tiller, with Farm Trailer, high-efficiency diesel engine Power: 12/15/18/20/22 horsepower In the table below, we will introduce the relevant parameters of our products in detail.

Model: DF-Hand Tractor Tiller
Engine type: high-efficiency diesel engine
Power: 12/15/18/20/22 horsepower
In the table below, we will introduce the relevant parameters of our products in detail. Of course, if you have any questions, you can consult us directly.

Hand Tractor Tiller Technical Parameter
   Model(with Power tiller) DF12 DF15 DF18 DF20 DF22
Weight(kgs) Without Rotary Tiller 360 371 371 396 401
With Rotary Tiller 490 515 515 540 545
Turning speed of
Rotary Tiller shaft(Rpm)
Low 188 188 188 188 188
High 300 300 300 300 300
Overall dimensions(L*W*H)(cm) 268*96*125 268*96*125 268*96*125 268*96*125 268*96*125
Number of blades(pcs) 18 24 or 26 24or 26 24or 26 24or26
Rototiller width(mm) 600 900 900/1000 900/1000 900/1000
Type of tractor Single axle,dual-purpose for both tractorand drive
Traveling Speed(km/h) Forward 1.4,2.5,4.1,5.3,9.4,15.3
Reverse 1.1,3.8
Tyre size 600-12 600-12 600-12 600-12 600-12
Wheel track(mm) 800,740,640580(Standard 800)
Min.groundclearance(mm) 185
Model ofengine ZS195NL ZS1100NL ZS1105NL ZS1110NL ZS1115NL
Type of engine Single cylinder,Horizontal,4-stroke,directly injection,With oil bath longair filter

Our two-wheel Hand Tractor Tiller is highly versatile and can be equipped with a range of attachments, making it suitable for various agricultural tasks and ensuring maximum productivity in different farming scenarios.

Borex stroke(mm) 95*115 100*115 105*115 110*115 115*115
Total displacement(L) 0.815 0.903 0.996 1.093 1.194
Compression ratio 17:1
Turing speedof crankshaft 2200
1-hour rated output(kw/hp) 10.6kw/14hp 12.1kw/16hp 13.2kw/18hp 14.7kw/20hp 30kw/22hp
12-hour rated output(kw/hp) 8.82kw/12hp 11.03kw/15hp 11.76kw/16hp 13.23kw/18hp 14.7kw/20hp
