Fully Automatic Anchor Bolt Threading Machine Iron Rod Thread Rolling Machine Round Bar Threading Machine

The Fully Automatic Anchor Bolt Threading Machine is an industrial metal thread forming solution designed for efficient production of anchor bolts, iron rods, round bars, threaded rods, studs, and other externally threaded metal components. By using a thread rolling process instead of conventional thread cutting, the machine can produce consistent external threads while supporting high-volume manufacturing.

Also known as an Iron Rod Thread Rolling Machine, Round Bar Threading Machine, Bolt Thread Rolling Machine, or Automatic Thread Rolling Machine, this equipment is suitable for manufacturers that require repeatable thread production, efficient material processing, and stable production output.

The machine can be configured for different workpiece diameters, thread specifications, thread lengths, materials, and production requirements. Automatic feeding and discharge functions can also be incorporated depending on the machine configuration.

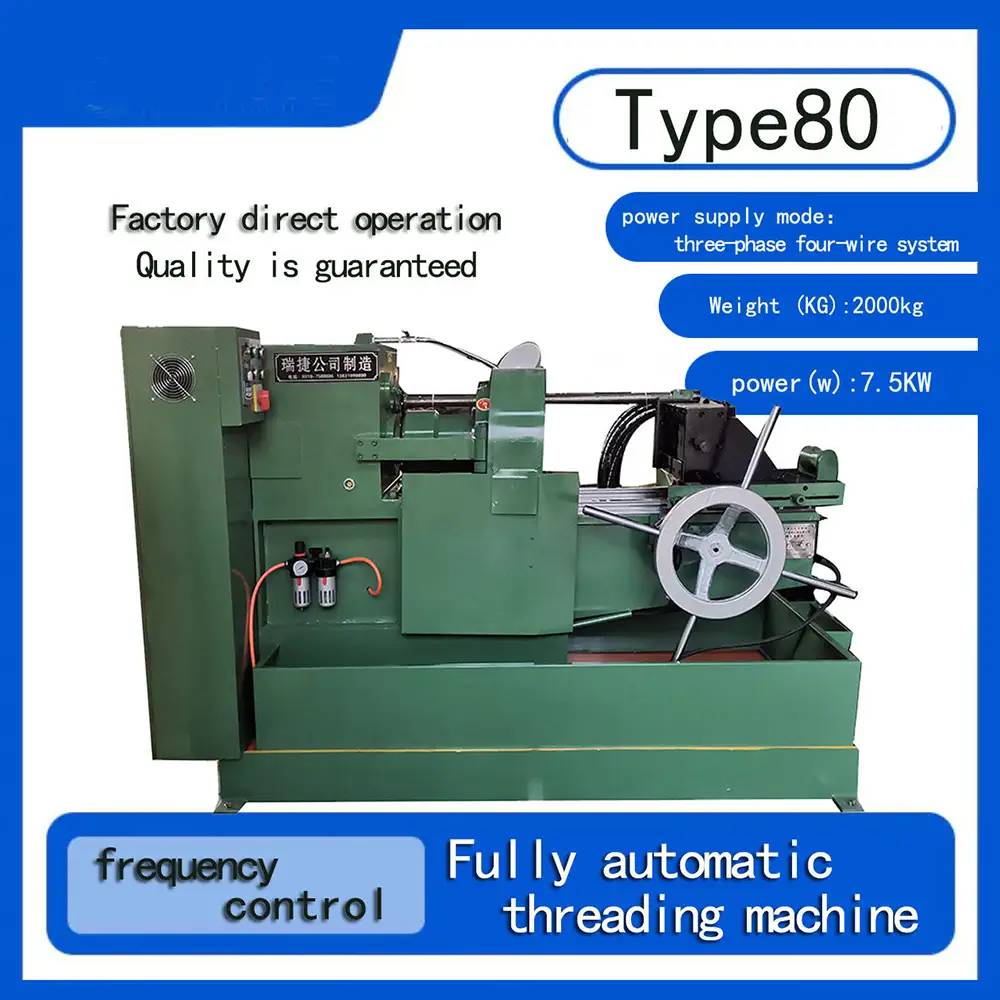

Voltage	380v
Spindle speed variation range	47-318r/m
Main motor power	7.5kw
Thread cutting length	360mm
Overall dimensions	2300*1380*1200
Machine weight	2000kg
Quality guarantee	1 year

Automatic Thread Rolling Process

Thread rolling is a cold-forming process in which hardened thread dies apply controlled pressure to a metal workpiece. Instead of removing material like a traditional cutting process, the thread profile is formed by plastic deformation.

During operation, a round bar, bolt blank, or other suitable workpiece is positioned between the thread rolling dies. As the dies rotate and apply pressure, the material flows into the required thread profile.

This process can provide several production advantages:

High Production Efficiency
Repeatable Thread Profiles
Consistent Thread Dimensions
Reduced Material Waste
Fast Cycle Times
Suitable for Mass Production
Efficient External Thread Forming

The actual process parameters depend on material properties, workpiece diameter, thread specification, die design, and machine configuration.

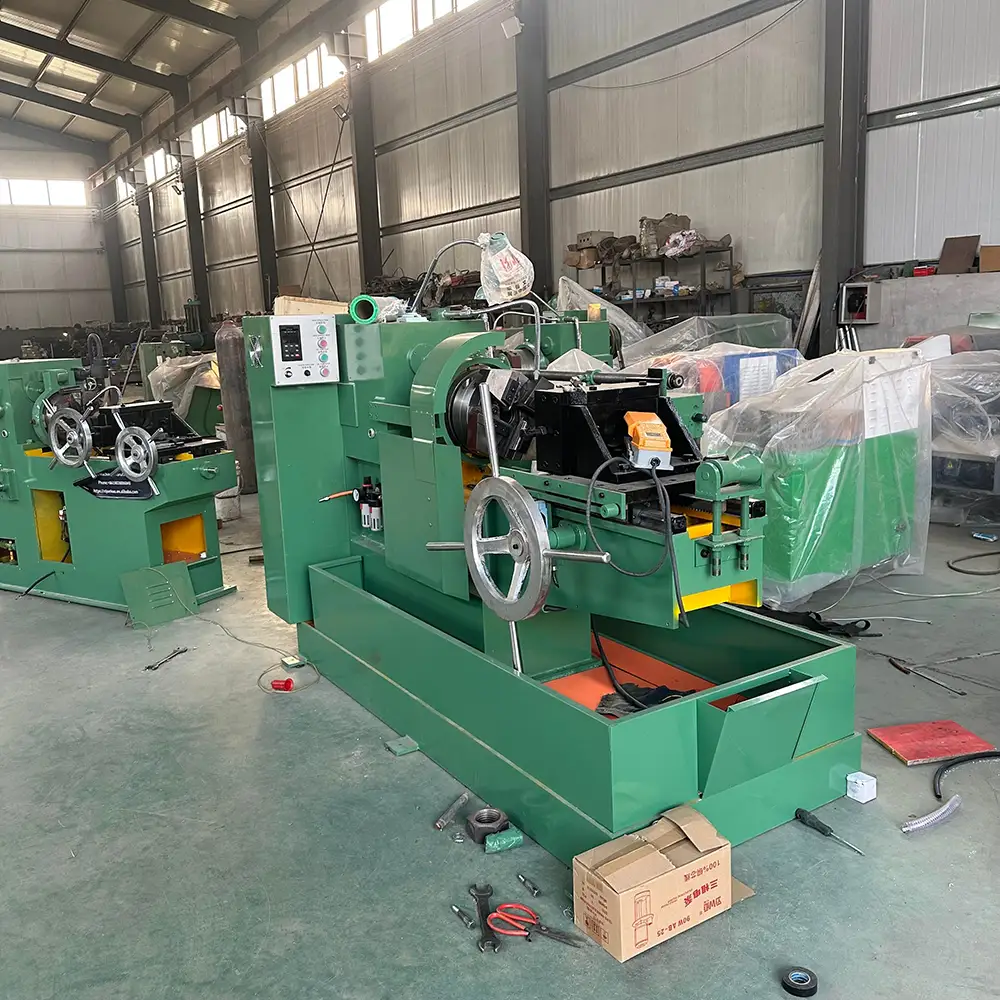

Anchor Bolt Thread Rolling Machine

Anchor bolts are commonly used in construction, structural engineering, machinery installation, equipment foundations, and other applications where threaded fastening is required.

The Anchor Bolt Thread Rolling Machine can be configured for producing externally threaded sections on suitable round steel bars and anchor bolt blanks.

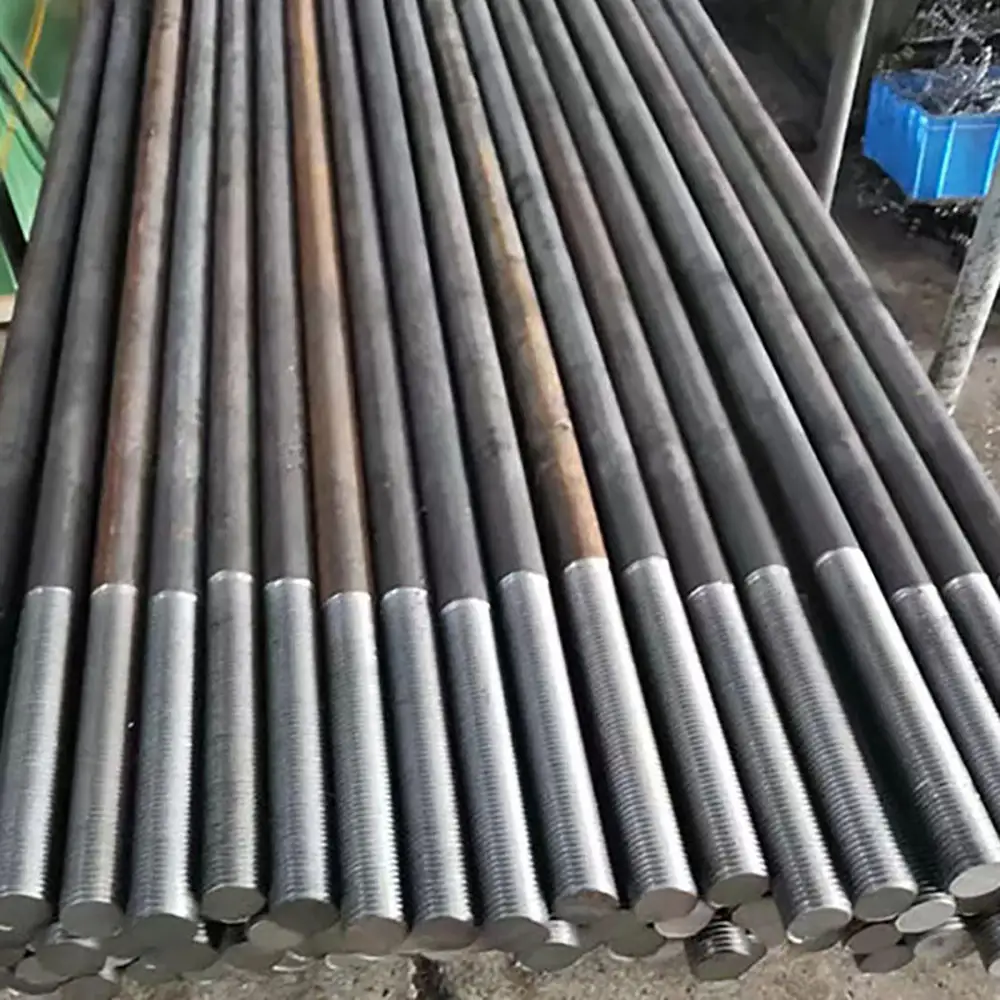

Typical products include:

Anchor Bolts
Foundation Bolts
Threaded Rods
Stud Bolts
Steel Rods
Long Bolts
Construction Fasteners
Structural Fasteners
Custom Threaded Components

For long anchor bolts, the machine configuration should be selected according to the total workpiece length, threaded section length, material diameter, and required thread specification.

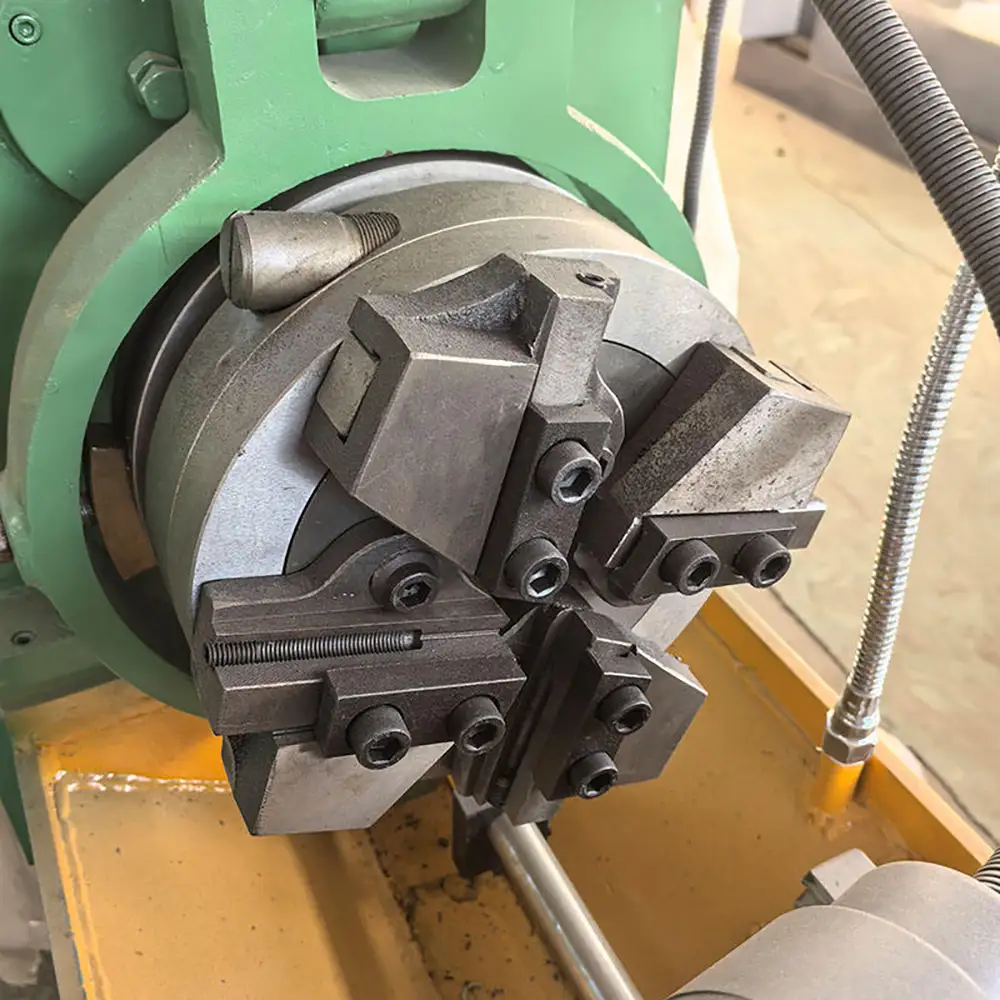

Iron Rod Thread Rolling Machine

The Iron Rod Thread Rolling Machine is designed for forming external threads on suitable metal rods.

Iron and steel rods can be processed into threaded components used in construction, machinery, structural assemblies, and industrial fastening systems.

Depending on the selected configuration, the machine can accommodate different rod diameters and thread lengths.

When selecting equipment for iron rod processing, manufacturers should consider:

Rod Diameter
Rod Length
Material Grade
Material Hardness
Thread Diameter
Thread Pitch
Thread Length
Production Volume

These parameters determine the appropriate machine capacity and thread rolling die configuration.

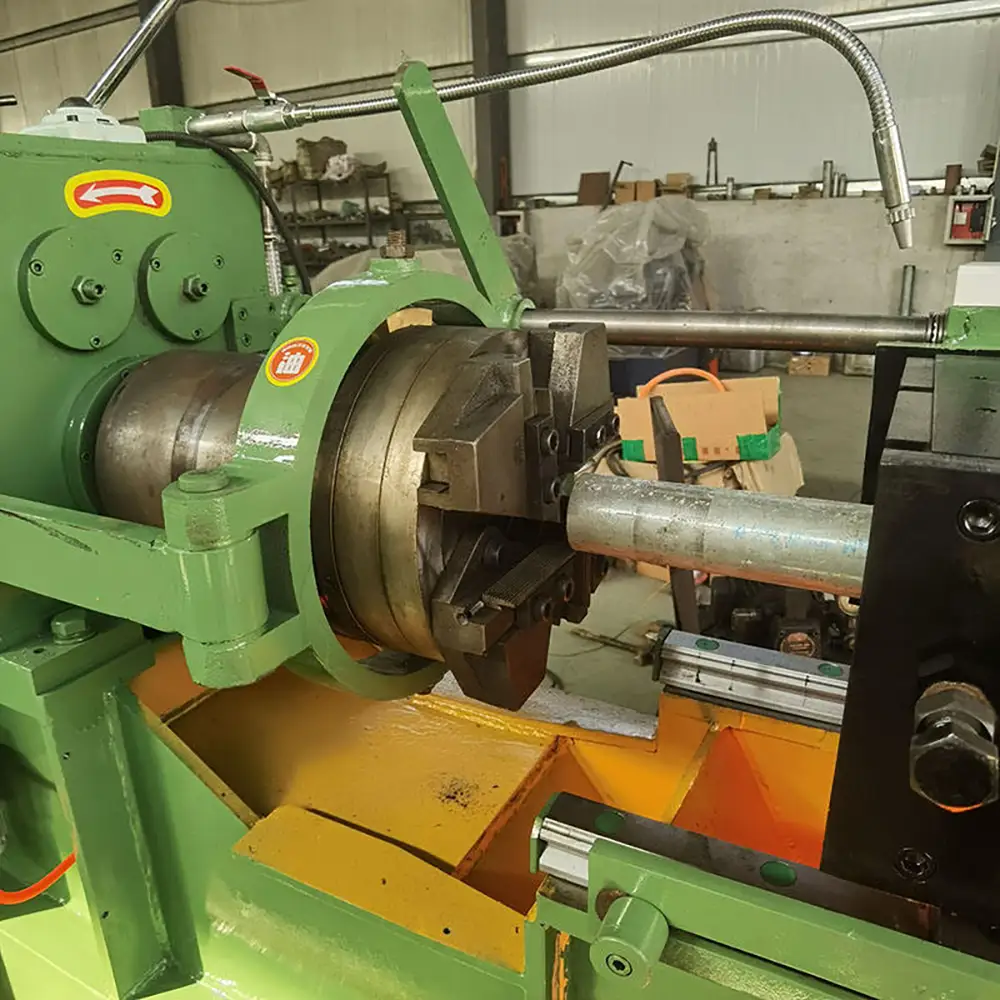

Round Bar Threading Machine

A Round Bar Threading Machine forms external threads directly on suitable cylindrical workpieces.

Round bars are widely used as raw material for bolts, studs, shafts, threaded rods, construction components, and custom metal parts.

Thread rolling can be particularly effective for high-volume production because the forming process can produce threads without removing large amounts of material.

Depending on the product design, the machine can process a designated threaded section while leaving other areas of the round bar unchanged.

Fully Automatic Thread Rolling

For high-volume manufacturing, automation can significantly improve production efficiency.

A Fully Automatic Thread Rolling Machine can be configured with automatic feeding, workpiece positioning, thread rolling, and discharge functions.

An automated production cycle can reduce repetitive manual handling and help operators maintain consistent processing conditions.

Automatic operation is particularly useful for manufacturers producing large quantities of identical or similar fasteners.

The exact automation level depends on the selected model and production configuration.

Thread Rolling Dies

Thread rolling dies are critical components in the thread forming process.

The dies determine the thread profile, pitch, diameter, and other characteristics of the finished component. Different thread specifications require appropriately designed or selected dies.

Common thread standards may include metric and inch-based thread specifications, depending on the customer's market and product requirements.

Before ordering the machine, buyers should provide their required thread standards and specifications so the appropriate tooling can be considered.

Materials for Thread Rolling

The machine can process suitable cold-formable metal materials according to the selected configuration.

Common materials may include:

Carbon Steel
Alloy Steel
Mild Steel
Stainless Steel
Other Suitable Metal Alloys

Not every material is suitable for cold thread rolling. Material strength, hardness, ductility, diameter, and heat-treatment condition can influence the forming process.

For this reason, customers should provide detailed material information when requesting a machine recommendation.

High-Efficiency Fastener Manufacturing

The thread rolling process is particularly suitable for repetitive production of externally threaded components.

Compared with thread cutting, rolling can reduce chip generation because material is displaced rather than removed. It can also provide efficient production cycles for suitable materials and workpiece designs.

For manufacturers producing anchor bolts, threaded rods, studs, and other fasteners in large quantities, automated thread rolling can become an important part of the overall production process.

The machine can also be integrated with upstream and downstream equipment such as:

Bar Cutting Machines
Straightening Equipment
Chamfering Machines
Automatic Feeding Systems
Thread Inspection Equipment
Packaging Systems

This allows manufacturers to develop a more complete fastener production workflow.

Precision and Repeatability

Consistent thread quality is important for bolts and threaded components because the finished threads must engage correctly with corresponding nuts or threaded holes.

Machine rigidity, die quality, workpiece preparation, material properties, alignment, lubrication, and process parameters all influence the final thread quality.

A properly configured thread rolling machine can provide repeatable forming conditions across production batches.

For critical applications, manufacturers should also establish appropriate inspection procedures for thread diameter, pitch, profile, length, and functional fit.

OEM and Custom Thread Rolling Solutions

Different customers may require different thread sizes, rod diameters, thread lengths, automation levels, and production speeds.

Custom configurations can therefore be developed according to specific production requirements.

Important customization parameters include:

Workpiece Diameter
Workpiece Length
Thread Diameter
Thread Pitch
Thread Length
Thread Standard
Material
Production Volume
Automatic Feeding
Automatic Discharge
Tooling Requirements
Control System

Customers can provide product drawings, sample parts, thread specifications, and production targets for technical evaluation.

Why Choose Our Fully Automatic Thread Rolling Machine?
1. Fully Automatic Production

Automatic feeding, positioning, rolling, and discharge can be configured for efficient production.

2. High Production Efficiency

Thread rolling is suitable for repetitive production of bolts, rods, studs, and other external threaded components.

3. Wide Application Range

The machine can be used for anchor bolts, iron rods, round bars, threaded rods, studs, and industrial fasteners.

4. Consistent Thread Forming

Controlled die pressure and machine movement support repeatable thread forming.

5. Reduced Material Waste

Thread rolling forms the thread through material displacement rather than conventional chip removal.

6. Flexible Tooling

Thread rolling dies can be selected according to the required thread profile, pitch, diameter, and standard.

7. B2B & OEM Support

We provide equipment solutions for fastener manufacturers, construction component suppliers, industrial manufacturers, distributors, and OEM customers.

Main Applications

The Fully Automatic Anchor Bolt Threading Machine is suitable for:

Anchor Bolt Manufacturing
Foundation Bolt Production
Threaded Rod Manufacturing
Stud Bolt Production
Construction Fastener Manufacturing
Steel Rod Threading
Round Bar Thread Forming
Industrial Fastener Production
Metal Component Manufacturing
Custom Threaded Parts
Machinery Fasteners
Structural Fasteners
FAQS
1. What is an Anchor Bolt Threading Machine?

It is a machine designed to form external threads on suitable anchor bolts, steel rods, and other cylindrical metal components.

2. What is the difference between thread rolling and thread cutting?

Thread rolling forms the thread through controlled material deformation, while thread cutting removes material to create the thread profile.

3. Can the machine process round bars?

Yes. Suitable round bars can be processed according to the machine's diameter and material capacity.

4. Can it produce anchor bolts?

Yes. Anchor bolt production is one of the main applications of this type of thread rolling equipment.

5. Can it thread long iron rods?

Suitable configurations can process long rods. The required rod length and threaded section should be provided when selecting the machine.

6. What materials can be thread rolled?

Suitable carbon steel, alloy steel, mild steel, stainless steel, and other cold-formable metals may be processed depending on the machine configuration.

7. Is the machine fully automatic?

Fully automatic configurations can include automatic feeding, positioning, thread rolling, and discharge. The exact automation functions depend on the selected model.

8. What thread standards can be produced?

The machine can be configured with suitable dies for required thread specifications, including metric or inch-based standards where applicable.

9. Are thread rolling dies included?

Tooling requirements depend on the customer's thread specifications and machine configuration. Thread dies should be selected according to the required thread profile and dimensions.

10. Is thread rolling suitable for mass production?

Yes. Thread rolling is widely suited to repetitive production of bolts, studs, threaded rods, and other externally threaded components.

11. How do I select the correct machine?

Provide the workpiece diameter, length, material, thread diameter, pitch, thread length, production volume, and required automation level.

12. Can the machine be customized?

Yes. Machine configuration, feeding system, tooling, automation, control system, and other production features can be customized according to requirements.

13. What information is needed for a quotation?

Please provide product drawings or samples, material specification, rod diameter, total length, thread size, pitch, thread length, required production capacity, and automation requirements.
