Filter Bag, Nylon Liquid Filter Bag, Nylon Press Filter Bag

What Is a Nylon Liquid Filter Bag?

A Nylon Liquid Filter Bag is a flexible filtration bag installed inside a compatible filter housing or filtration vessel. During operation, contaminated liquid enters the filtration system and passes through the nylon filter media. Suspended particles are retained by the mesh while filtered liquid continues through the outlet.

Nylon monofilament mesh is especially useful when consistent surface filtration and cleanable media are required. The smooth structure of monofilament mesh can make particle removal and bag cleaning easier compared with some depth-filtration media.

The filtration performance depends on several factors, including micron rating, mesh construction, yarn diameter, open area, liquid viscosity, particle characteristics, flow rate, pressure and housing design. Therefore, selecting a filter bag based only on the micron number is not sufficient for every industrial application.

Nylon Filter Bag Micron Ratings

Micron rating is one of the most important specifications when selecting a nylon liquid filter bag. Common commercial options include fine and coarse filtration grades such as 5, 10, 25, 50, 75, 100, 150 and 200 microns, while some manufacturers offer a much wider range.

A smaller micron opening is generally selected when finer particles need to be retained, while a larger opening can provide higher flow and is often suitable for coarse filtration or pre-filtration.

For example:

5 Micron Nylon Filter Bag: Fine liquid filtration applications
10 Micron Nylon Filter Bag: Fine particle removal and process filtration
25 Micron Nylon Filter Bag: General-purpose fine filtration
50 Micron Nylon Filter Bag: Medium particle filtration
100 Micron Nylon Filter Bag: Coarser filtration and pre-filtration
200 Micron Nylon Filter Bag: Large-particle screening and high-flow pre-filtration

These examples are for general selection guidance. Actual filtration performance should be verified against the complete filter construction and process requirements. Commercial nylon bag ranges can extend from very fine to very coarse openings depending on the mesh specification.

Nylon Mesh Construction

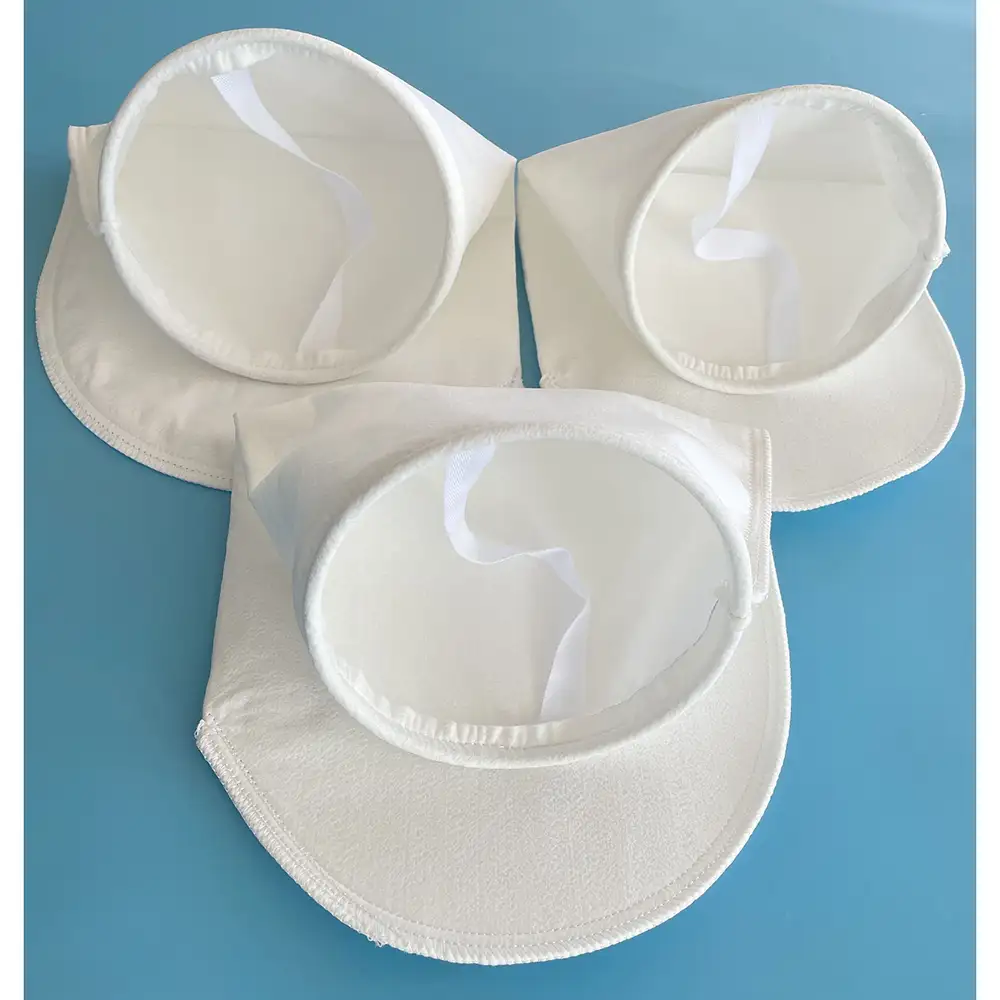

Nylon filter bags can use woven nylon mesh, including monofilament constructions. Monofilament nylon mesh provides a defined opening structure and is commonly selected for surface filtration applications where repeatable particle retention and cleanability are important.

The mesh structure can influence:

Filtration accuracy
Flow capacity
Pressure drop
Mechanical strength
Particle release
Cleaning performance
Service life

For demanding industrial filtration systems, the nylon material, mesh opening, yarn diameter, open area and bag dimensions should be matched to the actual process.

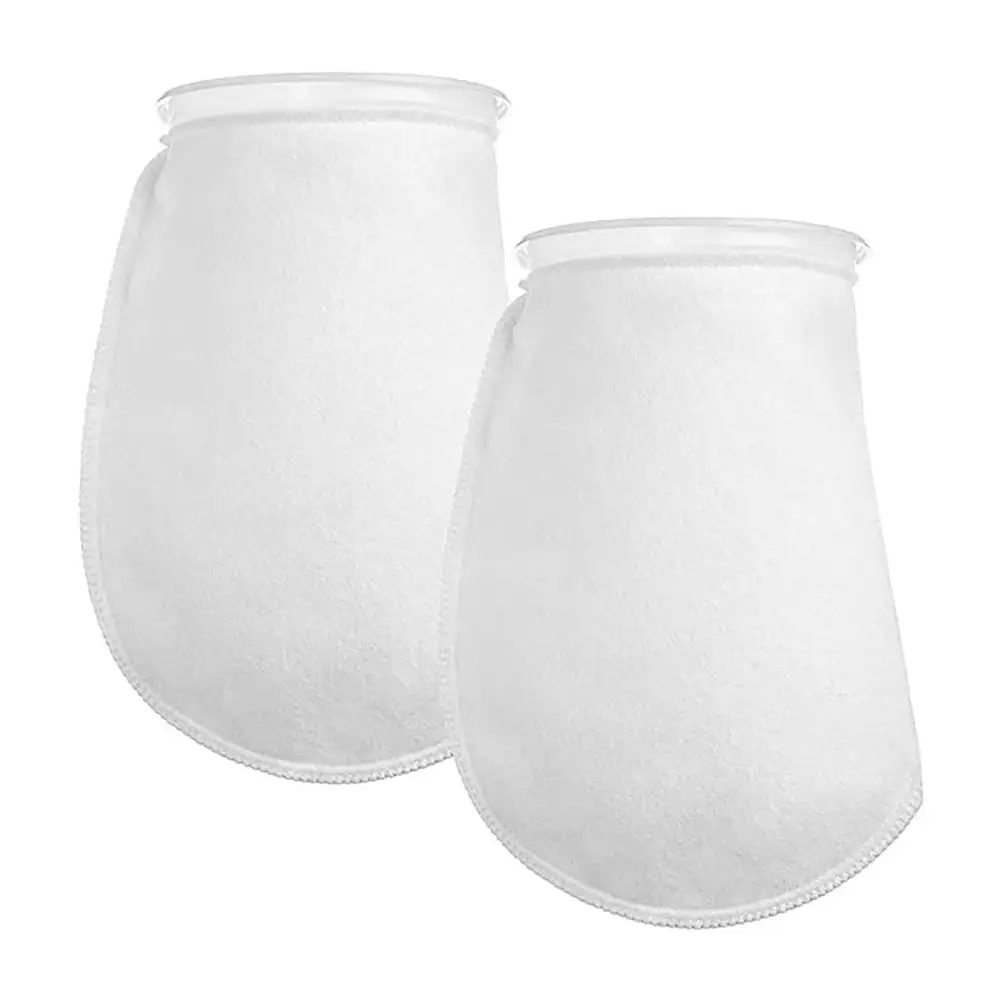

Nylon Press Filter Bag Design

A Nylon Press Filter Bag can be designed for liquid-solid separation systems where filtration pressure is used to force liquid through the filter media. Depending on the equipment, the bag may use a specific top structure, support arrangement or connection method.

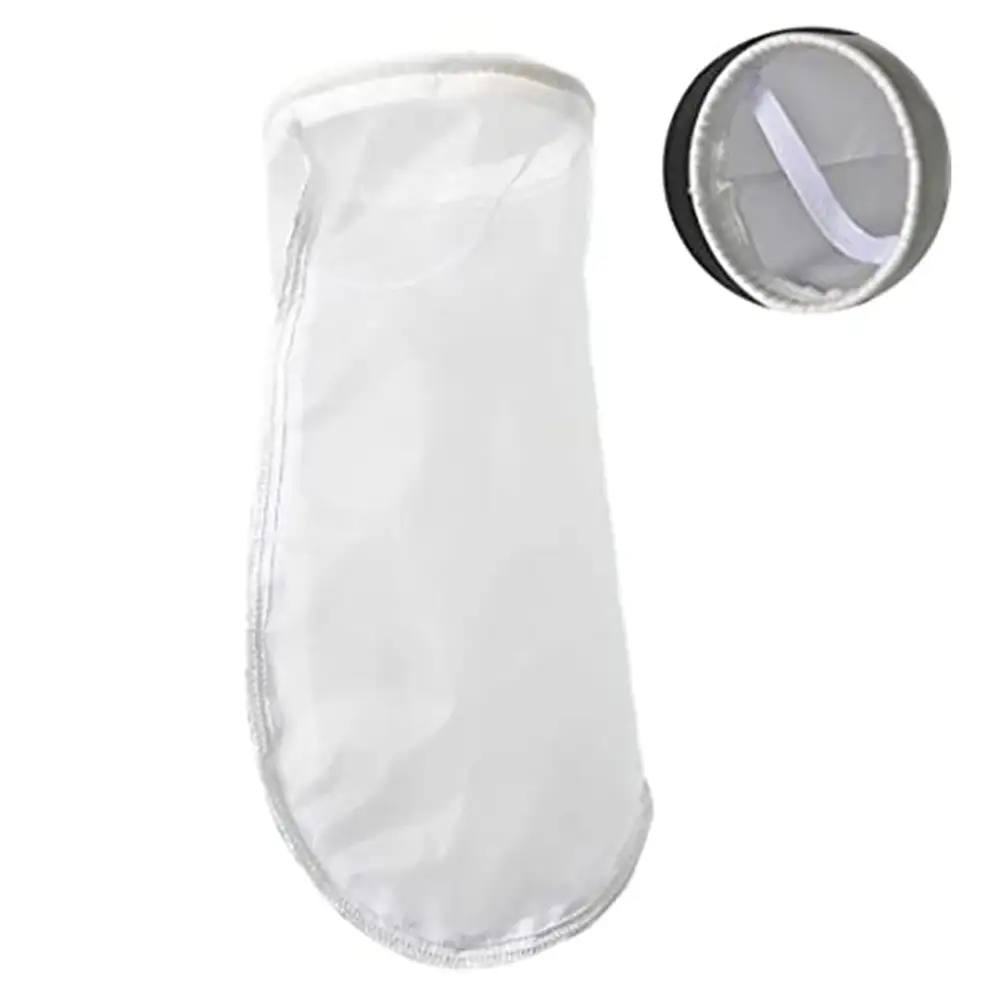

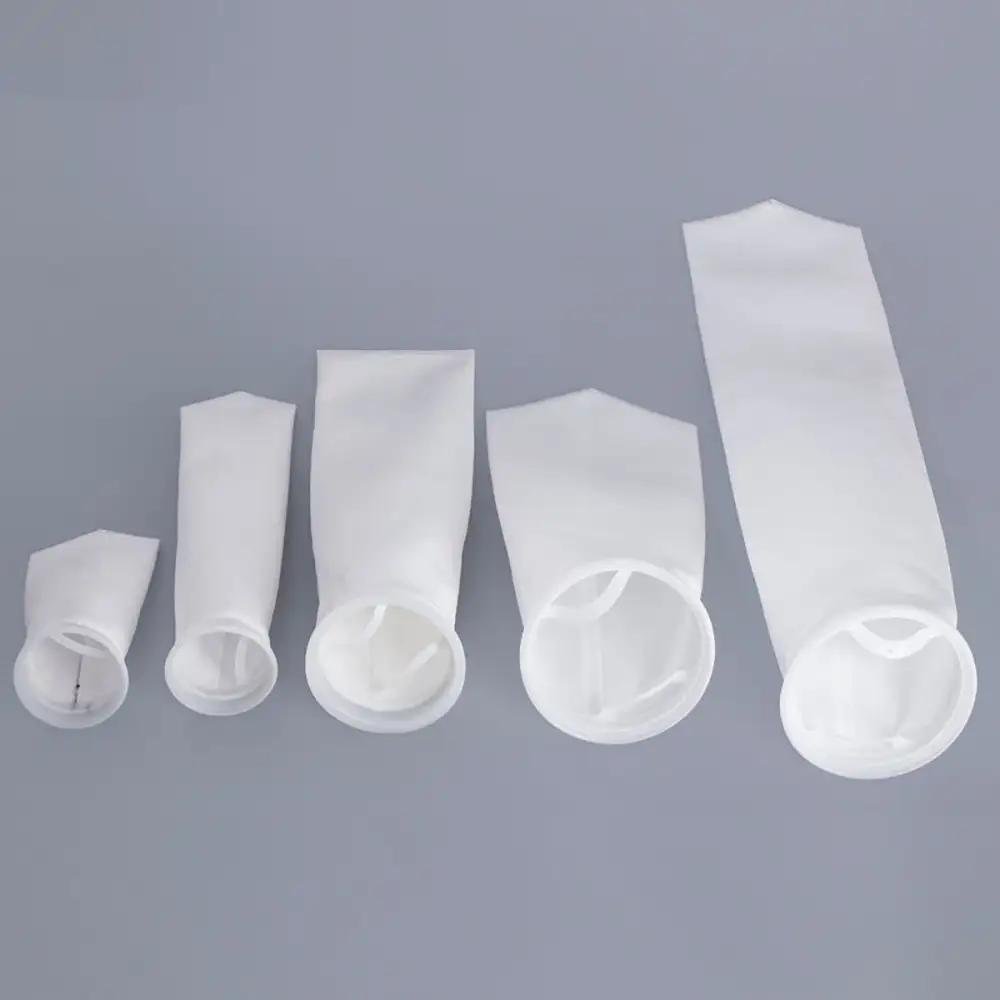

Common configurations include plastic ring tops, stainless steel ring tops, flange-style tops, drawstring tops and other customized connection designs. Industrial suppliers also offer different standard bag sizes, including commonly used #1, #2, #3 and #4 configurations, although exact dimensions vary by supplier and housing.

The bag body can be sewn or manufactured using other suitable joining methods according to the material and application. Reinforced seams can be considered where the bag experiences higher mechanical loading.

Main Features
1. Precise Mesh Filtration

Nylon mesh provides controlled openings for particle separation. Different micron grades allow the filter to be configured for different filtration requirements.

2. Strong Nylon Media

Nylon is a mechanically durable synthetic material suitable for many industrial liquid filtration applications.

3. Reusable Options

Certain nylon monofilament filter bags can be washed and reused when the process and contamination conditions permit. This can reduce replacement frequency and operating costs.

4. Multiple Micron Ratings

Different micron options are available to accommodate coarse screening, pre-filtration and finer liquid filtration.

5. Multiple Ring Options

Plastic and stainless steel ring configurations can be supplied according to the filter housing and installation requirements.

6. Custom Sizes

Filter bag diameter, length, opening, ring style, seam construction and other dimensions can be customized for OEM filtration equipment.

Industrial Applications

Nylon Liquid Filter Bags can be used in a wide variety of liquid processing environments, including:

Chemical Processing
Paint And Coating Filtration
Ink Filtration
Water Treatment
Wastewater Pretreatment
Oil And Industrial Fluid Filtration
Adhesive Filtration
Food And Beverage Processing
Pharmaceutical Processing
Electronics Manufacturing
Aquaculture
Industrial Process Water
Resin And Solvent Filtration
Metalworking Fluids

Nylon filter bags are particularly useful where a washable mesh medium and controlled surface filtration are preferred. Application suitability depends on the liquid chemistry, temperature, pressure, concentration and required filtration performance.

How to Select the Right Nylon Filter Bag

Before purchasing a Nylon Filter Bag, buyers should provide as much process information as possible.

First, determine the filtration rating. Select the required micron opening according to the target particle size and desired filtration result.

Second, check the bag dimensions. The diameter and length must fit the filter housing correctly. A commonly used bag size does not necessarily fit every housing.

Third, select the top style. Plastic rings, stainless steel rings, flange tops and drawstring configurations can be selected according to the filtration equipment.

Fourth, evaluate the liquid. Chemical compatibility is important when filtering solvents, chemicals, oils, coatings or other aggressive fluids.

Fifth, consider flow rate and pressure. A smaller micron opening may increase filtration resistance depending on the mesh and process conditions. Flow requirements should therefore be evaluated together with filtration precision.

Finally, consider cleaning and replacement requirements. If the process permits reusable filtration, a washable nylon monofilament mesh bag may be suitable.

Installation and Maintenance

Before installation, inspect the bag for damage and confirm that its micron rating, size and top configuration match the order specification. Make sure the bag is properly seated in the housing and that the sealing area is correctly positioned.

During operation, monitor differential pressure or other available process indicators. A gradual increase in pressure drop can indicate particle loading and the need for cleaning or replacement.

For reusable nylon mesh bags, cleaning should follow the material and process requirements. Remove retained solids carefully and avoid cleaning methods that could damage the mesh, seams or ring. After cleaning, inspect the bag for stretching, broken filaments, seam damage or other signs of wear before reuse.

Custom Nylon Filter Bag Manufacturing

As a professional Filter Bag Manufacturer and Supplier, we can support OEM and customized filtration projects. Custom specifications can include nylon material, micron rating, bag dimensions, mesh structure, ring material, top configuration, sewing method, reinforcement and packaging.

Customers can provide a sample filter bag, drawing, housing model, dimensions or existing part number. Our technical team can use this information to recommend a compatible configuration for your filtration equipment.

Why Choose Us?

Application-Based Filtration Support
We help buyers evaluate micron rating, bag size, material, ring style and process conditions rather than selecting a filter bag from micron rating alone.

Flexible Nylon Mesh Options
Different nylon mesh structures and filtration openings can be supplied for fine, medium and coarse liquid filtration applications.

OEM And Custom Manufacturing
Custom dimensions, top rings, seams, handles, reinforcement and packaging can be produced according to project requirements.

Consistent Product Specifications
Each production order can be controlled according to agreed material, dimensions, filtration rating and construction specifications.

B2B Export Supply
We support distributors, filtration equipment manufacturers, industrial users and OEM customers with repeat-order requirements.

Fast Technical Communication
Send your required micron rating, bag dimensions, liquid type, flow rate and housing information for a more accurate filtration recommendation.

FAQs
1. What Is A Nylon Liquid Filter Bag?

A nylon liquid filter bag is a mesh filtration bag made from nylon material for removing suspended particles from industrial liquids.

2. What Is The Difference Between A Nylon Filter Bag And A Nylon Press Filter Bag?

A standard nylon filter bag is generally used in a bag filtration housing, while a Nylon Press Filter Bag may be configured for pressure-driven liquid-solid separation equipment. The exact design depends on the filtration system.

3. What Micron Ratings Are Available?

Common nylon filter bag options include 5, 10, 25, 50, 75, 100, 150 and 200 microns, with additional ratings available depending on the manufacturer and mesh construction.

4. Can Nylon Filter Bags Be Reused?

Some nylon monofilament mesh bags are washable and reusable. Reusability depends on the contamination, cleaning method, material condition and application.

5. Are Nylon Filter Bags Suitable For Chemical Filtration?

Nylon can be used in many chemical filtration applications, but compatibility must be checked against the specific chemical, concentration, temperature and exposure time.

6. What Is The Difference Between Nylon And Felt Filter Bags?

Nylon mesh is generally used for surface filtration with defined mesh openings, while felt media typically provides depth filtration. The appropriate choice depends on particle loading, filtration target, flow and process conditions.

7. Can The Filter Bag Size Be Customized?

Yes. Diameter, length, micron rating, ring style, top configuration and other dimensions can be customized for OEM applications.

8. Can You Supply Stainless Steel Ring Filter Bags?

Yes. Stainless steel ring configurations are available for compatible nylon liquid filter bag designs and housings.

9. How Do I Choose The Correct Micron Rating?

Start with the particle size you need to remove, then evaluate required flow rate, liquid viscosity, solids concentration, pressure and the desired filtration result. A process trial may be appropriate for critical applications.

10. Can You Manufacture Nylon Filter Bags According To A Sample?

Yes. A sample, drawing, dimensions, housing specification or existing filter bag model can be used as a reference for customized OEM production.
