DXLQ-13 Concrete Truss Screed

The DXLQ-13 Concrete Truss Screed is a professional large-span concrete leveling and finishing machine designed for high-efficiency construction applications. Equipped with a powerful gasoline engine, reinforced truss frame, strong vibration system, and modular assembly design, it provides excellent concrete strike-off, leveling, and consolidation performance. The DXLQ-13 is widely used in highways, bridges, airports, warehouses, factory floors, parking areas, and large concrete slab projects requiring high flatness and superior surface quality. Vibratory truss screeds are commonly used for precise concrete strike-off and consolidation on large slabs where surface flatness and durability are important.

Engine Model	air cooled, 4cycle,gasoline
Power	5.5HP,13HP
Max rotate speed	3600rpm
screed length	4-18m
material of body	steel or ALU
dimension	L*400*960mm
travel speed	8-10m/min
max paving thickness	280mm

DXLQ-13 Concrete Truss Screed
Heavy Duty Vibratory Concrete Leveling Equipment For Large Construction Projects

The DXLQ-13 Concrete Truss Screed is designed for professional contractors, concrete construction companies, road builders, and infrastructure specialists who need reliable equipment for leveling and consolidating large concrete surfaces.

Large concrete projects require accurate leveling and proper consolidation to achieve strong, durable, and visually consistent surfaces. Uneven concrete can lead to poor drainage, surface damage, reduced durability, and higher maintenance costs. Traditional manual screeding methods are often inefficient for wide construction areas, especially highways, bridges, industrial floors, and large pavement projects.

The DXLQ-13 Concrete Truss Screed provides an efficient mechanical solution by combining vibration, leveling, and finishing functions. Its powerful vibration system helps consolidate fresh concrete, reduce air voids, improve density, and create a smooth surface finish. Professional vibratory truss screeds are designed specifically for large concrete placements where accurate strike-off and consistent flatness are required.

With a 13-meter class working capability, the DXLQ-13 provides excellent coverage for wide concrete pours while maintaining stable operation. The heavy-duty truss structure ensures rigidity and accuracy during operation, helping prevent deformation and maintaining consistent leveling performance across the working width.

The machine is equipped with a reliable gasoline engine, durable vibration mechanism, reinforced truss sections, and convenient assembly design. The modular structure allows easier transportation, installation, and adjustment according to different project requirements.

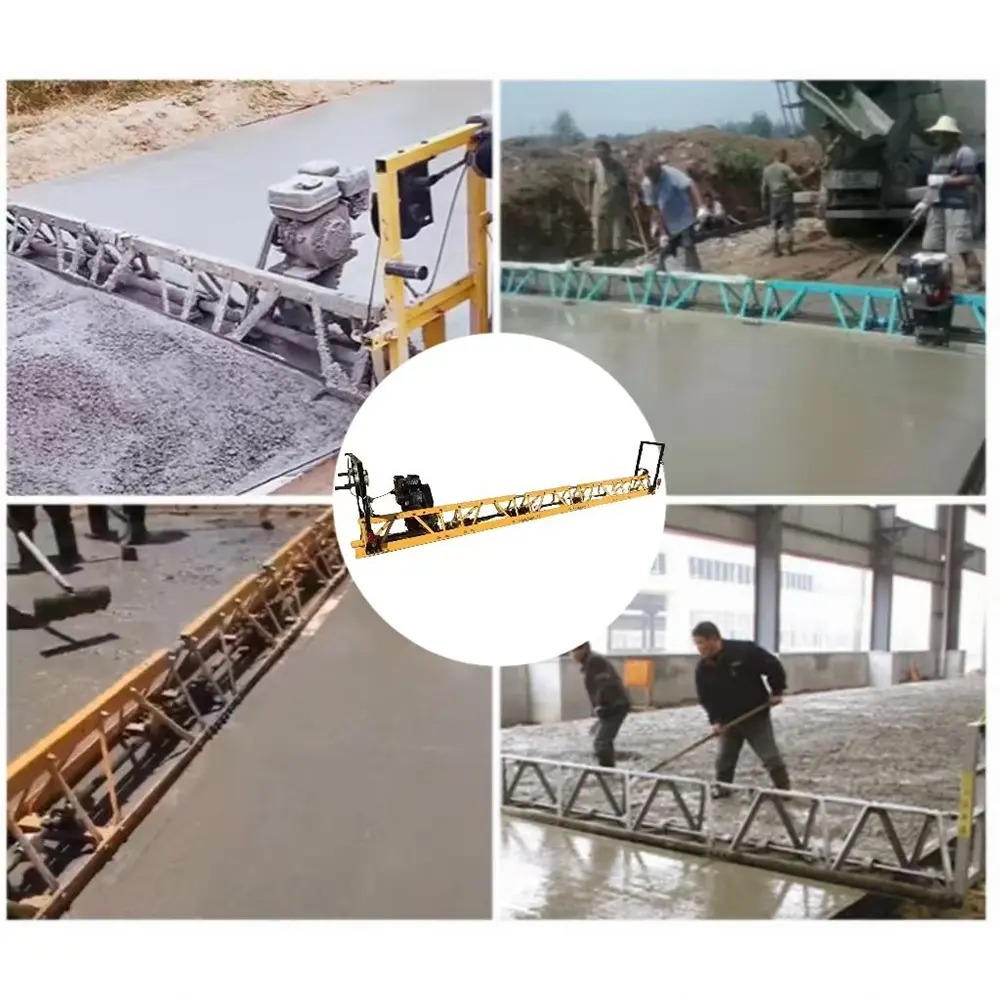

The DXLQ-13 Concrete Truss Screed is an ideal choice for highway construction, bridge decks, airport runways, industrial floors, warehouses, commercial pavement, and large-scale concrete engineering projects.

Key Features Of DXLQ-13 Concrete Truss Screed
Powerful Gasoline Engine

The high-performance engine provides stable power output for continuous concrete leveling and vibration operations.

Large Working Width

The 13-meter design allows efficient operation on large concrete surfaces, reducing construction time.

Heavy Duty Truss Structure

The reinforced frame provides excellent strength, stability, and long-term durability.

High Frequency Vibration System

The vibration mechanism improves concrete consolidation and helps achieve dense and uniform surfaces.

Accurate Concrete Leveling

The screed blade provides precise strike-off performance for smooth and flat concrete surfaces.

Modular Assembly Design

The sectional truss structure allows convenient transportation and quick installation.

Strong Structural Stability

The rigid truss design maintains alignment during operation and improves finishing accuracy.

Efficient Concrete Consolidation

The vibration system helps remove trapped air and improves concrete quality.

Easy Operation

The practical control design allows efficient use by construction operators.

Professional Construction Performance

Designed for demanding infrastructure and large concrete projects.

Applications Of DXLQ-13 Concrete Truss Screed
Highway Construction

Ideal for large concrete road projects requiring accurate leveling and surface quality.

Bridge Deck Construction

Provides reliable concrete strike-off and consolidation for bridge applications.

Airport Runway Projects

Suitable for large-area concrete pavement construction.

Industrial Floor Construction

Used for factories, warehouses, workshops, and production facilities.

Parking Lot Construction

Provides smooth and durable concrete surfaces for commercial parking areas.

Municipal Infrastructure

Suitable for large sidewalks, plazas, public areas, and urban development projects.

Port And Dock Construction

Used for heavy-duty concrete pavement applications.

Large Concrete Slab Projects

Provides efficient leveling for extensive concrete pours.

Advantages Of DXLQ-13 Concrete Truss Screed
High Construction Efficiency

The large working span significantly improves productivity on large concrete projects.

Excellent Surface Flatness

Provides accurate leveling and smoother finished concrete surfaces.

Improved Concrete Strength

The vibration system improves material density and reduces internal voids.

Reduced Labor Requirements

Mechanical operation reduces manual finishing workload.

Flexible Project Application

Suitable for various concrete construction environments.

Easy Transportation And Assembly

Modular sections simplify logistics and site installation.

Long Service Life

Heavy-duty components provide reliable operation under demanding conditions.

Designed For Large Scale Concrete Construction

The DXLQ-13 Concrete Truss Screed combines power, precision, and durability to meet the requirements of modern infrastructure projects.

Large concrete surfaces require consistent leveling performance to achieve long-lasting results. Manual screeding becomes challenging when working with highways, bridges, airport surfaces, and industrial slabs. The DXLQ-13 improves productivity by providing continuous vibration and leveling across a wide working area.

The powerful vibration system helps distribute concrete evenly, improve consolidation, and create a stronger surface structure. The rigid truss frame maintains stability and accuracy throughout operation, ensuring reliable finishing quality.

Whether used for transportation infrastructure, commercial development, or industrial construction, the DXLQ-13 provides professional concrete leveling performance.

Professional Large Area Concrete Finishing Solution

The DXLQ-13 Concrete Truss Screed is built for contractors who require efficient and dependable equipment for large concrete construction projects.

Its combination of large working capacity, strong vibration performance, and durable construction makes it an excellent choice for demanding applications.

From highways and bridges to industrial floors and commercial pavement, the DXLQ-13 helps construction teams achieve smoother, stronger, and more consistent concrete surfaces.

Why Choose Us
Professional Construction Machinery Manufacturer

We specialize in manufacturing concrete truss screeds, power trowels, plate compactors, tamping rammers, road rollers, crawler dumpers, and other construction equipment.

Strict Quality Control

Every machine is tested and inspected before shipment to ensure reliable performance and consistent quality.

Advanced Manufacturing Technology

Modern production facilities guarantee precision manufacturing and durable product performance.

Competitive Factory Pricing

Direct factory supply provides high-quality construction machinery at competitive prices.

OEM And Customization Service

We support customized colors, logos, engine brands, and machine specifications.

Fast Production And Delivery

Efficient production management ensures timely global delivery.

Global Export Experience

Our construction equipment is supplied to customers worldwide, including North America, Europe, Africa, South America, Southeast Asia, and the Middle East.

Professional After-Sales Support

We provide spare parts, technical guidance, maintenance support, and warranty services.

FAQs
1. What is the DXLQ-13 Concrete Truss Screed used for?

The DXLQ-13 is used for leveling, vibrating, and consolidating large concrete surfaces in construction projects.

2. What is the advantage of a truss screed?

A truss screed provides accurate leveling, improved flatness, and efficient concrete consolidation for large slabs.

3. Can the DXLQ-13 be used for highway construction?

Yes. It is suitable for concrete roads, highways, and large pavement projects.

4. Is it suitable for bridge projects?

Yes. The machine is widely suitable for bridge decks and infrastructure construction.

5. What type of engine does the DXLQ-13 use?

It uses a reliable gasoline engine designed for professional construction applications.

6. Can the working length be customized?

Yes. Different truss configurations and working lengths can be customized according to project requirements.

7. What concrete surfaces can it finish?

It is designed for roads, floors, slabs, pavements, and other large concrete surfaces.

8. Is the machine easy to transport?

Yes. The modular truss structure makes transportation and assembly more convenient.

9. Can OEM services be provided?

Yes. Colors, logos, engine options, and specifications can be customized.

10. Do you provide spare parts and technical support?

Yes. We provide spare parts supply, technical support, and after-sales service worldwide.

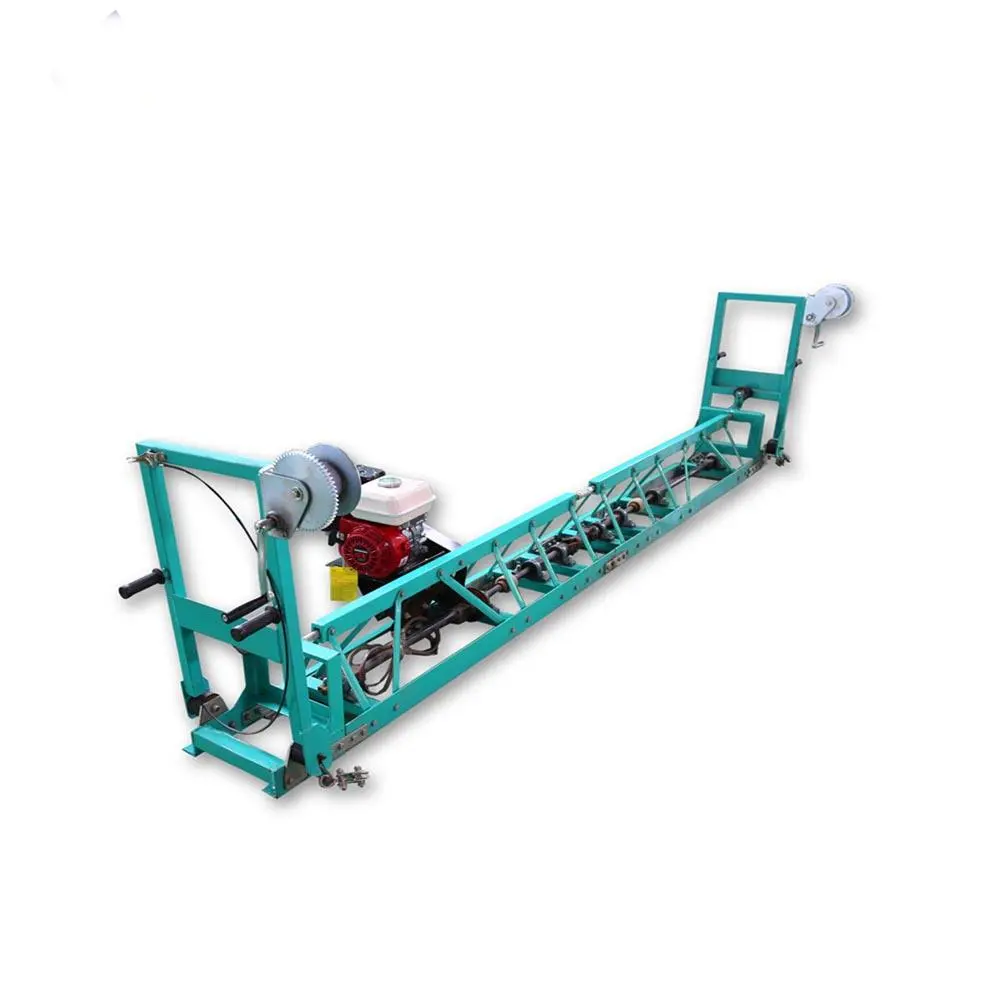

Prev：DXLQ-5.5 Concrete Truss Screed
