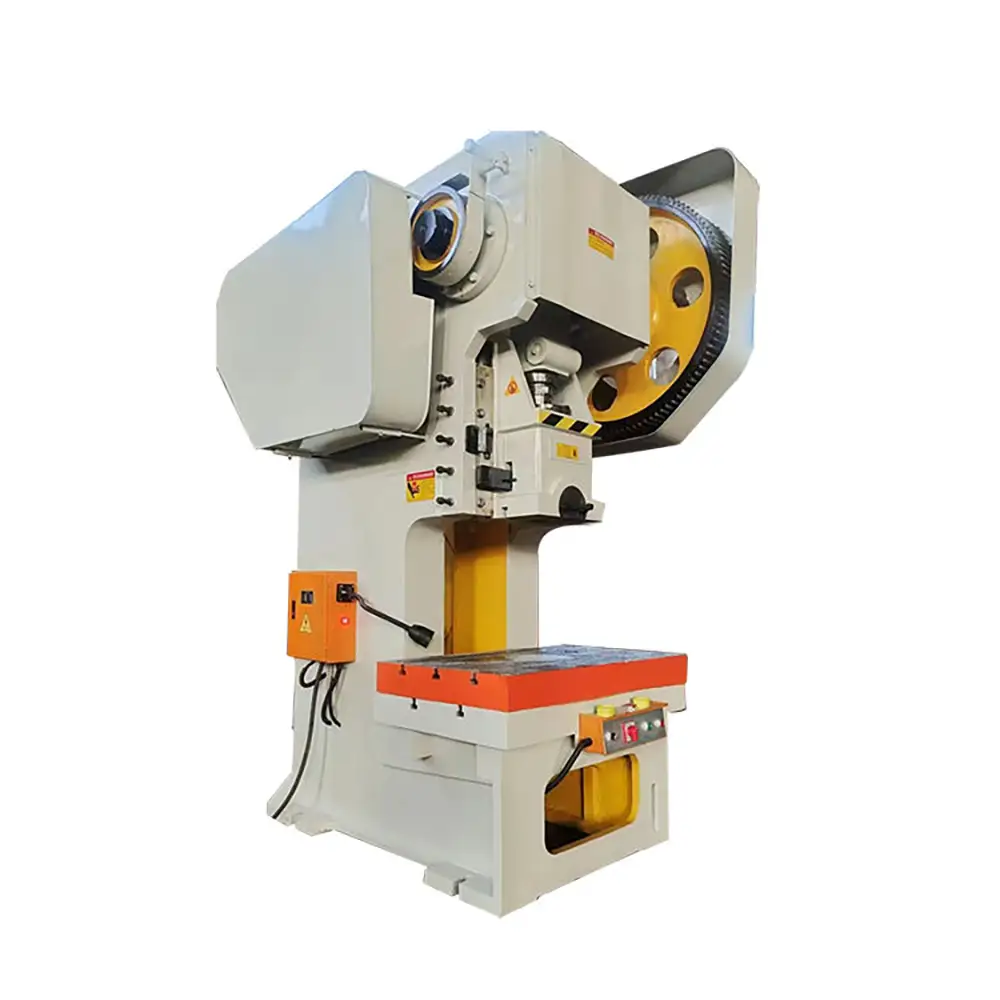

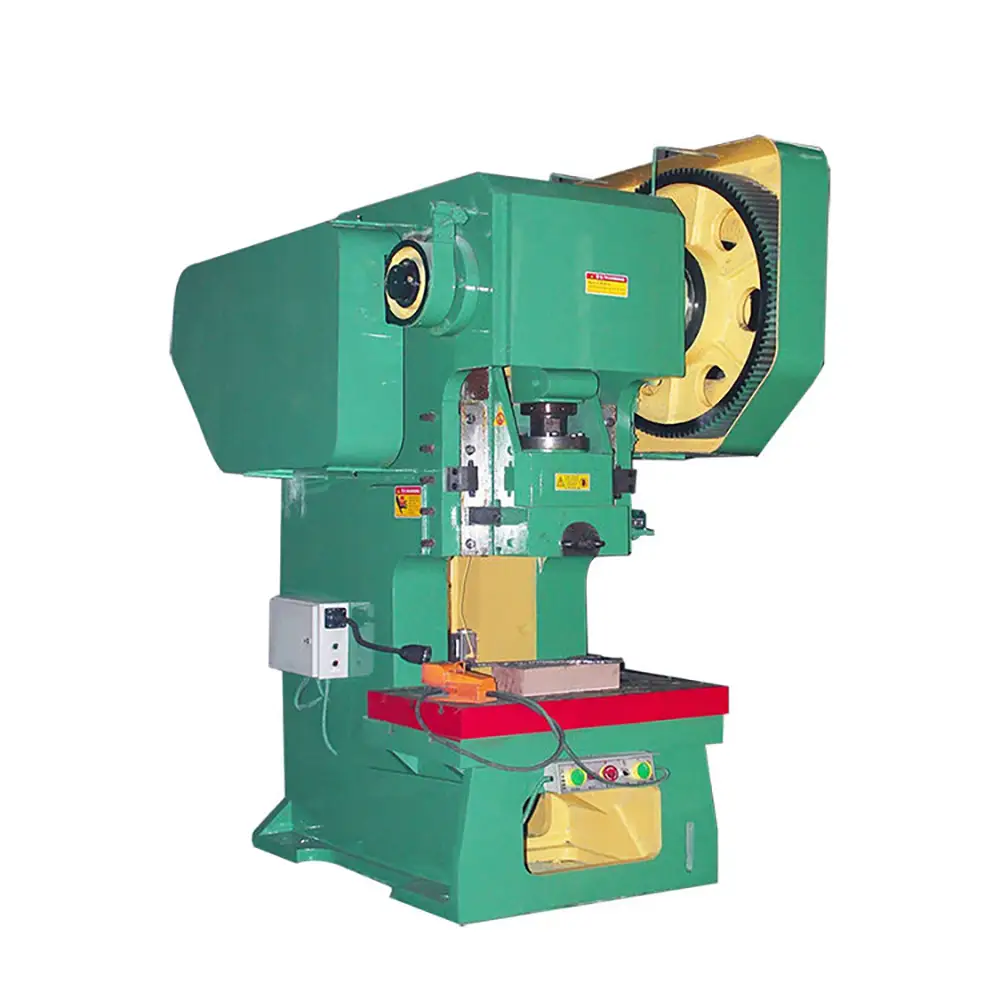

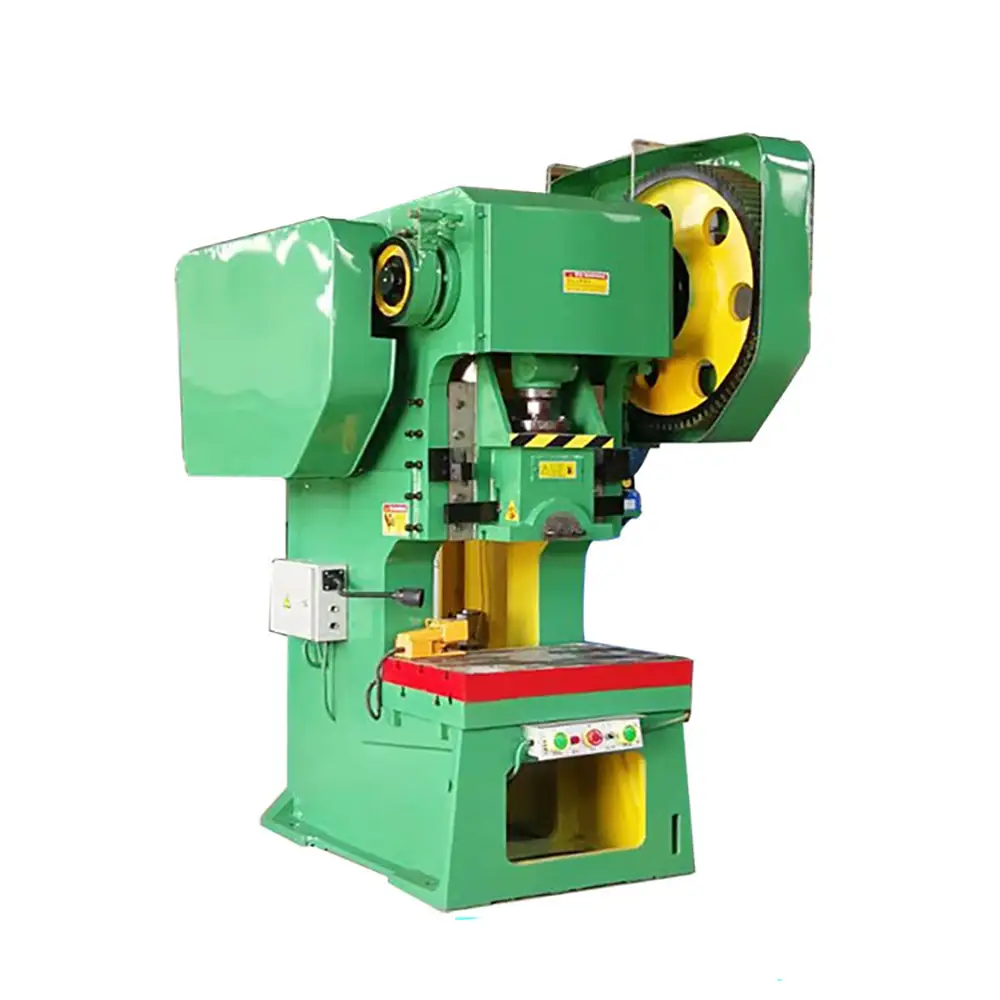

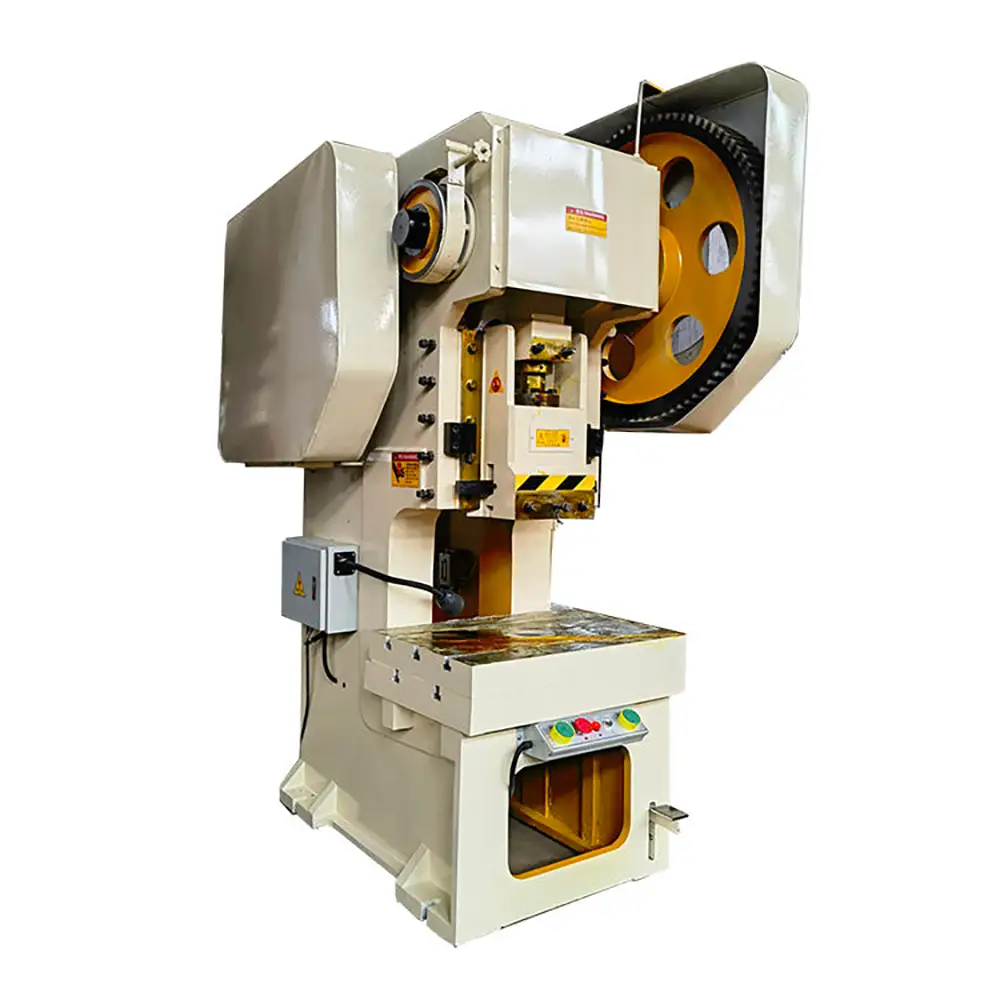

Customizable Mechanical Punch Press and Punching Machine

Customizable Mechanical Punch Press and Punching MachineProfessional punching machine manufacturers can provide cost-effective mechanical punching machines, as well as pneumatic punching machines with higher precision and better performance
Punching machines are mainly used for stamping, forming, feeding, stretching, punching  , etc
Punching machines are widely used in automobile manufacturing, electronics, home appliances, hardware, new energy, aerospace, sheet metal processing, furniture factories, mechanical parts processing, etc
The machine is easy to operate, maintain, and has a long service life, helping you reduce costs and increase efficiency
Factory direct supply, timely delivery, 7x24 after-sales service

Main Features

Punching machine is an efficient and low consumption processing equipment that can achieve stamping, forming, cutting, stretching and other processes on metal and non-metal materials. With its unique advantages, it is widely used in mechanical manufacturing industries such as automobiles, aviation, hardware, electrical appliances, and light industry, and occupies an important position.

The main components of the punch press are mostly made of high-strength casting structures, and the entire machine is composed of the body, pulleys, crankshafts, connecting rods, clutches, sliders, and other parts. The transmission shaft transfers the power of the electric motor to the pulley, and drives the crankshaft to rotate through the clutch, causing the slider to move up and down. When it reaches the bottom dead center, it generates maximum pressure, achieving stamping of the workpiece. The slider guide rail has increased stamping accuracy and improved service life after being finely ground by the grinder.

The main components of this press include: 1. body 2, transmission 3, clutch 4, slider 5, brake 6, control mechanism, etc. The bed is equipped with a well-known complete set of electrical appliances. The body can be tilted backwards for easy unloading. Optional photoelectric protection device for safer and more reliable operation

Customizable Mechanical Punch Press and Punching Machine

The Customizable Mechanical Punch Press and Punching Machine is a versatile metalworking solution designed for manufacturers, fabrication shops, hardware producers, machinery distributors, and industrial buyers who require reliable and flexible punching performance. Built for metal punching, stamping, blanking, forming, and other sheet metal fabrication processes, this mechanical press can be configured according to different production requirements.

A mechanical punch press uses a motor-driven mechanical transmission system to convert rotational power into controlled reciprocating motion. The movement of the slide allows the punch and die to apply force to the workpiece, creating holes, shapes, or formed components with repeatable results. Compared with manual punching methods, a mechanical punching machine can improve production efficiency and reduce physical effort during repetitive operations.

Customizable Mechanical Punch Press Design

Different metalworking applications require different machine specifications. Our custom mechanical punch press can be configured according to factors such as required punching force, material type, material thickness, punching speed, working area, tooling requirements, electrical standards, and production volume.

Customers can discuss their application requirements before ordering so the machine configuration can better match their production process. This makes the machine suitable for both standard industrial applications and customized manufacturing projects.

Depending on the selected configuration, customers may request different motor specifications, electrical configurations, punch and die tooling, machine dimensions, working tables, safety systems, and other options.

Efficient Metal Punching Performance

The primary application of this metal punching machine is producing holes and shapes in suitable metal materials. With the correct punch and die combination, the machine can perform repetitive punching operations with consistent positioning and dimensional results.

It can be used for processing various metal components, including sheet metal, plates, brackets, hardware parts, electrical components, machinery parts, and fabricated metal products.

The actual punching capacity depends on the machine model, material strength, material thickness, hole diameter, tooling configuration, and required production conditions. Selecting the correct press capacity is essential for achieving efficient operation and extending tooling life.

Applications in Sheet Metal Fabrication

The sheet metal punching machine can be integrated into a wide range of fabrication processes. Common applications include:

Metal sheet hole punching
Steel plate punching
Metal stamping
Blanking
Light forming
Bracket production
Hardware manufacturing
Electrical cabinet components
Automotive metal parts
Agricultural machinery components
HVAC components
General metal fabrication

By changing the punch and die set, manufacturers can perform different operations according to the required component design.

Reliable Mechanical Power System

The machine is driven by a motor and mechanical transmission system designed to provide controlled punching movement. The mechanical structure is engineered to transfer power efficiently from the drive system to the working slide.

For repetitive production, a stable mechanical transmission system can help maintain consistent punching cycles. Regular lubrication, inspection, and maintenance are important for keeping the machine operating smoothly and safely.

Motor voltage and electrical specifications can be configured according to the customer's destination market where applicable. Buyers should provide their local power supply requirements when requesting a quotation.

Flexible Punch and Die Tooling

Tooling is one of the most important factors affecting punching quality. Different punch and die combinations can be used for different hole sizes, shapes, materials, and production requirements.

Standard tooling can be used for common punching applications, while customized tooling may be considered for special hole shapes or component designs.

Before selecting tooling, buyers should provide information about the material, thickness, hole diameter, hole shape, and required production quantity. This allows the appropriate punching solution to be evaluated.

Designed for Repetitive Production

Mechanical punch presses are particularly useful when manufacturers need to perform the same punching operation repeatedly. Once the appropriate tooling and machine parameters are established, operators can process multiple workpieces efficiently.

For manufacturers producing metal brackets, plates, clips, hardware components, electrical parts, and similar products, a mechanical punching machine can provide a practical production solution.

The machine can also be incorporated into larger production systems together with material feeding, cutting, bending, welding, drilling, and other metal fabrication equipment.

Suitable for Different Business Requirements

This industrial punch press is suitable for a wide range of B2B customers, including metal fabrication companies, hardware manufacturers, machinery distributors, equipment importers, workshops, and OEM manufacturers.

For machinery dealers, customizable specifications can make it easier to offer suitable solutions for different end-user applications. For manufacturers, the machine can be configured around their specific material and production requirements.

Stable Machine Structure

A rigid machine structure is important for maintaining proper alignment between the punch and die during operation. Stable construction helps reduce unwanted movement and supports consistent punching performance.

Correct installation and regular maintenance are equally important. The machine should be installed on a suitable foundation and operated according to the manufacturer's operating and safety instructions.

Operators should regularly inspect the machine frame, fasteners, transmission components, lubrication points, punch and die alignment, electrical system, and safety devices.

OEM and B2B Customization

For international buyers, we can discuss OEM mechanical punch press requirements based on project specifications. Customization may include machine configuration, motor specifications, electrical requirements, tooling, branding, packaging, and other production-related requirements depending on the order.

Whether you need a custom metal punching machine for a specific fabrication process or a standard mechanical press for general production, providing detailed application information helps determine the most appropriate solution.

How to Choose the Right Punch Press

When selecting a mechanical punch press, buyers should consider several important factors:

Material: Determine whether the machine will process mild steel, stainless steel, aluminum, or other metals.
Material Thickness: Thicker materials generally require greater punching force.
Hole Size: Hole diameter affects the required punching force and tooling selection.
Production Volume: Repetitive production may require a machine optimized for higher cycle requirements.
Tooling: Select suitable punch and die sets for the required shape and dimensions.
Electrical Requirements: Confirm voltage and frequency before ordering.
Working Area: Make sure the machine's working dimensions match the workpiece.
Safety Requirements: Ensure appropriate guarding and safety devices are used during operation.

With the right configuration, the Customizable Mechanical Punch Press and Punching Machine can provide an efficient solution for a wide range of metalworking and sheet metal fabrication applications.

5. Why Choose Our Customizable Mechanical Punch Press?
1. Customizable Configuration

Machine specifications can be discussed according to material, punching requirements, production volume, and customer application.

2. Wide Metalworking Applications

Suitable for punching, stamping, blanking, forming, bracket production, hardware manufacturing, and general fabrication.

3. Reliable Mechanical Transmission

The motor-driven mechanical system is designed for efficient power transmission and repetitive punching operations.

4. Flexible Tooling

Different punch and die configurations can be selected according to hole size, shape, material, and production requirements.

5. B2B & OEM Support

Suitable for manufacturers, distributors, machinery dealers, importers, and OEM projects.

6. Production Efficiency

Designed to improve productivity for repetitive metal punching compared with manual punching processes.

7. Multiple Configuration Options

Motor, electrical specifications, tooling, machine dimensions, and other requirements can be discussed for different markets.

8. Technical Assistance

Technical information can be provided to help customers select the appropriate press capacity, tooling, and machine configuration.

6. Main Applications

Customizable Mechanical Punch Press can be used for:

Sheet Metal Punching
Metal Hole Punching
Metal Stamping
Sheet Metal Blanking
Bracket Manufacturing
Hardware Production
Electrical Enclosure Components
Automotive Metal Parts
Agricultural Machinery Parts
HVAC Components
Metal Fabrication
General Industrial Manufacturing
7. FAQ
Q1: What is a mechanical punch press?

A mechanical punch press is a metalworking machine that uses a motor-driven mechanical transmission system to move a punch against a die. It is commonly used for punching, stamping, blanking, and forming metal components.

Q2: What materials can the punching machine process?

Depending on the machine capacity and tooling, it can process materials such as mild steel, carbon steel, stainless steel, aluminum, and other suitable metals.

Q3: Can the mechanical punch press be customized?

Yes. Machine configuration can be discussed according to punching force, material, thickness, hole dimensions, production requirements, motor specifications, electrical standards, and tooling.

Q4: Can different hole sizes be punched?

Yes. Different punch and die sets can be selected for different hole diameters and shapes. Custom tooling may also be considered for special applications.

Q5: Is this machine suitable for sheet metal?

Yes. Mechanical punch presses are widely used for suitable sheet metal punching, stamping, blanking, and light forming applications.

Q6: How do I select the correct machine capacity?

The required capacity depends on material type, material thickness, hole diameter, tensile strength, tooling, and production requirements. Providing these details allows the appropriate machine capacity to be evaluated.

Q7: Can the motor voltage be customized?

Motor and electrical specifications can be configured according to applicable customer requirements and destination-country power standards.

Q8: Can you provide customized punch and die tooling?

Tooling options can be discussed according to the required hole diameter, shape, material, thickness, and production application.

Q9: Who is this machine suitable for?

It is suitable for metal fabrication companies, hardware manufacturers, workshops, machinery distributors, equipment importers, and industrial production facilities.

Q10: Can you provide OEM service?

Yes. OEM requirements such as machine configuration, branding, packaging, electrical specifications, and other project requirements can be discussed for qualified B2B orders.

Q11: Can this machine be used for continuous production?

It can be used for repetitive production when the machine capacity, tooling, material, duty cycle, and operating conditions are appropriate. The production requirements should be evaluated before selecting the machine.

Q12: What information should I provide for a quotation?

Provide the material type, material thickness, required hole diameter or shape, production volume, desired punching capacity, electrical requirements, and any special tooling requirements. These details help determine a suitable configuration.
