Crawler Rotary Pile Driver Technical Parameters

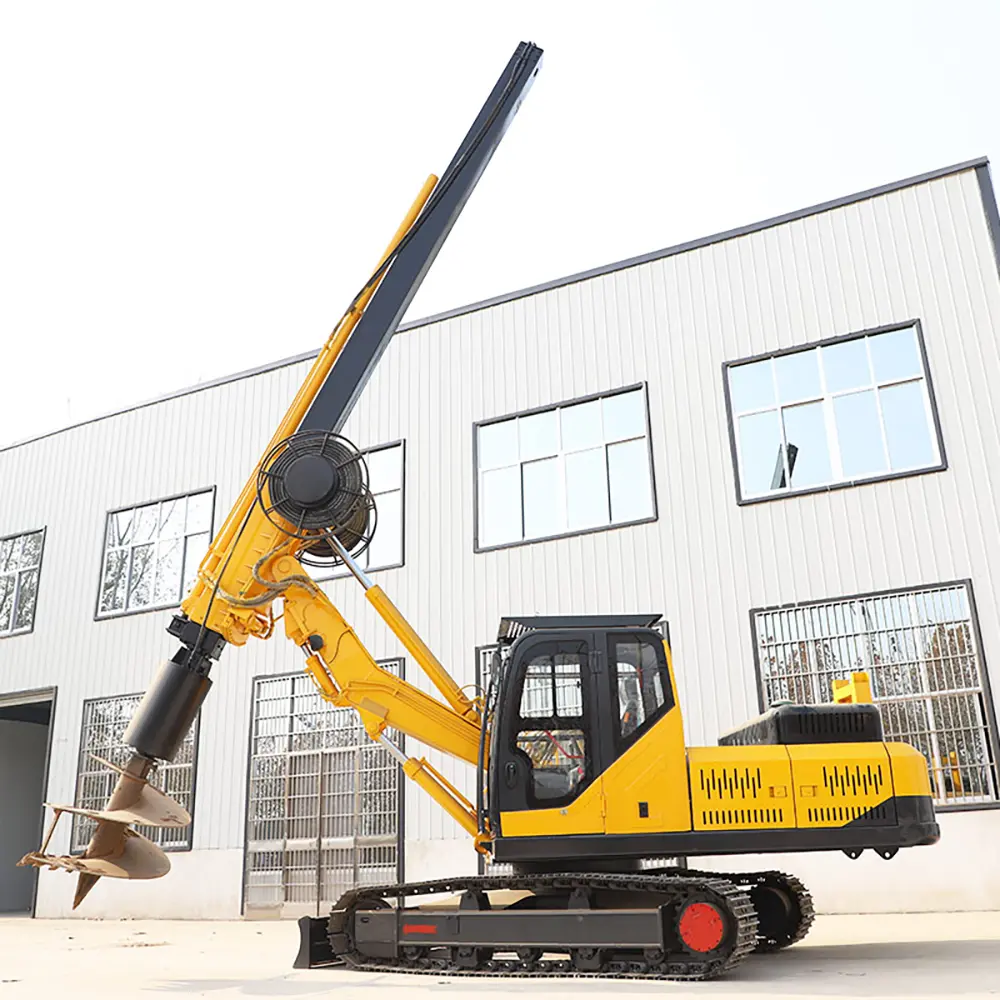

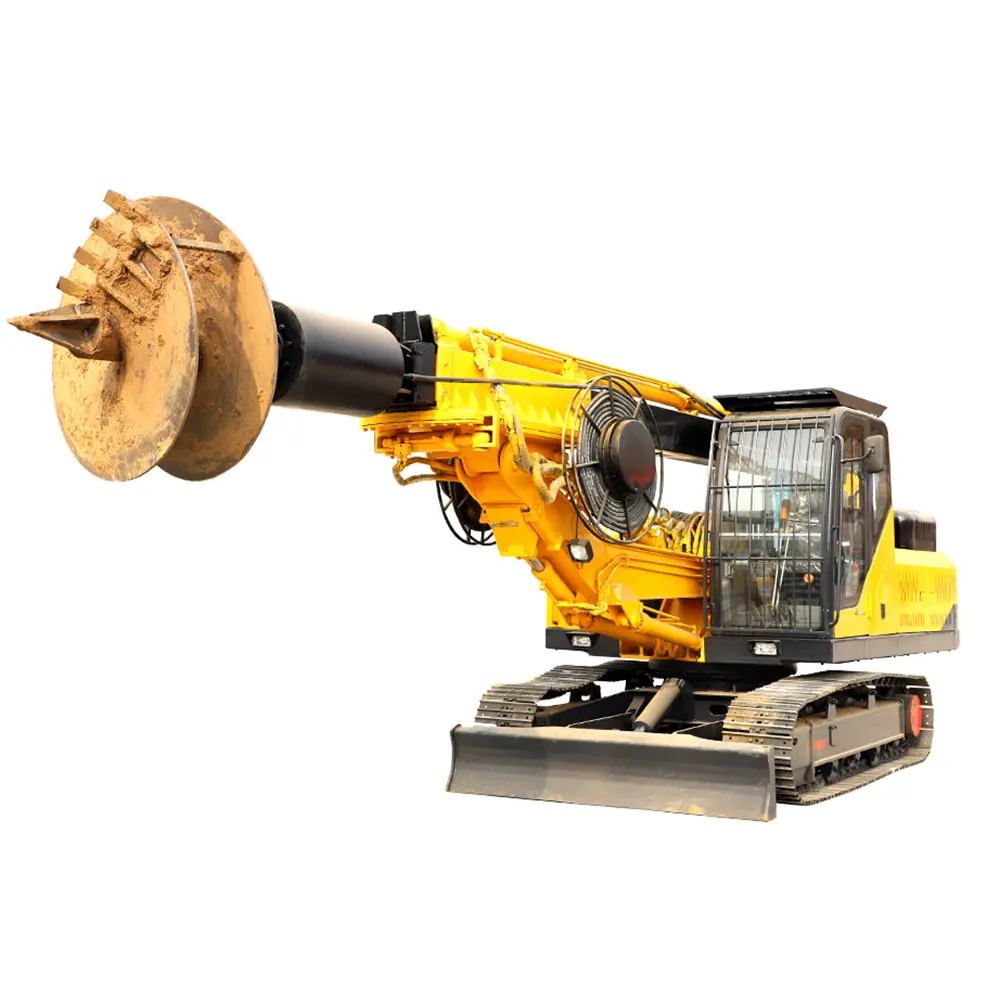

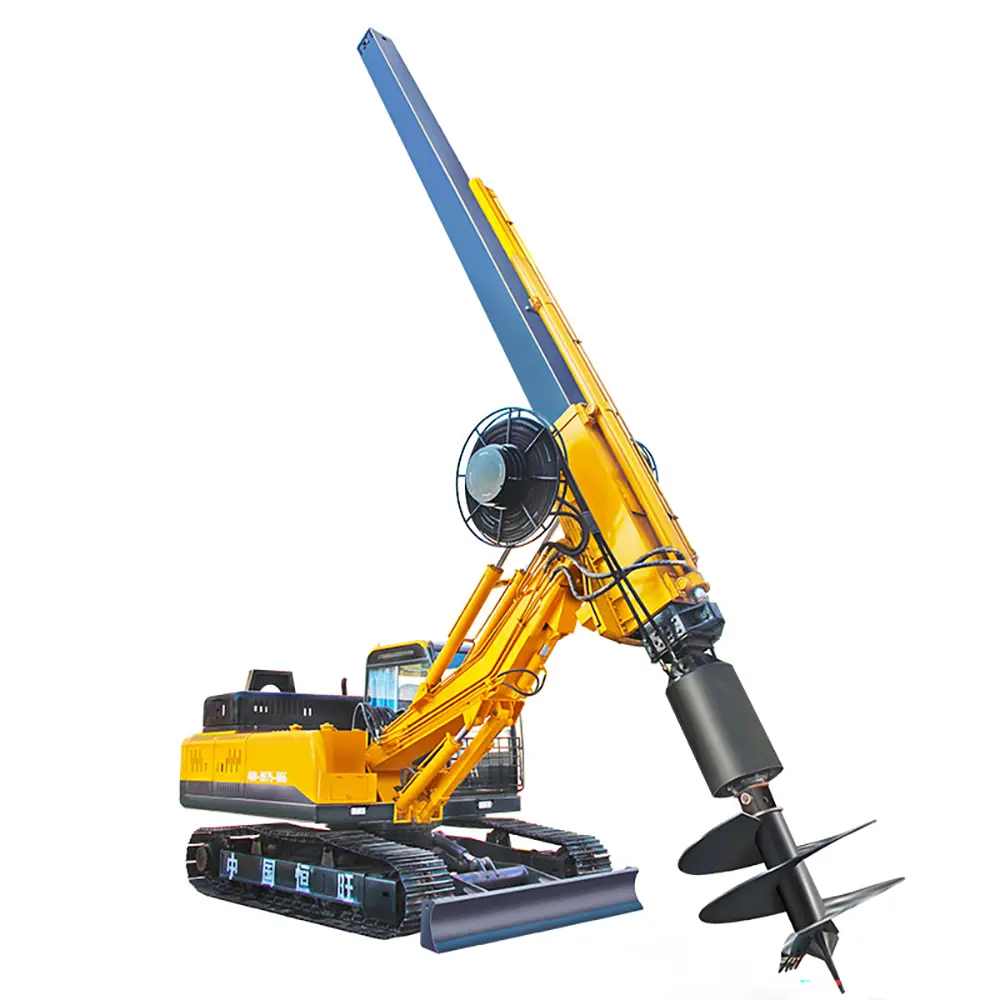

Crawler Rotary Pile Driver is a powerful hydraulic foundation construction machine designed for rotary piling, drilling, and foundation installation. With crawler mobility, strong torque output, stable operation, and excellent adaptability.

The machine lock bar rotary drilling rig uses hydraulic crawler-type telescopic chassis, self-lifting and folding collapsible drilling mast, telescopic drilling rod and many other technical applications. It is a construction machine suitable for hole formation in building foundation engineering. Mainly suitable for the construction of soil layers such as sandy soil, cohesive soil, silty soil, etc., it is widely used in various foundation constructions such as cast-in-situ piles, continuous walls, and foundation reinforcement.
Compared with ordinary rotary drilling rigs, machine-locked rod rotary drilling rigs have many objective advantages, such as the ability to drill through special grounds such as cement ground, hard sandy soil layers, and rock layers. It is suitable for large-scale engineering construction, buildings, high-speed, high-speed rail 3. Railway engineering construction. The machine construction runs fast, has high efficiency, good drilling quality, and is fuel-efficient and durable.
Parameters/Model DR150
Outsize Working Size
(length×Width×Height)
m 5.9×2.3×10.5
Transport Size
(length×Width×Height)
m 8.2×2.3×3.25
Machine Weight t 17
Max Drilling Diameter mm 1200
Max Drilling Depth m 15
Engine Brand Yuchai
Model 4A115Z
Rated Power kw/rpm 86/2400
Hydraulic Flow Working Pressure Main Pump Mpa 30
Secondary Pump Mpa /
Max Flow Main Pump L/min 2×63
Secondary Pump L/min /
Power Head Maximum Torque Kn.m 60
Rotating Speed rpm 5-90
Maximum Throwing Speed rpm 90

The Crawler Rotary Pile Driver is a professional hydraulic piling machine designed for efficient foundation construction in various engineering projects. Combining a crawler-mounted chassis with advanced rotary drilling technology, this equipment provides excellent mobility, strong drilling performance, and reliable operation in complex working environments.

The Crawler Rotary Pile Driver is widely used for:

Building foundation construction
Bridge foundation projects
Highway and railway construction
Solar pile installation
Industrial infrastructure projects
Geotechnical engineering
Underground foundation works

Unlike traditional pile driving equipment, the crawler rotary piling machine uses rotary drilling technology to create foundation holes with high precision and efficiency. Its crawler structure allows stable movement on uneven terrain, making it suitable for demanding construction sites.

Key advantages include:

Strong rotary torque
High drilling efficiency
Excellent mobility
Accurate pile positioning
Stable hydraulic performance
Reduced construction time

The Crawler Rotary Pile Driver is an ideal choice for contractors looking for reliable and versatile foundation construction equipment.

Advanced Rotary Piling Technology

The main function of the Crawler Rotary Pile Driver is to create foundation holes and install piles efficiently.

Rotary piling technology provides several advantages:

High drilling speed
Accurate hole diameter control
Reduced ground disturbance
Better construction quality
Improved foundation stability

The rotary drilling system uses powerful hydraulic torque to rotate drilling tools through different soil and rock formations.

It can be equipped with different drilling accessories, including:

Rotary drilling buckets
Rock augers
Core barrels
Casing tools
Foundation drilling tools

This flexibility allows the machine to handle different engineering requirements.

Powerful Hydraulic Rotary System

The Crawler Rotary Pile Driver is equipped with a high-performance hydraulic system that provides stable working power.

The hydraulic system offers:

Strong torque output
Smooth rotation control
Efficient power transmission
Reliable continuous operation
Precise drilling adjustment

Hydraulic control allows operators to manage:

Rotary speed
Drilling pressure
Lifting movement
Tool operation

This improves drilling accuracy and reduces mechanical wear.

Crawler-Mounted Design For Superior Mobility

One of the major advantages of the Crawler Rotary Pile Driver is its crawler-type chassis.

The crawler system provides:

Strong traction capability
Excellent terrain adaptability
Stable operation on uneven surfaces
Low ground pressure
Easy movement between work areas

It can operate effectively in:

Construction sites
Muddy areas
Uneven terrain
Industrial zones
Remote engineering locations

The crawler design improves machine stability and reduces site preparation requirements.

Wide Application Areas
Building Foundation Construction

The Crawler Rotary Pile Driver is widely used for:

Commercial buildings
Residential structures
Industrial facilities
Deep foundation projects

It provides accurate and reliable foundation drilling performance.

Bridge And Highway Projects

Applications include:

Bridge pile foundations
Road construction
Railway infrastructure

The machine helps create strong underground support structures for transportation projects.

Solar Foundation Installation

The Crawler Rotary Pile Driver can be used for:

Solar panel foundations
Ground-mounted PV systems
Renewable energy projects

Its mobility and drilling capability improve solar construction efficiency.

Industrial Engineering Projects

Suitable for:

Factory foundations
Equipment foundations
Large infrastructure construction
Excellent Adaptability To Different Ground Conditions

The Crawler Rotary Pile Driver is designed to work in various geological conditions.

Suitable formations include:

Clay
Sand
Gravel
Soft rock
Hard rock
Mixed soil conditions

By selecting suitable drilling tools, the machine can achieve efficient drilling performance in different environments.

High Precision Foundation Drilling

Foundation quality depends on accurate drilling performance.

The Crawler Rotary Pile Driver provides:

Stable drilling direction
Accurate hole positioning
Consistent drilling depth
Improved foundation quality

Advanced hydraulic control and rigid machine structure help reduce drilling deviation.

This ensures better construction results and improved project reliability.

Durable Heavy-Duty Construction

The Crawler Rotary Pile Driver is designed for demanding construction environments.

Main structural features include:

High-strength steel frame
Reinforced crawler chassis
Heavy-duty hydraulic components
Strong rotary mechanism
Durable drilling mast

Benefits:

Long service life
Reduced maintenance requirements
Stable operation
Better investment value

The robust design allows continuous operation on professional construction sites.

Efficient Operation And Maintenance

The Crawler Rotary Pile Driver is designed for operator convenience.

Features include:

Hydraulic control system
Simple operating interface
Easy attachment replacement
Convenient maintenance points
Reduced operator training requirements

Efficient maintenance helps minimize downtime and improve construction productivity.

Main Features Of Crawler Rotary Pile Driver
Crawler-mounted hydraulic piling machine
Strong rotary drilling capability
High torque hydraulic system
Excellent terrain adaptability
Accurate foundation drilling
Multiple drilling tool compatibility
Suitable for construction and infrastructure projects
Durable heavy-duty structure
Efficient operation performance
Reliable foundation construction solution
Why Choose Our Crawler Rotary Pile Driver?
1. Powerful Rotary Drilling Performance

Provides strong torque for efficient foundation construction.

2. Excellent Mobility

Crawler design allows operation in difficult environments.

3. Wide Application Range

Suitable for buildings, bridges, roads, solar projects, and infrastructure.

4. Reliable Hydraulic System

Ensures stable performance and precise control.

5. Durable Construction Design

Built for long-term professional use.

6. Complete Technical Support

We provide customized equipment solutions, spare parts, and after-sales service.

FAQS
1. What is a Crawler Rotary Pile Driver used for?

A Crawler Rotary Pile Driver is used for foundation drilling, pile installation, and construction engineering projects.

2. What projects can use this machine?

It is suitable for buildings, bridges, highways, solar foundations, and industrial construction.

3. What advantages does a crawler structure provide?

The crawler system improves stability, mobility, and adaptability on uneven terrain.

4. Can it drill hard rock?

Yes. With suitable drilling tools, it can work in rock and mixed geological formations.

5. What drilling tools can be used?

It can use drilling buckets, augers, core barrels, and other foundation drilling tools.

6. Is the machine suitable for large construction projects?

Yes. It is designed for professional foundation construction and infrastructure projects.

7. How does hydraulic control improve performance?

Hydraulic control provides smoother operation, accurate adjustment, and better efficiency.

8. Can the Crawler Rotary Pile Driver be customized?

Yes. Drilling tools, machine configurations, and accessories can be customized according to project requirements.
